Streamline Vivid PRO SF-FG03-220 User manual

INSTRUCTION
MANUAL
SF-FG03-220
SF-FG03-024
Checked By
Date Checked
Vivid™ PRO Fogger

VIVID™ PRO
FOGGING
MACHINE
INSTRUCTION MANUAL
INFECTION CONTROL SYSTEM

VIVID™ PRO
Vivid™ PRO Fogger INSTRUCTION MANUAL
3
Vivid™ PRO Fogger
A
A
B
B
C
C
D
D
E
E
F
F
G
G

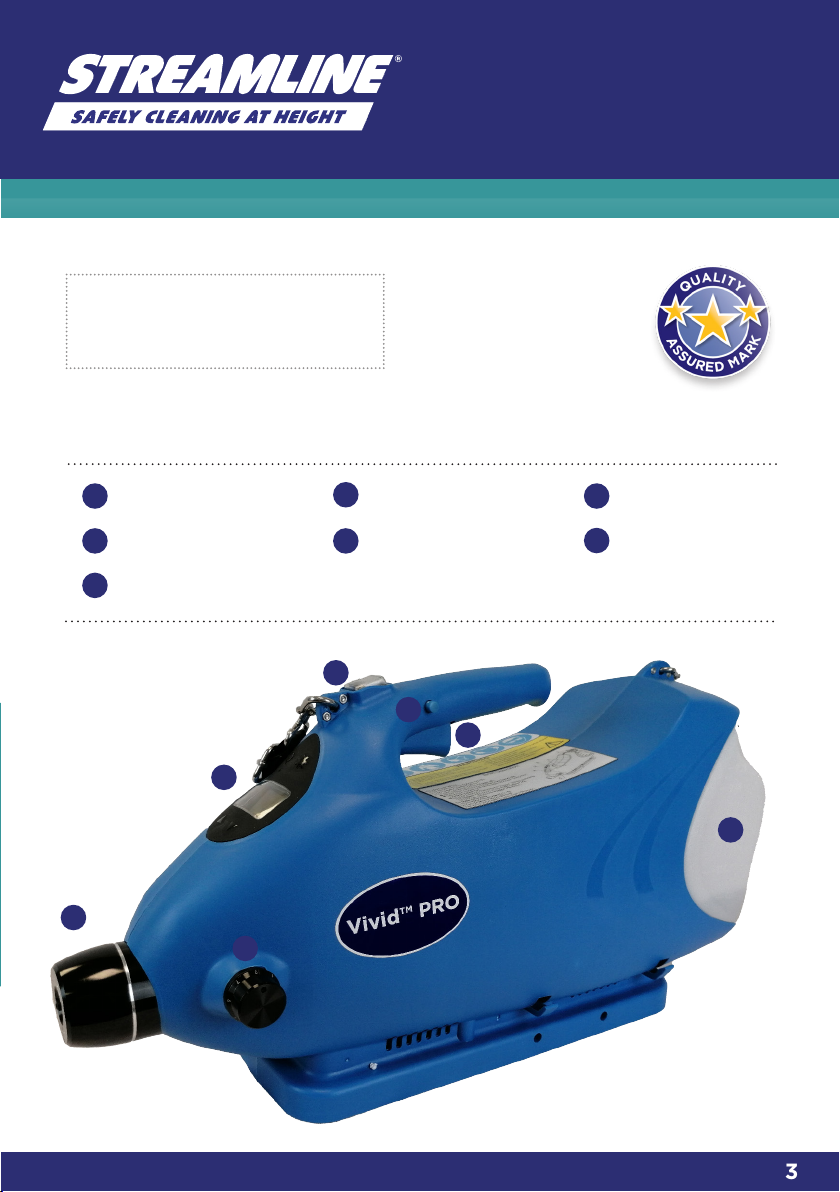

Main Power Switch
Flow Rate Knob
Lock Up Button
Chemical Tank Trigger
LED Control Panel Nozzle Cover
STREAMLINE® disclaims all liability for damage or injury as a result of improper
or unreasonable use or failure to follow operating instructions of the Vivid™PRO.
VividTM PRO Fogging Machine
Eective & portable infection
control system.

VIVID™ PRO
4
Vivid™ PRO Fogger

1. Charge battery before operating. 5. Do not splash any liquid on machine.
2. If your Fogger is the Li-ion battery
version, To maintain battery health:
Every 2 months, drain and then
fully charge the battery. Do not
charge for more than 10 hours.
6. Avoid spraying strongly-corrosive
chemicals if possible. Otherwise,
immediately spray clean water.
7. When adjusting flow rate, be careful
where the nozzle pointed.
8. Before storing, rinse solution tank
with clean water.
3. Do not turn the machine upside
down while it contains solution.
4. After spraying chemicals, spray
clean water.
Warning:
5
INSTRUCTION MANUAL

Vivid™ PRO Fogger
6
Operation Manual

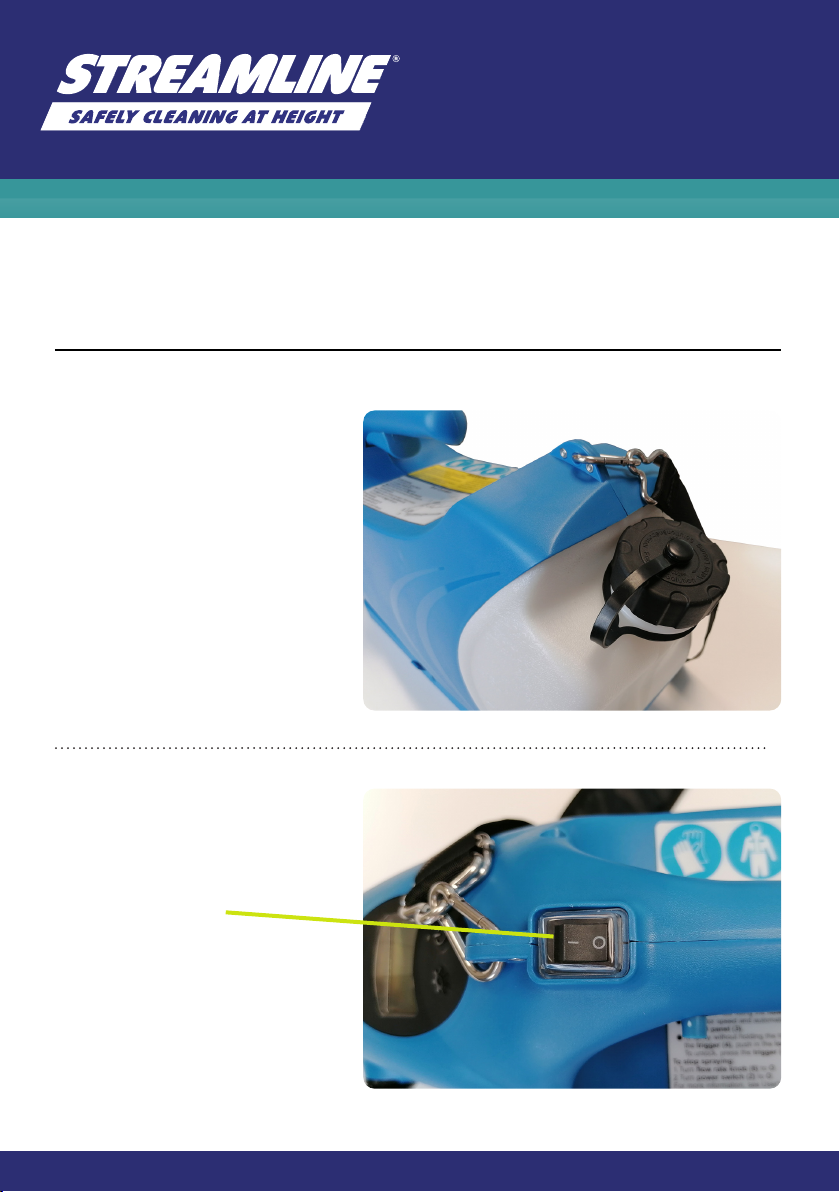

1. Fill solution tank and ensure the
tank cap is screwed on securely.
If your fogger is the Li-ion bat
tery version, ensure the battery
is charged.
2. Turn on main power switch.
(Main power switch)

INSTRUCTION MANUAL
7
3. Press ON/OFF button.
4. Open flow rate knob.
(ON/OFF button)
“0” is o
Flow rate knob

VIVID™ PRO
8

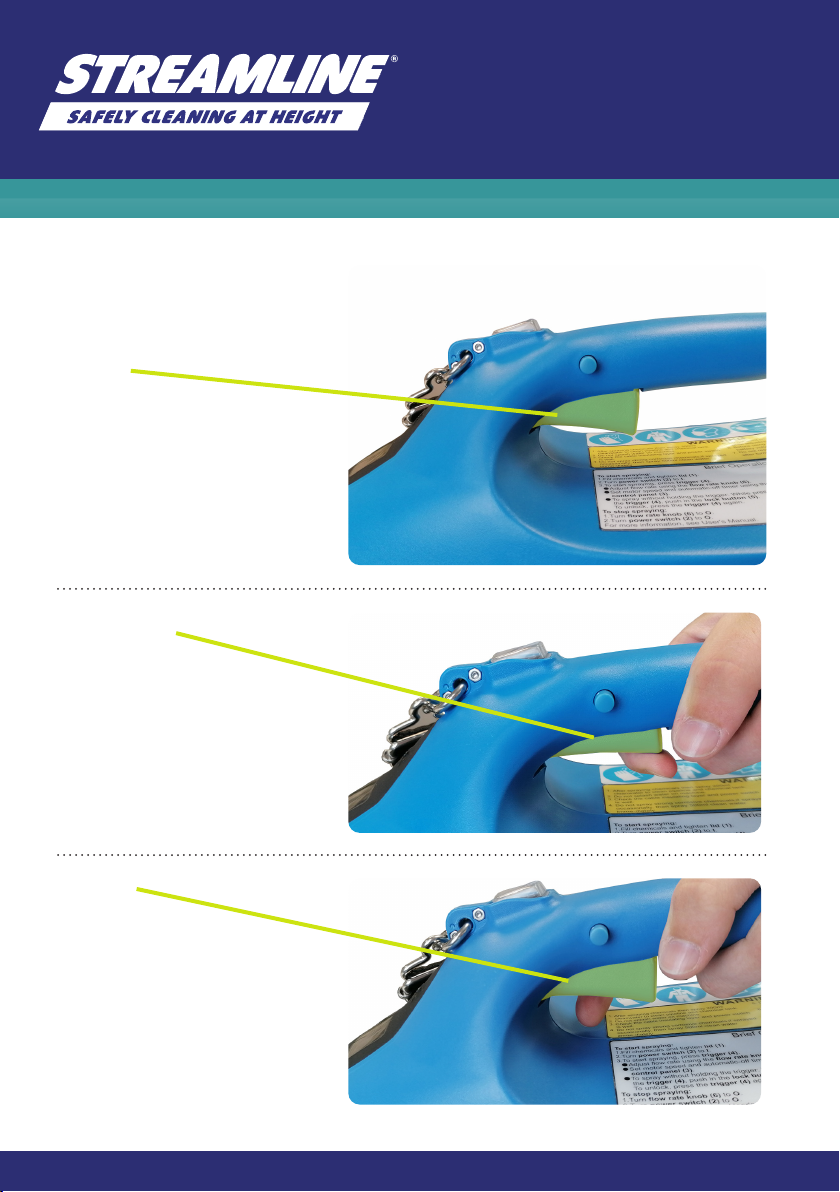

5. Pull trigger to spray, release to
stop spraying.
Trigger
Press Trigger
Release
Vivid™ PRO Fogger

INSTRUCTION MANUAL
9
6. To spray continuously, use the
Lock Up button to lock
the trigger
7. To adjust flow rate or droplet size, use the flow rate knob. Turn flow rate knob
counter-clockwise to increase flow rate and droplet size.
1. Release Trigger.
To stop spraying:
Lock up button
Release

VIVID™ PRO
10
2. Dial down the flow rate knob.
3. Press ON/OFF button.
ON/OFF button
4. Turn o main power switch on
handle.
Main power switch
Vivid™ PRO Fogger

INSTRUCTION MANUAL
11

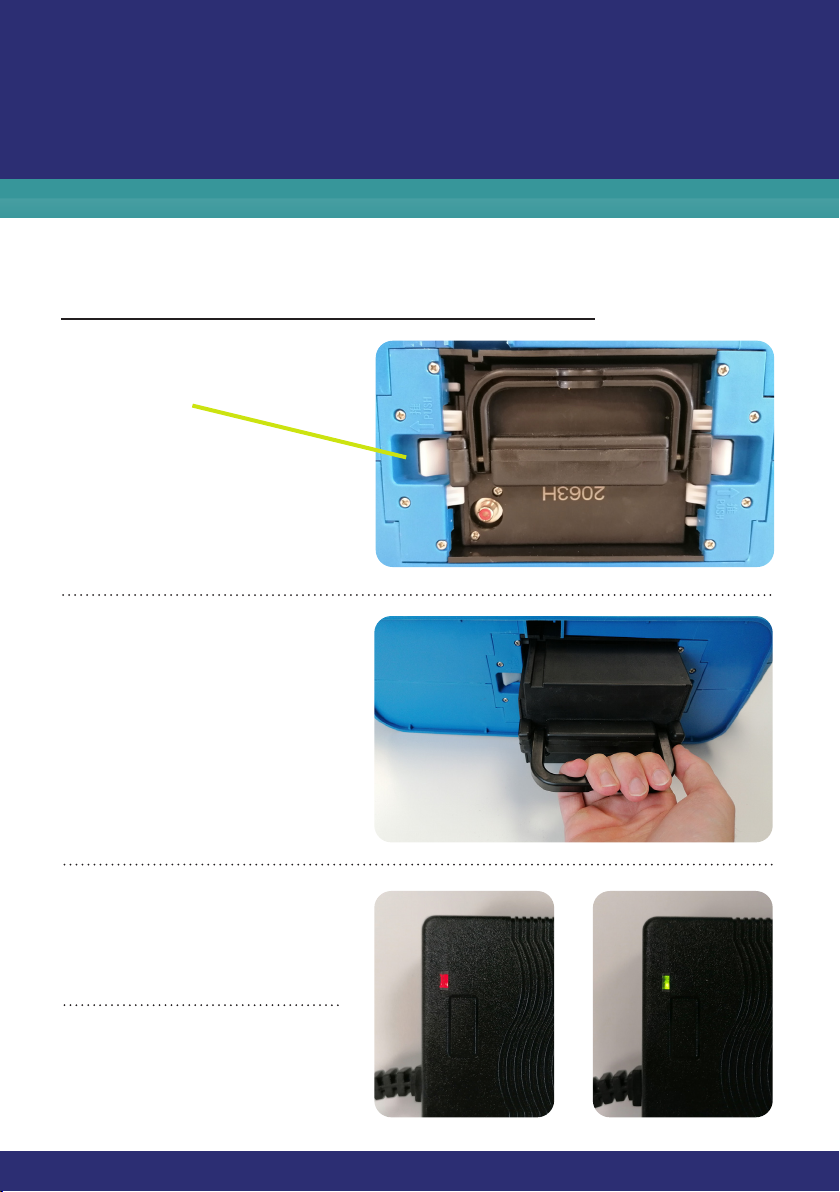

Charging the battery (This is only applicable if you
have the Li-ion battery version)
1. Push locker button
2. Remove battery.
3. The battery can be charged
after it is removed.
4. A green indicator light means
charge is complete.
Locker Button
3 4

VIVID™ PRO
12
5. Reinsert battery
Attention: Upper side is with
groove.
Vivid™ PRO Fogger

INSTRUCTION MANUAL
13
Adjusting the speed of the motor:
Press
Press
Press
Press
Once the timer is set, press
The fogger is turned on but wont start up by pressing
Once speed is selected, press and you have set the new speed.
1.
2.
2.
4.
5.
3.
twice
Activating the timer and setting a time
limit for fogging:
Trouble shooting:
Press
Press
1.
3.
once
again
twice.
to select “Timing”.
to select the desired time limit.
to select the desired time limit.
button?
Turn the power o at the main power switch and then turn back on.
5.

Vivid™ PRO Fogger
14
VIVID™ PRO
Vivid™ PRO Fogger
Setting Up the Vivid™PRO Fogger before use:
1. Firstly ensure you’re using the correct PPE for the environment you’re
working in. e.g. facemask, eye goggles, gloves and body coverall.
2. If you’re using Vivid™ SENSE solution this can be poured straight into the
solution tank without being diluted.
3. Remove the tank lid and carefully fill the tank with fogging solution en
suring solution is not spilt on the Vivid™ fogger. Once full, screw the lid
back on and you’re ready to start.
Fogging Method:
1. Before you start, open any windows in the area you’re fogging.
2. Plan your route for fogging, with the exit to the room behind you.
3. Switch on the Vivid™ PRO Fogger and move it from side to side
working from the ceiling down to the floor ensuring all surfaces have a
good covering.
4. When complete, switch o the machine and exit the room.
5. If you’re using the Vivid™ SENSE Fogging Solution, an internal unventilated
room will require up to 30 mins stand time before re-occupation, where as
a well ventilated area will only require up to 15 minutes.

Warning:
1. Charge battery before operating.
2. To maintain battery health: Every 2 months, drain and then
fully charge the battery. Do not charge for more than 10 hours.
3. Do not turn the machine upside down while
it contains solution.
4. After spraying chemicals, spray clean water.
5. Do not splash any liquid on machine.
6. Avoid spraying strongly-corrosive chemicals
if possible. Otherwise, immediately spray clean water.
7. When adjusting flow rate, be careful where
the nozzle pointed.
8. Before storing, rinse solution tank with clean water.
15
