12V 300 Amp Emergency
Jumpstarter & Portable
Power Bank
Information For Use
Diesel Engines: Up to 1600cc (1.6L)
Petrol Engines: Up to 2000cc (2.0L)
Emergency Jumpstarts
SWPB2
8000 mAh Battery Capacity
300 AMP 12V

2
Intention for Use
Product Elements
On First Use
Charging the Unit
Charging Via The Mains
Charging Via 12V Socket
Performing Emergency Jumpstarts
Functionality of Smart Jumpstart Cables
Charging Smartphones & Tablets
Charging smartphones, tablets and other USB devices
LED Torch
Health & Safety Warnings
Manufacturer’s Warranty
Technical Support
Technical Specifications
3
3
4
4
4
4
5
5
6
6
7
7
8
8
8
Manual Contents

3
Intention for Use
Thank you for purchasing the 12V 300 Amp Emergency Jumpstarter & Portable Power
Bank from Streetwize. This powerful piece of kit can jumpstart 12V vehicles with petrol
engines up to 2.0L and diesel engines up to 1.6L.
This product also acts as a robust power bank that can provide hours of portable power for
smartphones, tablets and other USB devices.

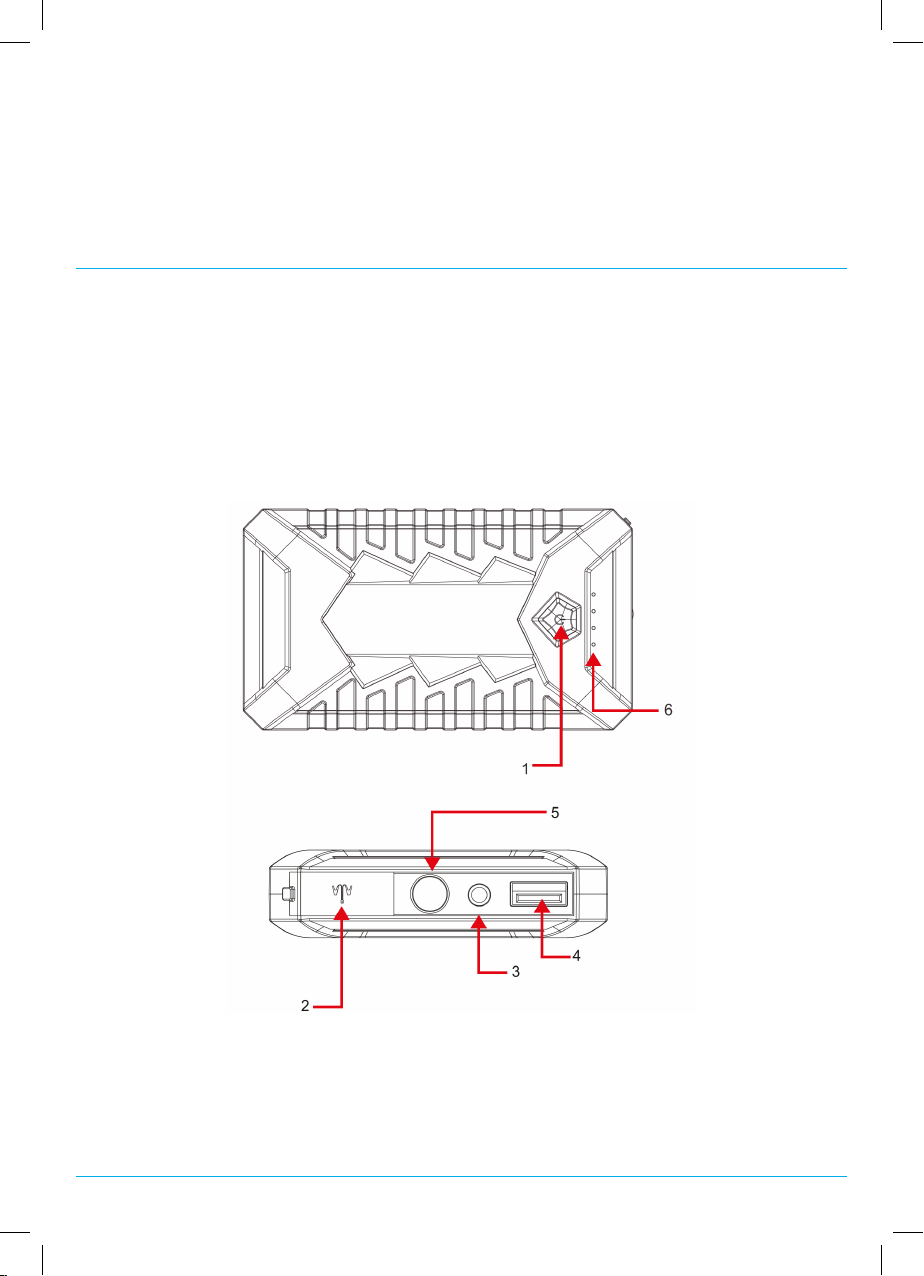

Product Elements
1. Streetwize 12V 300 Amp Emergency Jumpstarter & Portable Power Bank
2. 12V DC Socket Charger
3. 230V AC Mains Charger
4. 3-in-1 USB cable with Type C, Micro USB and Lighting Adapters
5. Smart Jump Start Cables
1. Power button
2. Battery terminal socket for
the jump start
3. 15V/1A input
4. 5V/2A output
5. Flashlight
6. LED indicator light

4
On First Use
Before using this product, we highly recommend that you charge the unit for at least 3
hours. We also advise that you keep the power bank fully charged whenever possible.
Important: This product is able to jump start vehicles when the LED indicator lights
near the power is showing at least 3 lights. However, for optimum performance, we
advise that you fully charge the unit until the LED indicator display shows all four
lights.
Never perform an emergency jump start when this unit’s LED battery indicator is
showing less than 3 LED lights as this may lead to damage to the product, or cause it
to malfunction.
Charging the Unit
This unit comes supplied with two charging cables, a 230V AC mains charging cable and
12V DC charging cable.
Charging Via The Mains
With the 230V AC mains charging cable, connect the cable to the Input 15V/1A socket on the
unit. Then connect the cable to your mains supply and switch on the mains. Charge until all
four LED indicators are permanently lit. See figure 1.
Figure 1
Charging Via 12V Socket
Using the 12V charging cable, as before, connect the cable to the Input 15V/1A socket on
the unit. Then connect the cable to your vehicle 12V socket, and then turn your vehicle on to
commence charging. Charge until all four LED indicators are permanently lit.
Important: Use the mains charging option as the primary method of charging this
power bank. The 12V charging option should be used as a secondary option as this
will risk depleting your vehicle’s battery.

5
Performing Emergency Jumpstarts
To perform an emergency jumpstart, please follow the instructions below:
1. Take the smart jumpstart cables and connect it to your vehicle’s 12V battery terminals.
Connect the RED cable to the positive terminal FIRST, then connect BLACK cable to
the negative terminal SECOND. Make sure the clips are well-connected to the battery
terminals.
Caution: Never connect the red & black crocodile clips together at the same time.
2. Then, connect the smart jumpstart cables to the unit. You should see a Green LED light
appear on the smart jumpstart cable’s terminal followed by a single beep sound to confirm
correct connectivity.
3. Place the unit on a steady surface under the bonnet.
4. Attempt to start your vehicle’s engine. DO NOT attempt to start the engine for more than
4 seconds. The vehicle’s engine should start immediately. If it doesn’t, turn off the engine
and wait for at least 15 seconds
5. Once the engine has been ignited, immediately unplug the battery cable adaptor from
the unit first, and then remove the crocodile clips from the battery. Then, place everything
back into its carry case.
1 2
3 4
1 2 3
1 2 3
12 3
12
Figure 2
Please note: The unit will NOT be able to perform an emergency jumpstart if the
vehicle has a voltage rate above 12.3V. If the vehicle does not start, this may
indicate another problem and we advise that you get your vehicle checked by a
qualified mechanic or professional.

6
Functionality of Smart Jumpstart Cables
The included smart jumpstart cables come with an LED indicator that displays either a red
or green light and it also comes with a warning sound.
Charging Smartphones & Tablets
This unit comes with a single USB charging port (5V/2.1Amp) and a single input 15V/1Amp.
IMPORTANT: Do not charge the unit and charge an electronic device at the same
time. This will shorten the power bank’s battery life.
Charging smartphones, tablets and other USB devices
1. Connect the provided 3-in-1 USB charging cable plug into the 5V/2A USB output port.
2.Insert the correct adapter for the device to be charged.
3. Press the “Power” button once to commence charge. Unplug when the device has been
charged.
LED Light / Sound Meaning
Soild Red LED with 2 short beeps
Solid Red LED with 1 long beep
(high frequency)
Solid Red LED with 1 long beep
(low frequency)
Solid Red LED with 2 short beeps
Green/Red LED flashing
Green LED
Reverse polarity connection
Short-circuit protection
Overheat protection
Over-discharging protection
Searching for status connection
Correct connection after one beep

7
LED Torch
To turn on the LED torch, press and hold the
“Power” button to turn on the LED torch.
Then, press again to select either SOS
FLASHING or STROBE (fast) mode.
Press the “Power” button again to switch off.
Health & Safety Warnings
• The power bank will generate heat when charging. Charge in a well-ventilated area. Keep
the power bank away from heat sources, direct sunlight, humidity, water or other liquids.
• Do not operate the power bank if it is wet or damaged to prevent electrical shock,
explosion and/or injury. Improper repairs of this device may place the user at risk.
• Do not use the power bank with wet hands. Do not use this unit for anything other than its
intended use.
• The power bank is not a toy. Keep out of reach of children.
• Do not charge under pillows, blankets or any other fabric.
• Do not store in a car during hot weather.
• Short-circuiting a Li-ion battery can cause it to ignite or explode.
• Never open a Li-ion battery’s casing. Li ion batteries contain safety devices that protect the
cells inside from abuse, if damaged these can cause the battery to ignite or explode.
• DO NOT use or store at temperatures above 80°C or below -25°C
• Do not charge the power bank and charge an electronic device at the same time. This will
shorten the power bank’s battery life.

Streetwize: Ashburton Road West, Trafford Park, Manchester M17 1RY
For Product Support:
E: [email protected]
T: [phone]
For Trade Enquiries:
E: [email protected]
T: [phone]
www.streetwizeaccessories.com
Technical Support
If you require any technical support, please contact us on [email protected]
and provide product name and supplier code (see Technical Specifications) along with the
technical query and proof of purchase.
Technical Specifications
Product Streetwize 12V 300AMP
Emergency Jumpstarter &
Portable Power Bank
Product Code
Input
USB Output
Output for Jumpstart
Capacity
Operating temp
Cycle life
LED life
Size
SWPB2
15V/1Amp
5V 2.1A USB
12V/300Amp
8000mAh
-25°C to +80°C
1000 recharges
50,000 hours
140mm x 79mm x 19mm
