Strong Spas WK01S User manual

2011 Acrylic Spa Owner’s Manual
Customer Service 1•800•787•6649 email: [email protected]
READ AND FOLLOW ALL INSTRUCTIONS
Unit is IPX5 Compliant

2www.strongpoolsandspas.com
Congr tul tions on your purch se of sp
m nuf ctured by Strong Sp s™.
Your new spa will bring you years of
enjoyment and relaxation.
Please take the time to familiarize yourself with the safety precautions,
and operational procedures,
as well as the routine water maintenance and cleaning
so that your spa will provide a
healthy environment for all your bathers.
Enjoy!

Customer Service 1•800•787•6649 3
Contents
Important Safety Instructions and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Prepare for Your New Spa
Plan the Best Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Prepare a Good Foundation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Electrical Installation (240 V 60 Z North America) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Identifying the Spa’s Electrical Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
GFCI Wiring Diagram (240 V 60 Z North America). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
GFCI Wiring Diagram (230 V 50 Z Europe) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating Your Spa
Filling and Starting Up Your Spa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Priming the Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

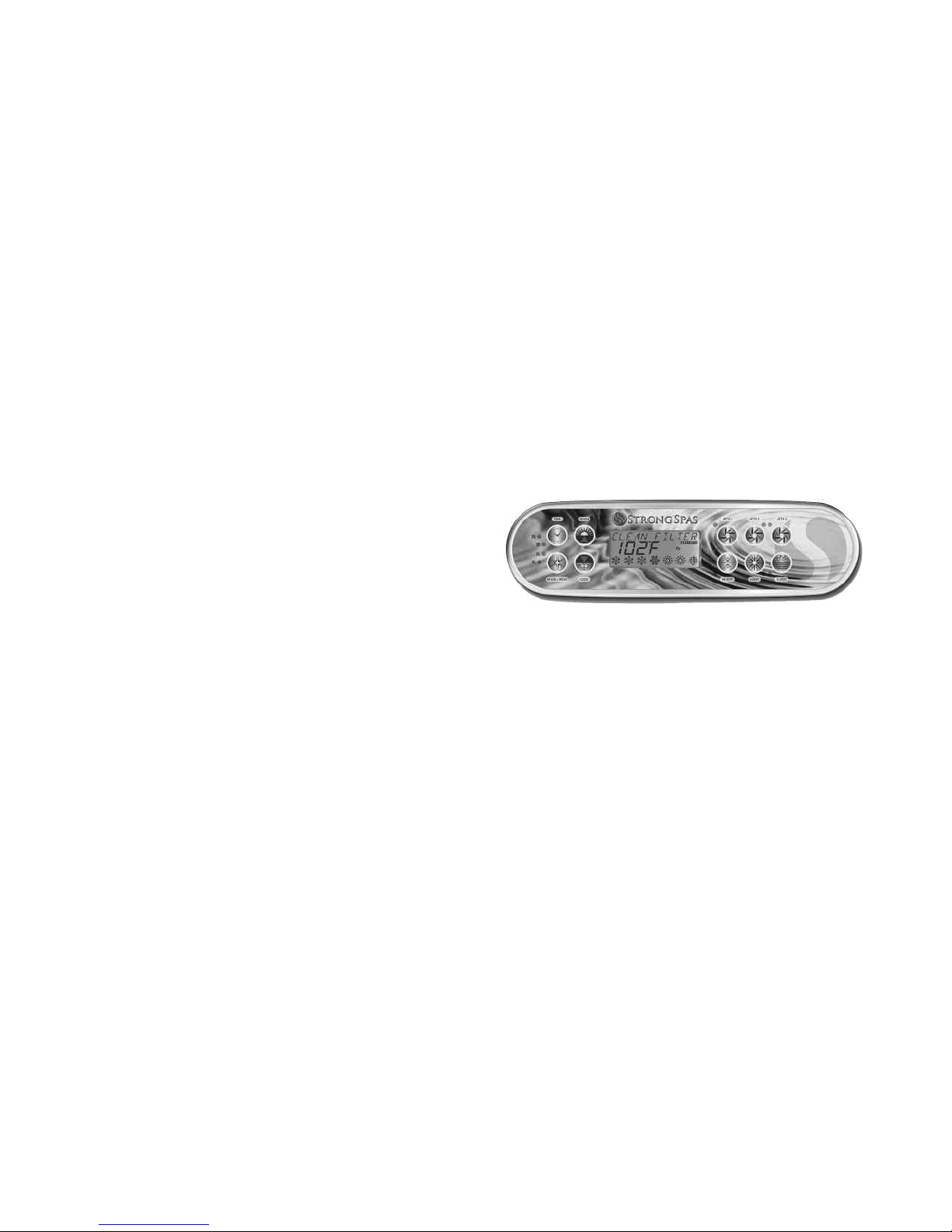

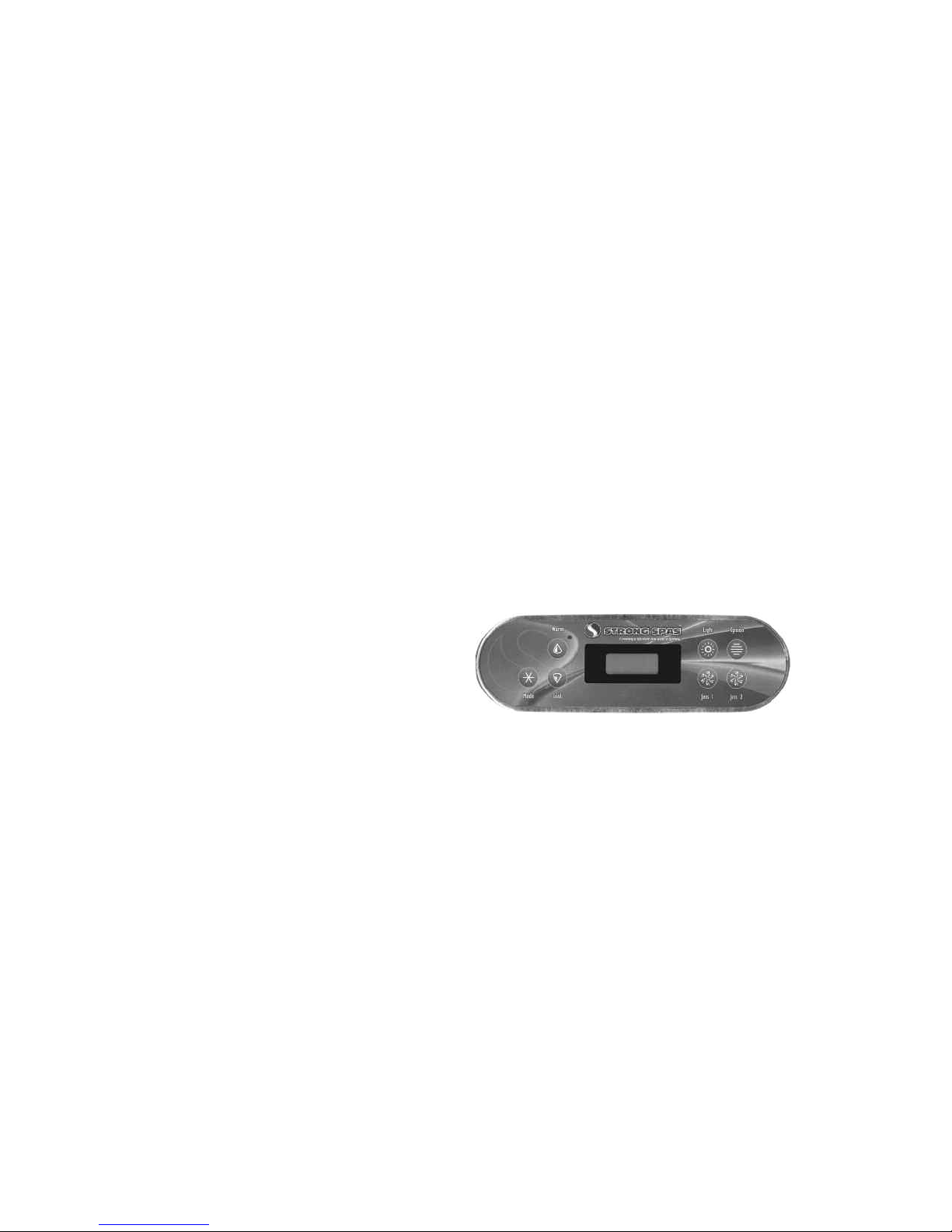

Topside Control Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

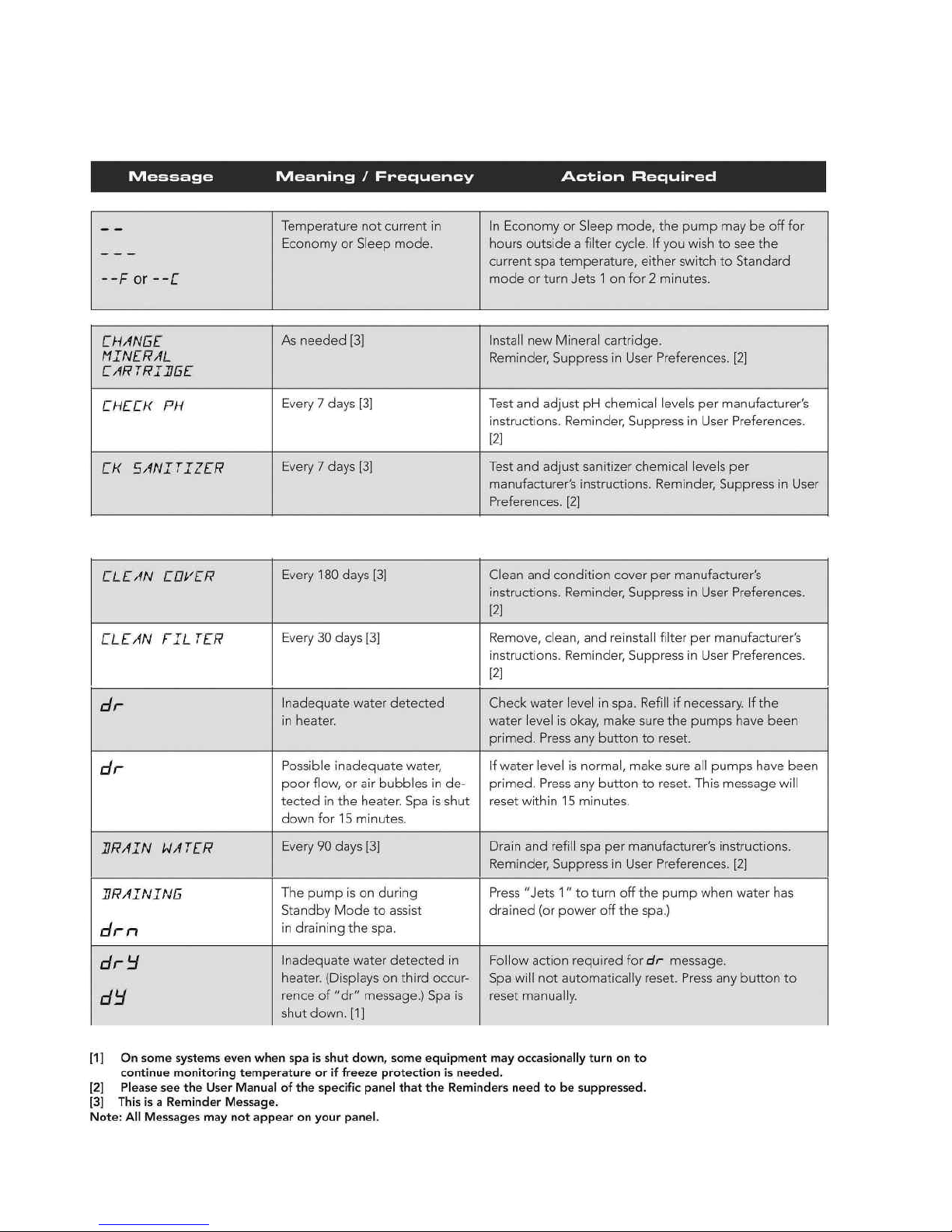

Control Pack Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Personalized Settings
Jets, Air Controls, Diverters, Remotes, Waterfalls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Electrical Power Efficiency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Testing and Adjusting Spa Water
Water Maintenance Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Sanitation, Ozonator, Filtration, Chemical Balance, Testing Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Balancing Your Spa’s Water Chemistry (Alkalinity, Calcium ardness, p ) . . . . . . . . . . . . . . . . . . . . . . 27
Chlorine and Bromine Sanitation Overviews . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Chemical Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

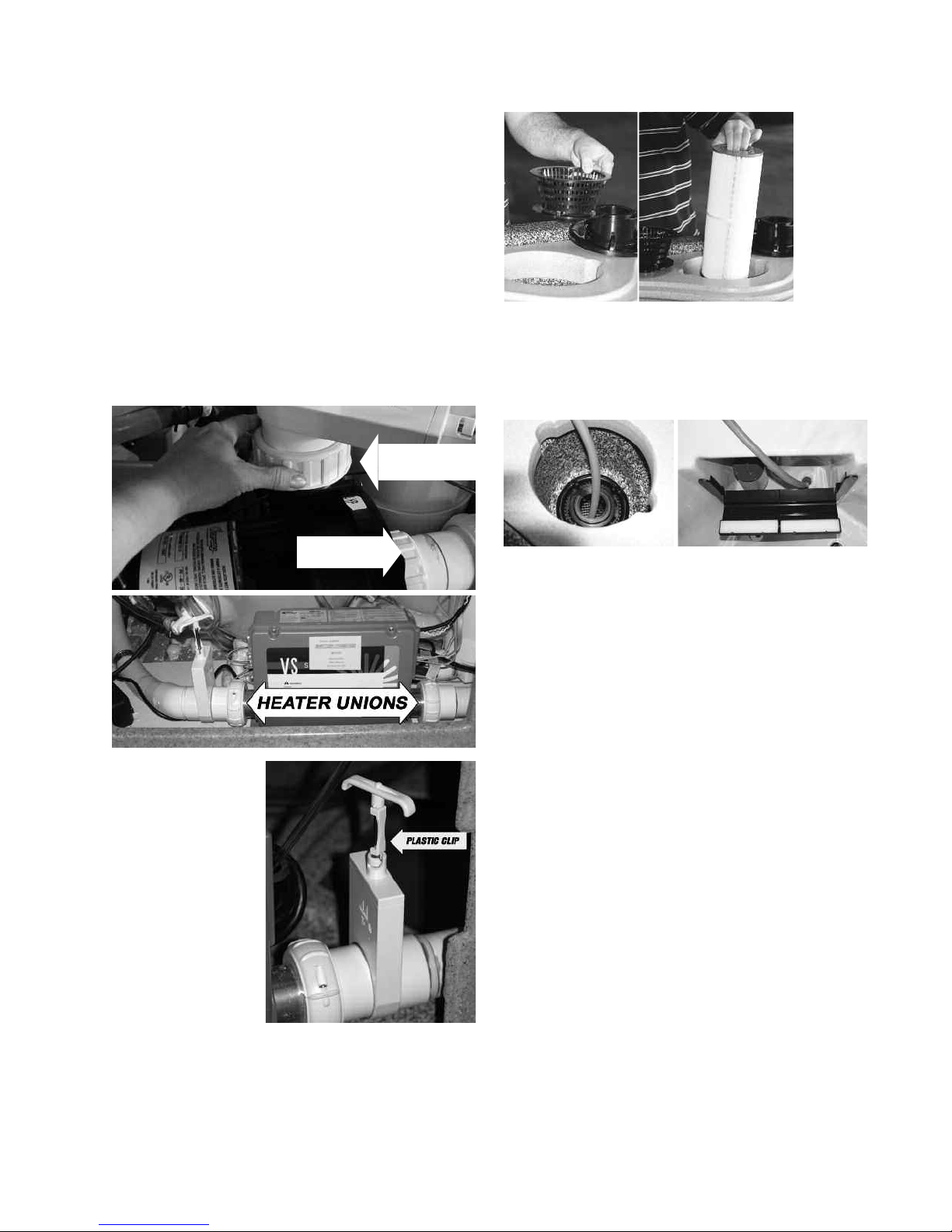

Filter Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Starting the Spa with Fresh Water. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Troubleshooting
Water Quality Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Operational Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cleaning and Care
Draining Your Spa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Vacation Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Cleaning Your Spa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Removing and Reseating the Pillows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Spa Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Jet Removal and Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Sound System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Winterizing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Parts Catalog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
CONTACT INFORMATION
For customer service, please call 1-800-787-6649
Strong™ Spas
3204 Point Township Drive, Northumberland, PA 17857 USA
Strong™ Sp s reserves the right to m ke product modific tions nd enh ncements without notice.
Specific tions nd dimensions re pproxim te nd for reference only.

4www.strongpoolsandspas.com
Important Safety Instructions and Warnings
Warning: Children should not use
spas or hot tubs without adult supervi-
sion.
Avertissement: Ne pas laisser les enfants
utiliser une cuve de relaxation sans surveillance.
Warning: Do not use spas or hot tubs
unless all suction guards are installed to
prevent body and hair entrapment.
Avertissement: Pour éviter que les cheveux
ou une partie du corps puissent étre aspirés, ne
pas utiliser une cuve de relaxation si les grilles
de prise d’aspiration ne sont pas poutes en
place.
Warning: People using medications
and/or having an adverse medical his-
tory should consult a physician before
using spa or hot tub.
Avertissement: Les personnes qui prennet
des medicaments ou ont des problemes de
sante devraient consulter un medicin avant d’
utiliser une cuve de relaxation.
Warning: People with infectious dis-
eases should not use a spa or hot tub.
Avertissement: les personnes at-
teintes de maladies infectieuses ne devraient
pas utiliser une cuve de relaxation.
Warning: To avoid injury, exercise
care when entering or exiting the spa
or hot tub.
Avertissement: Pour éviter des blessures,
user de prudence en entrant dans une cuve de
relaxation en sortant.
Warning: Do not use drugs or alcohol
before or during the use of a spa or
hot tub, to avoid unconsciousness and
possible drowning.
Avertissement: Pour éviter l’évanouissement
et la noyade éventuelle, ne prendre ni drogue ni
alcool avant d’utiliser une cuve de relaxation ni
quand on s’y trouve.
Warning: Pregnant or possibly preg-
nant women should consult a physician
before using a spa or hot tub.
Avertissement: Les femmes enceintes, que
leur grossesse soit confirmée ou non, devraient
consulter un médecin avant d’utiliser une.
Warning: Water temperature in ex-
cess of 38°C may be injurious to your
health.
Avertissement: Il peut etre dangereux pour la
sante de se plonger dans de l’eau a plus de
38°C.
Warning: Before entering the spa or
hot tub, measure the water tempera-
ture with an accurate thermometer.
Avertissement: Avant d’utiliser une cuve de
relaxation mesurer la température de l’eau á
l’aide d’un thermométre précis.
Warning: Do not use a spa or hot tub
immediately following strenuous exer-
cise.
Avertissement: Ne pas utiliser une cuve de
relaxation immédiatement aprés un exercise
fatigant.
READ AND FOLLOW ALL INSTRUCTIONS
SAVE T ESE INSTRUCTIONS
#58+*;)+:.+8/915,/40;8?*545:6+83/:)./2*8+4:5;9+:./9
685*;):;42+99:.+?'8+)259+2?9;6+8</9+*':'22:/3+9
!
!
!
!
!
!
!
!
!
!

Customer Service 1•800•787•6649 5
Important Safety Instructions and Warnings
Warning: Prolonged immersion in a
spa or hot tub may be injurious to your
health.
Avertissement: L’utilisation prolongee d’ une
cuve de relaxation peut etre dangereuse pour la
sante.
Warning: Do not permit or use elec-
tric appliances (such as a light, tele-
phone, radio or television) within 1.5
meters of spa or hot tub.
Avertissement: Ne pas placer d’appareil élec-
trique (luminaire, téléphone, radio, téléviseur,
etc.) á moins de 1.5 meters de cette cuve de
relaxation.
Caution: Maintain water chemistry in
accordance with the manufacturer’s in-
structions.
Attention: La teneur de l’eau en matiéres dis-
soutes doit étre conforme aux directives du
fabricant.
HYPERTHERMIA
yperthermia occurs when the inter-
nal temperature of the body reaches a
level several degrees above the normal body
temperature of 37°C. The symptoms of hyper-
thermia include:
1) Unawareness of impending hazard;
2) Failure to perceive heat;
3) Failure to recognize the need to exit the spa
or hot tub;
4) Physical inability to exit the spa or hot tub;
5) Fetal damage in pregnant women; and
6) Unconsciousness and resulting in the danger
of drowning.
Warning: The use of alcohol or drugs
can greatly increase the risk of fatal hy-
perthermia in hot tubs or spas.
Avertissement: La consommation d’ alcool
ou de drogue augmente considerablement.
READ AND FOLLOW ALL INSTRUCTIONS
SAVE T ESE INSTRUCTIONS
#58+*;)+:.+8/915,/40;8?*545:6+83/:)./2*8+4:5;9+:./9
685*;):;42+99:.+?'8+)259+2?9;6+8</9+*':'22:/3+9
!!
!
!
!

6www.strongpoolsandspas.com
Prepare for Your New Spa
Prepare for Your New Spa
Most cities and counties require permits for exte-
rior construction and electrical circuits. In addition,
some communities have codes requiring residential
barriers such as fencing and/or self-closing gates on
property to prevent unsupervised access to the
property by children. Your local code enforcement
officer can provide information on which permits
may be required and how to obtain them prior to
the delivery of your spa.
Prepare a Good Foundation
'3'-+)';9+*(?'4/4'*+7;':+58/36856+8
,5;4*':/54/945:)5<+8+*(?:.+='88'4:?#.+
96'5=4+8/98+96549/(2+,58685</*/4-'6856+8
,5;4*':/54 Place the spa on a solid, level founda-
tion. If you are installing the spa indoors (not rec-
ommended), pay close attention to the flooring
beneath it. Choose flooring that will not be dam-
aged or stained. If you are installing your spa on an
elevated wood deck or other structure, consult a
structural engineer or a contractor to ensure the
structure will support the weight of 150 pounds per
square foot.
Plan the Best Location
SAFETY FIRST
Do not place your spa within 10 feet (3 m)
of overhead power lines.
Do not use in warm, damp, equable climates.
!##":854-A"6'9%'88'4:?/9<5/*/,
:.+96'/935<+*:5'4?25)':/54:.':/945::.+
58/-/4'2C"./6#5D'**8+99
Consider Spa Use
ow you intend to use your spa will help you
determine where you should position it. For exam-
ple, will you use your spa for recreational or thera-
peutic purposes? If your spa is mainly used for family
recreation, be sure to leave plenty of room around
it for activity. If you will use it for relaxation and
therapy, you will probably want to create a specific
mood around it.
Climate, Privacy and View
Place the spa near a house entry if you live in a
snowy or rainy environment so you have a place to
comfortably change clothes. Consider seasonal
changes, too. Bare trees don’t provide much privacy.
And don’t forget to think of your neighbors’ view of
you, and your view of your neighbors.
Keep Your Spa Clean
In planning your spa’s location, consider a location
where there is a clean path to and from the house.
Use a mat at the spa’s entrance to encourage
bathers to clean their feet before entering your spa.
Allow for Service Access
If you are installing your spa near a wall or with any
type of structure on the outside, such as a gazebo,
remember to allow access for service.
!

Customer Service 1•800•787•6649 7
Prepare for Your New Spa
240 Volt Electrical
Installation
(North America 60hZ)
%!
#.++2+):8/)'2)/8);/:3;9:(+/4
9:'22+*(?'4+2+):8/)'2)54:8'):58
'4*'6685<+*(?'25)'2(;/2*/4-58+2+):8/
)'2/496+):58
'/2;8+:5)5362?=/:.9:':+'4*25)'2
)5*+93'?8+9;2:/4,/8+586+8954'2/40;8?
'4*=/22(+:.+952+8+96549/(/2/:?5,:.+96'
5=4+8
36856+8/49:'22':/54968+9+4:
.'@'8*9=./).)'48+9;2:/46+8954'2
/40;8?586856+8:?*'3'-+'4*<5/*:.+
='88'4:?54:.+96'
Spa jumpers and dip switches are
preconfigured for a 240V installation.
• All 240V spas must be permanently hardwired to
the power supply. See US wiring diagram on page
9, European wiring diagram on page 10.
• Spas must be wired using this procedure. Any vari-
ance from these instructions will void your war-
ranty and may result in serious injury.
• When installed in the United States, the electrical
wiring of this spa must meet the requirements of
National Electric Code, ANSI/NFPA 70-2008 and
any applicable local, state, and federal codes.
GFCI and Wiring Requirements
• The power supplied to the spa must be on a dedi-
cated GFCI protected circuit as required by
ANSI/NFPA 70 with no other appliances or lights
sharing the power.
• Use copper wire with T N insulation. Do not
use aluminum wire.
• Use the table on the next page to determine your
GFCI and wiring requirements.
• When NEC requires the use of wires larger than
#6 AWG, install a junction box near the spa and
use #6 AWG wire between the junction box and
the spa.
• Wire runs over 85 feet must increase wire gauge
to the next lower number.
Testing the GFCI Breaker
Test the GFCI breaker prior to first use and periodi-
cally when the spa is powered. To test the GFCI
breaker follow these instructions
1. With spa operating, press the TEST button on the
GFCI. The GFCI will trip and the spa will shut off.
2. Reset the GFCI breaker by switching the breaker
to the full OFF position, wait a moment, then turn
the breaker back on. The spa should have power
again.
!

8www.strongpoolsandspas.com
Prepare for Your New Spa
Balboa Pack
Model No. and Part No.
Usage Description
and Settings
GFCI
Required
Wire(s)
Required
Model No. VS501Z
Part No. 54379-03
1 pump spa
(Pump on hi + heat)
Dip switches #3 & 7 are ON
240V
50 AMP
#6 AWG
Copper
Model No. VS501Z
Part No. 54379-03
1 pump spa + blower
or
2 pump (one 2-speed & one 1-speed)
(Pump on hi + heat)
All dip switches off.
240V
50 AMP
#6 AWG
Copper
Model No. VS511
Part No. 54384-04
2 pump spa
(1 pump on hi + heater)
Dip switches #2 & 3 are ON
240V
50 AMP
#6 AWG
Copper
Model No. VS511
Part No. 54384-04
2 pump spa
(2 pumps on hi + heater)
Dip switches #2, 3, 10 are ON
240V
60 AMP
#6 AWG
Copper
Model No. VS520
Part No. 56007-01
2 pump spa + blower
(1 pump on hi + heater)
Dip switches #7, 10 are ON
240V
50 AMP
#6 AWG
Copper
Model No. VS520
Part No. 56007-01
2 pump spa + blower
(2 pumps on hi + heater)
Dip switches #2, 7, 10 are ON
240V
60 AMP
#6 AWG
Copper
Model No. S REL 523
Part No. 56164
3 pump spa + blower
(3 pumps on hi + heater)
Dip switches #2, 3, 6 are ON
240V
60 AMP
#6 AWG
Copper
Model No. LM 8000
Part No. 57129
2+ pumps spa + blower + stereo
Dip switches N/A
240V
60 AMP
#6 AWG
Copper
Model No. GS500
Part No. 54520 (L1, N1)
1 pump European Spa
Dip switches #2, 3, 6, 7, 8, 10 are ON
230V
20 AMP
#6 AWG
Copper
Model No. GS500
Part No. 54520 (L1, N1, L2, N2)
1 pump European Spa
Dip switches #2, 3, 6, 7, 8 are ON
230V
40 AMP
#6 AWG
Copper
Model No. GS511
Part No. 54521-01 (L1, N1)
2 pump European Spa
Dip switches #3, 6, 8, 10 are ON
230V
40 AMP
#6 AWG
Copper
Model No. GS511
Part No. 54521-01 (L1, N1, L2, N2)
2 pump European Spa
Dip switches #3, 6, 8, 10 are ON
230V
40 AMP
#6 AWG
Copper
Model No. GS520SZ
Part No. 55423-01 (L1, N1)
2 pump European Spa
Dip switches 6, 7, 8, 10 are ON
230V
40 AMP
#6 AWG
Copper
Model No. GS520SZ
Part No. 55423-01 (L1, N1, L2, N2)
2 pump European Spa
Dip switches 6, 7, 8, 10 are ON
230V
40 AMP
#6 AWG
Copper
Model No. GS520SZ
Part No. 55423-01 (L1, L2, L3, N1)
2 pump European Spa
Dip switches 6, 7, 8, 10 are ON
230V
40 AMP
#6 AWG
Copper
Identifying the Spa’s Electrical Components
Locate Dip Switch PanelLocate Electrical Pack Part Number and Model Number

Customer Service 1•800•787•6649 9
Prepare for Your New Spa
4:45&.
#09
ON ON ON ON ON
OFF OFF OFF OFF OFF
RED (HOT)
BLACK (HOT)
WHT
GRN
FRONT VIEW OF TYPICAL G.F.C.I.
G.F.C.I. Breaker Box
House Breaker Box
GRN (GROUND)
GRN (GROUND)
GRN (GROUND)
WHT (NEUTRAL)
RED (HOT)
RED (HOT)
BLK (HOT)
BLK (HOT)
WHT
WHT
ON
OFF
LOAD
OUT
(BLK)
LOAD
OUT
(RED)
(3/
8)5
3&%
#-,
Neutral Hot Hot Ground
USE COPPER 240V
WIRE MIN 6 AWG
RED (HOT)
FROM SPA
BLK (HOT)
FROM SPA
WHT
FROM SPA
WHT
BOTTOM VIEW OF
TYPICAL G.F.C.I.
ON
OFF
SPA CIRCUIT BOARD
L1
L2
N
GRND
THREE WIRE
& GROUND
THESE WIRES GO
TO THE PC BOARD
CONTROL CIRCUIT
240V
GFCI Wiring Diagram (North America 240V 60hZ)
%!
#.++2+):8/)'2)/8);/:3;9:(+/49:'22+*(?'4+2+):8/)'2
)54:8'):58'4*'6685<+*(?'25)'2(;/2*/4-58+2+):8/
)'2/496+):58'/2;8+:5)5362?=/:.9:':+'4*25)'2)5*+93'?
8+9;2:/4,/8+586+8954'2/40;8?'4*=/22(+:.+952+8+96549/(/2
/:?5,:.+96'5=4+8
36856+8/49:'22':/54968+9+4:.'@'8*9=./).)'48+9;2:/4
6+8954'2/40;8?586856+8:?*'3'-+'4*<5/*:.+='88'4:?54
:.+96'
!

10 www.strongpoolsandspas.com
Prepare for Your New Spa
Single Service, TN and TT Electrical
Systems
(1 x 16 Amp or 1 x 32 Amp)
3 ires (1 Line + 1 Neutral + 1 Protective
Earth)
Protective Earth wire 6mm2 minimum
(Green/Yellow) must be connected to system ground
terminal as marked.
This option is configured and shipped as the de ault.
All equipmen (pumps, blower, and hea er) runs on
service line L1.
Systems using only 1 DIP switch (A10) or heat disable:
• For 1 x 16 Amp Service:
DIP Switch A10 must be ON.
• For 1 x 32 Amp Service:
Set DIP Switch A10 such that total system amperage
draw never exceeds rated service input.
Systems using multiple DIP switches or heat disable:
•Re er to Switchbank settings on inside cover o
pack.
Dual Service, TN and TT Electrical
Systems
(2 x 16 Amp)
5 ires (2 Lines + 2 Neutrals + 1 Protective
Earth)
Protective Earth wire 6mm2 minimum
(Green/Yellow) must be connected to system ground
terminal as marked.
The hea er runs on service line L1, while all o her equip-
men , such as pumps and blowers, run on service line
L2.
Completely remove the white wire rom J26 and J32.
No e: J32 and J25 are elec rically iden ical. The whi e
wire may be a ached o ei her erminal before removal.
Systems using only 1 DIP switch (A10) or heat disable:
• DIP Switch A10 must be OFF.
Systems using multiple DIP switches or heat disable:
•Re er to Switchbank settings on inside cover o
pack.
GFCI Wiring Diagram (European 230V 50hZ)
Systems with PCB Rev B Only
Note: A residual current device with a tripping current rated not more than 30 mA
has to be installed in addition to local requirement.
Protective device for power connection must be on all phase conductors based on local requirements.
Note: A residual current device with a tripping current rated not more than 30 mA
has to be installed in addition to local requirement.
Protective device for power connection must be on all phase conductors based on local requirements.

Customer Service 1•800•787•6649 11
Prepare for Your New Spa
L1
L2
GRND
Two Wire & Earth
(Also known as Ground)
These wires go to
the PC Board Control
Circuit.
Earth/Ground = Green & Yellow wire
L1 = Positive/Live = Brown wire
L2 = Negative/Neutral = Blue wire
230 Volt - Single service 1x16 - 20 AMP Breaker
230 Volt - Double service 1x32 - 40 AMP Breaker
Electrical Connections
Substitute these common HOT, NEUTRAL, EARTH GROUND colors for your countries standard.
PLEASE CHECK YOUR LOCAL BUILDING CODES AND ONLY USE A CERTIFIED ELECTRICIAN TO
INSTALL ANY ELECTRICAL COMPONANTS TO YOUR SPA.
3-Phase Service, TN and TT Electrical
Systems
on 90 jet spa only
5 ires (3 Lines + 1 Neutral +
1 Protective Earth)
Protective Earth wire 6mm2 minimum
(Green/Yellow) must be connected to system
ground terminal as marked.
IMPORTANT - Service MUST include a neutral
wire, with a line to neutral voltage of 230VAC.
The hea er runs on service line L1.
All main-board equipmen run on service line L3.
Add ional equipmen , such as expansion boards, run
on service line L2.
Completely remove the white wire rom J26 and J32,
or J25.
Completely remove the blue wire rom J28 and J58.
I an expansion board is installed, black wire must
connect to J28 (Line L2) only.
Systems using only 1 DIP switch (A10) or heat dis-
able:
• DIP Switch A10 must be OFF.
Systems using multiple DIP switches or heat dis-
able:
•Re er to Switchbank settings on inside cover o
pack.
Note: A residual current device with a tripping current rated not more than 30 mA
has to be installed in addition to local requirement.
Protective device for power connection must be on all phase conductors based on local requirements.
240V/50hZ 29 – 36 Amp draw, depending on model.
%!
#.++2+):8/)'2)/8);/:3;9:(+/49:'22+*(?'4+2+):8/)'2)54:8')
:58'4*'6685<+*(?'25)'2(;/2*/4-58+2+):8/)'2/496+):58
'/2;8+:5)5362?=/:.9:':+'4*25)'2)5*+93'?8+9;2:/4,/8+
586+8954'2/40;8?'4*=/22(+:.+952+8+96549/(/2/:?5,:.+96'5=4+8
36856+8/49:'22':/54968+9+4:.'@'8*9=./).)'48+9;2:/46+8954'2
/40;8?586856+8:?*'3'-+'4*<5/*:.+='88'4:?54:.+96'
!

12 www.strongpoolsandspas.com
Operate Your Spa
Filling and Starting
1. Place spa on an approved surface and have it
properly wired by a licensed electrician.
2. Remove exterior spa panels by inserting a
flathead screwdriver at bottom edge of panel and
prying out.
3. Make sure white plumbing unions are secure and
did not loosen during shipping. There will be 4
unions on a 1-pump spa; 6 unions on a 2-pump
spa. and-tighten any loose unions.
4. Open all gate
valves in the equip-
ment area. Before
operation, these
valves must be in
the UP/OPEN po-
sition and have
plastic clips in-
serted. Never run
the spa with the
gate valves closed
or without water
circulating for any
period of time.
5. Remove the filter(s) (and weir and basket, if
equipped) from filter chamber. Photos may vary
from your particular spa model.
6. Place a garden hose in the filter chamber and fill
your spa with regular tap water to 2” higher than
the highest jet (excluding neck/shoulder jets).
545:,/22?5;896'=/:.95,:=':+8It is difficult
to maintain proper water chemistry with soft water.
Also, the water may foam, which will eventually
harm the finish of the spa and void your warranty.
7. If you have an automatic bromine generator, turn
it off.
8. Once the water is at the correct level and air is
bled, turn on the power at the GFCI breaker.
Note: When the power is turned on, the controls will per-
form di gnostic check for few minutes. When com-
plete, the sp will utom tic lly oper te t filter speed
nd continue he ting until w ter re ches 100ºF.
9. If water does not flow from jets when the pump
is running, there could be an air pocket. See next
page, Priming the Pump, for methods of removing
air pockets from the pump(s)l
10. Install the filter(s) (and weir and basket, if
equipped) into the filter chamber.
For Replacement Filters go to:
www.strongspasretail.com
PRESSURE
UNION
SUCTION
UNION

Customer Service 1•800•787•6649 13
Operate Your Spa
Priming the Pump
Sometimes air can become trapped in the pump
while filling the spa. You will know this has happened
when after you have filled and started the spa, the
pump does not function. You will hear the pump op-
erating, but no water will be moving. #.+6;36=/22
45:=5816856+82?=./2+'/8/9:8'66+*/4/:54
:/4;/4-:556+8':+:.+6;36/4:./9='?=/22
)';9+*'3'-+
New spa owners often have difficulty the first time
they start their spa and the pump fails to prime. This
can be frustrating, but these simple instructions can
help you.
#58+35<+93'22'/8(;((2+9:8'66+*/4:.+
6;36
1. Turn the spa on and wait for ! (Priming Mode)
to appear on the topside display.
2. Press the JETS1 button to turn on the
pump and let it run for 10 seconds. The
pump should be running on low speed.
3. Press the JETS1 buttons again and let the pump
run on high speed for 10 seconds.
4. Press the JETS1 button again to turn off the
pump. The pump should be left in the off position
for 10 to 15 seconds.
5. Repeat steps 1 through 4 until water is flowing
through all the jets and all air is removed from the
plumbing.
#58+35<+'2'8-+'/825)1=/:./4:.+6;36
1. Turn off power at the breaker.
2. Remove the spa panel closest to the pump.
3. Loosen the white Pressure Union on top of the
pump by hand or with a strap wrench. When air is
bled out, tighten the union, turn breaker on and
set the pump on high speed.
Note: If you press the Temp button any time during
Priming Mode, it will exit that mode and begin Stan-
dard Mode.

14 www.strongpoolsandspas.com
Operate Your Spa
Topside Control Panels
One-Pump Spas
System Settings
When your spa is first actuated, it will go into Prim-
ing mode, indicated by “Pr.” The Priming mode will
last for less than 5 minutes (press “Warm” or
“Cool” to skip Priming Mode) and then the spa will
begin to take temperature readings, followed by the
heater test cycle. After completed, the heater will
turn on, heat the spa and maintain the water tem-
perature in the Standard mode.
The start-up temperature is set at 100°F/37°C.
The last measured temperature is constantly dis-
played on the LCD. Note that the last measured
spa temperature displayed is current only when the
pump has been running for at least 2 minutes.
To display the set temperature, press the
“Warm” or “Cool” pad once. To change the set tem-
perature, press the pad a second time before the
LCD stops flashing. Each press of the “Warm” or
“Cool” pad will continue to either raise or lower
the set temperature. After 3 seconds, the LCD will
stop flashing and display current spa temperature.
Maximum Temperature is set at 104ºF/40ºC
as required by UL/CSA.
Minimum temperature is 80ºF/26ºC.
Note: If the sp is currently in he ting or filtr tion
cycle the pump will only switch between high nd low. It
c nnot be turned off until the he ting or filtr tion cycle
is completed.
ets
Touch the “Jets” button once to turn the pump on
or off, and to shift between low and high speeds. If
left running, the low speed of the pump will auto-
matically turn off after 2 hours, and the high speed
will automatically turn off after 15 minutes.
Light
Press “Light” button to turn the light on/off. If left
on, the light automatically turns off after 4 hours.
See page 25 for lighting specifics.
Preset Filter Cycles
The first filter cycle begins 6 minutes after the spa is
energized. The second filter cycle begins 12 hours
later. Filter duration is programmable for 2-(C)on-
tinuous per 12 hours. The default filter time is 2
hours.
Ex mple 1: In 12 hour period (1 cycle), setting of F2
me ns 2 hours of filtr tion on, 10 hours of filtr tion off.
Ex mple 2: In 12 hour period (1 cycle), setting of F4
me ns 4 hours of filtr tion on, 8 hours of filtr tion off.
You m y choose F2, F4, F6, F8 or c (continuous).
To program, press “Warm” then “Jets”. Press
“Warm” to adjust. Press “Jets” to exit.
Mode
ode is changed by pressing the “Warm” or “Cool”
button, then pressing the “Light” button. In Economy
and Sleep Mode, heating only occurs during the fil-
ter cycle. See Mode, page 18.
Freeze Protection
If the temperature sensors detect a drop to below
44°F/6.7°C within the heater, the pumps will auto-
matically activate to provide freeze protection. The
equipment stays on until 4 minutes after the sensors
detect that the spa temperature has risen to
45°F/7.2°C or higher.
Control Pack Codes See pages 19-23.
__________________________________________
One-Pump + Blower Spas 58
Two-pump (2-speed + 1-speed)
System Settings
When your spa is first actuated, it will go into Prim-
ing mode, indicated by “Pr.” The Priming mode will
last for less than 5 minutes (press “Temp” to skip
Priming Mode) and then the spa will begin to take
temperature readings, followed by the heater test
cycle. When complete, heater will turn on, heat spa
and maintain the temperature in Standard mode.

Customer Service 1•800•787•6649 15
Operate Your Spa
The start-up temperature is set at 100°F/37°C.
The last measured temperature is constantly dis-
played on the LCD. Note that the last measured
spa temperature displayed is current only when the
pump has been running for at least 2 minutes.
To display the set temperature, press the
“Temp” pad once. To change the set temperate,
press the pad a second time before the LCD stops
flashing. The temperature will either go up or down.
To change the temperature in the opposite direc-
tion wait for the LCD to stop flashing, press the
“Temp” pad once, then press the “Temp” pad again
to reverse the temperature direction. After three
seconds, the LCD will stop flashing and display the
current spa temperature.
Maximum Temperature is set at 104ºF/40ºC
as required by UL/CSA.
Minimum temperature is 80ºF/26ºC.
Note: If the sp is currently in he ting or filtr tion
cycle the pump will only switch between high nd low. It
c nnot be turned off until the he ting or filtr tion cycle
is completed.
ets
Touch the “Jets” button once to turn the main
2-speed pump on or off, and to shift between low
and high speeds. If left running, the low speed of the
pump will automatically turn off after 2 hours, and
the high speed will automatically turn off after 15
minutes. The “Boost” button will operate the blower
pump, if equipped, or the 1-speed pump.
Light
Press “Light” button to turn the light on/off. If left
on, the light automatically turns off after 4 hours.See
page 25 for lighting specifics.
Preset Filter Cycles
The first filter cycle begins 6 minutes after the spa is
energized. The second filter cycle begins 12 hours
later. Filter duration is programmable for 2-(C)on-
tinuous per 12 hours. The default filter time is 2
hours.
Ex mple 1: In 12 hour period (1 cycle), setting of F2
me ns 2 hours of filtr tion on, 10 hours of filtr tion off.
Ex mple 2: In 12 hour period (1 cycle), setting of F4
me ns 4 hours of filtr tion on, 8 hours of filtr tion off.
You m y choose F2, F4, F6, F8 or c (continuous).
To program, press “Temp” then “Jets”. Press “Temp”
to adjust. Press “Jets to exit.
Mode
ode is changed by pressing the “Temp” button,
then pressing the “Light” button. In Economy and
Sleep Mode, heating only occurs during the filter
cycle. See Mode, page 18.
Freeze Protection
If the temperature sensors detect a drop to below
44°F/6.7°C within the heater, the pumps will auto-
matically activate to provide freeze protection. The
equipment stays on until 4 minutes after the sensors
detect that the spa temperature has risen to
45°F/7.2°C or higher.
Control Pack Codes See pages 19-23.
______________________________________
Two-Pump Spas and
Two-Pump + Blower Spas
System Settings
When your spa is first actuated, it will go into Prim-
ing mode, indicated by “Pr.” The Priming mode will
last for less than 5 minutes (press “Warm” or
“Cool” to skip Priming Mode) and then the spa will
begin to take temperature readings, followed by the
heater test cycle. After completed, the heater will
turn on, heat the spa and maintain the water tem-
perature in the Standard mode.
The start-up temperature is set at 100°F/37°C.
The last measured temperature is constantly dis-
played on the LCD. Note that the last measured spa
temperature displayed is current only when the
pump has been running for at least 2 minutes.
To display the set temperature, press the
“Warm” or “Cool” pad once. Each press of the
“Warm” or “Cool” pad will continue to either raise
or lower the set temperature. After three seconds,
the LCD will display the current spa temperature.

16 www.strongpoolsandspas.com
Maximum Temperature is set at 104ºF/40ºC
as required by UL/CSA.
Minimum temperature is 80ºF/26ºC.
ets 1
Touch the “Jets 1” button once to turn pump 1 on
or off, and to shift between low and high speeds. If
left running, the low speed of the pump will auto-
matically turn off after 2 hours, and the high speed
will automatically turn off after 15 minutes.
ets 2
Touch the “Jets 2” button once to turn pump 2 on
or off and to shift between low and high speeds. If
left running, pump 2 will automatically turn off after
15 minutes.
Light
Press the “Light” button to turn the light on and off.
If left on, the light automatically turns off after 4
hours unless manually turned off prior to 4 hours.
See page 25 for lighting specifics.
Mode
ode is changed by pressing the “Warm” or “Cool”
button, then pressing the “ ode” button. In Econ-
omy and Sleep Mode, heating only occurs during the
filter cycle. See Mode, page 18.
Option
This button is used to turn on the blower pump in 3
pump spas (2 water pumps + 1 air pump).
Preset Filter Cycles
The first filter cycle begins 6 minutes after the spa is
energized. The second filter cycle begins 12 hours
later. Filter duration is programmable for 2, 4, 6, 8
hours or for continuous filtration (indicated by
“Filc”). The default filter time is 2 hours.
Ex mple 1: In 12 hour period (1 cycle), setting of
Fil2 me ns 2 hours of filtr tion on, 10 hours off.
Ex mple 2: In 12 hour period (1 cycle), setting of
Fil4 me ns4 hours of filtr tion on, 8 hours off.
You m y choose Fil2, Fil4, Fil6, or Fil8.
To program, press “Warm” or “Cool”, then “Jets 1”.
Press “Warm” or “Cool” to adjust. Press “Jets 1” to
exit programming. At the beginning of each filter
cycle the pumps purge for 5 minutes. The only ef-
fect filter duration has is: 1) During the filter cycle,
the pump never turns off, and 2) In Economy and
Sleep Mode, heating only occurs during the filter
cycle.
Freeze Protection
If the temperature sensors detect a drop to below
44°F/6.7°C within the heater, the pumps will auto-
matically activate to provide freeze protection. The
equipment stays on until 4 minutes after the sensors
detect that the spa temperature has risen to
45°F/7.2°C or higher.
Control Pack Codes See pages 19-23.
__________________________________________
Three-Pump + Blower Spas
CAUTION: Never press “Warm” or “Cool,”
“ ets 1,” and “Light” combination. This will
affect the programming of your spa and can
cause serious complications.
Time
When time hasn’t been programmed, the TIME icon
flashes. To set the time, press “Time” then
“Mode/Prog.” Use the “Warm” and “Cool” buttons
to adjust time. See previous page for more detailed
instructions.
• Select the hour by pressing “Warm or Cool”.
Press “Mode/Prog” to enter.
• Select minutes by pressing “Warm or Cool”.
• Press “Mode/Prog” to exit the Time Setting proce-
dure and enter the optional Filter Cycle program-
ming.
• Press “Time” to exit programming.
System Settings
When your spa is first actuated, it will go into Prim-
ing mode, indicated by “Pr.” The Priming mode will
last for less than 5 minutes (press “Temp” to skip
Priming Mode) and then the spa will begin to take
temperature readings, followed by the heater test
Operate Your Spa

Customer Service 1•800•787•6649 17
cycle. After completed, the heater will turn on, heat
the spa and maintain the water temperature in the
Standard mode.
The start-up temperature is set at 100°F/37°C.
The last measured temperature is constantly dis-
played on the LCD. Note that the last measured
spa temperature displayed is current only when the
pump has been running for at least 2 minutes.
To display the set temperature, press the
“Warm or Cool” pad once. To change the set tem-
perature, press the pad a second time before the
LCD stops flashing. The temperature will either go
up or down, depending on which button you press.
After three seconds, the LCD will stop flashing and
display the current spa temperature.
Maximum Temperature is set at 104ºF/40ºC
as required by UL/CSA.
Minimum temperature is 80ºF/26ºC.
ets 1
Touch the “Jets 1” button once to turn pump 1 on
or off, and to shift between low and high speeds. If
left running, the low speed of the pump will auto-
matically turn off after 2 hours, and the high speed
will automatically turn off after 15 minutes.
ets 2
Touch the “Jets 2” button once to turn pump 2 on
or off. If left running, pump 2 will automatically turn
off after 15 minutes.
ets 3
Touch the “Jets 3” button once to turn pump 3 on
or off. If left running, pump 3 will automatically turn
off after 15 minutes.
Mode/Prog
This button is used to switch between Standard,
Economy, and Sleep modes. Press “Mode/Prog” to
enter mode programming, press “Cool” to cycle
through to desired mode (LCD flashes until con-
firmed), then press “Mode/Prog” to confirm selec-
tion. See Mode, page 18.
Standby Mode
Pressing “Warm” or “Cool” then “Jets 2” will turn
off all spa functions temporarily. This is helpful when
changing a filter. Pressing any button resets the spa.
On some systems the “Jets 1” button will control
the pump in Standby Mode (“Drain Mode”). In this
case, press any other button to exit. System will re-
vert to previous mode after 1 hour.
Invert
Press the “Invert” button to change the numbers in
the display to read upside down. Press again to re-
turn the display to its normal right-side-up display.
Preset Filter Cycles
On all systems, the pump and the ozone generator
will run during filtration. At the start of each filter
cycle, the blower will run briefly on its highest speed
to purge the air channels. The lowest speed of any
other pumps and the mister will also run briefly. On
some circ systems, pump 1 may also run for the du-
ration of the filter.
(The following is specific to ll systems th t re pro-
gr mmed ccording to time.)
There are two filter cycles per day. The start/end
times of each cycle are programmable. To program,
set time as instructed above, then press
“Mode/Prog” to advance to the next setting (or to
exit after the last setting). Default filter cycles can
vary from system to system. A common default is
8:00 AM to 10:00 AM and 8:00 PM to 10:00 PM.
Press “Time” then “Mode/Prog” to step through the
filter settings to see how they are currently set.
Each filter cycle automatically operates the pump
for the duration of the filter cycle. The filter 1 “F1”
icon will light when filter 1 is running. The filter 2
“F2” icon will light when filter 2 is running.
Optional Filter Cycle Programming
You are not required to set filter cycles; however, it
is an option available to you. To change the filter
cycle settings:
Press “Time” “Mode/Prog” “Mode/Prog”
“Mode/Prog” within 3 seconds. You will see the “SET
FILTER 1” and a flashing “START TIME” icon appear
on the display.
Press “Up” or “Down” to choose the filter start
time hour. Enter the hour by pressing “Mode/Prog”.
Press “Up” or “Down” to choose the filter start
time minutes. Each press changes the start time by 5
minutes.
Enter the minutes by pressing “Mode/Prog.”
Press “Mode/Prog” to see “SET FILTER 1” and a
Operate Your Spa

18 www.strongpoolsandspas.com
Operate Your Spa
Mode
Standard Mode is programmed to maintain the
desired temperature. Note that the last measured
spa temperature displayed is current only when the
pump has been running for at least 2 minutes. “ST”
will be displayed momentarily when you switch into
Standard ode. This is the best mode to use during
COLD weather.
Economy Mode heats the spa to the set temper-
ature only during filter cycles or if the temperature
falls to 20 degrees below set temperature. “EC” will
display solid when temperature is not current, and
will alternate with temperature when temperature
is current. This is the best mode to use during
WAR weather.
Sleep Mode also heats the spa to the set temper-
ature only during filtration cycles. “SL” will display
solid when temperature is not current, and will al-
ternate with temperature when temperature is cur-
rent, but only within 20 degrees of your set
temperature.
Note: in ll modes, the sp will turn on 1 minute e ch
hour for temper ture re ding.
flashing “END TIME” icon. Adjust the time as done
above.
Press “Mode/Prog” to see the “SET FILTER 2” (PM
cycle) and a flashing “START TIME” icon. Proceed as
above.
Press “Mode/Prog” to see “SET FILTER 2”
and a flashing “END TIME” icon. Adjust the time as
done above.
Pressing “Mode/Prog” will enter the new filter cycle
times into the system and display the current water
temperature.
Pressing “Time” at any time during this program-
ming sequence will save the values entered up to
that point and exit programming.
If you would like to select continuous filtration, set
the filter 1 start and end times to be the exact same
time. In this case, the filter 2 start time only controls
when the second purge happens. Filter 2 end time
will be unavailable.
Light
Press the “Light” button to turn the light on and off.
If left on, the light automatically turns off after 4
hours unless manually turned off prior to 4 hours.
See page 25 for lighting specifics.
Control Pack Codes See pages 19-23.
__________________________________________
Spas with Touchscreen Panel
See uxili ry m nu l:
5='/4:+4'4)+"?9:+349:'22':/54
'4*6+8':/54'4;'2

Customer Service 1•800•787•6649 19
Operate Your Spa
Control Pack Codes

20 www.strongpoolsandspas.com
Operate Your Spa
