Stronghold Strongarm SH5431 User manual

Assembly & Fitting Instructions
Scope of use:
This product can be used on steel wheels only with a tyre
width capacity of 155-190mm. It is recommended that you use
this product in conjunction with a suitable
Stronghold hitchlock when tted to a caravan
or trailer.
Maintenance:
• When cleaning this product use a cloth and
mild detergent.
• Lightly oil all moving parts of this product
on a regular basis.
This box contains:
1 x Wheelclamp
2 x M12 x 1.5mm pitch
wheelbolts
1 x Lock
3 x keys
1 x Fitting instructions and
warranty card
Stronghold Security Products
Wheel Clamps & Hitchlocks
www.stronghold-security.com
Maypole Stronghold 162 Clapgate Lane Woodgate Business Park Birmingham B32 3DE United Kingdom
Ax
Stamp
Here
For more information on our range
of Stronghold Security Products
visit our website:
SH5431
Strongarm
Wheel Clamp
5431 insert.indd 1 26/04/2019 09:54:17

Name:
Address:
Postcode:
Email:
Please note:
• It is important to check wheelbolt/wheel nut compatibility prior to
tting
• Both wheelbolts/wheelnuts must be ttedto allow for wheel
balancing
• Standard wheelbolts are supplied but can be changed for
alternatives F.O.C by contacting the sales oce 0121 270 4301
• This product is supplied with three keys. Separate and keep a key
in a designated place of safety
• Record your key number here
You will need this in order to obtain replacements
• Keep this instruction card and your proof of purchase
(receipt or invoice) for future reference

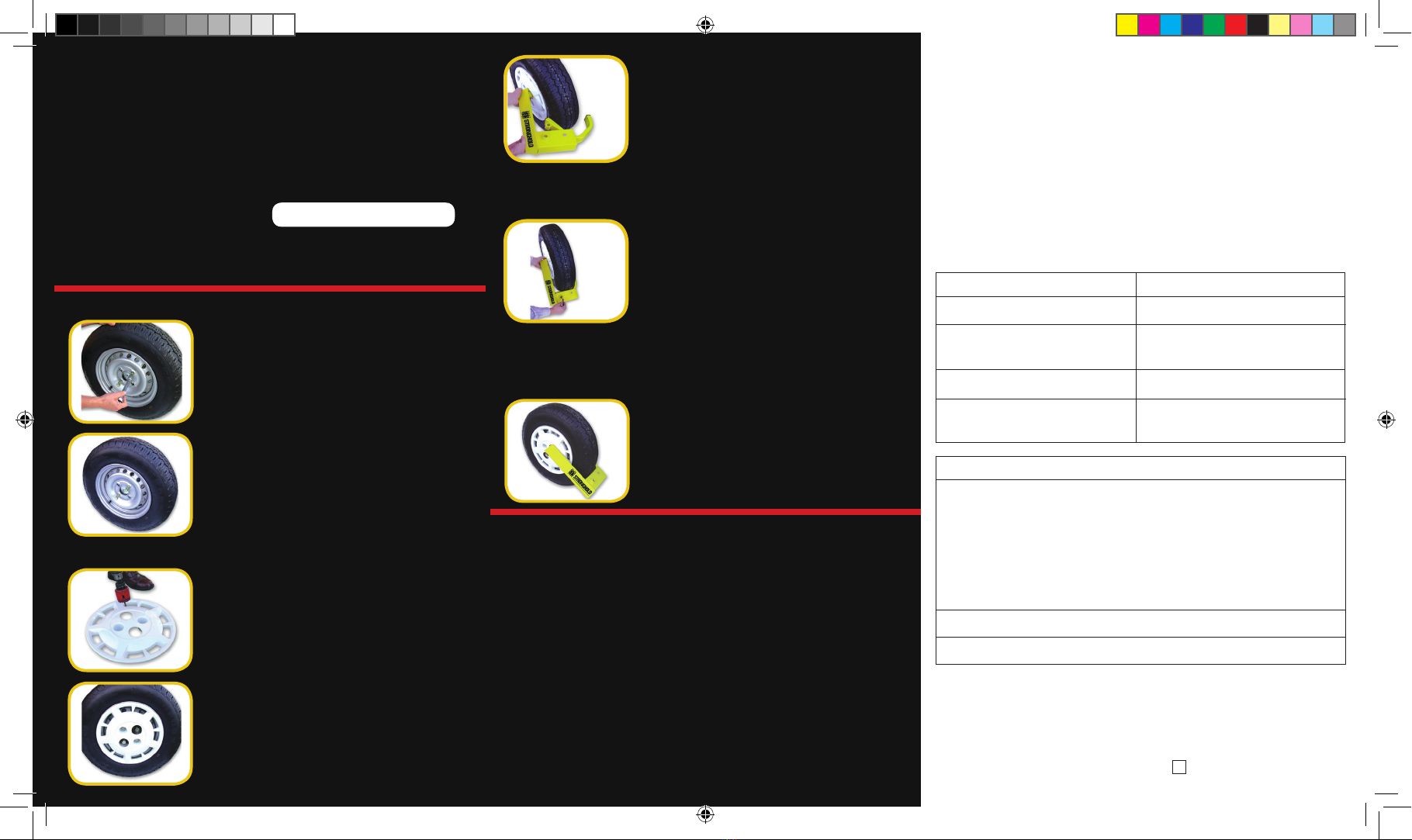

Fitting Instructions
Fig 1
Remove two existing wheel bolts, which are
diagonally apposed on the wheel. Please note
if tting to a 5-bolt wheel, remove one bolt,
moving around the wheel leave the next one
in position and then remove the next bolt.
Fig 5
Insert the key into the lock, rotate the key
clockwise and pull the lock from the lock
holder. Some resistance will be experienced
due to the security design. Removal of the
lock enables the rear arm to be opened for
tment. Using an approach angle as shown,
align the top tube with the wheel bolt and
push into position.
Fig 6
Push the clamp towards the wheel enabling
the rear arm to close into the rear of the wheel
rim. When fully closed allow the wheel clamp
to drop towards the ground (depending
on the tyre prole and the wheel position,
the wheel clamp may not always touch the
ground). In this position re-t the lock by
inserting and turning in an anti-clockwise
direction, allowing the latch to click into place.
Warranty
Please see warranty card for details. Full warranty terms can be
viewed on our website www.stronghold-security.com
Replacement Keys
The design of Stronghold keys means that genuine replacements
are only available by special order through the place of purchase,
for which you will require your key number. Please note, the use of
unapproved copy keys will void your warranty.
Customer Service Contacts
In case of product defect or malfunction please contact the place of
purchase for assistance. For other questions please refer to the FAQ
section of our website or UK & Ireland customers
email: [email protected]o.uk or call: [phone].
International customers – the place of purchase or your national
distributor.
Free Extended Warranty
Product - Stronghold Strongarm Wheel Clamp
This product carries a 12 month manufacturing defect warranty. You
can upgrade your 12 month warranty to 5 years (mechanical only),
free of charge, if within one month of purchase you:
•Complete and return the enclosed Warranty Card to us, or
•Register your purchase with us online at
www.stronghold-security.com
By following the link to“Register your product”.
Retail Outlet
Date of purchase
Principal security use e.g
caravan
Make of product being secured
Why did you buy a Stronghold
product?
Marketing Communications
Maypole Ltd would like to send you information on our products by email or
post. Your personal information will never be sold to a third party for marketing
purposes. For more information or if you wish to opt out at any time please visit
www.maypole.ltd.uk or email [email protected]o.uk
I opt in to receive marketing communications
Fig 2
After checking that they have the same thread
length, size and type as the special wheel
bolts (M12x1.5mm pitch) provided, replace
and tighten to the manufacturers
recommended torque settings. If your wheel
is tted with nuts or bolts of a dierent size,
please contact our help line for advice.
Fig 3
If the wheel is tted with a wheel trim this
must be modied to accept the wheel clamp
by drilling two 52mm holes in the trim at the
relevant special wheel bolt locations.
Fig 4
Re-t the wheel trim. To t the wheel clamp
to the wheel, the wheel must be orientated
with one of the special wheel bolts situated at
between 1 o’clock and 3 oclock as shown.
Fig 7
Remove the key, your wheel clamp tted
correctly will look like this.
