Stryker SMRT Power System 6500 Manual

SMRT™ Power System
6500
2013/03 A.1 6500-109-105 REV A www.stryker.com
Operations/Maintenance Manual
Manuel d’utilisation et d’entretien
Bedienungs- und Wartungshandbuch
Gebruiks-/onderhoudshandleiding
Manuale d’uso e manutenzione
Manual de uso y mantenimiento
Manual de funcionamento/manutenção
Handbok för drift/underhåll
Betjenings-/vedligeholdelsesmanual
Handbok för drift/underhåll
Käyttö- ja huolto-ohjekirja
Instrukcja obsługi/konserwacji
Návod k obsluze a údržbě

www.stryker.com 6500-109-105 REV A 1
Symbols
Operating instructions
CE Mark
Manufacturer
General warning sign
Caution
~
Alternating current
Direct current
Class II equipment
IPX0 Non-protected
IPX6 Protected against powerful water jets
Medical Equipment Classified by Underwriters Laboratories LLC
With Respect to Electric Shock, Fire, and Mechanical Hazards
Only in Accordance with ANSI/AAMI ES60601-1:2005 and CAN/
CSA-C22.2 No. 60601-1:08.

26500-109-105 REV A www.stryker.com
In accordance with European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE), this symbol indicates
that the product must not be disposed of as unsorted municipal
waste, but should be collected separately. Refer to your local
distributor for return and/or collection systems available in your
country.
Cd
WEEE Directive (2002/96/EC). Contains cadmium.
The Rechargeable Battery Recycling Corporation (RBRC) is a non-
profit, public service organization that promotes the recycling of
portable rechargeable batteries. Batteries must be delivered to a
battery collection site. Visit the RBRC website (www.rbrc.org) to
find a nearby collection site or call the phone number shown on the
recycling symbol.
Contains nickel cadmium cells and should be recycled accordingly
DATA _+Battery terminal identification (data line, negative and positive)
KRX
23/44
Ni-Cd cell identification per IEC 61951-1:2003
2300
mAh
(1.2A/2h)
Battery capacity, typical charge current and duration
Symbols

International Addresses
EASTERN EUROPE
Stryker SA - Export Business
Grand-Rue 90
P.O. Box 1567
1820 Montreux, Switzerland
Phone: [phone]
Fax: [phone]
AUSTRALIA
Stryker Australia
8 Herbert Street
St Leonards NSW 2065
Australia
Phone: [phone]
Fax: [phone]
AUSTRIA
Stryker GmbH
Euro Plaza, Gebäude G
Am Euro Platz 2
1120 Wien
Austria
Phone: [phone]
Fax: [phone]
BELGIUM
NV Stryker SA
Ikaros Business Park- Fase III
Ikaroslaan 12
1930 Zaventem, Brussels
Belgium
Phone: [phone]
Fax: [phone]
DENMARK
Stryker Denmark
Filial of Stryker AB
Postbox 772
1532 Copenhagen
Denmark
Phone: [phone]
Fax: [phone]
UK/IRELAND
Stryker UK Limited
Stryker House
Hambridge Road
Newbury, Berkshire
RG14 5EG, England
Phone: [phone]
Phone: [phone]
Fax: [phone]
FINLAND
Stryker AB, Finland
PO 80 Makelankatu 2
00501 Helsinki
Finland
Phone: [phone]
Fax: [phone]
FRANCE
Stryker France S.A.S.
ZAC - Avenue de Satolas Green
69330 Pusignan
France
Phone: [phone]
Fax: [phone]
GERMANY
Stryker Howmedica GmbH
Dr. Homer Stryker Platz 1
47228 Duisburg
Germany
Phone: [phone]
Fax: [phone]
GREECE
Stryker Hellas EPE
455 Messogion Ave
153 43 Agia Paraskevi
Athens, Greece
Phone: [phone]
Fax: [phone]
EUROPE HEADQUARTERS
Stryker SA
Cite-Centre, Grand-Rue 90
P.O. Box 1568
1820 Montreux, Switzerland
Phone: [phone]
Fax: [phone]

International Addresses
ITALY
Stryker Italia SrL
Via Ghisalba 15B
00188 Roma
Italy
Phone: [phone]
Fax: [phone]
MIDDLE EAST / NORTH AFRICA
Stryker Osteonics SA
Twin Towers
11th Floor, Suite 1101 & 1102
P.O. Box 41446
Baniyas Road
Dubai, Deira, UAE
Phone: [phone]
Fax: [phone]
NEDERLANDS
Stryker Nederlands BV
(P.O. Box 13, 4180 BA Waardenburg)
4181 CD Waardenburg
The Nederlands
Phone: [phone]
Fax: [phone]
NORWAY
Stryker Norway
Norsk Fillial
Nedre Vollgate 3
0158 Oslo
Norway
Phone: [phone]
Fax: [phone]
POLAND
Stryker Polska Sp. ZO.O
Kolejowa 5/7
01-217 Warsaw
Poland
Phone: [phone]
Fax: [phone]
PORTUGAL
Stryker Portugal Produtos Medicos,
LTDA.
Avenida Marechal Gomes da Costa, 35
1800-255 Lisboa
Portugal
Phone: [phone]
Fax: [phone]
ROMANIA
Stryker Osteonics Romania S.R.L.
19, Leonida Str.
District 2
7000 Bucharest
Romania
Phone: [phone]
Fax: [phone]
SOUTH AFRICA
Stryker Osteonis PTY. LTD.
3 Susan Street
Strydom Park
Johannesburg, 2194 - South Africa
Mailing Address:
P.O. Box 48039
2129 Roosevelt Park
Johannesburg, South Africa
Phone: [phone]
Fax: [phone]
SPAIN
Stryker Iberia SL
c/Sepulveda n17
28108 Alcobendas
Madrid
Spain
Phone: [phone]
Phone: [phone]
Fax: [phone]
SWEDEN
Stryker AB/Scandinavia
Box 50425
SE-204 14 Malmo
Sweden
Phone: [phone]
Fax: [phone]

www.stryker.com 6500-109-105 REV A 1-1
English
Table of Contents
Symbols ...................................................1-3
Warning/Caution/Note Definition .................................1-5
Introduction.................................................1-6
Intended Use of Product ....................................1-6
Expected Service Life......................................1-6
Contraindications .........................................1-6
Product Illustration ........................................1-7
Specifications ...........................................1-8
Contact Information .......................................1-9
Summary of Safety Precautions..................................1-10
General Inspection ...........................................1-13
Compatibility Information .......................................1-14
Cot Compatibility .........................................1-14
Charger Compatibility ......................................1-14
Charger Installation ...........................................1-15
Installing the SMRT Charger .................................1-15
Electrical Power Installation Requirements .......................1-15
Installing the Optional Mounting Bracket ........................1-16
Installing the Charger onto the Optional Mounting Bracket ...........1-18
Charger Features ............................................1-19
Charger Operation .......................................... 1-20
Powering the Charger..................................... 1-20
Disconnecting the Charger ................................. 1-20
Charging the Battery ..................................... 1-21
SMRT Pak Temperature Delay .............................. 1-22
SMRT Pak Error ......................................... 1-22
Battery Operation ........................................... 1-23
Battery Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
Replacing the Battery ..................................... 1-23
Storing the Battery ....................................... 1-23
Removing the Battery from the Cot ........................... 1-24
Reinstalling or Replacing the Battery ......................... 1-24

1-2 6500-109-105 REV A www.stryker.com
English
Table of Contents
Cleaning.................................................. 1-25
Recommended Cleaners .................................. 1-25
Cleaning the Charger ..................................... 1-25
Cleaning the Battery...................................... 1-26
Troubleshooting ............................................ 1-28
SMRT Power System Component Locator ...................... 1-28
SMRT Charger Troubleshooting.............................. 1-29
SMRT Pak Troubleshooting................................. 1-31
Quick Reference Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . 1-32
Service Information ..........................................1-33
12 VDC Automotive Cable Fuse Replacement ................... 1-33
Preventative Maintenance .....................................1-34
Maintenance Intervals..................................... 1-34
Storage and Handling .....................................1-34
Best Practices .............................................1-34
Frequently Asked Questions (FAQs).............................. 1-35
Recycling Passport .......................................... 1-36
EMC Information............................................ 1-39

www.stryker.com 6500-109-105 REV A 1-3
Return To Table of Contents
English
Symbols
Operating instructions
CE Mark
Manufacturer
General warning sign
Caution
~
Alternating current
Direct current
Class II equipment
IPX0 Non-protected
IPX6 Protected against powerful water jets
Medical Equipment Classified by Underwriters Laboratories LLC
With Respect to Electric Shock, Fire, and Mechanical Hazards
Only in Accordance with ANSI/AAMI ES60601-1:2005 and CAN/
CSA-C22.2 No. 60601-1:08.

1-4 6500-109-105 REV A www.stryker.com
Return To Table of Contents
English
Symbols
In accordance with European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE), this symbol indicates
that the product must not be disposed of as unsorted municipal
waste, but should be collected separately. Refer to your local
distributor for return and/or collection systems available in your
country.
Cd
WEEE Directive (2002/96/EC). Contains cadmium.
The Rechargeable Battery Recycling Corporation (RBRC) is a non-
profit, public service organization that promotes the recycling of
portable rechargeable batteries. Batteries must be delivered to a
battery collection site. Visit the RBRC website (www.rbrc.org) to
find a nearby collection site or call the phone number shown on the
recycling symbol.
Contains nickel cadmium cells and should be recycled accordingly
DATA _+Battery terminal identification (data line, negative and positive)
KRX
23/44
Ni-Cd cell identification per IEC 61951-1:2003
2300
mAh
(1.2A/2h)
Battery capacity, typical charge current and duration

www.stryker.com 6500-109-105 REV A 1-5
Return To Table of Contents
English
Warning/Caution/Note Definition
The words WARNING, CAUTION and NOTE carry special meanings and should
be carefully reviewed.
WARNING
Alerts the reader about a situation which, if not avoided, could result in death or
serious injury. It may also describe potential serious adverse reactions and safety
hazards.
CAUTION
Alerts the reader of a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury to the user or patient or damage to the equipment
or other property. This includes special care necessary for the safe and effective
use of the device and the care necessary to avoid damage to a device that may
occur as a result of use or misuse.
NOTE
Provides special information to make maintenance easier or important instructions
clearer.

1-6 6500-109-105 REV A www.stryker.com
Return To Table of Contents
English
Introduction
This manual is designed to assist you with the operation and maintenance of
the SMRT™ Power System. Read it thoroughly before using the equipment or
beginning any maintenance on it.
INTENDED USE OF PRODUCT
The SMRT™ Power System consists of a SMRT™ Charger and a SMRT™
Pak. The SMRT™ Pak powers the hydraulic lift system of the Stryker Powered
ambulance cots.
For a full product description and intended use, see the Power-PRO™ Operations/
Maintenance Manual.
EXPECTED SERVICE LIFE
• 7 years for SMRT™ charger
• 2 years for SMRT™ Pak battery
CONTRAINDICATIONS
There are no known contraindications to use for this product.

www.stryker.com 6500-109-105 REV A 1-7
Return To Table of Contents
English
PRODUCT ILLUSTRATION
Figure 1: SMRT Power System
SMRT Charger
SMRT Pak
AC Power
Cord
Output
Cord
DC Cable
AC Power
Supply
Introduction

1-8 6500-109-105 REV A www.stryker.com
Return To Table of Contents
English
Introduction
SPECIFICATIONS

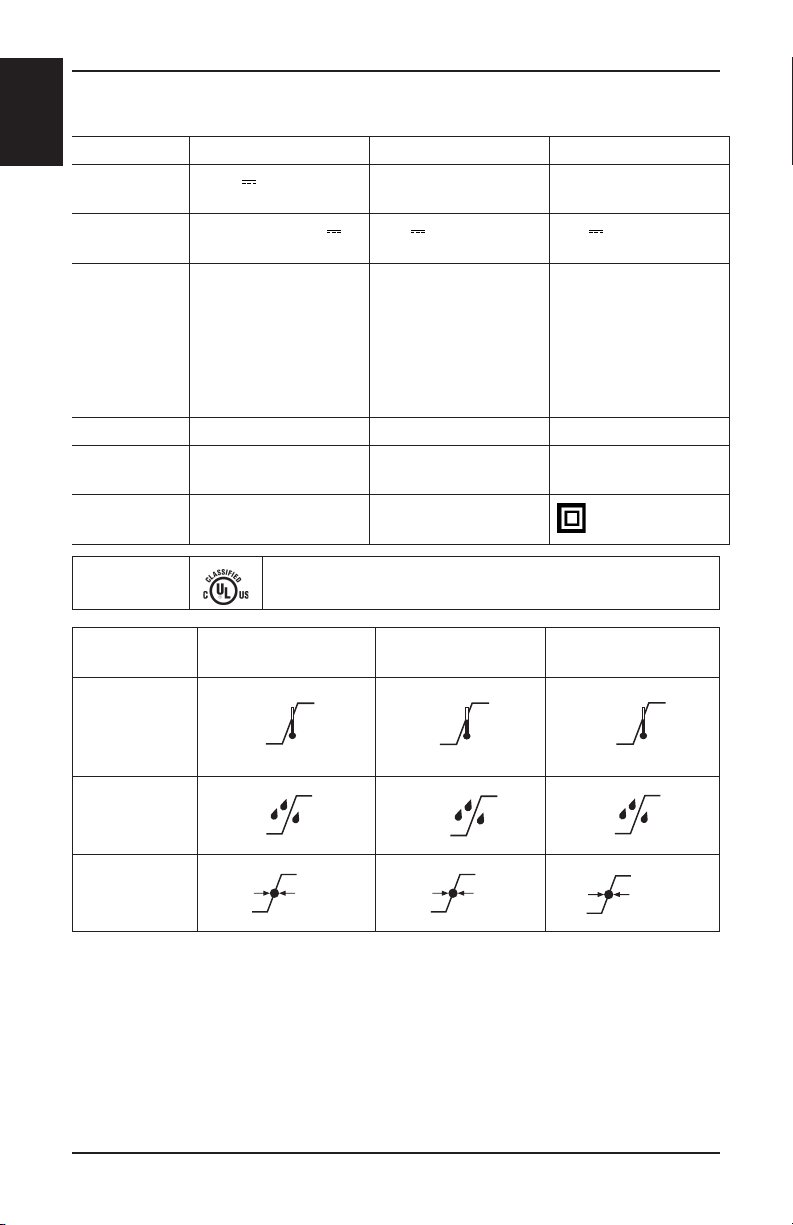

Model SMRT Charger SMRT Pak AC Power Supply
Electrical
Input
13.9V 4.16 A Not applicable 100-240V
~
1.20 A,
50/60Hz
Electrical
Output
Open Circuit 40V
1.20 A
24V 12V 4.16 A
Size 2.375 in. [60.325 mm]
height
5.125 in. [130.175 mm]
width
7 in. [177.8 mm]
length
3.25 in. [82.55 mm]
height
4 in. [101.6 mm]
width
5.75 in. [146.05 mm]
length
1.61 in. [40.89 mm]
height
2.56 in. [65.02 mm]
width
4.72 in. [119.89 mm]
length
Weight 1.3 lb [.59 kg] 3.8 lb [1.7 kg] .61 lb [.28 kg]
Enclosure
Protection
IPX0 IPX6 IPX0
Equipment
Type
Not applicable Not applicable Class II
Specifications are approximate and may vary from unit to unit or as a result of power
supply fluctuations. Stryker reserves the right to change specifications without notice.
Charger
Approvals
ANSI/AAMI ES60601-1: 2005
CAN/CSA-C22.2 No. 60601-1:08
Environmental
Conditions
Operation Charging Storage and
Transportation
Temperature
-30 F
(-34 C)
0
0
130 F
(54 C)
0
0
43 F
(6 C)
0
0
88 F
(31 C)
0
0
-4 F
(-20 C)
0
0
104 F
(40 C)
0
0
Relative
Humidity
0%
93%
30%
75%
0%
93%
Atmospheric
Pressure
700
1060 hPa
700
1060 hPa
500
1060 hPa

www.stryker.com 6500-109-105 REV A 1-9
Return To Table of Contents
English
Introduction
CONTACT INFORMATION
Contact Stryker Customer Service or Technical Support at [phone] or
[phone].
Stryker Medical
3800 E. Centre Avenue
Portage, MI 49002
USA
Please have the serial number or lot number of your Stryker product when calling
Stryker Technical Support. Include the serial number in all written communication.
The serial number for the SMRT Charger is located on the bottom of the unit.
The lot number for the SMRT Pak is located on the top of the SMRT Pak (above
the red release button).

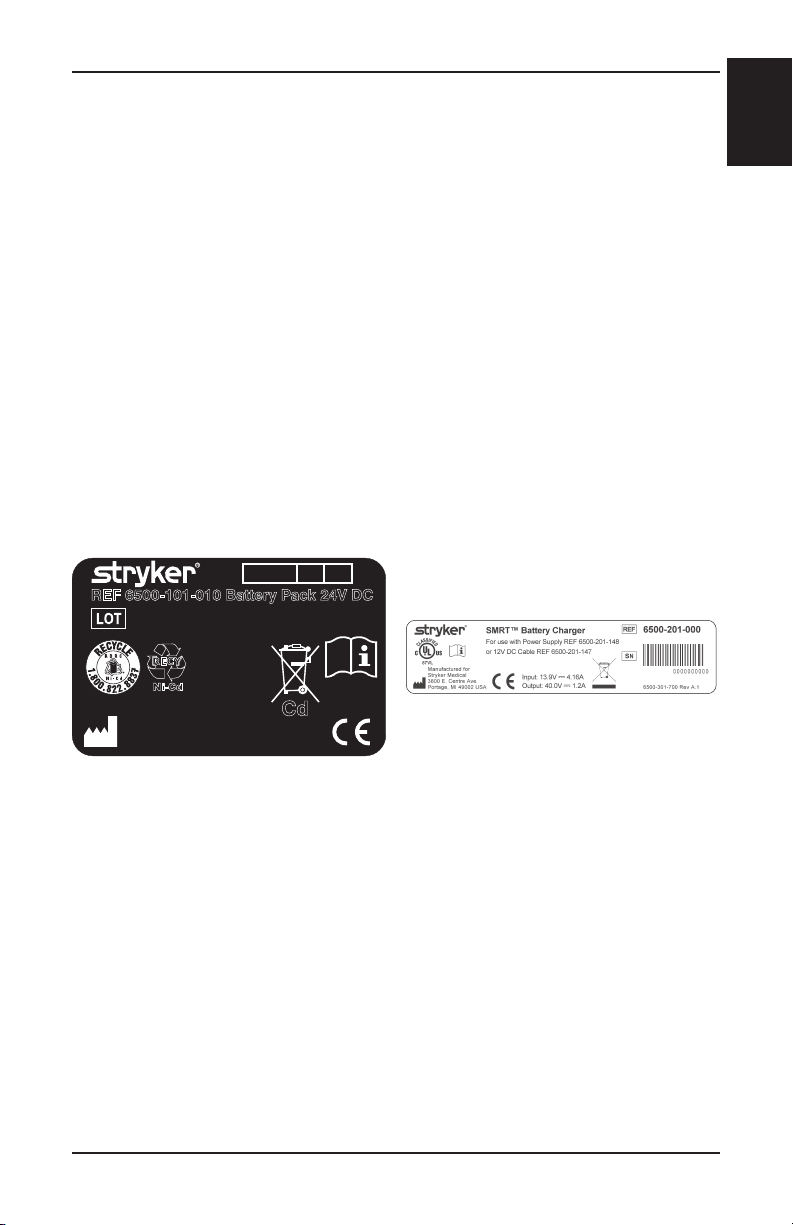

SMRT Pak Label
with Lot Number
SMRT Charger Label
with Serial Number
IPX6
Manufactured for
Stryker Medical
3800 E. Centre Ave.
Portage, MI 49002 USA
REF 6500-101-010 Battery Pack 24V DC
Cd
KRX 23/44
DATA _+
2300 mAh (1.2A/2h)

1-10 6500-109-105 REV A www.stryker.com
Return To Table of Contents
English
Summary of Safety Precautions
Carefully read and strictly follow the warnings and cautions listed on these pages.
Service only by qualified personnel.
WARNING
• When charging a SMRT Pak in an ambulance, locate the SMRT Charger in
an enclosed cabinet and out of patient reach during transport.
• To comply with established ambulance crash test standards, mount the
SMRT Charger to the optional mounting bracket in an enclosed cabinet and
out of patient reach during transport.
• For ambulance installation, a certified mechanic that is familiar with
ambulance requirements should install the optional mounting bracket and
the SMRT Charger. Improper SMRT Charger installation may cause injury to
the patient or operator and/or damage to the SMRT Charger or SMRT Pak.
• Ensure that the mounting bracket is securely attached to the surface.
• If the SMRT Pak is cracked or damaged, do not insert it into the SMRT
Charger. Return damaged SMRT Paks to a service center for recycling.
• To reduce the risk of electric shock, do not remove the SMRT Pak when the
Power-PRO cot is activated.
• Always wear rubber gloves when cleaning the SMRT Charger to reduce the
risk of injury.
• To avoid electrical hazards, always disconnect the SMRT Charger from the
wall outlet before cleaning.
• Do not spray fluid directly onto the SMRT Charger.
• Do not power wash the SMRT Charger.
• To reduce the risk of electric shock, do not immerse the SMRT Charger in
liquid.
• Do not use solvents, lubricants, or other chemicals to clean the SMRT
Charger unless otherwise directed.
• To reduce the risk of electric shock, do not allow water to collect on top of
the SMRT Charger.
• In addition to personal protective equipment (PPE), always wear insulative
rubber gloves when cleaning the SMRT Pak to reduce the risk of injury.
• While power washing, use any appropriate personal safety equipment
(goggles, respirator, etc.) to avoid the risk of inhaling contagion. Use of
power washing equipment can aerate contamination collected during the
use of the cot.
• To reduce the risk of injury, do not directly handle or make contact with the
SMRT Pak terminals while cleaning.
• Use only non-conductive materials to wipe the SMRT Pak clean.

www.stryker.com 6500-109-105 REV A 1-11
Return To Table of Contents
English
Summary of Safety Precautions
WARNING (CONTINUED)
• To reduce the risk of injury, do not directly handle or make contact with the
SMRT Pak terminals while rinsing.
• Avoid excessive water exposure to the SMRT Pak terminals.
• To reduce the risk of electric shock, do not immerse the SMRT Pak in liquid.
• Do not use solvents, lubricants, or other chemicals to clean the SMRT Pak
unless otherwise directed.
• Refer to the disinfectant’s Material Safety Data Sheet (MSDS) to verify the
pH range. Disinfectants with pH levels higher than 10.5 may cause the SMRT
Pak housing material to crack.
• Use only Stryker-approved parts. Other parts may result in increased
electromagnetic emissions or decreased electromagnetic immunity of the
system. Do not modify any parts. Failure to comply may result in injury.
• Always maintain the SMRT Charger in an area that is free of moisture and
dust, and especially metallic or conductive materials including, but not
limited to, steel wool, aluminum foil, grinding dust, or salt spray.
• Do not use this equipment in the presence of a mixture consisting of
flammable anesthetic and air or oxygen or nitrous oxide.
• Take special precautions regarding electromagnetic compatibility (EMC)
when using medical electrical equipment like the SMRT Charger. Install and
place the SMRT Charger into service according to the EMC information in
this manual. Portable and mobile RF communications equipment can affect
the function of the SMRT Charger.
• Do not operate the SMRT Charger using a voltage inconsistent with the
rating on the back of the unit.
• Always recharge SMRT Paks with SMRT Chargers. Failure to comply may
result in injury.
• Always place and maintain the power cord such that it will not be damaged
or cause a hazard.
• Never use a SMRT Charger that has a damaged housing, damaged power
supply, or damaged power cord. Failure to comply may result in electric shock
or fire. Before attempting any maintenance or cleaning, ALWAYS disconnect
the power cord from the SMRT Charger to reduce the risk of electric shock.
Never clean the SMRT Charger when it is connected to an electrical power
source.
• To reduce the risk of electric shock, never attempt to open the SMRT
Charger or SMRT Pak for any reason.
• Avoid direct contact with a wet SMRT Pak or SMRT Charger. Contact may
cause injury to the patient or operator.

1-12 6500-109-105 REV A www.stryker.com
Return To Table of Contents
English
Summary of Safety Precautions
WARNING (CONTINUED)
• Inspect SMRT Paks for damage before every use. Do not charge or use if
there is any evidence of damage. During cleaning, moisture may enter a
cracked housing and damage the electrical components or cause leaking
or venting of battery electrolyte. This may result in chemical burns of skin
and eyes.
• Never incinerate the SMRT Pak, even if it is severely damaged, because the
SMRT Pak can explode in a fire.
• Never short-circuit the SMRT Pak by connecting the terminals with any
conductive material.
CAUTION
• Only use the SMRT Pak and SMRT Charger as specified.
• Place the electrical power cord where it will not be stepped on, tripped over,
or otherwise subjected to damage or stress.
• Do not touch the SMRT Pak receptacle terminals with metal objects.
• To reduce the risk of damage to the electrical plug and cord, grasp and pull
the plug, not the cord when disconnecting the SMRT Charger.
• Make sure that the SMRT Pak is fully charged prior to placing into service.
An uncharged or depleted SMRT Pak may cause poor cot performance.
• Remove the SMRT Pak if the Power-PRO cot is not going to be used for an
extended period of time (over 1 week).
• Remove the SMRT Pak before washing the Power-PRO cot. See page 1-25
for cleaning instructions.
• Dry the SMRT Paks before placing them in the SMRT Charger to avoid
damage to the batteries or charger.
• Replace a SMRT Pak in the Power-PRO cot at the first indication that it is
losing power. Using a SMRT Pak until it is completely drained may cause
permanent damage and will shorten the life and output of the SMRT Pak.
NOTE
• The cot indicator LED does not have to flash amber before removing and
charging the SMRT Pak, however this is considered to be a “best practice.”
• For extended storage, the SMRT Pak should remain on the SMRT Charger
to trickle charge and ensure that the SMRT Pak remains fully charged. The
SMRT Charger keeps the SMRT Pak charged and ready for use.
• To maximize available battery power, only use SMRT Paks that have been
fully charged within the last 48 hours.
• Fully charge the SMRT Pak for two hours before troubleshooting the Pak.

www.stryker.com 6500-109-105 REV A 1-13
Return To Table of Contents
English
General Inspection
The condition of the SMRT Charger and SMRT Pak is the responsibility of the
owner. Have a qualified service person use the following list and the operation
instructions to check the SMRT Charger and SMRT Pak before the product is
put into service.
Unpack the cartons and check all items for proper operation.
Item Routine Page
SMRT Charger and
SMRT Pak
Unpack batteries and charger
Charge SMRT Pak according to instructions 1-21
AC Power Components Check the AC power supply for any damage
Check the AC power cord for any damage
N/A
DC Power Components Check the DC cable for any damage N/A
Accessories Check the mounting bracket for any damage N/A
WARNING
When charging a SMRT Pak in an ambulance, locate the SMRT Charger in an
enclosed cabinet and out of patient reach during transport.
Note: This manual should be considered a permanent part of the SMRT Power
System and should remain with the product even if the system is subsequently
sold.

1-14 6500-109-105 REV A www.stryker.com
Return To Table of Contents
English
Compatibility Information
COT COMPATIBILITY
The Stryker SMRT Pak is designed to be compatible with the Power-PRO XT,
Power-PRO TL, and Power-PRO IT cots. The 24 VDC Power-PRO system and
the SMRT Pak is rated for 2.4 amp-hours of electric energy. A SMRT Pak that is
in good working condition and is fully charged provides up to 15-20 “calls” with
a 250 pound patient (actual results may vary).
Running the SMRT Pak repeatedly, without rest periods, can increase the
temperature within the cells and reduce life. For example, lifting a heavy patient
up and down several times in rapid succession can reduce the SMRT Pak life.
For best results, use the SMRT Pak on the Power-PRO cot until the cot indicator
LED changes from green to flashing amber.
Note: The cot indicator LED does not have to flash amber before removing and
charging the SMRT Pak, however this is considered to be a “best practice.”
Once the SMRT Pak has been discharged, remove the SMRT Pak from the
Power-PRO cot and replace it with a fully charged SMRT Pak.
CHARGER COMPATIBILITY
The Stryker SMRT Pak is intended for use with the Stryker SMRT Charger only.
