Kessler CineDrive Turntable Conversion Kit User manual

CineDrive Turntable Conversion Kit Installation Guide
®

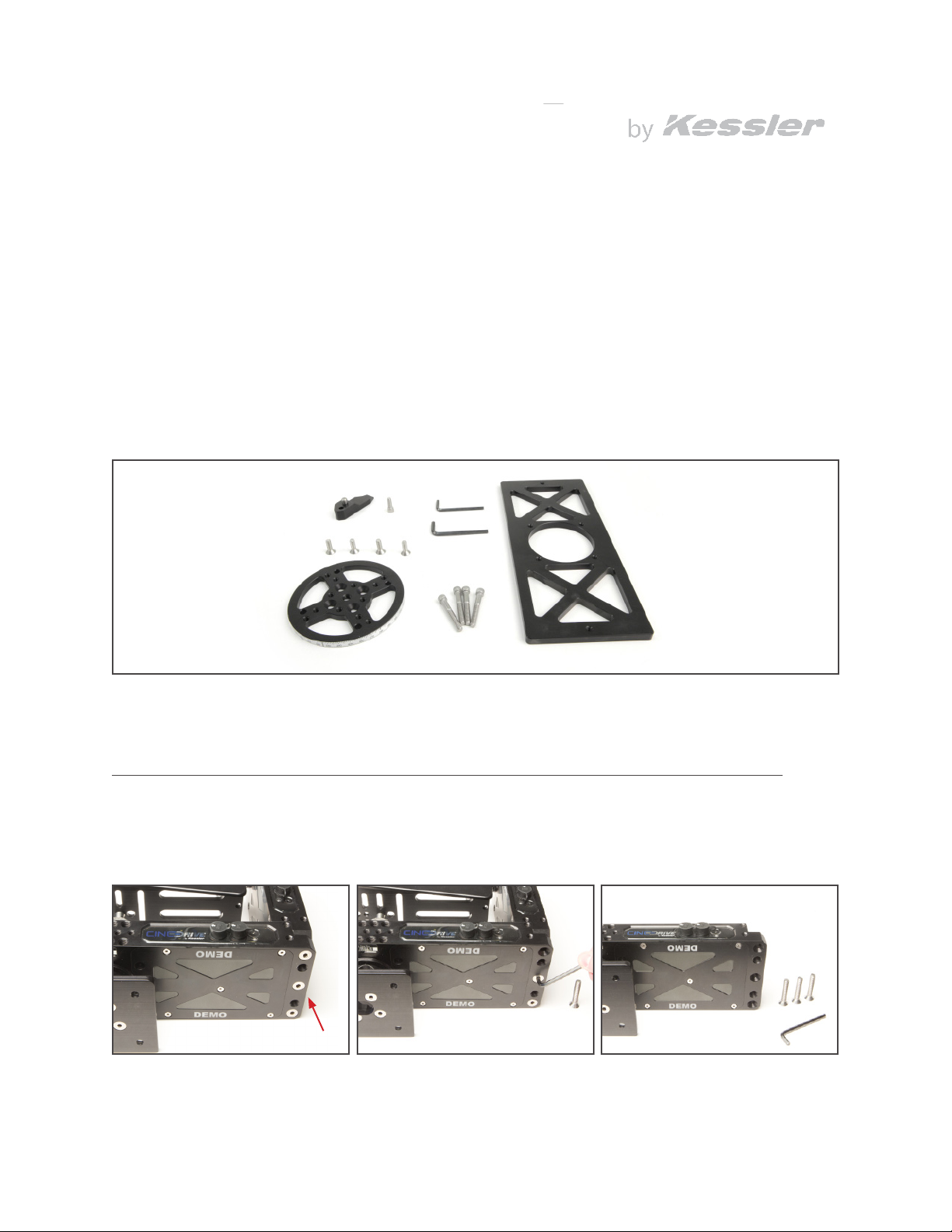

Pan Brick Removal and Preparation for Turntable Kit Installation:
Step 1
Remove the three 1/4”-20x.75 at head allen screws joining the pan brick and tilt bricks
using a 5/32” hex allen wrench. Retain screws for possible future use.
What’s Included
a. (1) Turntable Degree Wheel with Sticker
b. (4) Turntable Plate Mounting Screws ¼”-20 x .75” Socket Countersunk Screw
c. (1) Degree Indicator with 5/16” x 3/4” Stainless Dowel Pin
d. (1) Degree Indicator Mounting Screw ¼”-20 x .75” SHCS
e. (1) Turntable Base
f. (4) Turntable Base/Hub Mounting Screws 1/4”-20 x 1.75” SHCS
g. (1) 5/32” Allen Wrench
h. (1) 3/16” Allen Wrench
a.
b.
c. d.
e.
f.
g.
h.

Step 2
Mount supplied Turntable Degree Wheel to pan brick hub (where original pan mounting
plate was removed in step 2 above) using four Turntable Plate Mounting Screws.
Position of Degree Wheel and zero degrees mark does not matter when installing
Degree Wheel to hub.
CineDrive Turntable Kit Installation:
Step 1
Install supplied Turntable Base to the pan brick as shown using four Turntable
Base/Hub Mounting Screws.
®
Step 2
Remove the four Turntable Plate Mounting Screws holding the pan brick mounting plate
to the pan hub. Retain screws and mounting plate for possible future use.

Optional Outrigger Feet Installation:
Step 1
Install any optional Outrigger Feet by screwing to ends of turntable mounting base.
Optional Corian® Table Top Installation:
Step 2
Install optional accessory Corian® Table Top to turntable dial wheel using four supplied
Step 3
Install supplied Turntable Degree Indicator to pan brick in the location shown using
one Degree Indicator Mounting Screw.

Optional Mounting Hub Installation:
Step 1
Remove the top Degree Wheel from the Turntable with the supplied 5/32” allen wrench
Step 2
(If Turntable Base is installed, remove before installing Mounting Hub.)
Line up the Mounting Hub with the bottom of the Turntable brick. Use the supplied
Turntable Base/Hub Mounting Screws and 3/16” allen key to bolt the Hub to the brick.
Step 3
Re-install the top Degree Wheel.
