ASSEMBLY INSTRUCTIONS
Flint Mill 48in Media Console Electric Fireplace
Questions, problems, missing parts?
Before returning to the store, call Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. – 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
O
R

2
Table of Contents
Table of Contents .................................................................. 2
Safety Information ................................................................ 2
Warranty .............................................................................. 2
Pre-Assembly ....................................................................... 2
Planning Assembly .......................................................... 2
Tools Re uired ................................................................ 2
Hardware Included .......................................................... 3
Package Contents ........................................................... 4
Assembly.............................................................................. 5
Care and Maintenance ........................................................ 18
Safety Information
Please read and understand these instructions before
assembling and using this console. Save these instructions
for future reference.
MAXIMUM RECOMMENDED WEIGHT LOADS
WARNING: This unit is not intended for use with CRT TVs. Use
only with flat panel TVs and audio/video e uipment meeting
recommended size and weight limits. Never use with
larger/heavier than recommended flat panel TVs or
e uipment. To avoid instability, place flat panel TV in the
centre of the unit; the base of the television must be able
to rest on the supporting surface of the unit without
over-hanging the edges. Improperly positioned flat panel
TVs, or flat panel TVs or other e uipment that exceed
recommended size and weight limits could fall off or break
the unit, causing possible serious injury.
Warranty
We are confident that you will be delighted with this purchase. Should this product be defective in workmanship or materials, or
fail under normal use, we will repair or replace it for a period of up to one (1) year from date of purchase.
This warranty gives you specific rights and you may also have other rights which vary from state to state.
Contact the Customer Service Team at 1-877-527-0313 or visit www.HomeDepot.com.
Pre-Assembly
PLANNING ASSEMBLY
Compare all parts with the Hardware Included and Package Contents list. If any part appears missing or damaged, do not
assemble this product and contact the Customer Service Team at 1-877-527-0313.
TOOLS REQUIRED
Phillips
screwdriver
(not provided)
Maximum load 22.7 kg / 50 lb
P
lace
TV
behind
the
stopper
Fits up to most 152.4 cm / 60 in. flat panel TVs
Maximum load 61.2 kg / 135 lb

3 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Pre-Assembly (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Part Description Quantity Part Description Quantity
AA Wood dowel 45+2 extra KK Floor leveler 2
BB Cam lock 46+2 extra LL Cam lock cover 32+1 extra
CC
Cam
b
olt
4
6
+
2
extra
MM
Acrylic stopper
1
DD
Short
flat
head
s
crew
4
+
1 extra
NN
Handle
2
EE Long flat head screw 4+1 extra OO Handle bolt 4
FF
Short
pan
head screw
8
+
1
extra
PP
Rubber bumper
4
+
1 extra
GG Washer head screw 32+1 extra QQ Glue 1
HH Straight metal plate 2 RR Touch-up pen 1
II Shelf support 8+1 extra SS Tipping restraint hardware kit 2
JJ
Triangle metal plate
2
MM
AA BB CC DD EE FF GG HH
LL
II
NN OO PP
JJ
QQ RR SS
KK

4
Pre-Assembly (continued)

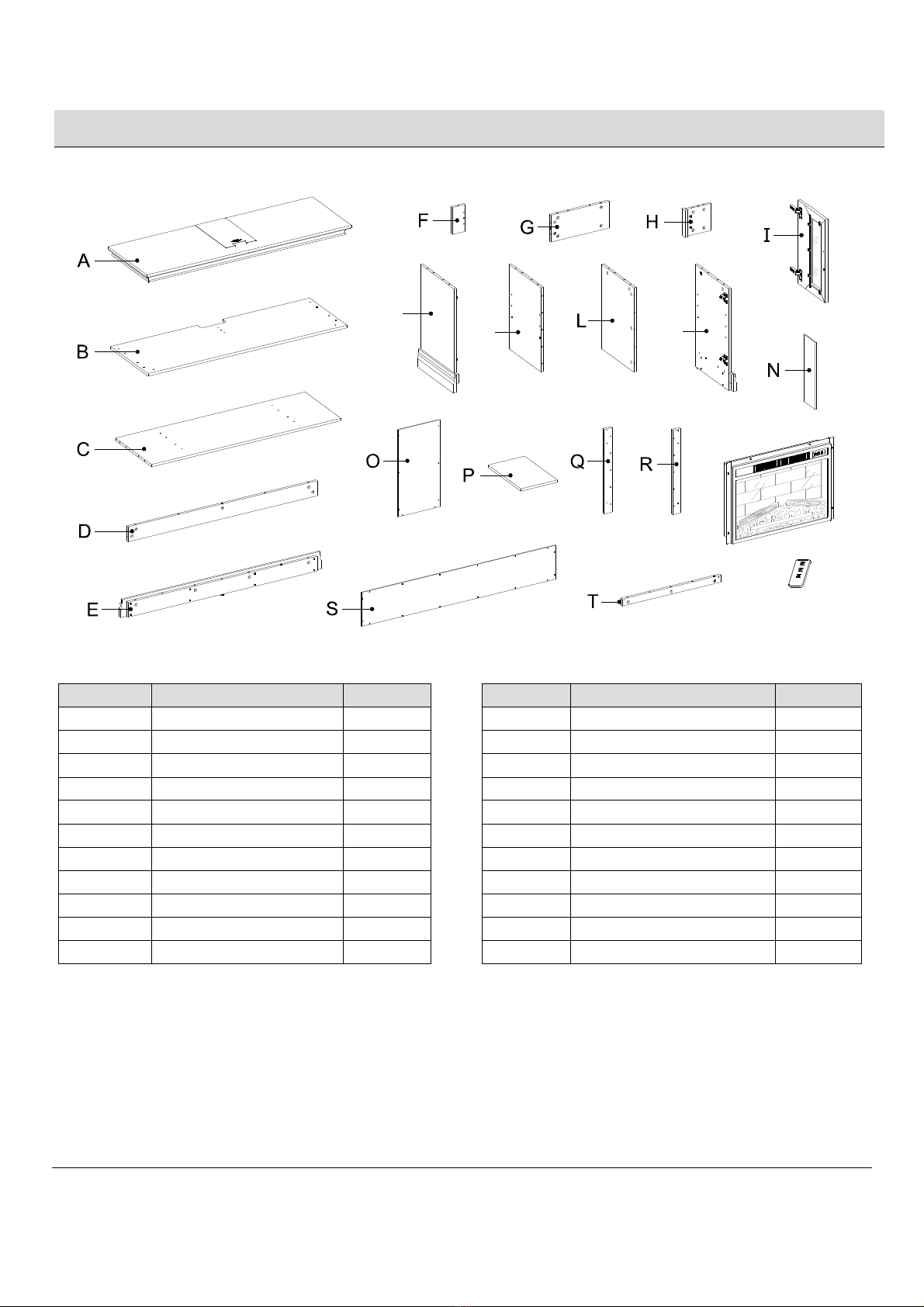

PACKAGE CONTENTS
Part Description Quantity Part Description Quantity
A
Top
p
anel
1
L
Righ
t lower partition panel
1
B Center shelf 1 M Right lower side panel 1
C Bottom panel 1 N Wood door insert panel 2
D Bottom back stretcher 1 O Lower back panel 2
E
Bottom front stretcher
1
P
Adjustable
s
helf
2
F
Upper front
m
olding
2
Q
Left middle stile
1
G Upper side panel 2 R Right middle stile 1
H
Upper partition panel
1
S
Upper
back panel
1
I Door with glass insert 2 T Middle crossbar 1
J Left lower side panel 1 Fireplace insert 1
K Left lower partition panel 1 Remote control with battery 1
J
KM

5 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Assembly
1

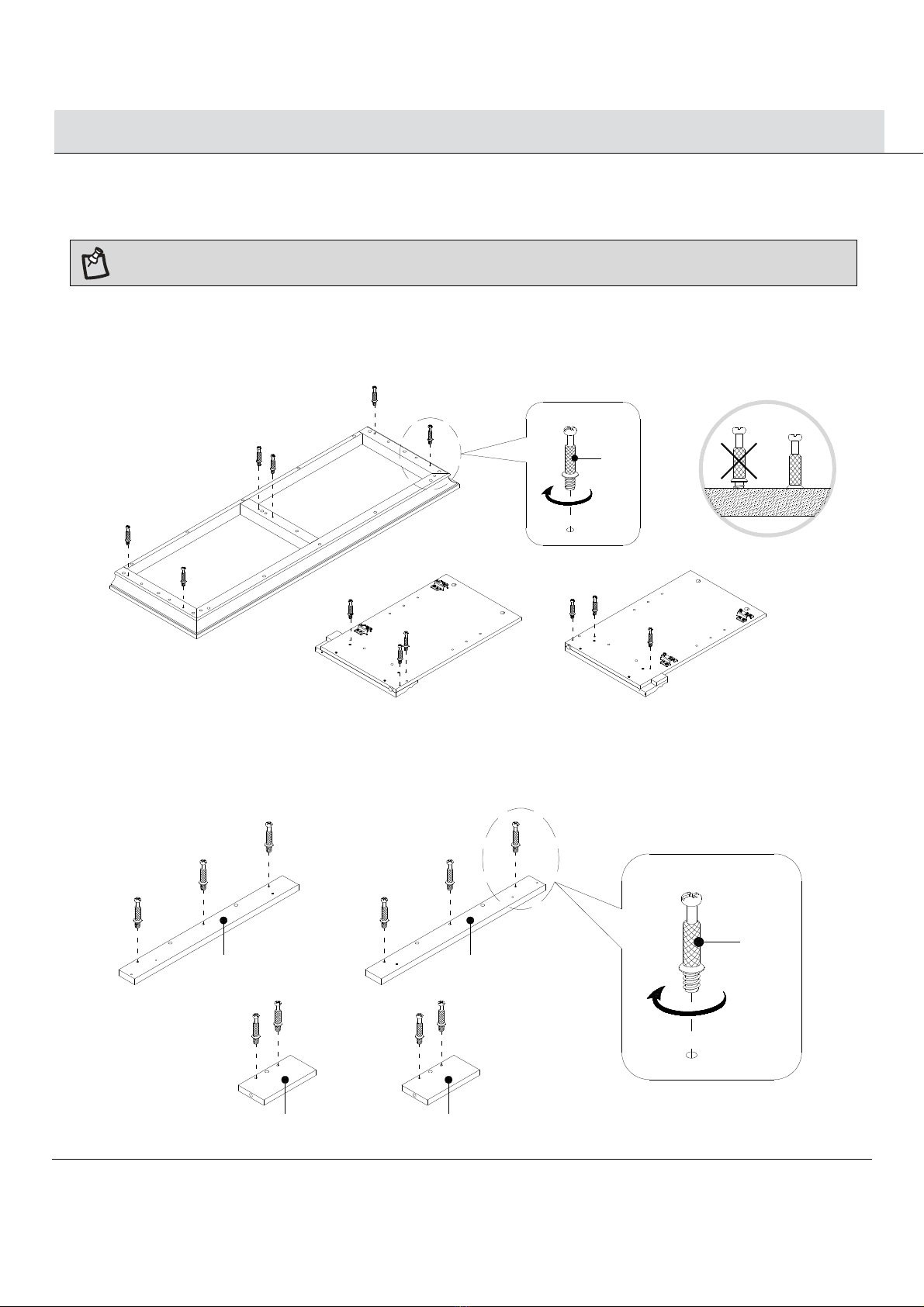

Screwing the cam bolts
NOTE: Do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts.
This will make the assembly easier.
□ Unpack the unit and confirm that you have all the hardware and re uired parts. Assemble the unit on a carpeted floor or
the empty carton to avoid any scratches.
□ Securely screw the cam bolts (CC) into the designated small holes on the top panel (A) and the lower side panels (J and
M) using a Phillips screwdriver.
2
Screwing the cam bolts
□ Securely screw the cam bolts (CC) into the designated small holes on the middle stiles (Q and R) and upper front
moldings (F) using a Phillips screwdriver.
A
JM
CC
CC
QR
F F

6
Assembly (continued)
3
Combining the upper moldings and side panels

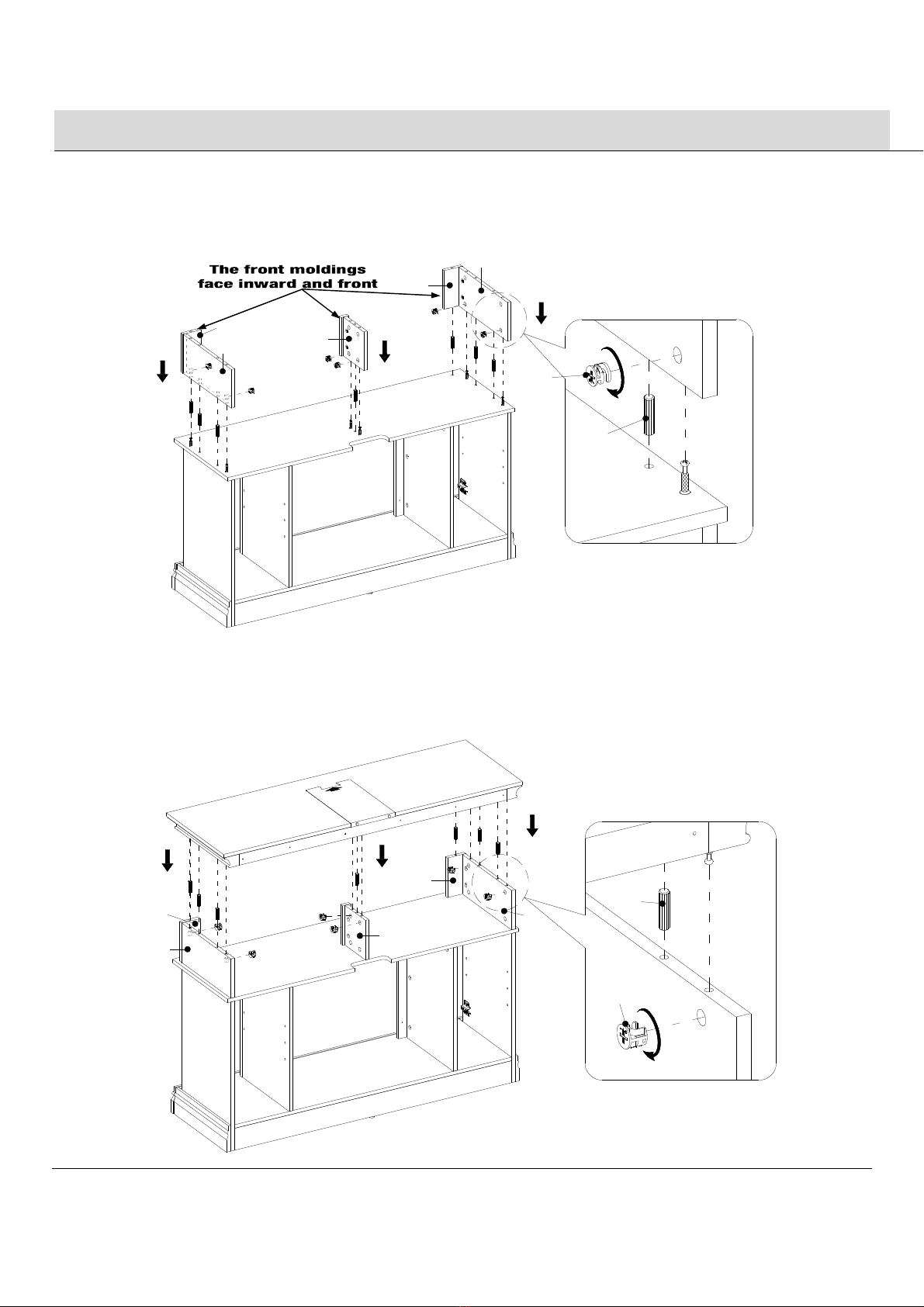

□ Glue one wood dowel (AA) into the inner hole of one upper side panel (G) and attach it to one upper front molding (F) by
engaging two cam locks (BB) as shown.
□ Repeat the same procedure to combine the other upper front molding (F) and the remaining upper side panel (G)
together.

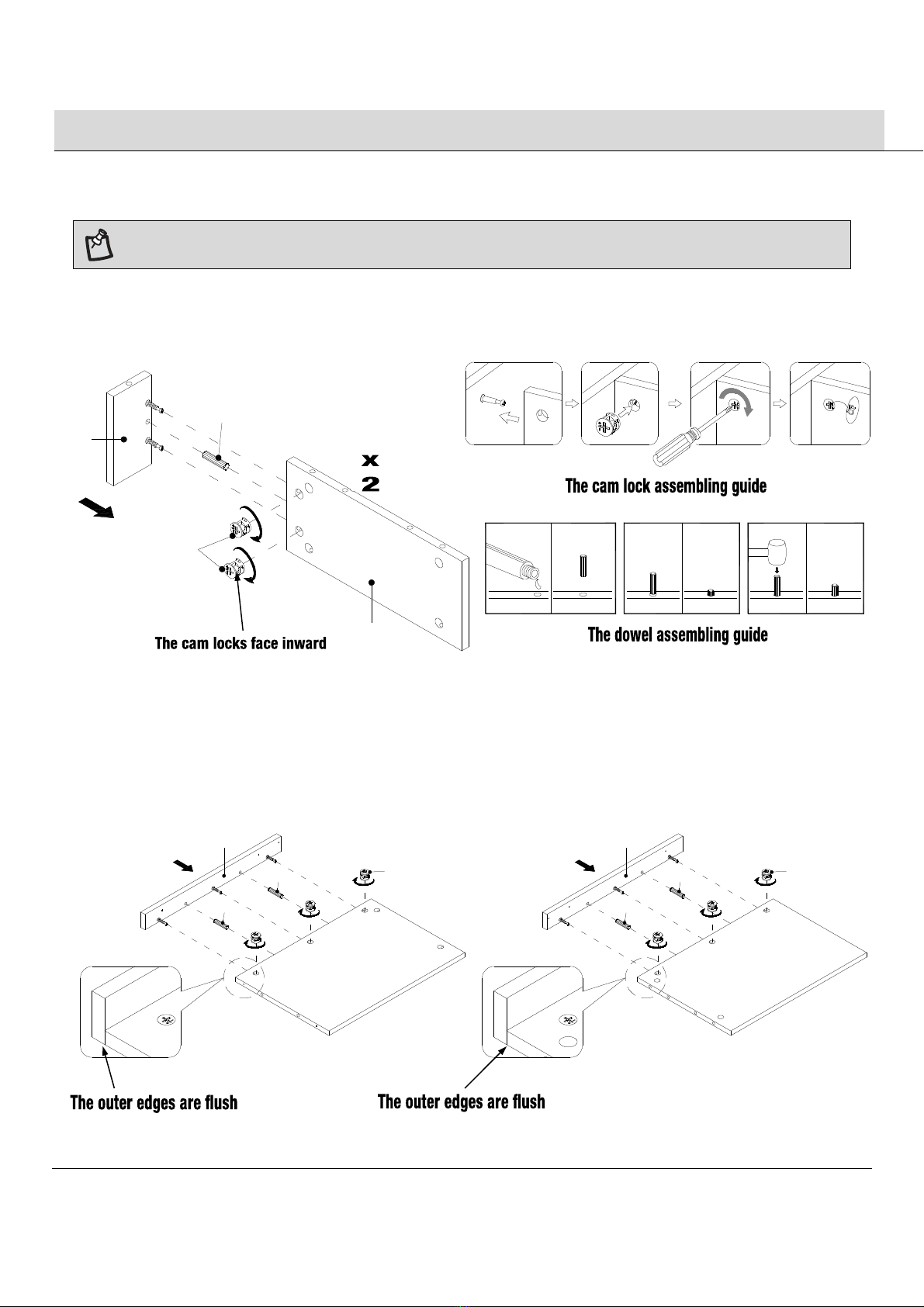

NOTE: Refer to the dowel and cam lock assembling guide drawings in this step for further clarification on how to properly glue in
the wooden dowels and install cam locks. Apply this method whenever instructed to install wood dowels and cam locks .
4

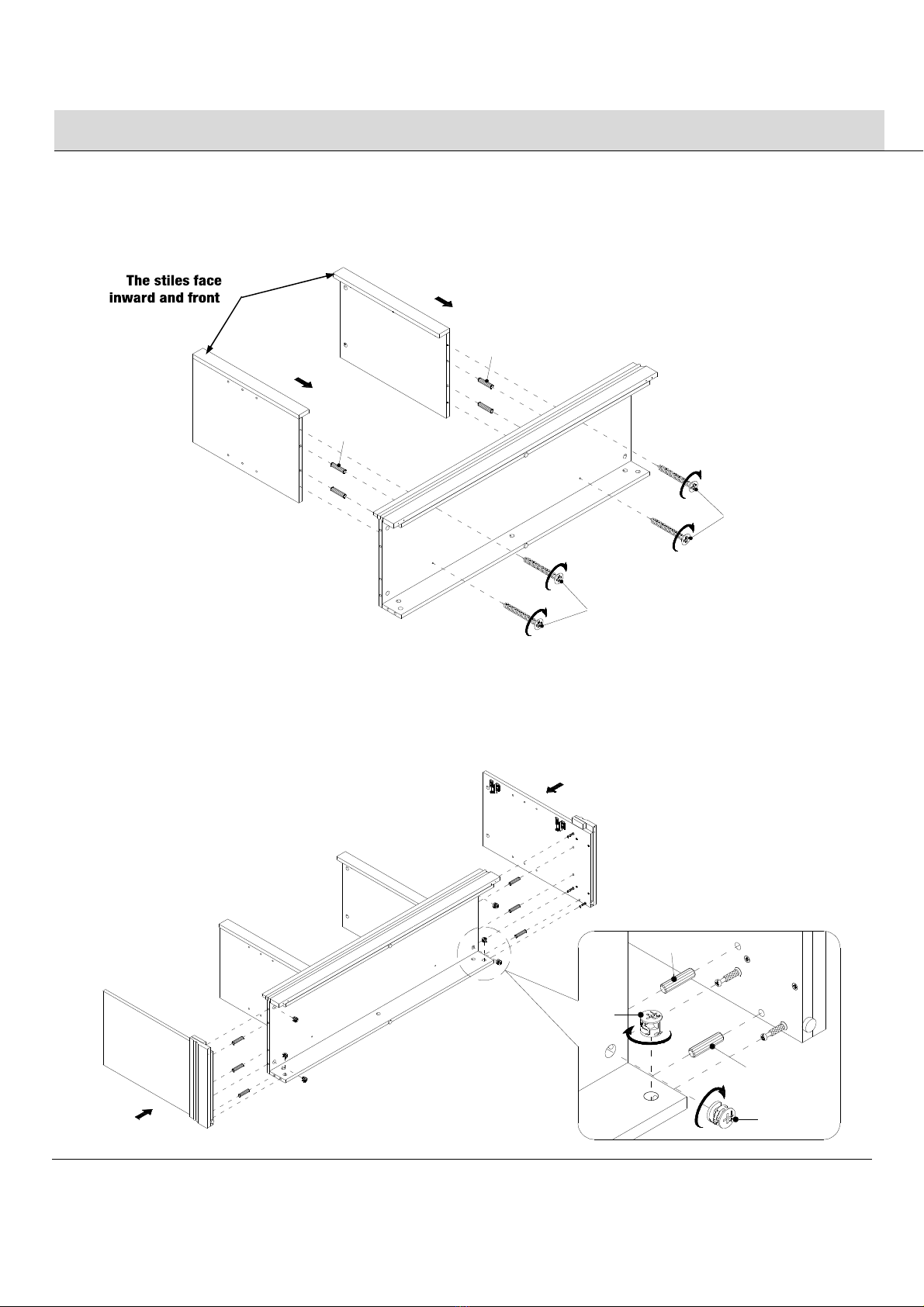

Combining the middle stiles and lower partition panels
□ Glue two wood dowels (AA) into the inner hole of the left lower partition panel (K) and attach it to the left middle stile (Q)
by engaging three cam locks (BB) as shown.
□ Repeat the same procedure to combine the right middle stile (R) and the right lower partition panel (L) together.
AA
BB
F
G
L
AA BB
AA
AA
K
Q
BB
AA
R
GLUE
XX
FINAL
1 2 43

7 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Assembly (continued)
5
Screwing the cam bolts
□
Securely screw the cam bolts
(
CC
) into the designated small holes on the
c
enter shelf
(
B
)
and
bottom panel
(
C
)
using a
Phillips screwdriver.
6
Attaching the middle crossbar
□ Glue two wood dowels (AA) into the inner holes on the middle crossbar (T) and attach it to the center shelf (B) by
engaging three cam locks (BB).
B
C
CC
AA
AA
BB
B
T

8
Assembly (continued)
7
Attaching the bottom back stretcher
□
Glue
two
wood dowels (
AA
) into the inner
holes on the
b
ottom back stretcher
(
D
) and attach
it
to the
bottom panel
(
C
) by
engaging three cam locks (BB).
8
Attaching the bottom front stretcher
□ Glue three wood dowels (AA) into the inner holes on the bottom front stretcher (E) and attach it to the bottom panel (C)
by engaging four cam locks (BB).
C
E
AA
AA
BB
C
D
AA
AA
BB

9 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Assembly (continued)
9
Attaching the lower partition panels
□
Align and attach the
lower
partition panels
(
K and L
)
to the
bottom panel
(
C
)
with
four
wood dowels (
AA
) and
four
long
flat head screws (EE).
10
Attaching the side panels
□ Glue six wood dowels (AA) into the inner holes of the bottom panel assembly at both ends.
□ Align the large holes on both side panels (J and M) with the inserted wood dowels (AA) and press them together. Attach
the side panels (J and M) in place by engaging six cam locks (BB).
C
E
K
L
EE
EE
AA
AA
C
J
M
AA
AA
BB
BB

10
Assembly (continued)
11
Attaching the center shelf
□
Glue eight wood dowels (
AA
) into the top inner holes of both side panels (J and M) and partition panels (K and L).
□ Ask for assistance to position the center shelf (B) onto the inserted wood dowels (AA) and attach it in place by engaging
eight cam locks (BB).
12

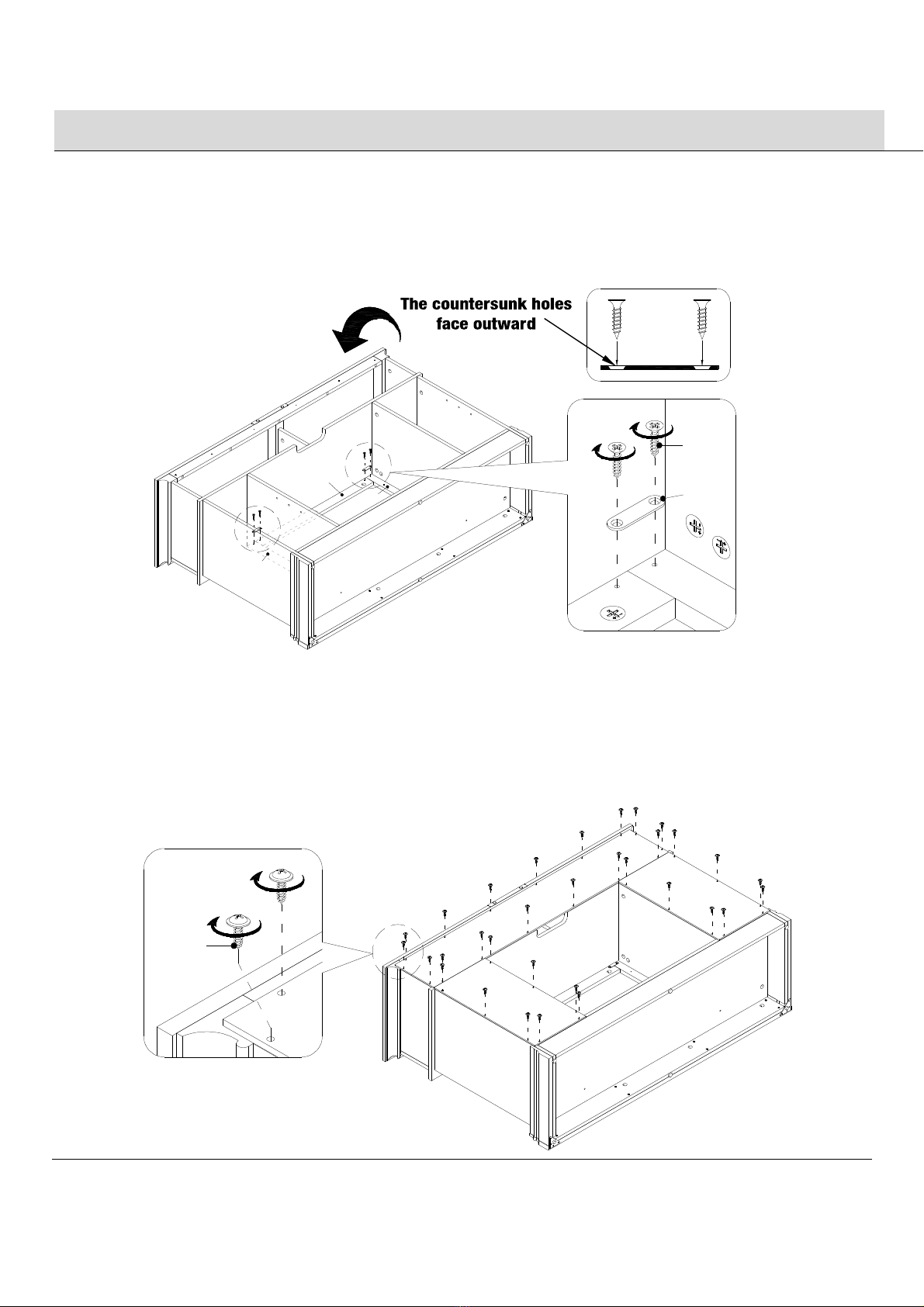

Installing the triangle metal plates
□ Using the pilot holes as a guide, fasten two triangle metal plates (JJ) at the bottom joints between the bottom front
stretcher (E) and side panels (J and M) using four short pan head wood screws (FF) per plate.
M
J
K
L
B
BB
AA
E
J
M
JJ
FF

11 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Assembly (continued)
13
Installing the floor levelers
□ Screw two floor levelers (KK) into the installed triangle metal plates (JJ).
14
Screwing the cam bolts
□ Stand the assembled unit upright.
□ Securely screw the cam bolts (CC) into the designated small holes on the center shelf (B) using a Phillips screwdriver.
KK
JJ
CC
B

12
Assembly (continued)
15
Attaching the upper side panels and partition panel
□
Glue
seven
dowels (
AA
) i
nto the inner holes of both upper side panel
assemblies
and partition panel (
H
) and attach them
to the center shelf (B) by engaging six cam locks (BB).
16
Attaching the top panel
□ Glue seven wood dowels (AA) into the top inner holes on both upper side panel assemblies and partition panel (H).
Position the top panel (A) onto the inserted wood dowels (AA) and fasten it in place by engaging six cam locks (BB).
B
G
F
H
G
F
BB
AA
G
F
H
G
F
A
BB
AA

13 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Assembly (continued)
17
Fastening the middle crossbar
□
Ask for assistance t
o lay down the assembled unit at its front edges.
□ Using the pilot holes as a guide, attach two small metal plates (HH) at the joints where the middle crossbar (T) meets
the middle stiles (Q and R) with four short screws (DD).
18
Attaching back panels
□ Pick up the upper back panel (S) and align the drilled holes against the upper long edge with the pilot holes on the back
stretcher of the top panel (A). Attach the upper back panel (S) in place using the provided washer head screws (GG).
□ Align and attach two lower back panels (O) to the lower side panels (J and M) and partition panels (K and L) with the
provided washer head screws (GG), using the pilot holes as a guide.
T
R
Q
HH
DD
S
O
O
GG

14
Assembly (continued)
19
Installing the handles
□
Attach one
handle
(
NN
) to the front side of each doo
r
(
I
)
with the handle bolt
s
(
OO
).

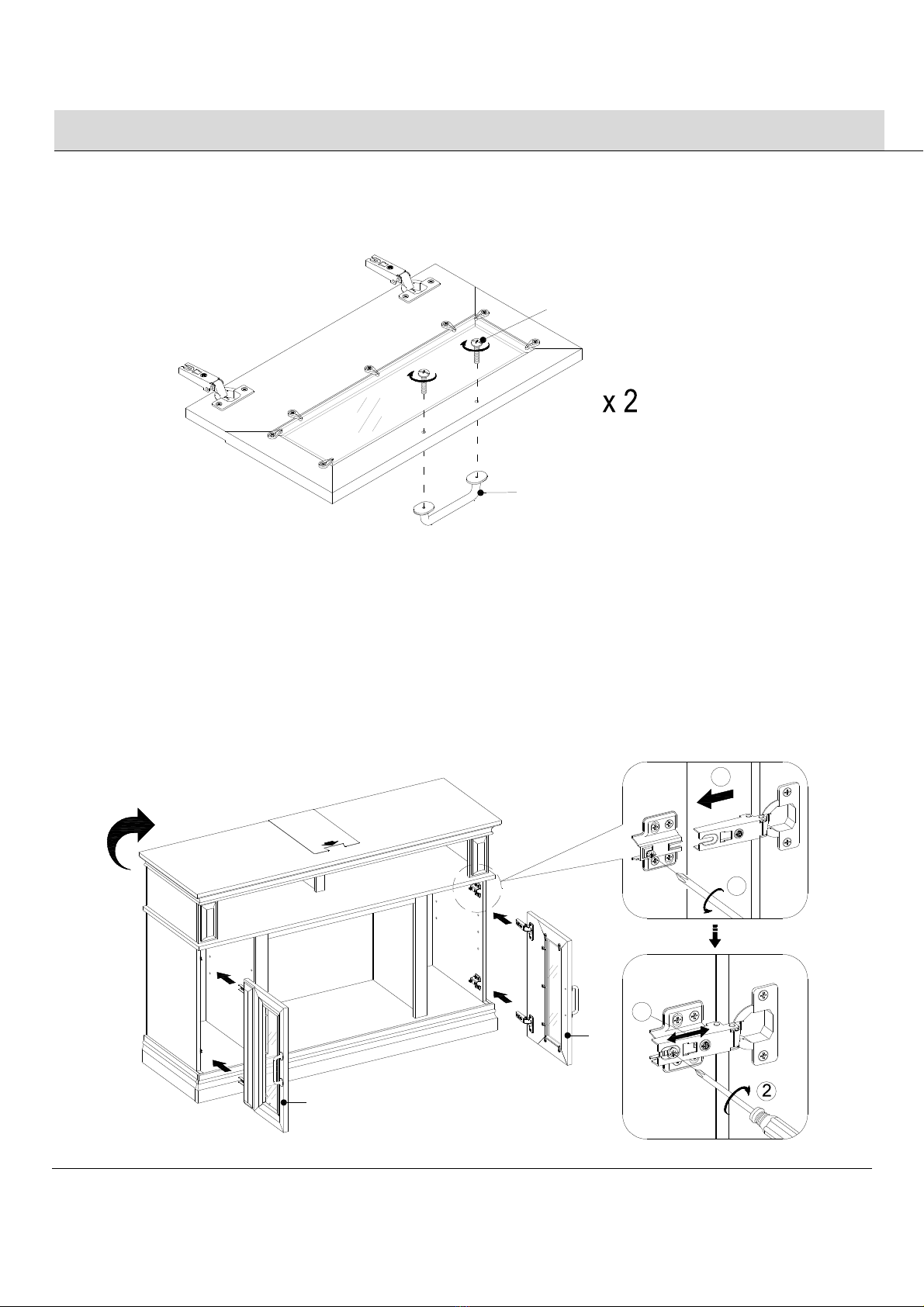

20
Attaching the doors
□ Stand the assembled unit upright.

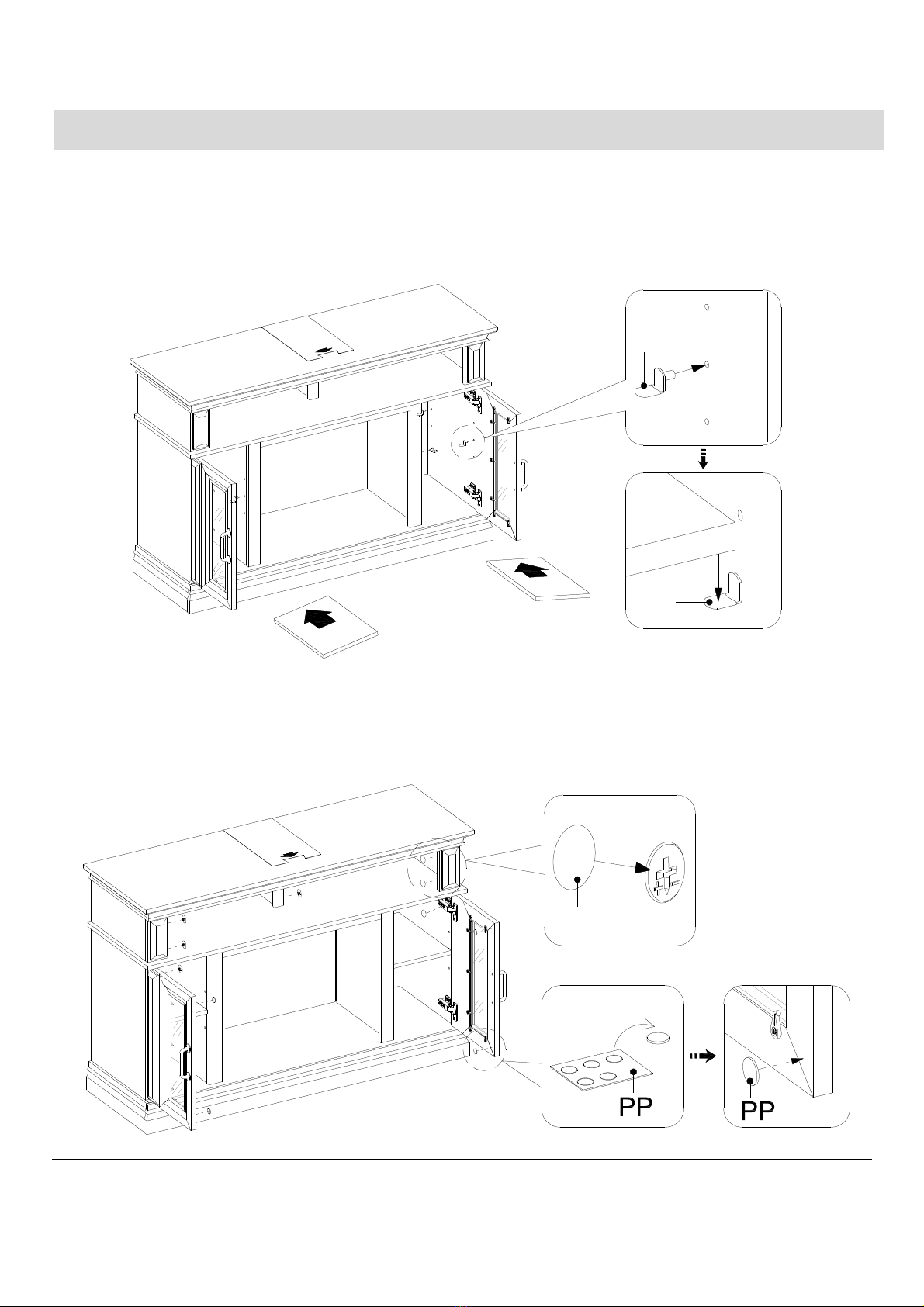

□ Pick up one door (I) and attach the extended hinge arms to the hinge bases installed on the left side panel (J). Loosen the
bolt on the back of the hinge base for an easy fit. Align and insert the “U” slot on the hinge arm under the bolt head on
the back of the hinge base. Make sure that both door hinges engage and function properly. Tighten the bolt on the hinge
base to lock the hinges in place.
□ Repeat the same procedure to attach the other door (I) at the opposite side.
□ Open and close the doors to make sure they are aligned and shut correctly. If necessary, adjust the screws for a good fit.
Refer to the hinge sticker on the door for adjustment.
NN
OO
I
1
1
2
J
M
I
I

15 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Assembly (continued)
21
Installing the adjustable shelves
□ Open the doors (I) and insert four shelf supports (II) into the desired holes inside each side compartment. Make sure you
place the four shelf supports in the same level so the shelf is not tilted. Rest the adjustable shelves (P) onto the shelf
supports (II).
22
Attaching the rubber bumpers and cam lock covers
□ Stick the rubber bumpers (PP) at the outer corners of both doors (I) where they meet the middle stiles (Q and R).
□ Plug the cam lock covers (LL) onto the visible cam locks to conceal the cams.
P
P
II
II
P
J
M
L
K
LL

16
Assembly (continued)
23

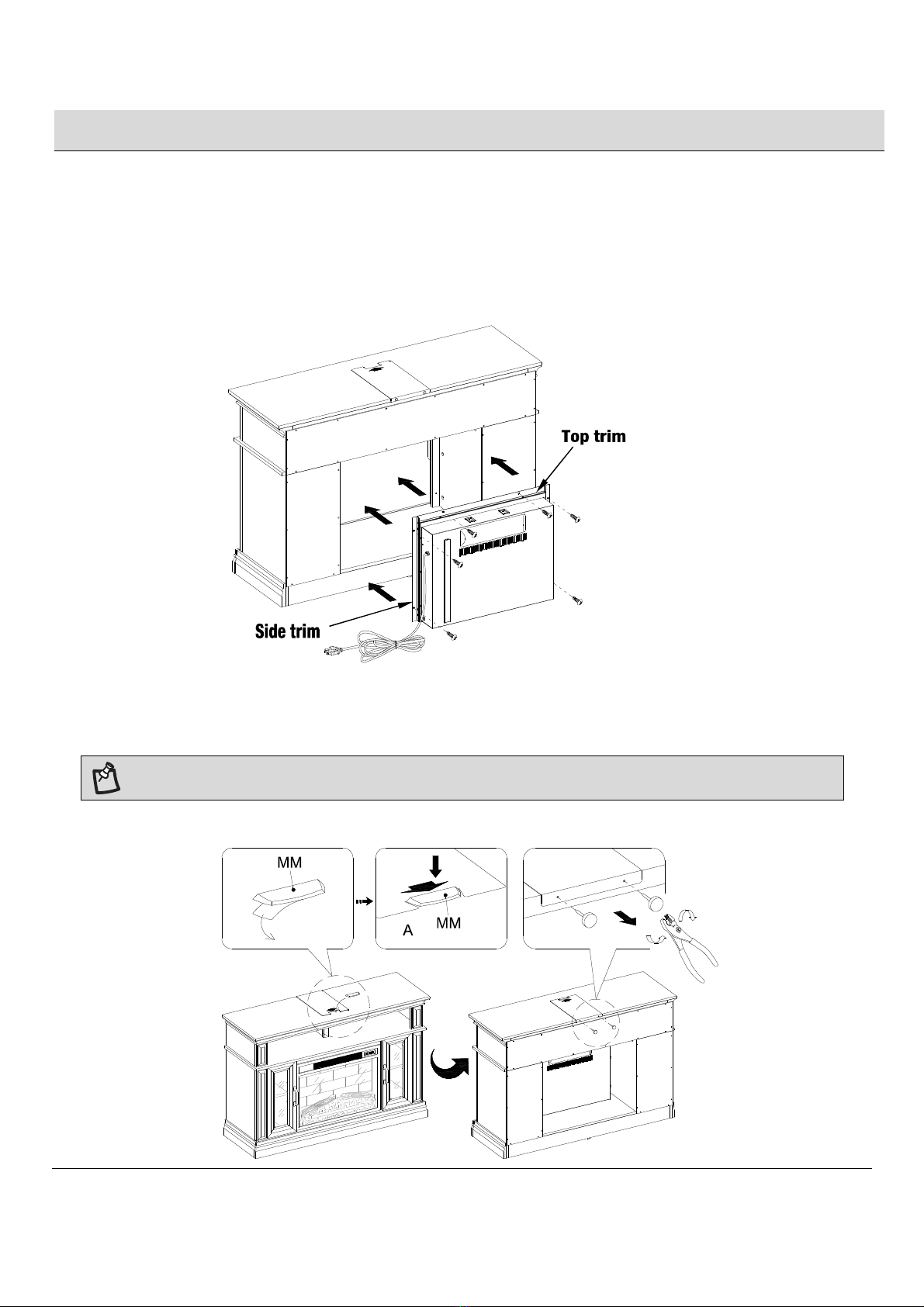

Installing the fireplace insert
□
Unpack the fireplace insert from the inner box and follow the instructions to install the Top Trim and Side
Trims to the
fireplace insert.
□ Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening. DO NOT drag the
insert across the bottom panel (C) as it may scratch the unit.
□ Fasten the fireplace insert to the mantel with six insert screws as shown.
24
Installing the acrylic stopper
□ Remove the paper backing of acrylic stopper (MM), then properly align the acrylic stopper into the cut-out on the acrylic
stopper template on the front of the top panel (A). Press down on the acrylic stopper to help adhesion.
□ At the back of top panel (A), grip the heads of plastic tacks with pliers, with twisting motion pull tacks loose to remove
the acrylic stopper template.
NOTE: To prevent your TV from tipping, you must install the acrylic TV stopper if you place a flat panel television on the
top panel. Otherwise, skip to next step.
C
AA

17 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Assembly (continued)
25
Interchanging wood door panels
□ To change door panels, loosen the screws on the inside of the door and rotate the clips to remove the panel. Replace
with the desired panel, then rotate clips to secure the panel within the door frame and tighten screws.
26
Installing the tipping restraint hardware
WARNING: Young children can be seriously injured by tipping furniture. You must install the tipping restraint hardware with
the unit to prevent the unit from tipping, causing any accidents or damage. The tipping restraints are intended only as a
deterrent, they are not a substitute for proper adult supervision. The tipping restraints are not earth uake restraints. If you wish
to add the extra security of earth uake restraints, they must be purchased and installed separately.
□ With assistance, position the assembled fireplace at the desired location against a wall. If necessary, adjust the
installed floor levelers (KK) by hand to correct tilting and level the doors, until the unit is level.
□ Follow the instructions printed on the plastic bag containing the tipping hardware to attach the tip-over restraint to the
unit and the wall.
□ Connect the fireplace to the power transformer. Follow the operating manual for the electric fireplace insert to control
your fireplace.
NOTE: The glass door panels are pre-attached when shipping. You can keep as is or interchange as the desired configuration.
N
I

18
Care and Maintenance
A touch-up pen has been provided to minimize the small nicks or scratches that may occur during assembly or shipping.
To clean and care for your furniture:
□ Use a soft, clean cloth that will not scratch the surface when dusting.
□ Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area.
□ Using solvents of any kind on your furniture may damage the finish.
□ Never use water to clean your furniture as it may cause damage to the finish.
□ Always use coasters under beverage glasses and flowerpots.
□ Li uid spills should be removed immediately. Using a soft clean cloth, blot the spill gently. Avoid rubbing.
□ Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create spotting
within the furniture finish.
□ In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a professional
to repair your furniture.
□ Check bolts/screws periodically and tighten them if necessary.
CARING FOR WOOD FURNITURE
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity changes can cause
fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from direct sunlight as sun may damage
the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful tips will enhance
your furniture as it ages.
CLEANING THE FIREPLACE TRIM
Clean the metal trim using a soft cloth, slightly dampened with citrus oil based product and buff with a clean soft cloth. DO NOT
use brass polish or household cleaners as these products will damage the metal trim. Citrus oil based products can be obtained
at supermarkets or hardware stores.

Questions, problems, missing parts? Before returning to the store,
call StyleWell Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
Retain this manual for future use.
