Stylies Pegasus User manual

Congratulations! You have just acquired the exceptional Air purifier «Stylies Pegasus». It will
give you great pleasure and improve the indoor air for you.
As with all domestic electrical appliances, particular care is needed with this model also, in
order to avoid injury, fire damage or damage to the appliance. Please study these operating
instructions carefully before using the appliance for the first time and follow the safety advice
on the appliance itself.
IMPORTANT SAFETY GUIDELINES
• Please read through the operating instructions carefully before you use the appliance for the first
time and keep them safely for later reference; if necessary pass them on to the next owner.
• Coplax refuses all liability for loss or damage which arises as a result of failure to follow these operat-
ing instructions.
• The appliance can only be used in the home for the purposes described in these instructions. Unau-
thorised use and technical modifications to the appliance can lead to danger to life and health. Do not
store or operate the appliance outdoors.
• This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instructionconcerning use of the appliance in a safe way and understand the hazards
involved. Cleaning and user maintenance shall not be made by children without supervision. Children
should be superivsed to ensure that they do not play with the appliance.
• Only connect the cable to alternating current. Observe the voltage information given on the appliance.
• Do not use damaged extension cords.
• Do not run the power cord over sharp edges and make sure that it does not get trapped. Do not pull
the plug from the socket with wet hands or by holding on to the power cord.
• Do not use this purifier in immediate vicinity of a bath tub, a shower or a swimming pool (observe a
minimum distance of 3 m). Place the appliance such that a person in the bath tub cannot touch the
appliance.
• Do not place the appliance near a heat source.
• Do not subject the power cord to direct heat (such as a heated hotplate, open flames, hot iron sole
plates or heaters for example). Protect power cords from oil.
• The device must always be unplugged:
- After each use.
- In case of malfunction
- Before any cleaning
- Before the device is moved to another place
- During storms
• Penetrating the housing with any kind of object is strictly prohibited.
• Make sure that the appliance is properly positioned to ensure a high stability during its operation and
make sure that no one can trip over the power cord.
8
English

• The appliance is not splash-proof.
• Do not store the appliance outdoors. For indoor use only.
• Store the appliance in a dry place inaccessible to children (pack the appliance).
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• HPP-Filter: Failure to comply with the prescribed cleaning interval of 2 months results in a fire
hazard!
DESCRIPTION OF THE DEVICE
The device consists of the following main components:
Drawing 1
1. Purifier
2. LED displays speed 1-5
Drawing 2
3. Adapter
4. Adapter plug socket
5. Purifier door
6. Fragrance tray
Drawing 3
7. On/Off Switch
8. Button for power setting
9. Button for timer
10. LED displays timer 2, 4 or 8 hours
11. Button for night mode
12. Pre-Filter
13. HPP™ Filter
14. Activated carbon filter
15. Function LED
16. Filter change LED
FIRST USE / OPERATION
1. Place the Pegasus air purifier on a flat surface in the desired area. Plug the adaptor (3)
into a suitable electric socket.
2. Remove the activated carbon filter (14) from the polyethylene bag before operating.
3. Then switch on the appliance by pressing the on/off switch (7).
4. You can adjust the speed and thus the purification rate (volume per hour) by pressing
power setting button (8) (one blue lamp for level 1, two blue lamps for level 2, etc.).
5. You can use the timer to set the desired cleaning time. To do this, press on the timer
button (9). You can choose between the following periods: 2 hours, 4 hours or 8 hours. If
you do not wish to use the timer, you may run the air purifier in continuous operation (no
LED lamps illuminated).
6. If you find the lamps too bright (in a bedroom for example), you may reduce the light inten-
sity by pressing the night mode key (11). The night mode can be switched off by pressing
the key once again.
7. You may use the Pegasus air purifier to distribute fragrances in the room. Please be as
economical as possible in the use of fragrances, because excessive quantities may lead to
malfunctions and damage to the appliance. To use fragrances, remove the fragrance tray
(6) from its mounting. Place no more than 1-2 drops of fragrance in the container and
replace it in its designated position. If you wish to change the fragrance, you can wash out
the fragrance container and fleece under running water.
9

FUNCTIONAL OVERVIEW
Preliminary filter
The preliminary filter removes large dust particles and pollutants from the air, thereby protecting
the secondary filter from severe soiling and optimising its functionality. The preliminary filter can be
vacuum-cleaned when the need arises. Because the filter material becomes worn in the course of
time, the filter should be replaced at approximately 6-month intervals.
HPP™ Filter System
The HPP™ filter is the heart of the air purifier. It filters out viruses, bacteria, fine dust, pollen, dust
mite excretions and mould fungi from the room air. Its high efficiency is ensured by the use of ex-
tremely powerful magnetic fields. The HPP LED (15) shows the function status of the HPP filter:
• LED is illuminated – HPP filter is installed and working faultlessly
• LED is not illuminated – HPP filter is not installed or does not work
The HPP filter must be cleaned every 2 months under cold running water using detergent (see
chapter “Cleaning the filter”).
Activated carbon filter
The activated carbon filter is able to absorb airborne gases (unpleasant odours or tobacco smoke)
thereby filtering them out of the air. Its capacity is finite for which reason the filter should be re-
placed at approximately 6-month intervals depending on the level of air contamination caused by
unpleasant odours and tobacco smoke. Should it become apparent, even before the end of the
6-month period, that the unpleasant odours are no longer being adequately eliminated, this is a
further indication that the filter should be replaced.
Fragrance compartment
The fragrance compartment fleece may be moistened with a few drops of fragrance (max. 1-2
drops). Pegasus will then give off the fragrance into the room air, generating an agreeable ambi-
ance. Please note: if used in excess, fragrances may attack and damage plastic. Therefore, please
add no more than 1-2 drops to the fleece, and do not add any more until the first fragrance is used
up . If in doubt, please wash out and dry the fragrance compartment and fleece.
Speed levels
The air purifier has 5 different speed levels for different applications:
Level 1, very quiet – e.g. for bedrooms overnight
Level 2, quiet – for bedrooms or smaller rooms
Level 3 for continuous daytime use in smaller rooms (25m2)
Level 4 for continuous daytime use in larger rooms (up to 50m2), e.g. open-plan kitchen/living room
Level 5, high-speed – for quick air purification or purification of heavily polluted air
Timer
The appliance switches off automatically after 2, 4 or 8 hours as you wish. Ideal for air purification
when you leave the home but would like to have the air purified in your absence. The appliance can
also be used without the timer and is suitable for continuous operation.
Night mode
Today, many appliances incorporate LED lights which are unsuitable for night-time use in a bedroom.
In night mode, the light intensity is reduced to a pleasant level.
CLEANING THE FILTER
Prior to any maintenance work and after each use, switch off the appliance and withdraw the adap-
tor from the socket.
Never immerse in water (risk of short circuit).
• External surfaces should only be wiped off with a damp cloth and then dried well.
• The preliminary filter can be cleaned carefully with a vacuum cleaner. The filter should be
changed at 6-month intervals.
• The activated charcoal filter cannot be cleaned and should be replaced at intervals of no more
than 6 months.
10

A space in which to record the date is printed on the activated charcoal filter. Please enter the filter
fitting date. Six months after the recorded date, replace the activated charcoal and preliminary
filters.
Filter reminder function: the unit will count the unit working time until it reaches 2’160 hours. The
LED (16) will flash in red, in order to remind, that the filters need to be changed. If you changed the
filter, it can be reset by pressing the dimmer (11) button for 5 seconds. Then the LED will turn off
and the unit will count the working time again.
The Pegasus Combi Filter Pack is available from your household appliance dealer for this purpose.

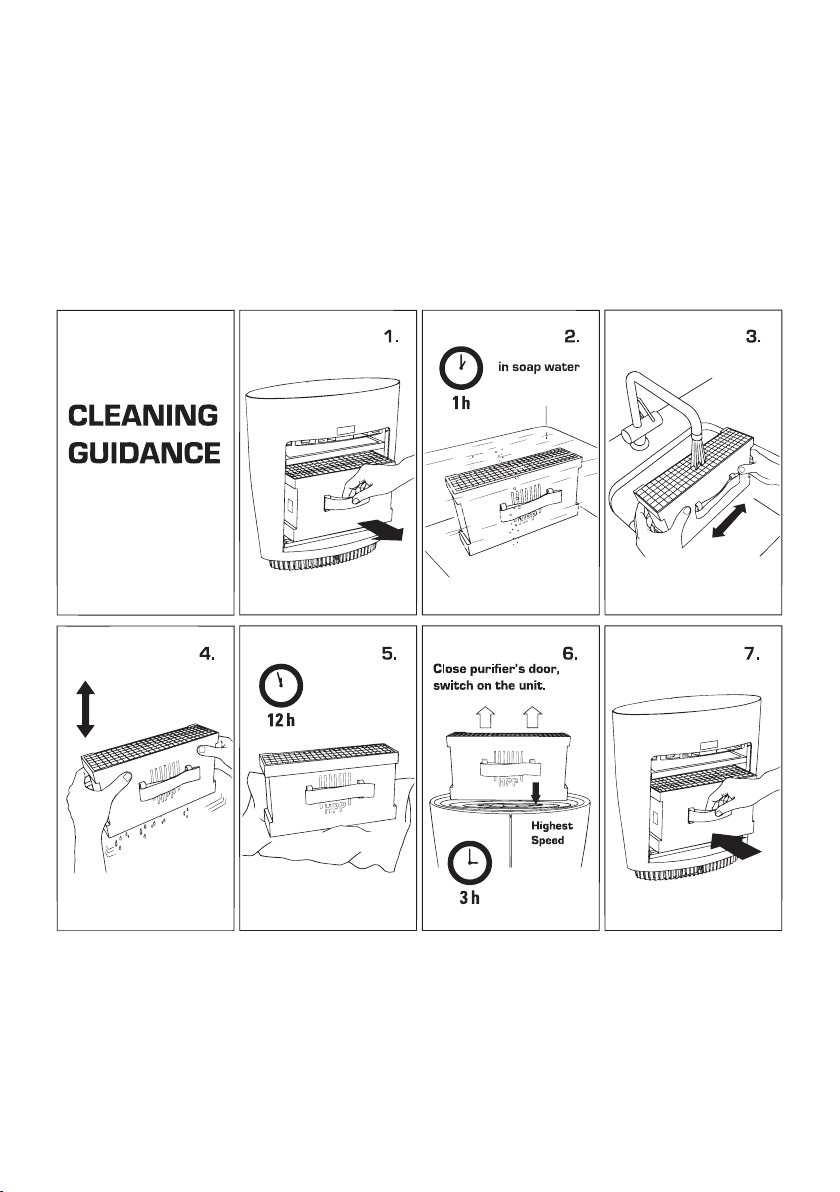

Fine particles, viruses and bacteria accumulate in the HPP filter over the course of time. You should
therefore wash out this filter under cold running water at 2-month intervals. The filter should then be
allowed to dry outside the appliance. You may refit the filter when no water drops are visible inside.
REPAIRS / DISPOSAL
• Repairs to all electric devices (including replacement of the power cable) may only be per-
formed by instructed experts. Carrying out inappropriate repairs voids the warranty and no
liability shall be accepted.
• If the power cable has become damaged, it must be replaced by the manufacturer, its service
agent or similary qualified persons in order to avoid a hazard.
• Never operate the device if the cable or the plug is damaged, after the device has malfunc-
tioned, if it has been dropped or if it has been damaged in any other way (i.e. with cracks or
11

breakages to the housing).
• Do not use any sharp, abrasive objects or corrosive chemicals.
• Disable devices that are to be discarded immediately (by cutting off the power cable) and dis-
pose of them at an appropriate waste collection centre.
• Do not dispose of electrical devices in the household refuse. Use the official recycling collection
centres, where available.
• If electrical devices are disposed off in an unregulated way, the effects of weathering can cause
hazardous substances to contaminate the groundwater and the food-chain or this can result in
a burden on flora and fauna for years to come.
TECHNICAL DATA
Power (5 speed levels) 8-30 Watt
Dimensions L 380 x H 395 x B 160 mm (Length x Height x Width)
Weight ca. 3.80 kg
Shut off timer 2h, 4h, 8h
Adapter complies with EU regulations CE/GS/ WEEE /RoHS
All rights for any technical modifications are reserved
This device must not be disposed of with household refuse. Please dispose of this device
at the appropriate waste collection centre. Collecting and recycling electrical and elec-
tronic waste saves valuable resources. The packaging material is recyclable. Dispose of
the packaging in an environmentally friendly way and ensure that it reaches the recycla-
ble material collection centre.
TWO-YEAR WARRANTY
For the warranty period of 2 years after the purchase of the appliance, we will repair or replace
with a refurbished product (at our option), without any cost to you for either the parts or labor, any
machine or part that proves to be defective in materials or workmanship.
EXCEPT FOR THE WARRANTY PROVIDED ABOVE, Coplax DISCLAIMS ANY AND ALL OTHER IM-
PLIED WARRANTIES AND ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICU-
LAR PURPOSE WITH RESPECT TO THE PRODUCT FOR ANY PERIOD AFTER THE EXPIRATION.
Coplax will, at its sole discretion, repair or exchange a product under warranty. NO credit will be
issued. The remedies described above are your sole remedies in the event of any breach of the war-
ranty provided above
WHO IS COVERED:
The original owner of a privately-owned Coplax appliance who can provide a dated proof of purchase
in the form of an invoice or receipt is covered. The warranty is not transferable. The original dated
proof of purchase (a copy needs to be faxed, e-mailed, mailed) prior to returning the unit. Provide the
model number of your appliance and a detailed description (preferably typed) of the problem with the
item. Enclose your description in an envelope and tape it directly to the appliance before the box is
sealed. Do not write anything on or alter in any way the original box.
WHAT THIS WARRANTY DOES NOT COVER:
• Parts that normally require replacement, such as demineralization cartridges, Ionic Silver
Cube, active carbon filters, water wick filters and any other consumable item that needs regu-
lar replacement except for material or workmanship defects.
• Damage, failure, loss or deterioration due to ordinary wear and tear from abuse, misuse, neg-
ligence, accident, faulty installation, placement and operation, improper maintenance, unau-
thorized repair, exposure to unreasonable temperatures or conditions. This includes damages
caused by misusing essential oils or water treatment and cleaning solutions.
• Damage resulting from inadequate packaging or carrier mishandling of returned products.
12

• Misplacement or loss of accessories such as nozzle, fragrance capsule, water tank cap etc.
• Shipping and transportation costs to and from any place of repair.
• Direct, indirect special or consequential damages of any type, including loss of profits or other
economic loss.
• Transportation damage of a unit shipped from one of our retailers. Please contact them di-
rectly.
This Warranty does not cover damages or defects caused by or resulting from failure to con-
form strictly to Coplax’s specifications in connection with the installation, operation, use, main-
tenance, or repair of the Coplax appliance.
13
