Sub-zero 601r User manual

When coupled with an all freezer Model

601F, the all refrigerator Model 601R

offers maximum refrigeration capacity.

The built-in design at true cabinet depth

offers easy access to every inch of the

interior. Model 601R is available in the

framed, overlay and stainless steel

design applications and in three stainless

steel finishes.

Built-In Model 601R

All Refrigerator

Features

Framed, overlay and stainless steel design

applications

Stainless steel design available in classic,

platinum and carbon finishes

Energy Star qualified

Electronic digital controls

Bright interior lighting

Adjustable, spill-proof glass shelves and

adjustable door shelves

High-humidity crisper drawer with

removable divider

Door alarm

Front venting allows unit to be completely

built in and serviced from the front

With the installation of a harness kit, this

appliance is certified by Star-K to meet

strict religious regulations in conjunction

with specific instructions found on

www.star-k.org.

Model Options 601R/F 601R/O 601R/S 601R/P 601R/B

Design/Finish Framed Overlay Classic Platinum Carbon

Louvered Grille

Heavy-Duty Stainless Steel Grille

Overlay

Interior Features

Refrigerator

4 Adjustable Glass Shelves

1 Stationary Glass Shelf

High Humidity Compartment with Dividers

Adjustable Roll-Out Deli Basket

3 Adjustable Door Shelves

Adjustable Dairy Compartment

Egg Container

Framed

Classic Stainless Steel

Accessories

Front panels for framed design

(white and classic stainless steel)

Side panels in white and classic

stainless steel

Extended full-length framed handles

Stainless steel (classic, platinum and

carbon) tubular handles for overlay design

Polished chrome handle for overlay design

90˚ and 105˚ door stop kits

Gallon door shelf

Dozen egg container with lid

Accessories are available through your Sub-Zero

dealer. To obtain local dealer information, visit the

Locator section of our website, subzero.com.

Classic CarbonPlatinum

Need clipping

path on this image

SZ_151.tif

Installation Notes

For framed and overlay models, you will be

adding door panels for a custom look. Overlay

models also allow you to match surrounding

cabinetry hardware.

Complete installation specifications, including

panel sizes, can be found on our website,

subzero.com.

Unit dimensions may vary by ±

36"

(914)

24"

(610)

73"

(1854)

36"

(914)

361/16"

(916)

351/4"

(895)

237/8"

(606)

BEHIND

FRAME

3/8" (10)

FRAME

EXTENSION

Specifications

Overall Width 36"

Overall Height 73"

Overall Depth 24"

Door Swing Clearance 361/16"

Specify Door Swing LH or RH

Refrigerator Capacity 19.9 cu ft

Opening Width 351/2"

Opening Height 723/4"

Opening Depth 24"

Electrical Requirements 115 V AC, 60 Hz

15 amp dedicated circuit

Annual Energy Usage $37*

Shipping Weight Framed – 391 lbs

Overlay – 391 lbs

Stainless Steel – 420 lbs

*Based on 9.06 cents per kilowatt hour.

723/4"

(1848)

ROUGH

OPENING

HEIGHT

351/2"

(902)

ROUGH OPENING WIDTH

24"

(610)

ROUGH

OPENING

DEPTH

11"

(279)

24"

(610)

LOCATE ELECTRICAL

WITHIN SHADED AREA

(152)

FRONT VIEW

TOP VIEW

Installation Specifications

Overall Dimensions

Built-In Model 601R

All Refrigerator

Dimensions in parentheses are in

millimeters unless otherwise specified.

Other manuals for 601R

This manual suits for next models

Other Sub-Zero Refrigerator manuals

Sub-Zero

Sub-Zero 601F User manual

Sub-Zero

Sub-Zero Sub-Zero 648PROG User manual

Sub-Zero

Sub-Zero BI-30UG Operating manual

Sub-Zero

Sub-Zero BI-30UG User manual

Sub-Zero

Sub-Zero 736TR User manual

Sub-Zero

Sub-Zero 736TR User manual

Sub-Zero

Sub-Zero 611G Instructions for use

Sub-Zero

Sub-Zero ICBBI-36R Guide

Sub-Zero

Sub-Zero 661 User manual

Sub-Zero

Sub-Zero 736TCI User manual

Sub-Zero

Sub-Zero IC-27R User manual

Sub-Zero

Sub-Zero 632 User manual

Sub-Zero

Sub-Zero ICB700 T Series User manual

Sub-Zero

Sub-Zero 700TCI User manual

Sub-Zero

Sub-Zero 249RP Instructions for use

Sub-Zero

Sub-Zero 200 Series User manual

Sub-Zero

Sub-Zero DEU2450R Guide

Sub-Zero

Sub-Zero UC-24R User manual

Sub-Zero

Sub-Zero 249R Instructions for use

Sub-Zero

Sub-Zero 700TR Instructions for use

Sub-Zero

Sub-Zero 736TC User manual

Sub-Zero

Sub-Zero 700TCI Instructions for use

Sub-Zero

Sub-Zero 700 Series User manual

Sub-Zero

Sub-Zero New Designer Series Guide

Popular Refrigerator manuals by other brands

Frigidaire

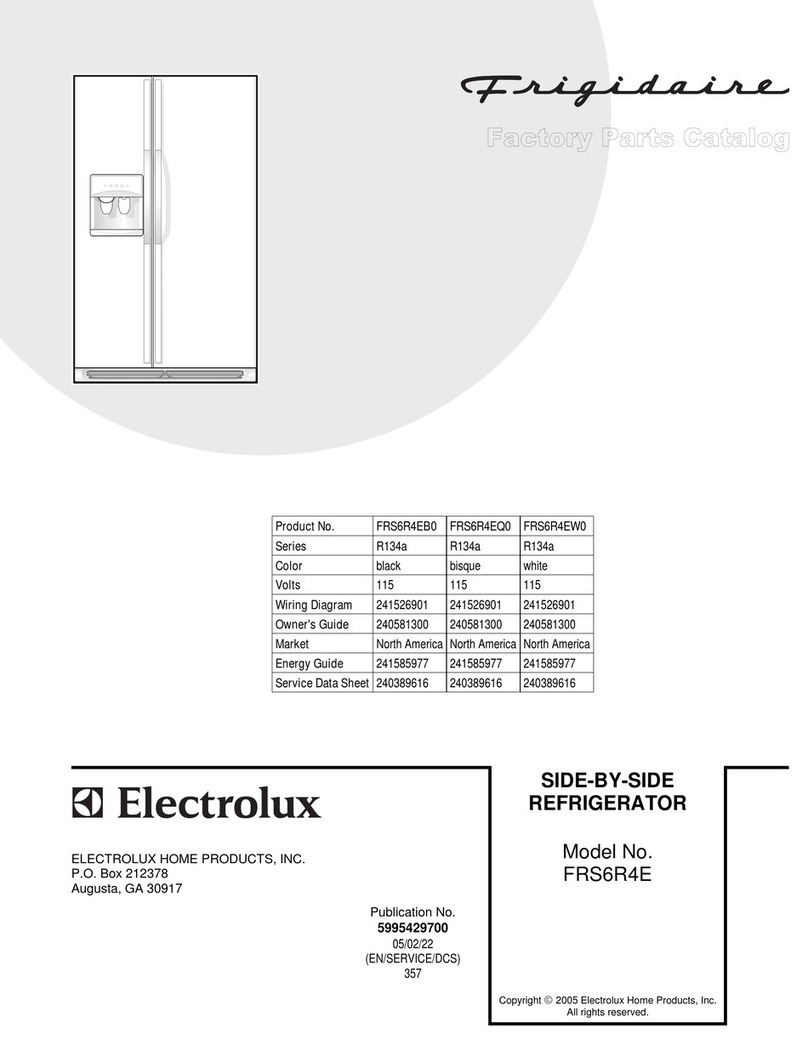

Frigidaire FRS6R4E Factory parts catalog

Dometic

Dometic RM7030 Service manual

Outsunny

Outsunny C00-018 instruction manual

Philco

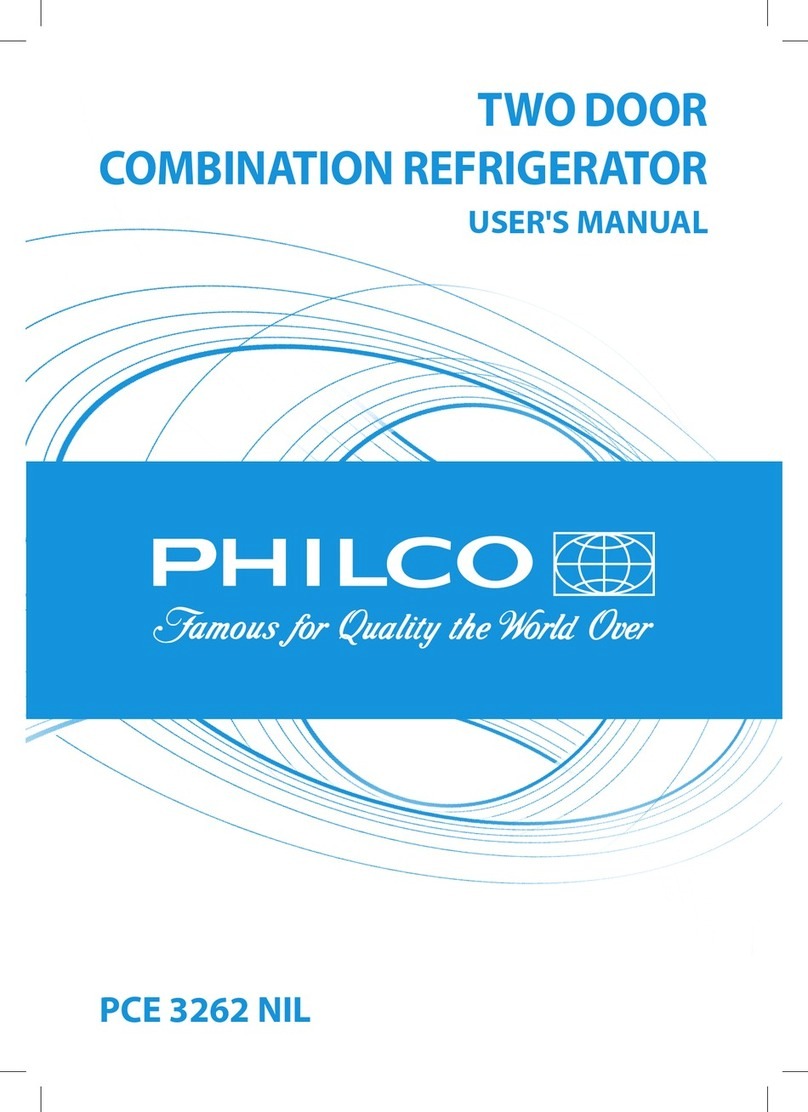

Philco PCE 3262 NIL user manual

Electrolux

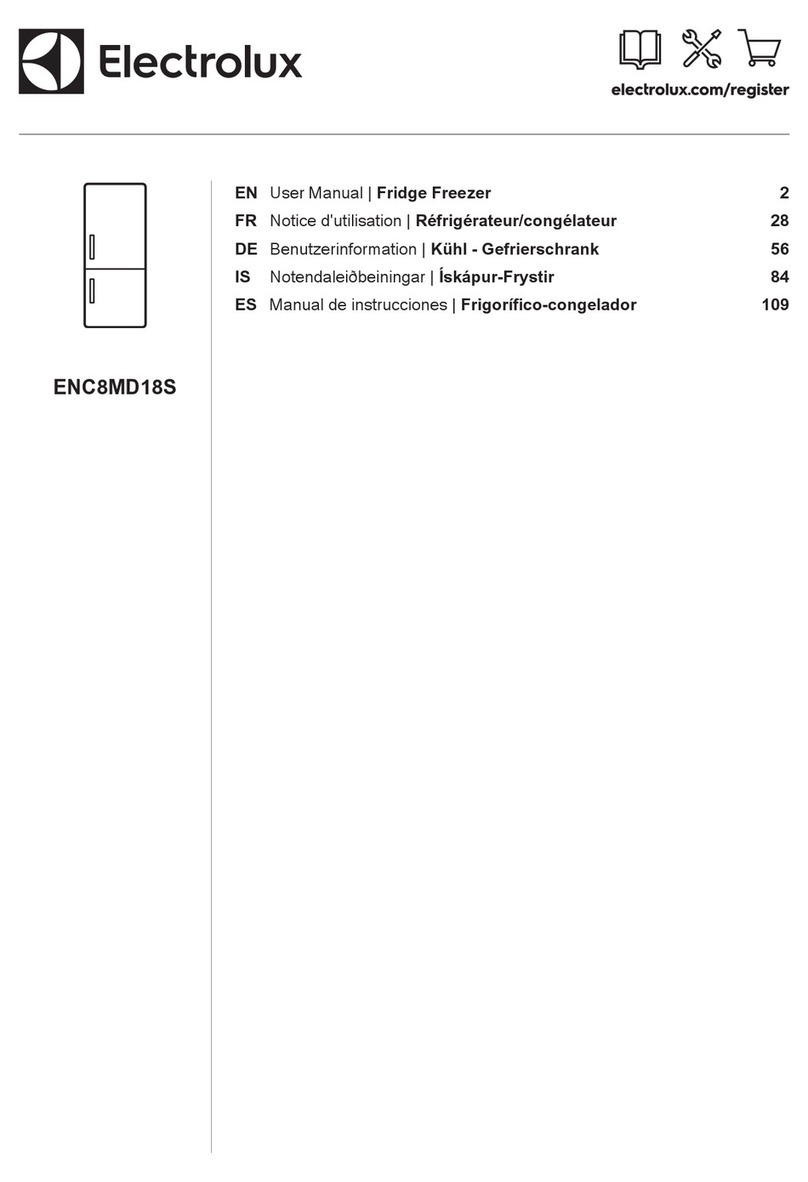

Electrolux ENC8MD18S user manual

Electrolux

Electrolux LTB1AF24U0 user manual

Danby

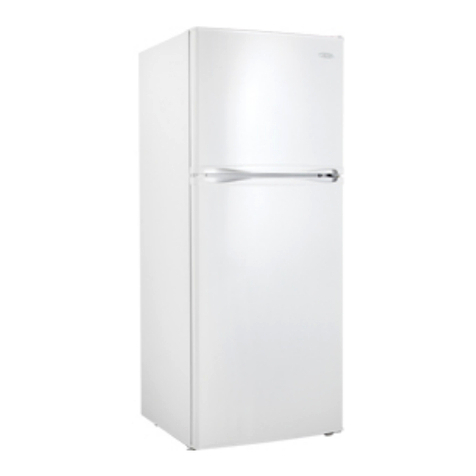

Danby DFF349WDB Owner's use and care guide

Svan

Svan SVF1885NFDX user manual

Beko

Beko RDNE43X user manual

Indesit

Indesit CAA 55 NF.1 operating instructions

Frigidaire

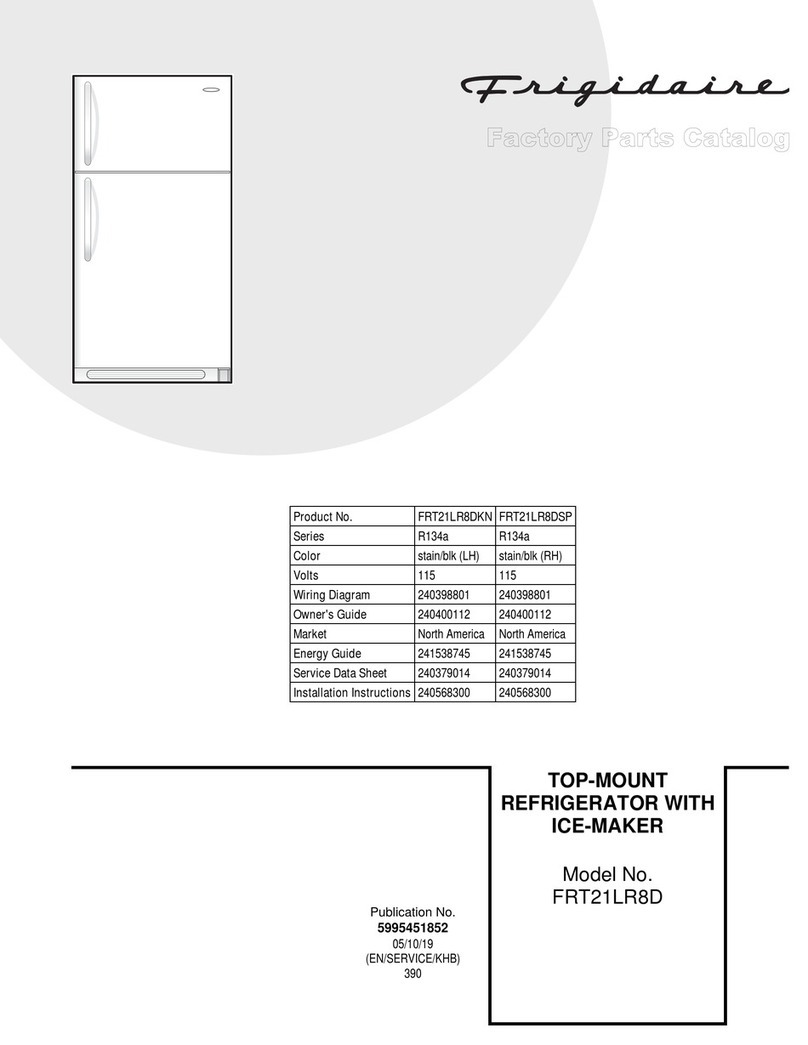

Frigidaire FRT21LR8D Factory parts catalog
