Climate control
Ventilator 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heating and air conditioning 4-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heater operation 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioner operation 4-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips for heater and air conditioner 4-9. . . . . . . . . . . . . . . . . . .
Air filtration system (if equipped) 4-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FORESTER U.S.A. (E)
4-2

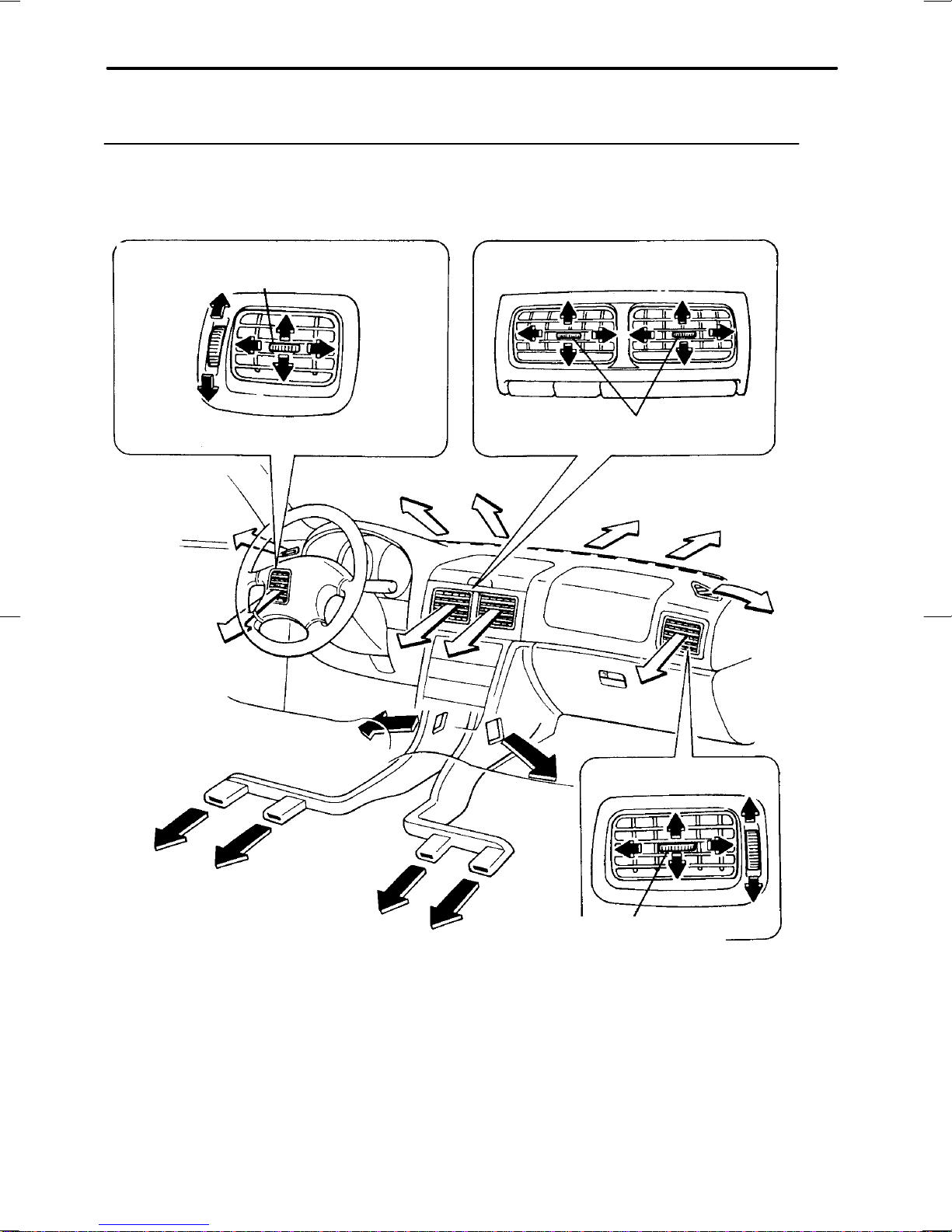

Ventilator
Move the thumb-wheel up and down or
right and left to adjust the air flow direction
HS0070
Move the thumb-wheel up and down or
right and left to adjust the air flow direction
Move the thumb-wheel
up and down or right
and left to adjust the
air flow direction
Oepn
Close
Oepn
Close

FORESTER U.S.A. (E)
4
Climate control
4-3
–CONTINUED –
Heating and air conditioning
HS0071
Temperature
control dial Air inlet selec- tion lever Air outlet control dial
Fan speed
control lever Air conditioner button
BAir outlet control dial
This dial has the following five positions:
: Air flows through the instrument panel outlets.
: Air flows through the instrument panel outlets and the foot
outlets.
: Air flows through the foot outlets and some through the wind-
shield defroster outlets.
: Air flows through the windshield defroster outlets and foot
outlets.
: Air flows through the windshield defroster outlets.
BTemperature control dial
This dial regulates the hot air flow from the heater over a range from
the blue area (cool) to red area (warm).
BFan speed control lever
The fan operates only when the ignition switch is turned to the “ON”
position. The fan speed control lever is used to select four fan
speeds.

FORESTER U.S.A. (E)
4-4

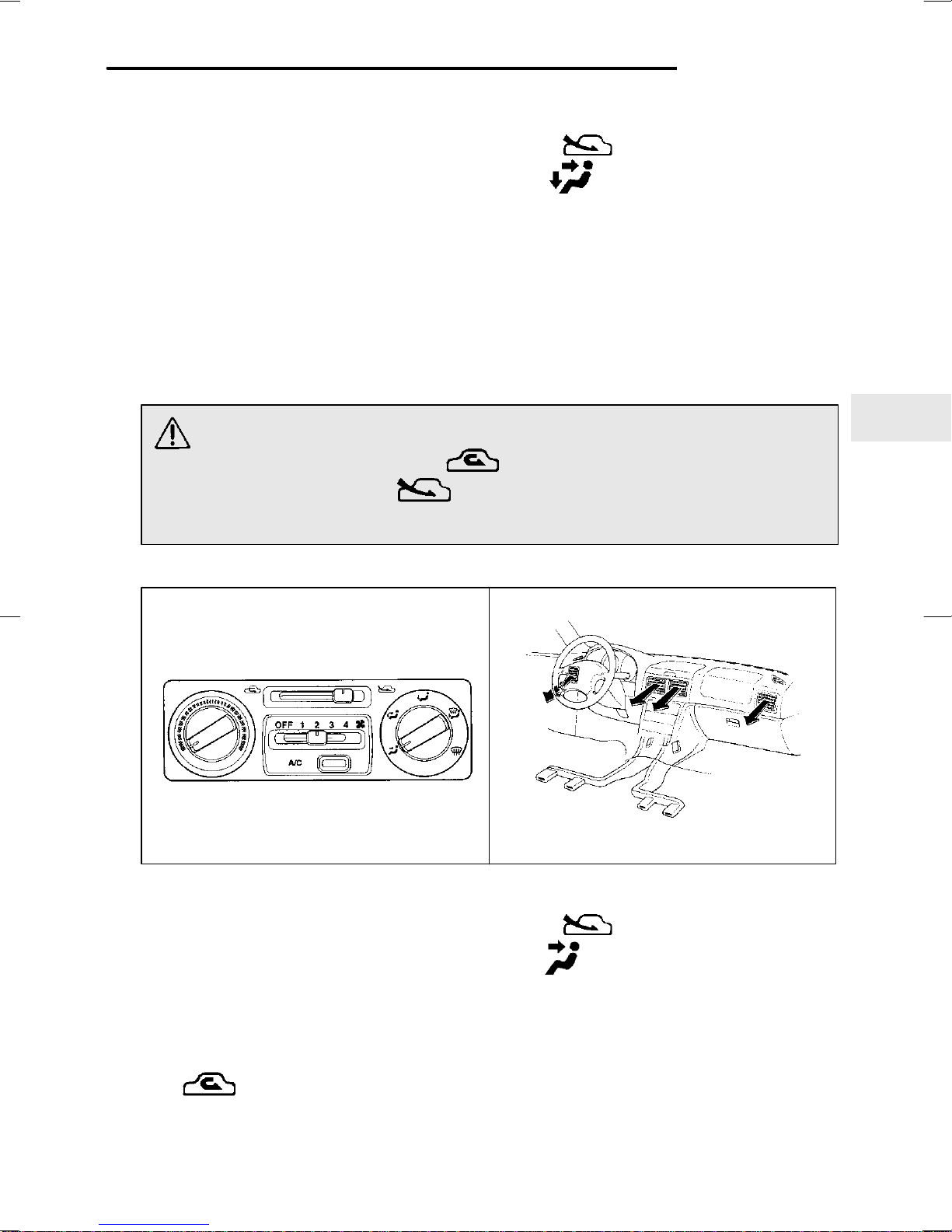

BAir inlet selection lever
WARNING
Continued operaton in the “ ” position may fog up the win-
dows. Switch to the “”position as soon as the outside
dusty condition clears.
: Interior air is recirculated inside the passenger comparment.
: Outside air is drawn into the passenger compartment.

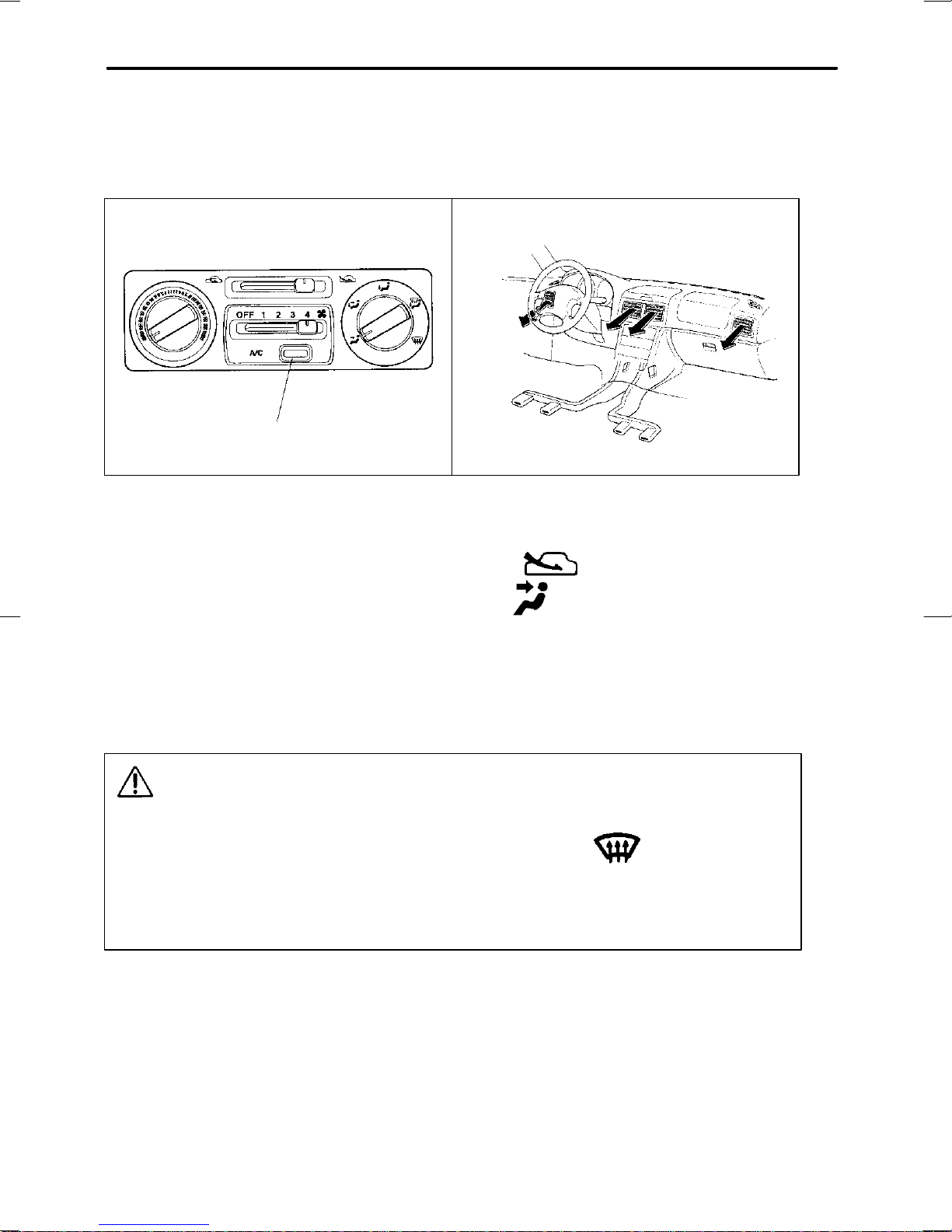

BAir conditioner button (if equipped)
The air conditioner operates only when the engine is running.
Push the air conditioner button while the fan is in operation to turn on
the air conditioner. The indicator light will come on.
Push it again to turn off the air conditioner.
JHeater operation
BDefrosting or defogging the windshield
HS0073HS0072
To direct warm air to the windshield and front door windows:
1. Set the air inlet selection lever to the “”position.
2. Set the air outlet control dial to the “”position.
3. Turn the temperature control dial all the way right.
4. Set the fan speed control lever to the highest speed.

FORESTER U.S.A. (E)
4
Climate control
4-5
–CONTINUED –
Warm air also comes out from the right and left air outlets. To stop
warm air flow from these outlets, turn the corresponding thumb-wheel
to the “”position.
BHeating and defrosting
HS0075HS0074
To direct warm air toward the floor and the windshield:
1. Set the air inlet selection lever to the “”position.
2. Set the air outlet control dial to the “”position.
3. Set the temperature control dial to the most comfortable level.
4. Set the fan speed control lever to the desired speed.
Warm air also comes out from the right and left air outlets. To stop
warm air flow from these outlets, turn the corresponding thumb-wheel
to the “”position.

FORESTER U.S.A. (E)
4-6
BHeating
HS0077HS0076
To direct warm air toward the floor:
1. Set the air inlet selection lever to the “”position
2 Set the air outlet control dial to the “”position.
3. Set the temperature control dial to the most comfortable level.
4. Set the fan speed control lever to the desired speed.
Warm air also comes out from the right and left air outlets. To stop
warm air flow from these outlets, turn the corresponding thumb-wheel
to the “”position.

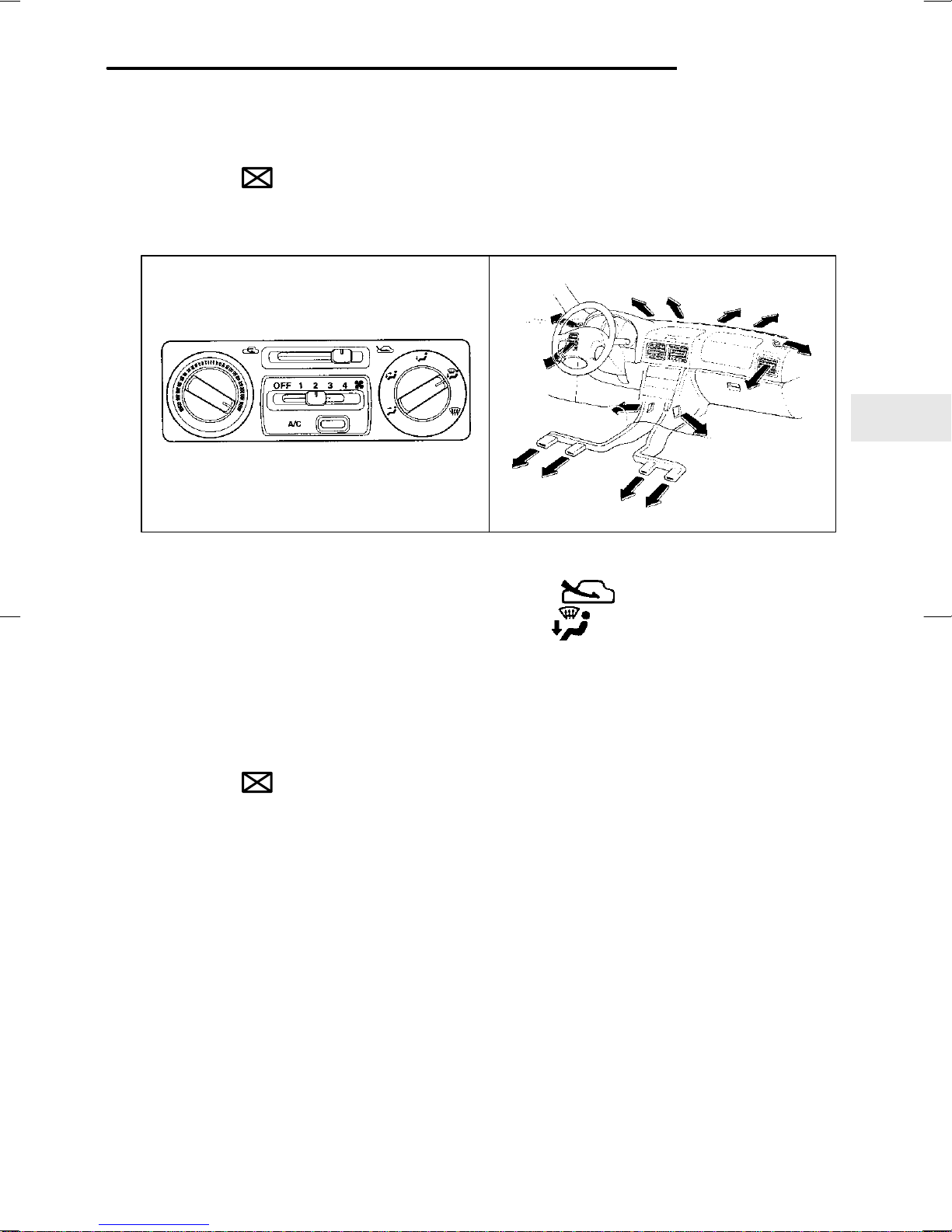

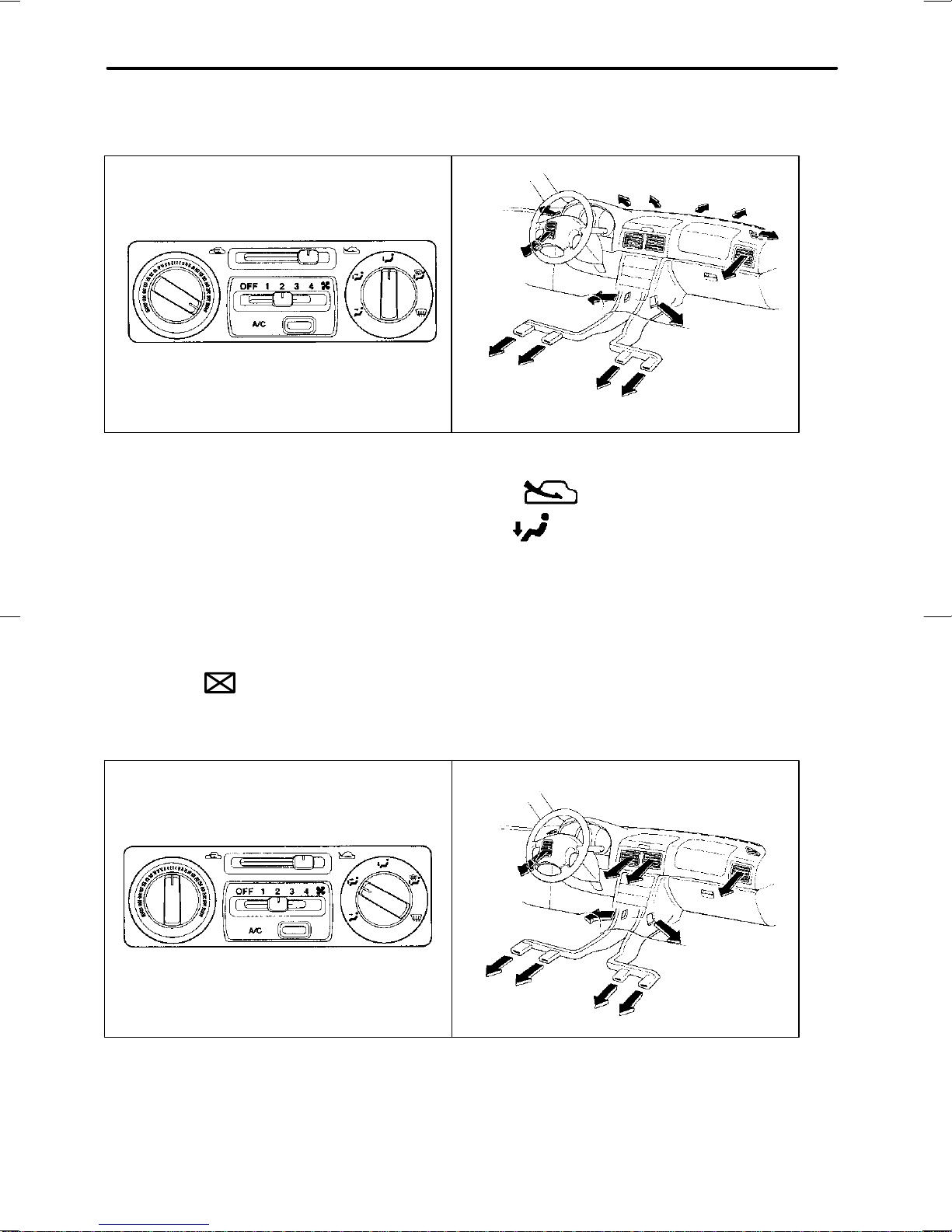

BBi-level heating
HS0079HS0078
This setting allows you to direct air of different temperatures from the
instrument panel and outlets. The air from the foot outlets is slightly

FORESTER U.S.A. (E)
4
Climate control
4-7
–CONTINUED –
warmer than from the instrument panel outlet.
1. Set the air inlet selection lever to the “”position.
2. Set the air outlet control dial to the “”position.
3. Set the temperature control dial to the desired temperature level.
4. Set the fan speed control lever to the desired speed.
Setting the temperature control dial fully turned to the red area or blue
area decreases the temperature difference between the air from the
instrument panel outlets and the air from the foot outlets.

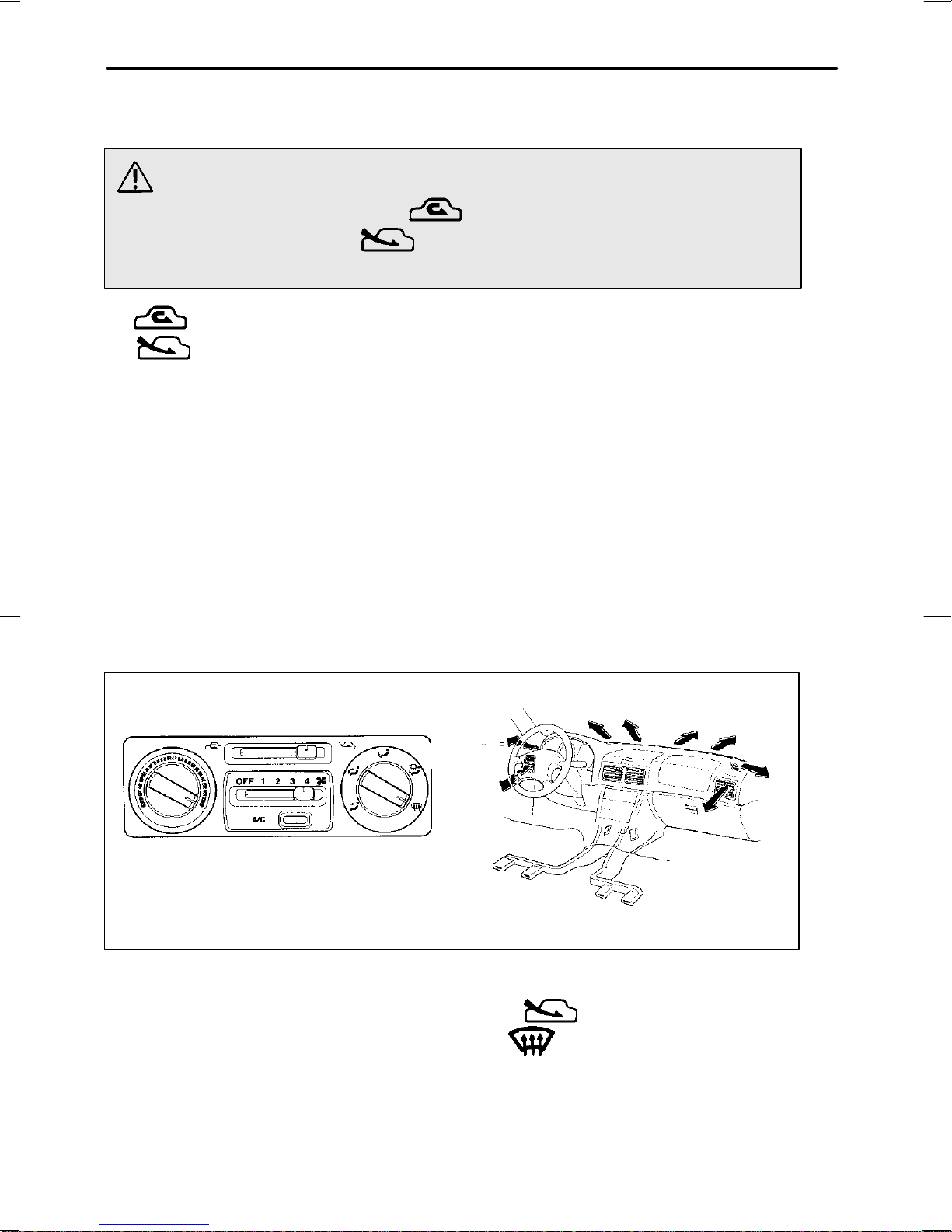

BVentilation
WARNING
Continued operaton in the “ ” position may fog up the win-
dows. Switch to the “”position as soon as the outside
dusty condition clears.
HS0081HS0080
To force outside air through the instrument panel outlets:
1. Set the air inlet selection lever to the “”position.
2. Set the air outlet control dial to the “”position.
3. Set the temperature control dial all the way left.
4. Set the fan speed control lever to the desired speed.
When driving on a dusty road, set the air inlet control lever to the
“”position.

FORESTER U.S.A. (E)
4-8
JAir conditioner operation
BCooling or dehumidifying
HS0081HS0082
ON position
For cooling and dehumidification of the passenger compartment, air
flows through the instrument panel outlets:
1. Set the air inlet selection lever to the “”position.
2. Set the air outlet control dial to the “”position.
3. Push the air conditioner button on.
4. Set the temperature control dial to the blue area.
5. Set the fan speed control lever at the highest speed.

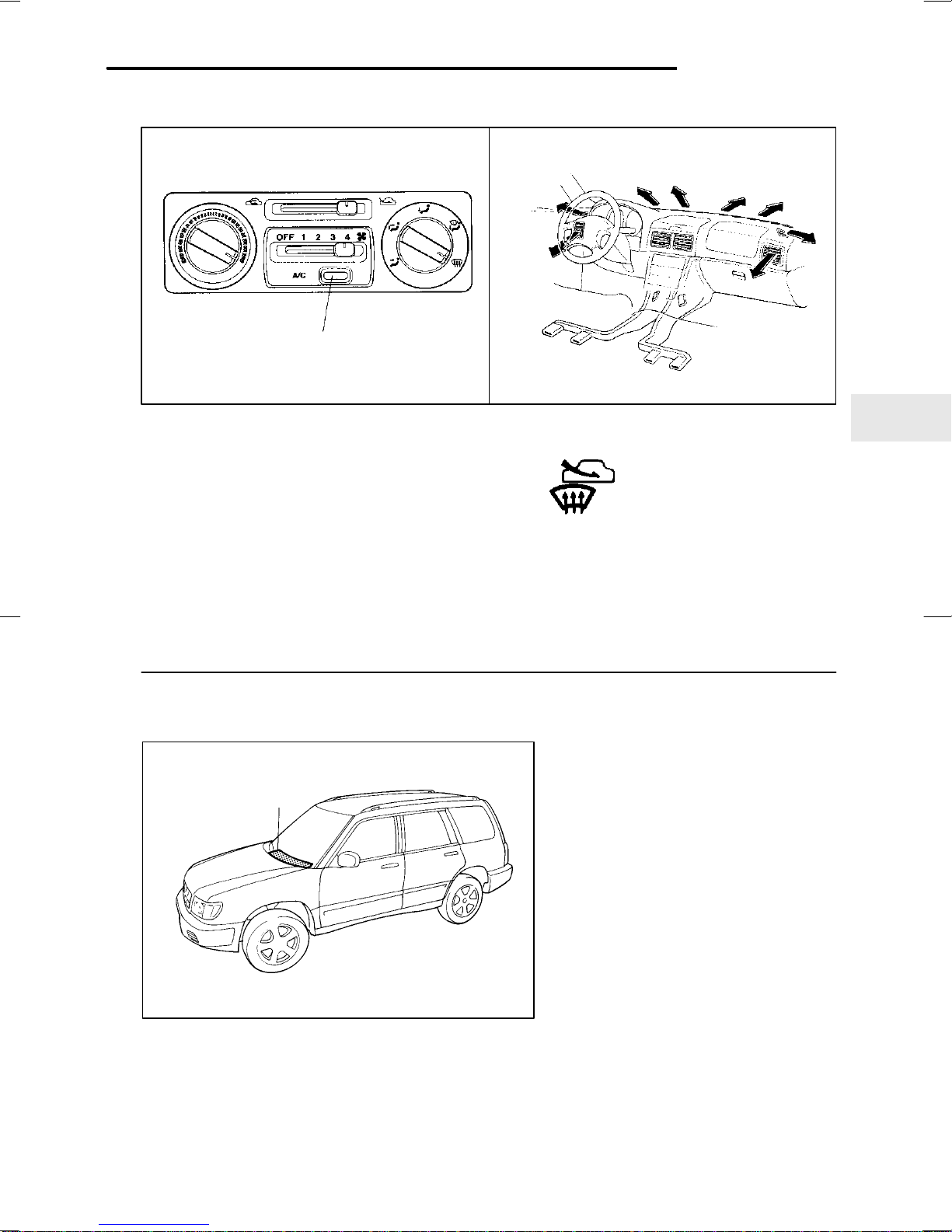

BDefrosting or defogging
CAUTION
The air conditioner compressor will not cycle on automatically
when set the air outlet control dial to the “”position. In
order to take advantage of the air conditioning system’s ability to
dehumidify the air in the passenger compartment, it is also nec-
essary to depress the air conditioner button.

FORESTER U.S.A. (E)
4
Climate control
4-9
–CONTINUED –
HS0073HS0072
ON position
To direct warm air to the windshield and front door windows:
1. Set the air inlet selection lever to the “”position.
2. Set the air outlet control dial to the “”position.
3. Push the air conditioner button on.
4. Set the temperature control dial to the red area.
5. Set the fan speed control lever at the highest speed.
Operating tips for heater and air conditioner
BCleaning ventilator grille
HS0083
Ventilator inlet grille
Always keep the front ventilator inlet grille free of snow, leaves, or oth-
er obstructions to ensure efficient heating and defrosting. Since the
condenser is located in front of the radiator, this area should be kept

FORESTER U.S.A. (E)
4-10
clean because cooling performance is impaired by any accumulation
of insects and leaves on the condenser.
BEfficient cooling after parking in direct sunlight
After parking in direct sunlight, drive with the windows open for a few
minutes to allow outside air to circulate into the heated interior. This re-
sults in quicker cooling by the air conditioner. Keep the windows
closed during the operation of the air conditioner for maximum cooling
efficiency.
BLubrication oil circulation in the refrigerant circuit
Operate the air conditioner compressor at a low engine speed (at idle
or low driving speeds) a few minutes each month during the off-sea-
son to circulate its oil.
BChecking air conditioning system before summer season
Check the air conditioner unit for refrigerant leaks, hose conditions,
and proper operation each spring. This check is best performed by
your SUBARU dealer.
BCooling and dehumidifying in high humidity and low tempera-
ture weather condition
Under certain weather conditions (high relative humidity, low tempera-
tures, etc.) a small amount of water vapor emission from the air outlets
may be noticed during cooling or dehumidifying. This condition is nor-
mal and does not indicate any problem with the air conditioning sys-
tem.
BAir conditioner compressor shut-off when engine is heavily
loaded
To improve acceleration and gas mileage, the air conditioner com-
pressor is designed to temporarily shut off during air conditioner op-
eration whenever the accelerator is fully depressed. Such as during
rapid acceleration or when driving on a steep upgrade.
BRefrigerant for your climate control system
Your air conditioner uses ozone friendly refrigerant HFC134a. There-
fore, the method of adding, changing or checking the refrigerant is
different from the method for CFC12 (freon). Consult your SUBARU

FORESTER U.S.A. (E)
4
Climate control
4-11
–CONTINUED –
dealer for service. Repairs needed as a result of using the wrong re-
frigerant are not covered under warranty.
Air filtration system (if equipped)
If your vehicle’s air conditioning system is equipped with a optional air
filtration system, replace the filter element according to the replacement
schedule shown below. This schedule should be followed to maintain the
filter’s dust collection ability. Under extremely dusty conditions, the filter
should be replaced more frequently. Since the filter element is a viscous
type, it is unnecessary to clean or wash the element. It is recommended
that you have your filter checked or replaced by your SUBARU dealer.
For replacement, use only a genuine SUBARU air filter kit.
Replacement schedule:
Every 12 months or 7,500 miles (12,000 km) whichever comes first
NOTE
The filter can influence the air conditioning, heating and defroster
performance.
BReplacement procedure
HS0254HS0253
Screws Old filter
Cooling unit
Filter cover
and rubber
seal
1. Remove the filter cover by removing the two (2) screws.
2. Remove the old filter.

FORESTER U.S.A. (E)
4-12
HS0256HS0255
Filter cover
Screws
New filter
Plastic tab Rubber seal
Cooling unit
3. Insert a new filter with the plastic tab facing forward.
4. Install the rubber seal on the duct opening.
CAUTION
Make certain that the rubber seal is evenly seated on the duct
opening.
5. Install the filter cover and secure with two (2) screws.
Caution label
HS0257
Center pillar
Change label
6. Fill out information on the small label supplied with the filter kit.
7. Attach the small label on the lower part of the center pillar.

FORESTER U.S.A. (E)
5
Audio
Radio 5-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna 5-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FM reception 5-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AM/FM stereo radio with cassette player 5-4. . . . . . . . . . . . . . . . . . . . . . . . .
Radio operation 5-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cassette player operation 5-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock function 5-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation of accessories 5-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FORESTER U.S.A. (E)
5-2
Radio
JAntenna
BPrinted antenna
CAUTION
Do not use sharp instruments or window cleaner containing abra-
sives to clean the inner surface of the left side rear quarter win-
dow. Doing so may damage the antenna printed on the window.
HS5000BB
The antenna is printed on the inner surface of the left side rear quarter
window.
BFixed mast antenna
CAUTION
When washing the vehicle, always remove the antenna before-
hand to prevent it from being damaged.

FORESTER U.S.A. (E)
5
Audio
5-3
–CONTINUED –
HS5001BBHS0084
The antenna and the special wrench for mounting/removing the
antenna is stored in the luggage floor storage tray at the front side.
1. Remove the plug from the antenna base.
2. Remove the cap at the threaded portion of the antenna.
3. Install the antenna to the antenna base while turning the antenna
clockwise by hand.
HS5002BBHS0085
Tighten
Loosen
4. Tighten the antenna using the special wrench. Do not use an ordi-
nary wrench that is longer than special wrench.
5. To remove the antenna, follow the installation sequence in reverse.
Be careful not to lose the special tool.
Make sure that the antenna is fully tightened before operating your
vehicle.

FORESTER U.S.A. (E)
5-4
NOTE
You may find that the antenna is already installed on the vehicle
at the time of delivery. In that case, ask your SUBARU dealer
about the storage location of the special wrench.
JFM reception
Although FM is normally static free, reception can be affected by the sur-
rounding area, atmospheric conditions, station strength and transmitter
distance. Buildings or other obstructions may cause momentary static,
flutter or station interference. If reception continues to be unsatisfactory,
switch to a stronger station.
AM/FM stereo radio with cassette player
The radio will operate only when the ignition switch is in the “ACC”or
“ON”positions.
Radio operation
Waveband indicator
HG0084
Tone and balance
control button
SCAN
button
Power switch and
volume control
Tuning buttons Preset buttons FM/AM selection
switch
DISP button
Stereo
indicator
Press station
number Frequency

FORESTER U.S.A. (E)
5
Audio
5-5
–CONTINUED –
JPower switch and volume control (ON/VOL)

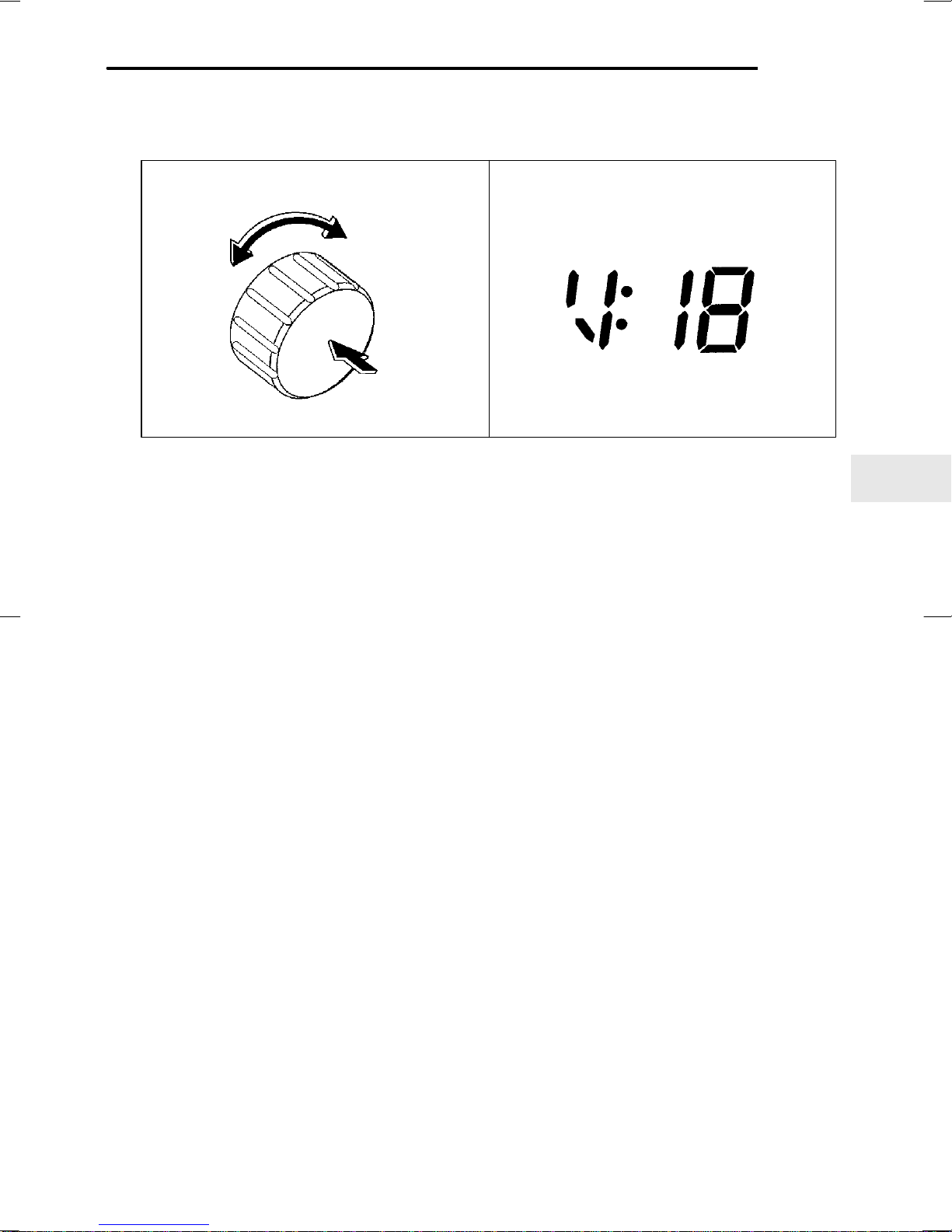

HS0087HS0086
Volume control
Power ON/OFF
When the volume level is set
at the level 18:
The knob is used for both power (on/off) and volume control. The radio is
turned on and off by pushing the knob and the volume is controlled by
turning the knob.
The volume control has total of 34 volume levels (V: 0 for minimum, V: 33
for maximum).
JTone and balance control (TONE/BAL)
The volume control knob normally function as volume control. This knob
becomes a control for Bass, Treble, Fader or Balance when you select
the appropriate tone and balance control mode.
The “T/B”(Tone and balance) button is used for selecting the following
control modes:
–Bass (low note) control
–Treble (high note) control
–Fader control (Volume balance control between front and rear
speakers)
–Balance control (Volume balance control between right and left
speakers)

FORESTER U.S.A. (E)
5-6
To change control modes: Each brief press of the “T/B”button
changes control modes in the following sequence starting from volume
control mode. (When the radio is first turned on, the control mode is in
the volume control.)
BBass control
HG0086
Bass volume control indication When the bass volume level is set at
the level +6
HG0085
Select the Bass control mode by pressing the “T/B”button. In the
bass control mode, the display shows the indication as shown.
The bass control has total of 13 volume levels (B: –6 for minimum, 0
for middle, B: +6 for maximum). Choose desired bass volume level by
turning the volume control knob. The control function returns to vol-
ume control mode after about 5 seconds.
Volume Bass Treble Fader Balance
(VOL) (BAS) (TRE) (FAD) (BAL)

FORESTER U.S.A. (E)
5
Audio
5-7
–CONTINUED –
BTreble control
HG0088
When the treble volume level is set
at the level –6
Treble volume control indication
HG0087
Select the Treble control mode by pressing the “T/B”button. In the
treble control mode, the display shows the indication as shown.
The treble control has total of 13 volume levels (TR: –6 for minimum, 0
for middle, TR: +6 for maximum). Choose desired treble volume level
by turning the volume control knob. The control function returns to vol-
ume control mode after about 5 seconds.
BFader control
HG0090
When the fader setting is at the F12
(front maximum and rear minimum)
Fader control indication
HG0089
Select the Fader control mode by pressing the “T/B”button. In the
fader control mode, the display shows the indication as shown.
The fader control has total of 25 settings (F: 12 for front maximum and
rear minimum, 0 for neutral, R: 12 for front minimum and rear maxi-
mum). Choose desired setting by turning the volume control knob. The
control function returns to volume control mode after about 5 seconds.
