Suez SELECT EDI 60 User manual

OPERATING MANUAL FOR SELECT EDI 60
Issue: A L300180 1
SELECT EDI 60
Part No. L300180
OPERATING MANUAL
Issue – A
10/03/1

OPERATING MANUAL FOR SELECT EDI 60
Issue: A L300180 2
CONTENTS PAGE
1 DOCUMENT HISTORY........................................................................... 4
2 PREFACE................................................................................................ 5
3 CONTACT DETAILS ............................................................................... 6
4 HEALTH AND SAFETY........................................................................... 7
4.1 Explanation of symbols and references..............................................7
4.2 Additional safety requirements............................................................7
4.3 Intended use.......................................................................................7
4.4 Operating staff....................................................................................8
4.5 Safety information for maintenance tasks...........................................8
4.6 Disposing of system parts and operating materials ............................9
4.7 Unauthorised conversion and manufacturing replacement parts........9
4.8 Warranty claims and liability ...............................................................9
5 ABOUT YOUR WATER PURIFIER ........................................................10
5.1 The Select edi 60 range....................................................................10
5.2 Key components of the Select edi 60 ...............................................10
5.2.1 Touch screen display.....................................................................10
5.2.2 Storage tank..................................................................................10
5.2.3 Removable front cover. .................................................................11
6 OPERATING YOUR WATER PURIFIER................................................12
6.1 Power on screen .............................................................................12
6.2 Menu structure..................................................................................13
6.3 Clean routine menu ..........................................................................13
6.4 Settings menu...................................................................................13

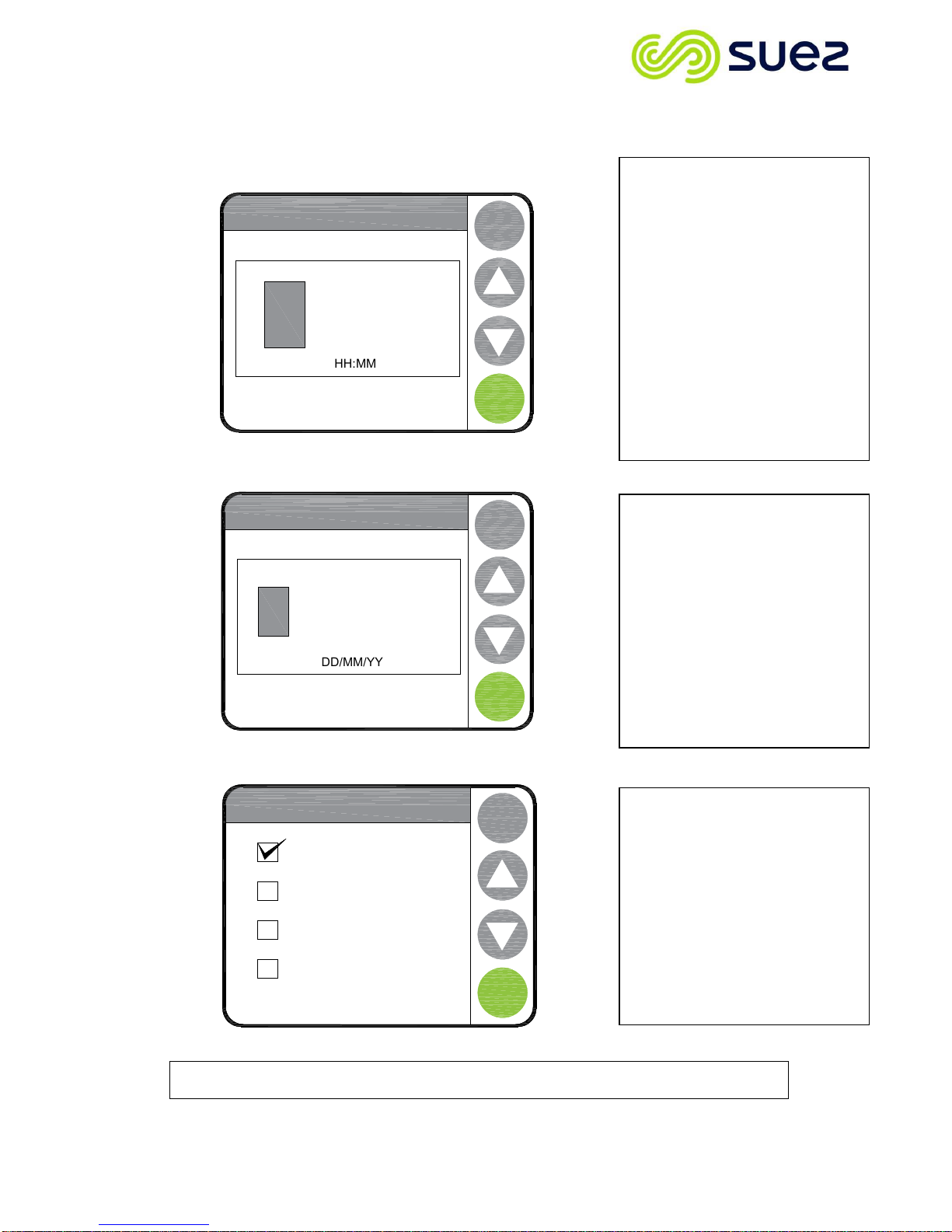

6.4.1 Time and date ...................................................................................14
6.4.2 Alarms...........................................................................................15
6.4.3 Maintenance..................................................................................17
6.4.4 Systems menu...............................................................................18
6.4.5 Engineer menu..............................................................................19
6.5 Factory Default settings....................................................................23
6.5.1 Setting menu defaults....................................................................23
6.5.2 System menu defaults...................................................................23
6.5.3 Engineer menu defaults.................................................................24
7 MAINTENANCE......................................................................................25
7.1 Replacing the media pack.................................................................25
7.2 Cleaning the inlet screen filter...........................................................26
7.3 Replace main PCB battery................................................................27
8 DISINFECTION PROCEDURE...............................................................29
9 CONSUMABLES & ACCESSORIES......................................................30
10 TROUBLE SHOOTING...........................................................................31
10.1 General fault conditions.................................................................31
10.2 Alarm/Warning messages..............................................................31
TECHNICAL SPECIFICATION......................................................................33
10.3 Product outputs .............................................................................33
10.4 Treated water specification............................................................33

OPERATING MANUAL FOR SELECT EDI 60
L300180 Iss:A 3
10.5 Water storage................................................................................33
10.6 Electrical specifications / connections ...........................................33
10.6.1 Mains supply..............................................................................33
10.6.2 Fuse rating / type........................................................................33
10.6.3 Alarm port connection details.....................................................33
10.6.4 USB Mass storage device..........................................................34
10.6.5 Main PCB Battery Specification .................................................34
10.7 Feed water specification................................................................34
10.7.1 Feed water quality......................................................................34
10.7.2 Feed water pressures.................................................................34
10.8 Water services connections...........................................................35
10.9 Weights and dimensions ...............................................................36
10.10 Environmental................................................................................36
10.11 Cartridge outputs...........................................................................36
11 INSTALLATION......................................................................................37
11.1 Unpacking......................................................................................37
11.2 Installation Kit................................................................................37
11.3 Cartridge media pack ....................................................................39
11.4 Unit positioning..............................................................................39
11.4.1 Bench mounted..........................................................................39
11.4.2 Wall mounted .............................................................................40
11.5 Drain connection............................................................................42
12 APPENDIX..............................................................................................43
12.1 MSDS............................................................................................43
12.2 Pushfit water connections..............................................................44
12.3 Process..........................................................................................45
12.4 CE declaration...............................................................................47
12.5 WEEE declaration .........................................................................48

OPERATING MANUAL FOR SELECT EDI 60
L300180 Iss:A 4
1DOCUMENT HISTORY
Issue
Date of
Change
Description of Change
Approved by
A First Issue: 10/03/2017

OPERATING MANUAL FOR SELECT EDI 60
L300180 Iss:A 5
2PREFACE
This Operating Manual provides all of the information and instructions
needed to install, operate and maintain your SELECT edi 60 water purification
unit.
Please read the instructions carefully and make sure that you fully understand
the information given before operating the unit.
Details on how to install & commission your unit can be found in Section 12.
Details on how to operate your unit can be found in Section 6.
Details on how to maintain your unit can be found in Section 7.
Warning:
Before operating the unit always check to see that the water and electrical connections are
secure and not likely to cause a trip hazard. If you have concerns about the unit or are unsure
of its operation contact SUEZ Water Purification Systems limited or supplier for assistance.

OPERATING MANUAL FOR SELECT EDI 60
L300180 Iss:A 6
3CONTACT DETAILS
Should you require any additional information relating to the servicing,
maintenance, spares and consumables, simply contact SUEZ using the
details below:-
Water Purification Systems Ltd
Bandet Way
Thame
Oxfordshire
OX9 3SJ
United Kingdom
(Or your local distributor; (see www.suezwater.co.uk for details)
For all spares, consumable and general sales enquiries contact:
Customer Services Department: Tel No. [phone]
For all service enquiries contact:
Service Department: Tel No. [phone]
E-mail :
[email protected]
Website:
www.suezwater.co.uk
Or follow us on:-

OPERATING MANUAL FOR SELECT EDI 60
L300180 Iss:A 7
4HEALTH AND SAFETY
4.1 Explanation of symbols and references
This symbol refers to any immediate dangers. Failure to
follow the specified procedure could result in serious
personal Injury. Extreme caution should be observed when
conducting any activity where this symbol is shown. Work
should be completed by a trained competent person.
Electrical shock. Do not touch electrical components. Before
performing tasks on parts of the electrical system, disconnect the
system from the power supply.
This symbol refers to a possible danger. Failure to follow the
specified procedure could result in personal injury. Caution
should be observed when conducting any activity where this
symbol is shown. It is recommended work should be completed
by a trained competent person.
This symbol refers to a possibly hazardous situation.
Failure to observe these references may result in minor injuries
and/or damage to property.
I
This symbol points out important information for working with the
system in the proper manner. Failure to observe these references
may result in malfunctions in the system or impact on the
environment.
4.2 Additional safety requirements
Country-specific requirements standards and regulations must be
observed.
4.3 Intended use.
The Select edi 60 unit has been specifically designed for indoor use only
to purify potable drinking water for use in laboratory applications or similar
applications requiring highly purified deionised water. Refer to Section
11.5 for details of feed water limitations and Section 11.2 for treated water
specification. For more details relating to the intended use of the
equipment refer to the following notes.
Danger
Warning
Caution

OPERATING MANUAL FOR SELECT EDI 60
L300180 Iss:A 8
Warning
The unit is not for use in explosive of oxygen rich atmospheres.
The unit is for indoor use only and must not be washed down.
The unit must not be allowed to freeze or be stored at temperatures below 5ºC.
Always operate in a well ventilated area and ensure the cooling vents are not covered.
DO NOT sit on the unit, place items on top of it, or use it as a step.
Always operate the unit on a firm and level surface.
DO NOT drink the purified water produced by the unit/system. It should only be used
for the purposes intended to provide purified water for laboratory use.
If the unit develops a water leak follow the procedure in Section 4.4, DO NOT continue
to operate the equipment.
Always isolate the mains electrical power supply before working on the unit.
If the unit’s performance becomes impaired and any remedial work appears to be
outside the scope of this manual, do not operate the unit and seek advice from SUEZ.
The unit must only be serviced and maintained by SUEZ Service personnel or SUEZ
approved and trained technicians.
Failure to observe the instructions contained in this manual may compromise the
safety, performance and reliability of the unit and may void any warranties.
Under no circumstances try to service or repair the system yourself if you have not
been trained and approved to do so.
4.4 Operating staff
Only persons who have read and understood this Operating Manual
should be permitted to operate the unit. When operating the units, it is
important to observe all safety information.
Bringing the system to an immediate stop in the event of an emergency
•Press “STOP” on the display two times, (Fast stop).
•Turn off the electrical supply.
•Shut off the water supply.
After remedying the damage and checking that it is safe to use:-
•Open the water supply.
•Turn on the electrical supply.
•Restart the unit via the main display.
4.5 Safety information for maintenance tasks
The operator must take care to ensure that all maintenance, inspection
and assembly tasks are performed by authorised and qualified personnel
who have been sufficiently trained regarding the task at hand (via use of
Operating Manual).

OPERATING MANUAL FOR SELECT EDI 60
L300180 Iss:A 9
The system must be shut down and be protected from further use until all
repair and maintenance tasks have been completed. It is essential to
observe the shutdown procedure as described in this Operating Manual.
Before beginning tasks relating to electrical equipment/components of this
system, a check must confirm that power has been disconnected from the
corresponding section of the system. In addition, the system must be
secured to prevent it from being turned on again unintentionally.
4.6 Disposing of system parts and operating materials
When they need to be discarded, consumables and spares must be
disposed of according to local and National requirements. Refer to
Section 13.5 regarding disposal.
4. Unauthorised conversion and manufacturing
replacement parts
Modification of the unit is only permitted with the approval of the
manufacturer. The same applies to the uploading of new software for the
control system. Original replacement parts and accessories authorised by
the manufacturer enhance safety, the use of other non-approved parts will
void the warranty and could affect the safety and or performance of the
unit.
4.8 Warranty claims and liability
This product has been manufactured in accordance with our ISO
9001:2008 quality control process. If, however, you are unsatisfied with
the unit, please contact SUEZ Ltd. Any warranties guaranteed by SUEZ
with respect to the Select edi 60 will be void if the equipment is not used
in accordance with the written instructions provided within this Operating
Manual.
Please visit our website (www.suezwater.co.uk) for a copy of our terms
and conditions which contains further details on warranties.

OPERATING MANUAL FOR SELECT EDI 60
L300180 Iss:A 10
5ABOUT YOUR WATER PURIFIER
The SUEZ Select edi 60 purifies potable water. The water is purified by a
combination of processing including; activated carbon, double pass reverse
osmosis, membrane degassing and electro-deionisation.
The Purified water produced by the unit complies with the latest standards for
laboratory grade water. Refer to Section 11.2 Treated Water Specification
for details.
5.1 The Select edi 60 range
The Select edi 60 is only as one model producing a makeup flowrate of 10
litres/hour.
The above output is based on a typical 8 hour working day at 60psi (4 bar)
inlet pressure, 25
o
C and maximum of 400 ppm total dissolved solids.
Note: At water temperatures below 25
o
C the output will decrease by as
much as 3% per Degree C. Refer to Section 11.1 for more details.
The Select edi 60 is supplied with an integral 20 litre tank or if larger
storage is required additional 50 and 100 litre tanks are available. Contact
SUEZ sales department for details.
The unit type is detailed on its serial plate which can be found on the
reverse side of the front cover.
The Select edi 60 is provided with an installation kit for quick installation.
The unit is also supplied with one complete set of consumables. Refer to
Section 9 for details
5.2 Key components of the Select edi 60
5.2.1 Touch screen display
Operation of the Select edi 60 is controlled solely through the touch
screen display. System schematics are displayed for easy
understanding of the unit’s process.
5.2.2 Storage tank
The integral storage tank holds 20 litres of purified water. To dispense
water a bib tap has been provided at the front of the tank.
