Suhr Riot Mini User manual

User Guide
Mini

2
Table of Contents
Overview � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Getting Connected � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Controls � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Sample Settings � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Technical Specifications � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Warranty � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6

3
Overview

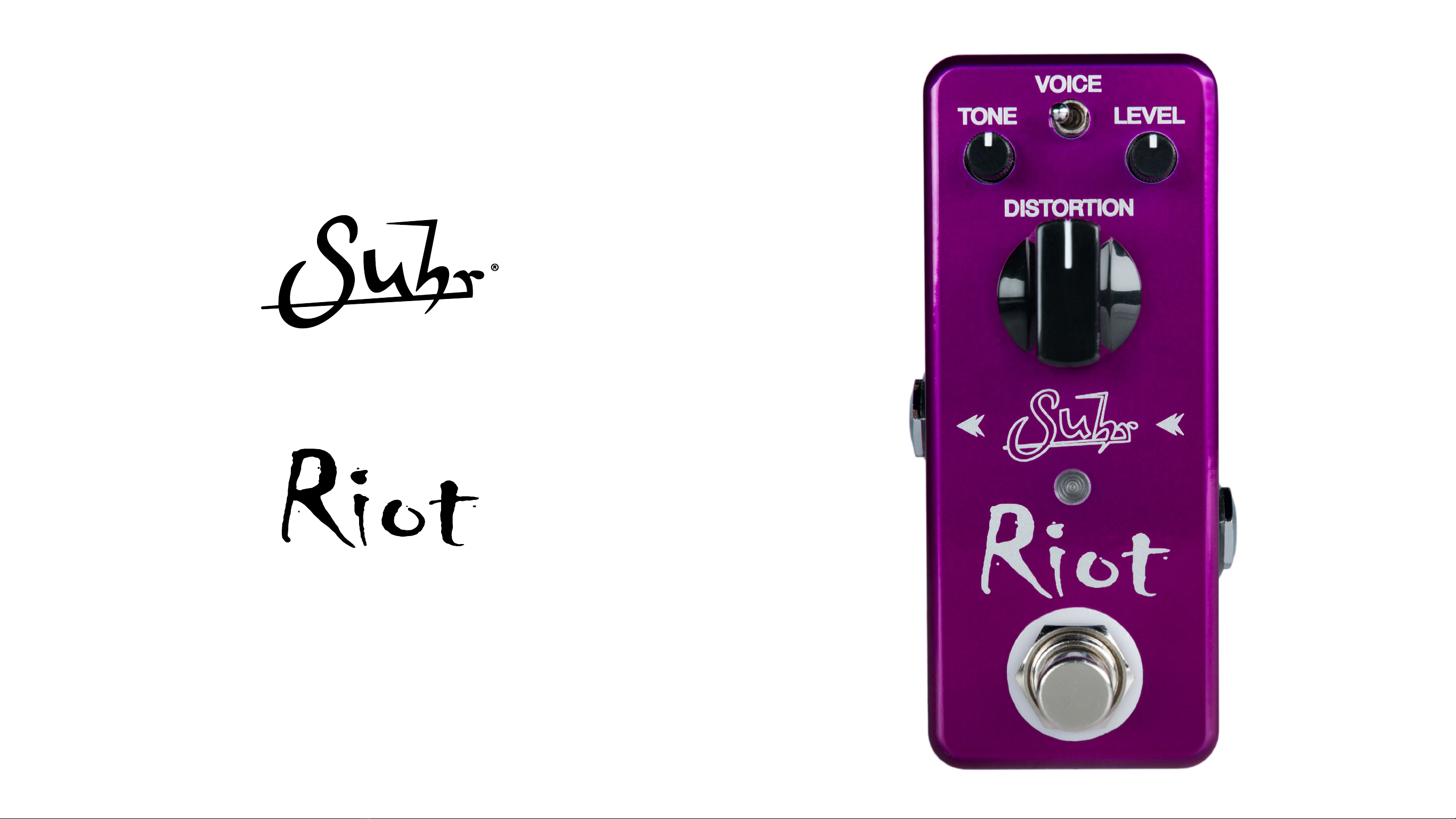

Riot is a versatile high-gain distortion pedal with the sonic characteristics and
touch sensitivity of a high quality 100 watt tube amplifier� Riot will transform a
super clean amp into an authoritative rock tone that inspires all of your favorite
riffs�
Thank you for purchasing the Suhr Riot Mini™ Distortion Pedal.
Please take the time to read this manual to get the most out of the Riot Mini.
The more you familiarize yourself with the features of this pedal, the more
you will enjoy its benets and maximize its potential.

4
Getting Connected
Input: Plug the cable from your guitar into here, or from the previous
effect’s output�
Output: Plug a cable from here to an amp or another effect’s input�
DC Input: Riot mini accepts power from power supplies in the range of
9 to 18 Vdc (center negative) See Technical Specifications on pg 6.
Foot Switch: Push on the foot switch to engage or bypass the effect�
The blue LED will illuminate when the effect is on�
1
4
3
3
2
Controls
Distortion: Adjusts the amount of gain added to your tone, taking you from
classic crunch to high gain heaven
Level: Adjusts the output volume of the pedal� Riot mini provides enough vol-
ume to push the front end of any tube amp into natural overdrive�
Tone: Shapes the overall tonal response of the pedal - from smooth and
warm to cutting lead tones�
Voice: The voice switch selects the two most popular diode selections from
the original Riot�

5
Sample Settings
Classic Crunch Modern Rock Rhythm Vintage High Gain

6
Technical Specications Warranty
Input Impedance: 1M Ohm
Output Impedance: 600 Ohm
Power Connector: Center Negative, 2.1mm x 5.5mm
Operating voltage: 4V to 18V (nominal 9V)
Maximum Voltage: 20 Vdc
Reverse Battery Protection: Yes
Over Voltage Protection: Yes
Current Consumption: 8mA
Dimensions: 1.82”(W) x 3.85”(D) x 1.89”(H)
Weight: 0.365lb
ROHS Compliant: Yes
JS Technologies, Inc� (JST) warrants for lifetime from date of purchase by the
initial retail purchaser that this product shall be free from defects in workman-
ship� Electronic components such as capacitors, resistors, filters, transformers,
jacks, and pots are covered for 5 years� Any parts determined defective by JST
within the five (5) year term shall be repaired or replaced by JST without charge
for parts and labor provided the unit is returned, transportation costs prepaid, to
JS Technologies, Inc�, 601 Crane Street, Unit A, Lake Elsinore, CA 92530, or to
such facility authorized by JST� JST will pay shipping costs to return the unit to
its owner� Defects in workmanship will be determined by JST for limited lifetime
coverage�
This warranty does not cover damage caused by accident, misuse, abuse, ne-
glect, unauthorized or improperly performed repairs, alterations, and/or wear
and tear occasioned by use of the product, and does not include any expense
for inconvenience or loss of use while the product is being repaired or replaced�
JST expressly disclaims any liability for consequential damages arising from the
sale, use, or inability to use the product� Any warranty implied by law, includ-
ing any warranty of merchantability or fitness, is expressly limited to the one (5)
year warranty term for the parts on our amplifiers and electronic products� The
foregoing statements of warranty are exclusive and in lieu of all other remedies�
Workmanship lifetime warranty is limited strictly to the original retailer purchaser
of the instrument registered with JST within 10 days of purchase from an autho-
rized JST dealer or distributor� JST will pay shipping costs to return the unit to its
owner within the mainland U�S�
The above warranty policy only applies to customers in USA� If you are an in-
ternational customer, please check with your distributor and the dealer in your
country for warranty matters� Warranty issues must be handled through your
dealer or distributor� If you are an international customer who purchased (or
plan to purchase) from a US dealer, we can handle warranty matters direct but
you will be responsible for shipping both ways� We encourage international cus-
tomers to purchase through your local distributor or dealer for this reason� Our
international distributors are set up to handle warranty issues in their respective
countries� If you do not have an authorized Suhr dealer in your country, please
contact us direct for further details�

NOTE: This product has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction
manual, may cause harmful interference with radio communications. Operation of this product in a residential area is likely to cause harmful
interference, in which case you will be required to correct the interference at your own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful
interference. 2) This device must accept any interference received, including interference that may cause undesired operation.
Notice: The FCC regulations provide that changes or modifications not expressly approved by J.S. Technologies Inc. could void your authority to
operate this equipment.
These limits are designed to provide reasonable protection against harmful interference in a non-residential installation. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference with radio or television
reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the antenna of the radio/television receiver.
• Increase the separation between this equipment and the radio/television receiver.
• Plug the equipment into a different outlet so that the equipment and the radio/television receiver are on different power mains branch circuits.
• Consult a representative of J.S. Technologies Inc. or an experienced radio/television technician for additional suggestions.
