Suhr Shiba drive reloaded mini User manual

User Guide

Table of Contents

Overview � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3

Getting Connected � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4

Controls � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4

Sample Settings � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5

Technical Specifications � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6

Warranty � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6

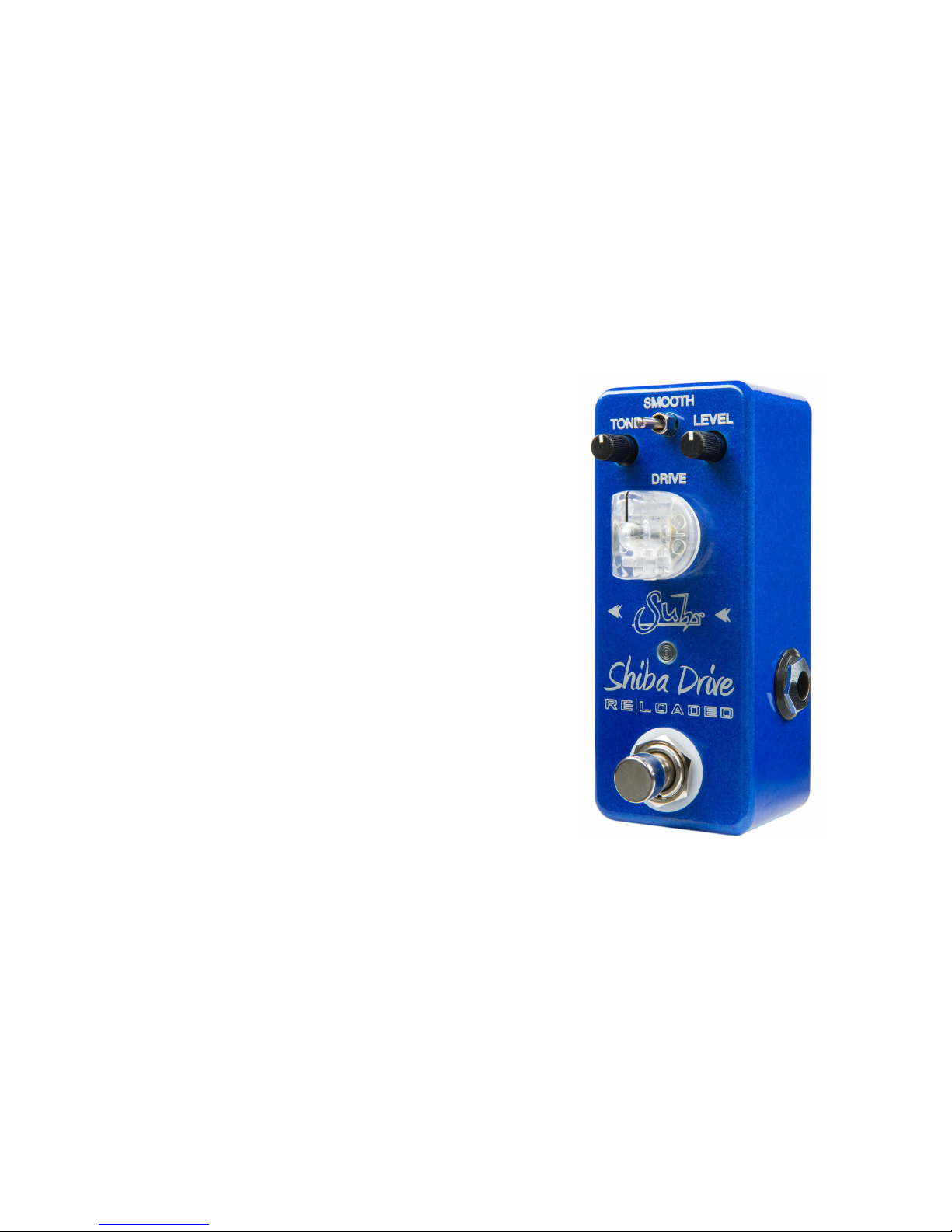

Overview

Shiba Drive Reloaded Mini is the result of countless hours of listening, test-

ing, and tweaking our original overdrive circuit to create a pedal that is more

amp-like, has a tighter low-end, focused mids, and features more gain (50%

more than our original Shiba)� Shiba Drive Reloaded Mini is the ideal choice

for players seeking classic Blues, Jazz, and Rock style tones� Shiba Drive

Reloaded features an easy to tweak layout which includes Drive, Level, Tone

and a two position Smooth switch�

Thank you for purchasing the Suhr Shiba Reloaded Mini™ Pedal.

Please take the time to read this manual to get the most out of your pedal.

The more you familiarize yourself with the features of this pedal, the more

you will enjoy its benets and maximize its potential.

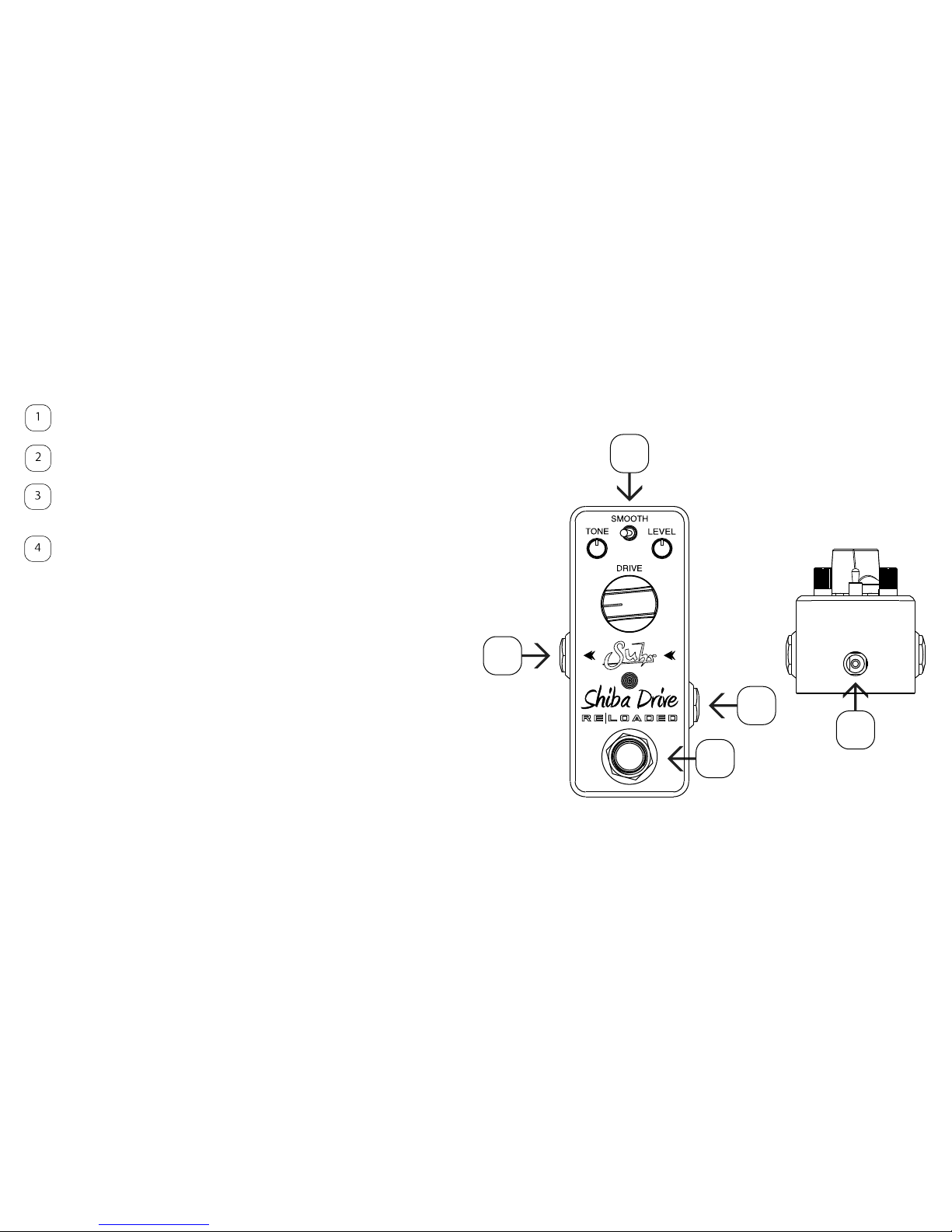

Getting Connected

Input: Plug the cable from your guitar into here, or from the previous

effect’s output�

Output: Plug a cable from here to an amp or another effect’s input�

DC Input: Shiba Reloaded Mini accepts power from power supplies in

the range of 9 to 18 Vdc (center negative) See Technical Specifica-

tions on pg 6.

Foot Switch: Push on the foot switch to engage or bypass the effect�

The orange LED will illuminate when the effect is on�

Controls

Drive: Controls the amount of drive from the circuit� This will take you from a

bluesy crunch to a smooth, sustaining overdrive�

Level: Controls the output level of the pedal� Shiba Drive Reloaded provides

enough level to push the front end of any tube amp into natural clipping, or

adds sustain to an already overdriven amp�

Tone: Shapes the overall tonal response of the pedal - from warm and

smooth to bright and cutting�

Smooth: This switch contains 2 positions�

Left - Activates a mild high-end roll off� Effective for warming up guitars with

single-coil pickups�

Right - A more pronounced high-end roll off� Excellent for chunky rhythms

and violin-like lead tones�

Note: The modes have less effect at lower gain and tone settings

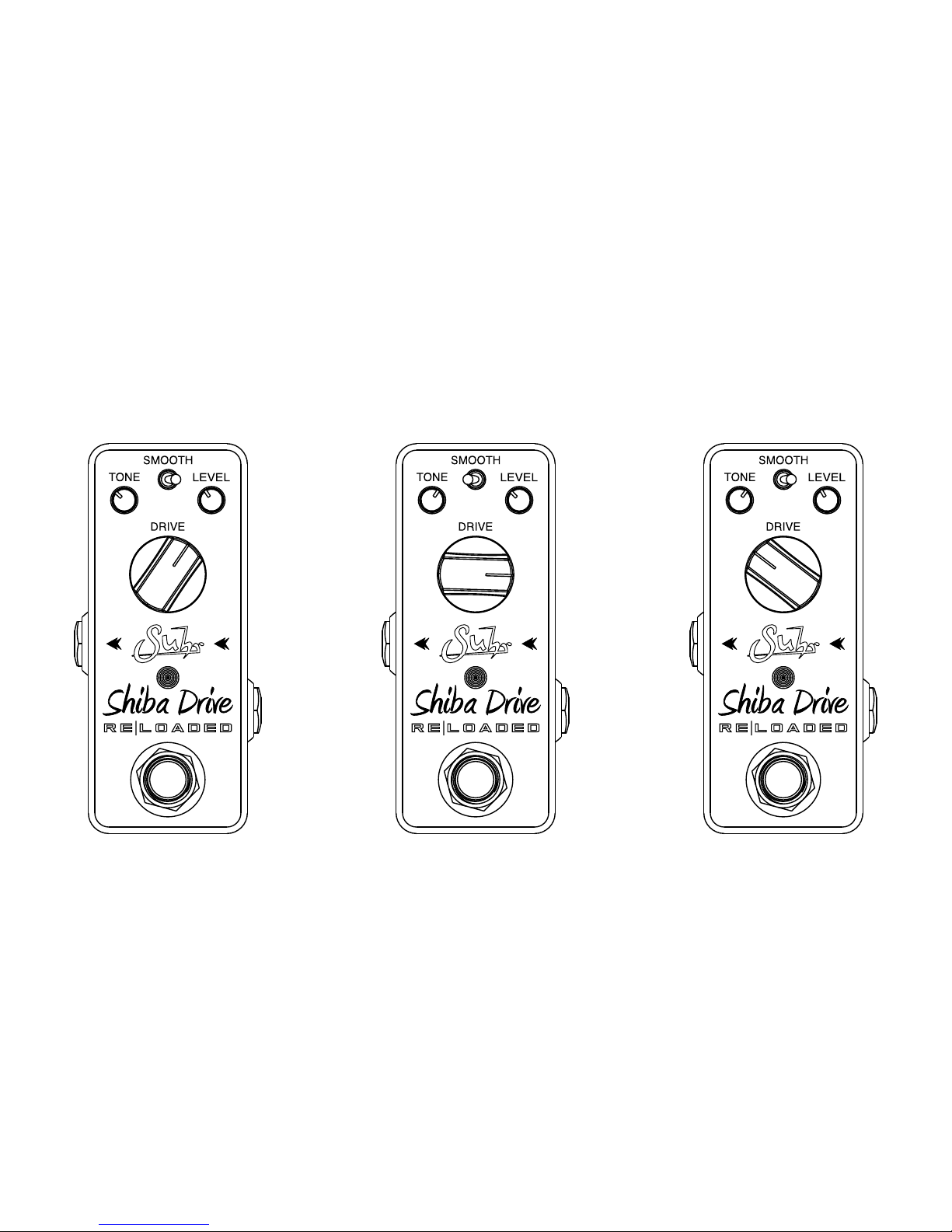

Sample Settings

Classic Rock Smooth Solo Texas Blues

Technical Specications Warranty

Input Impedance: 1MΩ

Output Impedance: 1kΩ

Power Connector: Center Negative, 2.1mm x 5.5mm

Operating voltage: 4V to 18V (nominal 9V)

Maximum Voltage: 20 Vdc

Reverse Battery Protection: Yes

Over Voltage Protection: Yes

Current Consumption: 8mA

Dimensions: 1.82”(W) x 3.85”(D) x 1.89”(H)

Weight: 0.365lb

ROHS Compliant: Yes

JS Technologies, Inc� (JST) warrants for lifetime from date of purchase by the

initial retail purchaser that this product shall be free from defects in workman-

ship� Electronic components such as capacitors, resistors, filters, transformers,

jacks, and pots are covered for 5 years� Any parts determined defective by JST

within the five (5) year term shall be repaired or replaced by JST without charge

for parts and labor provided the unit is returned, transportation costs prepaid, to

JS Technologies, Inc�, 601 Crane Street, Unit A, Lake Elsinore, CA 92530, or to

such facility authorized by JST� JST will pay shipping costs to return the unit to

its owner� Defects in workmanship will be determined by JST for limited lifetime

coverage�

This warranty does not cover damage caused by accident, misuse, abuse, ne-

glect, unauthorized or improperly performed repairs, alterations, and/or wear

and tear occasioned by use of the product, and does not include any expense

for inconvenience or loss of use while the product is being repaired or replaced�

JST expressly disclaims any liability for consequential damages arising from the

sale, use, or inability to use the product� Any warranty implied by law, includ-

ing any warranty of merchantability or fitness, is expressly limited to the one (5)

year warranty term for the parts on our amplifiers and electronic products� The

foregoing statements of warranty are exclusive and in lieu of all other remedies�

Workmanship lifetime warranty is limited strictly to the original retailer purchaser

of the instrument registered with JST within 10 days of purchase from an autho-

rized JST dealer or distributor� JST will pay shipping costs to return the unit to its

owner within the mainland U�S�

The above warranty policy only applies to customers in USA� If you are an in-

ternational customer, please check with your distributor and the dealer in your

country for warranty matters� Warranty issues must be handled through your

dealer or distributor� If you are an international customer who purchased (or

plan to purchase) from a US dealer, we can handle warranty matters direct but

you will be responsible for shipping both ways� We encourage international cus-

tomers to purchase through your local distributor or dealer for this reason� Our

international distributors are set up to handle warranty issues in their respective

countries� If you do not have an authorized Suhr dealer in your country, please

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules� These limits are de-

signed to provide reasonable protection against harmful interference in a residential installation� This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications� However, there is no guaran-

tee that interference will not occur in a particular installation� If this equipment does cause harmful interference to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relo-

cate the receiving antenna� - Increase the separation between the equipment and receiver� - Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected� - Consult the dealer or an experienced radio/ TV technician for help�

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment�

This device complies with part 15 of the FCC Rules� Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
