Suman eArche PV System User manual

eArche PV System
Installation Manual
TM

Contents
Purpose of this guide
Features & Benefits
Notices
General safety
Handling safety
Installation safety
Fire safety
Production Identification
Mechanical Installation
Grounding
Electrical installation
Disclaimer of liability
Products Data

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage1 / 18
TM
Purpose of this guide
•This guide contains information regarding the installation and safe handling of Sunman (Zhenjiang)
Company Limited eArche PV system. Sunman (Zhenjiang) Company Limited referred to as
“SUNMAN”.
•Installers must read and understand this guide prior to installation. For any questions, please contact
SUNMAN’s Customer Service Department “or our local representatives” for more detailed
information. Installers should follow all safety precautions described in this guide as well as local
codes when installing a eArche.
•Before installing a solar photovoltaic system, installers should familiarize themselves with its
mechanical and electrical requirements. Keep this guide in a safe place for future reference (care and
maintenance) and in case of sale or disposal of eArche.
•SUNMAN’s eArche are tested and certified for installations worldwide. Different regions may have
different regulations for solar PV installations.

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage2 / 18
TM
Features & Benefits
•Flexible layouts
•eArcheTM PV system can be installed at any shape roofs, which has integrated appearance with
buildings.
•Maximization installation quantity of eArche at any kinds roof.
•Quick installation
•Ultra-thin and light to save inatallation labor by a large margin.

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage3 / 18
TM
Notices
This manual contains important installation instructions for the core hardware components required
for eArcheTM PV System PV arrays.
Copyright and Trademark Information
Copyright © 2019 by Sunman (Zhenjiang) Company Limited. All rights reserved.
eArche and the SUNMAN logo are trademarks of Sunman (Zhenjiang) Company Limited.
Warranty Warnings
“WARRANTY VOID IF NON-SUNMAN-CERTIFIED HARDWARE IS ATTACHED TO eArcheTM PV System.”
For Further Information
For additional technical support documentation, please visit the Support page of the SUNMAN web
site at www.sunman-energy.com

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage4 / 18
TM
General safety
•eArche that fall under this application class may be used in system operation at more than 50V DC or
240W, where general contact access is anticipated. eArche are qualified for safety under IEC 61730-2
and within this application class are considered to meet the requirements for Safety Class II.
•eArche are qualified for Application Class A(IEC 61730-1).
•Installing solar photovoltaic systems requires specialized skills and knowledge. Installation should only
be performed by qualified personnel.
•Installers should assume all risks of injury that might occur during installation, including, but not
limited to, the risk of electric shock.
•One single eArche may generate more than 30V DC when exposed to direct sunlight. Contact with a
DC voltage of 30V or more is potentially hazardous.
•Do not disconnect during load connection.
•Photovoltaic solar eArche convert light energy to direct current electrical energy. They are designed
for outdoor use. eArche can be ground mounted, mounted on rooftops, vehicles or boats. The
proper design of support structures lies within the responsibility of the system designers and
installers.
•Do not use mirrors or other magnifiers to concentrate sunlight onto eArche.
•When installing the system, abide to all local, regional and national statutory regulations. Obtain a
building permit if necessary.
•eArche electrical characteristics are within ±10% of the indicated values of Isc, Voc and Pmax under
standard test conditions (Irradiance of 1000W/m², AM 1.5 spectrum, a cell temperature of 25℃（77°
F）).
•Only use equipment, connectors, wiring and support frames suitable for solar electrical systems.
•“Always use fall protection equipment when working from heights of 6 feet （183cm）or above”.
Follow Occupational Safety and Health Act (OSHA) or local governing safety regulations regarding fall
protection. (UL only)
Handling safety
•Do not lift eArche by grasping eArche’junction box or electrical leads.
•Do not stand, step or walk on any side of eArche.
•Do not drop eArche or allow objects to fall on eArche.
•Do not place any heavy objects on eArche.
•Be cautious when placing eArche down onto a surface, particularly when placing it in a corner.
•Inappropriate transport and installation may break eArche and void the warranty.

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage5 / 18
TM
•Do not attempt to disassemble eArche, and do not remove any attached nameplates or components
from eArche.
•Do not apply paint or adhesive to eArche’top surface.
•To avoid damage to the front cover and backsheet, do not scratch, “dent”or hit the front cover and
backsheet.
•Do not drill holes in the ribs of SMA series. This may compromise the frame strength, cause corrosion
of the ribs and void the warranty.
•Do not scratch the anodized coating of the ribs (except for grounding connection). It may cause
corrosion of the ribs or compromise the ribs strength.
•A panel with broken front plate or torn back sheet cannot be repaired and must not be used since
contact with any panel surface or the ribs can cause an electric shock.
•Work only under dry conditions, and use only dry tools. Do not handle panels under wet conditions
unless wearing appropriate protective equipment.
•When storing uninstalled panels outdoors for any period of time, always cover the panels and ensure
that the front cover faces down “on a soft flat surface”to prevent water from collecting inside the
panel and causing damage to exposed connectors.
Installation safety
•Never open electrical connections or unplug connectors while the circuit is under load.
•Contact with electrically charged parts of the panels, such as terminals, can result in burns, sparks and
lethal shock whether or not the panel is connected.
•Do not touch eArche unnecessarily during installation. The front surface and the ribs may be hot;
there is a risk of burns and electric shock.
•Do not work in the rain, snow or in windy conditions.
•Avoid exposing cables to direct sunlight in order to prevent insulation degradation.
•Keep children well away from the system while transporting and installing mechanical and electrical
components.
•Completely cover eArche with an opaque material during installation to prevent electricity from being
generated.
•Do not wear metallic rings, watchbands, earrings, nose rings, lip rings or other metallic objects while
installing or troubleshooting photovoltaic systems.
•Use only insulated tools that are approved for working on electrical installation.
•Follow the safety regulations for all other system components, including wires and cables, connectors,
charging regulators, inverters, storage batteries, rechargeable batteries, etc.

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage6 / 18
TM
•Under normal conditions, a photovoltaic eArche is likely to experience conditions that produce more
current and/or voltage than reported at standard test conditions. Accordingly, the values of Isc and
Voc marked on this eArche should be multiplied by a factor of 1.25 when determining component
voltage ratings, conductor current ratings, fuse sizes, and size of controls connected to the PV output.
•Only use same or connectable connectors to connect eArche to form a string, or connect to another
device. Removing the connectors will void the warranty.
Fire safety
•Consult your local authority for guidelines and requirements for building or structural fire safety.
•Roof constructions and installations may affect the fire safety of a building; improper installation may
create hazards in the event of a fire.
•Use components such as ground fault circuit breakers and fuses as required by local authority.
•Do not use panels near equipment or in places where flammable gases may be generated.
•eArche have been rated Fire Class C, and are suitable for mounting on to a Class A roof.
Production Identification
Each eArche has two labels providing the following information:
•Nameplate: describes the product type; rated power, rated current, rated voltage, open circuit voltage,
short circuit current, all as measured under standard test conditions; weight, dimensions etc.; the
maximum system voltage is 1000 volts.
•Barcode: each individual eArche has a unique serial number. The serial number has 18 digits. The 1th
to 4th digits are the module type for internal use, and the 5th and the 6th digits are the year code,
and the 7th and 8th digits are the month and the 9th and the 10th digits are the week code, and the
11th and the 15th digits are order number, and the 16th and the 18th digits are the sequence codes.
For example, XXXX160417XXXXXXXX means the module was made in the 17th week of 2016. Each
module has only one bar code. It is permanently attached to the interior of eArche and is visible from
the top front of eArche. This bar code is inserted prior to lamination.
Mechanical Installation
Selecting the location
•Select a suitable location for installing eArche.
•eArche should face south in northern latitudes and north in southern latitudes.

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage7 / 18
TM
•For detailed information on the best installation angle, refer to standard solar photovoltaic
installation guides or consult a reputable solar installer or systems integrator.
•eArche should not be shaded at any time. If a eArche is shaded or even partially shaded, it will fail to
perform at ideal conditions and result in lower power output.
•Do not use eArche near equipment or in locations where flammable gases may be generated or
collected.
General installation
•eArche mounting structure must be made of durable, corrosion-resistant and UV-resistant material.
•Always observe the instructions and safety precautions included with eArche support frames.
•Do not drill additional mounting holes in the PV panel’s ribs as this will void the warranty.
•Before installing eArche on a roof, always ensure the roof construction is suitable. In addition, any
roof penetration required to mount eArche must be properly sealed to prevent leaks.
•Dust building up on the surface of eArche can impair with eArche performance. SUNMAN
recommends installing eArche with a tilt angle of at least 10 degrees, making it easier for dust to be
washed off by rain.
•Always keep the back sheet of the panel free from foreign objects, “plants and vegetation”, or
structural elements, which could come into contact with the panel, especially when the panel is
under mechanical load.
•Ensure panels are not subject to wind or snow loads exceeding the maximum permissible loads, and
are not subject to excessive forces due to the thermal expansion of the support structures: Refer to
the following installation methods for more detailed information.
eArche product design loads
•All eArcheTM product have been evaluated for test loads of 2400 Pa with the following solutions.
Mechanical Installation
Quick-bonding Installation
▶For SMD Series
SMDxxxM-6X12DW, SMDxxxM-6X10DW, SMDxxxM-4X12DW, SMDxxxM-4X09DW
SMDxxxM-6X12UW, SMDxxxM-6X10UW, SMDxxxM-4X12UW, SMDxxxM-4X09UW
▶Overview
•The SMD Series use quick and easy installation methods which called “Quick-bonding” is very suitable
for color steel roofing.

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage8 / 18
TM
a. Confirmation of material of color steel
•SMD Series to be bonded with PE((Use of the brand: BECKER, VALSPAR, NIPPON, AKZO NOBEL)
coating of zinc aluminum plate(Galvalume. AZ50, AZ55, AZ60 or Zincalume. AZ150). Substrate
materials not listed in the table must be approved by the local distributors, otherwise the warranty
will be invalid.
b. Size of color steel roofing:
c. Preparation of bonding material
•Please contact the local distributors for the detail information.
d. Clean the color steel roofing
•Always keep the backsheet of SMD Series and rooftop clean before install.
e. Install chemical bonding material
•The thickness of chemical bonding material should not less than 4 mm, width is not less than 10 mm. The
length of the chemical bonding material shall not be less than the number corresponding to L in the
Confirmation of
material of color steel
Measure the size of
color steel roofing
Preparation of
bonding material
Clean the color steel
roofing
Installation
Install chemical
bonding material
Max Span=380mm
Max Span=380mm
Min Span=15mm
Min Span=15mm
Min Span=20mm

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage9 / 18
TM
following table.
eArche
SMDxxxM-4X12DW,
SMDxxxM-4X12UW,
SMDxxxM-4X09DW
SMDxxxM-4X09UW
SMDxxxM-6X12DW,
SMDxxxM-6X12UW,
SMDxxxM-6X10DW,
SMDxxxM-6X10UW
L
665mm
995mm
f. Layout of SMD Series
•Layout (For SMD Series: SMDxxxM-6X12DW, SMDxxxM-6X12UW, SMDxxxM-6X10DW,
SMDxxxM-6X10UW)
•Layout (For SMD Series: SMDxxxM-4X12DW, SMDxxxM-4X12UW, SMDxxxM-4X09DW,
SMDxxxM-4X09UW)
L

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage10 / 18
TM
▶Note:
•Please contact the local distributors if you are not sure whether your color steel roofing is suit for
SMD Series or you have any question about this installation method.
•Please contact the local distributors if you want to remove SMD Series from your color steel roofing.
Quick-bonding Installation
▶For SMA Series
SMAxxxM-6X12DW, SMAxxxM-6X10DW, SMAxxxM-4X12DW, SMAxxxM-4X09DW
SMAxxxM-6X12UW, SMAxxxM-6X10UW, SMAxxxM-4X12UW, SMAxxxM-4X09UW
•Clamps can be used for the connection of SMA series components and support system. The
installation must be completed according to the following example, otherwise the warranty will be
invalid.
•Horizontal installation of SMA series components.
•SMA series components must be properly secured to their supports so that they can withstand the
pressure of the load, including the rise and pressure of the wind. It is the responsibility of the
installer to ensure that the mounting fixture used ensures that the assembly is strong enough.

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage11 / 18
TM

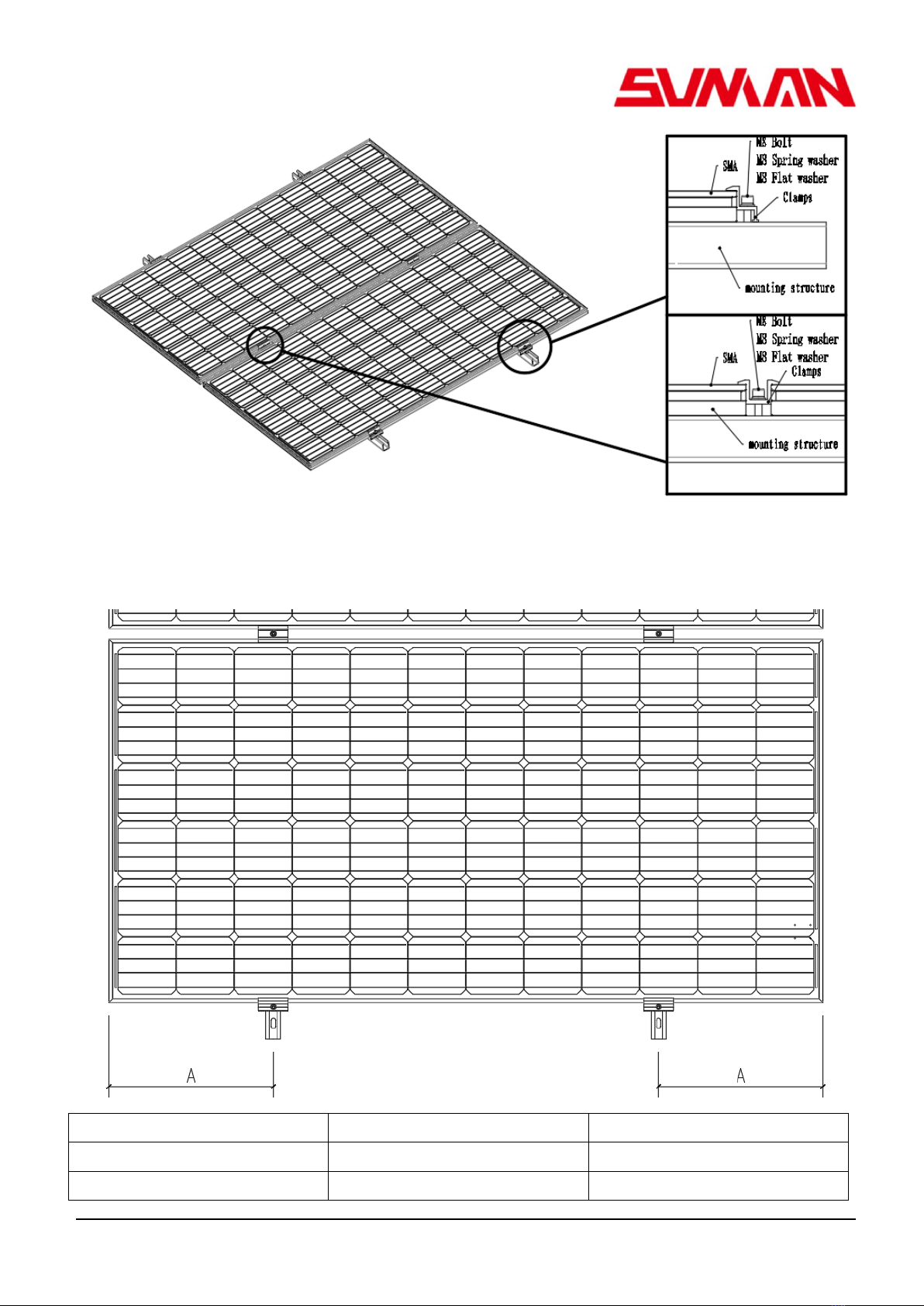

•Layout(For SMA Series: SMAxxxM-6X12DW, SMAxxxM-6X10DW, SMAxxxM-4X12DW,
SMAxxxM-4X09DW, SMAxxxM-6X12UW, SMAxxxM-6X10UW, SMAxxxM-4X12UW,
SMAxxxM-4X09UW )
Specifications
AMAX(mm)
AMIN(mm)
SMAxxxM-6X12DW
450
250
SMAxxxM-6X10DW
400
210

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage12 / 18
TM
SMAxxxM-4X12DW
450
250
SMAxxxM-4X09DW
350
200
SMAxxxM-6X12UW
450
250
SMAxxxM-6X10UW
400
210
SMAxxxM-4X12UW
450
250
SMAxxxM-4X09UW
350
200
Grounding
•For grounding and bonding requirements, please refer to regional and national safety and electricity
standards. If grounding is required, use a recommended connector type for the grounding wire.
•For grounding, this guide refers to module frame grounding. If grounding is required, make sure
module frames (metal exposed to touch) are always grounded.
•SUNMAN recommends always refer to local state and national code requirements for PV module
grounding. SUNMAN highly recommends negative grounding if it's allowed by local authorities.
•When attaching the frame grounding hardware and wire to the frame it must be placed
corresponding to the ground symbol stamped location to ensure proper electrical connection.
•For grounding should be performed by a qualified electrician.
For SMD Series
Grounding layouts

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage13 / 18
TM
For SMA Series
Grounding layouts
A
B

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage14 / 18
TM
▶Note:
•Pan head tapping screws with cross recessed: ISO 7049-ST 4.2X9.5-F-H Equal GB/T 845-85 –ST
4.2X9.5-F-H
•Star washer: DIN 6797-J 4.3 Equal GB/T 861.1-1987 4
•Pan head tapping screws with cross recessed , Connection terminal and Star washer should be made of
stainless steel
•The star washer is fitted directly under the connection terminal and makes electrical contact by
penetrating the anodized coating of the aluminum frame (see the pictures below). Recommended
Pan head tapping screws with cross recessed torque is 1 N•m.
▶Note:
•Pan head tapping screws with cross recessed: ISO 7049-ST 4.2X9.5-F-H Equal GB/T 845-85 –ST
4.2X9.5-F-H
•Star washer: DIN 6797-J 4.3 Equal GB/T 861.1-1987 4
•Pan head tapping screws with cross recessed , Connection terminal and Star washer should be made of
stainless steel
•The star washer is fitted directly under the connection terminal and makes electrical contact by

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage15 / 18
TM
penetrating the anodized coating of the aluminum frame (see the pictures below). Recommended
Pan head tapping screws with cross recessed torque is 1 N•m.
Electrical installation
•Any hardware used must be compatible with the mounting structure material to avoid galvanic
corrosion.
•It is not recommended to use eArche with different configurations in the same system.
•Excessive cables must be organized or fixed in an adequate way, e.g. attached to the mounting
structure by using non-metallic cable ties.
•For applications requiring high operating voltage several eArche can be connected in series to form a
string of eArche; the system voltage is then equal to the sum of the voltage of each eArche.
•For applications requiring high operating currents several strings of eArche can be connected in
parallel; the system current is then equal to the sum of the current of each string of eArche.
•The maximum system voltage is 1000 volts DC.
•The maximum number of series connected eArche depends on system design, the type of inverter
used and environmental conditions.
•Please make sure no more than two strings in parallel if eArche without any fuse or blocking diode to
be connected according to the maximum series fuse rating of eArche and local electrical installation
code.
•There is no limitation on the number of eArche that can be connected in parallel (fuse for each string
should be considered), the number of eArche is determined by system design parameters such as
current or power output.
•To prevent the cables and the connectors from overheating, the cross section of the cables and the
capacity of the connectors must be selected to suit the maximum system short circuit current. The
recommended cable is PV wire(temperature rating is 90℃) with a cross section of at least 2.5mm².
•Please refer to local regulations to determine the system wires size, type and temperature.
•eArche are supplied with connectors to be used for system electrical connections. The recommended
connectors are Multi Contact MC4, TL-Cable01 or equivalent, of which TL-Cable01 and Multi Contact
MC4 are connectable.
•To ensure reliable electric connection and to prevent possible intrusion of humidity, Multi Contact
MC4 connectors and TL-Cable01 connectors must be mated and locked together until a click can be
heard.
•Long-term exposure to wet environments may cause connectors’ poor connectivity, resulting in
current leakage and poor conductivity. SUNMAN recommend proper connector/cable/wire
management to prevent moisture intrusion. Depending on the amount of humidity, SUNMAN

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage16 / 18
TM
recommends periodic inspections of the installation system to maintain optimal eArche’
performance.
•The DC current generated by photovoltaic systems can be converted into AC and fed into a public Grid.
As local utilities’ policies on connecting renewable energy systems to the Grids vary from region to
region. Always seek the advice from a qualified system designer or integrator. Building permits,
inspections and approvals by the local utility are to be expected.
•About bypass diode in the junction box, Recommend by pass diode model is SB3040DY or TL2045.
Disclaimer of liability
•As the adherence to this manual and the conditions or methods of installation, operation, use and
maintenance of photovoltaic (PV) products are beyond SUNMAN’s control, SUNMAN does not accept
responsibility and expressly disclaims liability for any loss, damage, or expense arising out of or in any
way connected with such installation, operation, use or maintenance.
•No responsibility is assumed by SUNMAN for any infringement of patents or other rights of third
parties, which may result from the use of the PV product. No license is granted by implication or
otherwise under any patent or patent rights.
•The information in this manual is based on SUNMAN’s best knowledge and experience and is believed
to be reliable; But such information including product specification (without limitations) and
suggestions do not constitute a warranty, express or implied. SUNMAN reserves the right to change
the manual, eArche, the specifications, or product information sheets without prior notice.

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage17 / 18
TM
Products Data
Series
Products
STC
Dimensions
Weight
Fuse Rating
Max.series
quantity
Pmp
Vmp
Imp
Voc
Isc
SMDxxxM-6X12DW
SMD355M-6X12DW
355
39.5
8.99
48.1
9.51
1979mm X 1019mm X 5.6mm
6.5kg
20A
16
SMD350M-6X12DW
350
39.2
8.93
47.9
9.46
1979mm X 1019mm X 5.6mm
6.5kg
SMD345M-6X12DW
345
38.9
8.87
47.7
9.41
1979mm X 1019mm X 5.6mm
6.5kg
SMD340M-6X12DW
340
38.6
8.81
47.5
9.36
1979mm X 1019mm X 5.6mm
6.5kg
SMD335M-6X12DW
335
38.3
8.75
47.3
9.31
1979mm X 1019mm X 5.6mm
6.5kg
SMD330M-6X12DW
330
38.0
8.69
47.1
9.22
1979mm X 1019mm X 5.6mm
6.5kg
SMD325M-6X12DW
325
37.7
8.63
46.9
9.13
1979mm X 1019mm X 5.6mm
6.5kg
SMDxxxM-6X10DW
SMD295M-6X10DW
295
32.8
9.00
40.1
9.52
1662mm X 1019mm X 5.6mm
5.5kg
20A
20
SMD290M-6X10DW
290
32.6
8.90
39.9
9.43
1662mm X 1019mm X 5.6mm
5.5kg
SMD285M-6X10DW
285
32.4
8.80
39.7
9.34
1662mm X 1019mm X 5.6mm
5.5kg
SMD280M-6X10DW
280
32.2
8.70
39.5
9.25
1662mm X 1019mm X 5.6mm
5.5kg
SMD275M-6X10DW
275
32.0
8.60
39.3
9.16
1662mm X 1019mm X 5.6mm
5.5kg
SMD270M-6X10DW
270
31.8
8.50
39.1
9.07
1662mm X 1019mm X 5.6mm
5.5kg
SMDxxxM-4X12DW
SMD235M-4X12DW
235
26.1
9.01
31.7
9.54
1979mm X 689mm X 5.6mm
4.6kg
20A
25
SMD230M-4X12DW
230
25.8
8.92
31.5
9.45
1979mm X 689mm X 5.6mm
4.6kg
SMD225M-4X12DW
225
25.5
8.83
31.3
9.36
1979mm X 689mm X 5.6mm
4.6kg
SMD220M-4X12DW
220
25.2
8.74
31.1
9.27
1979mm X 689mm X 5.6mm
4.6kg
SMD215M-4X12DW
215
24.9
8.64
30.9
9.18
1979mm X 689mm X 5.6mm
4.6kg
SMDxxxM-4X09DW
SMD175M-4X09DW
175
19.5
8.98
23.9
9.50
1503mm X 689mm X 5.6mm
3.7kg
20A
33
SMD170M-4X09DW
170
19.2
8.86
23.7
9.39
1503mm X 689mm X 5.6mm
3.7kg
SMD165M-4X09DW
165
18.9
8.74
23.5
9.28
1503mm X 689mm X 5.6mm
3.7kg
SMD160M-4X09DW
160
18.6
8.61
23.2
9.17
1503mm X 689mm X 5.6mm
3.7kg
SMDxxxM-6X12UW
SMD355M-6X12UW
355
39.5
8.99
48.1
9.51
2007mm X 1019mm X 5.6mm
6.6kg
20A
16
SMD350M-6X12UW
350
39.2
8.93
47.9
9.46
2007mm X 1019mm X 5.6mm
6.6kg
SMD345M-6X12UW
345
38.9
8.87
47.7
9.41
2007mm X 1019mm X 5.6mm
6.6kg
SMD340M-6X12UW
340
38.6
8.81
47.5
9.36
2007mm X 1019mm X 5.6mm
6.6kg
SMD335M-6X12UW
335
38.3
8.75
47.3
9.31
2007mm X 1019mm X 5.6mm
6.6kg
SMD330M-6X12UW
330
38.0
8.69
47.1
9.22
2007mm X 1019mm X 5.6mm
6.6kg
SMD325M-6X12UW
325
37.7
8.63
46.9
9.13
2007mm X 1019mm X 5.6mm
6.6kg
SMDxxxM-6X10UW
SMD295M-6X10UW
295
32.8
9.00
40.1
9.52
1690mm X 1019mm X 5.6mm
5.6kg
20A
20
SMD290M-6X10UW
290
32.6
8.90
39.9
9.43
1690mm X 1019mm X 5.6mm
5.6kg
SMD285M-6X10UW
285
32.4
8.80
39.7
9.34
1690mm X 1019mm X 5.6mm
5.6kg
SMD280M-6X10UW
280
32.2
8.70
39.5
9.25
1690mm X 1019mm X 5.6mm
5.6kg
SMD275M-6X10UW
275
32.0
8.60
39.3
9.16
1690mm X 1019mm X 5.6mm
5.6kg
SMD270M-6X10UW
270
31.8
8.50
39.1
9.07
1690mm X 1019mm X 5.6mm
5.6kg
SMDxxxM-4X12UW
SMD235M-4X12UW
235
26.1
9.01
31.7
9.54
2007mm X 689mm X 5.6mm
4.7kg
20A
25
SMD230M-4X12UW
230
25.8
8.92
31.5
9.45
2007mm X 689mm X 5.6mm
4.7kg
SMD225M-4X12UW
225
25.5
8.83
31.3
9.36
2007mm X 689mm X 5.6mm
4.7kg
SMD220M-4X12UW
220
25.2
8.74
31.1
9.27
2007mm X 689mm X 5.6mm
4.7kg
SMD215M-4X12UW
215
24.9
8.64
30.9
9.18
2007mm X 689mm X 5.6mm
4.7kg
SMDxxxM-4X09UW
SMD175M-4X09UW
175
19.5
8.98
23.9
9.50
1531mm X 689mm X 5.6mm
3.8kg
20A
33
SMD170M-4X09UW
170
19.2
8.86
23.7
9.39
1531mm X 689mm X 5.6mm
3.8kg
SMD165M-4X09UW
165
18.9
8.74
23.5
9.28
1531mm X 689mm X 5.6mm
3.8kg
SMD160M-4X09UW
160
18.6
8.61
23.2
9.17
1531mm X 689mm X 5.6mm
3.8kg
SMAxxxM-6X12DW
SMA355M-6X12DW
355
39.5
8.99
48.1
9.51
1955mm X 995mm X 35mm
8.9kg
20A
16
SMA350M-6X12DW
350
39.2
8.93
47.9
9.46
1955mm X 995mm X 35mm
8.9kg
SMA345M-6X12DW
345
38.9
8.87
47.7
9.41
1955mm X 995mm X 35mm
8.9kg

© 2019 Sunman (Zhenjiang) Co., Ltd. All rights reserved. Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version 2019Apage18 / 18
TM
SMA340M-6X12DW
340
38.6
8.81
47.5
9.36
1955mm X 995mm X 35mm
8.9kg
SMA335M-6X12DW
335
38.3
8.75
47.3
9.31
1955mm X 995mm X 35mm
8.9kg
SMA330M-6X12DW
330
38.0
8.69
47.1
9.22
1955mm X 995mm X 35mm
8.9kg
SMA325M-6X12DW
325
37.7
8.63
46.9
9.13
1955mm X 995mm X 35mm
8.9kg
SMAxxxM-6X10DW
SMA295M-6X10DW
295
32.8
9.00
40.1
9.52
1638mm X 995mm X 35mm
7.6kg
20A
20
SMA290M-6X10DW
290
32.6
8.90
39.9
9.43
1638mm X 995mm X 35mm
7.6kg
SMA285M-6X10DW
285
32.4
8.80
39.7
9.34
1638mm X 995mm X 35mm
7.6kg
SMA280M-6X10DW
280
32.2
8.70
39.5
9.25
1638mm X 995mm X 35mm
7.6kg
SMA275M-6X10DW
275
32.0
8.60
39.3
9.16
1638mm X 995mm X 35mm
7.6kg
SMA270M-6X10DW
270
31.8
8.50
39.1
9.07
1638mm X 995mm X 35mm
7.6kg
SMAxxxM-4X12DW
SMA235M-4X12DW
235
26.1
9.01
31.7
9.54
1955mm X 665mm X 35mm
6.3kg
20A
25
SMA230M-4X12DW
230
25.8
8.92
31.5
9.45
1955mm X 665mm X 35mm
6.3kg
SMA225M-4X12DW
225
25.5
8.83
31.3
9.36
1955mm X 665mm X 35mm
6.3kg
SMA220M-4X12DW
220
25.2
8.74
31.1
9.27
1955mm X 665mm X 35mm
6.3kg
SMA215M-4X12DW
215
24.9
8.64
30.9
9.18
1955mm X 665mm X 35mm
6.3kg
SMAxxxM-4X09DW
SMA175M-4X09DW
175
19.5
8.98
23.9
9.50
1479mm X 665mm X 35mm
5.0kg
20A
33
SMA170M-4X09DW
170
19.2
8.86
23.7
9.39
1479mm X 665mm X 35mm
5.0kg
SMA165M-4X09DW
165
18.9
8.74
23.5
9.28
1479mm X 665mm X 35mm
5.0kg
SMA160M-4X09DW
160
18.6
8.61
23.2
9.17
1479mm X 665mm X 35mm
5.0kg
SMAxxxM-6X12UW
SMA355M-6X12UW
355
39.5
8.99
48.1
9.51
1983mm X 995mm X 35mm
9.0kg
20A
16
SMA350M-6X12UW
350
39.2
8.93
47.9
9.46
1983mm X 995mm X 35mm
9.0kg
SMA345M-6X12UW
345
38.9
8.87
47.7
9.41
1983mm X 995mm X 35mm
9.0kg
SMA340M-6X12UW
340
38.6
8.81
47.5
9.36
1983mm X 995mm X 35mm
9.0kg
SMA335M-6X12UW
335
38.3
8.75
47.3
9.31
1983mm X 995mm X 35mm
9.0kg
SMA330M-6X12UW
330
38.0
8.69
47.1
9.22
1983mm X 995mm X 35mm
9.0kg
SMA325M-6X12UW
325
37.7
8.63
46.9
9.13
1983mm X 995mm X 35mm
9.0kg
SMAxxxM-6X10UW
SMA295M-6X10UW
295
32.8
9.00
40.1
9.52
1666mm X 995mm X 35mm
7.7kg
20A
20
SMA290M-6X10UW
290
32.6
8.90
39.9
9.43
1666mm X 995mm X 35mm
7.7kg
SMA285M-6X10UW
285
32.4
8.80
39.7
9.34
1666mm X 995mm X 35mm
7.7kg
SMA280M-6X10UW
280
32.2
8.70
39.5
9.25
1666mm X 995mm X 35mm
7.7kg
SMA275M-6X10UW
275
32.0
8.60
39.3
9.16
1666mm X 995mm X 35mm
7.7kg
SMA270M-6X10UW
270
31.8
8.50
39.1
9.07
1666mm X 995mm X 35mm
7.7kg
SMAxxxM-4X12UW
SMA235M-4X12UW
235
26.1
9.01
31.7
9.54
1983mm X 665mm X 35mm
6.4kg
20A
25
SMA230M-4X12UW
230
25.8
8.92
31.5
9.45
1983mm X 665mm X 35mm
6.4kg
SMA225M-4X12UW
225
25.5
8.83
31.3
9.36
1983mm X 665mm X 35mm
6.4kg
SMA220M-4X12UW
220
25.2
8.74
31.1
9.27
1983mm X 665mm X 35mm
6.4kg
SMA215M-4X12UW
215
24.9
8.64
30.9
9.18
1983mm X 665mm X 35mm
6.4kg
SMAxxxM-4X09UW
SMA175M-4X09UW
175
19.5
8.98
23.9
9.50
1507mm X 665mm X 35mm
5.1kg
20A
33
SMA170M-4X09UW
170
19.2
8.86
23.7
9.39
1507mm X 665mm X 35mm
5.1kg
SMA165M-4X09UW
165
18.9
8.74
23.5
9.28
1507mm X 665mm X 35mm
5.1kg
SMA160M-4X09UW
160
18.6
8.61
23.2
9.17
1507mm X 665mm X 35mm
5.1kg
