Sumitomo TYPE-Q502S User manual

Splice Program Heater Program Wireless LAN SD Power Time
Heater panel
Control panel
Home screen icons
TYPE-Q502S
Quick Reference Guide
Display the Settings panel
Power source type
Change image view
Display/Non-display icons
Start the splicing process (Set icon)
Start the arc test (Arc test icon)
Start the heating process (Heater icon)
View splice data after splicing
Adjust the zoom of a fiber image
Adjust display brightness
Capture a fiber image
To display the Settings panel, tap the
Settings panel icon ( ) on Home screen.
■Settings panel
■Home screen
■New Technology
When the NanoTune™ is applied to poor fiber end face, a
NanoTune™ screen appears. Even in AUTO NanoTune program, the
Nanotune™ is not applied to good end face, and the usual splice
screen is displayed.
NanoTune™
Settings panel icons
While splice program is selected to “AUTO
NanoTune”, the NanoTune™analyzes the
cleaved fiber surface and then sets up optimal
splice condition.
The splice error prevention system
Using keypad
Display the menu screen.
Set up Splice Program.
Set up Heater Program.
Play Help Videos.
Log in to Administrator
mode by entering passcode.
Turn on/off the sound.
Long press: Power ON/OFF
Quick press: Reset

2 Perform an arc test
1. Tap Arc test icon ( ). 2. After “Arc Test Ready
”
appears, tap Set icon .An
arc test is started.
3. When the splicer shows
“Good arc state”, prepare fiber
again to proceed to the
splicing process. *Fibers are
not spliced in the arc test.
3 Start splicing process / Start heating cycle
1. Tap Set i c o n to start
the splicing process.
2. Fusion splicing is completed. 3. Open the wind hood. A proof
test is automatically carried
out.
4. Remove the fiber from the
splicer. Center the protection
sleeve over the splice and
load the fiber in the heat
shrink oven.
Sumitomo Electric Industries, Ltd. reserves the right to change the specification or design without
notice and may therefore not coincide with the contents of this quick reference guide. E&OE
For further detailed operating instructions and functions, please see Operation manual.
The Operation manual can be downloaded via
http://www.rim-plus.sei.co.jp/index.html
OME2024102-2/Ver.1.00
Heater
p
ro
g
ress bar
* Repeat fiber preparation and arc tests
until “Good arc state.” is displayed.
Heating in progress
Pre-heating
Cooling
Standby

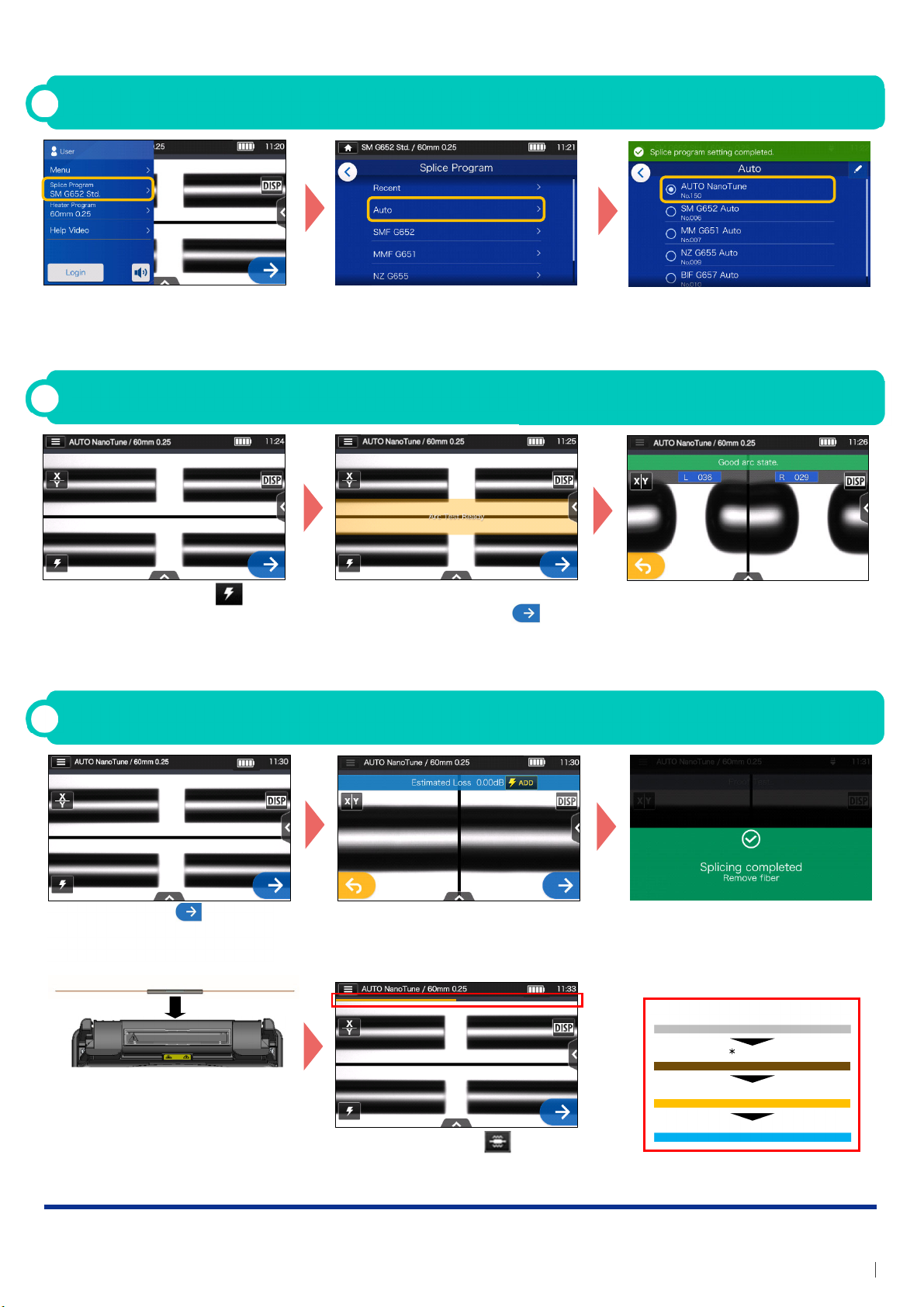

Operating procedures
1 Splice Program setting
1. Tap the Splice Program label
on the Settings panel.
2. Select fiber category. 3. Tap the Splice Program you
would like to use.
* Setup and change the Heater Program in the same procedures as described above.
* ”Quick” heater program only
*AS24G180*
5. Tap Heater icon to start
the heating process.
