Sumitomo CX User manual

HMP-1817E 6 (1/18)

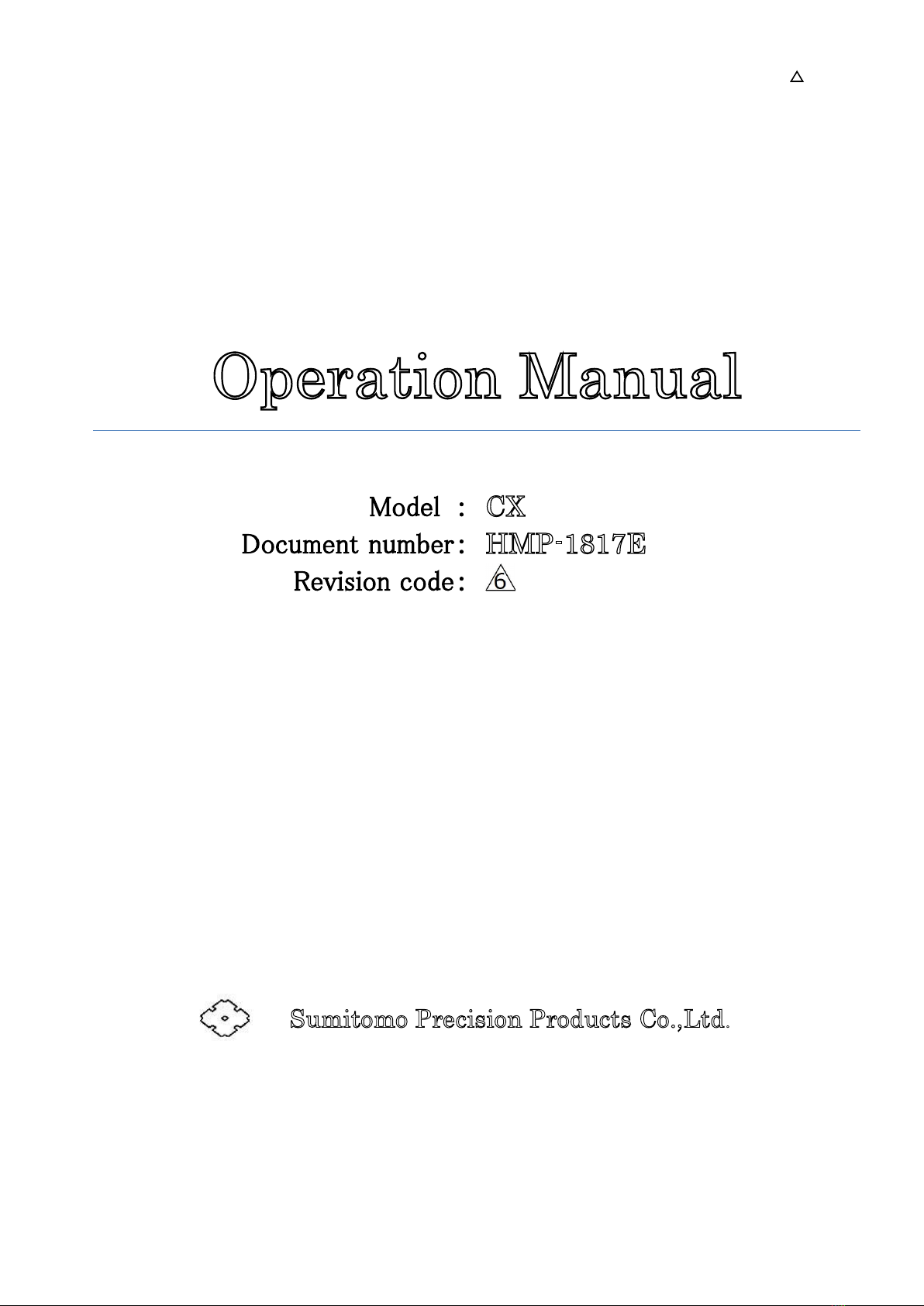

Operation Manual
Coolant Pump with motor
CX
HMP-1817E
Sumitomo Precision Products Co.,Ltd.

HMP-1817E 6 (2/18)
--- Contents ---
1. Before use 3
1) Introduction 3
2) Collation of your purchase and model No. you ordered 3
3) Safety matters 3
2. Notes concerning safety 3
1) Notes on mounting, removal, installation of product 3
2) During operation 4
3) Maintenance 4
3. Notes on handling and use 5
1) Explanation about Model No. 5
2) Suction pressure of pump 6
3) Suction filter 6
4) Suction and Delivery circuit 6
5) Wiring 6
6) Outlet pressure 8
7) Coolant 9
8) Operation environment 9
4. Notes on operation 10
1) Cleaning inside the tank 10
2) Putting coolant 10
3) Confirmation of rotating direction 10
4) Start the operation of pump 10
5) Trial operation 11
5. Maintenance procedure 11
1) Cleaning suction filter 11
2) Control of coolant 11
6. Troubleshooting 13
7. Disassembly, assembly and repair 13

HMP-1817E 6 (3/18)
1. Before use
1) Introduction
Before use, please read this Operation Manual carefully and use Coolant Pump with motor
after you understand all the contents.
a) This manual is for correct and safe use of the unit.
b) Please observe method of use and restrictions described in this manual.
c) Method of use not described in this manual and use deviating from the restrictions described
in this manual will result in a risk of human injury and/or damage to property due to stop of
function and/or damage of pump, etc..
Do not use the unit in a method not described in this manual and/or deviating from the
restrictions described in this manual.
If you use the unit in a method not described in this manual, it is fully due to your
responsibility.
d) As a result of design change or improvement, the product you bought may differ
from the contents described in this manual.
e) If you have any question about the unit you bought or the contents of this manual, please
contact to our sales and marketing group of industrial hydraulics department.
2) Collation of your purchase and model No. you ordered
When you receive the Coolant Pump with motor, please compare your order with model
number written in the nameplate of Coolant Pump and motor.
3) Safety matters
In this manual, necessary matters to use the unit correctly and safely are marked with
the following symbols.
! DANGER : Serious danger which may result in death or serious injury if not
avoided.
! WARNING : Potential danger which may result in death or serious injury if not
avoided.
! CAUTION : Potential danger which may result in minor or moderate injury or
damage to property.
2. Notes concerning safety
1) Notes on mounting, removal and installation of product
! DANGER : When you carry the pump, please do not lift the pump up by hands.
Please make sure to use hanging bolt of motor and hang the pump up
by whist, etc..
While you hang and carry the product (the product is being hung),
please do not approach it.

HMP-1817E 6 (4/18)
! WARNING : When using hanging bolts, please use them after you check they are
firmly tightened. After installation of product to the machine, please
do not hang up the whole machine by hanging bolts of motor.
It may result in damage to hanging bolts, injury due to overturn, and
damage of the machine.
! WARNING : Please do not lift up only the pump sides and do not subject it to
impact. It may cause trouble.
! WARNING : Personnel having expertise must mount, remove and install the
product.
! WARNING : Before mounting, removal and installation of the product, please make
sure to turn the power OFF and take action to remove the remaining
pressure in the circuit. After operation, since Coolant Pump, motor
and coolant may be very hot, please take that action after you check
an appropriate temperature (30 40 ) is achieved.
! WARNING : Please do not put flammable objects around the motor. It may cause
a risk of fire.
! WARNING : Please do not put objects which disturb free air draft around the
motor.
It will disturb the cooling and it may cause a risk of explosion, fire or
scald due to abnormal heating.
! CAUTION : Please do not get on, beat or apply a force to the product.
It may cause an human injury and/or damage to product.
2) During operation
! WARNING : Please use product within the range of specified operating conditions
such as ambient temperature, temperature of coolant, etc..
If you use beyond this range, it may cause malfunction, damage to
product and fire.
! WARNING : In case of power failure, make sure to stop the operation immediately.
In case of sudden recovery, the pump and the motor may begin to
work and it may cause human injury.
! WARNING : In case of abnormal condition, make sure to stop the operation
immediately.
It may cause a risk of electrical shock, human injury and fire.
! CAUTION : Since the pump and the motor becomes very hot during operation,
please do not touch them by bare hands.
3) Maintenance
! CAUTION : Please do not disassemble or reconstruct the product without our
approval in writing. If the product is disassembled or reconstructed
without our approval, since it is beyond the scope of our warranty,
we shall not have no responsibility to such disassembly or
reconstruction.

HMP-1817E 6 (5/18)
3. Notes on handling and use
! CAUTION : Please observe the following cautions for handling and use.
1) Explanation of Model No.
CX 3 3 - 16 - 3.7 - 1 - S - *
Basic type Design No.
[Pump size] Special Spec. No.
(Number) 3,4
[Relative position number of delivery
[Max Pressure indication] port and motor terminal box] 1 4
2: 3.5 MPa series :
3: 7.0 MPa series Motor output (kW)
4: 10.0 MPa series
Theoretical displacement (cm3/rev)
Fig 1. Relative position number of delivery port and motor terminal box.
View from the motor fan cover side.

HMP-1817E 6 (6/18)
2) Suction pressure of pump
Please set the suction pressure of pump to 0.03 +0.03MPa (-0.3 +0.3kgf/cm2).
3) Suction filter
a) Please make sure to install suction filter to pump suction side.
b) For mesh size, please choose the range of 60 150 meshes according to installation
environment and operating conditions of the unit.
c) For the capacity of filter, please select enough size in consideration of clogging of filter .
4) Suction and Delivery circuit
a) Pump can be damaged caused by air suction or coolant bubble, so please make sure to install
that the pump suction port would be soaked into the coolant at all time.
b) When you install the piping on the suction port, please adjust the height to prevent that
pump draw the sludge stagnating on the bottom of the tank in.
c) In the case that the pipe connected to the delivery port is the steel, it may cause a risk or unit
oscillation, noise increasing and external load for pump, so we recommend to use a rubber
hose.
d) When you need to install the piping, please make sure to clean or neutralize acid in the pipe
before installation.
5) Wiring
! WARNING : Please check the voltage and frequency written in nameplate are
consistent with those you supply.
It may cause a risk of burn or fire.
! WARNING : Please connect the power cable and lead wire of motor according to
connection diagram in terminal box or this manual.
Otherwise, it may cause a risk of electric shock and/or fire.
! WARNING : Do not bend, pull, or pinch the power cable or lead wire of motor
forcibly.
It may cause a risk of electrical shock.
! WARNING : Wiring must be conducted by personnel having expertise.
It may cause a risk of burn or fire.
! WARNING : When measuring insulation resistance, do not touch the terminals.
It may cause a risk of electrical shock.
! WARNING : Please note motor is not provided with protection device.
Please make sure to provide overload protection device.
We recommend you also provide protection device other than for
overload(earth leakage breaker etc.).
! WARNING : Make sure to ground the earth terminal.
Otherwise, it may cause a risk of electrical shock.

HMP-1817E 6 (7/18)
a) Power cable
If the wiring distance is long, because voltage drop becomes high, make sure to use the wire
of appropriate diameter.
Please wire so that the cable is not damaged at cable inlet during operation.

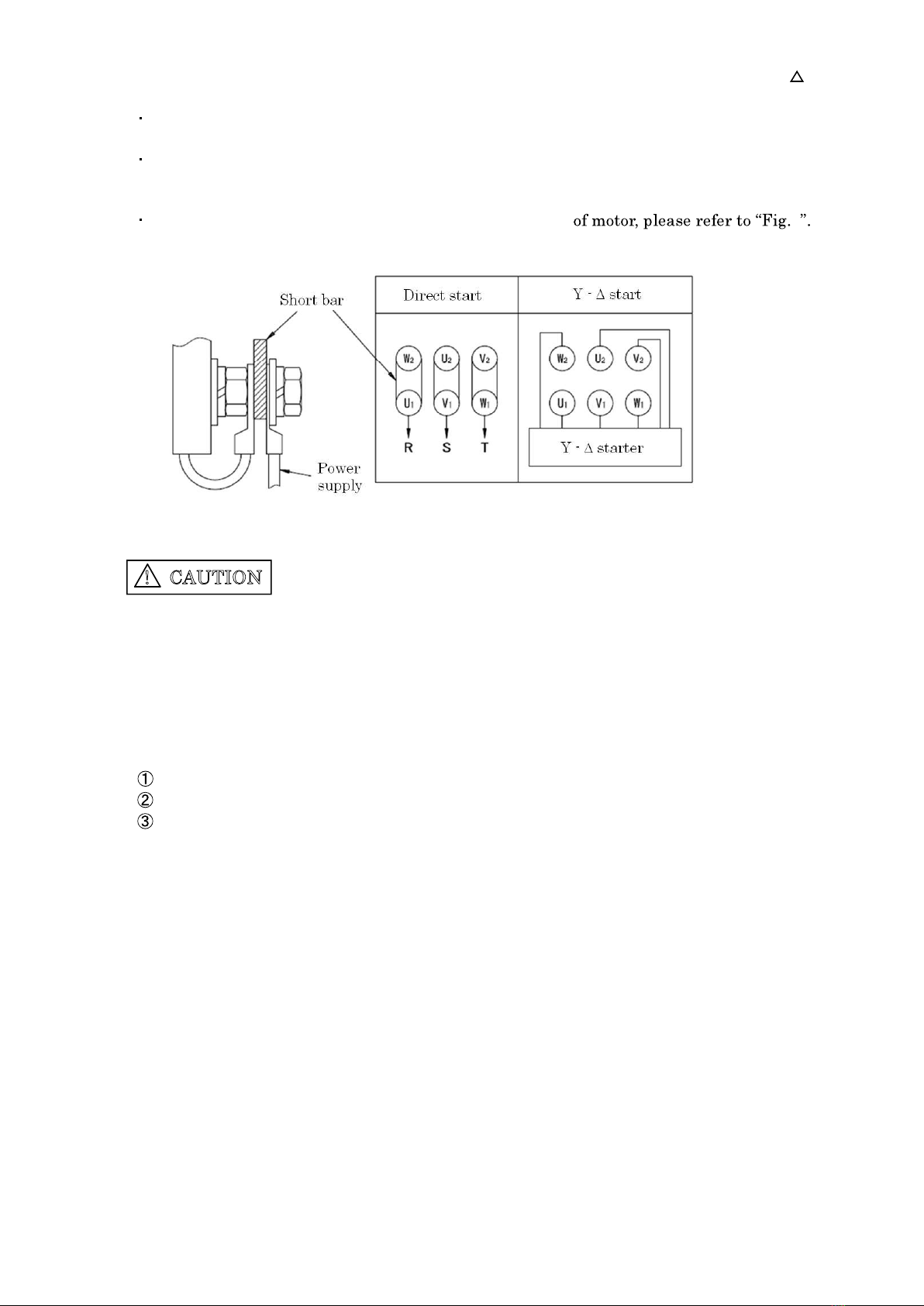

b) Connection of lead wires
For connection between the power cable and lead wires 2
Fig. 2 Connecting diagram
! CAUTION 1. Please do not short-circuit between wires.
2. In case of Y - D start connection, please remove the short bar.
c) Grounding
You can find earth terminal provided inside the terminal box, then make sure to ground it .
d) Procedure of wiring
Remove the terminal box cover.
Mount the crimp-type terminal lug to power cable and clamp it.
After connection, make sure to mount the terminal box cover in place again.

HMP-1817E 6 (8/18)
6) Outlet Pressure
a) Maximum working pressure varies according to combination of pump and motor. Please
ing maximum
working pressure and 100% of motor load. ( You can use the pump at the condition
exceeding 100% of motor load according to working condition. Please contact us.)
b) Surge pressure
When you turn the solenoid valve ON and OFF, surge pressure occurs on pressure line
and it will have a bad influence to the pump or other equipment. Give your
consideration to design of circuit to avoid surge pressure possibly.
Table 1. List of combinations of pump and motor
50Hz(1500rpm) 60Hz(1800rpm)
Model No.
CX32-10 6 3.4(35) * 10 3.4(35) *
CX32-12.5 9 3.4(35) * 14 3.4(35) *
CX32-16 14 3.4(35) * 19 3.4(35) *
CX33-10 6 6.9(70)* 12 4.9(50)
CX33-12.5 13 5.9(60) 18 3.9(40)
CX33-16 17 3.9(40) 24 2.9(30)
CX33-10 6 6.9(70) * 10 6.9(70) *
CX33-12.5 10 6.9(70) * 14 6.9(70) *
CX33-16 14 6.9(70) * 20 5.9(60)
CX34-10 6 9.8(100) * 9 9.8(100) *
CX34-12.5 9 9.8(100) * 15 7.8(80)
CX34-16 14 7.8(80) 22 4.9(50)
CX42-20 17 3.4(35) * 24 3.4(35) *
CX42-25 24 3.4(35) * 32 3.4(35) *
CX42-31.5 32 3.4(35) * 45 2.9(30)
CX43-20 19 5.9(60) 29 3.9(40)
CX43-25 28 4.9(50) 40 2.9(30)
CX33-16 14 6.9(70) * 19 6.9(70) *
CX34-12.5 9 9.8(100) * 13 9.8(100) *
CX34-16 12 9.8(100) * 17 9.8(100) *
CX42-31.5 32 3.4(35) * 43 3.4(35) *
CX43-20 17 6.9(70) * 25 6.9(70) *
CX43-25 25 6.9(70) * 36 4.9(50)
CX43-31.5 37 4.9(50) 50 3.9(40)
CX34-16 12 9.8(100) * 17 9.8(100) *
CX43-25 25 6.9(70) * 32 6.9(70)*
CX43-31.5 32 6.9(70) * 45 5.9(60)
CX44-20 16 9.8(100) * 22 9.8(100) *
CX44-25 22 9.8(100) * 32 7.8(80)
CX44-31.5 35 6.9(70) 48 4.9(50)
This table shows the values at 1mm2/s of viscosity.
The values marked with * are maximum working pressure of the pump.
2.2
4
5.5
7.5
Maximum working pressure
at 100% of motor load
MPa(kgf/c )
Maximum working pressure
at 100% of motor load
MPa(kgf/c )
Delivery
(L/min)
Delivery
(L/min)
Motor
output
(kW)

HMP-1817E 6 (9/18)
7) Coolant
a) Density of coolant
In case of using water-soluble coolant, please control the density of coolant to more than
2%.
b) Temperature of coolant
Please use coolant within the range of 0 60 of temperature.
c) Pollution degree
We recommend you use coolant filtered by about 20 30 m filter.
d) Water-insoluble cutting fluid
-
Other types may damage the pump.
8) Operation environment
! DANGER : Please do not use in explosive atmosphere.
.
Please do not use in unusual environment such as high temperature and high humidity , etc..
Otherwise, it may cause a risk of fire and human injury.
Please use under the following conditions.
Ambient temperature: -15 50
Relative humidity : 0 95%RH
This product is intended for indoor use.
Please contact us for use under special environment.

HMP-1817E 6 (10/18)
4. Notes on operation
1) Cleaning inside the tank
Please clean the inside of tank before putting coolant into the tank.
We recommend a regular implement of a tank cleaning for damage prevention of the unit.
2) Putting coolant
a) Please put clean coolant sufficiently.
b) If putting coolant by electrical pump, etc., the coolant may foam.
In this case, operate the pump after foam fade outs.
3) Confirmation of rotating direction
! CAUTION : If operating with reverse rotation, pump function may be impaired.
Please confirm the rotating direction by that of motor fan. The correct rotating direction of
motor fan is clockwise.
When checking the rotation, make sure to operate the motor with no inching. Make sure that
operating time of motor during inching operation is 0.5 1 second.
4) Start the operation of pump
! CAUTION : Please avoid on-load start. On-load start may cause the damage
inside the pump.
! CAUTION : Please avoid to operate in the condition of no coolant in the pump.
it may cause the damage inside the pump.
Before the start of the pump, air in the pump must be released.
For the first operation of the unit or operation after replacement of coolant or cleaning of suction
filter, please release the air as follows and start the continuous operation.
Start the pump by inching
a) Check the tank is filled with coolant
b) Operate the motor with no load for 5 10 times intermittently. Make sure that
operating time of motor during intermittent operation is 0.5 1 second.
c) When you repeat inching, noise of suction of air will fade out gradually. After the
noise fade outs, start the continuous operation. If noise of suction of air does not
fade out,there may be the suction port is not immerse in coolant, therefore please
increase quantity of infusion of coolant.

HMP-1817E 6 (11/18)
5) Trial operation
After the start of pump, start the trial operation paying your attention to the following.
a) When you increase the pressure, please be careful of operation noise of pump.
Check there is no noise of air mixture and increase the pressure gradually.
b) If noise of air mixture does not fade out, there may be foams of coolant has not
disappeared sufficiently.
Please operate again after the foam disappears.
5. Maintenance procedure
Main check items, interval and crit
1) In case of a suction filter is installed in the circuit (Cleaning)
If you feel operating noise has changed from that when installed, please check the suction
filter.
The status of filter clogging varies due to primary filtration of the chip and installation
environment, etc.. In general, you should check the filter once per 1 3 months.
2) Control of coolant
When using coolant for long time, it may rot or sludge may grow in the tank.
Please make sure to renew the coolant at regular interval.

HMP-1817E 6 (12/18)
Table 2 Check items, interval and criterion for determination
Item Method Interval Criterion for
determination
Note
A) Amount of
coolant
level gauge Always the level of coolant
shall not be lower
than lower limit.
B) Coolant By seeing Always Coolant shall not rot
and the sludge shall
not grow in tank.
If it discolored
or was
contaminated remarkable,
it is necessary
to renew
the coolant.
C) Suction filter Disassemble
and check
1 3 months No clogging of filter If the working time of
machine tool is long,
interval of check should be
shortened.
If suction filter clogs,
operating noise of
pump becomes loud.
D) Operating status of pump
1) Noise of pump
and motor
By hearing 1 month Comparing with
initial operating
noise, it shall not be
louder.
Be careful of loosening of
suction pipes by vibration.
2)temperature of
motor
Thermometer 1 month Comparing with
initial operating
temperature, it shall
not be hotter.
Pressure shall not
increase.
3) Vibration of
pump and motor
Touch 1 month No abnormal
vibration
Check also delivery
pipes of pump.
4) Delivery of
pump
Pressure 1 3 months Pressure does not
lower.
E) Pump
disassembling
check
Return to
us
2 3 years Abrasion of
components

HMP-1817E 6 (13/18)
6. Troubleshooting
When the following troubles occur, please stop the motor immediately and check according to
1) Coolant is not issued.
2) Pressure does not increase.
3) Noise of pump or motor is big.
! WARNING : Before check, please make sure to turn the power OFF and remaining
pressure in circuit is released.
7. Disassembly, assembly and repair
Please contact us for repairing pump and motor.
! CAUTION : Please do not disassemble or reconstruct the pump and motor without
our approval.
If the pump and motor are disassembled or reconstructed without our
approval, it is beyond the scope of our warranty and we shall be no
responsible for such disassembly or reconstruction.
When you remove the pump from motor for replacement of pump only, or when you connect the
pump to motor, please remove or connect according to the following.
! WARNING : Before removal of pump and motor, please make sure to turn the
power OFF and remaining pressure in circuit is released.
<Removal>
a) Remove Hexagon head bolt.
b) Pull pump and remove it from the motor.
<Connection>
a) The shaft end of the pump has a spline shape.
Apply an appropriate amount of grease to the entire spline shape.
b) Insert the shaft of pump into shaft of motor.
c) Check the position of terminal box of motor and delivery port of pump are correct, then connect
the pump to motor by bolt and washer.
(Mounting bolts tightening torque : 40 N-m)

HMP-1817E 6 (14/18)
Table 3. Causes and actions to be taken for general troubles on Coolant pump.
Trouble Cause Action
A) Coolant is not issued from
pump.
Rotating direction of motor is
wrong.
(Regular:
Rotating direction of
motor fan is clockwise.)
Stop the motor immediately,
then repair to correct direction.
Level of coolant is low. Fill coolant to upper limit of
level gauge.
Suction filter clogs. Clean the suction pipe or
suction filter.
If the clogging is too terrible,
please replace coolant with new
one.
Air is sucked from suction port. Check the amount of the
coolant is appropriate by level
gauge.
Repair the packing of pipe
connection or tighten the
fitting
sufficiently.
Pump shaft does not rotate. Check the motor fan can be
rotated easily by hands .
If it can not, the inside of pump
may be damaged.
B) Pressure does not increase. Set pressure of relief valve is
low.
Adjust to correct value by
precise pressure gauge.
Relief valve is stuck. Disassemble and clean the
pressure adjusting part, modify
or replace the components.
There is much leakage inside
circuit system.
Block the circuit in order, check
the components and modify or
replace the components.
C) Noise of pump Coolant in reservoir is foaming. Check if air is not sucked from
suction pipe.
Part of suction filter clogs. Clean suction filter.
D) Abnormal heat of pump Abrasion of moving part of
pump itself.
Replacement of pump
Over-pressure Set the pressure again.
Coolant is not sucked. See Item A).
E) Remarkable rise of coolant
temperature
Abnormal increase of internal
leakage due to trouble of pump
Replace the pump.

HMP-1817E 6 (15/18)
Table 4. Causes and actions to be taken for general troubles on the equipment
Trouble Cause Action
A) The motor does not start
with no load.
The motor is not powered. Check if it is powered.
Two of jointing wires are bad. Modify the bad part.
Error of operation or contact of
switches and actuator.
Chec
k the jointing wires and
connection.
B) Abnormal noise Abrasion damage of bearing.
Single phase drive.
Replace the bearing.
Check the power supply by
voltmeter.
C) Reverse rotation Wrong wire connection Repair to correct wire
connection with connecting
diagram.
D) Fuse is broken. Coil winding and lead wires are
short-circuited.
Overload
Lack of capacity of fuse
Check the short-
circuited point
and repair it.
Lower the load to appropriate
value.
Replace with suitable one.
E) Rotation speed does not
increase.
Wrong connection of star delta
actuator.
Connect properly.
F) Howling Over-
current and heating due
to contact of rotor and stator.
Replace and repair the motor.
The spacing between rotor and
stator is not uniform
Replace and repair the motor.
One phase of coil winding of
stator is short-circuited.
Replace and repair the motor.
G) Over-current relay operates.
Switch is heating.
Wrong selection of the relay,
lack of capacity of switch.
Overload
Replace with suitable one.
Lower the load to appropriate
value.
H) Overheat Unbalance of power supply
Voltage drop
Overload
Contact the electric power
company.
Contact the electric power
company.
Lower the load to appropriate
value.
I) The speed decreases
immediately.
Voltage drop
Overload
Trouble of star delta actuator
Contact the electric power
company.
Lower the load to appropriate
value.
Adjust the contact part.

HMP-1817E 6 (16/18)
Fig. 4 Assembly drawing of the pump with motor.
Fig. 5 Structural drawing of the pump.
IN
OUT
Mounting bolts
tightening torque.
40 N m

HMP-1817E 6 (17/18)
Quantity changes by a max pressure indication
(2 4) of pump model.
Fig. 6 Exploded drawing of the pump.
Fig. 7 Appearance of the pump.
1
5
3
4
2
6
7
8
9
10
21
26
11
12
13
14
17
18
15
16
19
20
23
25
24
22

HMP-1817E 6 (18/18)

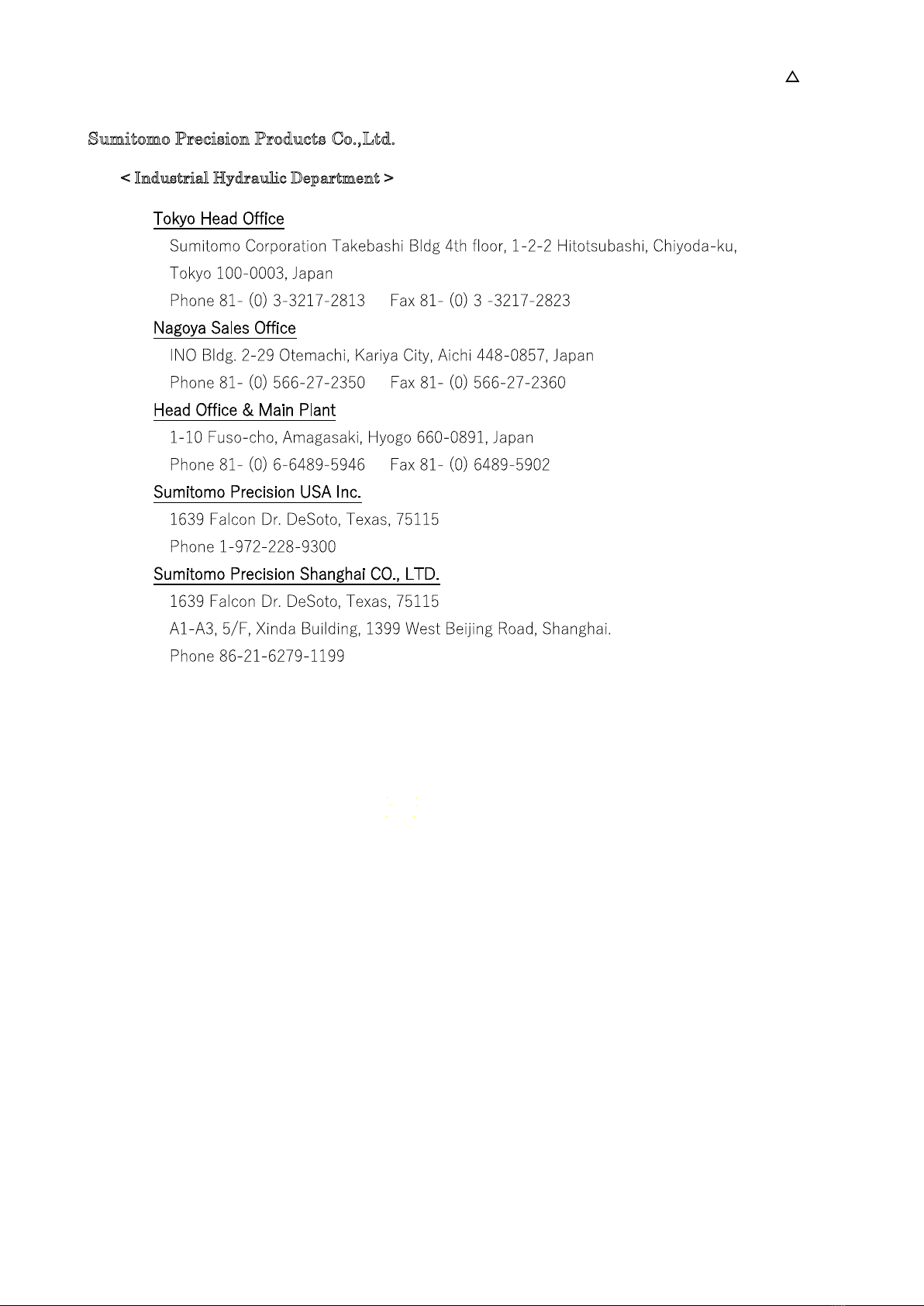

Sumitomo Precision Products Co.,Ltd.
< Industrial Hydraulic Department >
