When using your

Summer Sizzler

grill, please read and follow these basic precautions:

GRILL

GRILL INSTALLATION

INSTALLATION

This gas grill must be installed in accordance with all local codes.

If installation is planned in an area with no local codes, the gas grill must be installed in accord

with the National Fuel Gas Code ANSI Z223.1 and storage and handling of liquefied petroleum

gases, ANSI/NFPA 58 or CSA B149.1 natural gas and propane installation code.

CALIFORNIA

CALIFORNIA PROPOSITION

PROPOSITION

PROPOSITION 65

65

65 WARNING

WARNING

The burning of gas cooking fuel generates some by-products which are on the list of

substances which are known by the State of California to cause cancer or reproductive harm.

California law requires businesses to warn customers of potential exposure to such

substances.

To

minimize exposure to these substances, always operate the unit according to

the use and care manual, ensuring you provide good ventilation when cooking.

WARNING:

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause

injury or property damage. Read the installation, operating and maintenance instructions

thoroughly before installing or servicing this equipment.

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

Safety

Safety and

and

and Installation

Installation

Installation Instructions

Instructions

Locati

Locatio

o

on

n

nof

of

of your

your

your Barbecue

Barbecue

Most

Most importantly,

importantly,

importantly, this

this

this is

is

isan

an

an outdoor

outdoor

outdoor appliance.

appliance.

appliance. Ensure

Ensure

Ensure your

your

your barbecue

barbecue

barbecue is

is

is positioned

positioned

safely

safely away

away

away from

from

from anything

anything

anything that

that

that can

can

can catch

catch

catch fire.

fire.

Under

Under no

no

no circumstance

circumstance

circumstance is

is

is this

this

this barbecue

barbecue

barbecue to

to

to be

be

be used

used

used indoors.

indoors.

indoors. This

This

This includes

includes

includes garages

garages

garages or

or

any

any other

other

other enclosed

enclosed

enclosed area.

area.

Clearance

Clearance from

from

from Combustibles:

Combustibles:

Combustibles: Ensure your barbecue remains at a distance of at least 18”

from any combustible material such as wood, gyprock, paper and plants. Do not store

combustible materials, gasoline or flammable liquids or vapors within 18” of the barbecue.

Adequate

Adequate Ventilation:

Ventilation:

Ventilation: Ensure there is adequate ventilation for both the barbecue and cylinder.

This is required not only for proper combustion, but also to prevent gas build up.

Firm

Firm Level

Level

Level Surface:

Surface:

Surface: Use your barbecue only on a firm level surface. This barbecue is not

designed for recreational vehicles, and should not be installed on a boat or marine craft.

Protection

Protection from

from

from Weather:

Weather:

Weather: Keep the barbecue protected from adverse weather, including rain

and high winds. Polyvinyl covers are available that have been specially designed for this range

of barbecues.

Allow clear access to the entire gas supply hose and regulator.

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

Maintenance

Maintenance Access:

Access:

Access: When your barbecue is installed, you should be able to access the gas

supply line including the gas piping or hose, gas regulator, gas cylinder and any shut off

valves.

Partial

Partial Enclosures:

Enclosures:

Enclosures: Many backyards have areas that are partially closed off, such as

balconies and pergolas. In some cases, it is hard to decide whether these partially enclosed

areas should be classified as indoor areas, particularly in terms of permanent (non-closable)

ventilation. The gas safety authorities have agreed on the definition of partial enclosures

below.

Safety

Safety and

and

and Installation

Installation

Installation Warnings

Warnings

Please read all instructions before installing or operating your gas grill to prevent injury and

appliance damage.

All gas grills will get hot during use. Use extreme caution when operating the grill.

Do not touch hot surfaces. Always use the handle to open or close the grill.

Close supervision is necessary when this or any appliance is used near children. Keep

children away from the grill during operation and until the grill has cooled off.

Do not store any LP cylinder or tank not connected for use with the grill, in the area of this grill

or any other appliance. Never store an LP cylinder or tank indoors, or within the reach of

children.

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

Keep any electrical supply cord and fuel supply hose away from any heated surfaces and

dripping grease.

Do not twist the gas supply hose.

Before each use, visually inspect the gas supply hose for cracks, cuts or excessive wear.

Replace the hose if necessary.

Never test the grill for gas leaks using a lighted match or any other open flame; see leak test

procedures using soap/water solutions - included in following pages of this manual.

The use of accessories, regulators, or components not recommended by the appliance

manufacturer may cause injuries and will void warranty.

Never light the grill with the hood closed and be certain that the burners are positioned and

seated over the gas valves and on the burner support.

Never lean over the cooking surface when lighting or operating the grill.

Use barbecue tools with wood handles and insulated oven mitts when operating the grill.

Gas Specifications: Be sure that the gas supplied to the grill conforms to the model you

purchased.

A

Natural Gas grill requires natural gas to operate; an LP grill requires liquid

propane gas to operate.

Check the rating label on the left hand side of the unit.

Never connect the appliance to an unregulated gas supply line. Grills operated without a

regulator are unsafe and will not be serviced until installed properly and safely. Unsafe

operation without a gas regulator will void warranty of the grill.

Grills operated with NG (natural gas) gas must be installed with the NG regulator supplied with

the unit and set to 4.0" water column pressure.

Grills operated with LP (liquid propane) gas must be installed with an LP regulator Not supplied

RATING

RATING PLATE

PLATE

PLATE LOCATION

LOCATION

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

with the unit and set to 11" water column pressure.

The gas valves used in the grills are preset at the factory for Natural Gas or Liquid Propane

operation. Please contact your dealer and use a licensed contractor or installer to convert your

grill to a different gas type.

The self-contained LP system barbeque grill is design certified to be used with a standard 20 lb,

12 1/4" diameter, 18" high cylinder with right handed connection threads and this is the

maximum size LP tank to be used. The cylinder must be marked in accordance with the latest

U.S. Department of Transportation specifications for LP gas cylinders. (DOT. CFR49 or

National Standards Of Canada CAN/CSA-B359 Cylinders, Spheres and Tubes for the

Transportation of Dangerous Goods) a Propane Tank with an ODP ) Overfill Prevention Device)

must be used at all times.

Natural

Natural Gas

Gas

Gas Requirements

Requirements

Always check the Rating Plate to make sure the gas supply you are hooking up to is the gas

type the grill is manufactured for.

IMPORTANT:

IMPORTANT: Never

Never

Never connect

connect

connect the

the

the grill

grill

grill to

to

to an

an

an unregulated

unregulated

unregulated gas

gas

gas supply.

supply.

The installation of this appliance must conform with local codes or in the absence of local

codes, to the national fuel gas code, ANSI Z223.1a-1998. Installation in Canada must be in

accordance with the standard CAN/CGA-B149.2, Propane Installation Code.

A

licensed contractor or local gas company representative must perform all natural gas

connections.

Ensure that the service supplying the grill is fitted with a shut off valve conveniently positioned

near the grill and giving ease of access.

The grill must be isolated from the gas supply piping system by closing its individual manual

shutoff valve during any pressure testing of the gas supply piping system at test pressures

equal to or less than 0.5 psi (3.5 kPa).

The grill and its individual shutoff valve must be disconnected from the gas supply piping

system during any pressure testing of that system at test pressure in excess of 0.5 psi (3.5

kPa).

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

Connection

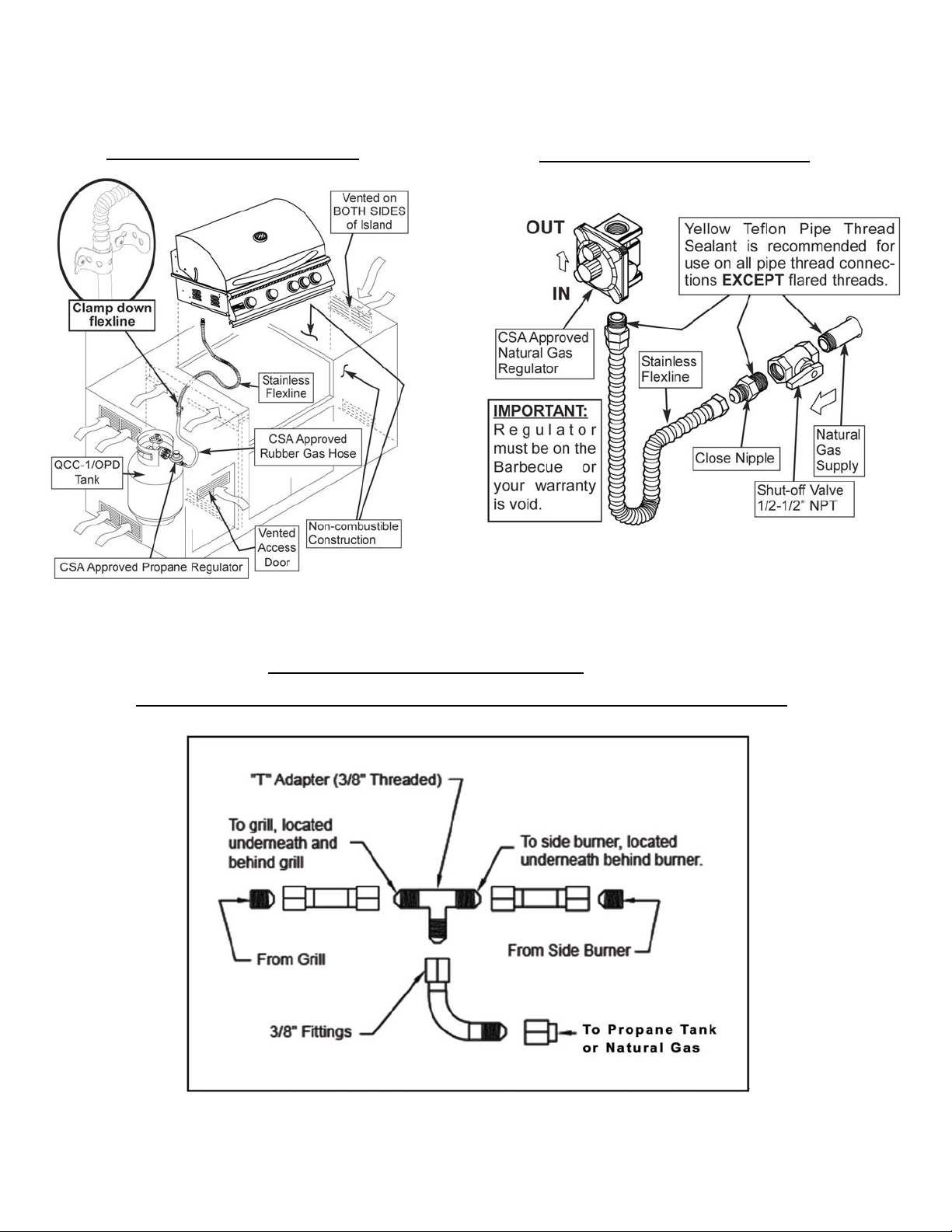

Slide the grill forward to gain access to the regulator and gas connection point in the rear.

Connect a suitable natural gas flex connector to the grill regulator.

Check the grill controls to ensure all control valves are in the full OFF position.

Turn on the main gas supply and check all connections for leaks using soapy water as

Described in the leak testing procedure section.

Warning:

Warning: If

If

If you

you

you see

see

see bubbles

bubbles

bubbles in

in

in the

the

the soapy

soapy

soapy solution

solution

solution at

at

at any

any

any of

of

of the

the

the connections,

connections,

connections, turn

turn

turn off

off

off the

the

gas

gas supply

supply

supply and

and

and tighten

tighten

tighten the

the

the connection.

connection.

connection. If

If

If tightening

tightening

tightening the

the

the connection

connection

connection does

does

does not

not

not seal

seal

seal the

the

leak,

leak, it

it

it may

may

may be

be

be necessary

necessary

necessary to

to

to replace

replace

replace the

the

the flex

flex

flex hose.

hose.

Checking

Checking for

for

for Gas

Gas

Gas Leaks

Leaks

Perform a leak test at least once a year whether the gas supply cylinder has been

disconnected or not. In addition, whenever the gas cylinder is connected to the regulator or

whenever any part of the gas system is disconnected or replaced, perform a leak test.

As a safety precaution, remember to always leak test your grill outdoors in a well ventilated

area. Never smoke or permit sources of ignition in the area while doing a leak test. Do not

use a flame, such as a lighted match to test for leaks. Use a solution of soapy water.

Prepare a leak testing solution of soapy water by mixing in a spray bottle one part liquid soap

to one part water.

Make sure all the control knobs are in the OFF position .

Turn on the gas

•On Natural Gas systems, turn the main feed valve to the grill.

•On LP systems, turn the cylinder valve knob counter clockwise one turn to open.

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

Apply the leak-testing solution by spraying it on joints of the gas delivery system.

Blowing bubbles in the soap solution indicates that a leak is present.

Stop a leak by tightening the loose joint or by replacing the faulty part with a replacement part

recommended by the manufacturer. Do not attempt to repair the cylinder valve if it is damaged.

The cylinder must be discarded to a proper LP tank location and then replaced.

Turn all control knobs back to the full OFF position.

If you are unable to stop a leak turn all control knobs back to the full OFF position,shut off the

gas supply to the grill and release pressure in the hose and manifold by pushing in and turning

any of the control valves one quarter turn counter-clockwise.

On LP systems, remove the cylinder from the grill.

Call an authorized gas appliance service technician or an LP gas dealer.

Do not use the appliance until the leak is corrected.

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

Liquid

Liquid Propane

Propane

Propane (LP)

(LP)

(LP) Gas

Gas

Gas Requirements

Requirements

LP

LP TANK

TANK

TANK REQUIREMENTS:

REQUIREMENTS:

-a collar to protect the cylinder threads on the customer supplied tank.

-an arrangement for gas vapor withdrawal.

-a safety relief device having direct communication with the vapor space of the cylinder.

-amethodofmounting.

-when not in use, the tank shut off valve should be turned off.

Filling

Filling and

and

and Refilling

Refilling

Refilling LP

LP

LP Gas

Gas

Gas Cylinders:

Cylinders:

WARNING

All

All purging

purging

purging and

and

and refilling

refilling

refilling of

of

of LP

LP

LP gas

gas

gas cylinders

cylinders

cylinders must

must

must be

be

beperformed

performed

performed by

by

by qualified

qualified

qualified personnel

personnel

in

in the

the

the LP

LP

LP gas

gas

gas industry.

industry.

industry. Never

Never

Never store

store

store a

a

aspare

spare

spare LP

LP

LP gas

gas

gas cylinder

cylinder

cylinder under

under

under or

or

or near

near

near this

this

appliance.

Never

Never fill

fill

fill the

the

the LP

LP

LP gas

gas

gas cylinder

cylinder

cylinder beyond

beyond

beyond 80

80

80 percent

percent

percent full.

full.

full. Failure

Failure

Failure to

to

to follow

follow

follow these

these

these instructions

instructions

may

may result

result

result in

in

in explosion,

explosion,

explosion, personal

personal

personal injury

injury

injury or

or

or death.

death.

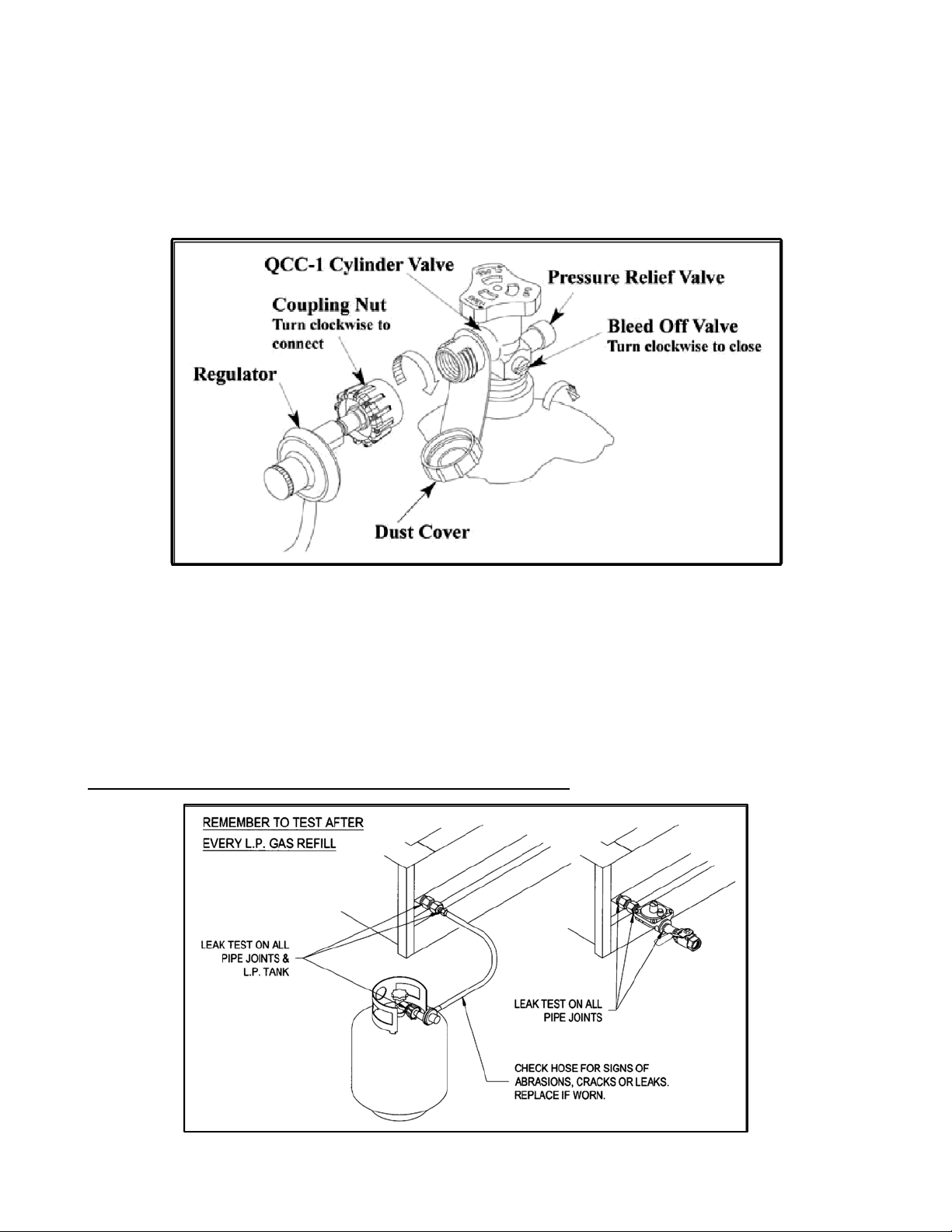

- Turn control knobs and cylinder valve to the OFF position. Unscrew valve.

- Remove cylinder and have it filled at your local qualified propane dealer.

- Once filled, carefully connect the valve and make sure it is secure and not leaking.

- With the control knobs in the OFF position, turn on the cylinder valve.

If you smell gas or hear a hiss of gas escaping from the tank, get away from the tank and do

not attempt to correct the problem yourself. Call the Fire Department immediately.

If your grill has no leak at the cylinder, then re-check for loose connections and retest for leaks

using the method detailed in the following pages with soapy solution.

Do not subject your LP gas cylinder to excessive heat, and always store the cylinder in an

upright position. Never store your LP cylinders indoors.

Make sure that when attaching components, all connections are secured and fully tightened to

prevent leakage.

If one is not already available, it is recommended that an ON-OFF shutoff valve be installed at

the gas supply source, and that the gas supply be turned off when either Natural Gas or LP

Gas grills are not in use.

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

Transporting

Transporting and

and

and Storing

Storing

Storing LP

LP

LP Gas

Gas

Transport only one cylinder at a time. Ensure the cylinder is secured in an upright position with

the control valve turned off and the dust cap in place. Store cylinders outdoors and out of reach

of children. Do not store cylinders in a building, garage, or any other enclosed area.

Leak

Leak Testing

Testing

All gas piping and connections must be tested for leaks after installation or service. All leaks must

be corrected immediately. Remember-before exchanging an empty bottle for a new one, make

sure all control valves are in the “off” position.

Open the

valve

(shut-off

or

‘

ON

’

LP

tank).

Tes t

for leaks

by

applying

liquid

soap

solution to

all

joints.

Bubbles forming indicate gas leak.

NEVER

NEVER USE

USE

USE AN

AN

AN OPEN

OPEN

OPEN FLAME

FLAME

FLAME TO

TO

TO CHECK

CHECK

CHECK FOR

FOR

FOR LEAKS

LEAKS

LEAKS.

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

Installing

Installing the

the

the Grill

Grill

Grill in

in

in a

a

aBBQ

BBQ

BBQ Island

Island

You

You will

will

will need

need

need a

a

asecond

second

second person

person

person to

to

to help

help

help you

you

you avoid

avoid

avoid damaging

damaging

damaging the

the

the grill

grill

grill or

or

or your

your

your barbecue

barbecue

island.

Before installing a grill in any island or cut out, make sure that the opening is not bigger than

the outside frame of the grill unit. The grill should rest on the lip of the frame.

Pay careful attention to the location of the gas line. It should be routed away from sources of

heat and should make as few bends as possible.

Check to see if the gas line connection will be accessible when grill is installed.

If the gas line connection is not easily accessible when the grill is installed, support the grill

above counter level and attach the gas line to the grill. When the gas connection is made, slide

the grill into the cut out. If the gas line connection is accessible when the grill iinstalled, slide

the grill into the cut out and then attach the gas line.

Be very careful not to kink the gas line when lowering the grill into the cut out.

Keep your fingers away from where the grill will be supported on counter. Your fingers could

become trapped and serious injury could occur.

Check to make sure the grill is level and is supported around the entire outside edge. If the grill

is not level or is unstable, use non-combustible shims under the outside lip to stabilize it.

Perform the leak test procedure as described earlier in this manual.

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

BUILDING

BUILDING BBQ

BBQ

BBQ SPECIFICATIONS

SPECIFICATIONS

MODEL

MODEL DESCRIPTION

DESCRIPTION

DESCRIPTION WIDTH

WIDTH

WIDTH DEPTH

DEPTH

DEPTH HEIGHT

HEIGHT

SIZ 3

3

3Burner

Burner

Burne3

1/2

2

21

1

11/4

1/4

1/4”

” 1/2

1/2

1/2”

”

SIZ3 4

4

4Burner

Burner

Burner 30

30

30 5/8

5/8

5/8”

”

”2

2

21

1

11/4

1/4

1/4”

”

”81/2

1/2

1/2”

”

SIZSide

Side

Side Burner

Burner

Burne33”

ALL

ALL BBQ

BBQ

BBQ ISLANDS

ISLANDS

ISLANDS MUST

MUST

MUST BE

BE

BE MANUFACTURED

MANUFACTURED

MANUFACTURED FROM

FROM

FROM “

“

“NON-COMBUSTIBLE

NON-COMBUSTIBLE

NON-COMBUSTIBLE”

”

”MATERIAL.

MATERIAL.

Minimum

Minimum clearance

clearance

clearance to

to

to adjacent

adjacent

adjacent combustible

combustible

combustible construction

construction

construction at

at

at 14

14

14”

”

”from

from

from sides

sides

sides &

&

&16

16

16”

”

”from

from

from back

back

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

Installation

Installation Method

Method

Method for

for

for Propane

Propane

Propane Installation

Installation

Installation Method

Method

Method for

for

for Natural

Natural

Natural Gas

Gas

Connection

Connection Method

Method

Method for

for

for Dual

Dual

Dual Side

Side

Side Burner

Burner

When

When c

c

connecting

onnecting

onnecting your

your

your Side

Side

Side Burner

Burner

Burner to

to

to LP

LP

LP or

or

or NG

NG

NG No

No

No Regulator

Regulator

Regulator is

is

is required

required

required on

on

on the

the

the Side

Side

Side Burner.

Burner.

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

BBQ

BBQ SPECIFICATIONS

SPECIFICATIONS

NOTE:

NOTE: “

“

“ALWAYS

ALWAYS

ALWAYS”

”

”have

have

have equipment

equipment

equipment measured

measured

measured by

by

by Contractor

Contractor

Contractor before

before

before building.

building.

NOTE:

NOTE: Check

Check

Check with

with

with City

City

City and

and

and Fire

Fire

Fire department

department

department for

for

for Local

Local

Local Building

Building

Building Codes.

Codes.

Codes. A

A

APermit

Permit

Permit may

may

may be

be

required

required for

for

for outdoor

outdoor

outdoor Kitchen

Kitchen

Kitchen Construction

Construction

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

ELECTRICAL

ELECTRICAL PRECAUTIONS:

PRECAUTIONS:

Extension cords are available and may be used if care is exercised in their use.

If an extension cord is used:

the marked electrical rating of the cord set or extension cord should be at least as

great as the electrical rating of the appliance, and,

the cord should be arranged so that it will not touch hot surfaces or drape over the

countertop or tabletop (where it can be pulled on by children or tripped over

unintentionally).

Outdoor extension cords should be used with products suited for outdoor use. They are

surface marked with suffix letters "W" or "W-A" and with a tag stating "Suitable for Use with

Outdoor Appliances".

To

protect against electrical shock, the power cord and plug should be kept dry and off of the

ground.

Do not clean this product with water spray; do not spray cleaners into the lamp socket area.

Do not operate any appliance with a damaged power cord or power plug, and do not operate

any appliance after the appliance malfunctions or has been damaged in any manner. If this

should occur, return the appliance to the nearest authorized service facility for examination,

repair or adjustment.

This appliance conforms to all uniform electrical safety codes and electrical grounding

regulations. Install unit according to I.A.W. local codes or with National Electrical Code

ANSI/NFPA 70 or CSA C22.1 in their absence.

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

GENERAL

GENERAL USE

USE

USE AND

AND

AND CARE

CARE

CARE:

:

NOTE: The manufacturer cannot be held responsible for damage or injury caused by

improper use of this appliance.

Be certain your appliance is properly installed and grounded by a qualified technician in

accordance with applicable codes.

To

guarantee the electrical safety of this appliance,

continuity must exist between the appliance and an effective grounding system. It is

imperative that this basic safety requirement be met. The manufacturer cannot be held

responsible for damages caused by the lack or inadequacy of an effective grounding

system.

Installation, repair and maintenance work should be performed by an authorized service

technician. Work by unqualified persons could be dangerous and will void the warranty.

Before installation or service, disconnect the power supply to the work area by removing

the fuse, "tripping" the circuit breaker, or unplugging the unit.

Gasoline, lighter fluid or other flammable liquids and vapors should never be stored in the

area of this grill or any other appliance.

Do not store anything in the grill. Make sure food is not forgotten in the grill; forgotten items

could melt or catch fire when the appliance is turned on.



To

prevent injuries, do not use accessories that are not recommended by the

manufacturer.

Before cleaning the appliance, "trip" the circuit breaker and allow the appliance to cool.

Always open the grill hood carefully, using only the handle - the hood may be hot.

Children should not be left alone or unattended in an area where any appliance is in use.

They should never be allowed to touch, sit or stand on any part of the appliance.

Do not store items of interest to children in cabinets above the grill or in the grill. Children

climbing on the appliance to reach these items could be seriously injured.

Wear proper clothing when operating appliances. Loose-fitting or hanging garments

should never be worn while using the grill.

Do not leave the grill unattended while in use.

Do not use water on grease fires!

A

violent steam explosion may result. Instead, smother

the fire with a dry chemical or foam fire extinguisher.

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

Safety

Safety and

and

and Installation

Installation

Installation Instructions

Instructions

UNIT

UNIT INSTALLATION:

INSTALLATION:

Your Summer Sizzler Series Grill comes pre-assembled and requires very little setup. We do

however; recommend the use of professional help during the installation of your unit as

improper installation may affect your warranty.

Remove the unit from the box along with all accessories and check that no damage has

occurred to the unit or any parts.

Burners: Check the burner tubes and remove any obstructions that may be in the ports or

holes. Using cold water and a brush will be sufficient. Make sure all foreign particles are

removed from the burner before use. Make sure the air shutter on the burners is slightly

opened (to about 1/8").

WARNING

For

For proper

proper

proper operation,

operation,

operation, burners

burners

burners must

must

must be

be

bealigned

aligned

aligned with

with

with the

the

the valve

valve

valve orifice

orifice

orifice and

and

and seated

seated

seated in

in

in the

the

bracket

bracket slot

slot

slot.

.

This

This is

is

isaccomplished

accomplished

accomplished by

by

by first

first

first placing

placing

placing the

the

the burner

burner

burner tube

tube

tube shutter

shutter

shutter hole

hole

hole securely

securely

securely over

over

over the

the

valve

valve orifice

orifice

orifice and

and

and then

then

then secure

secure

secure with

with

with the

the

the screw

screw

screw at

at

at the

the

the rear

rear

rear of

of

ofthe

the

the barbecue.

barbecue.

SUMMER

SUMMER SIZZLER

SIZZLER

SIZZLER by

by

by SUMMERSET

SUMMERSET

SUMMERSET Instructional

Instructional

Instructional Book

Book

Lighting

Lighting Instructions

Instructions

Caution:

Caution: Never operate the grill unattended. Do

Do

Do not

not

not operate

operate

operate the

the

the rotisserie

rotisserie

rotisserie burner

burner

burner with

with

with the

the

hood

hood closed.

closed.

Prior to using your grill, verify that all of the following is correct:

The burner tube is free of insects and insect nests, webs, etc.

Installation of the proper gas type and regulator settings.

The proper gas connection is complete.

Minimum clearances are maintained.

All packaging has been removed.

All parts and components are properly in place.

An installer-supplied manual gas shut-off valve is fully accessible.

LP hose is clean and inspected for cuts, wear, abrasion, or leaks. Replace if necessary

with a suitable UL, ETL or CSA Listed part with internally threaded connector.

LIGHTING

LIGHTING YOUR

YOUR

YOUR GRILL

GRILL

Become familiar with the safety instructions at the front of this manual. Do not smoke

while lighting the grill or checking the gas supply connections.

Make sure that all gas connections are securely tightened and have been leak-tested

with a soapy water solution - never with a flame!

Summerset Sizzler SIZ-26 Series Product guide

Popular Grill manuals by other brands
