OWNER’S MANUAL
FOR TR SERIES GRILL
For Outdoor Use Only
Installation, Operation, Maintenance
Instructions & Parts List
MODELS:
TR-26N, TR-26L
TR-32N, TR-32L
TRS-32N, TRS-32L
TRL-32/38N, TRL-32/38L
TRLD-32/44N, TRLD-32/44L

2
Contents
Page
For Your Safety
3
Safety Rules
6
Gas Barbecue Specifications
7
Gas Connection
8
LP Tank Requirement
9
Installation Location
10
Clearances
11
Electrical
12
Lighting Instructions
13
Operation
14
Cleaning and Maintenance
15
Parts Removal and Replacement
16
Trouble Shooting
17
Wire Diagram
18
TR-26/TR-32/TRL-32/TRS-32/TRL-38
Parts Identification
19/20
TR-26/TR-32/TRL-32/TRS-32/TRL-38
Exploded View
21
TRLD-32/44 Parts Identification
22
TRLD-32/44 Exploded View
23
Do’s & Don’ts
24
Message to the Proud Owner of this Quality Gas Grill
Congratulations on the purchase of the high quality, high performance grill.
Read this manual carefully to understand all the instructions about how to install, operate
and maintain for optimum performance and longevity.
Keep this manual in a safe place for future reference.
For any assistance, contact us. Make sure to provide the Model Number and Serial Number
of the grill.
Thank you for buying our grill. We wish you years of cooking pleasure.

3
For Your Safety
READ THESE SAFETY INSTRUCTIONS
WARNING
Fuels used in gas or oil-fired appliances and the
products of combustion of such fuels, contain
chemicals known to the State of California to cause
cancer, birth defects and/ or other reproductive
harm. This warning is issued pursuant to California
Health & Safety Code Sec. 25249.6.
WARNING
Failure to comply with these instructions could
result in a fire or explosion that could cause serious
bodily injury, death, or property damage.
WARNING
Your grill will get very hot. Never lean over the
cooking area while using your grill. Do not touch
cooking surfaces, grill housing, grill lid or any other
grill parts while the grill is in operation, or until the
grill has cooled down after use. Failure to comply
with these instructions may result in
serious bodily injury.
Grill lnstallation Codes
This gas grill must be installed in accordance with
all local codes. In areas without local codes, follow
the latest edition of the National Fuel Gas Code
ANSI Z223.1. In Canada, installation must conform
to standard CAN/CGA 1b149.1 or 1-b149. 2
(Installation Code for Gas Burning Appliances and
Equipment) and all local codes. Proper Placement
and Clearance of Grill Never use your gas grill in
a garage, porch, shed, breeze way or any other
enclosed area. Your gas grill is to be used outdoors
only, at least 24 inches from the back and 18
inches to the side of any combustible surface.
Exceptions would include usage with approved
vent hoods and all proper materials and
clearances according to local codes.
Your gas grill should not be placed under any
surface that will burn. Do not obstruct the flow of
ventilation air around the gas grill housing.
This outdoor gas grill is not intended to be
installed in or on recreational vehicles and/or
boats.
PROPANE MODELS:
Correct LP Gas Tank Use
LP gas grill models are designed for use with a
standard 20 lb. Liquid Propane Gas (LP gas) tank,
not included with grill box. Never connect your gas
grill to an LP gas tank that exceeds this capacity. A
tank of approximately 12 inches in diameter by 18-
1/2 inches high is the maximum size LP gas tank to
use. A Propane tank with an OPD (Overfill
Prevention Device) must be used. This safety
feature prevents the tank from being over-filled
which can cause malfunction of the LP gas tank,
regulator and/or grill.
The LP gas tank must be constructed and marked in
accordance with specifications of the U.S. Dpt. of
Transportation (DOT). In Canada, the LP gas tank
must meet the Canadian Transportation and
Communications (CTC) specifications. Also be sure
to read and follow all LP instructions on the
following page.
If the outdoor cooking gas appliance is not in use,
the gas must be turned off at the supply cylinder.
(a) Do not store a spare LP-gas cylinder under or
near this appliance; (b) Never fill the cylinder
beyond 80 percent full; and (c) If the information
in (a) and (b) is not followed exactly, a fire
causing death or serious injury may occur.
1. The LP gas tank has a shutoff valve, terminating
in an LP gas supply tank valve outlet, that is
compatible with a Type 1 tank connection device.
The LP gas tank must also have a safety relief
device that has a direct communication with the
vapor space of the tank.
2. The tank supply system must be arranged for
vapor withdrawal.
3. The LP gas tank used must have a collar to protect
the tank valve.
Never connect an unregulated LP gas tank to your
gas grill. The gas regulator assembly supplied with
your gas grill is adjusted to have an outlet pressure
of 11" water column (W.C.) for connection to an LP
gas tank.
Only use the regulator and hose assembly
supplied with your gas grill. Replacement regulators
and hose assemblies must be those specified by
manufacture.

4
Have your LP gas tank filled by a reputable
propane gas dealer and visually inspected and re-
qualified at each filling.
Never fill the gas tank beyond 80% full.
Have your propane gas dealer check the release
valve after every filling to ensure that it remains free
of defects.
Always keep LP gas tanks in an upright
position.
Do not store (or use) gasoline or other
flammable vapors and liquids in the vicinity of this
gas grill.
An LP gas tank that is not connected for use
must NOT be stored on bottom shelf or in the
vicinity of this or any other gas grill.
Do not subject the LP gas tank to excessive
heat.
Never store an LP gas tank indoors. If you store
yourgas grill in the garage or other indoor location,
always disconnect the LP gas tank first and store it
safely outside and out of reach of children.
LP gas tanks must be stored outdoors in a well-
ventilated area. Disconnected LP gas tanks must not
be stored in a building, garage or any other enclosed
area.
When your gas grill is not in use the gas must be
turned off at the LP gas tank.
The regulator and hose assembly must be inspected
before each use of the grill. If there is excessive
abrasion or wear or if the hose is cut, it must be
replaced prior to the grill being used again.
Keep the gas regulator hose away from hot grill
surfaces and dripping grease. Avoid unnecessary
twisting of hose. Visually inspect hose prior to each
use for cuts, cracks, excessive wear or other damage.
If the hose appears damaged do not use the gas grill.
Never light your gas grill with the lid closed or
before checking to insure the burner tubes are fully
seated over the gas valve orifices.
Never allow children to operate your grill. Do not
allow children to play near your grill.
WARNING
A strong gas smell, or the hissing sound of gas
indicates a serious problem with your gas grill or the
LP gas tank.
Failure to immediately follow the steps listed below
could result in a fire or explosion that could cause
serious bodily injury, death, or property damage.
Shut off gas supply to the grill.
Turn the Control Knobs to the OFF
position.
Open grill lid.
Get away from the LP gas tank.
Do not try to fix the problem yourself..
If odor continues or you have a fire you
cannot extinguish, call your fire department.
Do not call near the LP gas tank because your
telephone is an electrical device and could create a
spark resulting in fire and/or explosion.
NOTE: The normal flow of gas through the
regulator and hose assembly can create a humming
noise. A low volume of noise is perfectly normal
and will not interfere with operation of the grill. If
humming noise is loud and excessive you may need
to purge air from the gas line or reset the regulator
excess gas flow device. This purging procedure
should be done every time a new LP gas tank is
connected to your grill. For help call the Customer
Service Helpline for assistance.
Built-in Units Utilizing Natural Gas
When connecting a built-in unit to the natural gas
supply in your home, please ensure the pipe joint
compound is resistant to the action of natural gas. In
addition, please observe the following:
The barbecue and its individual shut-off valve must
be disconnected from the gas supply piping system
during any pressure testing of that system at test
pressures in excess of ½ psi (3.5 kPa).
The barbecue must be isolated from the gas supply
piping system by closing its individual manual shut-
off valve during any pressure testing of the gas
supply piping system
at test pressures equal to or less than ½ psi (3.5
kPa)
The units are supplied from the factory equipped for

5
use with natural gas and includes a natural gas
regulator.
If operation with propane gas is desired, you must
purchase a Propane Model. In addition, a Propane
Gas Regulator MUST be installed in the gas supply
line from the propane gas tank.

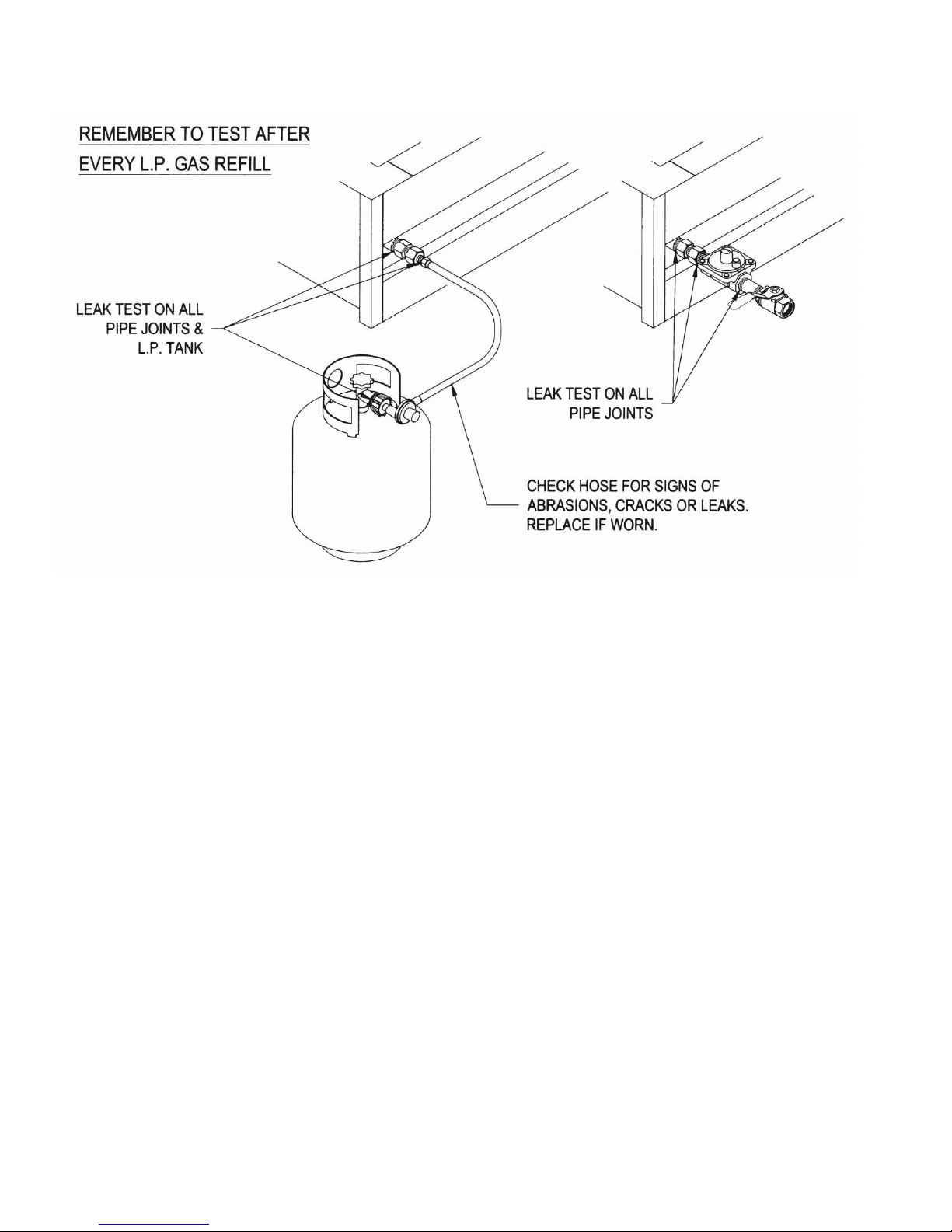

Please remember to check all gas connections for
leaks after the piping is completed. Follow the
procedure under the heading "CAUTION: LEAK
CHECKING."
�CAUTION: BEWARE OF FLASHBACK
CAUTION: Spiders and small insects
occasionally spin webs or make nests in the grill
burner tubes during transit and warehousing.
These webs can lead to a gas flow obstruction
which could result in a fire in and around the
burner tubes.
This type of fire is known as a ”FLASHBACK”
and can cause serious damage to your grill and
create an unsafe operating condition for the user.
Although an obstructed burner tube is not the only
cause of ”FLASHBACK”, it is the most common
cause.
To reduce the chance of ”FLASHBACK”, you must
clean the burner tubes before assembling your grill,
and at least once a month in late summer or early
fall when spiders are most active. Also perform this
burner tube cleaning procedure if your grill has not
been used for an extended period of time.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, immediately call your gas
supplier.
WARNING
Read the “Lighting Instructions” in this manual,
before lighting this appliance.
For Your Safety
1. Do Not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
TESTED IN ACCORDANCE WITH ANSI
STANDARD FOR OUTDOOR COOKING GAS
APPLIANCES. THIS GRILL IS FOR
OUTDOOR USE ONLY.
Check your local building codes for the proper
method of installation. In the absence of local
codes, this unit should be installed in accordance
with the National Fuel Gas Code No. Z223.1-
CAN/CGA –B149.1, natural gas installation code or
CAN/CGA –B149.2, propane installation code.
CALIFORNIA PROPOSITION 65-
WARNING
The Burning of gas cooking fuel generates
some by-products which are on the list of
substances which are known by the State of
California to cause cancer or reproductive
harm. California law requires businesses to
warn customers of potential exposure to
such substances. To minimize exposure to
these substances, always operate this unit
according to the use and care manual,
ensuring you provide good ventilation when
cooking with gas.

6
Safety Rules
1. It is important to follow these rules to
avoid fire hazard, property damage or
bodily injury from improper installation
or usage of the grill. For safety, READ
all rules carefully and check local codes.
2. It is prohibited to install the grill in
recreational vehicles/mobile homes,
trailers, boats, etc. The grill is for
outdoor installation and use only.
3. Ensure proper installation by following
the installation instructions. Make sure
to know where the gas supply shut-off
valve is located. It should be readily and
easily accessible.
4. Check all gas line joints or connection
for gas leak with soap water solution.
Never check gas leak with an open
flame.
5. Do not attempt to repair or replace any
part of the grill unless specifically
recommended in this manual. All other
services should be performed by a
qualified service technician.
6. Do not place clothing or other flammable
material on or near the appliance. Do not
wear loose-fitting clothes or long sleeves
while using the grill as some fabrics can
be highly flammable.
7. Children should be carefully supervised
when they are in the vicinity of the grill.
Do not allow them to get close while in
use. Items of interest to children should
not be stored in or around the grill in the
cabinet or in the masonry enclosure.
Portions of the grill can be extremely hot
while in use and can cause severe burns.
8. Protect your hand with a glove or mitt
when opening and operating the grill.
Open grill lid slowly to allow heat and
smoke to escape before fully opening.
9. Never use aluminum foil to line the
crumb pan or grill racks. This can alter
airflow for proper combustion and also
build up heat in the control area causing
the knobs and igniters to melt.
10. Grease is highly flammable. Allow hot
grease to cool down before attempting to
handle it. Clean grease tray often so that
grease does not accumulate and stay in it.
11. Do not use the grill in a windy area.
12. Do not obstruct the flow of air into the
front of the grill.
Gas Connections
Check gas type - use only the type of gas indicated
in the rating plate.
Do Not connect an unregulated gas line to the
appliance.
Safe and satisfactory operation depends to a great
extent on the proper installation of the appliance.
The installation must comply with the local codes,
or in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1 or
CAN/CGA –B149.1 or 149.2.
Installer supplied manual gas shut-off valve must be
installed in an easily accessible location in the gas
supply line ahead of the pressure regulator (4” W.C.)
which is also to be provided by the installer.

7
The outdoor cooking gas appliance and its
individual shut-off valve must be disconnected from
the gas supply piping system during any pressure
testing of the system at test pressures in excess of ½
Psi (3.5 kPa).
The outdoor cooking gas appliance must be isolated
from the gas supply piping system by closing its
individual manual shut-off valve during any pressure
testing of the gas supply piping system at test
pressures equal to or less than ½ Psi (3.5 kPa).
The supply line must be sized and installed to
provide a sufficient supply of gas to meet the
maximum demand of the grill without undue loss of
pressure. The sealant used on the threaded joints of
the gas pipe must be a type resistant to the action of
LP gases.
GAS BARBECUE SPECIFICATIONS
BURNER INPUT RATING:
TR-26/TR-32/TRS-32/TRL-32/TRL-38：
Grill Main Burner 18,000 BTU / each
Rotisserie 15,000 BTU
TRLD-32/44：Grill Main Burner 20,000 BTU / each
Rotisserie 12,500 BTU
Rotisserie 15,000 BTU
Natural Gas Connection: (Installer to Provide Regulator)
Appliance pressure 5” W.C.
Inlet pressure 5” - 14” W.C.
Check with your local gas utility company or with local codes before installing gas lines.
Assemble pipe fittings as shown. Apply pipe compound on male joints only. Install regulator with the proper
orientation for the gas flow.

8
LP Gas Connection
Appliance pressure 10” W.C.
Inlet pressure 11” – 14” W.C.
Purchase a standard 20 lbs. LP tank with QCC –1 fitting.
Assemble pipe/hose assembly as shown.

9
After completion of assembly, turn the tank valve on and turn the control valves on the grill to the ‘HI/IGN’
position for 10 –15 seconds to purge the line of air.
Inspect the hose before each use of the appliance. If it is evident there is excessive abrasion or wear, or the hose
is cut, it must be replaced prior to the appliance being put into operation. The replacement hose assembly shall be
that specified by the manufacturer.
To connect, insert the regulator inlet into the tank valve and turn the black coupler clockwise until the coupler
tightens up. DO NOT OVER TIGHTEN THE COUPLER.
To disconnect, turn the tank valve off. Hold the coupler sleeve and turn counter clockwise. The inlet line will be
disengaged.
If the appliance is not in use, the gas must be turned off at the supply cylinder. Cylinder must be stored outdoors
out of reach of children and must not be stored in a building, garage or any other enclosed area.
A dented, rusty or damaged propane cylinder must be replaced immediately.
Check for leaks every time the cylinder is replaced or reconnected. All leaks must be corrected
immediately.
*Never use an open flame to check for leaks.
(See illustration on p.13)

10
LP Tank Requirements:
The L.P. gas cylinder must be constructed and marked in accordance with the specifications for L.P. gas
cylinders of the U.S. Department of Transportation (DOT) and designed for use with a QCC-1 quick disconnect
system only.
The cylinder must be provided with a shut-off valve terminating in an L.P. gas supply cylinder valve outlet
specified, as applicable, for connection No. QCC-1.
The cylinder must be provided with a listed overfilling prevention device.
The pressure regulator and hose assembly supplied with the outdoor cooking gas appliance must be used.
Replacement of pressure regulators and hose assemblies can be purchased from authorized dealers.
The cylinder supply system must be arranged for vapor withdrawal. Make sure the LP cylinder has a collar to
protect the cylinder valve.
(a) Do not store a spare LP gas cylinder under or near this appliance.
(b) Never fill the cylinder beyond 80 percent full.
(c) If the information in (a) and (b) are not strictly followed, a death-causing fire or serious injury
may occur.

11
Installation Location For All Models
NOTE: When using Propane, EXTREME
CAUTION should be used to provide ample
ventilation of vapor from the enclosure.
LP Gas vapor is heavier than air and SERIOUS
INJURY from a DANGEROUS EXPLOSION could
occur if LP Gas is allowed to accumulate in an
enclosure and then ignited. Both the Barbecue
enclosure and LP cylinder enclosure require venting
that must be provided at the floor level of the
enclosure to allow any leaking LP Gas vapor to
escape. Upper & lower ground level
vents (20 sq. in. minimum each) MUST BE
PROVIDED on both sides of built-in construction.
Please ask local dealer for full details.
NOTE: When installing a barbecue equipped for
liquid propane
in an island, the propane tank must be in a separate
enclosure that is completely isolated from the
barbecue. It must be cross ventilated in accordance
with the current standard. The propane tank MUST
NEVER be installed directly under the barbecue.
NOTE: Upper & lower ground-level vents (20 sq.
in. minimum each) MUST BE PROVIDED for
combustion air on both sides of built-in construction.
Please ask local dealer for full details. Barbecues
must be installed in accordance with CSA
specifications and all local building codes.
Choose a location where the flow of air on the front of the grill is not obstructed.
Due to high temperatures, place the grill out of traffic and keep away from clothing, furniture, etc. Keep the gas
line connection as short as possible. Do not install in recreational vehicles/mobile homes, trailers, boats, etc
.

12
Clearances
Combustible Construction
Minimum horizontal clearance from sides and back of the unit to adjacent vertical combustible construction
extending above top of unit, 6 inches from side and 15 inches from back.
Do not locate under overhead unprotected combustible construction.
Non-Combustible Construction
Sides of the grill can be 0” from non-combustible wall, below the cooking surface.
Built-in Installation
For non-combustible masonry enclosure installation, follow the cut out dimensions as shown.
Model
W
D
H
TR-26
24 ½”
20 ¾”
10”
TR-32
30 ½”
20 ¾”
10”
TR-38
38 ½”
20 ¾”
10”
TRLD-32
33 ¼”
20”
11”
TRLD-44
45 ¼”
20”
11”
Non-combustible
Construction

13
The bottom of the grill must be supported on both sides and back or full width with opening as shown for gas
connection.
Electrical
Electrical outlet for Rotisserie motor must be installed to the left side of the grill.
The outdoor cooking gas appliance, when installed, must be electrically grounded in accordance with local codes
or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
Keep any electrical supply cord and fuel supply hose away from any heated surface.
BRIQUETTES: Place briquettes burner cover above each burner.
Leak Testing
All gas piping and connections must be tested for leaks after installation or service. All leaks must be corrected
immediately.
Open the valve (shut-off or ‘ON’ LP tank). Test for leaks by applying liquid soap solution to all joints. Bubbles
forming indicate gas leak.
NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS.

14
TRLD-44 is not available with Flash Tube Lighting Instructions
Before Lighting:
Check gas line/hose for signs of wear, abrasion or cuts. If evidence of deterioration is visible, replace the
part prior to use.
If you smell gas, check for leaks. If odor continues, immediately call for service.
Keep your face and body away from the grill top when lighting.
Grill and Rotisserie Burner Lighting
1. Open lid before lighting. Make sure all knobs are in the
‘OFF’ position. (REMOVE WARMING RACK BEFORE USING ROTISSERIE)
2. Push and turn burner knob slowly to ‘HI’ position, a clicking will occur.
3. Repeat step 2 until unit lights.
4. If the burner does not ignite within 4 seconds, turn the gas off,
wait for 5 minutes and then repeat steps 1 and 3.
5. For complete shut down, turn all knobs to the ‘OFF’
position. For LP, also turn the cylinder valve off when not in use.

15
If grill or Rotisserie burners do not light with igniter, they can be lit manually. For Main burners, turn knob on
far right burner to high. Place match or lighter at the top of the flash tube on right side of basin. Once lit turn
next burner on adjacent to far right burner, when lit repeat for far left burner on 32” model.
On rear burner use long Bic lighter or hearth match, turn rear burner to high and hold long match or Bic hearth
lighter to burner surface. Back burner should light immediately.
*Models TRLD-32 & 44 do not offer the flash tube option
Operation
DO NOT LEAVE YOUR GRILL UNATTENDED WHILE IN OPERATION.
Grill: Grill burners are controlled individually with a control knob.
After lighting, turn the knob to HI, LO or in between as desired.
Turn on as many burners as required.
The top cover may be closed during grilling.
Keep the top cover in the closed position during the pre-heat period.
Rotisserie: Remove Warming rack before turning on rear rotisserie burner! Not doing so
will result in damage and will not be covered under warranty!
Turn the control knobs to HI.
Plug in the motor power cord to a properly grounded receptacle. Rotisserie cooking can be done
with grill burners as well as with the Rotisserie burner ‘ON’.
The skewer slides in from the side with the tip sliding into the motor shaft adapter. The slot on
the handle side should be on the side support panel edge.
Use the prongs to hold the meat. Tighten thumbscrew on the prong hubs to secure in place.
When ready, turn the switch on the motor box to the ‘ON’ position. The skewer will rotate
slowly. Stop the motor before removing the skewer.
Light at top of flash tube

16
Cleaning and Maintenance
Cleaning: Your Bar-B-Q grill works better and lasts longer if properly cleaned and maintained. Clean the
grill immediately after every use.
Turn grill off before starting to clean. Protect your hand with a good mitt when cleaning the hot
grill. Use a wire brush, dip in water and scrub the grill to soften and loosen food spills. The food
spills will fall into the crumb pan.
Do not use Aerosol cleaners on hot grill surface. Chemicals may produce noxious fumes and may
ignite on contact with the hot surface.

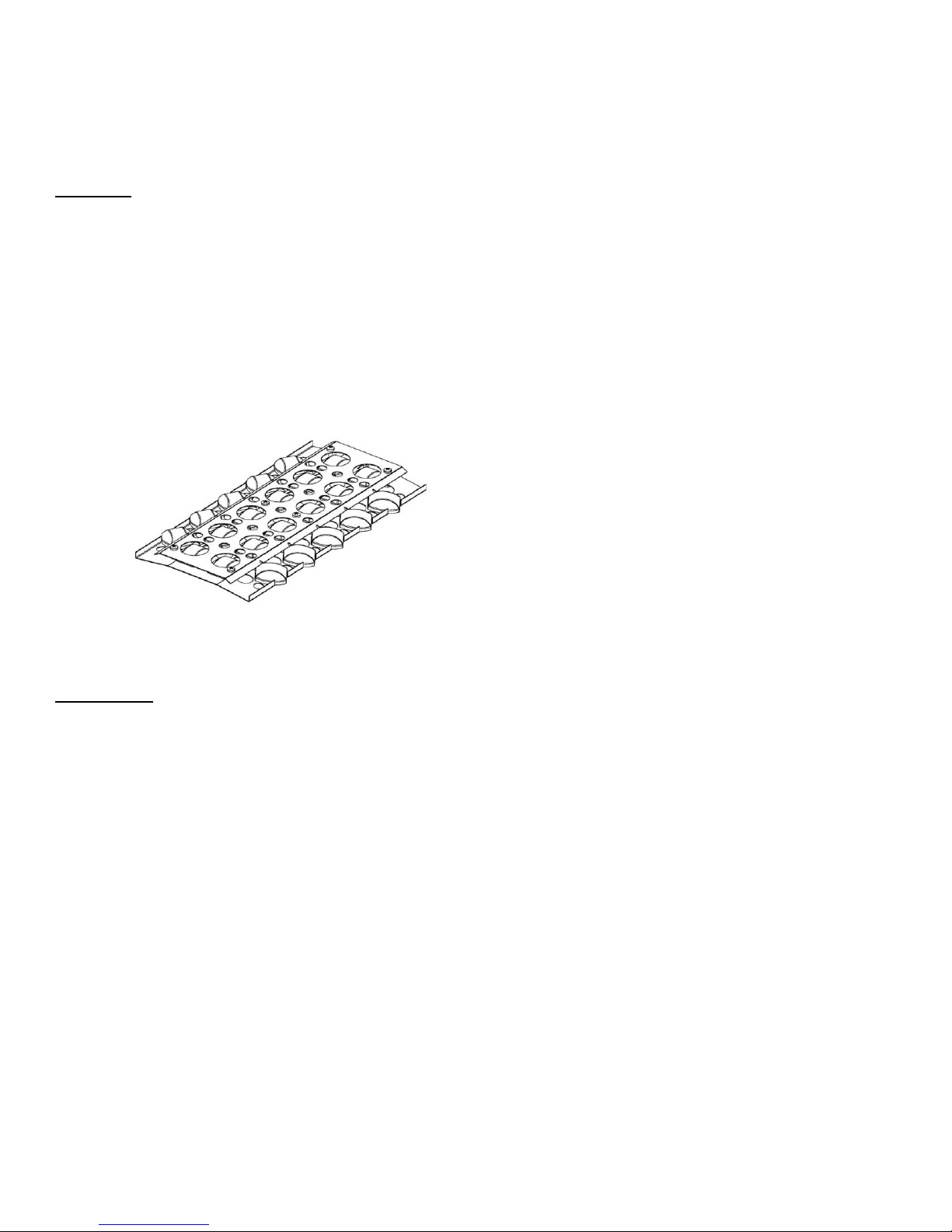

Shield: Burner shields (Briquette holder) are made up of stainless steel. After every use, allow the shields
to cool down. Remove and soak in water with a mild soap or detergent. Replace when dry along
with the briquettes.
Grease Pan: Empty grease pan as required to prevent overflowing. After use, remove the grease pan and brush
off the contents. Clean with hot water and soap or detergent.
All stainless steel parts should be cleaned with a mild soap or detergent or with a liquid cleanser especially made
for stainless steel. Never attempt to clean stainless steel with steel wool, abrasive clothes or powders.
Maintenance
Keep outdoor cooking gas appliance area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
Do not obstruct the flow of combustion and air ventilation.
Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
Visually check burner flames.
There are many different stainless steel cleaners available. Always use the mildest cleaning procedure first,
scrubbing in the direction of the grain. To touch up noticeable scratches in the stainless steel, sand very lightly
with dry 100 grit emery paper in the direction of the grain. Specks of grease can gather on the surfaces of the
stainless steel and bake on to the surface and give the appearance of rust. For removal use, an abrasive pad
(Scotch Brite is good) in conjunction with a stainless steel cleaner. Always rub in the direction of the grain.
Never scrub the stainless steel with steel wool. Steel particles left on the stainless steel will soon rust and give
the appearance that the parts are rusting.
The burners, control area, crumb pan, etc. should be kept clean at all times. During prolonged non-use of the
grill, spiders and insects can nest in areas that will adversely affect the functioning of the grill. Check burner
inlets, orifice hood (gas inlet to burner), igniter, sparkers, etc. thoroughly and clean before use.

17
Front Panel Removal for All Models
Parts Removal and Replacement
Grill Burner: - Remove top grates.
- Remove briquettes and shields
- Remove clip at rear of burner and slide out.
- Clean and replace in reverse order.
Rotisserie Sparker: - Remove sparker cover –lift and pull.
- Remove sparker screws and pull out.
Trouble Shooting
Problem Solution
Burner will not light - Check gas supply to burner by manually lighting the burners.
-Check pilot side of valve for spark while gas is off
-Make sure spark area is clean from debris, webs etc.
-Make sure you now have a spark
-If no spark, check valve for defects
Improper burner flame - Check burner gas inlet area for any blockage and clear.
- Check orifice hoods for any clogging and clean.
- Check pressure if flame is too low or too high.
- Check gas supply tank (LP) if running low.
- Make sure that knobs are in off position when turning tank valve on!

18
TRLD-
32
4 LEDS
2 LIGHTS
TRLD-
44
5 LEDS
2 LIGHTS

19
TR-26/TR-32/TRL-32/TRS-32/TRL-38 Parts List
ITEM
PART#
DESCRIPTION
QTY.
TR-26
TR-32
TRL-32
TRS-32
TRL-38
1
TR001
26”-TOP HOOD
1
TR002
32”-TOP HOOD
1
1
1
TR003
38”-TOP HOOD
1
2
TR004
IGNITOR BRACKET-I.R.BURNER
1
1
1
3
TR005
IGNITOR-I.R.BURNER
1
1
1
4
TR006
IGNITOR WIRE(1400mm) -I.R.BURNER
1
1
TR007
IGNITOR WIRE(1600mm) -I.R.BURNER
1
5
TR008
I.R.BURNER
1
1
1
6
TR009
26”-REAR HOOD
1
TR010
32”-REAR HOOD (TR-32、TRL-32)
1
1
TR011
32”-REAR HOOD (TRS-32)
1
TR012
38”-REAR HOOD
1
7
TR013
LIGHT BOX (LEFT)
1
8
TR014
LIGHT (LEFT)
1
9
TR015
LIGHT BOX (RIGHT)
1
1
10
TR016
LIGHT (RIGHT)
1
1
11
TR017
ORIFICE(LPφ1.05) -I.R.BURNER
1
1
1
ORIFICE(NGφ1.6) -I.R.BURNER
1
1
1
12
TR018
ORIFICE ELBOW
1
1
1
13
TR019
26”-WARMING RACK
1
TR020
32”-WARMING RACK
1
1
1
TR021
38”-WARMING RACK
1
14
TR022
26”-TOP GRATE
2
TR023
32”-TOP GRATE
3
3
3
TR024
38”-TOP GRATE
4
15
TR025
26”-BURNER COVER
2
3
3
3
TR026
38”-BURNER COVER
4
16
TR027
“U”BURNER
2
3
3
3
4
17
TR028
26 “-INNER BASIN
1
TR029
32 “-INNER BASIN
1
1
1
TR030
38 “-INNER BASIN
1
18
TR031
26 “-CRUMB TRAY
1
TR032
32 “-CRUMB TRAY
1
1
1
TR033
38 “-CRUMB TRAY
1
19
TR034
26 “-BASIN FRAME
1
TR035
32 “-BASIN FRAME
1
1
1
TR036
38 “-BASIN FRAME
1
20
TR037
26 “-GREASE TRAY
1
TR038
32 “-GREASE TRAY
1
1
1
TR039
38 “-GREASE TRAY
1
21
TR040
TRANSFORMER 20W
1
1
22
TR041
TRANSFORMER INLET CORD
1
1
23
TR042
TERMIINAL BLOCK
1
1
24
TR043
LP REGULATOU
1
1
1
1
1
25
TR044
LP FLARE FITTING
1
1
1
1
1
26
TR045
REGULATOU BRACKET
1
1
1
1
1

20
ITEM
PART#
DESCRIPTION
QTY.
TR-26
TR-32
TRL-32
TRS-32
TRL-38
27
TR046
NG REGULATOU
1
1
1
1
1
28
TR047
NG FLARE FITTING
2
2
2
2
2
29
TR048
FLEX TUBE 500mm
1
1
1
1
1
30
TR049
26 “-MANIFOLD PIPE
1
TR050
32 “-MANIFOLD PIPE
1
1
1
TR051
38 “-MANIFOLD PIPE
1
31
TR052
VALVE SEAL RING
2
4
4
3
5
32
TR053
GAS VALVE-I.R.BURNER
1
1
1
33
TR054
GAS VALVE(LPφ1.3)- “U”BURNER
2
3
3
3
5
TR055
GAS VALVE(NGφ1.93)- “U”BURNER
2
3
3
3
5
34
TR056
FLEX TUBE-I.R.BURNER 980mm
1
1
TR057
FLEX TUBE-I.R.BURNER 1050mm
1
35
TR058
BEZEL
2
4
4
3
5
36
TR059
CONTROL KNOB
2
4
4
3
5
37
TR060
LOGO PLATE
1
1
1
1
1
38
TR061
LIGHT SWITCH-ON/OFF
2
2
39
TR062
32 “-LIGHT WIRE
1
TR063
38 “-LIGHT WIRE
1
40
TR064
26 “-CONTROL PANEL
1
TR065
32 “-CONTROL PANEL (TR-32)
1
TR066
32 “-CONTROL PANEL (TRL-32)
1
TR067
32 “-CONTROL PANEL (TRS-32)
1
TR068
38 “-CONTROL PANEL
1
41
TR069
32 “LED WITH WIRE
1
TR070
38 “LED WITH WIRE
1
42
TR071
LED MODULE HOLDER
1
1
43
TR072
LED MODULE
1
1
44
TR073
SIDE BURNER LED OUTLET
1
1
45
TR074
BRACKET-MOTOR
1
1
1
46
TR075
MOTOR-ROTISSERIE
1
1
1
47
TR076
HANDLE-ROTISSERIE
1
1
1
48
TR077
SPIT COLLOR-ROTISSERIE
1
1
1
49
TR078
SCREW-SKEWER FORK
3
3
3
50
TR079
SKEWER FORK φ5
2
2
2
51
TR080
32 “-SKEWER ROD
1
1
1
TR081
38 “- SKEWER ROD
1
1
1
52
TR082
26 “-HOOD HANDLE TUBE
1
TR083
32“-HOOD HANDLE TUBE
1
1
1
TR084
38 “-HOOD HANDLE TUBE
1
53
TR085
END CAP SPACER-HANDLE
2
2
2
2
2
54
TR086
END CAP-HANDLE
2
2
2
2
2
55
TR087
RUBBER STOPPER
2
2
2
2
2
56
TR088
TEMPRATURE GAUGE
1
1
1
1
1
57
TR089
TEMPRATURE GAUGE BEZEL
1
1
1
1
1
Please see your local dealer for service and parts replacement
