Summit SUM-608 User manual

1. Extend both arms of the carrier
2. Place the circlip (a) over the tow ball of the vehicle.
Place the two pieces (b) either side of the ball of the car.
3. Open the uprights, to adjust the two parts (b)
around the tow ball of the car.

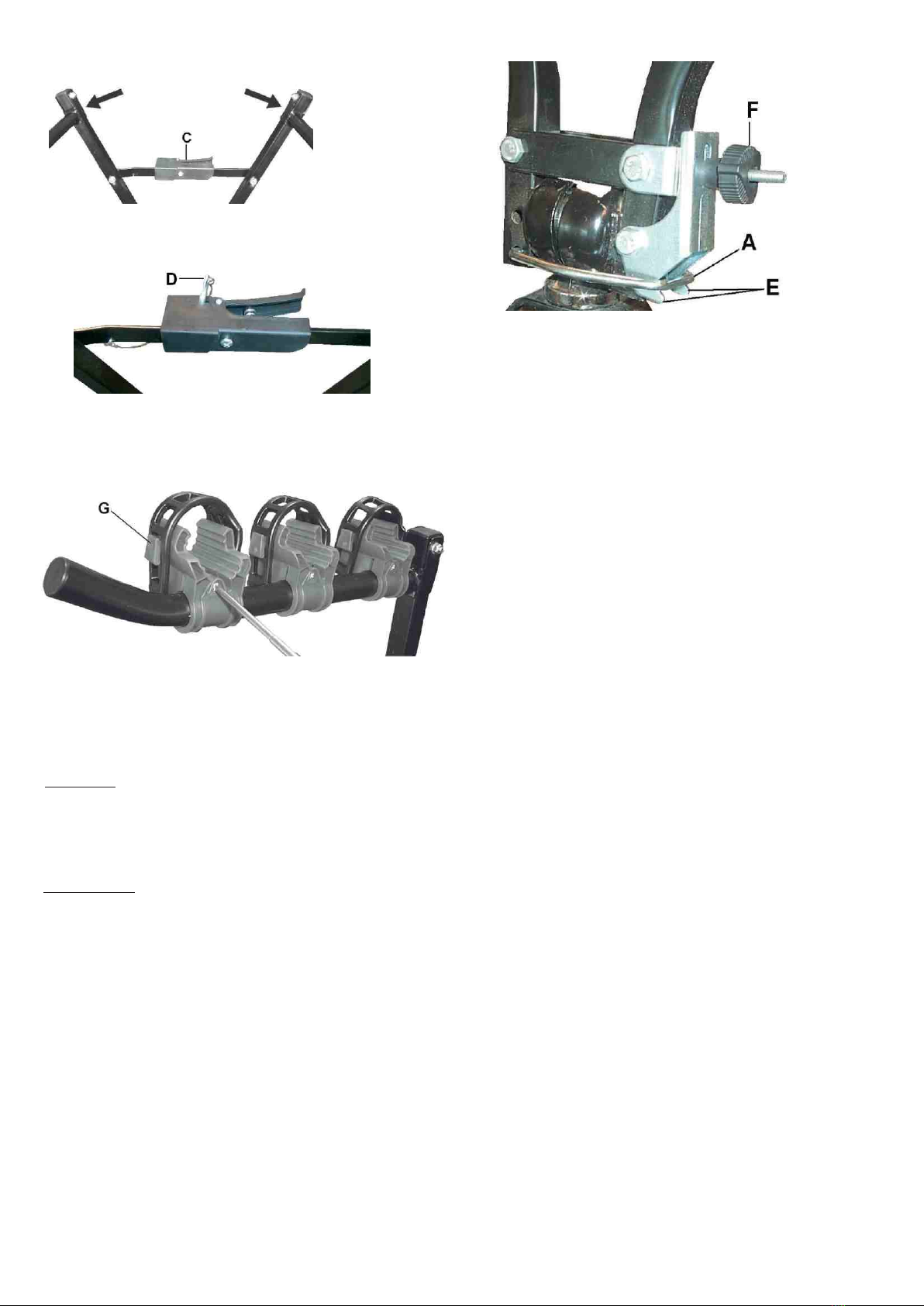

Press the arm hard until the handle (c) locks
Fitting Instructions
Please read fully before attempting to install onto vehicle

4. Lock the handle by inserting the safety pin (d)
into the hole in the handle (c) Place the ring (a) in
the hooks (e) and tighten the thread (f) in a
clockwise direction.
Insert the adjustable holders for the bicycles frames (g) onto the arms and tighten with a screwdriver
Install the bicycle and secure it with the retainers (g)
ADVICE
Fix the wheels of the bicycles frame with a strap (not supplied) to prevent their rotation
REMOVAL
Loosen the thread (f) in the anti clockwise direction to remove the ring (a) from the hooks
Remove the safety pin (d) from the handle (c)
Pull the handle (c) to unlock the arms
Close the arms and pull the carrier clear of the tow ball
ADAPT YOUR DRIVING
YOU SHOULD ADAPT YOUR DRIVING WHEN THIS BIKE CARRIER INSTALLED,
ESPECIALLY WHEN BRAKING AND TURNING.
