Summit SWC1966B User manual

WINE CELLAR
Models:
SWC1127B
SWCP2116
SWC1926B
SWC1966B
SWCP2163
SWCP1988T
LWC1Z96
LWC2Z97
LWC1Z193
LWC2Z194
LWC2Z195
LWC3Z98
User Manual/Mode d’emploi
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS IN THIS MANUAL.
AVANT L'UTILISATION, VEUILLEZ LIRE ET SUIVRE TOUTES LES RÈGLES DE SÉCURITÉ ET LES
INSTRUCTIONS D'UTILISATION DE CE MANUEL.
Write Model and Serial Numbers here:
Model: _____________________
Serial No.: __________________
Summit Division of Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com

2
TABLE OF CONTENTS
Appliance Safety 3
Important Safeguards 4-5
Location of Parts 6-9
Installation Instructions 10-17
Before Using your Appliance 10
Installing your Appliance 10
Installing the Door Handle 11
Reversing the Door Swing 12
Built-in Cabinet Instructions 13-14
Electrical Connection 15
Extension Cord 15
Rearranging the Shelves 16
Placement and Storage of Wine 16-17
Operating your Appliance 18-19
Care and Maintenance 20
Troubleshooting 21
Limited Warranty 22
French Translation of this Manual 23-44

3
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always
read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety Alert
Symbol and either the words “DANGER”, “WARNING” or “CAUTION”.
DANGER means that failure to heed this
safety statement may result in severe
personal injury or death.
WARNING means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
CAUTION means that failure to heed this
safety statement may result in minor or
moderate personal injury, or property or
equipment damage.
All safety messages will alert you to what the potential hazard is, tell you how to reduce the chance
of injury, and let you know what can happen if the instructions are not followed.

4
IMPORTANT SAFEGUARDS
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of
fire, electrical shock or injury when using the appliance, follow basic
precaution, including the following:
•Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and
do not use an extension cord.
•Replace all panels before operating.
•It is recommended that a separate circuit, serving only your appliance, be provided. Use
receptacles that cannot be turned off by a switch or pull-chain.
•Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
•Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
•Do not connect or disconnect the electric plug when your hands are wet.
•Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
•Do not attempt to repair or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
•This appliance is CFC- and HFC-free and contains small quantities of Isobutane (R600a) which
is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it
increase the greenhouse effect. Care must be taken during transportation and setting up of the
appliance that no parts of the cooling system are damaged. Leaking coolant can ignite and may
damage the eyes.
•In the event of any damage:
oAvoid open flames and anything that creates a spark,
oDisconnect from the electrical power line,
oAir the room in which the appliance is located for several minutes, and
oContact the Service Department for advice.
•The more coolant there is in an appliance, the larger the room it should be installed in. In the
event of a leakage, if the appliance is in a small room, there is the danger of combustible gases
building up. For every ounce of coolant, at least 325 cubic feet of room space is required. The
amount of coolant in the appliance is stated on the data plate on the back of the appliance. It is
hazardous for anyone other than an authorized Service Person to carry out servicing or repairs
to this appliance.
•Take serious care when handling, moving, and using the appliance to avoid either damaging the
refrigerant tubing or increasing the risk of a leak.
•Replacing component parts and servicing shall be done by factory authorized service personnel
so as to minimize the risk of possible ignition due to incorrect parts or improper service.

5
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
•Use two or more people to move and install appliance. Failure to do so can result in back or
other injury.
•To ensure proper ventilation for your appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below
100°F (38°C). This unit must be installed in an area protected from the elements, such as wind,
rain, water spray or drips.
•The appliance should not be located next to ovens, grills or other sources of high heat.
•The appliance must be installed with all electrical, water and drain connections in accordance
with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly
grounded in accordance with the National Electrical Code and local codes and ordinances is
required.
•Do not kink or pinch the power supply cord of appliance.
•The fuse (or circuit breaker) size should be 15 amperes.
•It is important for the appliance to be leveled in order to work properly. You may need to make
several adjustments to level it.
•Never allow children to operate, play with or crawl inside the appliance.
•Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may
damage or discolor the interior.
•Do not use this apparatus for other than its intended purpose.
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are
still dangerous, even if they will “just sit in the garage a few days”.
•Before discarding your old refrigerator:
oTake off the doors
oLeave the shelves in place so that children may not easily climb inside.
–SAVE THESE INSTRUCTIONS –

6
LOCATION OF PARTS
SWC1127B/LWC1Z96
SWC1926B/LWC1Z193
1
Right Upper Hinge
2
Control Panel
3
Door
4
Door Seal
5
Door Handle
6
Charcoal Filters
7
Wooden Shelf
8
Air Channel Plate
9
Vent Kick Plate
10
Right Lower Hinge
11
Adjustable Feet

7
SWC1966B/LWC2Z194
1
Right Upper Hinge
2
Air Channel Plate
3
Control Panel
4
Door
5
Door Seal
6
Door Handle
7
Wooden Shelf
8
Charcoal Filters
9
Vent Kick Plate
10
Right Lower Hinge
11
Adjustable Feet

8
SWCP2116/ LWC2Z97
SWCP2163/ LWC2Z195
1
Right Upper Hinge
2
Wire Shelf with S.S. Front Edge
3
Door
4
Door Seal
5
Door Handle
6
Air Channel Plate
7
Control Panel
8
Slide Light
9
Rolling Slideway
10
Charcoal Filters
11
Vent Kick Plate
12
Right Lower Hinge
13
Adjustable Feet

9
SWCP1988T/LWC3Z98
1
LED Light
2
Wire Shelf with S.S. Front Edge
3
Air Channel Plate
4
Upper Zone Separator
5
Lower Zone Separator
6
Door Support
7
Vent Kick Plate
8
Adjustable Feet
9
Lock
10
Right Lower hinge
11
Door
12
S.S. Handle
13
Door Seal
14
Right Upper Hinge

10
INSTALLATION INSTRUCTIONS
Before Using your Appliance
Remove the exterior and interior packaging, and check to make sure you have the following parts:
SWC1127B & SWC1926B & SWC1966B
(LWC1Z96 & LWC1Z193 & LWC2Z194)
SWCP2116 & SWCP2163 & SWCP1988T
(LWC2Z97 & LWC2Z195 &LWC3Z98)
Instruction Manual
Instruction Manual
Wooden Shelves
Wire Shelves with Rolling Slideways
Door Handle
Door Handle
•Before connecting this appliance to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
•Clean the interior surface with lukewarm water using a soft cloth.
•The appliance is specially designed for wine storage; please do not put in other goods or food.
Installing your Appliance
•This appliance is designed for freestanding or built-in (fully recessed) installation.
•Place your appliance on a floor that is strong enough to support it when it is fully loaded. To level
your appliance, adjust the front leveling legs at the bottom of the appliance.
•Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extremely cold ambient temperatures may also cause the unit not to perform
properly.
•Avoid locating the unit in moist areas.
•Plug the appliance into an exclusive, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or a service
center authorized by Felix Storch, Inc.

11
Installing the Door Handle
This cooler includes one stainless steel handle that is not installed by the factory.
NOTE: The door handle is packaged inside, between the inner foam and the outer box. Do not
discard packaging until you have removed the handle.
To install the handle please follow these instructions:
1. Pull the door gasket (1) away from the door where the handle is to be installed, as shown in the
first illustration below. The gasket is easily displaced by hand, no tools are necessary.
2. Align the handle (2) with the screws pre-installed on the backside of the door. Tighten the screws
using a Phillips head screwdriver until the handle sets both flush and secured tightly against the
door frame. (DO NOT over-tighten as this will cause damage to the handle assembly).
3. Replace the door gasket to its original position.

12
Reversing the Door Swing
The diagram below will explain how to reverse the door swing of your beverage cooler. Be careful to
pay attention to the numbering of the steps below. Before reversing the door, please make sure
unplug the appliance and must be let it stand upright for approximately 2 hours before connecting to
the power source.

13
Built-In Cabinet Instructions
This unit is designed for both built-in and freestanding installation. If you plan to use this unit in a
built-in application, please follow the requirements shown below. Be sure that airflow under the
appliance is not blocked.
SWC1127B/LWC1Z96 and SWCP2116/LWC2Z97
Cabinet Opening Dimensions
IN (min)
CM (min)
Width
23 7/8”
60.5 cm
Depth
28”
71.2 cm
Height
55 3/4”
141.2 cm

14
SWC1926B/LWC1Z193. SWC1966B/LWC2Z194, SWCP2163/LWC2Z195 and
SWCP1988T/LWC3Z98
Cabinet Opening Dimensions
IN (min)
CM (min)
Width
23 7/8”
60.5 cm
Depth
28”
71.2 cm
Height
70 3/4”
180 cm

15
Electrical Connection
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
This appliance requires a standard three-prong 115/120 Volt AC ~/60Hz electrical ground wall outlet.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevents overloading house wiring circuits that could be a fire hazard from overheating. Never
unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from
the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at
least 10 amperes.
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord
is damaged, have it replaced by a service center authorized by Felix Storch, Inc.

16
Rearranging the Shelves
These instructions are intended for models SWCP2116/LWC2Z97 and SWCP2163/LWC2Z195.

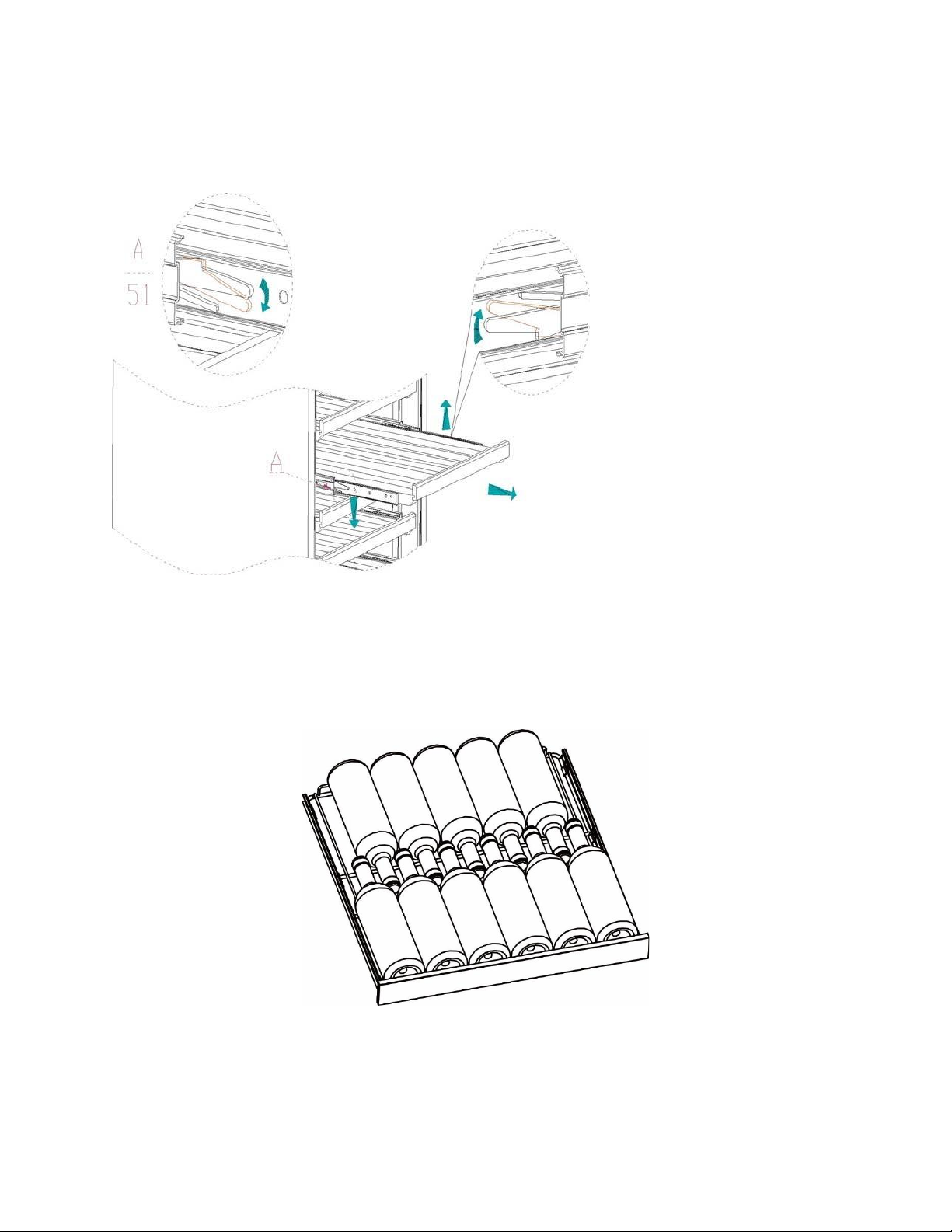

1. First remove all wine and/or
beverages from the shelf.
2. Pull the shelf out to its limit,
and then press DOWN on
the left lever on the sliding
rail and press UP on the
right one simultaneously as
shown to the left.
3. Pull the shelf out while still
holding the levers in place.
Placement and Storage of Wines
Bottle loading sketch for the large shelves

17
•SWC1127B/ LWC1Z96 was designed to store a maximum of 127 Bordeaux bottles in total.
•SWCP2116/ LWC2Z97 was designed to store a maximum of 116 Bordeaux bottles in total.
•SWC1926B/ LWC1Z193 was designed to store a maximum of 165 Bordeaux bottles in total.
•SWC1966B/ LWC2Z194 was designed to store a maximum of 163 Bordeaux bottles in total.
•SWCP2163/ LWC2Z195 was designed to store a maximum of 163 Bordeaux bottles in total.
•SWCP1988T/ LWC3Z98 was designed to store a maximum of 154 Bordeaux bottles in
total.

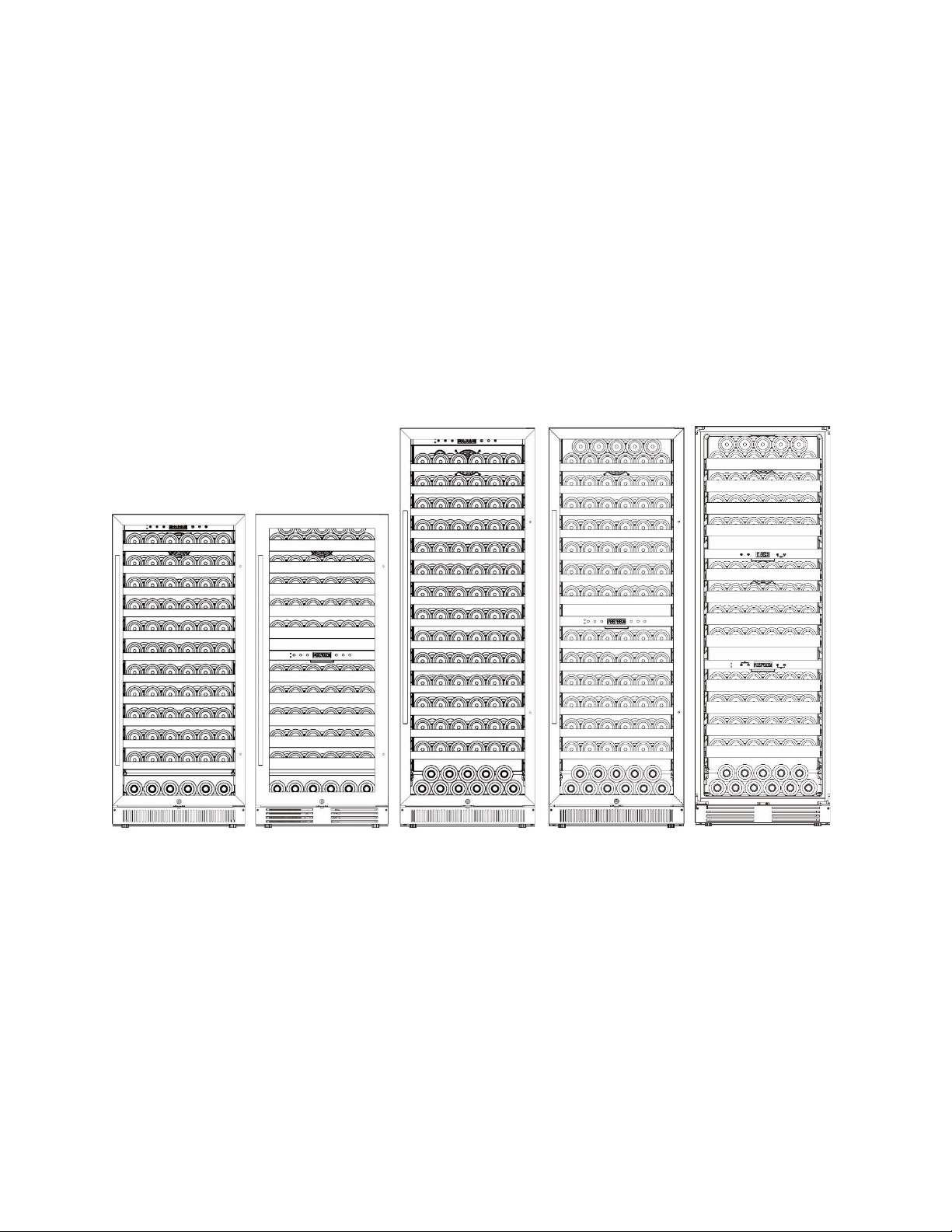

SWC1127B
SWCP2116
SWC1926B
SWC1966B/SWCP2163
SWCP1988T
LWC1Z96
LWC2Z97
LWC1Z193
LWC2Z194/LWC2Z195
LWC3Z98
NOTE: Bottle sizes, even standard Bordeaux style, may vary in exact sizing and details between
different wine producers and bottling companies. Your overall bottle capacity may be slightly
lower depending on the exact bottle design you are storing. For wider Burgundy style bottles,
visit our website for storage guidelines.

18
OPERATING YOUR APPLIANCE
It is recommended that you install the appliance in a place where the ambient temperature is
between 61º- 100º F (16º-38º C). If the ambient temperature is higher or lower than recommended
temperatures, the performance of the unit may be affected. For example, placing your unit in
extremely cold or hot conditions may cause interior temperatures to fluctuate. The range of
41º- 65º F (5º-18º C) may not be reached.
Temperature Ranges
WINE COOLER (SINGLE ZONE)
41 - 65º F
5 - 18º C
WINE COOLER (DUAL ZONE)
Upper Zone: 41 - 54º F
Lower Zone: 54 - 65º F
Upper Zone: 5 - 12º C
Lower Zone: 12 -18º C
WINE COOLER (TRIPLE ZONE)
Upper Zone: 41 - 65º F
Middle Zone: 41 - 54º F
Lower Zone: 54 - 65º F
Upper Zone: 5 - 18º C
Middle Zone: 5 - 12º C
Lower Zone: 12 -18º C

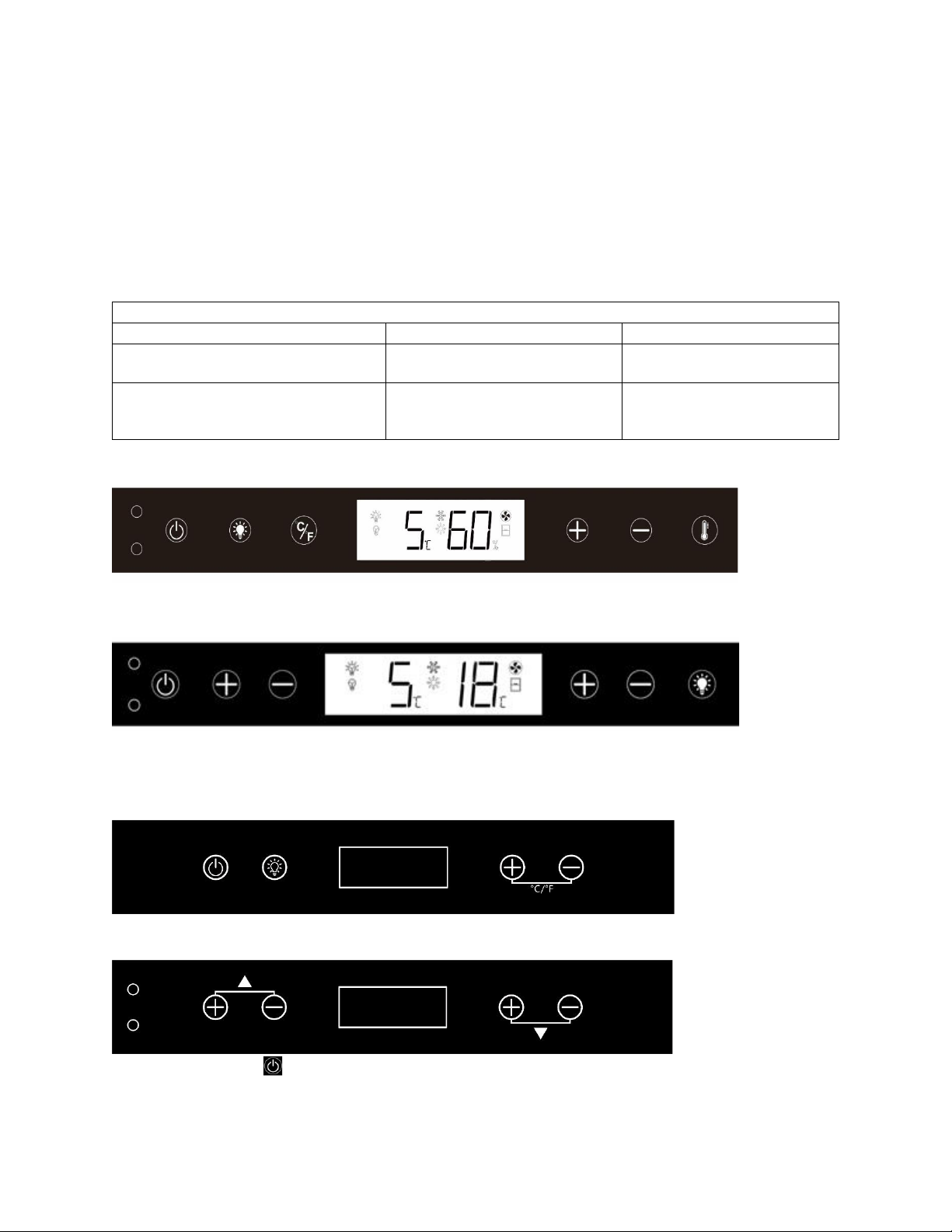

Control Panel for SWC1127B/LWC1Z96 and SWC1926B/LWC1Z193
Control Panel for SWCP2116/LWC2Z97, SWC1966B/ LWC2Z194 and
SWCP2163/LWC2Z195
Recommended Temperatures for Chilling Wine
Control Panel for SWCP1988T/LWC3Z98
Upper zone
Middle/Lower zone
•Press and hold for two seconds on the control panel to turn the cooler on or off. When the
cooler is turned off, the appliance will stop working and totally shut down.

19
Light Setting
•The default light setting turns the light on automatically when the door is opened, and turn the
light off when the door is closed. The LCD screen will show in the default mode.
•Press and hold for three seconds to always keep the light turned on. The LCD screen will
show in this mode.
Temperature Setting
•Press the or to adjust the temperature up or down by 1ºF or 1ºC.
•Press to change the temperature display from Celsius to Fahrenheit or from Fahrenheit to
Celsius for SWC1127B/LWC1Z96 and SWC1926B/LWC1Z193 models.
•Press both the and together and hold for 3 seconds to change the temperature display
from Celsius to Fahrenheit or from Fahrenheit to Celsius for the SWCP2116/LWC2Z97,
SWC1966B/ LWC2Z194, SWCP2163/LWC2Z195 and SWCP1988T/LWC3Z98 models.
Warning System
•The door alarm will beep three times every five seconds, and the LCD screen will display
when the door is open for over 5 minutes. Press any key or close the door to stop the alarm.
•When the temperature inside the appliance is below 35.6ºF (2ºC) for over 3 hours, the alarm will
sound and the LCD screen will display . . . Press any key to stop the alarm from
sounding.
•When the temperature inside the appliance is above 77.ºF (25ºC) for over 6 hours, the alarm will
sound and the LCD screen will display . Press any key to stop the alarm from sounding.
Recommended Temperatures for Chilling Wine
To preserve the quality and taste of your fine wines, they must be stored at the ideal temperature
and ambient conditions. The ideal wine chilling temperatures are listed below:
Red Wines
58 - 65 ºF
15 - 18 ºC
Dry / White Wines
48 - 57 ºF
10 - 14 ºC
Rosé Wines
49 - 51 ºF
9 –11 ºC
Sparkling Wines
40 - 47 ºF
5 - 8 ºC

20
CARE AND MAINTENANCE
Cleaning your Appliance
1. Turn off the power, unplug the appliance, and remove all items, including the shelves.
2. Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
3. Wash the shelves with a mild detergent solution.
4. Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
5. Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry
with a clean soft cloth.
6. Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless
steel with steel particles and rusting may occur.
Charcoal Filtration System
Your cellar is equipped with an active charcoal filtration system to ensure air purity, cooling
efficiency, and to maintain an odor-free cabinet for the storage of your wine. The filter assembly is
located at the rear panel inside your cooler. To replace your filter:
1. Remove the bottles/cans stored on the two shelves in front of the filter.
2. Remove the shelves and set aside to be replaced once you have changed the filter.
3. Hold the filter and turn it at 90 degrees in a counter-clockwise direction and then pull it out.
4. Remove the existing filter and replace with a new one.
5. Put the new filter into the hole and then turn the filter 90 degrees in a clockwise direction.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your contents.
Moving your Appliance
•Remove all items.
•Securely tape down all loose items (shelves) inside your appliance.
•Tape the door shut.
•Be sure the appliance stays secure in the upright position during transportation.
•Protect outside of appliance with a blanket or similar item.
Energy-Saving Tips
The appliance should be located in the coolest area of the room, away from heat producing
appliances, and out of direct sunlight.
