SUMO LIGHT SUMOSPACE User manual
August 2018
SUMOSPACE
Quick Start Guide
2
August 2018
Contents
SUMOSPACE QUICK START GUIDE
3 Safety
4 Product Elements
5 Installation
6 Display Panel
9 Network Connector Panel
10 Yoke Mount
10 Lenses
11 Technical Specifications
3
August 2018
SAFETY WARNINGS
Caution, high light intensity. Do not look directly into the LEDs. The LEDs are classified Risk Class I for
blue light radiation.
The housing can reach temperatures up to 85°C during operation. Keep a sufficient distance to cords
and surfaces of other equipment.
Operate the device only with SUMOLIGHT power supplies and products.
Securing the fixture: When suspending the fixture or operating it over people, the fixture and attached
accessories must be secured against accidentally falling by use of a safety cable.
Do not store or operate the fixture in water or rain.
SUMOLIGHT and its affiliated companies and third party suppliers shall not be liable for any incidental, special or
consequential losses, costs or damages incurred by buyer or others, directly or indirectly arising from the sale,
handling or use of the products described herein, or from any other cause with respect to the products, whether
such claim is based upon breach of contract, breach of warranty, strict liability in tort, negligence or any other
legal theory (including without limitation, lost profits, revenues, anticipated sales, business opportunities,
goodwill, or interruption of business or other injury or damage).
Before using the device described in this manual, make sure that you have read and understood all instructions.
All products sold by SUMOLIGHT shall be used by qualified professionals only. The burden for safe use and
handling of all SUMOLIGHT products is entirely the responsibility of the purchaser and/or anyone who receives
said products from the purchaser.
CAUTION! Operate the SUMOSPACE ONLY with the covers or lenses installed
in front of the LEDs. Do not connect the SUMOSPACE Power Supply to the
mains when the covers or lenses are removed. Risk of electric shock!
4
August 2018
PRODUCT ELEMENTS
1. SUMOSPACE Fixture
2. Yoke
3. Yoke Handle
4. Baby and Junior Mount
5. Suspension Hanging and Accessory Hooks
6. Power Connector Panel
7. Network Connector Panel
8. Display Panel
9. Lenses
Single Lens Plate
5
August 2018
10. Power Supply
11. Power Switch
12. AC Power Connector
13. Head Power Connector
14. Head Feeder Cable
15. AC Power Cord
INSTALLATION
Connect SUMOSPACE fixture Power Connector (16) to the Head Power Connector (13) with the Head Feeder
Cable (14).
Connect the AC Power Cord (15) with the AC Power Connector (12) and the mains.
Switch on the Power Switch (11) on the Power Supply (10)
16. Power Connector
You can now control the SUMOSPACE with the Display Panel (8) on the fixture or externally over DMX/RDM over
standard DMX cable or over LAN and Wi-Fi.
6
August 2018
DISPLAY PANEL
Display Key Functions
Key Function
Standby; LEDs OFF;
______________________________________________________________________________________________
Set 5 / 50 digits down
______________________________________________________________________________________________
Set 1 / 5 digit down
______________________________________________________________________________________________
Set 5 / 50 digits up
______________________________________________________________________________________________
Set 1 / 5 digit up
______________________________________________________________________________________________
INTENSITY
Key combination shortcuts. Press two Keys simultaneously.
Key Function
INTENSITY = 0 %
______________________________________________________________________________________________
INTENSITY = 100 %
______________________________________________________________________________________________
INTENSITY = 50 %
______________________________________________________________________________________________
COLOR TEMPERATURE
Key combination shortcuts. Press two Keys simultaneously.
Key Function
COLOR TEMPERATURE = 3200 K
______________________________________________________________________________________________
COLOR TEMPERATURE = 5600 K
______________________________________________________________________________________________
COLOR TEMPERATURE = 4300 K
______________________________________________________________________________________________
7
August 2018
Extended Functions
Key Function
If the Standby key is pressed for more than 5 seconds you
> 5 sec. can toggle between Factory Default Settings (Signal LED
GREEN) and last User Settings (Signal LED BLUE)
______________________________________________________________________________________________
Flash Erase; Display shows “FLASH ErASE”; All the user
DMX ADDRESS parameters will be reverted back to the factory default values
permanently
______________________________________________________________________________________________
Check IP-address and network mode. Displayed will be first
INTENSITY CLOR TEMP the IPs first two Bytes, then the IPs last two Bytes, followed
by the network mode.
- “SLA no con”: Slave mode, not connected to a master/
router
- “SLA Lan con”: Slave mode, connected to a master/router
via ethernet
- “SLA WiFi con”: Slave mode, connected to a master/router
wirelessly
- “net AP”: Master mode, the fixture serves a WLAN Access
Point.
______________________________________________________________________________________________
8
August 2018
Signal LEDs
Signal LED Functions
LED Function
DMX | LAN | WiFi • GREEN DMX Input is plugged. Incoming DMX data will be received.
DMX overrides data over LAN/Wi-Fi.
• RED DMX over LAN; DMX Input is unplugged. Incoming DMX data
over LAN Network.
•BLUE DMX over WLAN; DMX Input is unplugged. Incoming DMX
data over WLAN Network.
•OFF No incoming DMX data. DMX Input is unplugged.
______________________________________________________________________________________________
DMX 8 | 16 bit • GREEN 8 bit Mode; The DMX footprint has 2 channels.
Start address: intensity
Start address+1: color temperature
•BLUE 16 bit Mode; The DMX footprint has 4 channels.
Start address: intensity MSB
Start address+1: intensity LSB
Start address+2: color temperature MSB
Start address+3: color temperature LSB
______________________________________________________________________________________________
Default | User • GREEN Factory Default Settings
•BLUE User Settings
• RED Network Master Mode (User Settings)
______________________________________________________________________________________________
9
August 2018
NETWORK CONNECTOR PANEL
The Network Connector Panel (7) offers besides the Display Panel many additional options to control the
SUMOSPACE and readout important parameter like temperature and working hours of the fixture.
Connector Function
Wi-Fi USB Port with Wi-Fi Dongle.
The SUMOSPACE has a built-in router. You can connect the
fixture with your smartphone or computer and control it with
the web browser. Type in your browser http://sumo or use
IP address: 192.168.111.1
______________________________________________________________________________________________
LAN LAN Port.
Offers similar functions to the Wi-Fi connection.
______________________________________________________________________________________________
WAN WAN Port.
Is used to create a network with other SUMOSPACEs.
______________________________________________________________________________________________
DMX IN 5 pin male XLR connector for standard DMX cables and DMX
controller. An attached DMX connector overrides all other
control connections like Wi-Fi.
______________________________________________________________________________________________
DMX OUT 5 pin female XLR connector for standard DMX cables for daisy
chaining the DMX line. It is also possible to control other
SUMOSPACEs over DMX OUT.
______________________________________________________________________________________________
For a detailed description of all features, please read the SUMOSPACE Webpage & Configurations User
Manual.
WIFI LAN WAN DMX IN DMX OUT
10
August 2018
YOKE MOUNT
The Yoke Mount is attached from the back side of the SUMOSPACE fixture with two 3/8” thumb screws. To
mount it first align the guiding pins on the inner side of the Yoke Mount with the sliding bars in the corners of the
fixture. Then fasten the two 3/8” thumb screws. To remove the Yoke Mount, you only need loosen the two 3/8”
thumb screws and pull out the Yoke.
p
Yoke Mount with detail of Yoke Mount Holder with guiding pin
LENSES
Exchangeable lenses of 30° and 60° beam angle are available.
Without any lens the beam angle is 120°
Single Lens Plate
Insertion and changing Lenses
Push back the lens towards the outside until it slides out of the lens holder in the middle of the fixture and lift it
upwards. Insert the chosen lens in the same way. Insert the outer face first then slide it under the lens holder in
the middle.
11
August 2018
TECHNICAL SPECIFICATIONS
SUMOSPACE Lighting Fixture
Weight 5.4 kg (12 lbs)
______________________________________________________________________________________________
DC Input Voltage 400 V DC
______________________________________________________________________________________________
Input Power Max. 400 W
______________________________________________________________________________________________
Beam Angle 30°, 60° and 120° (without lenses)
______________________________________________________________________________________________
Color Range 2800 - 6500 K
______________________________________________________________________________________________
Color Rendition TLCI 99, CRI 95
______________________________________________________________________________________________
Control DMX, RDM, LAN, Wi-Fi; Art-Net, sACN
______________________________________________________________________________________________
Ambient Operating Temperature -20…+45° Celsius
______________________________________________________________________________________________
Operating Altitude <2000 m
______________________________________________________________________________________________
Ambient Protection Class IP20
______________________________________________________________________________________________
IEC Protection Class I
______________________________________________________________________________________________
Dimensions (without Youke Mount) 561 x 500x 94 mm (22 x 19.7 x 3.7”)
______________________________________________________________________________________________
Power Supply Unit
Power Supply Input Range 100-240 VAC | 5.0 A | 50/60Hz
______________________________________________________________________________________________
Power Supply Output 400 V DC | 1 A | 400 W Max.
______________________________________________________________________________________________
Weight 3.4 kg (7.5 lbs)
______________________________________________________________________________________________
Dimensions 318 x 176 x 129mm (12.5 x 6.9 x 5.1”)
______________________________________________________________________________________________
12
August 2018

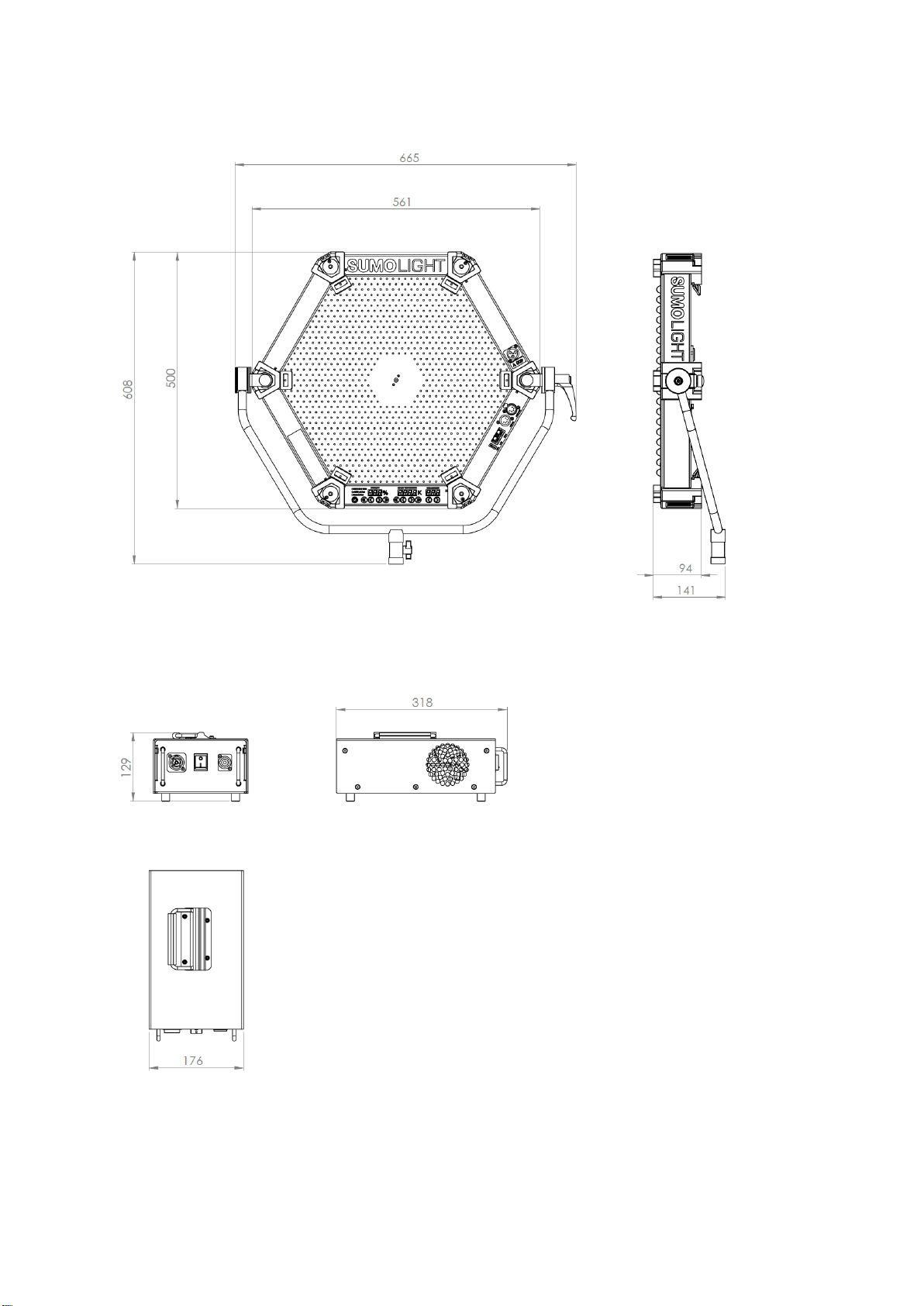

Dimensions SUMOSPACE fixture with Yoke Mount
Dimensions Power Supply
13
August 2018
SUMOLIGHT GMBH
BERLIN
MADE IN GERMANY | SUMOLIGHT.COM
