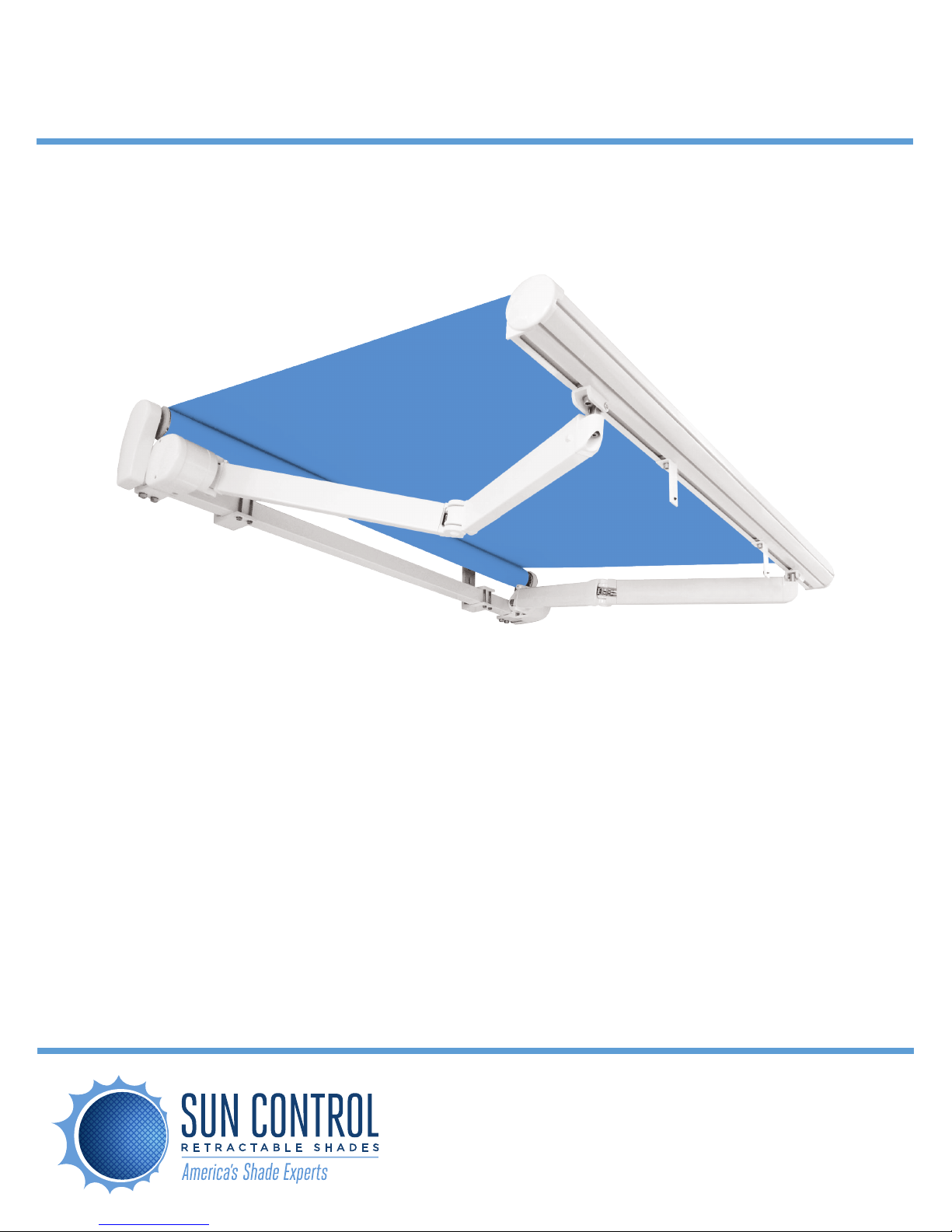

sun control TUCSON XL PATIO AWNING User manual

1109
TUCSON XL PATIO AWNING
Toll Free 877-792-1775 | Fax [phone]
swsuncontrolpro.com | [email protected]
TUCSON XL PATIO AWNING
INSTALLATION MANUAL
Installation Manual

1109
TUCSON XL PATIO AWNING
22
Installation Manual
1 INTRODUCTION...................................................................................................................3
1.1 Symbols used in this manual..................................................................................................................... 3
1.2 Personnel requirements............................................................................................................................. 3
1.3 Required equipment .................................................................................................................................. 3
1.4 Contents of packaging .............................................................................................................................. 4
2 SAFETY ................................................................................................................................4
2.1 General safety information ........................................................................................................................ 4
2.2 Requirements for working in safety........................................................................................................... 4
2.3 Working environment................................................................................................................................. 4
3 TECHNICAL TABLES FOR INSTALLATION ..........................................................................5
3.1 Table of minimum overall sizes.................................................................................................................. 5
3.2 Table no. of arms, mounting brackets, tube balance supports and hood supports ................................. 5
3.3 Table of awning dimensions / component placement............................................................................... 5
3.4 Exploded view of Tucson XL components ................................................................................................ 7
3.5 Diagrams of the covering and footprints ................................................................................................... 8

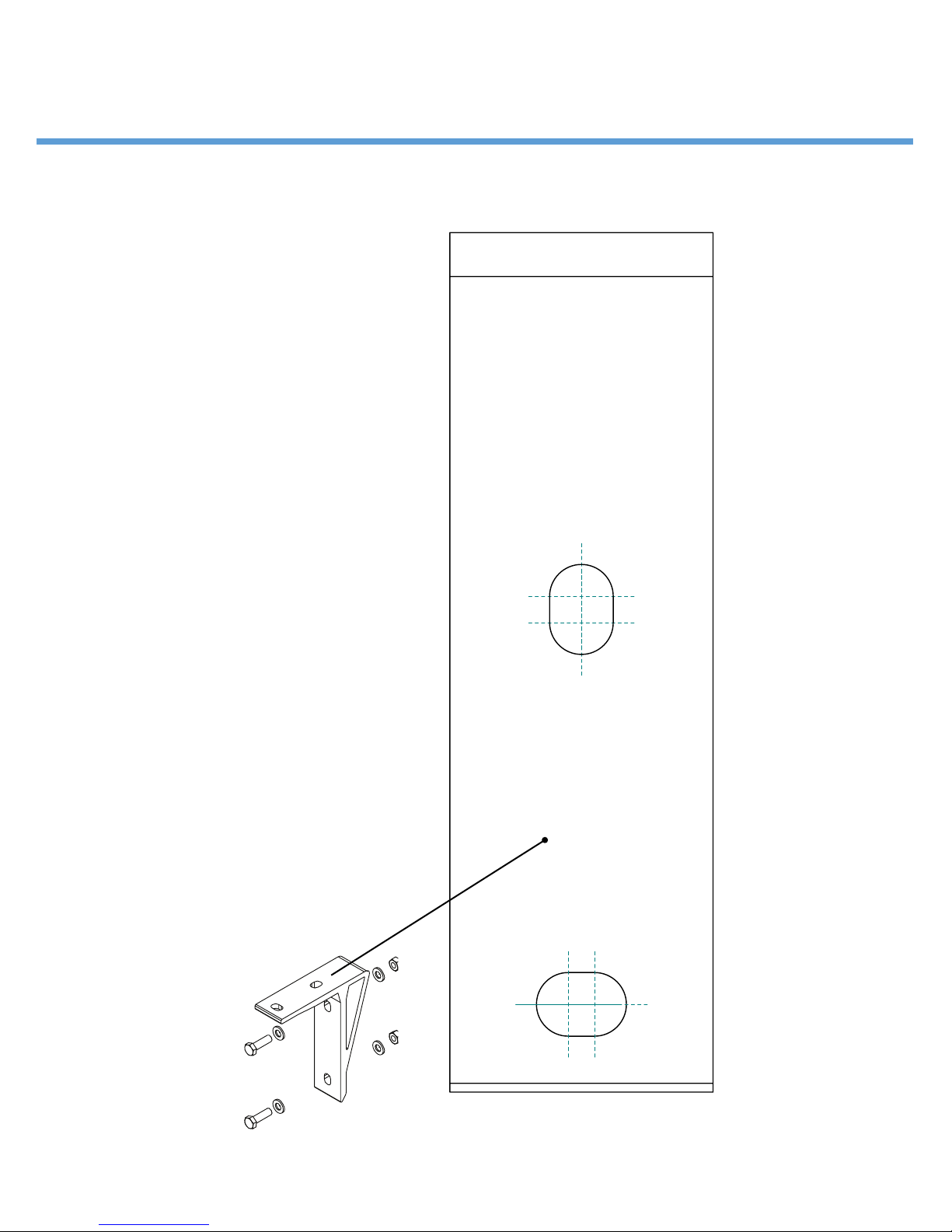

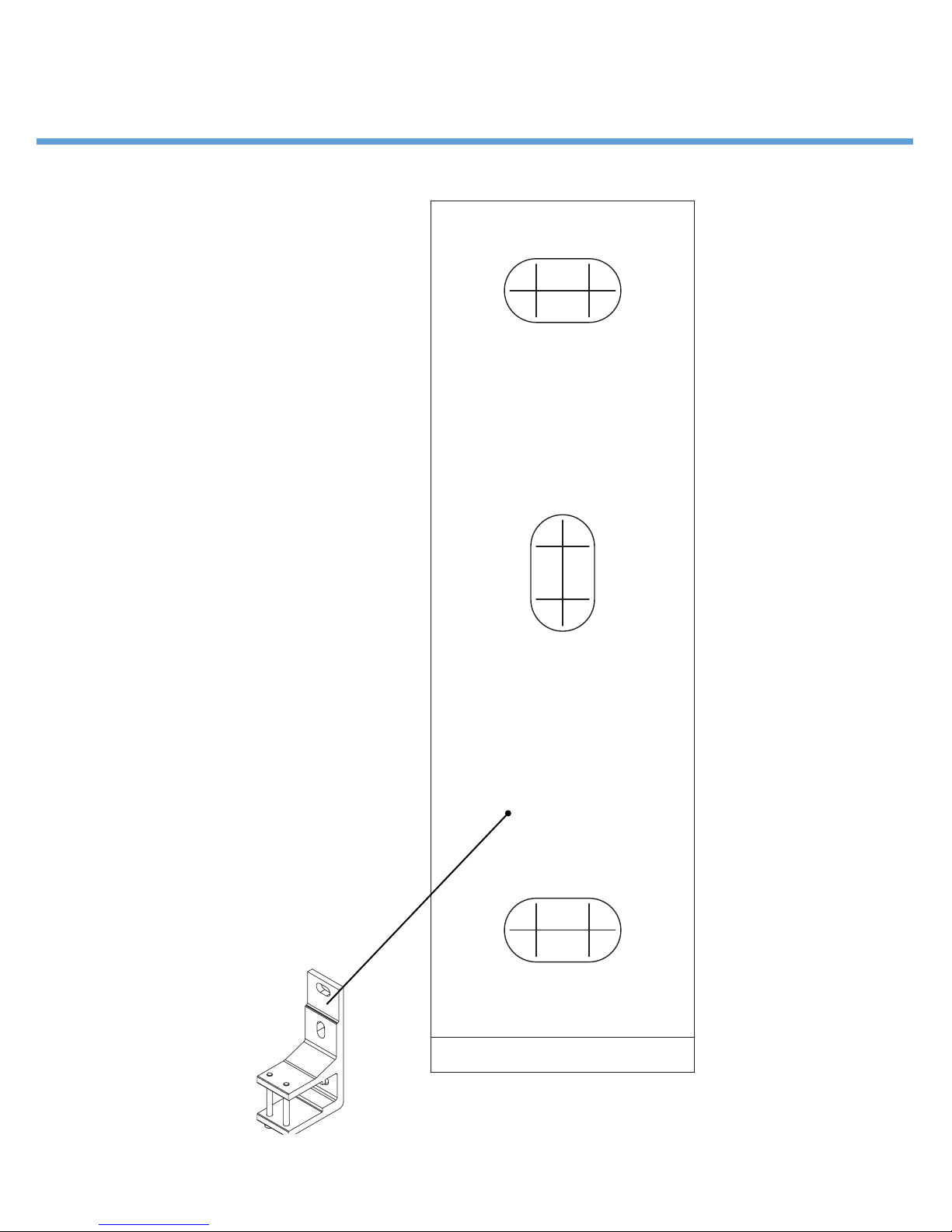

3.6 Mounting brackets..................................................................................................................................... 9
4 INSTALLATION OF MANUAL AWNING ................................................................................ 10
4.1 Fastening brackets to wall......................................................................................................................... 10
4.2 Wall installation.......................................................................................................................................... 13
4.3 Adjustment of awning inclination............................................................................................................... 14
5 INSTALLATION OF MOTORIZED AWNING .......................................................................... 15
5.1 Limit switch calibration.............................................................................................................................. 15
5.2 Electrical connections and installation ...................................................................................................... 15
6 OPTIONALS ......................................................................................................................... 15
6.1 Automations .............................................................................................................................................. 15
7 SPECIAL MAINTENANCE .................................................................................................... 16
7.1 Troubleshooting table ................................................................................................................................ 16

1109
TUCSON XL PATIO AWNING
33
Installation Manual
1 INTRODUCTION
This manual was prepared by the Manufacturer to provide the necessary information to those authorized to install
and perform special maintenance on the product. It is prohibited to remove, rewrite or in any way modify the
pages of the manual and their content.
Operations must be carried out by personnel with the technical and professional skills required by current
applicable national laws or standards.
This manual must be kept complete in all its parts in an easily accessible place.
The manufacturer reserves the right to update products and corresponding manuals without the obligation to
update previous manuals.
The manufacturer reserves all rights on this manual. It may not be reproduced in any way, wholly or in part,
without the manufacturer's written authorization.
1.1 - Symbols used in this manual
The WARNING symbols used in this manual are given below.
INFORMATION AND PRECAUTIONS
Useful advice and instructions to be observed to ensure proper installation and/or maintenance of the awning.
Failure to observe these messages may compromise the integrity and/or the resistance of the product.
WARNING
Danger to operator! Instructions to be evaluated and followed carefully. Failure to comply with these messages
may compromise individual safety.
1.2 - Personnel Requirements
Personnel assigned to this operation must have technical knowledge of the product obtained either through two
years' experience or by means of a suitable technical training course.
1.3 - Required Equipment
To ensure proper installation of the awning, and consequently best operation of the nished product, the following
equipment is required:
•power screwdriver
• a level
• string
• complete tool set
• equipment for working at heights (scaffolding, ladders, aerial platforms, etc.) which are compliant with current
standards of individual safety in the workplace.
WARNING
All of the screws used on aluminum components must be tightened with a maximum force of 20Nm (=2Kgm).
Greater tightening force causes the castings to break and damage to the stainless steel screws. It is advisable
to use dynamo-metric power screwdrivers and wrenches.
WARNING
Use low-speed power screwdrivers. Screwing in the stainless steel screws at high speed may cause the
threads to jam, especially in the case of stainless steel/stainless steel and stainless steel/ aluminum screws
and threads.
WARNING
In the wall/ceiling supports with double screw, be sure to evenly screw the two fastening screws of the square
bar, distributing the tightening force alternatively on the two screws up to a maximum of 20 Nm. Uneven
tightening may cause abnormal tension in the casting, causing it to fail immediately, or lead to subsequent
problems caused by external stress on the awning (e.g. gusts of wind).

1109
TUCSON XL PATIO AWNING
44
Installation Manual
1.4 - Contents of packaging
The awning is delivered complete with arms, fabric, control (manual or motorized) and any requested optional.
INFORMATION AND PRECAUTIONS
Never move the arm supports from the position in which they are supplied.
2 SAFETY
2.1 - General Safety Information
• During all operations described in this manual, make sure that ONLY individuals involved in the work are in the
work zone (see Chap. 1.2 “Personnel requirements”) .
• Do not set objects on the fabric of the awning.
• It is prohibited to stand on or hang from the awning. This would create the risk of severe personal injury, as
well as damaging the awning.
• Wear personal protective equipment and clothing as required by current standards on safety in the workplace.
WARNING
Installation, adjustment, and special maintenance of the awning must be carried out only by specialized,
skilled technical personnel.
WARNING
It is prohibited to install or place ladders or other objects near the awning, as this would reduce the space
required for installation.
WARNING
Never loosen the awning more than the tension in the arms as there is the risk that the awning return under
the tube and be ruined.
2.2 Requirements for working in safety
• Before use, check that all temporary structures (scaffolding, ladders, etc.) and all individual safety Gear
(harnesses, belts, etc.) are compliant with standards and in good condition.
• Do not set objects on the fabric of the awning.
• Always use suitable individual protection gear.
• If there is more than one installation technician, their work must be coordinated.
• Operators must work in compliance with the safety instructions given to them.
• If the awning is to be installed above ground level, the area underneath the awning must be marked off and
guarded so that no one can get underneath the hanging load.
• Firmly tie the ropes or straps around the shoulders so that it does not slip and risk falling.
2.3 Working environment
• Installation and special maintenance must be carried out in a place that is sufciently illuminated (based on
specic standards) by either natural or articial lighting. The operator must have a clear view of the work to
be performed, and he must also prevent third persons from approaching the work area around the awning.

1109
TUCSON XL PATIO AWNING
55
3 TECHNICAL TABLES FOR INSTALLATION
3.1 - Table of minimum overall sizes
INFORMATION AND PRECAUTIONS
It is advisable always to use an even number of arms.
MINIMUM FOOTPRINTS
PROJECTION (in) WIDTH (in)
ARM 1 PAIR OF ARMS
15'1" 210
15'11" 219
3.2 Table of no. of arms, mounting brackets, tube balance supports and hood supports
PROJECTION COMPONENTS Width (in)
236 275 315
15'1"
Arms 2 2 3
Mounting Brackets 6 6 6
Tube Support 1 1 1
Hood Support 5 6 6
15'11"
Arms 2 2 2
Mounting Brackets 6 8 8
Tube Support 1 1 1
Hood Support 5 6 6
For a correct installation it is advisable to follow the instructions here above.
3.3 Table of awning dimensions / component placement
WARNING
THE FOLLOWING TABLES ARE PURELY INDICATIVE. TO THE BEST OF OUR KNOWLEDGE THE INFORMATION
IS UP TO DATE SW SUN CONTROL DOES NOT PROVIDE ANY GUARANTEE REGARDING ACCURACY,
RELIABILITY, AND COMPLETENESS OF THE INFORMATION CONTAINED HEREIN. INDEED, IT IS THE
USER’S RESPONSIBILITY TO ENSURE THE SUITABILITY AND CORRECTNESS OF THIS INFORMATION.
INFORMATION AND PRECAUTIONS
For the number of accessories to install on the awning, please refer to the table on section 3.2 above.
WARNING
Distribute the HOOD SUPPORTS evenly throughout the width of the awning. If the position of the supports
coincides with that of the mounting brackets, position them adjacent to the latter. If the TUBE BALANCE
SUPPORTS coincides with that of a deck seam, position the support centered directly over the deck seam.
WARNING
The awning is tested in its maximum size of no more than 236 in.
Installation Manual

1109
TUCSON XL PATIO AWNING
66
Installation Manual
INFORMATION AND PRECAUTIONS
Determine the center point of the overall width of the square bar for proper component placement. Component
placement goes from square bar edge to center and is mirrored on both sides of awning when table calls for
even number of components.
L
LEFT EDGE RIGHT EDGE
Width = Largitezza in Italian
"L"
2 ARMS
COMPONENTS PLACEMENT WIDTH up to 236 (in)
15'1" 15'11"
Shoulders 18 16
Wall Bracket (6) 12 28 100 10 25 102
2 ARMS
COMPONENTS PLACEMENT WIDTH up to 275 (in)
15'1" 15'11"
Shoulders 26 26
Wall Bracket 15'1" (6) 15'11" (8) 16 34 106 16 34 91 134
2 ARMS
COMPONENTS PLACEMENT WIDTH up to 315 (in)
15'1" 15'11"
Shoulder 35 35
Wall Bracket 15'1" (6) 15'11" (8) 24 47 102 24 47 102 158

1109
TUCSON XL PATIO AWNING
77
Installation Manual

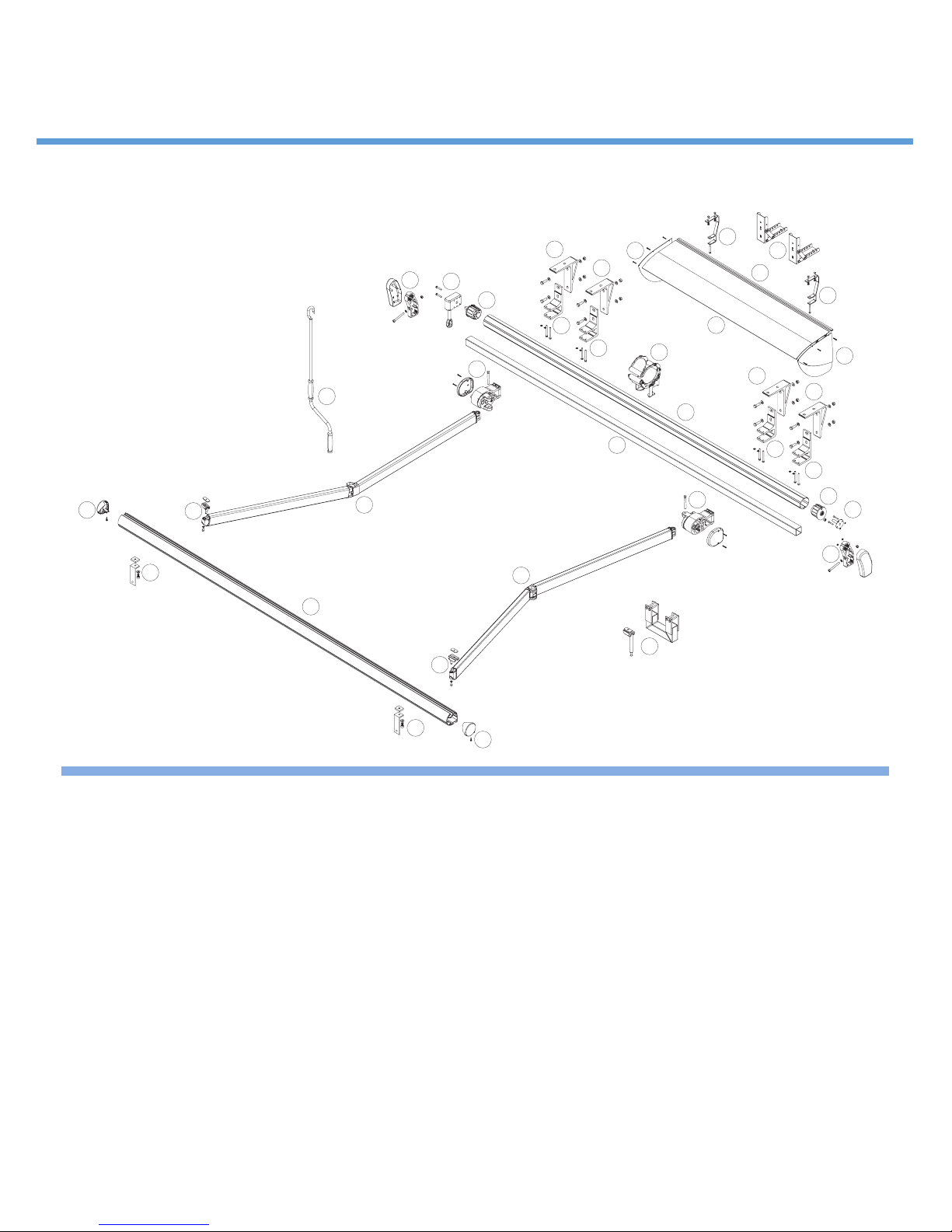

3.4 - Exploded View of Tucson XL Components
6
12
13
15
21
21 15
13
12
6
5
7
3
3
20
8
10
19
22
19
18
16
17
17
7
14
3
3
1
9
2
4
11
4
23
4
4
1 7:1 gear
2 Hand brace
3 Wall brackets
4 Ceiling brackets
5 Square bar
6 Shoulder
7 Tube support bracket set with covers
8 Tube
9 Square pin tube cap
10 Round cap with hole and bearing
11 Plate with pin screws set
12 “Tucson XL” arms with chain
13 Runners for “Tucson XL” arms
14 Front bar
15 Front bar end covers
16 Hood
17 End covers for hood
18 Hood gasket
19 Hood supports
20 Tube balance support
21 Arms picking runners
22 Roof bracket
23 Kit crossed arms

1109
TUCSON XL PATIO AWNING
88
Installation Manual
3.5 Diagrams of the covering and footprints
WALL INSTALLATION DIAGRAM
FIG. 1
0
0°
15°
30°
45°
Height
(in)
59.0625
11.8125
7.875
3.9375
23.625
15.75”
19.6875
27.5625
31.5
47.25
35.4375
39.375
43.3125
51.1875
55.125
106.3125
82.6875
70.875
63”
66.9375
74.8125
78.75
94.5
86.625
90.5625
98.4375
102.375
118.125
110.25
114.1875
122.0625
126”
129.9375
137.8125
133.875
149.625
141.75
145.6875
153.5625
157.5
161.4375
165.375
169.3125
173.25
177.1875
181.125
59.0625 11.8125 7.875
3.9375
23.625 15.75” 19.6875 27.5625
31.5
47.25
35.4375
39.375 43.3125 51.1875 55.125
106.3125 82.6875 70.875 63” 66.9375 74.8125 78.75 94.5 86.625
90.5625 98.4375
102.375 118.125 110.25
114.1875 122.0625
126”
129.9375 137.8125 133.875 149.625 141.75 145.6875 153.5625 157.5 161.4375
165.375 169.3125
173.25 177.1875 185.0625 189
192.9375
181.125
Projection
(in)
10 (in)
12 (in)
45°
CEILING INSTALLATION DIAGRAM
FIG. 2
0
0°
15°
30°
45°
Height
(in)
59.0625
11.8125
7.875
3.9375
23.625
15.75”
19.6875
27.5625
31.5
47.25
35.4375
39.375
43.3125
51.1875
55.125
106.3125
82.6875
70.875
63”
66.9375
74.8125
78.75
94.5
86.625
90.5625
98.4375
102.375
118.125
110.25
114.1875
122.0625
126”
129.9375
137.8125
133.875
149.625
141.75
145.6875
153.5625
157.5
161.4375
165.375
169.3125
173.25
177.1875
181.125
59.0625 11.8125 7.875
3.9375
23.625 15.75” 19.6875 27.5625
31.5
47.25
35.4375
39.375 43.3125 51.1875 55.125
106.3125 82.6875 70.875 63” 66.9375 74.8125 78.75 94.5 86.625
90.5625 98.4375
102.375 118.125 110.25 114.1875 122.0625
126”
129.9375 137.8125 133.875 149.625 141.75 145.6875 153.5625 157.5 161.4375 165.375 169.3125 173.25 177.1875 185.0625 189 192.9375 181.125
Projection
(in)
10.25 (in)
45°
12.75 (in)
14.75 (in)
10.25 (in)
10.25 (in)
10.25 (in)

1109
TUCSON XL PATIO AWNING
99
Installation Manual
3.6 Mounting brackets
.55” 1.26” .55”
.39”
M8
.59”
2.28”
.47”
2.95”
1.5”
M8
.98”
.98”
.98”
.95” .95”
.95” .95” .32”
.47”
.47”
2.36”
7.8”
FIG. 3
1.14”
.23”
.23”
.23”
5.49” 2.08”
.77” 3.43” 3.26”
1.18”
1.18”
1.06” 1.06”
1.18”
1.18”
9.17”
7.71”
7.71”
FIG. 4
WALL BRACKET
CEILING BRACKET

1109
TUCSON XL PATIO AWNING
1010
Installation Manual
4 INSTALLATION OF MANUAL AWNING
The instructions below refer to wall mounting; ceiling mounting is the same. If any options are in use, rst read
Chapter 6 "Optionals"
WARNING
Ensure a minimum space of 19.75 inches between the open awning and any xed obstacle.
The awning must be installed at a minimum height of 98.5 inches. If this is not possible, for awnings equipped
with automations it is obligatory to install an acoustic warning device.
INFORMATION AND PRECAUTIONS
Use the most suitable attachment hardware for the type of wall where the awning is to be installed.
INFORMATION AND PRECAUTIONS
For CEILING INSTALLATION, DO NOT FASTEN THE BRACKETS TO THE BLOCKS.
The awning may fall with the risk of serious injury to individuals and damage to the product.
INFORMATION AND PRECAUTIONS
The procedure described below refers to the model of awning with two arms. The operator must take the
necessary measures for the installation of models with more than two arms.
4.1 - Fastening brackets to wall
INFORMATION AND PRECAUTIONS
The instructions that follow are of a general nature and must therefore be adapted to the model of awning
being assembled.
1) Before starting installation, take note of the following information, which is indispensable to nd the right
position for fastening the brackets:
• dimensions of the awning (see Chap 3.1)
• dimensions of the mounting brackets (see Chap. 3.6)
• number of shoulders (see Chap.3.2)
• side of awning where operation is located;
• dimensions of the wall/ceiling where the awning is to be installed.
FIG. 5
(For the support and bracket positions, see Chapter 3.3).
2) Using a string and a level, mark the position of the holes to be made on the wall.
INFORMATION AND PRECAUTIONS
To facilitate the installation process, pages 11 and 12 may be printed in A4 format for use as templates to nd
the best positions for the holes.
WARNING
To avoid gross errors, make sure the print out scale is 1:1, checking the measure indicated on the paper with
a ruler or caliper in relation to the dimensions indicated on page 9 with automations it is obligatory to install
an acoustic warning device.
