sun control TUCSON XL User guide

1256
TUCSON XL PATIO AWNING
Toll Free 877-792-1775 | Fax [phone]
swsuncontrolpro.com | [email protected]
1
TUCSON XL PATIO AWNING
USE & MAINTENANCE
Use and Maintenance

1256
TUCSON XL PATIO AWNING
22
1 INTRODUCTION...................................................................................................................3
1.1 Symbols used in this manual..................................................................................................................... 3
2 SAFETY ................................................................................................................................3
2.1 General safety information ........................................................................................................................ 3
2.2 Safety devices ........................................................................................................................................... 4
2.3 Residual ricks ............................................................................................................................................ 4
3 DESCRIPTION OF AWNING................................................................................................. 4
3.1 Components.............................................................................................................................................. 4
3.2 Intended use and place of use .................................................................................................................. 5
3.3 Technical data ........................................................................................................................................... 5
4 TRANSPORT AND INSTALLATION OF AWNING .................................................................6
4.1 Transporting the awning ............................................................................................................................ 6
4.2 Installing the awning.................................................................................................................................. 6
5 USING THE AWNING ...........................................................................................................6
6 MAINTAINING THE AWNING ...............................................................................................7
6.1 - Troubleshooting table .................................................................................................................................. 7
6.2 - Cleaning the awning .................................................................................................................................... 8
6.3 - Routine maintenance ................................................................................................................................... 8
6.4 - Special maintenance.................................................................................................................................... 8
7 DISASSEMBLY AND DISPOSAL OF THE AWNING............................................................. 9
8 OPTIONALS ......................................................................................................................... 9
Use and Maintenance

1256
TUCSON XL PATIO AWNING
33
1 INTRODUCTION
This manual for the Tucson XL awning is for its users. It is an essential tool for the proper use and maintenance
of the product. This manual must be kept intact in all its parts and in an easily accessible place until disposal of
the awning.
If the manual is lost or destroyed, the dealer must download a new copy from SW Sun Control and provide the
main product data and the destination of the new copy.
The manufacturer reserves the right to update products and corresponding manuals without the obligation to
update previous products and manuals.
Any tampering or modication to the product without due authorization from the manufacturer releases the
manufacturer of any liability for damage that may arise.
1.1 - Symbols used in this manual
The WARNING symbols used in this manual are shown below.
INFORMATION AND PRECAUTIONS
Instructions and useful advice to ensure proper use and conservation of the awning. Failure to observe these
messages may compromise the integrity and/or the resistance of the product.
WARNING
HAZARD TO OPERATOR! Instructions to be evaluated and followed carefully. Failure to comply with these
messages may compromise personal safety.
2 SAFETY
2.1 - General safety information
• In the event of rain, wind or snow, close the awning completely. Danger of personal injury or damage to
objects.
• It is prohibited to remove the safety devices installed in the awning (see Chap. 2.2 “Safety devices”).
• In the case of a motorized awning, this is opened and closed by pressing a switch and/or through the use
of a radio control. Both of these must be kept OUT OF THE REACH OF CHILDREN.
• Make sure that when opening/closing the awning no persons are within its range of movement.
• Do not lay objects on the fabric of the awning.
• It is prohibited to stand on or hang from the awning. This would create the risk of severe personal injury,
as well as damaging the awning.
• If you have any doubts, contact the dealer BEFORE using the awning.
• Users must not carry out operations or interventions on their own initiative on the awning for which they are
not competent (see Chapter 3.2 “Foreseen use and environment of use” and Chapter 6 “Maintenance”).
• Any tampering or modication without the authorization of the manufacturer releases the manufacturer of
any liability for damage which may arise.
• Users are required to inform the dealer promptly if they nd any defects and/or malfunctions in the safety
devices or if any hazardous situations should occur.
• All cleaning and maintenance must be performed with the electrical power supply disconnected.
• Installation, rst start-up, adjustment and extraordinary maintenance must only be carried out by specialized
technical personnel who are qualied for such duties. Contact Technical Support.
2.2 Requirements for working in safety
(OPTIONAL, only in motorized models)
WIND SENSOR:in the event of strong wind of 20 mph or more, the awning closes automatically. The level of
activation of the wind sensor is recorded during the start-up process described in the Installer’s Manual.
(OPTIONAL, only in motorized models)
MANUAL OVERRIDE: in the event of an electrical power cut, it is possible to rewind the awning using the manual
override.
Use and Maintenance

1256
TUCSON XL PATIO AWNING
44

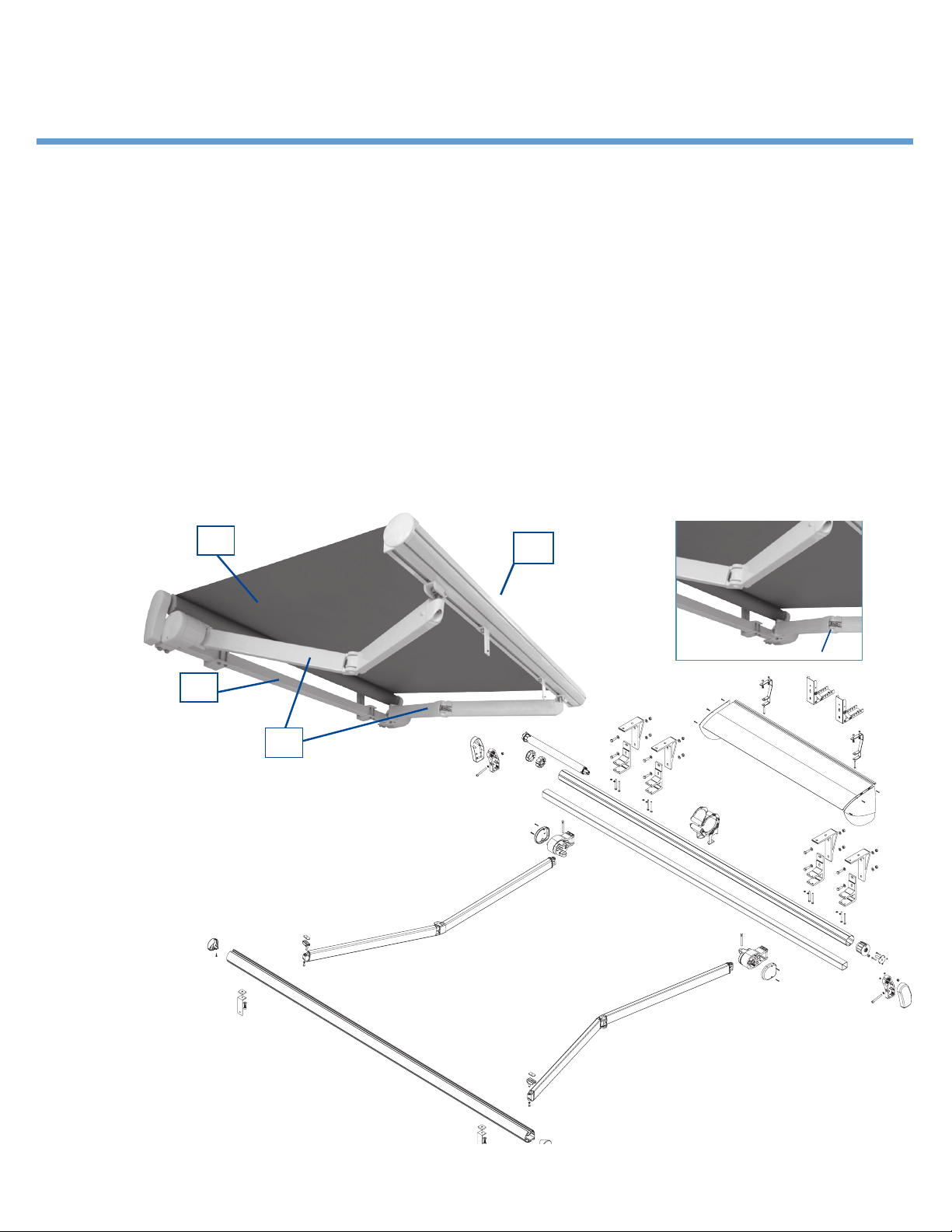

Use and Maintenance
C
B
Square
Bar
Fabric
Arms
Front Bar
D
E
Stainless Steel Chain
1 7:1 gear
1/A Gear screws set
2 Hand brace
2/A Hand brace clip
3 Wall square bar extruded brackets
3/1 Ceiling extruded brackets
4 Square bar arm supports
5 Blind roller support set with covers
6 Tube
7 Square pin tube cap
8 Tube cap with hole and bearing
8/A Round plate with round pin
8/B Plate with pin screws set
9 Square bar
10 Arms with chain “Tucson XL”
12 Runners for “Tucson XL” arms
13 Front bar
14 Front bar end covers
15 Belt balance support
16 Hood supports on square bar
17 Hood
18 End covers for hood
19 Hood gasket
23 Arms picking runners
24 24 Kit crossed arms
25 Roof bracket
2.3 Residual risks
DANGER OF CRUSHING OF FINGERS/UPPER LIMBS between the arms in the closing and opening phase of
the awning. It is obligatory to install the product at a minimum height of 98.5 inches. If this is not possible, the
purchaser must agree to th installation and the possible dangers.
3 DESCRIPTION OF THE AWNING
The Tucson XL awning with arms can be installed either on a wall or ceiling, with manual or
motorized operation. In the latter case, on request it is possible to install the wind sensor, the rain sensor,
the sun sensor and the manual override.
3.1 - Components
The awning is composed of a metallic frame and fabric.
• Metallic frame: this is the load bearing support which contains the various mechanisms for opening and
closing the awning. This is formed of a square bar (B), front bar (C), mechanical arms (D) equipped with
stainless steel chain and a roller tube.
• Fabric (E): acts to cover and protect the awning.
The building materials ensure good resistance to wear caused by use or by atmospheric agents.

1256
TUCSON XL PATIO AWNING
55
3.2 Intended use and place of use
The function of the awning is to protect against sunlight and eventually also to adjust reection in the space under
which it is located. The product, with pre-xed type installation, is only intended for the fabric to move up and
down, for reaching and remaining in positions of maximum opening and closing and possibly intermediate ones.
The awning must only be used as described above, even if packed with waterproof fabrics or in PVC. The awning
may be used by non-professional operators provided they are adults.
WARNING
Any use other than the aforementioned IS PROHIBITED, since the operating conditions may create hazards
for individuals. IT IS PROHIBITED to use the awning as a support base for objects and/or to support people.
Improper use releases the manufacturer of any damage caused to persons or property. Failure to comply with the
conditions of use automatically voids any type of warranty provided by the manufacturer.
WARNING
In the event of rain, wind or snow, CLOSE the awning completely. Danger of personal injury or damage to
objects.
INFORMATION AND PRECAUTIONS
Operation in icy conditions may damage the awning!
The product can be placed at any height above the ground over a minimum level of 98.5 inches. If there is an
opening/closing switch (only with motorized awning), it must be located in a protected position, at a minimum
height of 60 inches from the ground and in a area that is not hazardous when entered.
WARNING
Use a locking switch (with key) if the awning is installed in sensitive locations such as schools, hospitals,
retirement homes, etc. If the awning is equipped with a radio control, keep it out of the reach of children.
The radio control can also be used outdoors, provided the system has an IP55 degree of protection. The space
available at the time of installation must take into account the range of movement and allow the awning to open
at its full extension.
WARNING
It is prohibited to install or place ladders or any xed object near the awning which may reduce the space
required by the awning.
3.3 Technical data
Maximum overall size and weight (1 pair of arms)
Width (inches) 236.25
Projection (with awning open) (inches) 191
Approx. Weight (lbs) 198.5
Roller tube ( Ø mm) 80
Performance and safety in accordance with UNI EN13561:2004
Wind resistance class 1
Nominal test pressure p(N/m2) a=1 40
Water traps resistance class 2
Motor (if present)
Type See assembly manual for the install motor
Characteristics EC marked; approved for awnings
Use and Maintenance

1256
TUCSON XL PATIO AWNING
66
4 TRANSPORT AND INSTALLATION OF THE AWNING
4.1 - Transporting the awning
Shipping and handling are the responsibility of the dealer and/or the manufacturer, who shall ship
the product using packaging that protects the product properly until it is delivered to the client.
Damage to the product caused by disassembly of the awning and subsequent shipping and/or handling are
not covered by the warranty.
The packaging materials must be disposed of and/or recycled in compliance with current standards in the country
in which the product is to be used.
4.2 Intended use and place of use
WARNING
The assembly of the components, installation and start up of the product must be performed only by
authorized, qualied technicians, and are the responsibility of the dealer and/or of the manufacturer.
All instructions and the main safety standards to perform these operations are described in the “Assembly
Manual” and in the “Installation Manual”.
The position selected by the user for installation of the product must ensure sufcient range and the space to
open the awning to its full extension (see “Installation Manual”).
5 USING THE AWNING
WARNING
Before operating the awning, carefully read Chapter 2 on safety and Chapter 3.2 on intended use and location
of use.
WARNING
Make sure that when opening/closing the awning, there are no individuals within its range of action.
WARNING
In the event of rain, wind or snow, close the awning completely. Danger of personal injury or damage to
objects.
• Use the awning only as protection from the sun and for the purposes set forth in this manual in Chapter
3.2 on intended use.
• It is severely prohibited to climb or hang/lean objects on the awning.
• Clean mold by cleaning the fabric as set forth in Chap. 6.2 on cleaning the equipment.
WARNING
In the event of rain, wind or snow, close the awning completely. Danger of personal injury or damage to
objects.
Use and Maintenance
In the event of malfunctions, contact the dealer.

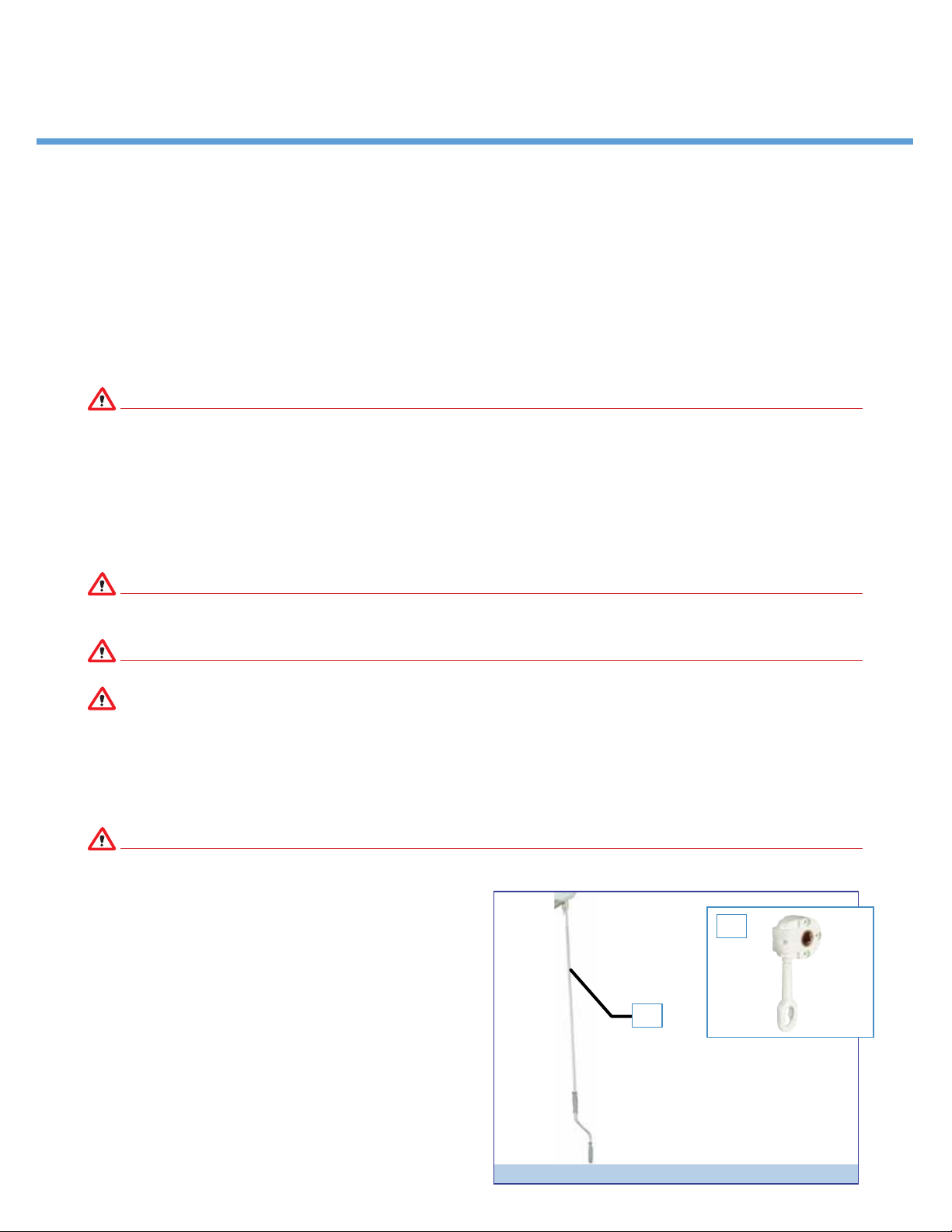

MANUAL AWNING
The awning is opened and closed using the hand brace
(A) and a gear (B).
MOTORIZED AWNING
The awning can be opened and closed using:
• a SWITCH, installed near the awning and in a
position that gives the user complete visibility of
its movements. If located outdoors, the switch
must be properly protected;
• a RADIO CONTROL, portable or wall-mounted.
The characteristics and operation of these
systems are described in the enclosed manuals
for the motor, automations and required controls.
FIG. 1
A
B

1256
TUCSON XL PATIO AWNING
77
6 MAINTAINING THE AWNING
WARNING
All cleaning and maintenance must be performed with the electrical power supply disconnected.
Before operating the awning, carefully read Chapter 2 on safety.
Installation, rst start-up, adjustment and extraordinary maintenance must only be carried out by specialized
technical personnel who are qualied for such duties. Contact technical support.
6.1 - Troubleshooting table
WARNING
In case of problems or troubleshooting, comply with safety instructions. Especially when troubleshooting or
making repairs on the electrical part, there is the danger of electrocution. MAINTENANCE ON ELECTRICAL
PARTS MUST ONLY BE PERFORMED BY QUALIFIED PERSONNEL.
If any problems arise that are not included in the following tables, contact technical support.
MANUAL AWNING
PROBLEMS CAUSES SOLUTIONS
The fabric does not roll up straight. Incorrect symmetry of arms
Uneven fabric thickness
Contact technical support
Completely rewind the fabric
MOTORIZED AWNING
Without electrical control unit
PROBLEMS CAUSES SOLUTIONS
The fabric does not roll up straight. Incorrect symmetry of arms
Uneven fabric thickness
Contact technical support
Completely rewind the fabric
The awning does not fully close.
The awning does not fully open.
Incorrect adjustment of limit switch
Motor crown shifts during movement
Contact technical support
Contact technical support
The motor is very noisy Incorrect wiring
Motor failed
Contact technical support
Contact technical support
The motor shuts down after 4-5
minutes of continuous operation
Thermal protection of motor trips Let the motor cool off for a few
minutes
With electrical control unit
PROBLEMS CAUSES SOLUTIONS
Awning does not move Fuse blown
Incorrect wiring
Contact technical support
Contact technical support
The awning moves jerkily
(moves for 19.5 inches, stops, etc.)
Faulty wind sensor Contact technical support
The awning does not close in high
winds.
Fuse blown
Faulty wind sensor
Contact technical support
Contact technical support
The awning does not close during
heavy rain.
Fuse blown
Rain sensor defective
Contact technical support
Contact technical support
With radio control, the awning
opens or closes by itself.
Battery dead Replace battery in radio remote
control (see control instructions)
Use and Maintenance

1256
TUCSON XL PATIO AWNING
88
6.2 - Cleaning the awning
WARNING
All cleaning and maintenance must be performed with the electrical power supply disconnected.
The fabric must be cleaned to prevent the formation of mold caused by dust and other materials deposited on the
fabric. It can be performed using a vacuum cleaner, or with a damp sponge or cloth and lukewarm water.
Leave the fabric to dry after cleaning.
Cleaning with ladders, scaffolding and so forth is to be performed only by specialized personnel. They must
comply with safety standards and use personal protective equipment such as safety harnesses with ropes.
WARNING
Do not use solvents, ammonia, or hydrocarbons.
6.3 - Routine maintenance
WARNING
All cleaning and maintenance must be performed with the electrical power supply disconnected.
The operations described hereunder, if performed as scheduled, will keep the product in good condition.
Twice a year, before and after summer use
The fabric must be inspected for tears or breaks in the stitching. Do this in the spring, prior to summer use, and
in the autumn, prior to winter closing.
Yearly, prior to summer use

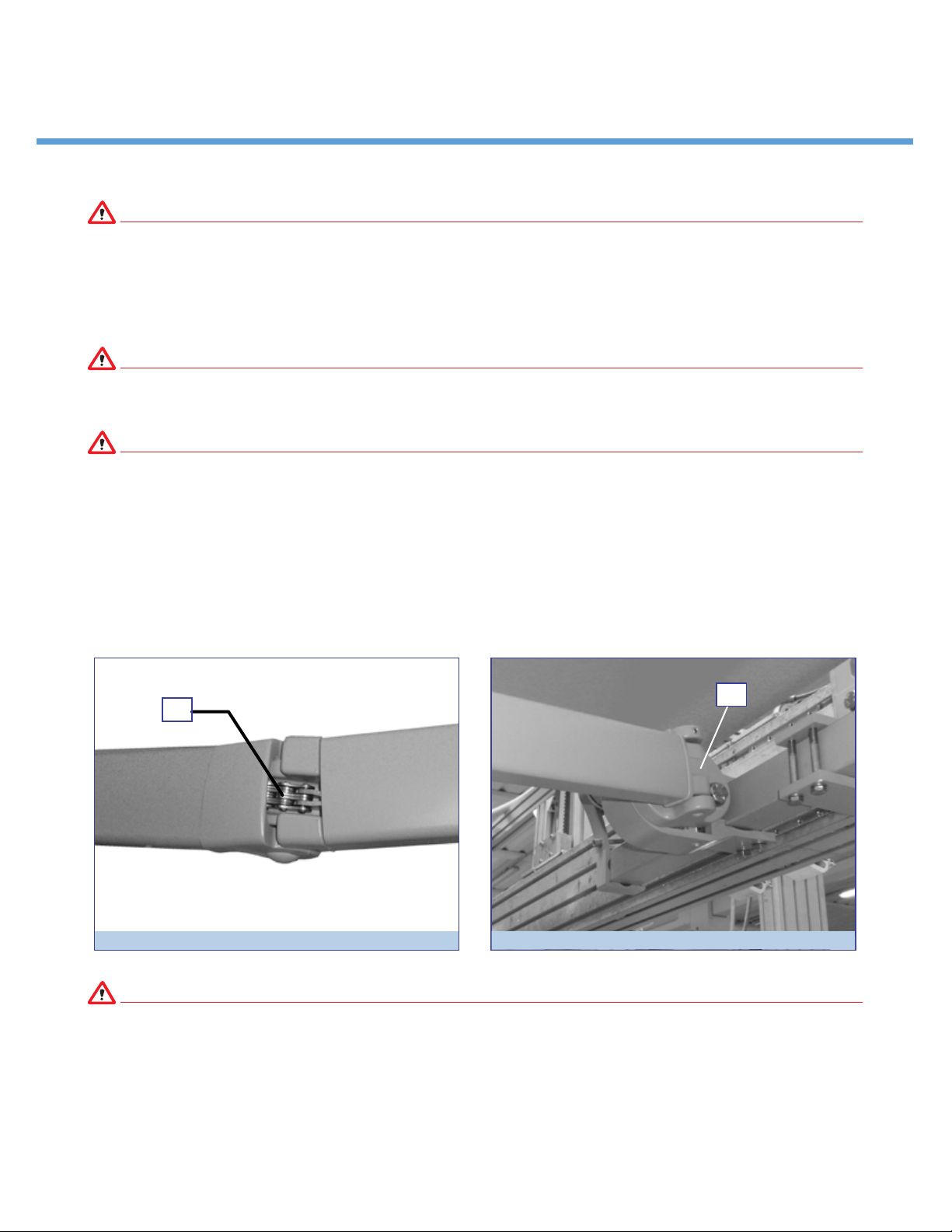

Lubricate moving parts with silicon lubricating oil, with the awning about halfway open:
• Lubricate the chain, the rotating joint (A) and the side (B).
• Lubricate the cap located in the part opposite the control (motor or hand brace).
A
FIG. 1 FIG. 2
B
6.4 - Special maintenance
WARNING
All extraordinary maintenance must be carried out by professionally qualied, trained personnel. Request
specialized assistance from technical support. See the instructions on assembly, installation and commissioning
if it is necessary to disassemble the awning or parts thereof. Use original spare parts; otherwise the guarantee
will no longer be valid.
Request spare parts from your dealer.
Use and Maintenance

1256
TUCSON XL PATIO AWNING
99
7 DISASSEMBLY AND DISPOSAL OF THE AWNING
WARNING
The awning must be disassembled by trained, qualied personnel. Request specialized assistance from
technical support.
The operations are to be performed with the awning completely wound up.
Cut off the power supply to the system, disconnect the system downstream of the disconnecting switch,
disconnect the motor, tie the arms in place, release the supports and remove the awning from the supports.
The awning is not made of materials that are considered hazardous. There are no special requirements for
scrapping it or disposing of it.
Comply with the standards in force at the moment of dismantling the awning when disposing of it.
8 OPTIONALS
The Tucson XL includes the following options on request:
• Wind sensor: to detect strong winds (only if the awing is motorized);
• Rain sensor: to detect heavy rain (only if the awing is motorized);
• Sun sensor: to detect presence of sunlight (only if the awning is motorized);
• Lighting kit
• Hood
• Crossed arms kit: the inclusion of this optional determines the product’s downgrading.
The characteristics and operation of these systems are described in the enclosed manuals for the motor,
automations and required controls.
Installation is described in the “Installation Manual”.
Use and Maintenance
Toll Free 877-792-1775 | Fax [phone]
swsuncontrolpro.com | [email protected]

1256
TUCSON XL PATIO AWNING
1010

1256
TUCSON XL PATIO AWNING
1111

1256
TUCSON XL PATIO AWNING
1212

1256
TUCSON XL PATIO AWNING
1313

1256
TUCSON XL PATIO AWNING
1414

1256
TUCSON XL PATIO AWNING
1515

1256
TUCSON XL PATIO AWNING
1616

1256
TUCSON XL PATIO AWNING
1717

1256
TUCSON XL PATIO AWNING
1818
