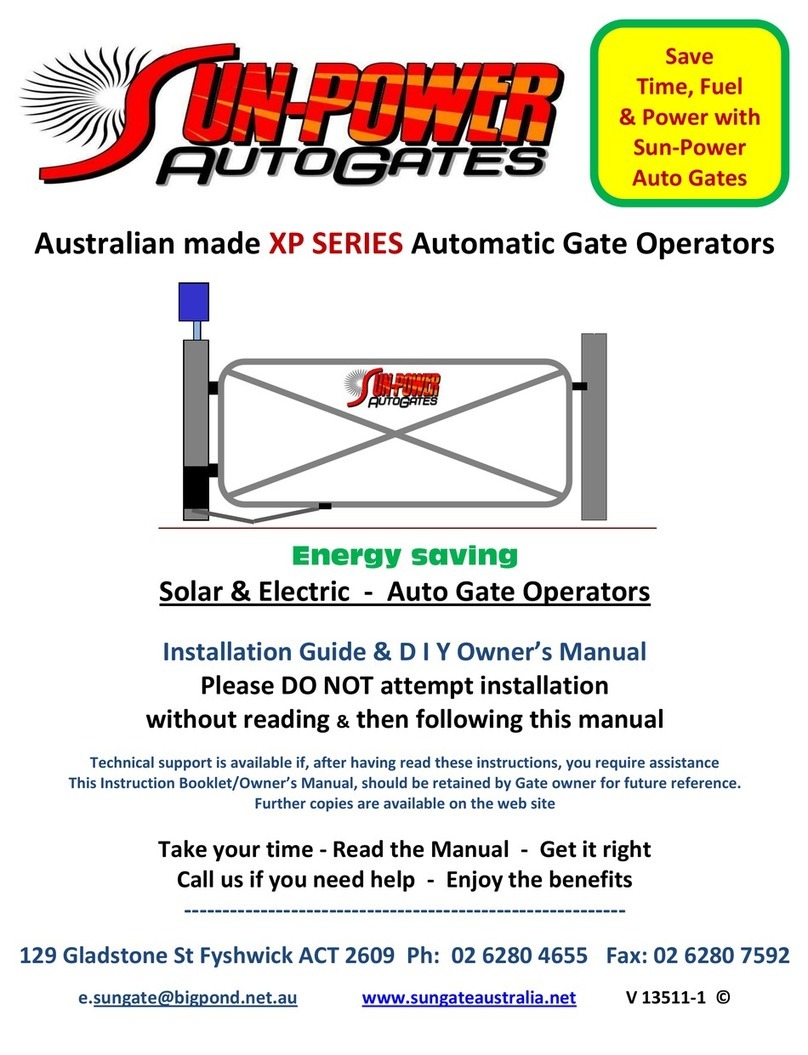

Sun Power XP Series User manual

V07-2014 Page 1of 24 ©
Australian made XP Series Automatic Gate Operators
Smart & Green Auto Gate Operators
Installation Guide & Owner’s Manual
Please DO NOT attempt installation
without reading &then following this manual
Take your time - Read the Manual - Get it right – Enjoy the benefits
Technical support is available if, after having read these instructions, you require assistance
This Instruction Booklet/Owner’s Manual, should be retained by Gate owner for future reference.
Further copies are available on our web site
Sun-Power Auto Gates
129 Gladstone Street, Fyshwick ACT 2609
Ph: 02-6280 4655 02-6280 4783 Fax: [phone]
[e-mail] www.sungateaustralia.net
This Manual is available on the website
Save Power
with
Sun-Power

V07-2014 Page 2of 24 ©
Contents:
Dear Installer/Owner 3 - 4
Introduction 3 - 4
Warning re wiring changes 4
Installation
Standard Installation 5
Install Radio receiver & Antenna 6
When to connect POWER 9
Installation Procedure 5 - 10
Adjusting Limit Switches 10
Side Mount Installation 10 - 11
Restricted side room 11 - 12
Out-swing Installation 12
Pre-wiring plus Control Board & Settings:
Auto Close, Multi-user 13
Overloads - Settings 13
Trim pots - Settings 14
Circuit board diagrams 15 - 16
L.E.D Sequence 17
Anti-clash leaf delay 18
SOLAR wiring detail 19
Options:
Push Button [PB] 17
Electric Lock [EL] 19
Photoelectric Safety [PE], Antenna 20
Troubleshooting/Radio Receiver/Transmitters
Trouble Shooting 20
Radio Receiver [Rx] 20 - 22
Radio Transmitters [Tx] 20 - 22
Antenna [Ant] 20 - 22
Programming Radio Transmitters 23
Specifications/Freight Dimensions 24
Sun -Power Auto Gates reserves the right to make upgrades & alterations without notice

V07-2014 Page 3of 24 ©
Dear Installer/Owner
Your Australian Made SUN-POWER XP Series Auto Gate Operator has been designed and
built to make installation simple and maintenance almost Non - existent.
To save you time, and make installation easier, The Circuit Board is pre-wired & placed under the
powder coated, steel weatherproof cover together with the Motor/Gears/Battery, this means that
you do not have to spend extra time wiring up to a separate control box. The Radio receiver,
3 Remote Controls & 2 Key pads [Keypads in Deluxe Kits only] are pre-programmed. Circuitry for
most options is already included. You simply have to connect up the external devices such as Radio
Receiver, Solar Panel, Antenna, Push buttons etc.
The design features, in the SUN-POWER XP Series Gate Operators, will save you time on site, and
the installation will be neat & tidy.
Apart from its physical attributes the control circuit has some powerful operating features. These
can be adjusted on site, without modification to suit a range of situations.
This Manual should answer most of your questions regarding the installation and operation of the
SUN-POWER XP Gate Operator. If further information is required, please email, fax, phone or
write to us.
Note:
Primary [Master] Operator has a Circuit Board and can be installed on LH or RH]
Secondary [Slave] Operator does NOT have circuit board, can also be mounted on LH or RH
Introduction:
The SUN-POWER XP Series INTELLIGENT Automatic Gate Operator is an electronically controlled
Automatic Gate Operator for swing gates. A range of features are built in to the XP and a range of
options is also available.
The Sun-Power XP Series Operators can be used in a variety of situations.
240V AC • SOLAR Power • 12V AC/DC
Single Gate or Pair of Gates • Normal or Restricted side-room applications
Where a Gate is require to swing beyond 90° and up to 130° [Or less than 90º]
A powerful control system gives the flexibility to change some important characteristics of the
operation. Including …………..
Automatic close • Signal to close • Sensitivity to obstacles • Multi-user
function
The control system also allows for the addition of the following options.
• Digital Keypads • Push Buttons • Photoelectric cells • Security Systems
• Electric Locks etc
For all its sophistication the Sun-Power XP Series Auto Gate Operator is extremely reliable and its’
rugged construction ensures a long trouble free life.
Take your time - Read the Manual – Get it right – Enjoy the benefits

V07-2014 Page 4of 24 ©
This SUN-POWER XP Auto gate Operator has undergone rigorous factory load testing and has been passed
as ready for site installation.
Please ensure that you read ALL of these instructions, plus any other instructions supplied, then simply
follow Instructions step by step.
Power - 240V/12V/Solar Panel/Battery must not be connected until appropriate [see item 6 page 9].
IMPORTANT: Do NOT alter any pre-wiring of circuit board [except motor polarity* when necessary].
Altering Pre-wiring [except motor polarity*] will compromise your warranty
* ALL power [240v/12V/Solar/battery] must be disconnected before attempting to change motor
polarity
XP Series Swing Gate Operators are suitable for and guaranteed when the gates [up to 300 kg*] are
correctly hinged and operate smoothly and evenly.
*XP Series Gate operators will drive a variety of Gate Styles, Sizes & Weights. Suitability is dependent on
the quality of hinging and the force required at One Metre from the hinge center-point to open and close
the gate, 15 Kg is the maximum for gates opening IN [PULL] and 7.5 Kg for gates opening OUT [PUSH]
If you do not understand any of the instructions, or have any doubts, then please Fax [phone] or
Email your queries [email protected] or ring us on 02 6280 4655 re your concerns before you apply
power to the unit or you may void your warranty
DO NOT connect the RED Spade Terminal to the Battery until you are ready to set the Limit Switches. The
RED Spade Terminal is supplied, disabled* from the Battery. [* i.e. Not connected to the Battery]
The last item to be connected is the SOLAR PANEL, do this after ALL other settings and adjustments have
been made.
Important: [Battery change - Circuit board posts - Motor polarity change - Photoelectric Safety]
Before moving the circuit board for any reason [or changing motor polarity], including when changing the
Battery, you must ensure that ALL Power from any 240v/12V/ Battery/ Solar Panel is disconnected to
avoid damage to the circuit board. The Circuit board is supplied mounted on top of 4 nylon ‘posts’ in this
position they act as spacers, ensure these ‘posts’ remain in place and circuit board is correctly located on
top of these posts. There is a copper wire [a ‘bridge’] connecting the PE terminals, DO NOT REMOVE this
‘bridge’ unless connecting photoelectric safety cells or unless otherwise instructed.
Ensure that there are NO loose wire strands when disconnecting and connecting any wires.
Do not expose control board or any electronic circuitry to any …… • Lubricants • Moisture • Rain
• Insecticide spray or any ‘foreign’ materials
No cabling must be run in conjunction with any high voltage cables or electric fencing – if in doubt, seek
advice from a qualified Electrician in Your State or Territory.
Installation:
Standard Installation. [PULL]
A “Standard Installation” is one where gate[s] open in. [swinging INWARD toward the Motor Housing].
Generally the gate hinge should be no more than 200mm from the rear of the Pier/Post/Pillar, ask us for
advice if this distance is greater.
Side room of 350mm is normally required to accommodate the swing of the arms.
Refer to Pages 13 & 14 if there is restricted side room [See fig 1] some pictures of restricted side-room
installation are in the “image gallery at “ www.sungateaustralia.net
©

V07-2014 Page 5of 24 ©
Installation procedure:
Refer page 10 if restricted side room
1.
Ensure that the gates swing freely and that all existing latches/padbolts/Chains etc are disabled or
removed from the gate & Gate posts
2.
When using a 240v Unit [XP 100 or XP 100/300] the Master operator [the one containing the
Circuit Board] should be fitted to the Gate Post nearest the Power Supply.
Remove the cover, from the XP Operator [taking care that you DO NOT expose circuit board
to any moisture] to access the slotted fixing holes cut in the rear of the Chassis. Bend the
tabs out and bend them back against the rear of the chassis, in this position they act a
spacers allowing clearance for the cover[s] NOTE: [Do not remove these tabs – just bend
them out and fold them to the back] [Unless you are using the optional XP-MP Mounting
Plate]
3.
Position each unit on the gate post/pier/pillar[s]
The vertical position is found by locating the gate bracket. The Gate bracket is best placed where
there is adequate fixing on the gate and movement of the arms is unrestricted [See Fig. 2]
The XP Auto Gate Operator[s] may now be bolted in place.
Fig 1. Standard Installation:
*Where the distance is greater than 200mm the Secondary arm may
need to be extended, contact Sun-Power if you need assistance.

V07-2014 Page 6of 24 ©
INSTALLING THE RADIO RECEIVER:
Step 1. Ensure that Positive lead [RED] is disconnected and away from the
Battery Positive terminal
Step 2. Ensure Solar Panel [or Mains power] is NOT Connected to the Gate
operator
Step 3. Line up the ports on the radio receiver [Rx] with the 6 PRONGS on the
Main circuit board - now slide the Radio Receiver [Rx] fully onto the 6
prongs at the bottom end of the main circuit board.
Attaching the Antenna.
Step 1. Attach the end of the Antenna cable to the Radio receiver board
[When ready]
Attach Radio receiver board Attach Antenna
Note: Kits from February 2014 come with a Box marked Rx30M this contains
3 Remote Controls [Tx10], 2 Keypads [DK50] and 1 Radio receiver [Rx 30].
The Remotes and Keypads are pre-programmed to the radio receiver.
Refer to page 19 for further information on Remotes and Keypads etc

V07-2014 Page 7of 24 ©
4. If you have a Pair of Gates then……….
Connect the Slave to the Master Unit with 2 Core Flex-Cable [Max load draw 8 Amp at 12
Volts]
[Fig.8 cable - .75mm sq – 24/.020 minimum] Refer Fig. 3
All cabling must not be run in conjunction with any high voltage cables or electric fencing – if in doubt,
seek advice from a qualified Electrician in Your State or Territory.

V07-2014 Page 8of 24 ©
©
The XP Operators are set in the factory for a “Standard PULL Installation” When the Master
Operator is placed on the LEFT HAND SIDE [from the inside [motor side] – looking out] the wiring
is Brown above Blue [ref. P. 15 - 16]
When the Master Operator is located on the RIGHT HAND SIDE [motor side - from the inside–
looking out] then the motor wires need to be reversed. ie; BLUE above BROWN.
To accomplish this, locate the connection blocks for each motor on the Circuit board.
Swap*the BROWN &BLUE wires for Motor 1 [& Motor 2 if a pair of gates] [See Figure 3
above].
IMPORTANT:
*ALL power including • 240v • 12V • Solar • Battery must be disconnected
before attempting to change motor polarity
5.
Location of Gate Bracket on Gate:
The Gate bracket should be positioned on the gate so that the arms are ALMOST in a
straight line when the gates are closed [Ref. P.9 Fig. 4] To check the location of the gate
brackets, first disengage the Main arm from the drive shaft [Using the spanner provided,
unscrew the bolt until the arm swings freely] Then clamp the gate bracket in position. Open
and close the gate to ensure the gate bracket is appropriately located.

V07-2014 Page 9of 24 ©
©
6. Connect power [12v or 240v or Solar] to the Master Operator and connect the Battery
7. The Limit Switches may now be adjusted [If necessary] [See figure 5.] Each of the Master and
Slave Operators has its own pair of cams, one to set the open position & one to set the closed
position.
Firstly mark the position of each cam as a reference. Loosen the screw holding the Cams.
NOW you can drive the XP Operator with the transmitter & NOTE which cam controls the opening
and which cam operates in the closing motion. [The Cam activates a Limit Switch to turn off the
Motor]
Re-position each Cam and operate the XP again. Repeat until the Gates open & close to the
required positions.
©

V07-2014 Page 10 of 24 ©
Side Mount Installation:
The XP Operator may be mounted sideways, with the long side against the Pier/Post, for extra
flexibility.
This feature is very useful for situations where … [Ref. P 10. Fig. 6]
The Gate must swing further than 90 degrees
The Gate swings outward.
The Gate swing outward & it is positioned at least 400mm forward of the back of the
Pier/Post
Note: See also section on Out-swing Installation.
©
When side mounting, each XP Operator should be fitted to the Pier/Post with its output shaft close
to the gate hinge. With this in mind the “Standard Installation” instructions may now be followed.
Optional Side Mount cover sets with backing plate[s] are available, and must be used for
SIDE MOUNT installation.
Restricted/Limited Side Room Installation:
This term is applied to the situation where the movement of the Standard Arms cannot be
accommodated within the side room available. [www.sungateaustralia.net ] Images Gallery show a
typical limited side room installation.
In most situations this problem can be overcome by cutting down the secondary arm [The link
joining the Gate to the Primary arm].
This new length can be approximated by the following procedure.
i. Move the Primary Arm to a position suitable for the closed gate.
Remembering that in the closed position the Primary & Secondary arms must stop short
of a straight line alignment [See figure 7]

V07-2014 Page 11 of 24 ©
Restricted/Limited Side Room Installation - Continued:
©
ii. Mark a point on the gate suitable for the gate bracket. Holding the gate bracket in
position, measure the distance between the hole centers on the gate bracket & Primary
arm.
iii. Now move the primary arm to its maximum open position. Open the gate & measure
the distance again [See figure 8].
iv. If the length has changed then the gate bracket must be repositioned & the same
process repeated until the dimension remains the same for both positions.
Be careful that the Secondary arm does not conflict with the drive shaft of the Primary
arm.
©

V07-2014 Page 12 of 24 ©
Restricted/Limited Side Room Installation - Cont.
©
a. Once the dimension is consistent a new hole can be drilled in the Secondary arm &
the arm trimmed to suit. The gate bracket & secondary arm should now be fitted.
Out – Swing Installation[PUSH]
In this type of installation the gate swings outward or away from the XP Operator to the
open position. [See figure 6/2, 6/3]
Several factors must be considered to determine the most suitable arm length. These include
The drive through width required - The Placement of the XP Gate Operator - The
location of the gate on the Post/Pier/Pillar . Direct support is available from SUN-POWER in
these situations. [Photos and/or drawings will assist]
For assistance [if required] please provide a drawing [Mud map] of your situation showing all
possible measurements. Width between Piers/Posts/Pillars - Size of Piers/Posts - Single or
Double Gates - Position of hinges on Piers/Posts/Pillars
Note: The polarity of the Motor connections may need to be reversed for Out- swing
operation.
* ALL power inc • 240v • 12V • Solar • Battery must be disconnected before attempting to change
motor polarity. Ensure that there are NO loose wire strands when disconnecting and
reconnecting any wires/cables

V07-2014 Page 13 of 24 ©
Settings:
Important: ALL adjustments to TRIM POTS/Dials must be done slowly and carefully with a
correctly sized flat-blade screwdriver or Trim pot adjusting Tool
Auto Close
The Operator Control Board is supplied with a “JUMPER” installed on a 3 PIN Block. This allows the
gate to automatically close after a specific period. This period is adjustable. [Refer to Figure 9]
i. Turn ‘Auto Close delay’ Trim pot Anti-clockwise to increase the hold-open time delay
before gate closes automatically
ii. Trim pot Clockwise to shorten the hold-open time delay before gate closes automatically
This “JUMPER” fits onto any two of three “PINS”
• If fitted on “PINS” 1 & 2 the gate is set to close Automatically.
• If fitted on “PINS” 2 & 3 the gate will require a *signal to close [Standard factory setting]
• If there is NO “JUMPER” or it is lost unit will revert to standard factory setting
*Signal can be from Remote control [Transmitter] - Push Button – Keypad – Intercom etc
Multi-user Function: [Apartments – Flats – other Multi-user applications ]
Where the XP Gate Operator is installed for Multi-users [eg: Flats – Apartments etc]
There is a Jumper installed on a 3 Pin Block approx in the middle of the Main Control Board.. If
jumper is on pins 1 & 2 the Operator will not allow gate to close on a signal, it will continue to
open position, time out then auto close.
If jumper is on pins 2 & 3 [Normal] a signal eg: from remote Control will reverse the direction of
the Operator
Overloads:
The overloads [See Figure 9] are preset to maximum sensitivity, i.e slight pressure will cause the
Operator to STOP if it is Opening or STOP & OPEN if it is closing.
Note: If these functions are reversed, i.e.: the gate STOPS when Closing & STOPS & Automatically
REVERSES when Opening, then the polarity of the Motor connections MUST be Reversed, and the
Limit Switch Cams adjusted.
There is ONE overload for each gate, as indicated on the Main Circuit Board. To reduce the
sensitivity on the Main Circuit Board turn the overload dials in the Anti-Clockwise direction.
BE CAREFUL ! Large reductions in sensitivity may allow the gate[s] to exert excessive pressure on
people or vehicles trapped in the path of the gate[s]
Travel time:
There is a “TRAVEL TIMER” and a Yellow L.E.D & Dial/Trimpot located to the left of the Auto close
jumper. This should be set to approximately 5 to 10 seconds after full operation, ie; after gate[s]
reach full travel on Limit Switches in both OPEN & CLOSED position. [Refer. Fig. 9 P.15 Fig.10 P. 16]
Travel time can be adjusted by turning* Dial/Trimpot Anti-clockwise to extend travel time and
vice-versa.
*Always use correct sized flat blade screwdriver to avoid damage to Dials/trimpots
GREEN L.E.D - OPEN Position [Located above relay 4] RED L.E.D - CLOSE Position

V07-2014 Page 14 of 24 ©
XP Series Auto Gate Operator
Trim Pots: Settings, locations and functions
There are Six adjustable [6] Trim Pots
1. R 1 Auto Close: Clockwise = Minimum time
2. R 2 Motor 1 Auto reverse: Clockwise = Less power
3. R 8 Motor 2 Auto reverse: Clockwise = Less power
4. Travel Time: Clockwise = Minimum time
5. R 24 Close delay: Clockwise = Maximum delay
6. R 27 Open delay: Clockwise = maximum delay
Notes:
1. Use only appropriately sized flat blade screwdriver when making adjustments.
2. Using incorrect or wrong sized tools will damage Trim Pots.
3. Use appropriate care when making sensitive adjustments
Top right
©
Bottom Left
R1
R2
R8
Travel time
R 24
R 27
Fig. 9. Trim pot settings

V07-2014 Page 15 of 24 ©
fghfcxh
3 pin block.
Jumper on 1 & 2
= Auto Close
Jumper on 2 & 3
= Manual Close
Travel time clockwise
= minimum time
WARNING!
240v Wiring
Diagram ONLY
For Solar operator, refer to Solar Wiring Diagram
DO NOT apply voltage to this
Terminal Block
Standard installation
BLUE/BROWN polarity
Refer P.5 –Fig.3
Standard installation
BLUE/BROWN polarity
Refer P.5 –Fig.3

V07-2014 Page 16 of 24 ©
WARNING!
SOLAR Wiring
Diagram ONLY
For 240v operator, refer to 240v Wiring Diagram
3 pin block.
Jumper on 1 & 2
= Auto Close
Jumper on 2 & 3
= Manual Close
Travel time clockwise
= minimum time
DO NOT apply voltage to this
Terminal Block
Standard installation
BLUE/BROWN polarity
Refer P.5 –Fig.3
Standard installation
BLUE/BROWN polarity
Refer P.5 –Fig.3

V07-2014 Page 17 of 24 ©
Sun-Power XP Circuit Board L.E.D Light Sequence
XP Auto Gate Operators are fully factory tested [before shipping] to work as below.
LED’s are located as follows [Refer to drawing below for approximate locations]
YELLOW – ‘travel time’ LED – top right hand of the board [Adjustable Ref. Page 10]
GREEN – ‘open’ LED – bottom centre next to the relays near RED ‘close’ LED
RED – ‘close’ LED – bottom centre next to the relays near GREEN ‘open’ LED
RED – ‘battery reversed’ LED – next to battery terminals – Top left.
Functions:
Gate inactive no L.E.D lights ON
Gate opening GREEN L.E.D and YELLOW ‘travel’ L.E.D ON
Gate closing RED L.E.D and YELLOW ‘travel’ L.E.D ON
When limit reached YELLOW L.E.D ON until it ‘times out’ [Adjust to +10 Sec Ref. P.13]
When timed out NO L.E.D’s ON
If RED L.E.D [top left next to power terminals] is on the battery is wired backwards
Disconnect Battery IMMEDIATELY !!!
If GREEN L.E.D is on and gate is operated and GREEN L.E.D stays ON motor has been
shorted out (refer to a SUNPOWER technician)
If both GREEN ‘open’ and RED ‘close’ L.E.Ds [Centre bottom] are on at the same time
main board is in fault mode (refer to a SUNPOWER technician)
Top Left Top Right
©
Bottom Left Bottom Right
Fig. 10 L.E.Ds

V07-2014 Page 18 of 24 ©
Anti – Clash Leaf Delay for Pairs of Gates.
To avoid jamming there is a time delay between the movement of each gate. This delay may be
independently adjusted for the Opening sequence & the Closing sequence.
LEFT HAND Installations [Master Operator on the Left] - Dial “R 24” changes the Closing delay &
“R 27” changes the Opening delay. Turning the dials/trimpots R24 and R27 Anti-Clockwise gives
the Minimum delay.
*Always use correct sized flat blade screwdriver to avoid damage to dials/trimpots
RIGHT HAND Installations [Master Operator on the Right] - Dial “R 24” sets the Opening delay & “R
27” sets the Closing delay. Turning dial /trimpots R24 and R27 Anti-Clockwise gives the Minimum
delay.
Push Buttons, Keypads etc.
A variety of Hard-wired input devices can be used to operate the XP Operator such as Push
buttons, Key switches, Keypads etc. Input should be in the form of a MOMENTARY CLOSED
CIRCUIT.
WARNING !! Voltage MUST NOT be applied to the Push Button terminals. DAMAGE to the
Circuitry and loss of warranty will result if voltage is applied. Devices that send a Voltage pulse [As
some Intercoms do] must be connected to the Circuit Board through a Relay.
Important Notes:
Please ensure that all adjustments on Circuit Board[s] are done with appropriate care and sensitivity to
avoid damage to equipment.
A correctly sized Flat blade Screwdriver is the only suitable tool for adjusting a trimpot/dial
adjustments should be made with due care
All Equipment is thoroughly Factory & Warehouse tested & checked to ensure equipment is ready for
shipping.
Ensure Circuit board stays correctly mounted in original position on top of Nylon Mounting Posts, refer
instructions on Page 4
Read the Manual – Take your time – Get it right - Enjoy the benefits
Ring or email if you need assistance
PUSH BUTTONS Details & Installation Instructions etc
PB – 1 is a Standard push button [Supplied with 10 metres Fig 8 cable]
Connect wires, either way, into Push Button terminal at front of main circuit board [Ref. Page 14 ]
PB – 2 is a Push Button with 2 Position key switch. [Button active– Button inactive]
[Supplied with 10 metres Fig 8 cable]
Connect wires, either way, into Push Button terminal at front of main circuit board [Ref. Page 14 ]
Ensure that there are NO loose wire strands when connecting any external devices such as
Antennas/Push Buttons/Key Switches/Intercoms etc [Loose strands cause problems]

V07-2014 Page 19 of 24 ©
Solar wiring detail:
DO NOT connect SOLAR PANEL until all other settings and adjustments have been completed
Step 1. Locate 2 Way terminal connection block on Top Plate near Motor, this will have Red [Positive] &
Black [Negative] wire in one side as part of the standard wiring. Connect wires from the SOLAR PANEL
Directly into the opposite side of the terminal block as shown below.
Red +Brown or Red
Black Blue or Black
Important: A connected SOLAR PANEL delivers a charge when it is in any light, so it is essential that
the SOLAR PANEL and Battery be disconnected when any work or wiring is being done on the Control
Board, other than, when adjusting trim pots or Limits switches. [refer Page 4] [Please follow these
instructions to avoid damage to your circuit board and loss of warranty]
To check incoming voltage from solar panel disconnect panel from gate operator and meter the Fig 8.
Cable.
The output voltage from the 12 Watt Panel supplied as standard in an XP Kit is [15 – 21v]
Note: Solar panels greater than 12 Watts require a regulator.
Step 2: Locate RED wire with Spade Terminal [Which will be disabled from Positive on Battery]
Connect this wire and now you are ready to set your Limits.
Negative Black/Blue Wire Locate Positive Wire [RED]
Is already connected to battery
Connect Red Wire to +on Battery
All cabling must not be run in conjunction with any high voltage cables or electric fencing – if in doubt,
seek advice from a qualified Electrician in Your State or Territory.
Notes: Correct mounting angle for SOLAR Panel is 45 Degrees and facing NORTH in full sun
Solar Panel may be located up to …………..
50 Metres from Gate Operator using 4mm Fig.8 Cable [T/S 2 x 26/0.30].
100 Metres from Gate Operator using 6mm Fig.8 Cable [T/S 2 x 65/0.30].
All Sun-Power Auto Gate Operator Kits [Solar, 240v and 12v] are supplied complete with 9 Amp Hour SLA
Battery. This battery should be checked regularly. Instructions for changing battery - refer Page 4
Quality 9 AH Batteries are available from Sun-Power and from most reputable battery suppliers.
Sun-Power
Solar
Panel
Max. 12W
- +
9 AH
SLA
Battery
Battery

V07-2014 Page 20 of 24 ©
Electric Lock:
Connections for an Electric Lock/Latch [XP - EL] are provided on the Circuit Board [Ref. P.14/15]
Generally a 4 Core cable is used as it has an extra layer of insulation. Use Red & Black and connect either
way.
This connection block will supply 12 Volts to energize the Lock at the beginning of the Opening & Closing
cycles.
Photoelectric Safety Cell: [240v & 12v Operator Only] [Contact Sun-Power if PE is required on SOLAR
Operator] There is a copper wire [a bridge] connecting the PE terminals, DO NOT REMOVE unless
connecting Photoelectric safety cells or unless otherwise instructed.
Photoelectric Safety Cells [PE] may be fitted to detect obstructions in its path. The PE’s will check for
obstructions during the closing cycle only. If an obstruction is encountered the gate[s] will reverse to the
open position.
If the Auto Operator is set in the Automatic Close Mode the Gate[s] will remain open until the obstruction
is cleared.
Wires from the Photocells should be attached to the appropriate connection block on the XP Circuit board
[Ref.P.15-16].
A 4 Core security cable [.7/020 or .14/020 ] must be used. Switch connections to XP Gate Operator circuit
board can be either way. [See P.15-16 ]
Switch connections to Photoelectric unit must be terminated to ‘Common’ and ‘Normally closed’ [NC]
Red must go to Positive and Black to Negative [Refer to instructions with Photoelectric [PE] unit]
Photoelectric safety beams can supplied for use with the XP Solar Gate Operator [but not when used with
electric lock] please contact us if you require this [This is a Pre-Install application]
Connecting the 433 mhz antenna
The Sun-Power standard Radio Receiver [SP Rx 30 Plug-on] [Standard as from Jan 2009] is Piggy backed
onto the Main Circuit Board it is located on the front Right hand corner.
Ensure that there are NO loose wire strands when connecting any wires or external devices such as
Antennas/Push Buttons/Key Switches/Intercoms etc [Loose strands will cause problems]
Install Antenna in a position that allows the best clear “LINE OF SIGHT’ from all directions, this will allow
best reception of signal from Radio Transmitter [Tx]
Alternate Brand radio receivers and transmitters to match your ‘Garage Door Auto’ may be available as
an optional extra.
Note: Radio Receiver [Rx] and Radio Transmitter [Tx] models & colours may change without notice.
Note: Optional “HIGH GAIN” Antennas are available to enhance pick up of signal from Radio Transmitter.
