Sunbeam 4040 User manual

Wben using your iron, basic safety precautions should
always be followed, including the following:
l READ ALL INSTRUCTIONS BEFORE USE.
l Use iron only for its intended use.
l To protect against risk of electric shock, do not
immerse the iron in water or other liquids.
l The iron should always be turned to “OFF”
before plugging or unplugging from outlet.
Never yank cord to disconnect from outlet;
instead, grasp plug and pu11 to disconnect.
l Do not allow cord to touch hot surfaces.
Let iron
coo1 completely before putting away.
Loop cord loosely around iron when storing.
l Always disconnect iron from electrical outlet
when filling with water or emptying and
when not in use.
l Do not operate iron with a damaged cord or
if the iron has
been dropped or damaged.
To avoid the risk of electric shock, do not
disassemble the iron. Take it to an authorized
service
center for examination and/or repair.
Incorrect reassembly can cause a risk of electric
shock when the iron is
used.
l
Close supervision is necessary for any appliance
being
used by or near children. Do not leave
iron unattended while connected
or on an
ironing board.
l Burns can occur from touching hot metal parts,
hot water or steam. Use caution when you
turn a steam iron upside down
- there may
be hot water in the reservoir.

lIf the iron is not operating normally, disconnect
from the power supply and
have the iron
serviced by an authorized
service center.
lYour SUNBEAMe iron is designed to rest on
the
heel rest. Do not leave the iron unattended.
Do not set the iron on an unprotected surface,
even if it is on its heel rest.
SPECIAL INSTRUCTIONS
lThis is a 1400-Watt appliance.* To avoid
a circuit overload, do not operate another
high wattage appliance on the same circuit.
lIf an extension cord is absolutely necessary,
a
15-ampere cord should be used.
Cords rated for less amperage may overheat.
Care should be taken to
arrange the cord
so that it cannot be pulled or tripped over.
For products purchased in the United States
and Canada only
To reduce the risk of electrical shock, this appliance
has
a polarized plug (one blade is wider than tbe
other). This plug fits a polarized outlet only one
way; if the plug does not fit fully into the outlet,
reverse the
plug. If it still does not fit, contact a
qualified electrician. Do not attempt to defeat
this safety feature.
SAVE THESE
INSTRUCTIONS

Welcome ................................... ...3
Learning About Your Iron ........................ .4
Filling the Water Reservoir ...................
.5
Ironing ............................... , .. 6
Dry Ironing ................................ 6
Steam Ironing ............................. 6
Using the Iron’s Special Features ................. 7
SHOT OFSTEAM@ .......................... .7
Vertical Stesm .............................. 8
Patented MOTION SMARrM Auto-Off.......... 9
Caring
for Your Iron After Use. ................... 10
Turning Off Your Iron ....................... 10
Storing Your Iron .......................... 10
Maintaining Your Iron ........................... ll
Cleaning the Soleplate ...................... ll
Using the Self-Cleaning Festure .............. ll
Ironing Tipsand
Guide ......................... .14
Ironing Tips .............................. .14
Ironing Guide ............................. .15
Warranty
Information .......................... .16
How to Obtain Warranty Service ............ .16

Congratulations on your perchase of a SUNBEAM”
Iron! Sunbeam has
designed your iron to provide
the utmost in quality,
ease of use and convenience.
This EURO PRESS” SUNBEAM”
iron offers the following
featares:
lNon-Stick Surface - Prevents starch residue and
fabrics from sticking to the bottom, making the
iron easier
to clean.
l 360” Tangle-Free Cord - Keeps the power cord
off of the fabric and
out of your way, whether
you are right
or left handed.
lSelf-Cleaning - Prevents mineral build up
that
can reduce the life of your iron.
l Large Water Fill Hole - Allows you to fill the
water reservoir
faster while reducing water
spills and drips.
lAccepts Tap Water - Eliminates the necessity of
keeping distilled
water on hand for ironing.
lPatented MOTION SMART” Auto-Ofl - Automatically
turns
the iron off if it is not moved after
15
minutes in the upright position or after
30 seconds in the ironing position.
lPower Indicator Light - Lights steadily to let you
know the
iron is plugged in; blinks to let you know
that the patented MOTION SMARTr” Auto-Off has
activated; and is unlit when the iron is unplugged.
lVertical Steam - Functions like a garment steamer
to
remove wrinkles from hung garments or drapes.
lSHOT OF STEAM” - Offers a powerful burst of
steam for removing stubborn
wrinkles.

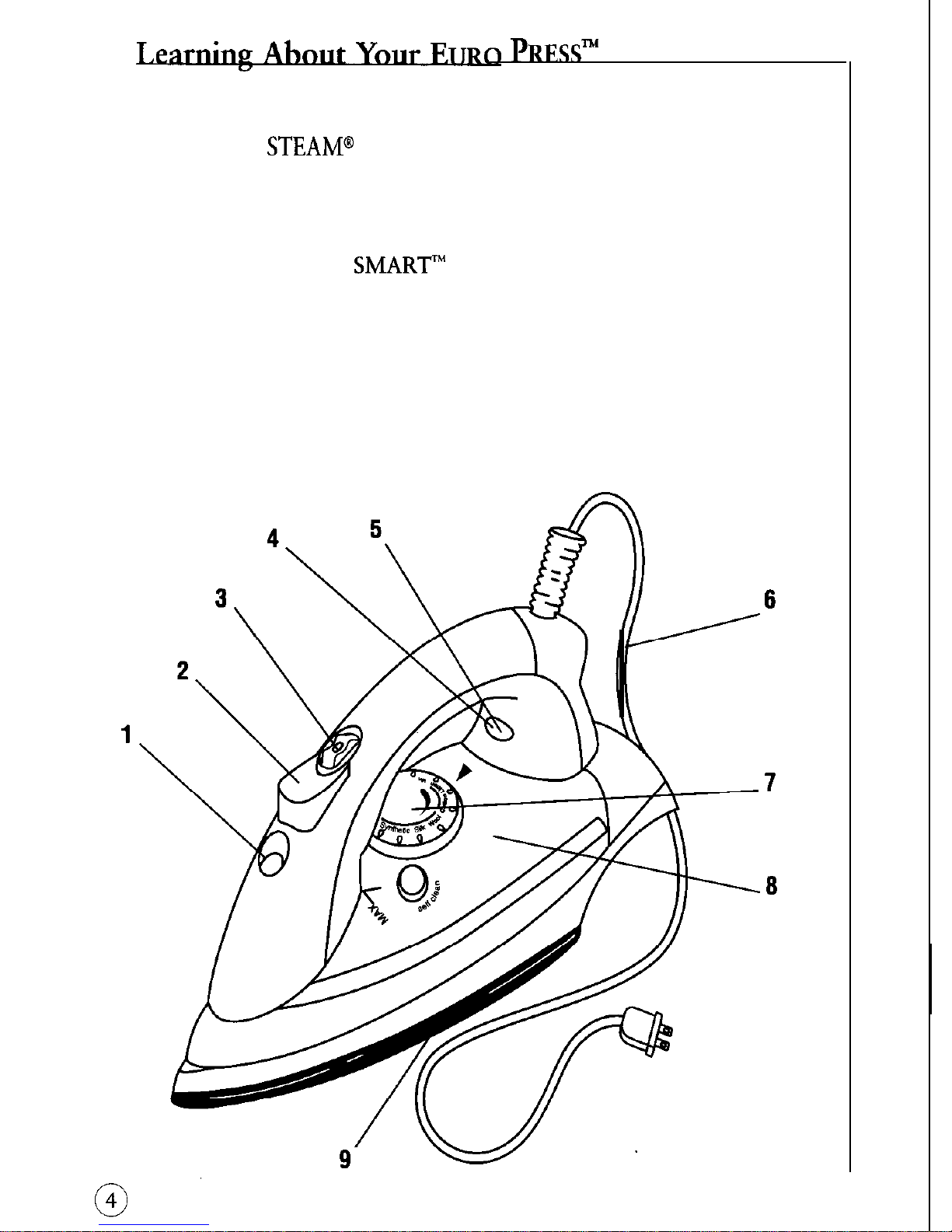

PRESP’ Iron
1. Water Fill Hole
2. SHOT OF
STEAM@ Button
3. Steam Dial
4. Power Indicator Light
5. Patented MOTION SMARY” Auto-Off Indicator Blinking Light
6. 360” Tangle-Free Swivel Cord
7. Fabric
Select Dial
8. See-Through Water Reservoir
9. Non-Stick Soleplate

Filling the Water Reservoir
You must fil1 the water reservoir with water to use
the SHOT OF
STEAM@ feature and to get steam
out of your iron.
Tip:
SUNBEAM@ tests each iron at tbe factory to
ensure tbat they function correctly. The test may
leave a small, harmless amount of water within
tbe water reservoir.
Before you
fil1 the water reservoir, please consider
the following:
lWhile this iron was designed for use with tap
water, very hard water will reduce the performance
of the
iron. If your water is very hard, SUNBEAM@
recommends that you use tap water the first time,
then consider using demineraliied or distilled water
for subsequent use.
You should use tap water once
a month,
however, to maintain the iron’s optima1
steam performance.
lDo not use water that has passed through a home
water softening system. This type of water contains
minerals that will
decrease the performance and
shorten the life of your
iron. Use demineralized
or distilled water, instead.
Important:
Wben not irofling, always set tbe Steam
Control to ZERO and the
Fabric Select Dial to MIN.
To fill the water reservoír:
1. Make sure the iron is unplugged. Set the Steam
Dial to ZERO and the Fabric
Select Dial to MIN.
2. Fil1 water cup with water. Pour water into iron
water reservoir. Do not
fil1 water reservoir
beyond maximum
fil1 level.
W ARNING : To prevent the risk of burns, be careful
when
filling a hot iron with water.
Hot metal parts, hot water and
steam can cause injuries.

Dry Ironing
1. Make sure that the Steam Dial is set to ZERO.
2. Plug the cord into a 120 volt AC outlet.
The Power Indicator will light.
3. Turn the Fabric Select Dial to the dry ironing
fabric setting
you desire and allow the iron to
heat for 2 minutes. While the iron is heating,
make sure it is sitting on its
heel rest on a
stable, protected surface.
Tip: Refer to the Ironing Guide on Page 15
for
tbe recommended setting for your fabric.
Steam Ironing
Follow the instructions for “Filling
the Water Reservoir” on Page 5.
Plug the cord into a 120 volt
AC outlet.
The Power Indicator will light.
Turn the Fabric Select Dial to the steam ironing
fabric setting
you desire (Linen, Cotton, Wool
or
Silk) and allow the iron to heat for 2 minutes.
While the iron is heating, make sure it is sitting
on its
heel rest on a stable, protected surface.
Tip: Refer to
tbe Ironing Guide on Page 15
for the recommended setting for your fabric.
After the iron has heated (2 minutes), turn
the Steam Control to desired steam setting.

SHOT OF STEAW
The SHOT OF STEAM* feature provides an extra
burst of
steam for deep penetration of stubborn
wrinkles.
You can use this feature while Dry or
Steam
ironing, but the water reservoir must be
at least 1/4 ful1 of water.
To ore the SHOT OF STEAW feature:
1. Press
the SHOT OF STEAM6 button
severa1 times to
prime the pump.
2.
Place the iron on top of the wrinkle and
press the SHOT OF STEAMe button each
time you would like an extra burst of steam.
The SHOT OF STEAM@ feature may be used
continuously with just a short pause
between shots.

Vertical Steam
The vertical steam feature allows your iron
to function as a garment steamer.
Tip: Wben using the vertical steam on clothing,
hang
the clotbing on a clotbes hanger for best
results. Hanging curtains and drapes may also
be steamed.
To use the Vertical Steam:
1. Make sure that the iron has heated up
(2 minutes).
2. Hold the iron in a vertical position, with the
iron
close to but not toucbing tbe fabric
you want to steam.
3. With your other hand, pu11 the fabric tight.
4. Press the SHOT OF STEAM” button at
approximately 3-second intervals as you
move the iron across the wrinkled area.
WARNING: To prevent the risk of burns, keep
your hand away from the
area being steamed.
WARNING: DO NOT steam garments while
wearing them; this may result in injuries.

Patented MOTION SMARPU Auto-Off
When the iron is plugged in, the Power Indicator
will light steadily, indicating that there is power
to the iron.
If you leave the iron:
.in a vertical position
(on its heel rest) without
moving it, the iron will automatically
tun off
after 15 minutes. The Power Indicator will
blink or let
you know that the iron has
stopped heating.
.in a horizontal position without moving it
(or it
accidentally
tips over), the iron will automatically
stop heating after 30 seconds. The Power
Indicator will blink to let
you know that the iron
has stopped heating.
Important: The Power Indicator will continue
to blink until the iron is unplugged.
To restart the
iron:
Move the iron back and forth and allow it to
reheat for 2 minutes. The indicator will stop
blinking and the iron will start heating again.
WARNING: The patented MOTION SMART” Auto-Ofl
is a safety feature. not a recommended means for
turning
your iron off. See “Caring for Your Iron After
Use”
on Page ll, for information on turning off your
iron
and storing ít safely between use.

(7-r 1 Jse
Turning Off Your Iron
1. Turn the Steam Dial to ZERO and Fabric Select
Dial to MIN.
2. Unplug the iron from the power source.
WARNING: NEVER yank the power cord when
unplugging the iron, this can damage the cord.
Storing Your Iron
1. Allow the iron to cool.
2. If you do not use your iron on a daily basis,
empty the water reservoir after each use for
a longer iron life. To do so, turn the iron upside
down to allow water to flow from the
fil1 hole.
Shake the iron gently to remove trapped
water drops.
3. Loosely loop the power cord around the cord
wrap and store the iron on its
heel rest.
hnportant: Wrapping the cord around the iron
too tightly can damage the cord.
Tip: When not ironing, always set the Steam Dial
to ZERO and
tbe Fabric Select Dial to MIN.

r FsIRc) PRESS
TM
b-m
Cleaning the Soleplate
Clean the soleplate if starch or other residue
accumulate.
To clean the Soleplate:
1. Allow the iron to cool and then wipe it
with a soft, damp cloth.
WARNING: DO NOT use abrasive cleansers.
scouring pads or vinegar to clean the soleplate,
this will damage the finish.
2. Run the iron over an all-cotton cloth to remove
any residue.
Using the Self-Cleaning Feature
You should use the self-cleaning feature to maintain
the optima1 performance of your iron. The
self-
cleaning feature will clean the water reservoir and
steam vents of accumulated minerals, dust and lint.
In general, clean the iron:
.if the steam vents clog up,
or
.once a month if you have hard water,
or
.once every two months if
you have soft water.
To use the self-cleaning feature:
1. Set the Steam Dial to ZERO and
the Fabric Select Dial to MIN.
/

2. Fill the water reservoir with tap water
to the “MAX” line.
3. Set the Fabric Select Dial to LINEN.
4. Plug the iron into a power outlet and allow
the iron to heat for 2 minutes.
5. Turn the Fabric Select Dial to MIN
and unplug the iron.
6. Hold the iron over a sink in a horizontal
position.
WARNING: Be careful not to touch the iron’s
hot surfaces.
7. Press the self-clean button and hold. Water will
begin dripping from the steam vents. To make
sure that all of the water is removed from the
tank, slowly rock the iron
side to side and front
to back for 30 seconds. When rocking the iron,
dip the
nose of the iron slightly below the rear
of the iron to make certain the water circulates
completely. Release self-clean button after
one minute.

8. Turn the iron upside down and allow the
remaining water to flow out of the
fil1 hole.
9. Dry the soleplate with a towel.
10. Plug in the iron and set the Fabric Select Dial
to LINEN. Let the iron heat for 2 minutes
to dry out the iron completely.
ll. Set the Fabric Select Dial to MIN, unplug the
iron and allow it to cool.
1

Ironing Tips
lAlways read garment labels and follow
the manufacturer’s ironing instructions.
lSort the articles to be ironed according
to the type of fabric.
lYou should first iron garments requiring low
temperature (e.g., silks and synthetics) to avoid
damaging them with an iron that is too hot.
lIf you are unsure of the fabric content of the
garment, test a small area,
such as a seam or facing,
before ironing a visible area. Start with a low
temperature and gradually increase the heat to find
the best setting.
lWhen changing the temperature from a high setting
to a low setting, allow approximately
5 minutes
for the lower temperature to be reached.
lWhen steam ironing, use long, slow passes over
the fabric. This will allow the steam to penetrate
the fabric while allowing the heat of the soleplate
to dry out the moisture.
lTo iron linens, turn garment inside out. Be careful
not to use an iron that is too hot
because the lining
may melt or stick to the soleplate.
lTo iron zippers, use an ironing cloth or make sure
the zipper is closed and iron
over the flap.
Never iron directly
over an unprotected zipper.
lUse the Ironing Guide on Page 15 to select the best
setting and method for the fabric you plan to iron.

Ironing Guide
Fabric Steam Setting
Acrylic Dry
O
Acetate Dry 0
Silk
Dry 0
Viscose Dry 0 or Steam 1
Nylon Dry
0or Steam 1
Polyester Dry 0 or Steam 1
Reyon Dry
0 or Steam 1
Wool Steam 1 - 2
Wool
Steam 1 - 2
Blands
Cotton Steam
1 - 3
Blands
Corduroy Steam
1 - 3
Cotton Steam 1 - 3
Linen Steam 1 - 3
Denim Steem 1 -3
Synthetic
Synthetic
Silk
Silk
Silk
Silk
Silk
Wool
Wool
Cotton
Cotton
Cotton
Linen
Linen
Iron garment inside out
Iron garment inside out while still damp.
Iron garment inside out Use an ironing cloth*
to prevent shine marks.
Mainly dry iron; staam may be usad under germent
manufacturer's instructions.
Iron germent inside out while still demp.
Iron garment inside out while still damp.
Iron garment inside out
Iron germent inside out or usa en ironing cloth*
Iron germent inside out or use an ironing
cloth*
Follow garment manufacturer’s instructions. Use setting
for the fiber requiring the lowest setting.
Iron garment inside out or us an ironing cloth’
and then brush the garment with your hand to raise
the texture of the fabric.
Iron dark fabrics inside out to prevent shine marks.
Iron garment inside out or use an ironing cloth* to
prevent shine marks (especially
on dark fabrics).
Use the SHOT OF
STEAW feature for deeper
penetration to remove wrinkles.wrinkles.
*An ironing cloth is a cotton, dry-cleaned cloth that you place over the garment
you are ironing to prevent the fabric
from looking shiny.

0-y
. .
Sunbeam Products, Inc. (“Sunbeam”) warrants that for a period of
ONE year from the date of purchase, this product will be free from
defects in material and workmanship. Sunbeam, at its option, will repair
or
replace this product or any component of the product found to be
defective during this warranty period. Replacement will be made with
a new or remanufactured product or component. If the product is
no longer available, replacement may be made with a similar product
of equal or greater value. This is your exclusive warranty.
This warranty is valid for the original retail purchaser from the date of
initial retail purchase and is not
transferable. Keep the original sales receipt.
Proof of purchase is required to obtain warranty performance. Sunbeam
dealers, service centers or retail stores selling Sunbeam products do not have
the right to aher, modify or any way change the terms and conditions
of this warranty.
This warranty does not cover normal wear of parts or damage resulting
from any of the following: negligent use or
misuse of the product, use on
improper voltage or current, use contrary to the operating instructions,
disassembly, repair or alteration by anyone other than Sunbeam or an
Authorized
Service Center. Further, the warranty does not cover acts of
nature,
such as fire, flood, hurricanes and tornadoes.
Sunbeam shall not be hable for any incidental or consequential damages
caused by the breach of any express or implied warranty. Except to the extent
prohibited by applicable law, any implied warranty of merchantability or
fitness for a particular purpose is limited in duration to the duration of the
above warranty. NOTE: For products acquired outside the United States,
please see country specific warranty insert.
How to Obtain Warranty Service
Take the product to an Authorized Sunbeam Service Center.
You can find the nearest Authorized Sunbeam Service Center
by calling l-800-458-8407 or visit our Website at
www.sunbeam.com.
DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE

Do Not SEND THIS PRODUCT TO THE PLACE OF PURCHASE
For product questions:
Sunbeam Consumer Service
P.O. Box 948389
Maitland, FL 32794-8389
1.800.458.8407
www.sunbeam.com
DO NOT SEND PRODUCT TO THE ABOVE ADDRESS
82001
Sunbeam Products, Inc. All rights reserved.
SUNBEAM’ and SHOT OF STEAM@ are registered trademarks of Sunbeam Products, Inc.
EURO PRESSTM and MOTION SMARI? are trademarks of Sunbeam Products, Inc.
Printed in China P.N. 107962

Al usar la plancha, siempre se deben tomar precauciones de
seguridad, incluidas las siguientes:
. LEA TODAS LAS INSTRUCCIONES ANTES
DE USARLA.
l Utilice la plancha sólo para su uso indicado.
l Para protegerse contra el riesgo de descarga eléctrica,
no sumerja la plancha en agua u otros líquidos.
l La plancha siempre debe estar en la posición de
apagado (OFF) antes de conectarla o desconectarla
del tomacorriente. Nunca tire del cable para desconectar
la plancha del tomacorriente; para desconectar
la plancha, sujete y tire del enchufe.
l No permita que el cable toque superficies calientes.
Deje que la plancha se enfríe completamente antes
de guardarla. Enrolle sin apretar el cable alrededor
de la plancha para guardarla.
l Siempre desconecte la plancha del tomacorriente
para llenarla con agua, para vaciar el agua
y cuando no esté en uso.
l No baga funcionar la plancha con el cable dañado,
ni tampoco si dejó caer la plancha o si ésta sufrió daño.
Para evitar el riesgo de descarga eléctrica no desame
la plancha. Llévela a un centro de servicio autorizado
para que sea examinada
y/o reparada. Un reensamblaje
incorrecto de la plancha puede causar riesgo de
descarga eléctrica al usarla.
l Cualquier artefacto eléctrico usado por niños,
o cerca de niños, requiere una vigilancia cuidadosa.
No deje la plancha desatendida mientras esté conectada
o sobre una tabla de planchar.
l El contacto con piezas metálicas calientes, agua caliente
o vapor puede causar quemaduras. Tenga cuidado
cuando invierta la posición de una plancha de vapor
ya que puede contener agua caliente en el depósito.
