Sunday Electronics Technology Co., Ltd. S-KW425TG Operation manual
Sunday Electronics Technology Co., Ltd.
S-KW425TG Ver. A1 Page 1 of 5
Model: S-KW425TG
Wireless Keyboard with touchpad
Installation& User’s Guide
Changes or modifications not expressly approved by the party responsible for compliance could voi
d the user’s authority to operate the equipment.
Version:A1 2013-11-15
void
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try correct the interference by one or more of the following measures:
- Reorient the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into and outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1)
this device may not cause harmful interference, and 2) this device must accept any interference received,
including interference that may cause undesired operation.
Sunday Electronics Technology Co., Ltd.
S-KW425TG Ver. A1 Page 2 of 5
1
ˊ
Overview
2.4GHz Wireless Technology range up to 5-10M
Mini keyboard with built-in high resolution touchpad
Additional 4 web browsing and multimedia hot keys
Click and Right Click buttons
Exquisite mini USB receiver
Plug and play with Windows 2000/ME/XP/NT/VISTA/7
2
ˊ
Package contents
Wireless Touchpad Keyboard
USB Wireless Receiver
AAA Battery
User's Manual
3
ˊ
System Requirements
Windows 2000/ME/XP/NT/VISTA/7
USB port
Compatible with PC/HTPC/TVBOX/XBOX360/PS3
Note: For xbox360 and ps3, after receiver is plugged, it's also a must to restart the
device
4
ˊ
Specifications
Windows 2000/ME/XP/NT/VISTA/7 compatible
Interface:USB 2.0
Dimension: 280(L)×112 (w)×17 (H)mm
Weight: 280±20g
Peak force: 55±10g
Total Travel (mm): 2.0-2.5mm
Switch Life:5million Cycles
Accessary: 2 AAA batteries, USB Mini Receiver
RF receiver: 41.5x15x7.5mm
Operation Frequency: 2.4GHz RF
Sunday Electronics Technology Co., Ltd.
S-KW425TG Ver. A1 Page 3 of 5
Transmission Distance: 5-10 meters (depend on user environment)
Hot keys: 4 hot keys,Touch pad, Click and right click keys
Operation temperature:0 to 50 degrees
Storage temperature:-20 to 70 degrees
FCC,CE and RoHS Approval
5
ˊ
Installation
1.Insert the USB Receiver into an available USB port.
2.The Found New Hardware Wizard appears and the OS will install the driver automatically.No
other steps are necessary.
3.Open the battery compartment located underneath the wireless keyboard and install the AAA
battery.Turn on the power switch at the back of the keyboard.Note:Follow the polarity signs in the
battery compartmnet to make sure the battery is installed correctly.
4.Please turn on the power switch.
You are now ready to begin using your wireless keyboard
If you don’t want to use it, please turn off the power switch and unplug the dongle
Note:After 4 minutes non-operationm,the keyboard will go to sleep mode,Please press any key to work up.
6
ˊ
Multimedia keys˖
Multimedia keys Multimedia keys Description
Play/Pause Switches between Play and Pause of DVD/VCD/MP3/Audio media. Once Pause is
pressed, pressing this button again resumes play.
Mute Mutes the computer’s sound volume. Press it again to turn the system volume back
on.
V+ Increases the computer’s sound volume. Hold down to increase volume more
quickly.
V- Decreases the computer’s sound volume. Hold down to decrease volume more
quickly.
7
ˊ
Mini keyboard mode
Table below shows the original keys combined with Fn (Fn + original key) of Mini-keyboard.
Function Key Usage:
!Tubuvt!
Lfz!
Mpdbujpo! Go!! Ovn!
Mpdl!!
Go!! Ovn!
Mpdl!!
Go!! Ovn!
Mpdl!!
Go!! Ovn!
Mpdl!!
Sunday Electronics Technology Co., Ltd.
S-KW425TG Ver. A1 Page 4 of 5
PGG! PGG!! PO!! PGG!! PGG! PO!! PO!! PO!!
8!! '8!! Ipnf!! 8!! 8!!
9!! +9!! Ė!9!! 9!!
:!! ):!! QhVq!! :!! :!!
1!! *1!! +!! +!! 1!!
V!! V!! ĕ!5!! V!!
J!! J!! !6!! J!!
P!! P!! ė!7!! P!!
Q!! Q!! .! .! Q!!
K!! K!! Foe!! 2!! K!!
L!! L!! Ę!3!! L!!
M!! M!! QhEo!! 4!! M!!
;<!! ;<!! ,!! ,!! ;<!!
N!! N!! Jot!! 1!! N!!
?/!! ?/!! Efm!! /!! ?/!!
@0!! @0!! 0!! 0!! @0!!
Foufs!! Foufs!)M*!! Foufs)S*!! Foufs)S*!! Foufs)M*!!
G20G22!! G2!! G22!! G2!! G22!!
G30G23!! G3!! G23!! G3!! G23!!
G210!
TdsMpdl!! G21!! TdsMpdl!! G21!! TdsMpdl!!
Ė0QhVq!! Ė!Qbhf!Vq!! Ė!Qbhf!Vq!!
Ę0QhEo!! Ę!Qbhf!Epxo!! Ę!Qbhf!Epxo!!
ĕ0Ipnf!! ĕ!Ipnf!! ĕ!Ipnf!!
ė0Foe!! ė!Foe!! ė!Foe!!
8
ˊ

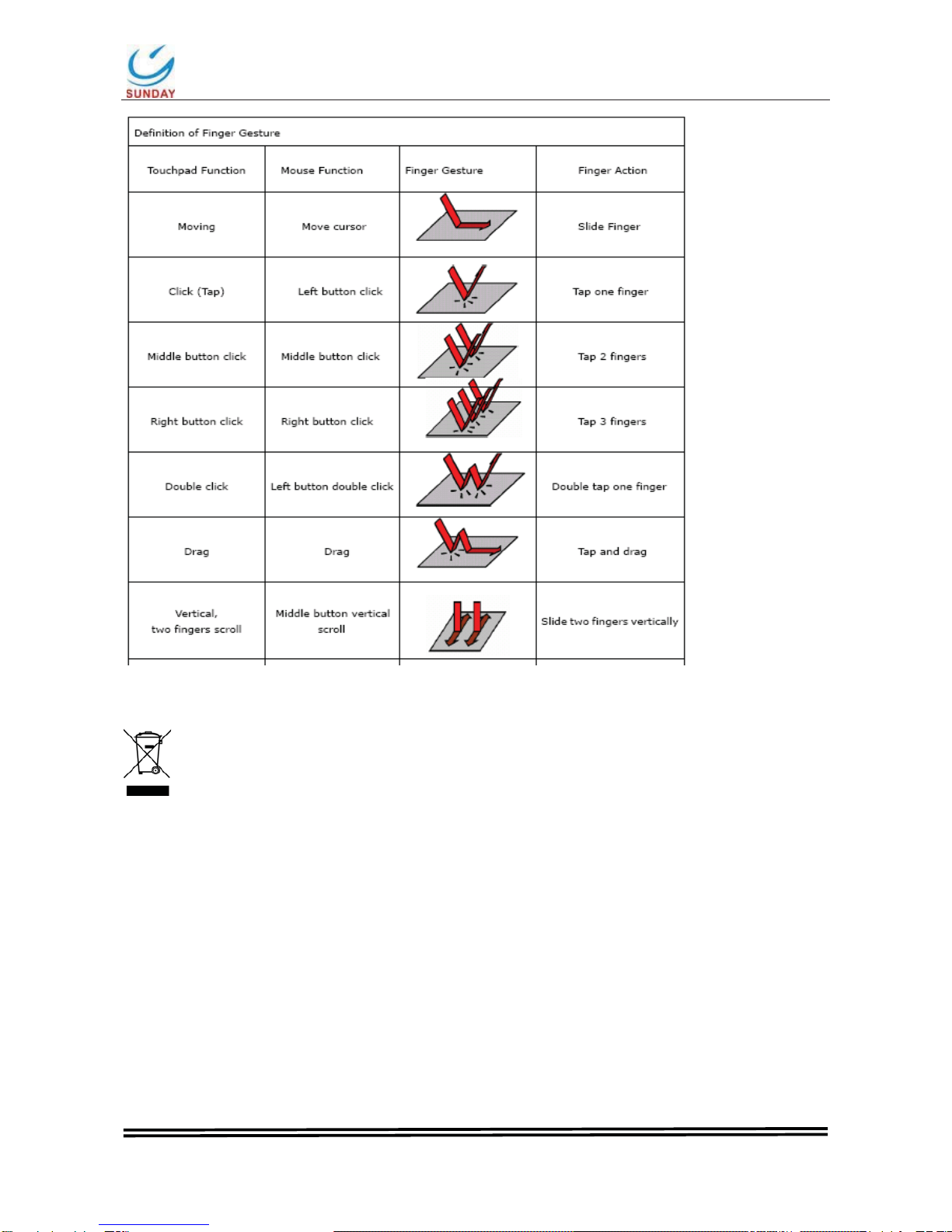

Using Touchpad
Sunday Electronics Technology Co., Ltd.
S-KW425TG Ver. A1 Page 5 of 5
9
ˊ
Disposal
If possible,dispose of the used appliance at a recycling centre. Do not dispose of the used
appliance with the household waste.
10
ˊ
Safety
zNever try to open or to repair this product yourself.
zKeep this appliance away from fluids,such as water.
11
ˊ
Copyright
zReproduction of this manual or any part of it is prohibited without permission from Sunday Electronics
Technology co., Ltd.
