Sundrax PowerGate Series User manual

User
Manual
Version 1.04
March 11, 2020
PGA-0-D, PGA-0-2D, PGA-0-4D
PowerGate Arma

Contents
Specifications
Safe operation
General information
Advantages
Wireless network configuring
Indication
Connection scheme
Technical maintenance
Notes
3
3
3
4
5
5
6
7
7
2PowerGate Arma Waterproof DMX/ArtNet/sACN over Powerline transceiver

Safe operation
To ensure safe and reliable operation of the devices, please observe
the following requirements
Use the device only for its intended purpose
Do not use devices that show signs of malfunctioning
Avoid strong physical impacts on the device
Protect devices and cables from contact with corrosive liquids
Whenever a fault is detected in the device, please contact the manufacturer.
3
Waterproof DMX/ArtNet/sACN over Powerline transceiver PowerGate Arma
Specifications
Supported protocols
DMX data refresh rate
DMX ports
DMX connectors
Input Power (max)
Power supply
Mains fuse
Setup
Working temperatures
Ingress protection
Dimensions and mounting
DMX512, RDM, PWR DMX
44 Hz
1, 2 or 4 isolated
Terminal blocks 15EDGVC
5 W
~100-270 V, 50/60 Hz
0,1 A
Web interface
-40...+70°С
IP 65
171 х 55 х 121 mm on surface/truss
General information
PowerGate is a series of transceivers employing existing power lines (110V/220V) to transmit DMX
signal using PWRDMX technology introduced by Sundrax. PWRDMX eliminates the need of new
cabling. Connected to the same power network, PowerGate devices form a network for reliable
high speed communication.
Warning!
The device uses hazardous
voltage AC 100-270V

4PowerGate Arma Waterproof DMX/ArtNet/sACN over Powerline transceiver
Installation
Before mounting and power up, it is necessary to verify protective earthing and cable connections.
1. Visually inspect the device to make sure that there are no transportation damages.
2. Connect the first device in transmitter mode to DMX signal source, and the second device in receiver
mode to DMX-controlled equipment.
3. Connect AC power cable of the device to a power outlet in the network segment which is selected
for work. There should be no reactive components such as transformers, surge protectors, etc. between
the power sockets transmitter and receiver connected to.
Normal operation of the device in any mode starts immediately after switching power on.
Advantages
DMX512 via 220/110 V transceiver
Die-cast metal casing
No buttons
Full galvanic isolation
Up to 400 m transmission range
The devices supplied are configured as data transmitters to the 230/110V power line (hereinafter
referred to as the «transmitter») or as data receivers from line (hereinafter referred to as the «receiver»).
Transmitter has 1, 2 or 4 input DMX ports for receiving DMX data from the lighting desks, other
converters, etc.
Upon inputting proper DMX signal the transmitter starts to send DMX data via power line. If one or more
PowerGate receivers are connected to the same power network segment, they will receive data from
power line and output these data as DMX signal. DMX output signal from the receivers may be connected
to fixtures or other converters in a normal way.
If transmitter has 2 or 4 ports, each of these is operating independently: DMX data from input 1
are transmitted to output 1 of all connected receivers, data from input 2- to output 2 of all receivers, etc.
The set of PowerGate devices needed for installation is delivered pre-configured with proper number
of transmitters and receivers, so customer should only connect them to power line.
If network configuration change is needed for example, increasing the number of receivers, switching
device’s function from receiver to transmitter and back, creating two or more separated networks in one
power line, etc., PowerGate’s Ethernet input port is used.
PowerGate features LSA-PLUS-type connector for making temporary or permanent connection
to computer/local network. Network setup is performed via web-interface of device, in the same
way as for ArtGate devices. Please refer to ArtGate manual.

5
Waterproof DMX/ArtNet/sACN over Powerline transceiver PowerGate Arma
Indication
Fault Name, Visual Signs
The device does not work,
neither of the LEDs are lit
No data transmission between
the transmitter and one or
more receivers
Possible Reasons
There is no supply voltage
Supply line fuse is broken
The receivers are in another
network segment
There are reactive elements
present in the segment
Troubleshootings
Connect the device to
a working power outlet
Replace the supply line fuse
Check the network, put
devices to the same mains segment
Check the network,
remove reactive load
Wireless network configuring
(receiver)
1. At power-on the receiver waits for a connection request from the transmitter. In this state the green
LEDs on it lights steadily.
2. When connected to the transmitter the receiver LEDs start blinking on every data reception.
DMX512 data received from network are sent to the output interface.
Wireless network configuring
(transmitter)
1. At power-on the transmitter connects to all receivers connected to all receivers from the same
segment of power network. If the DMX data stream at the input connector of this channel is correct
the LED associated with it lights steadily green. If there is no data stream the LED starts blinking.
2. DMX512 data taken by the transmitter from the input connector are transmitted to all
connected receivers.
Normal operation of the device in any mode starts immediately after switching power on.

6PowerGate Arma Waterproof DMX/ArtNet/sACN over Powerline transceiver

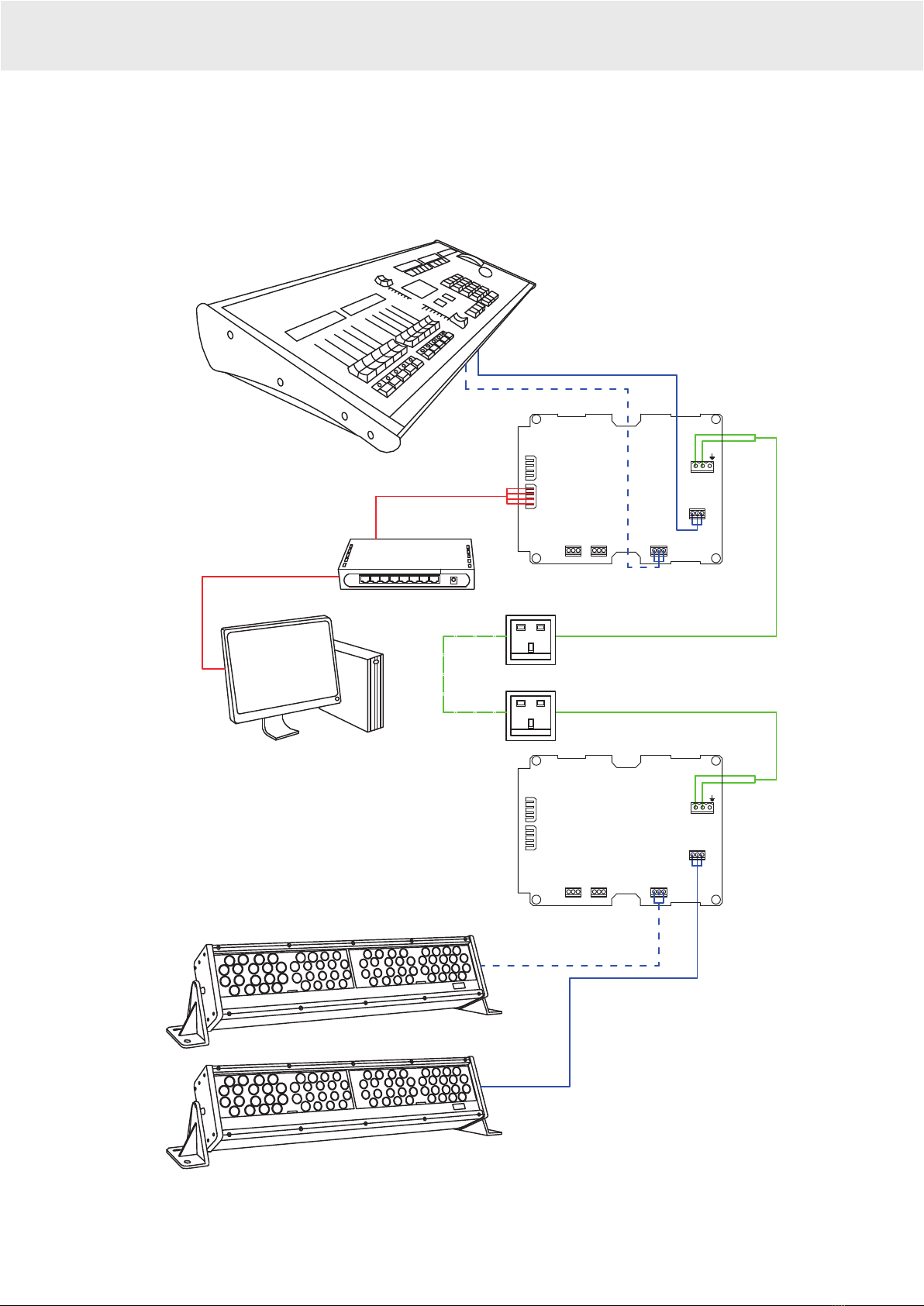

Connection scheme
DMX
100-270 VAC
Electric socket 100-270 V
100-270 VAC
DMX
Electric socket 100-270 V
Ethernet
DMX 1
A COM B
POWER IN
RX
TX
L N
DMX 2
A COM B
DMX 3
A COM B
DMX 4
A COM B
ArtNet/sACN/Other
Transmitter
ArtNet/sACN/Other ETHERNET SWITCH
Ethernet
DMX 1
A COM B
POWER IN
RX
TX
L N
DMX 2
A COM B
DMX 3
A COM B
DMX 4
A COM B
Receiver
DMX
DMX

7
Waterproof DMX/ArtNet/sACN over Powerline transceiver PowerGate Arma
Technical maintenance
Maintenance, search and troubleshooting should be performed by service personnel.
The device should be free from dirt, dents, connecting cables and wires must be intact
and securely fastened.
Notes
Please send all your warranty-related questions to [email protected]
All Sundrax products are covered by a 36 months warranty.
