1 InstallationandConnection
1.1 Connecting the eShow to the Inverter
The eShow is installed onto the inverter by means of the bracket and the M4 screw
in the packaging.
Fig. 1-1 Dimensions of the Bracket (unit: mm)
Fig. 1-2 Dimensions of the Fastener (unit: mm)

1 InstallationandConnection User Manual
2
Procedure
Step 1 Secure the bracket to the inverter with the supplied screws and then hang
the eShow onto the bracket.
The eShow can also be mounted to the wall next to the inverter.
Make sure that the space between the eShow and the inverter is proper
for the cable connection.
Step 2 Connect the RJ45 plug to the RJ45 port on the bottom of the inverter. Fasten
the screws on the RJ45 plug.
Do not extend the communication cable. The loss of any or all rights may
follow if otherwise.
1.2 Connecting the eShow to the DRED
The eShow provides a DRM (Demand Response Mode) port for connecting to a
demand response enabling device (DRED). The DRM port is a standard Ethernet
port.

User Manual 1 InstallationandConnection
3
The following figure shows the DRM mode and the corresponding shorting pins of
the RJ45 plug.
The components of the DRM connector are included in the delivery scope, as shown
in the following figure.
Fig. 1-3 DRM Connector Components
* The seal and the support are not closed. So, you can use the standard network
cable with the RJ45 plug to assemble the DRM connector.
Procedure
Step 1 Lead the network cable through the components according to the following
sequence.
The seal and the support can be opened to place the cable body.
Align the RJ45 plug and the slot to lead the cable through the housing.

1 InstallationandConnection User Manual
4
Step 2 Push the support and the seal into the housing. Then tighten the sealing nut
to the housing.
Step 3 Align the DRM connector and the DRM terminal on the eShow. Plug the
connector and make them engage perfectly.
Step 4 Tighten the screw nut of the connector to the DRM terminal.

5
2 LCD Operation
2.1 Description of Button Function
Inverter offers two buttons for users to look up the running information and
configure parameters. The two buttons have multiple functions. Please refer to Tab.
2-1 before any operation of the inverter.
Please wait about 15s for eShow startup after completing the
connection.
Tab. 2-1 Button function
Button Operation Description
≤2 s Move upwards or downwards or scroll among set values.
Hereinafter, it is referred to as “Touch”.
＞2 s Return to a previous menu or cancel the settings.
Hereinafter, it is referred to as “Press ”.
≤2 s Move left or right, or turn pages.
Hereinafter, it is referred to as “Touch ”.
＞2 s Enter the sub-menu or confirm the settings.
Hereinafter, it is referred to as “Press ”.
If there is no button operation for:
1 minute, LCD backlight will be automatically deactivated;
2 minutes, system will return to the default menu (main screen).

2 LCD Operation User Manual
6
2.2 Menu Tree
Fig. 2-1 Menu tree

User Manual 2 LCD Operation
7
2.3 Main Screen
The LCD display will enter the main screen after successful commissioning, as shown
in Fig. 2-2.
Fig. 2-2 Main screen
Tab. 2-2 Description of the main screen
Status Description
Run
After being energized, inverter tracks the PV arrays’ maximum power
point (MPP) and converts the DC power into AC power. This is the
normal operation mode.
Standby
Inverter enters Standby mode when DC input is insufficient or with the
DRM0 command from the DRED. In this mode inverter will wait within
the Standby duration (set by user, refer to “2.9 Setting the Running
Parameters”).
Stop Inverter is stopped.
Key-stop
Inverter will stop running by manual “stop” via the LCD menu. In this
way, inverter internal DSP stops. To restart the inverter, manually start
via the LCD menu.
Startup The inverter is initializing and synchronizing with the grid.
Dispatch Inverter output power can be adjusted via the LCD menu. The value of
Pac limit is lower than 100%.
Derating
Output derating is a way to protect the inverter form overload or
potential faults.
Situations require inverter power derating are too high internal
temperature, too low grid voltage and so on.
Fault ххх
If a fault occurs, inverter will automatically stop running, disconnect the
AC relay, and display the fault information on the LCD display with the
“FAULT” indicator on. “ххх” is the fault code, e.g. “010”.
Once the fault is removed in recovery time (set by user, refer to “2.9
Setting the Running Parameters”), inverter will automatically resume
running.
Warn ххх Warning information is detected. “ххх” is the warning code, e.g. “070”.

2 LCD Operation User Manual
8
If a DRED is connected to the eShow and the
DRED activates a DRM command, the DRM
state will be shown on the main screen, as
shown in the figure.
Tab. 2-3 Demand Response Modes (DRMs)
Mode Explanation
DRM0 The inverter is in the state of standby.
DRM5 The export power to the grid is 0%.
DRM6 The export power to the grid is no more than 50% of the rated power.
DRM7 The export power to the grid is no more than 75% of the rated power.
DRM8 The export power to the grid is 100%, but subject to the constraints from
other active DRMs.
Viewing Current Fault
If inverter is in “Fault
”
state, touch to
view “Current fault” information. To know
the meaning of the fault code, please
refer to “3.1 Troubleshooting”.
2.4 Contrast Adjustment
Step 1 Press/touch on the main screen to enter the contrast adjustment screen.
Step 2 Touch to increase the setting value and touch to decrease the value.
Step 3 Press to confirm the contrast setting.
Contrast adjustment range: 0…100%
Recommended value: 50% or 60%.

User Manual 2 LCD Operation
9
2.5 Checking Running Information
The main screen displays some basic information about the inverter. For more
detailed information, please operate as follows:
Main Screen (Press )→Menu→Run-inform (Press )
Scroll pages by touching .
T

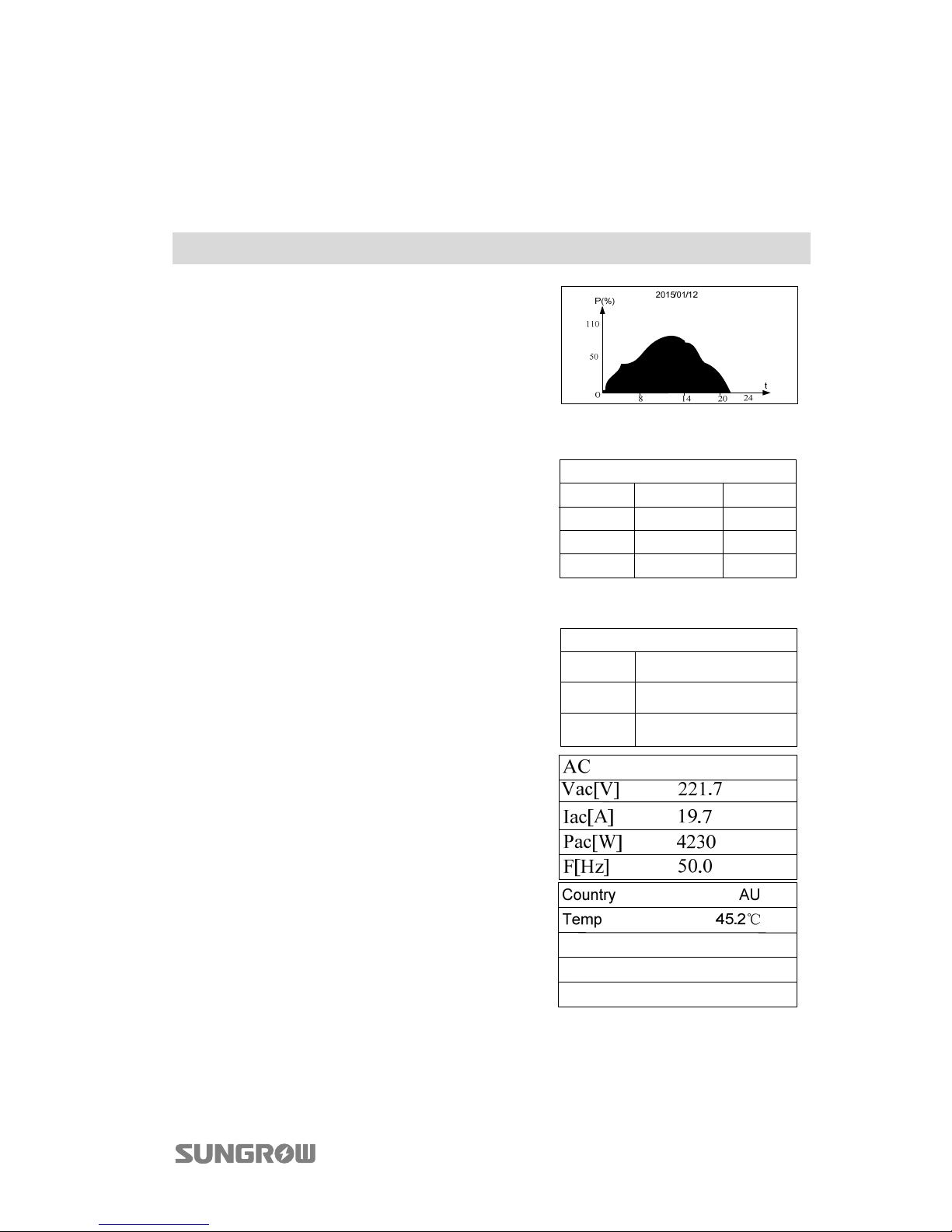

he power curve shows the daily power
output. Each point in the curve is the
percentage of the present power to the
nominal power.
If the inverter has two pairs of DC terminals, the DC information will be as shown in
the figure.
Vdc[V]: DC voltage of each input.
Idc[A]: DC current of each input.
Pdc[W]: DC power of each input.
Indep mode/Paral mode:
The PV configuration mode of the two PV
inputs. Refer to "5.5.1 PV Inputs
Configuration" in the User Manual of inverter.
DC Paral mode
Pdc[W] 2142 2177
Idc[A] 6.2 6.3
Vdc[V] 345.6 345.6
DC1 DC2
If the inverter has a pair of DC terminals, the DC
information will be as shown in the figure.
Vdc[V]: DC voltage.
Idc[A]: DC current.
Pdc[W]: DC power.
DC
Pdc[W] 0000
Idc[A] 0.0
Vdc[V] 00.0
Vac[V]: AC output voltage.
Iac[A]: AC output current.
Pac[W]: AC output power.
F[Hz]: Frequency of AC output.
Country: Country code.
Temp: The internal temperature of the inverter.

2 LCD Operation User Manual
10
Inverter shows detailed device information,
including the SN and the firmware version.
The firmware version information is read only.
2.6 Setting the Country Code
To make the protection parameters setting convenient, inverter provides in-built
protection parameters for certain countries.
Main Screen (Press )→Menu (Touch ×1)→Country setting (Press )
Touch /to choose countries and press to
confirm.
If the country selected is not in the list, please
choose Other and then input the protection
parameters manually.
Tab. 2-4 Country code description
Country Code Country Language
GB Great Britain English
DE Germany German
FR France French
IT Italy Italian
ES Spain English
AT Austria German
AU Australia English
CZ Czech English
BE Belgium French
NL Netherlands English
CN China Chinese
SE Sweden English
TH Thailand English
KR Korea Korean
Other Country not mentioned above English
After setting the Country, please set other parameters of the inverter in
accordance with the specific requirements of the local grid. Check the
parameters thoroughly before commissioning.
SUNGROW assumes no liability for direct or indirect damage arising from
the parameters exceeding the permissible range of the utility grid.

User Manual 2 LCD Operation
11
If the country code is set to AU, the grid
company setting will appear. Touch /to
choose grid code and press to confirm.
Tab. 2-5 Grid company code description
Grid company Code Company
AG AusGrid, NSW
EE Ergon Energy, QLD
PN SA Power Networks,SA
PC Powercor,VIC
WP Western Power,WA
EG Energex, QLD
Other Company not mentioned above
2.7 Setting the Time
The correct system time is very important. If there is deviation between the system
time and the local time, the inverter will not operate normally. The clock is in
24-hour format. Proceed as follows to set the correct time.
Main Screen (Press )→Menu (Touch ×2)→Set Time(Press )
Touch to move the cursor and touch to
change value. Press to confirm setting.
2.8 Starting/Stopping the Inverter
Main Screen (Press )→Menu (Touch ×3)→On/Off Control (Press )
Touch to choose and press
to confirm the choice.
Press to confirm.

2 LCD Operation User Manual
12
2.9 Setting the Running Parameters
Main Screen (Press )→Menu (Touch ×4)→Run-param (Press )
On the “Run-param” screen, touch to select one
item and press to enter the setting interface.
For each item, touch to move the cursor and
touch to set the appropriate value.
Confirm settings by pressing .
Tab. 2-6 Description of Running Parameters
Parameter Description Default Range
Pac limit Inverter active power limitation 100.0% 0~100%
P-Q param Power factor param - -
Standby time Time from inverter standby to
startup 10s 20~255s
Recovery time Time from inverter fault is
removed to standby
30s
[IT: 300s] 0-900s
Select P-Q param and touch to select the mode. Press to enter the submenu.
Tab. 2-7 Description of P-Q param
Parameter Description Default Range
OFF Disable the function of
reactive power regulating. - -
PF Inverter output power factor +1.000 -1.000~-0.800/
+0.800~+1.000
Qt
The maximum ratio of reactive
power to rated apparent
power as %.
-060%...+060%
Qp Upper PF Cap Power factor of point P1 in the
Qp mode curve 1.000 0.9…1

User Manual 2 LCD Operation
13
Parameter Description Default Range
Lower PF Ind Power factor of point P2 in the
Qp mode curve 0.900 0.9…1
Upper Power* Output power of point P2 in
the Qp mode curve (in %) 100.0% 50%...100%
Lower Power* Output power of point P1 in
the Qp mode curve (in %) 050.0% 0%...50%
Qu
Up U Limit Grid voltage reference value 4 265.0 V 244 V...265 V
Low U Limit Grid voltage reference value 1 207.0 V -
U1 Limit Grid voltage reference value 2 220.0 V 216 V... 230 V
U2 Limit Grid voltage reference value 3 250.0 V 235 V... 255 V
Upper Q/Sn Q/Sn value of voltage V1 30.0% 0%...60%
Lower Q/Sn Q/Sn value of voltage V4 30.0% 0%...60%
*Lower Power <Upper Power
“+”: the current leads the voltage, ”-”: the current lags the voltage”
Fig. 2-3 Reactive Power Regulation Curve in Q(p) Mode
Fig. 2-4 Reactive Power Regulation Curve in Q(U) Mode

2 LCD Operation User Manual
14
2.10 Settings
Main Screen (Press )→Menu (Touch ×5)→Set-param (Press )
2.10.1 Password Entry
Set-parameter setting is password-protected. To set the parameters, you should
input the correct password.
Step 1 A password confirmation screen will occur.
Touch to move cursor right and touch
to input the password 111111.
Step 2 Press to confirm the password and enter
the “Set-param” submenu.
2.10.2 Setting the Protective Parameters
Protective parameters are designed for the threshold values that can trigger the
protection function of the inverter.
T
he single-stage and multi-stage protection
parameter setting interface will appear.
Single-stage Protection Parameter Setting:
Touch to select parameter, touch to move the
cursor and touch to set the appropriate value.
Confirm settings by pressing .

User Manual 2 LCD Operation
15
Multi-stage Protection
Parameter Setting:
Touch to select
parameter, touch to
move cursor and touch
to set the appropriate
value. Confirm settings
by pressing .
Tab. 2-8 Multi-stage Protection Parameters Explanation
Parameter Explanation
Max-V. prot Over-voltage protection
1-Vmax Stage 1 Grid over-voltage (U>)
1-Time Stage 1 Grid over-voltage (U>) tripping time
2-Vmax Stage 2 Grid over-voltage (U>>)
2-Time Stage 2 Grid over-voltage (U>>) tripping time
Min-V. prot Under-voltage protection
1-Vmin Stage 1 Grid under-voltage (U<)
1-Time Stage 1 Grid under-voltage (U<) tripping time
2- Vmin Stage 2 Grid under–voltage (U<<)
2-Time Stage 2 Grid under–voltage (U<<) tripping time
Max-F. prot Over-frequency protection
1- Fmax Stage 1 Grid over-frequency (f>)
1- Time Stage 1 Grid over-frequency (f>) tripping time
2- Fmax Stage 2 Grid over-frequency (f>>)
2- Time Stage 2 Grid over-frequency (f>>) tripping time
Min-F. prot Under-frequency protection
1- Fmin Stage 1Grid under-frequency (f<)
1- Time Stage 1 Grid under-frequency (f<) tripping time
2- Fmin Stage 2 Grid under-frequency (f<<)
2- Time Stage 2 Grid under-frequency (f<<) tripping time
2.10.3 GND Detection
Touch to select ON/Off and confirm settings by
pressing .
Select ON to enable the GND Detect function.
When the enclosure of the inverter is not grounded, the code 106 will be shown on the
main screen and the buzzer inside will sound at the same time.

2 LCD Operation User Manual
16
2.10.4 Total Energy Deviation Adjustment
If the accumulative value “E-total” in the inverter is different from the value in the
external metering device, you should adjust energy by“Energy-adj”setting.
Touch to move the cursor and touch to
change the value. Press to confirm the setting.
The “+” can be changed to “-”.
The adjustment rangs from -9999 to +9999 kWh.
(Energy-adj value)=(Real measured value) - (E-tot
reading value).
2.10.5 Load Default
All history information will be unrecoverable and all parameters will return
to the default value except the protective parameters and time once the
“load default” operation is performed.
Press to confirm “load default”.
2.10.6 Setting the Power Derating Parameters
Set four grid voltage reference values. The output power of the inverter varies in
response to the grid voltage.
Touch to move the cursor and touch to
change value. Press to confirm setting.
Tab. 2-9 Description of Power Derating Parameters
Parameter Description Default Range
Up U Limit Grid voltage reference value 4 265.0 V 244 V...265 V
Low U Limit Grid voltage reference value 1 207.0 V -
U1 Limit Grid voltage reference value 2 220.0 V 216 V... 230 V
U2 Limit Grid voltage reference value 3 250.0 V 235 V... 255 V
