SunHome Luminar Service manual

PLEASE READ THESE DIRECTIONS CAREFULLY BEFORE USE AND KEEP FOR
FUTURE REFERENCE. THE INSTALLATION OF THE SAUNA REQUIRES A
MINIMUM OF 2 PEOPLE. YOU SHOULD NOT TRY TO INSTALL
THE SAUNA ON YOUR OWN.
LIST OF CONTENTS
1 INSTALLATION STEPS
----------------------------------------------------------- 2
FRAME AND HEATER ASSEMBLY
----------------------------------------------------------- 2
FOR TOWEL RACK, CUP HOLDER, AND OXYGEN IONIZER
----------------------------------------------------------- 8
2 HOW TO USE INSTRUCTIONS
----------------------------------------------------------- 9
CAUTION
----------------------------------------------------------- 9
CLIMATE AND ELECTRICAL
----------------------------------------------------------- 9
ITEMS INCLUDED
----------------------------------------------------------- 9
OPERATIONAL INSTRUCTIONS
----------------------------------------------------------- 10
TROUBLESHOOTING
----------------------------------------------------------- 11
MAINTENANCE
----------------------------------------------------------- 12
WARRANTY
----------------------------------------------------------- 12
SPECIFICATIONS
----------------------------------------------------------- 13
WARRANTY CARD
----------------------------------------------------------- 14

1. INSTALLATION PROCEDURE
CAUTION:
1) No plumbing or plumbing fixtures should be placed in the sauna.
2) Keep all liquids away from the heating panels.
3) Install sauna on a completely level surface.
4) Install sauna in an area that is dry.
5) Flammable objects and Corrosive chemical substances should be kept far away
from the sauna.
6) Place your sauna on a level surface that will not flood. The saunas are very heavy
so a solid foundation is recommended. While the Luminar saunas are designed to be
placed outside, choosing a location without excessive rain and wind is highly recom
mended.
Each side panel has a white label to identify the side and direction. The panel with “LEFT’
label should be placed on the left side (view from the inside of the sauna). The same
goes with the other panels.

Frame and Heater Assembly (2 person & 5 person)
(The following pictures are used for your reference. Don’t worry if your
sauna has any differences from the pictures, please just follow the
steps.)
1) Open sauna packages in a large area. Place Floor Panel on the
desired location.
2) Secure and align Back Panel on the Floor panel vertically

3) Secure the Right Wall on the Floor panel the same way as the Back
Panel.
4) Secure the Right Wall on the Floor panel in the same way.

5) Secure the Left Wall on the Floor panel in the same way.
6) Install the seat supports and connect to the power supply
under seat.

7) Install the benches and fasten with screws.
8) Install backrests with screws and connect the light strip with plug.
The width of the four backrest is 18.11 inch. The width of the two side
backrest is 20.27 inches.

9) Install the inner ceiling top and connect all plugs.

10) Install full spectrum heaters on glass via the provided screws and
connect to the plugs.

11) Before installing the outer overhang ceiling, test the power and heaters.
Once confirmed they are fully functional, then proceed with installing the
roof

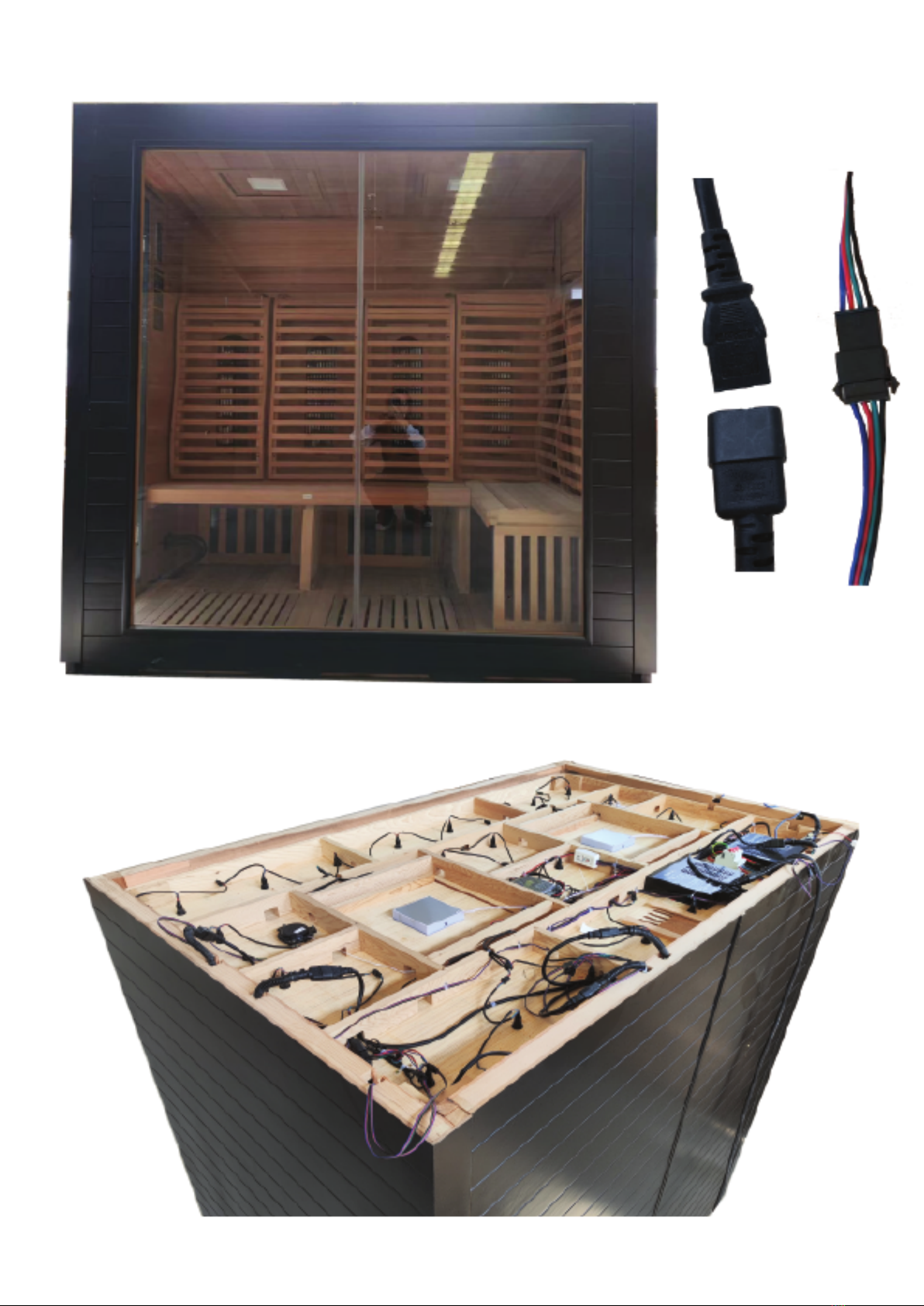

12) Install the roof and connect LED light strip to plug.

13) Power the unit on and test heaters, controls, and lights

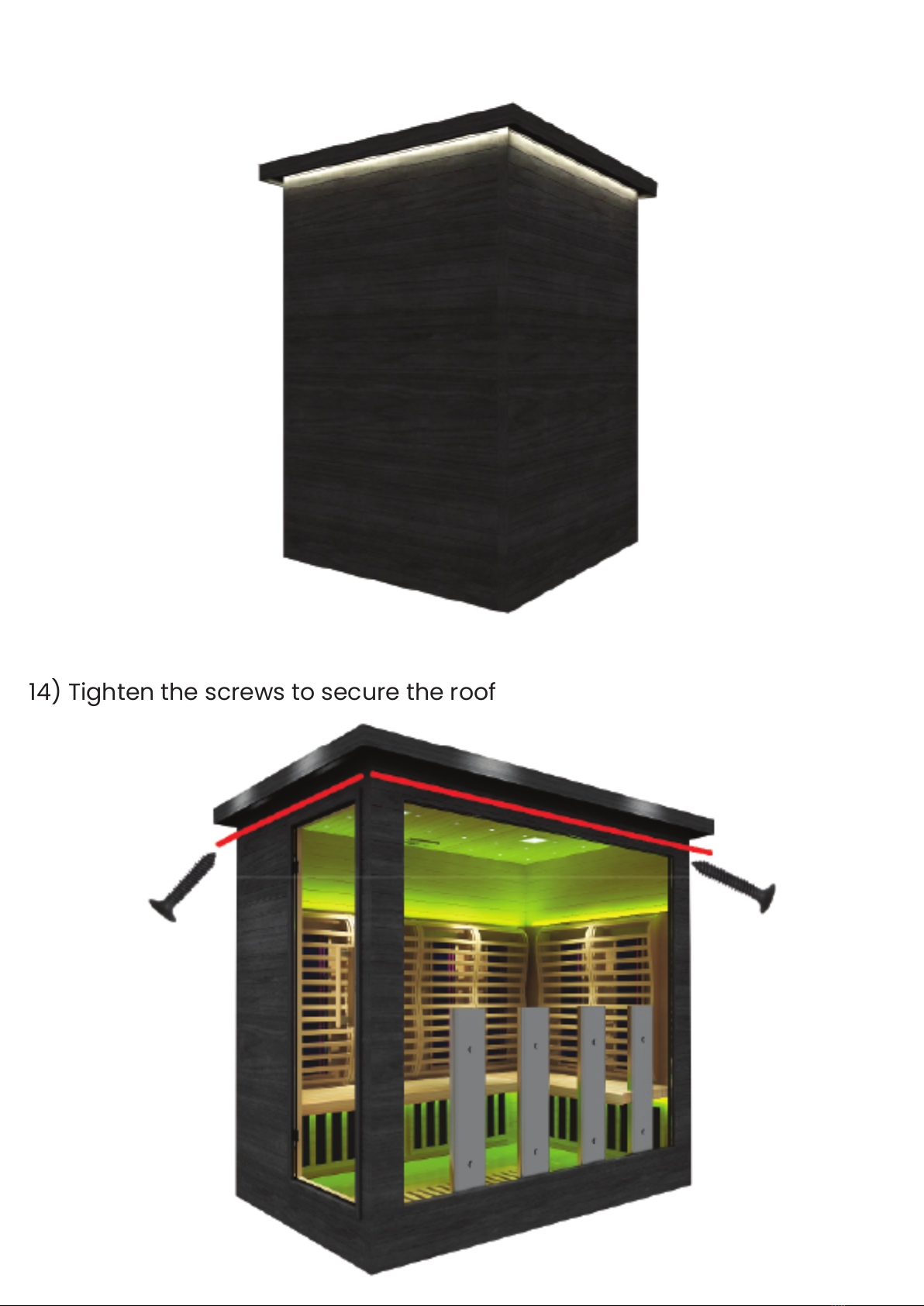

14) Tighten the screws to secure the roof

Completed Sauna:
Congratulations!
Installation is completed!

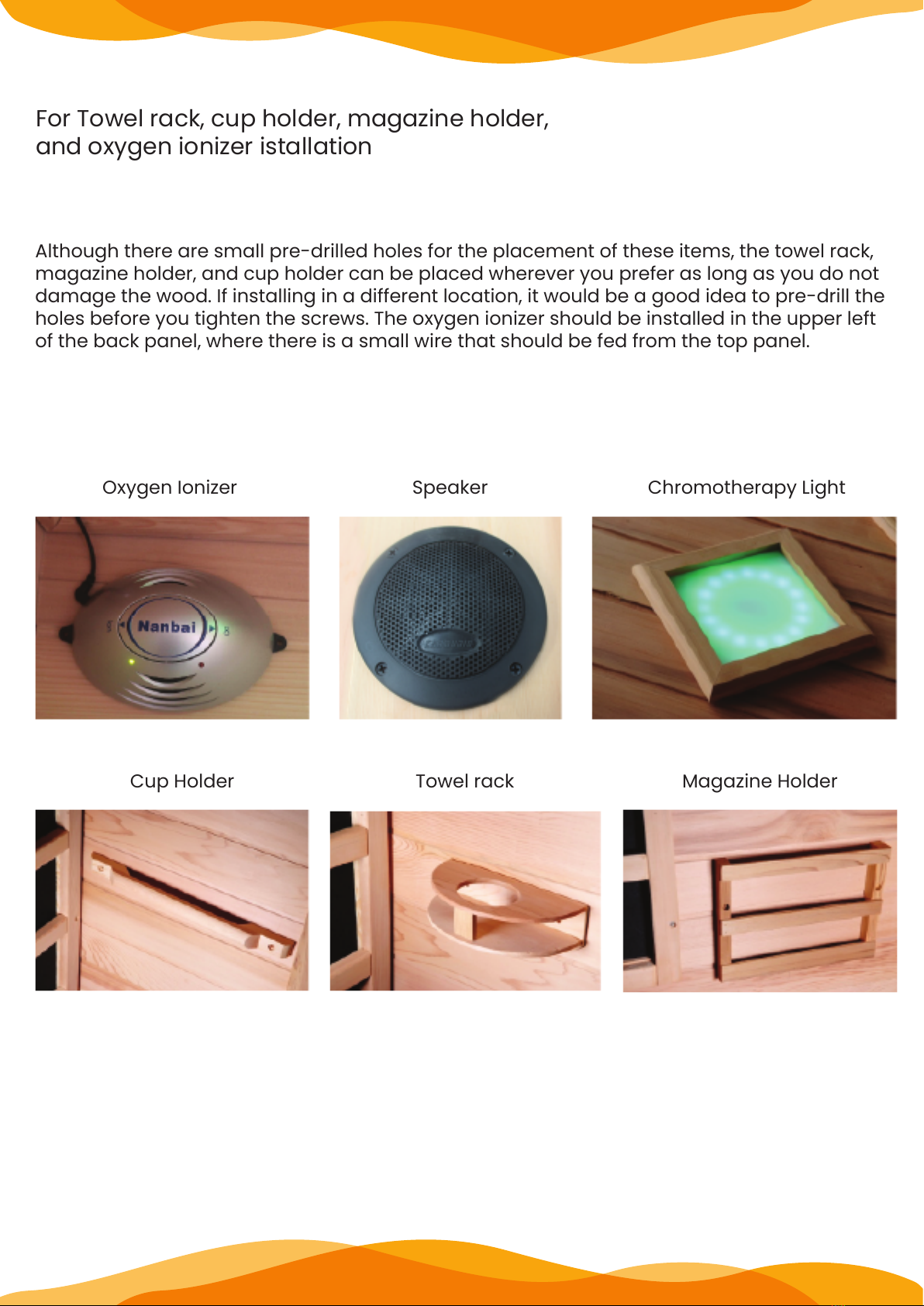

For Towel rack, cup holder, magazine holder,
and oxygen ionizer istallation
Although there are small pre-drilled holes for the placement of these items, the towel rack,
magazine holder, and cup holder can be placed wherever you prefer as long as you do not
damage the wood. If installing in a different location, it would be a good idea to pre-drill the
holes before you tighten the screws. The oxygen ionizer should be installed in the upper left
of the back panel, where there is a small wire that should be fed from the top panel.
Oxygen Ionizer
Cup Holder Towel rack Magazine Holder
Speaker Chromotherapy Light

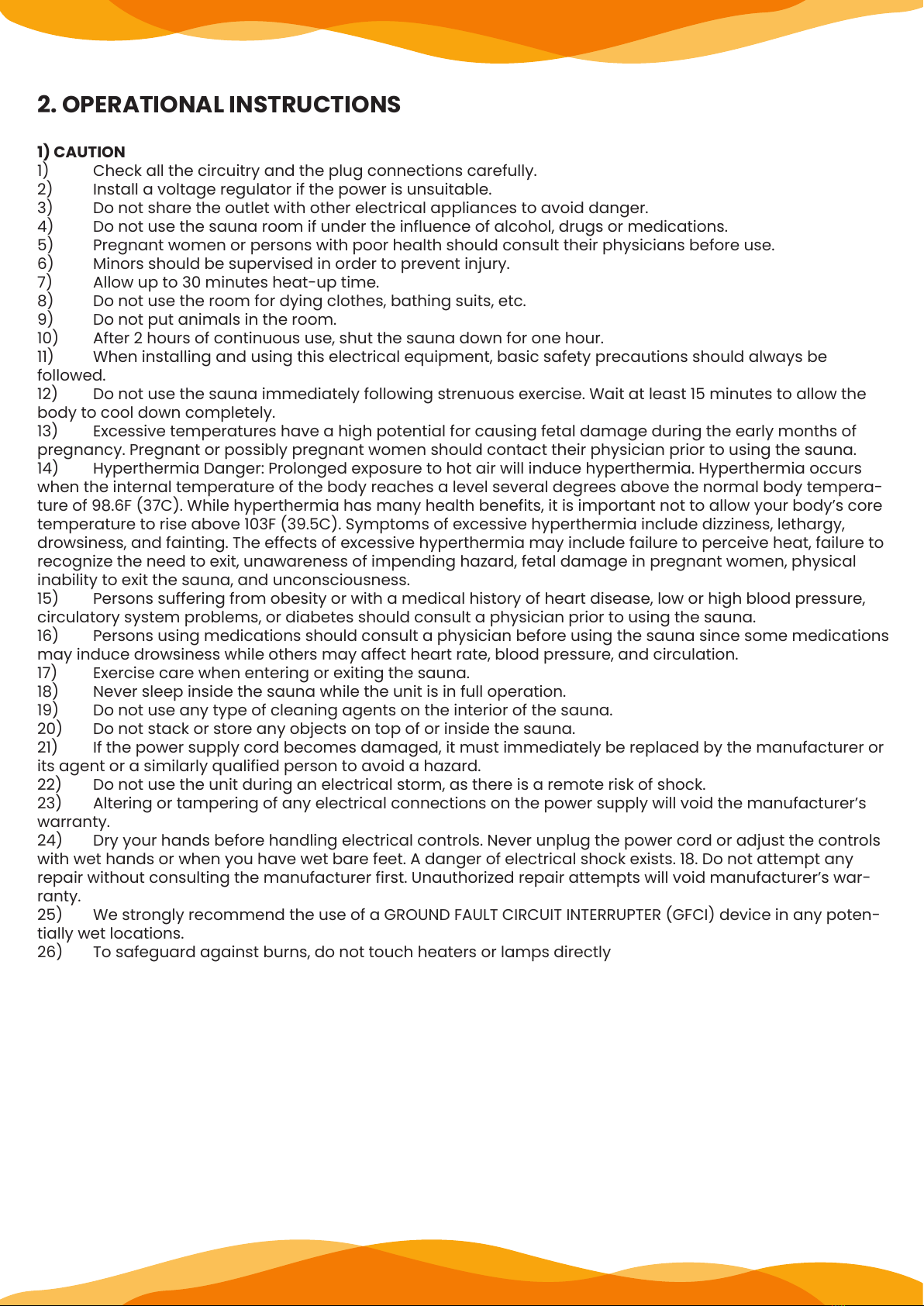

2. OPERATIONAL INSTRUCTIONS
1) CAUTION
1) Check all the circuitry and the plug connections carefully.
2) Install a voltage regulator if the power is unsuitable.
3) Do not share the outlet with other electrical appliances to avoid danger.
4) Do not use the sauna room if under the influence of alcohol, drugs or medications.
5) Pregnant women or persons with poor health should consult their physicians before use.
6) Minors should be supervised in order to prevent injury.
7) Allow up to 30 minutes heat-up time.
8) Do not use the room for dying clothes, bathing suits, etc.
9) Do not put animals in the room.
10) After 2 hours of continuous use, shut the sauna down for one hour.
11) When installing and using this electrical equipment, basic safety precautions should always be
followed.
12) Do not use the sauna immediately following strenuous exercise. Wait at least 15 minutes to allow the
body to cool down completely.
13) Excessive temperatures have a high potential for causing fetal damage during the early months of
pregnancy. Pregnant or possibly pregnant women should contact their physician prior to using the sauna.
14) Hyperthermia Danger: Prolonged exposure to hot air will induce hyperthermia. Hyperthermia occurs
when the internal temperature of the body reaches a level several degrees above the normal body tempera-
ture of 98.6F (37C). While hyperthermia has many health benefits, it is important not to allow your body’s core
temperature to rise above 103F (39.5C). Symptoms of excessive hyperthermia include dizziness, lethargy,
drowsiness, and fainting. The effects of excessive hyperthermia may include failure to perceive heat, failure to
recognize the need to exit, unawareness of impending hazard, fetal damage in pregnant women, physical
inability to exit the sauna, and unconsciousness.
15) Persons suffering from obesity or with a medical history of heart disease, low or high blood pressure,
circulatory system problems, or diabetes should consult a physician prior to using the sauna.
16) Persons using medications should consult a physician before using the sauna since some medications
may induce drowsiness while others may affect heart rate, blood pressure, and circulation.
17) Exercise care when entering or exiting the sauna.
18) Never sleep inside the sauna while the unit is in full operation.
19) Do not use any type of cleaning agents on the interior of the sauna.
20) Do not stack or store any objects on top of or inside the sauna.
21) If the power supply cord becomes damaged, it must immediately be replaced by the manufacturer or
its agent or a similarly qualified person to avoid a hazard.
22) Do not use the unit during an electrical storm, as there is a remote risk of shock.
23) Altering or tampering of any electrical connections on the power supply will void the manufacturer’s
warranty.
24) Dry your hands before handling electrical controls. Never unplug the power cord or adjust the controls
with wet hands or when you have wet bare feet. A danger of electrical shock exists. 18. Do not attempt any
repair without consulting the manufacturer first. Unauthorized repair attempts will void manufacturer’s war-
ranty.
25) We strongly recommend the use of a GROUND FAULT CIRCUIT INTERRUPTER (GFCI) device in any poten-
tially wet locations.
26) To safeguard against burns, do not touch heaters or lamps directly
2) USE ENVIRONMENT
1) Temperature: 0-65 C; / 0-150 F
2) Comparative humidity: <85%;
3) Atmospheric pressure: 700hpa~1060hpa;
4) Power: AC 220V±22V, 50HZ±1HZ.

3) OPERATIONAL INSTRUCTIONS

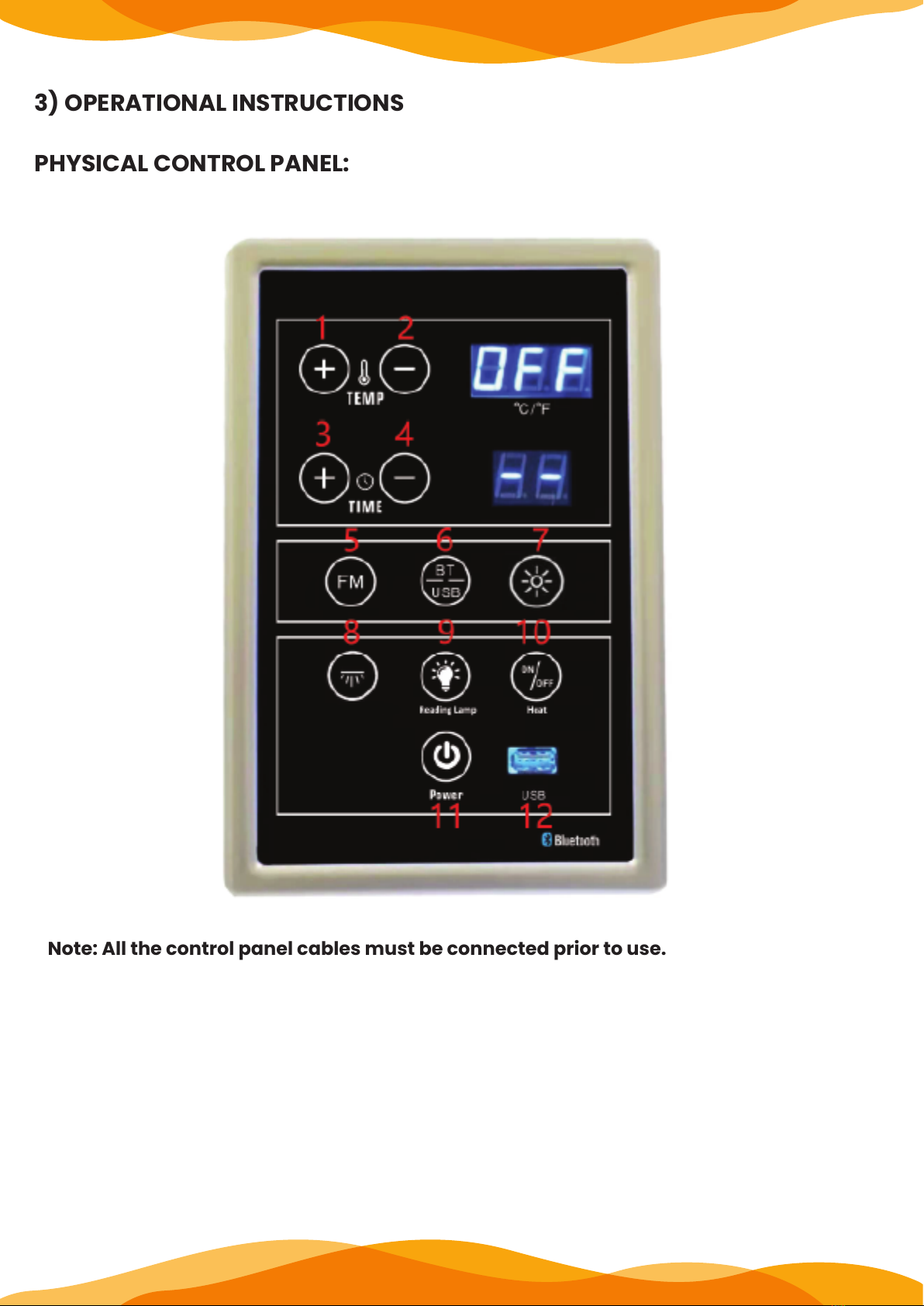

PHYSICAL CONTROL PANEL:
Note: All the control panel cables must be connected prior to use.
1. Temperature +/ Previous song/manual search: infrared mode (heaters on) can be acti-
vated via the plus key on the temperature
setting. Controlling the speaker volume is also controlled via the
temperature buttons
2. 2.Temperature Display: Press arrow UP or DOWN to set desired temperature. Press the
two arrows together to convert Celsius into Fahrenheit.
2. Temperature -/ Next song/manual search: the infrared mode is the temperature setting
minus key, the music mode is the next song, the radio mode is the down manual search.

PHYSICAL CONTROL PANEL:
3. Time +/ Volume + key: infrared mode for the time setting plus key, music and radio
mode for the volume plus.
4. Time -/ Volume - key: Set the reduction key for time in infrared mode, and the volume
reduction for music and radio mode.
5. FM Radio: enter the radio mode, press the temperature plus or minus key to search the
station 5 seconds later, this opportunity will automatically jump to the physiotherapy
mode. Press to display radio status and press to disable the radio function.
6. Bluetooth /USB function key: Press for 5 seconds to enter Bluetooth mode, then press the
key to display Bluetooth status, and then press to turn off Bluetooth function. After con-
necting Bluetooth with mobile phone, Bluetooth music can be played on the device, and
hold this key to enter USB mode for 5 seconds, then this key will automatically jump to
infrared mode. Hold this key to display the USB status and press again to turn off the USB
function. You can play MP3 music after inserting the USB disk with copied MP3 music.
7. Color lights on key: the order is RGB->R->G->B->RG->RB->GB->Turn off the
physiotherapy light -> automatic cycle, a total of nine modes.
8. Internal light control key: press to turn on the external light and then press to turn off.
9. External light control key: press to turn on the internal light and then press to turn off.
10. Infrared function switch key: prss this key to open the infrared heating body and then
press to close, hold this key to convert degrees Fahrenheit and degrees Celsius.
11. Switch on and off button: press on and then press off.
12.USB/MP3

Mobile App Control Panel
1. Power button: press to start and then press to shut down.
2.Temperature +/ Previous song/manual search: infrared mode is the temperature set-
ting plus key, music mode this key is the previous song, radio mode this key is the
upward manual search.2.Temperature Display: Press arrow UP or DOWN to set desired
temperature. Press the two arrows together to convert Celsius into Fahrenheit.
3. Temperature -/ Next song/manual search: the infrared mode is the temperature set-
ting minus key, the music mode is the next song, the radio mode is the down manual
search.
4. Time +/ Volume + key: infrared mode for the time setting plus key, music and radio
mode for the volume plus.
5. Time -/ Volume - key: Set the reduction key for time in infrared mode, and the volume
reduction for music and radio mode.

6. Color lights on key: the order is RGB->R->G->B->RG->RB->GB-> Turn off the physio-
therapy light � automatic cycle, a total of nine modes.
8. Internal light control key: press to turn on the external light and then press to turn off.
9. External light control key: press to turn on the internal light and then press to turn off.
10. FM Radio: enter the radio mode, press the temperature plus or minus key to search
the station 5 seconds later, this opportunity will automatically jump to the physiotherapy
mode. Press to display radio status and press to disable the radio function.
11. Bluetooth /USB function key: Press to enter Bluetooth mode for 5 seconds, then press
this key to display Bluetooth status, and then press to turn off Bluetooth function. After
connecting Bluetooth with mobile phone, Bluetooth music can be played on the device,
and long press this key to enter USB mode for 5 seconds, then this key will automatically
jump to infrared mode. Long press this key to display the USB status and press again to
turn off the USB function. You can play MP3 music after inserting the USB USB disk with
copied MP3 music.
12. Infrared function switch key: short press this key to open the infrared heating body
and then press to close, long press this key to convert degrees Fahrenheit and degrees
Celsius.
14.USB/MP3
15.This key can convert degrees Fahrenheit and degrees Celsius.

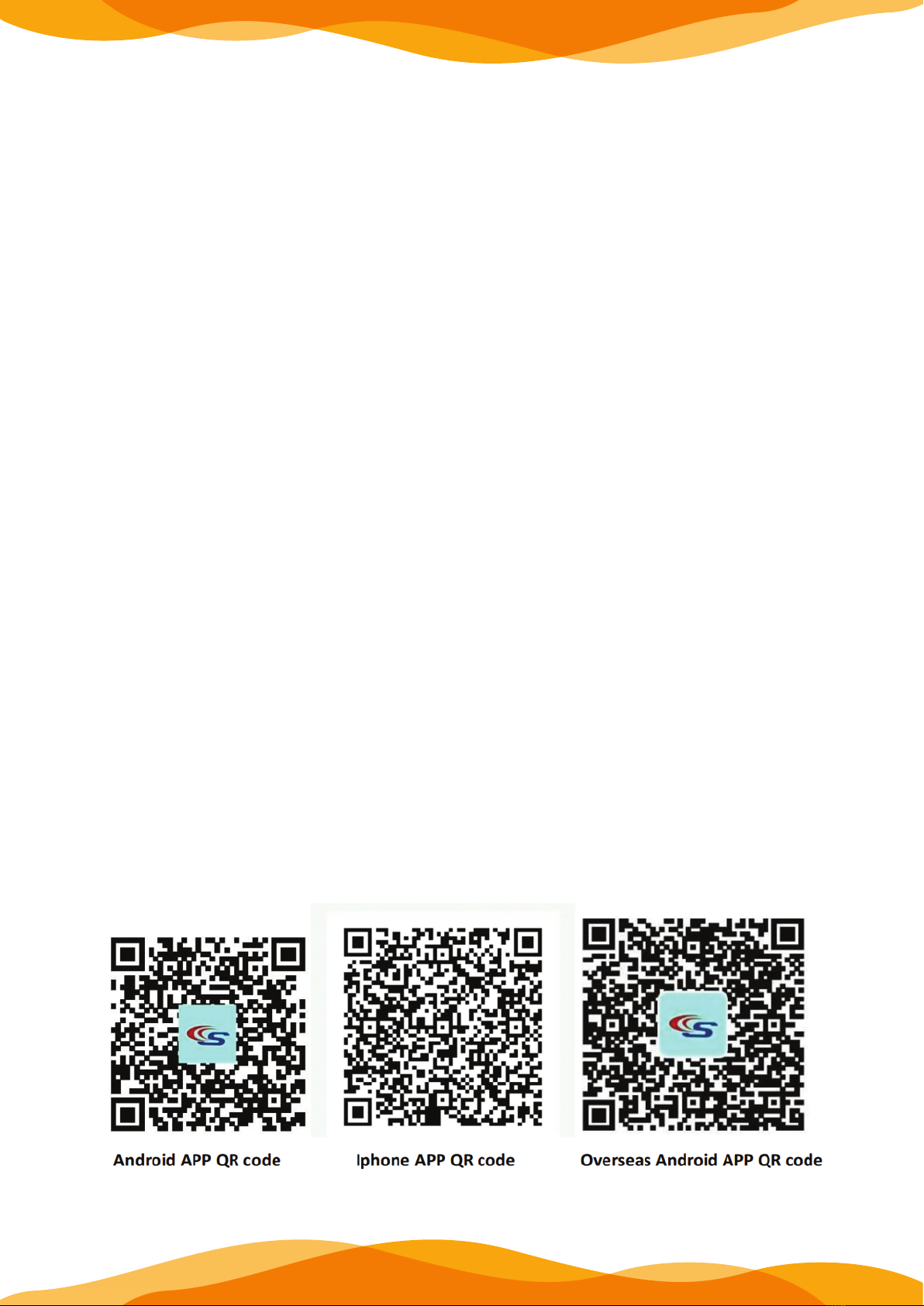

16.Mobile APP connection: Open the mobile browser on your phone, scan the QR code
below on the device, install the APP according to the mobile prompts, open the APP and
turn on the mobile Bluetooth after installation, and search for the connected APP in the
APP Settings.

4) TROUBLESHOOTING
Possibility
Repair Method
1
The bulb fuse is burned up.
Change a bulb.
2
The bulb and the soc ket are not
connected well.
3
The fuse is burned up.
Change a fuse. On the top of ceiling.
Possibility
Repair Method
1
The cable of control panel is not
connected well.
Check the cable connection a
nd fix it
properly.
2
The fuse is burned up.
Change fuse located on the top of ceiling
3
The indicator light of power is on,
but no led display
Most likely will need a new control panel
Phenomenon
Possibility
Repairing Method
1 One of heaters
cannot heat.
1) The heater is not connected
properly
Check connection
2) The heater needs replacement
Replace heater
2All heaters cannot
heat.
1) The power plug is not connected
properly
Check power plug
2) The heaters are not
properly
connected
Fix the connections
3) Relay malfunction
Change relay
4) Control panel malfunction
Change control panel

- Before using your sauna for the first time, clean the inside of the sauna with a damp
cloth.
Use your favorite furniture polish on the exterior.
- Place a towel on the bench to absorb any perspiration. Wash these often to
maintain a clean and pleasant environment inside your sauna.
- Perspiration may darken the wood over time. This can be removed by a light
sanding with fine grit sandpaper.
- Unlike a traditional sauna, infrared heats the body directly. Air temperature in the
sauna is not as important as the type and quality of the infrared being received. We
recommend the following protocol: a. Turn the sauna on for 10-15 minutes to allow the
heaters to come up to optimal temperature and for the cabin to warm to a comfortable
temperature. b. When you enter the sauna, set the time to the desired session time and
turn the thermostat up to 158 degrees. This will keep the heaters on the entire time to
ensure that you are receiving constant infrared heat. During a 30 minute sauna session,
the air temperature will reach between 115- 125F
I. The sauna room should be kept clean and odor free.
II. Damp towels should always be used on benches otherwise perspiration pene-
trates the soft wood.
III.
IV. Air out the room often by keeping the door and vents open when the room is not
in use.
V. Saunas that are in daily use should be washed down at least once a week to keep
them clean and the air fresh.
VI. Inspect benches regularly for required maintenance.
VII. To clean and remove perspiration stains, use soap or detergent in warm water,
best applied with a scrub brush
VIII. Badly soiled surfaces may require sanding. Sandpaper wrapped around a
wooden block works well.
DISCLAIMER
Our Saunas and its associates do not provide medical guidance. Consult a doctor for
medical advice. All of the information contained in this manual is for information pur-
poses only. We reserve the right to change, without notice, anything contained within
the manual. Our Saunas shall not be held responsible for printing variations. Color vari-
ations may occur. Some models are shown with optional features.
