Sunjoy SummerCove A101013005 User manual

Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
A
SSEMBLY IN
S
TRUCTION
INSTRUCTIONS DE MONTAGE
ITEM/Article #
：
A10101300
5
WE HAVE YOU IN MIND, LET US SERVE YOU!
Nous pensons en vous, laissez nous vous aider!
Questions? Issues? / Questions? Problèmes?
CONTACT US / Contactez-nous
[e-mail]
www.sunjoyonline.com

2 / 31
Country of Origin: China
Pais d’origine: Chine
 This product is intended for domestic outdoor use only.
 The product should be placed on flat, horizontal ground.
 Ensure enough clearance around the product. Before assembling the product, find level
ground not less than 6' (1.8 m) away from any structures or obstructions, such as fences,
garages, houses, overhanging branches, laundry lines, or electrical wires.
 This gazebo is not to be regarded as part of a building/house structure. The gazebo is to be
anchored onto the ground for added safety. Do not assemble the gazebo onto soil/earth
ground. It is best advisable to have the gazebo built onto a wooden deck or concrete ground
for stability. If it is to be build onto a wooden deck/ground, do ensure that the wooden
deck/ground has a strong foundation. It is advisable to use appropriate floor plugs (not
provided) to anchor the gazebo onto the wooden/concrete ground.
 Some structures may require two or more people to install safely. Check for underground
utilities before digging or driving stakes into the ground.
 During installation, follow all safety warnings provided with your tools, and use safety glasses.
 In case you set up more than one gazebo, keep a minimum distance of 10' (3 m) between the
gazebos.
 Any assembly or maintenance of the product must be carried out by adults only.
 Arrange necessary manpower when assembling or moving the product.
 Some parts may contain sharp edges. Wear protective gloves if necessary.
 Keep children and pets away while setting up the gazebo.
 Check all nuts and bolts periodically to ensure bolts/nuts are tightened.
 Repairing and replacing parts should be done by a qualified technician.
 This gazebo is intended for decorative and sunshade purposes only, and it is not designed to
withstand harsh weather, including high winds, rain, and snow.
 Do not light any fires inside or near the product！
 Stay calm if fire breaks out. Search for the nearest exit. Do not return to the gazebo before
 firemen allow you to do so.
 Do not hang heavy weights on the roof frame.
 Do not climb onto the roof of the gazebo. Falling off the gazebo can result in serious injury.
 Retain the original packaging to store the gazebo.
Important Safety Instructions
Warning! To reduce the risk of serious injury, read the following safety instructions
before assembling and using the gazebo.
Please check with your local governing authority/local municipal codes regarding
installation of structures before assembly.
Caution! Proper placement of your gazebo is essential.
Do not place the product underneath electrical lines.
Keep children away during assembly.
This product contains small parts which can be swallowed by children.
Keep fingers away from the places where they can be pinched or trapped.
Do not attempt to assemble the gazebo if any parts are missing.

3 / 31
Consignes de sécurité importantes
ATTENTION! 





Avertissement!



•
•
•



• 
 
 
 
 

•

•

• 

•
•
•
•
•

•
•

•
•

•
•

•
Country of Origin: China
Pais d’origine: Chine

4 / 31
Country of Origin: China
Pais d’origine: Chine
• Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging
contents list.
•When assembling wooden parts, do not overtorque the bolts to avoid splitting the wood.
See image illustration.
•Place all parts from the box in a cleared area and position them on the floor in front of you.
•Remove all packing materials and place them back into the box. Do not dispose of the
packing materials until assembly is complete.
•Read each step carefully before beginning any assembly and make sure you understand each
step. If you are missing a part, please email [e-mail].

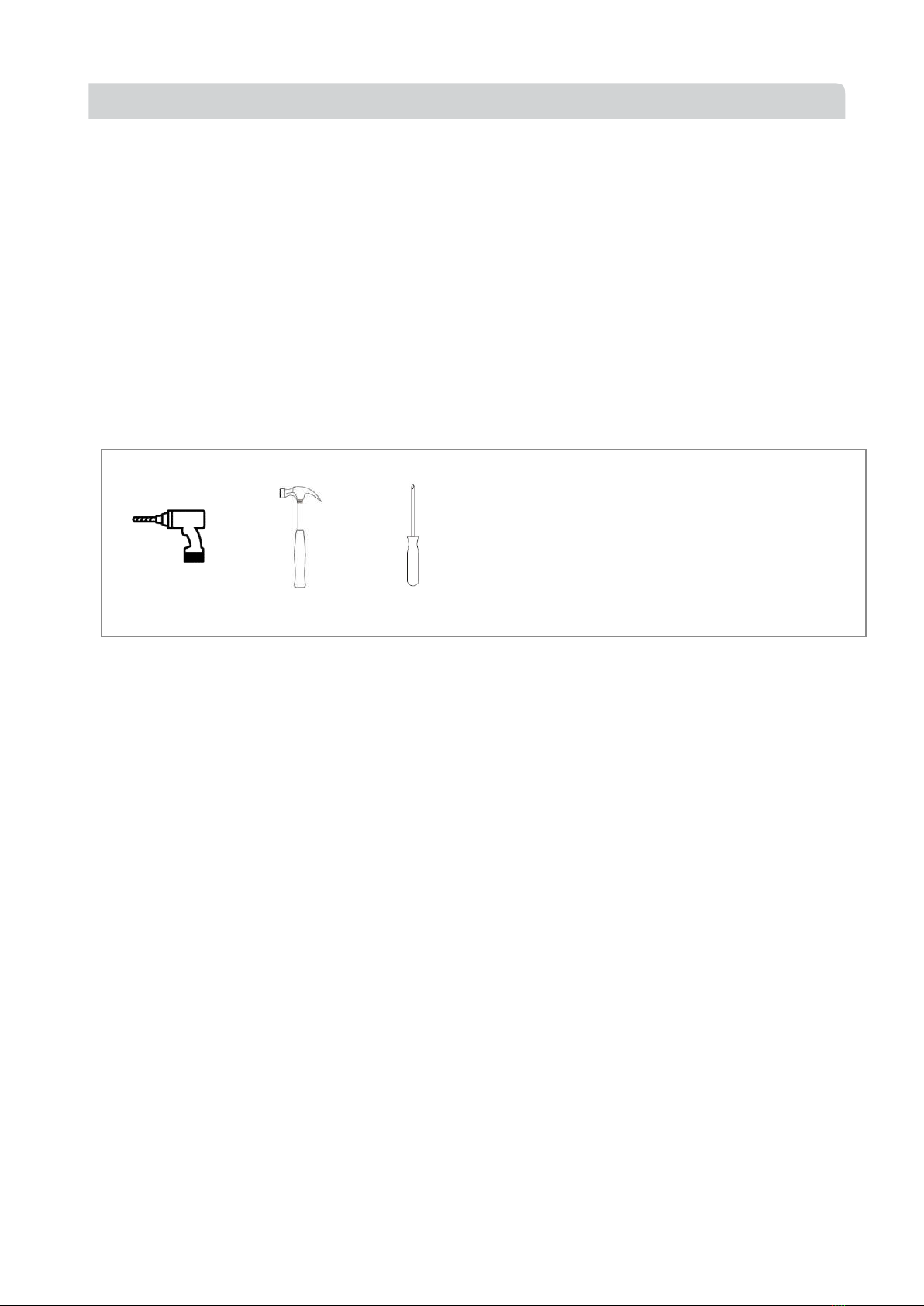

•Needed for assembly:（The following tools are not included）
IMPORTANT:
Cordless drill Hammer Screwdriver Ladder 4 people

5/ 31

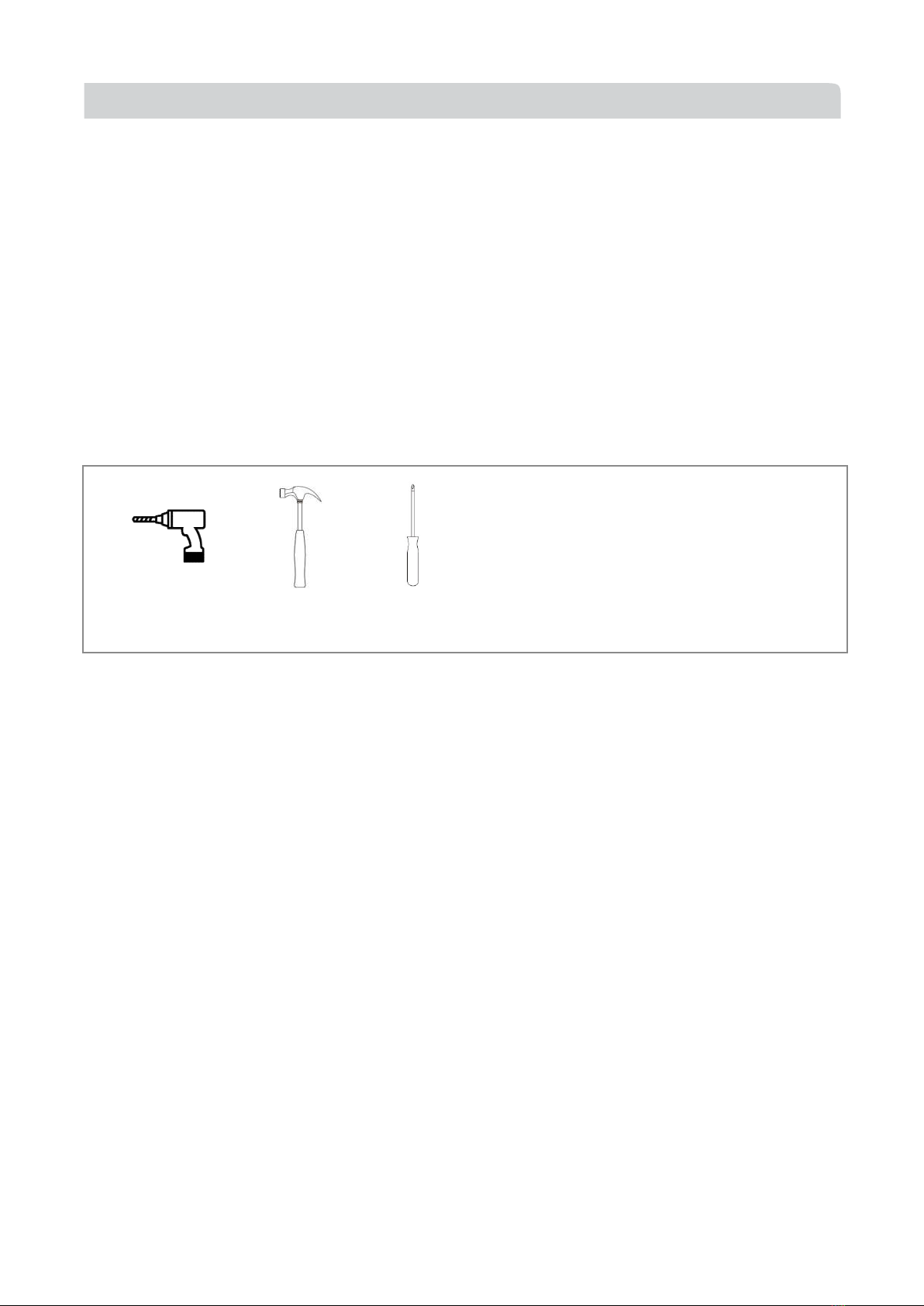

IMPORTANT:
•

•
•

•

•





Utilisez un niveau


Véfifiez avec un équerre


Serrer les boulons Mesurer la distance




   4personnes
Country of Origin: China
Pais d’origine: Chine

6 / 31
Country of Origin: China
Pais d’origine: Chine

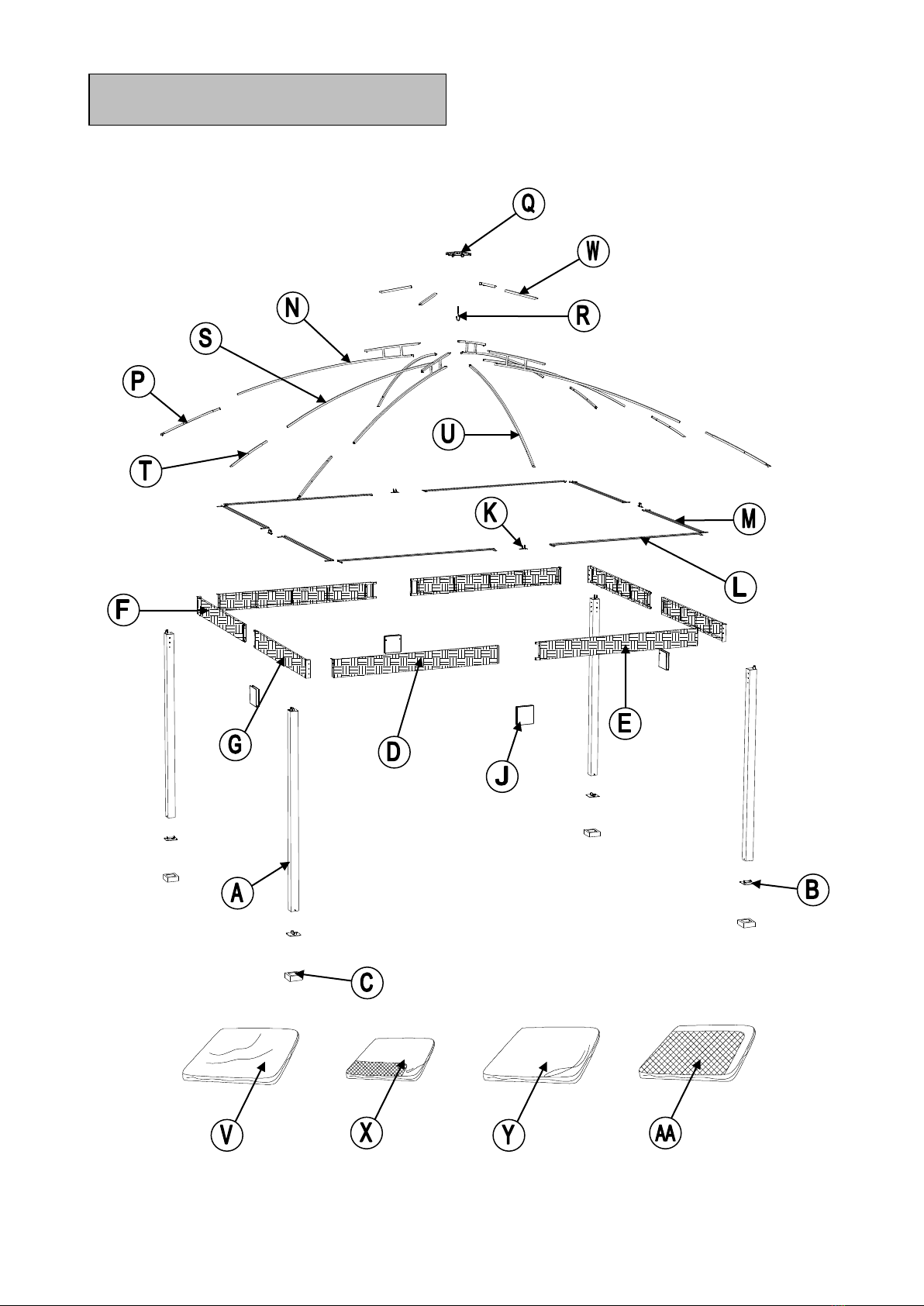

EXPLODED DRAWING/DESSIN ÉCLATÉ

7 / 31
Country of Origin: China
Pais d’origine: Chine

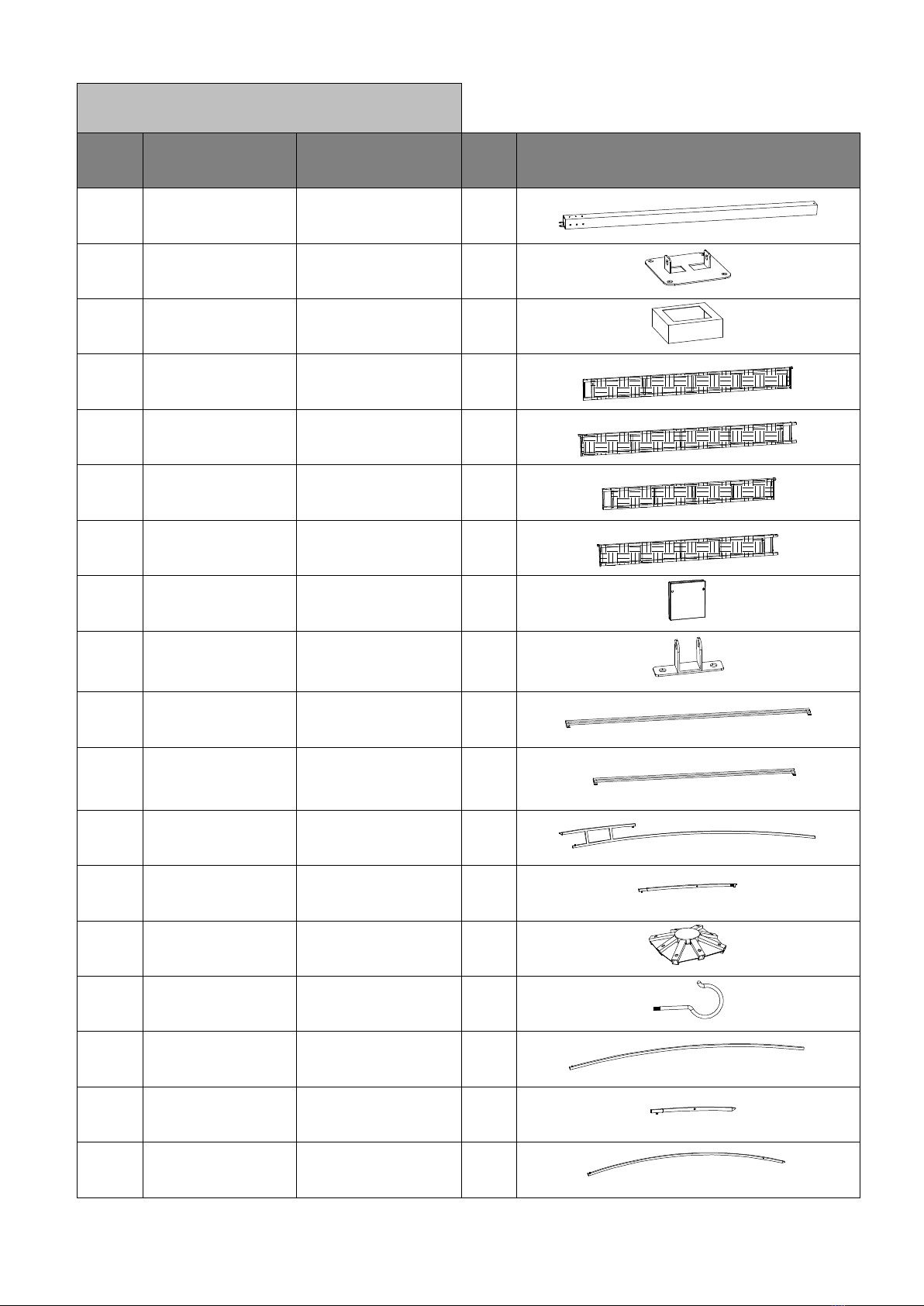

Parts List
Label Part Number Description Qty Part Image
A P00020065901 Post 4
B P00010045801 Post Base 4
C P00610023201 Base Cover 4
D P00040113402 Long Cross Beam 1
2
E P00040125302 Long Cross Beam 2
2
F P00040125402 Short Cross Beam 1
2
G P00040125502 Short Cross Beam 2
2
J P00220034701 Beam Cap 4
K P00050026405 Middle Beam
Lower Connector 4
L P00570080301 Long Mosquito
Netting Rod 4
M P00570080401 Short Mosquito
Netting Rod 4
N P00060122102 Big Roof Slanting
Beam 4
P P00060122202 Big Roof Lower
Rafter 4
Q P00050026202 Big Roof Connector
1
R P005800001 Hook 1
S P00060205402 Long Joist 2
T P00060205602 Long Joist(Lower
Tube) 2
U P00060205502 Short Joist 2

8 / 31
Country of Origin: China
Pais d’origine: Chine
Liste de Pièces
Étiquette Numéro de la
Pièce Description Quantité Numéro de la Pièce Diagramme
A P00020065901 Poteau 4
B P00010045801 Base du Poteau 4
C P00610023201 Capuchon de pied 4
D P00040113402 Traverse Longue 1 2
E P00040125302 Traverse Longue 2 2
F P00040125402 Traverse Courte 1 2
G P00040125502 Traverse Courte 2 2
J P00220034701 Pommeau du Poutre 4
K P00050026405 Connexion Inférieure
de la Poutre Centrale 4
L P00570080301 Tringle Longue du
Filet Moustiquaire 4
M P00570080401 Tringle Courte du
Filet Moustiquaire 4
N P00060122102 Poutre Inclinée du
Grand Toit 4
P P00060122202 Chevron Inférieur
du Grand Toit 4
Q P00050026202 Connexion du
Grand Toit 1
R P005800001 Crochet 1
S P00060205402 Longue Solive 2
T P00060205602 Longue Solive
(réduire Tuyau) 2
U P00060205502 Courte Solive 2

9 / 31
Country of Origin: China
Pais d’origine: Chine
V P00110068601 Big Canopy 1
W P00570082402 Adjustable Tube 4
X P00110068701 Small Canopy 1
Y P00130014301 Curtain 1
AA P00120027701 Mosquito Netting 1

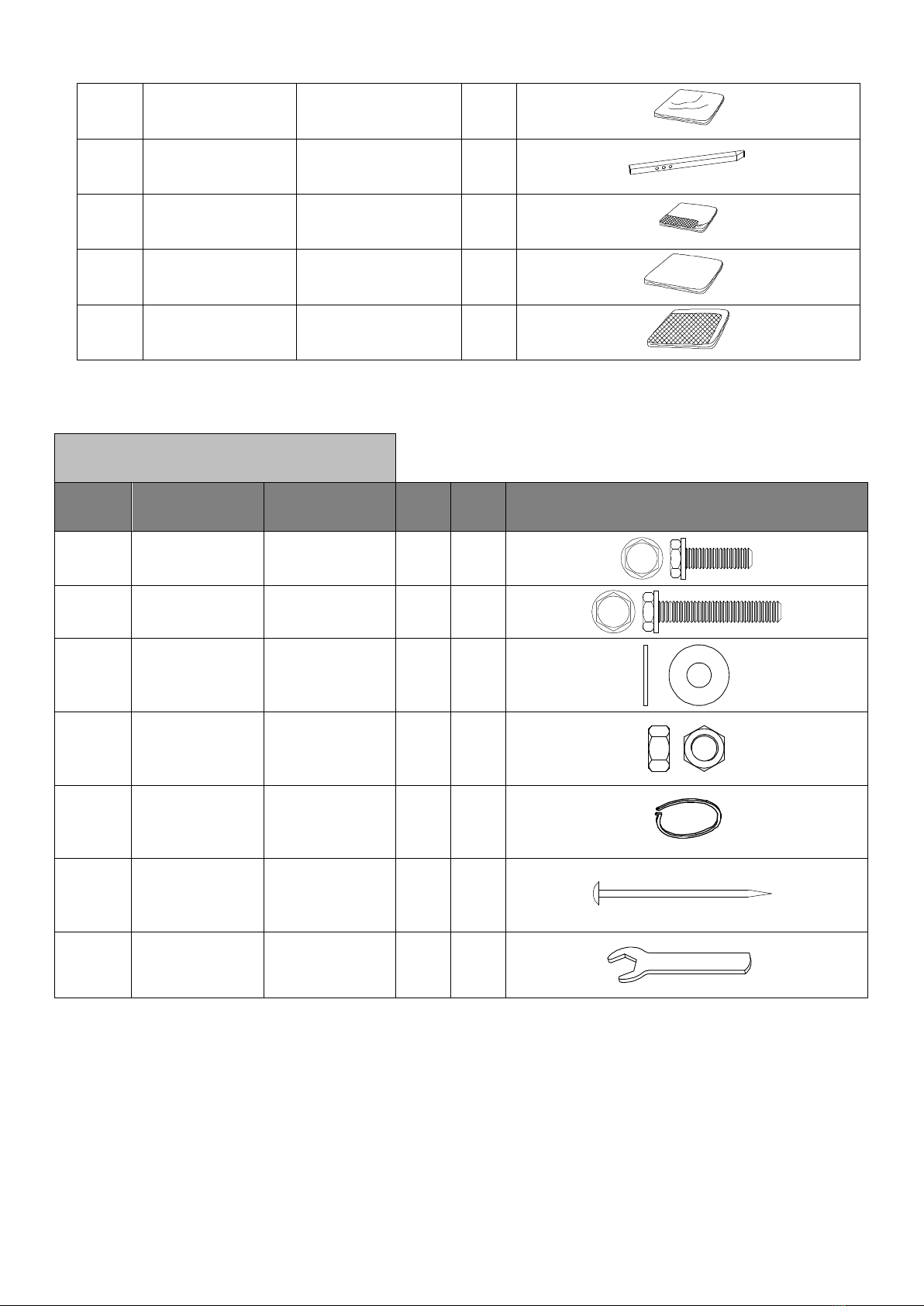

Hardware Pack
Label Part Number Description Qty Add Part Image
H1 H100010047 Bolt M6*20 80 4
H2 H100010069 Bolt M6*35 8 1
H3 H050030001 Flat washer
M6 16 1
H4 H040010004 Nut M6 16 1
HR P005100264 Ring 104
6
HS H070010003 Stake Φ8*180 8 0
HW H090010017 Wrench M6 2 0

10 / 31
Country of Origin: China
Pais d’origine: Chine
V P00110068601 Grande Toile 1
W P00570082402 Tuyau Ajustable 4
X P00110068701 Petite Toile 1
Y P00130014301 Rideau 1
AA P00120027701 Filet Moustiquaire 1
Pack Quincaillerie
Étiquette Numéro de la
Pièce Diagramme Description Quantité Add Numéro de la Pièce Diagramme
H1 H100010047 Boulon M6*20 80 4
H2 H100010069 Boulon M6*35 8 1
H3 H050030001 Rondelle plate
M6 16 1
H4 H040010004 Nut M6 16 1
HR P005100264 Bague 104
6
HS H070010003 Piquet Φ8*180 8 0
HW H090010017 Clé M6 2 0

11 / 31
Country of Origin: China
Pais d’origine: Chine

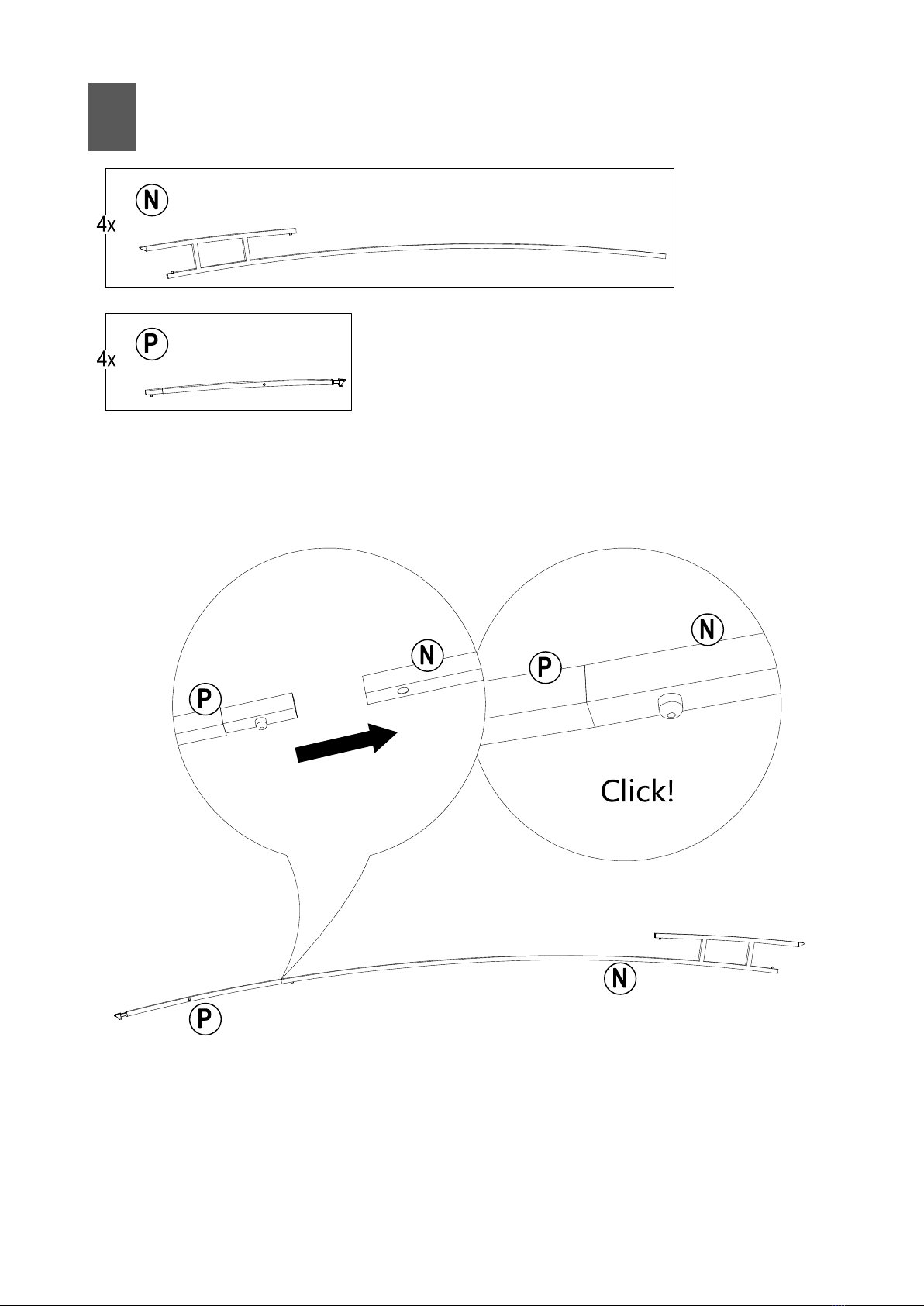

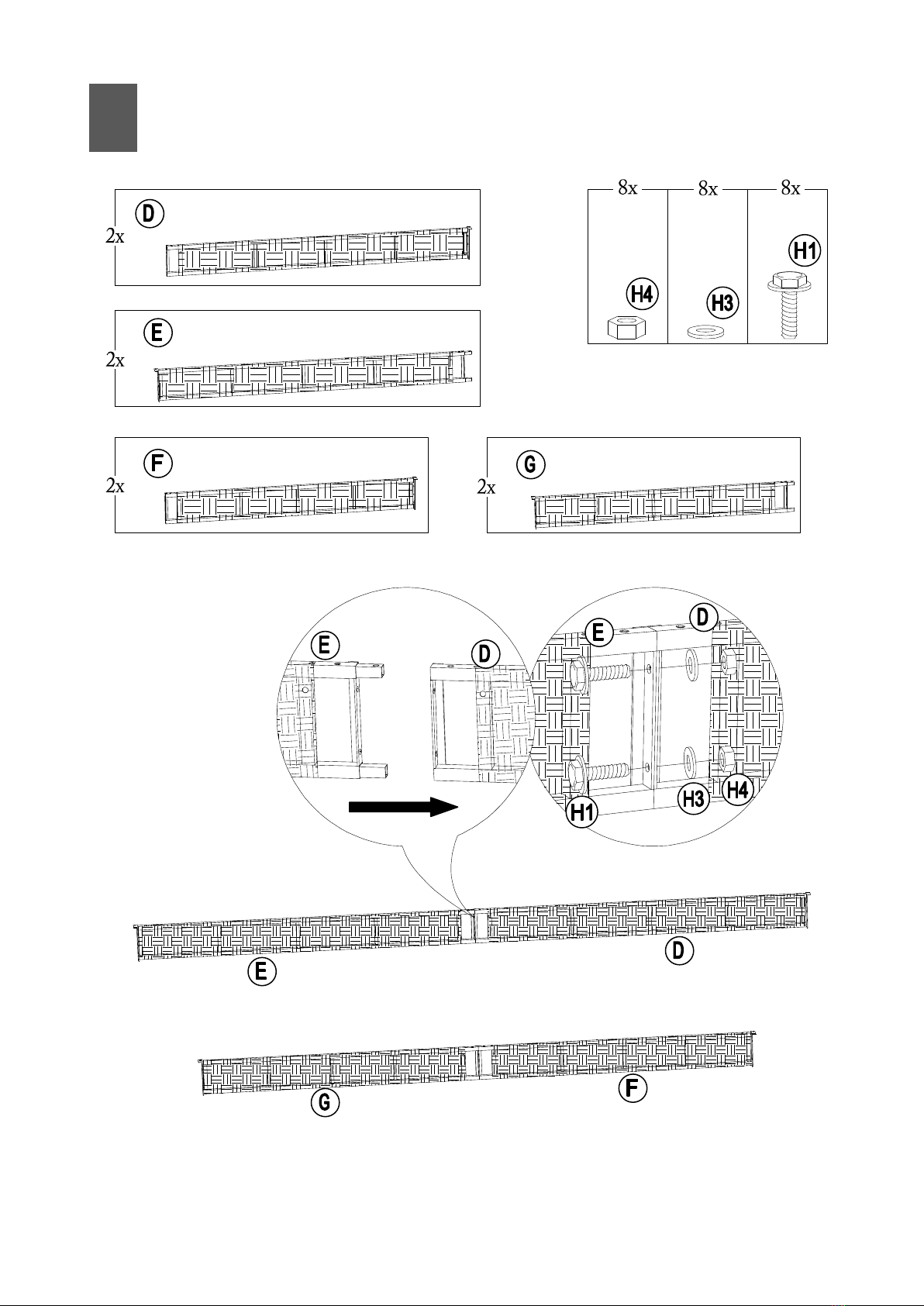

1

12 / 31
Country of Origin: China
Pais d’origine: Chine

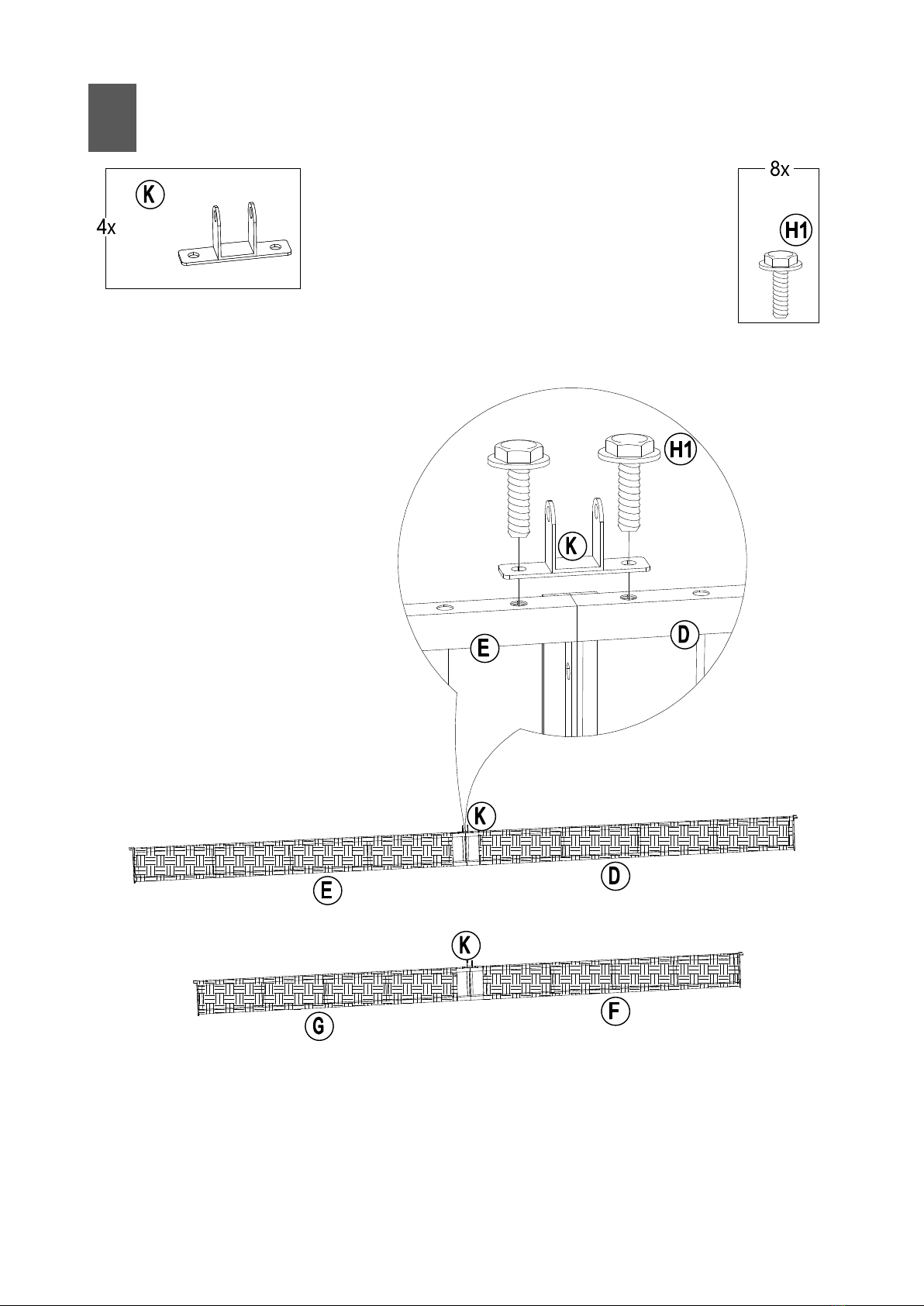

2

13 / 31
Country of Origin: China
Pais d’origine: Chine

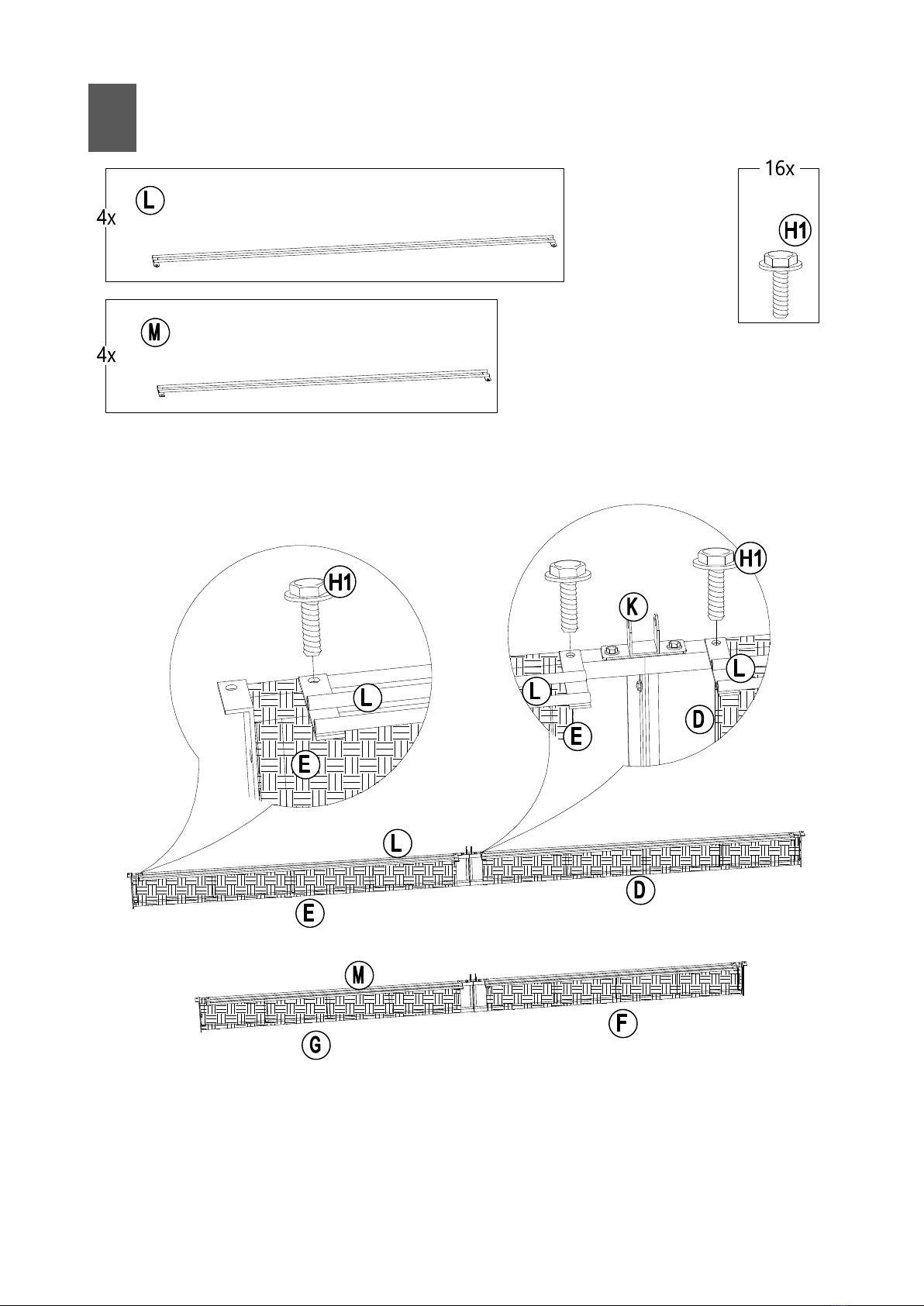

3

14 / 31
Country of Origin: China
Pais d’origine: Chine
4

15 / 31
Country of Origin: China
Pais d’origine: Chine

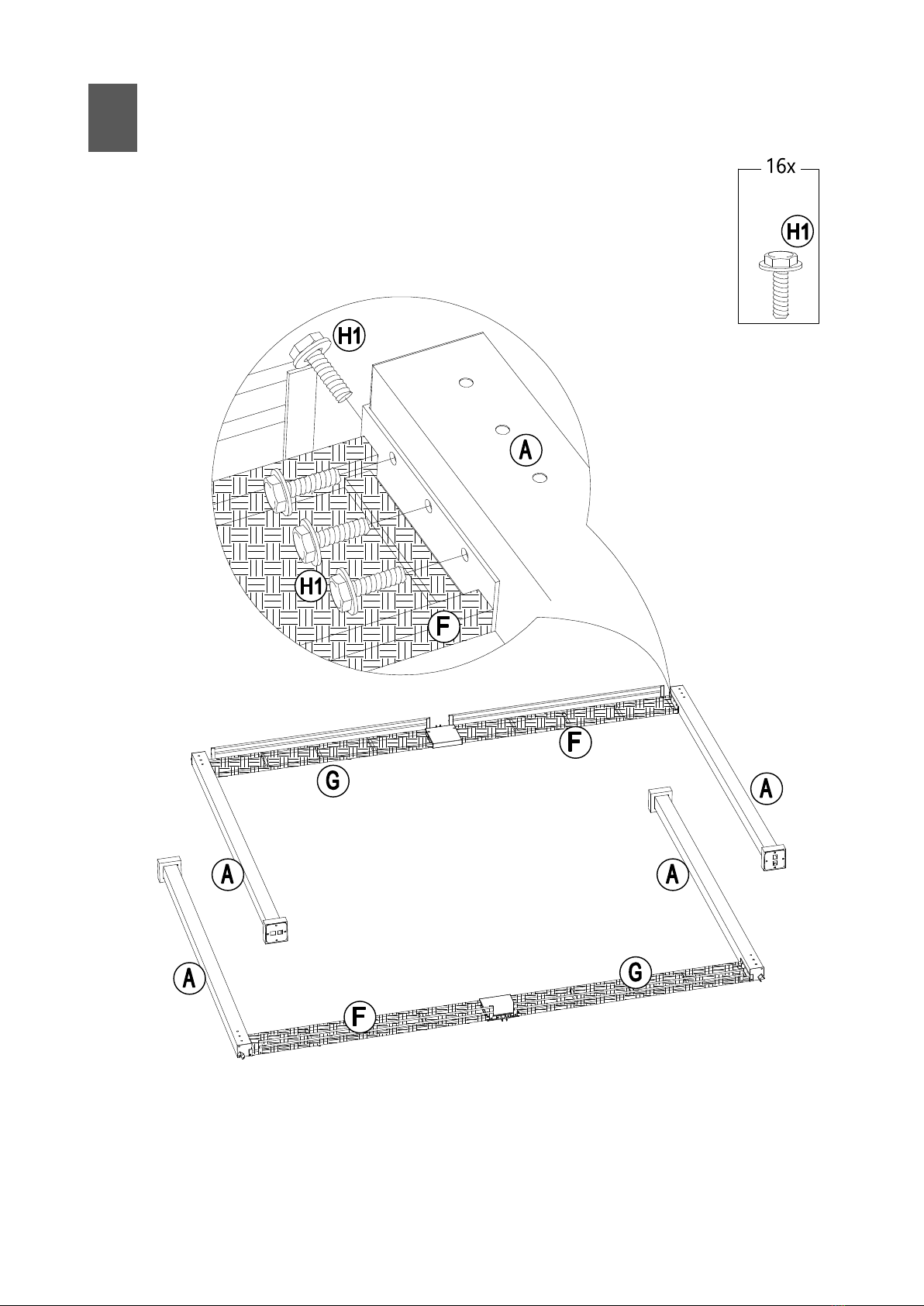

5

16 / 31
Country of Origin: China
Pais d’origine: Chine
6

17 / 31
Country of Origin: China
Pais d’origine: Chine
7
d1=d2
Rt∠90

18 / 31
Country of Origin: China
Pais d’origine: Chine
8

19 / 31
Country of Origin: China
Pais d’origine: Chine
9

20 / 31
Country of Origin: China
Pais d’origine: Chine
10
