Sunny Health & Fitness PERFORMANCE INTERACTIVE Series User manual

PERFORMANCE INTERACTIVE SERIES
RECUMBENT BIKE
SF-RB420032
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [e-mail] or 1-877-90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained and used properly. It is your responsibility to ensure that all users of the equipment are
informed of all warnings and precautions.
1. Before starting any exercise program you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk, or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before continuing
with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 4 feet (1.2 M) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment
during exercise, discontinue use of the equipment immediately and do not use until the
problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 265 pounds (120 KG).
10.The equipment is not suitable for therapeutic use.
11.Use caution when lifting and moving the equipment. Always use proper lifting technique and
seek assistance if necessary.
12.Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only! It is not intended for commercial
use!

2
PRE-ASSEMBLY CHECK LIST
.Before you start to assemble, please make sure all parts are included.

3
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
45L/R
Pedal
1PR.
2
Front Stabilizer
1
52
Support Pad
1
3
Rear Stabilizer
1
62
Seat
1
4
Handlebar Post
1
63
Backrest
1
5L/R
Swing Bar
1PR.
64
Nut Cap
S13
2
6L/R
Connecting Arm
1PR.
65
Meter
1
7L/R
Handlebar
1PR.
A
Manual
1
9
Rear Handlebar
1
B
Thank You Card
1
10
Adjustable Handle
1
C
Hardware Package
1
11
Seat Rail
1
D
Battery
2
44
Long Axle
1

4

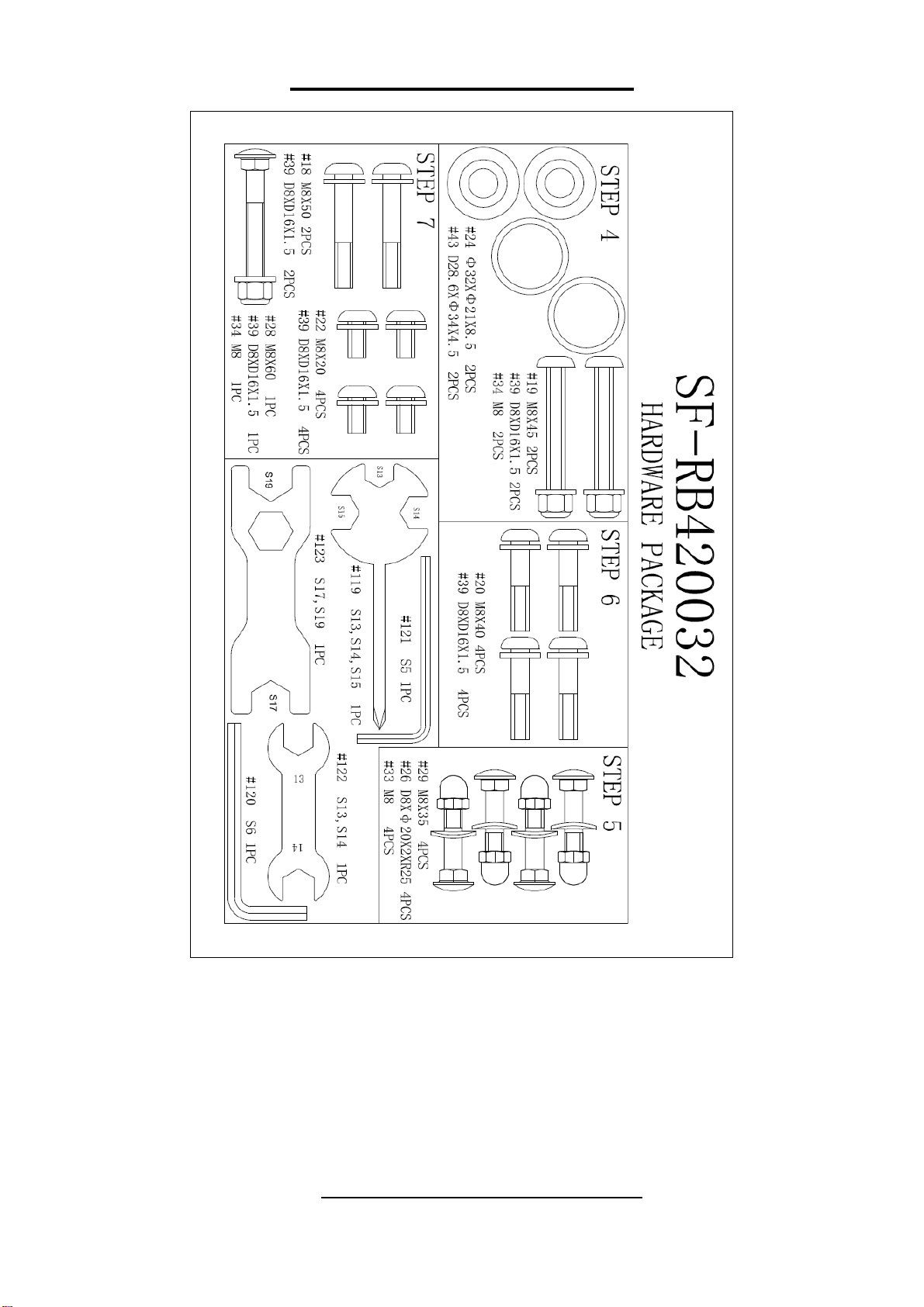

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the
part(s) needed:
✓The model number (found on cover of manual)
✓The product name (found on cover of manual)
✓The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST”
(found near the end of the manual)
Please contact us at [e-mail] or 1-877-90SUNNY
(877-907-8669).

5
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 1
Remove the 2 Paper Tubes (No. E), 4
Carriage Bolts (No. 27), 4 Arc Washers (No.
26)and 4 Cap Nuts (No. 33) from the Main
Frame (No. 1).
NOTE: You may discard the 2 Paper Tubes
(No. E) or save them to repackage the item in
the future.
Attach the Front Stabilizer (No. 2) and the
Rear Stabilizer (No. 3) to the Main Frame
(No. 1) with 4 Carriage Bolts (No. 27), 4 Arc
Washers (No. 26) and 4 Cap Nuts (No. 33)
that were just removed using Spanner (No.
119).
Tighten the Support Pad (No. 52) to the
bottom of the Main Frame (No. 1).

6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 2
Remove 4 Screws (No. 22), 4 Spring
Washers (No. 41) and 4 Arc Washers (No.
26) from the Main Frame (No. 1) using Allen
Wrench (No. 120).
NOTE: Make sure the Tension Controller
(No. 71a) is at the lowest level before you
connect the cable. This ensures the cables are
at their longest point. We recommend the
assistance of a second person to help hold the
Handlebar Post (No. 4). This will make the
connection easier when you are attaching
Tension Hook (No. 72)to the Tension Cable
(No. 71b).
Attach the Tension Cable (No. 71b) into the
metal bracket of Tension Hook (No. 72)as
shown in drawing A-①. Then, pull Tension
Cable (No. 71b) upward and insert it into the
slot of metal bracket of Tension Hook (No.
72)as shown in drawing A-③. Make sure the
metal fitting on Tension Cable (No. 71b) is
secured in the metal bracket.
Connect the Pulse Extension Wire 2 (No. 77)
to the Pulse Extension Wire 1 (No. 76)and
connect the Sensor Extension Wire 2 (No.
74)to the Sensor Extension Wire 1 (No. 73).
Attach the Handlebar Post (No. 4) to the
Main Frame (No. 1) with 4 Screws (No. 22), 4
Spring Washers (No. 41) and 4 Arc
Washers (No. 26) that were just removed.
Tighten and secure with the Allen Wrench
(No. 120).
NOTE: Do not cut or pinch any wires when
attaching the Handlebar Post (No. 4).

7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 3

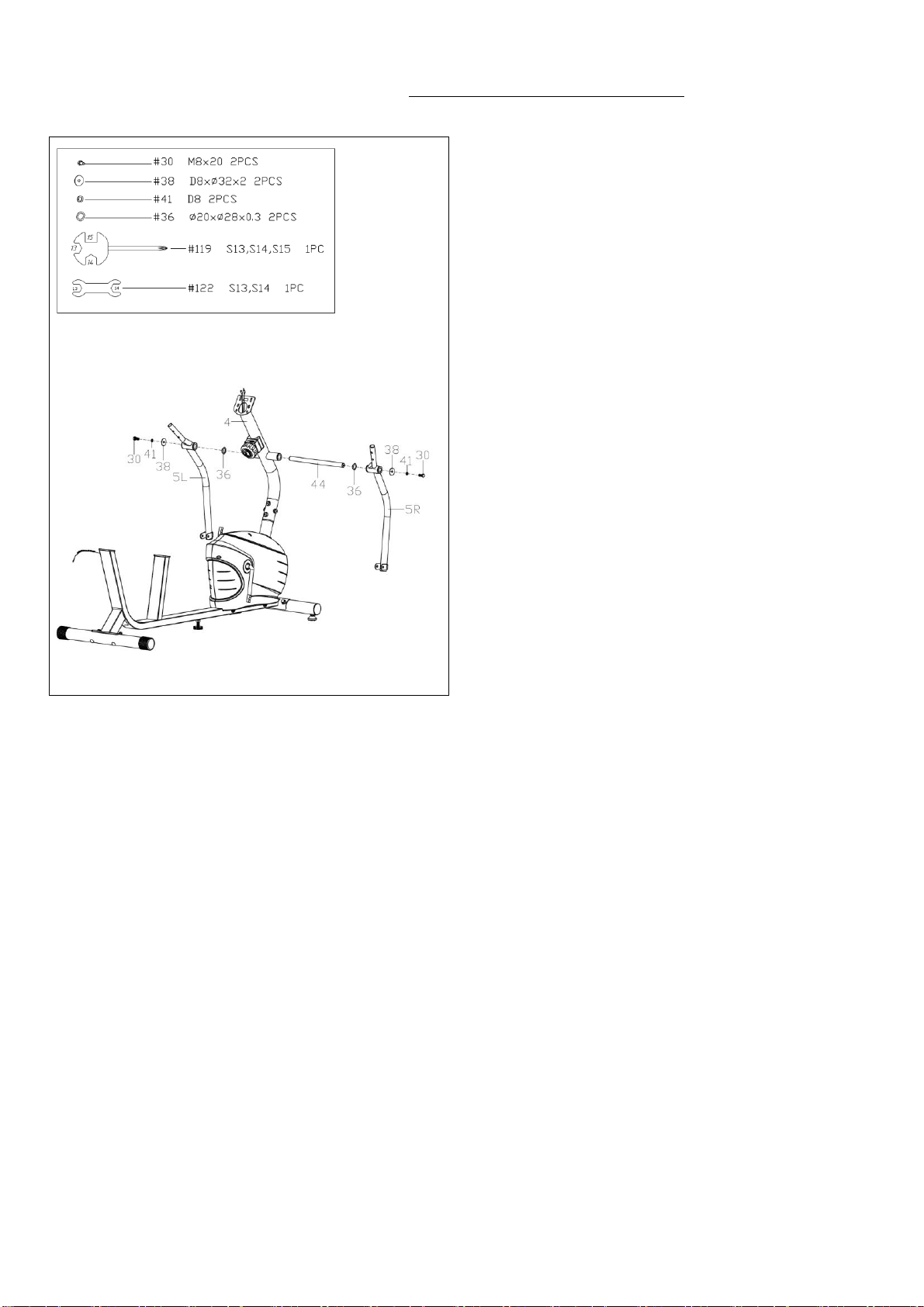

Remove 2 Hex Screws (No. 30),2Spring
Washers (No. 41),2Flat Washers (No. 38)
and 2Wave Washers (No. 36)from the Long
Axle (No. 44) using the Spanner (No. 119)
and the Spanner (No. 122).
Insert the Long Axle (No. 44)into the
Handlebar Post (No. 4), then insert 2 Wave
Washers (No. 36)that were just removed to
the both sides of Long Axle (No. 44).Attach
the 2 Swing Bars (No. 5L/R) to both sides of
the Long Axle (No. 44)using 2Flat Washers
(No. 38), 2 Spring Washers (No. 41)and 2
Hex Screws (No. 30)that were just removed.
Pre-secure with the Spanner (No. 119) and
the Spanner (No. 122).
NOTE: Do not completely tighten the Hex
Screws (No. 30)yet.

8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907- 8669).
STEP 4
Remove the 2 Nylon Nuts (No. 23L/R)and 2
Spring Washers (No. 78)from the Pedals (No.
45L/R)by Spanner (No. 123).
Attach the Left Pedal (No. 45L) to the left side of
Crank (No. 35) with 1 Left Connecting Arm (No.
6L), 1 Spacer (No. 43)and 1 Alloy Bushing
(No. 24).Turn the Left Pedal (No. 45L)
counter-clockwise as tightly as you can with your
hand. Then attach 1 Spring Washer (No. 78)
and secure with 1 BLACK Left Nylon Nut (No.
23L) that was just removed. Pre-secure the
BLACK Left Nylon Nut (No. 23L) clockwise
using Spanner (No. 123).
Attach the Right Pedal (No. 45R) to the right side
of Crank (No. 35) with 1 Right Connecting Arm
(No. 6R), 1 Spacer (No. 43)and 1 Alloy
Bushing (No. 24).Turn the Right Pedal (No.
45R) clockwise as tightly as you can with your
hand. Then attach 1 Spring Washer (No. 78)
and secure with 1 WHITE Right Nylon Nut (No.
23R)that was just removed. Pre-secure the
WHITE Right Nylon Nut (No. 23R)
counter-clockwise using Spanner (No. 123).
NOTE: Please do not fully tighten 2 Nylon Nuts
(No. 23L/R)at this time.
NOTE: Attaching the Pedals (No. 45L/R) to the
wrong side of the Crank (No. 35)or turning it the
wrong direction can damage the Crank (No. 35).
Attach 2 Swing Bars (No. 5L/R) to 2
Connecting Arms (No. 6L/R) with 2 Bolts (No.
19),2 Flat Washers (No. 39) and 2 Nylon Nuts
(No. 34)using Allen Wrench (No. 120) and
Spanner (No. 119).
NOTE: Please do not fully tighten 2 Bolts (No.
19) at this time.
Firstly, fasten Pedals (No. 45L/R) and 2 Nylon
Nuts (No. 23L/R) using Spanner (No. 123).
Secondly, fasten 2 Bolts (No. 19) and 2 Nylon
Nuts (No. 34)using Allen Wrench (No. 120) and
Spanner (No. 119).
Then fasten 2 Hex Screws (No. 30)using
Spanner (No. 119) and the Spanner (No. 122).
Finally, cover with 2 Nut Caps (No. 64).
NOTE: Ensure that all bolts and washers are in
place and partially threaded in before completely
tightening any of them.

9
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907- 8669).
STEP 5
Attach 2 Handlebars (No. 7L/R) to 2 Swing
Bars (No. 5L/R) with 4 Carriage Bolts (No.
29),4 Arc Washers (No. 26) and 4 Cap
Nuts (No. 33).Tighten and secure with
Spanner (No. 119).
Remove the preassembled 4 Screws (No.
70) from the Meter (No. 65) with Spanner
(No. 119).
Connect the Pulse Extension Wire 2 (No.
77) with Meter Pulse Connecting Wire (No.
65b), and connect the Sensor Extension
Wire 2 (No. 74) with Meter Sensor
Connecting Wire (No. 65a).
Attach the Meter (No. 65)to the bracket of
the Handlebar Post (No. 4) with 4 Screws
(No. 70) that were just removed using
Spanner (No. 119).
STEP 6
Attach the Seat Rail (No. 11) to the Main
Frame (No. 1) with 4 Bolts (No. 20) and 4
Flat Washers (No. 39). Tighten and secure
with Allen Wrench (No. 120).
Remove 2 Screws (No. 16)from the
Adjustable Handle (No. 10) using Allen
Wrench (No. 121).
Attach the Adjustable Handle (No. 10) to
the Axle (No. 12) with 2 Screws (No. 16)
that were just removed. Tighten and secure
with Allen Wrench (No. 121).

10
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).

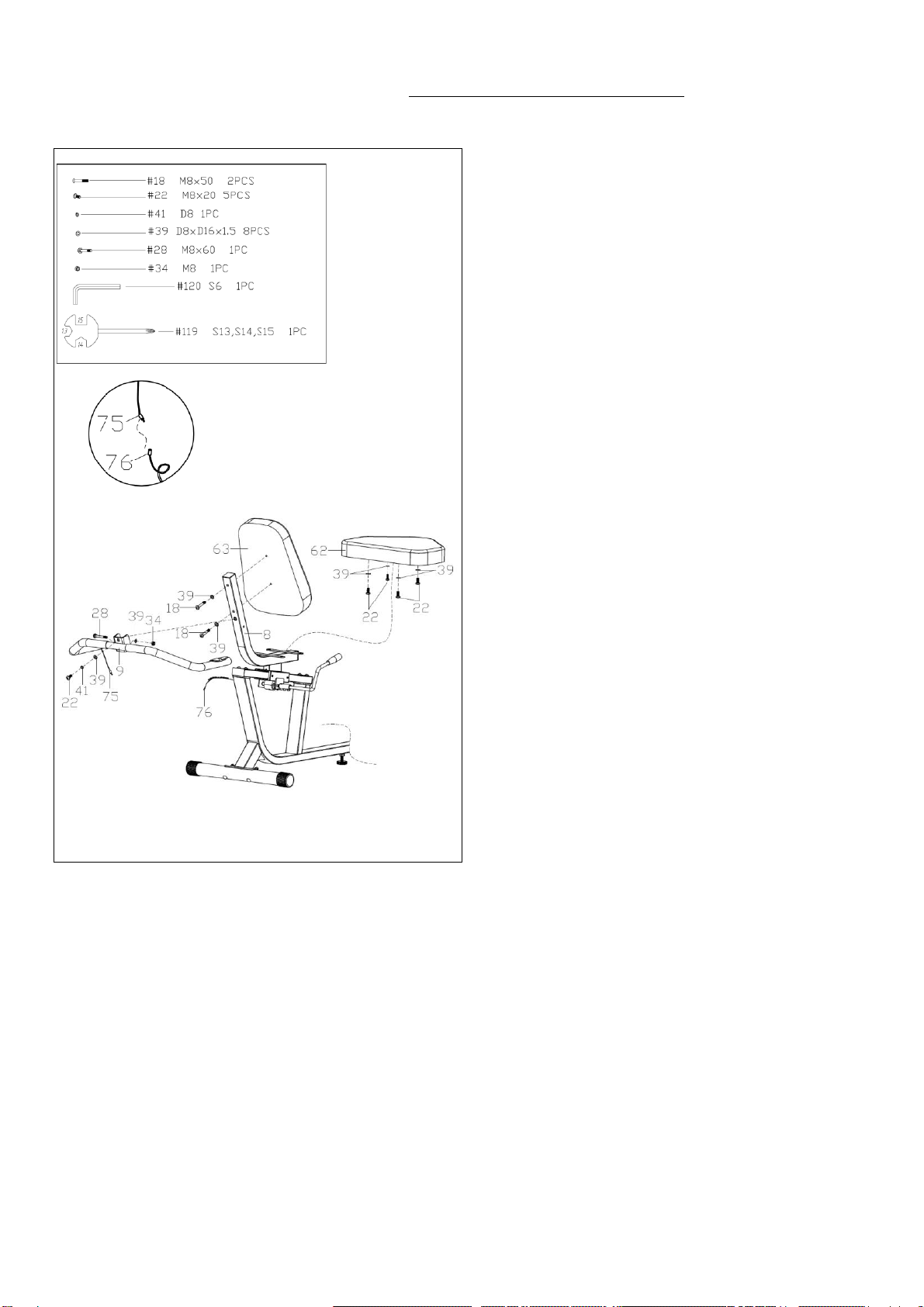

STEP 7
Remove 1 Screw (No. 22), 1 Spring
Washer (No. 41) and 1 Flat Washer
(No. 39) from the Seat Support (No. 8)
using Allen Wrench (No. 120).
Attach the Rear Handlebar (No. 9) to
the Seat Support (No. 8) with 1 Screw
(No. 22), 1 Spring Washer (No. 41) and
1 Flat Washer (No. 39) that were just
removed. Tighten and secure with Allen
Wrench (No. 120).
Tighten the Rear Handlebar (No. 9) to
the Seat Support (No. 8) with 1
Carriage Bolt (No. 28), 1 Flat Washer
(No. 39) and 1 Nylon Nut (No. 34) using
Spanner (No. 119).
Connect the Pulse Extension Wire 1
(No. 76) to the Pulse Wire (No. 75).
Attach the Seat (No. 62) to the Seat
Support (No. 8) with 4 Flat Washers
(No. 39) and 4 Screws (No. 22). Tighten
and secure with Allen Wrench (No.
120).
Attach the Backrest (No. 63) to the Seat
Support (No. 8) with 2 Flat Washers
(No. 39) and 2 Bolts (No. 18) using
Allen Wrench (No. 120).
THE ASSEMBLY IS COMPLETE!

11

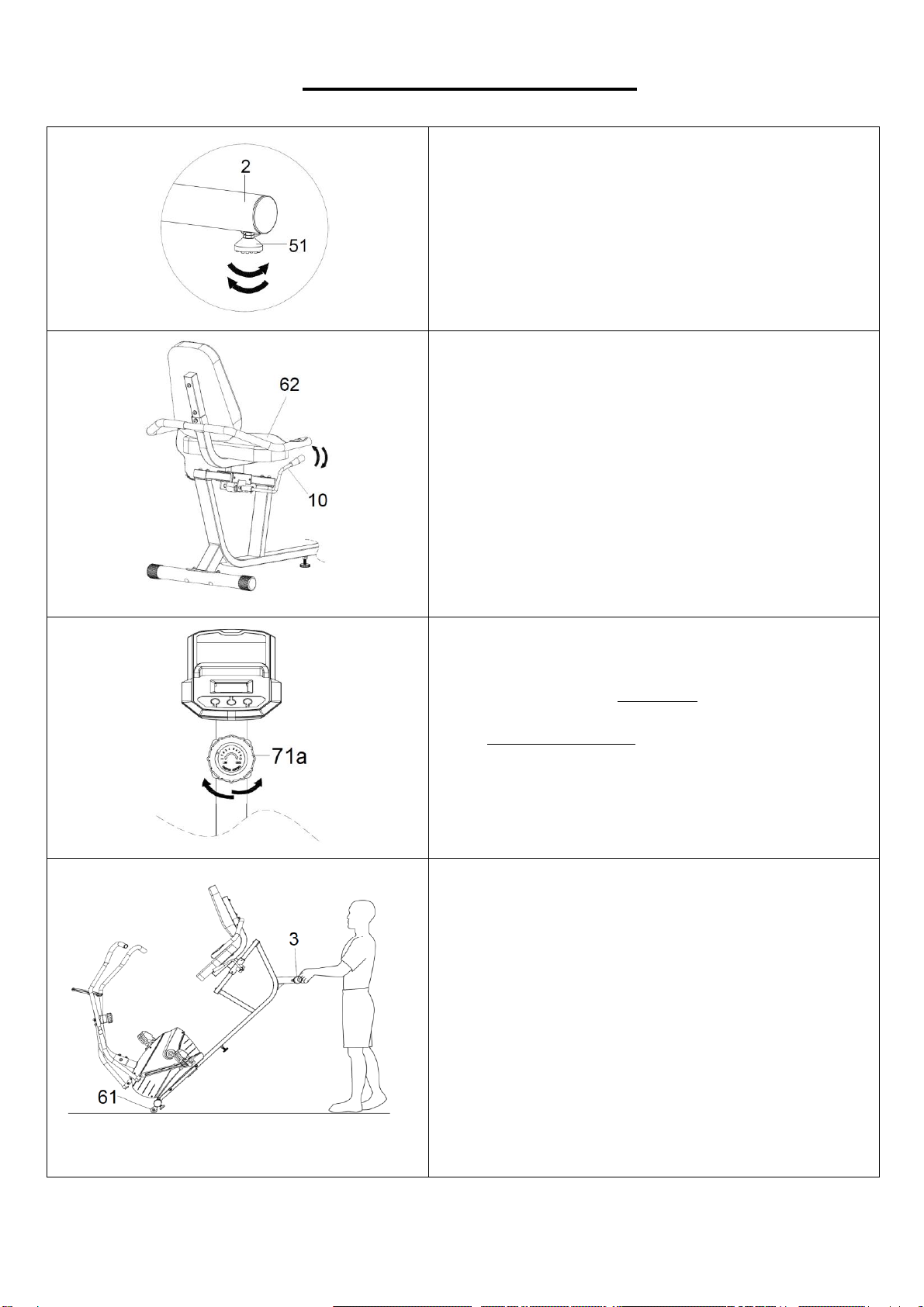

ADJUSTMENT GUIDE
ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable ride,
you must ensure that the bike is stabled and
secured. If you notice that the bike is unbalanced
during use, you should adjust the Adjustable Pads
(No. 51)located on the Front Stabilizer (No. 2)
until the bike becomes levelled with the floor
surface.
ADJUSTING THE SEAT
To move the Seat (No. 62) forward or backward,
while seated on the bike, put your feet on the floor.
Shift the Adjustable Handle (No. 10) down to
loosen. Adjust the Seat (No. 62) to your desired
position, then shift the Adjustable Handle (No. 10)
up to secure.
ADJUSTING THE TENSION
Adjust the tension by rotating the Tension
Controller (No. 71a) clockwise to increase the level
of resistance. Rotate the Tension Controller (No.
71a) counter-clockwise to decrease the level of
resistance.
Tension levels are set at Level 1 being the lowest
and Level 8 being the highest.
MOVING THE BIKE
Lift the bike by the Rear Stabilizer (No. 3) until the
Transportation Wheels (No. 61)touch the ground.
With the Transportation Wheels (No. 61)on the
ground, you can transport the bike to the desired
location with ease.

12
BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION
1. Take out 2 AAA batteries from meter box.
2. Press the buckle of battery cover on the Meter (No. 65), then remove battery cover.
3. Install 2 AAA batteries into the battery case on the back of the Meter (No. 65). Pay attention to
the battery + and –poles before installing.
4. Press the buckle of battery cover, then put the battery cover back to the back of the Meter (No.
65).
The installation is complete!
BATTERY REPLACEMENT
1. Press the buckle of battery cover on the back of the Meter (No. 65), then remove battery cover.
2. Remove the 2 old AAA batteries in the battery case and install 2 new AAA batteries into the
battery case on the back of the Meter (No. 65). Pay attention to the battery + and –poles before
installing.
3. Press the buckle of battery cover, then put the battery cover back to the back of the Meter (No.
65).
The replacement is complete!
BATTERY DISPOSAL
Dispose the batteries according to the laws and regulations of your local region. Some batteries
may be recycled. When disposing or recycling, do not mix battery types.

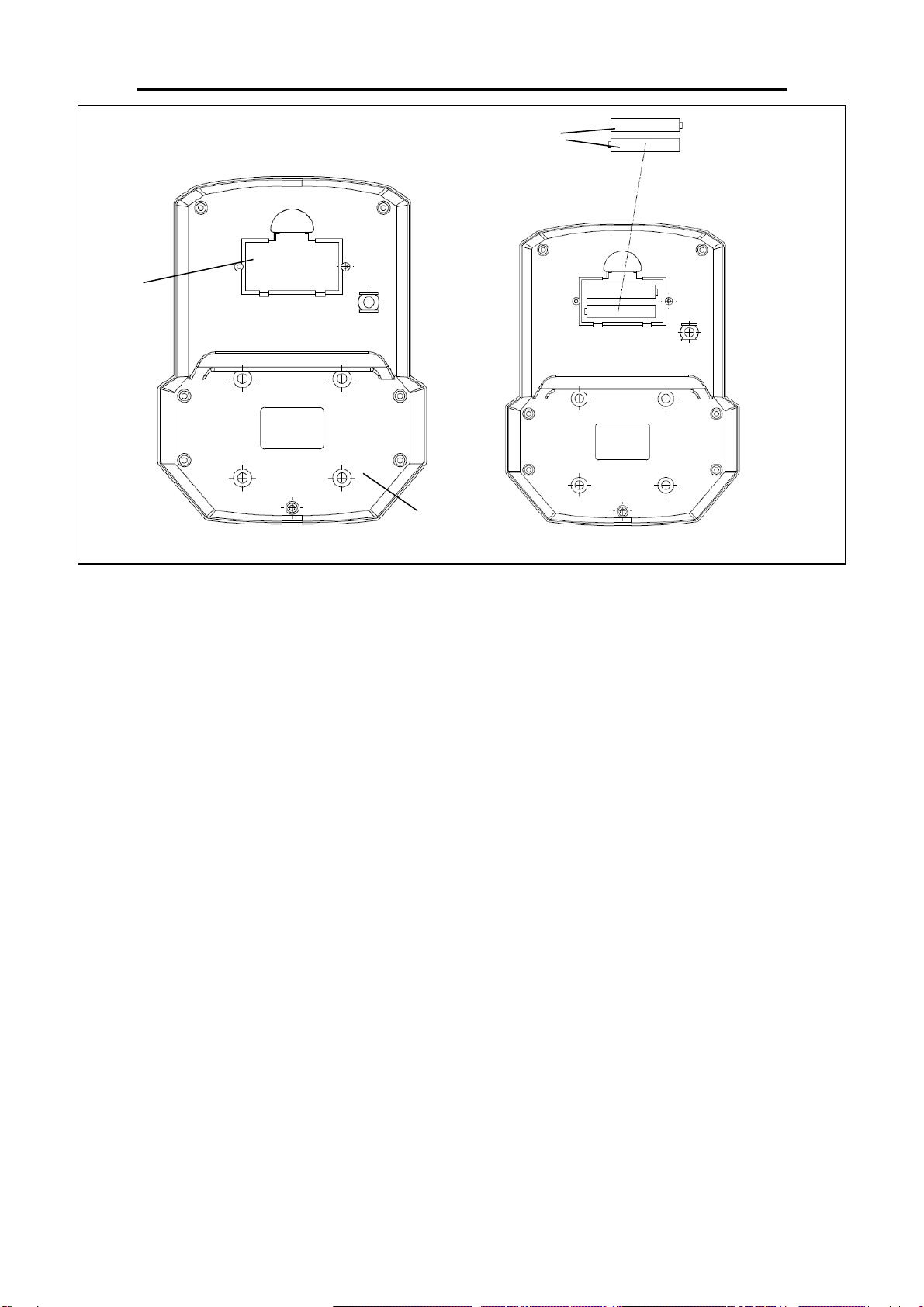

Battery
Battery
Cover
65

13
EXERCISE METER
FUNCTION BUTTONS:
MODE: Press the button to select TIME, DISTANCE, and
CALORIES to preset.
Press the button for selection function display value on
LCD or enter after setting.
Press the button and hold for 3 seconds to reset all values
except odometer to zero.
(When user replaces the batteries, all the values will reset
to ZERO automatically).
SET: To set up the target value of TIME, DISTANCE, and
CALORIES. Press the button and hold for 2 seconds to
speed up the increment.
RESET: Press the button to reset function value when setting.
Press the button and hold for 3 seconds to reset all values
except odometer to zero (When the user replaces
batteries, all the values will reset to ZERO automatically).
FUNCTIONS & OPERATIONS:
1. BATTERY INSTALLATION:
Please install 2 AAA 1.5V batteries in the battery case on the back of the meter. (Whenever
batteries are removed, all the function values will be reset to zero.)
2. AUTO ON/OFF:
Once the user begins to exercise, the meter will show the workout value automatically. After
about 4 minutes of inactivity, the meter will turn off. Odometer value does not reset to 0 when
the meter turns off. When the user starts to exercise again, the workout value of odometer will
accumulate continuously.
3. AUTO SCAN:
After the meter is powered on, press MODE button and the LCD will display all function values
from TIME-SPEED-DISTANCE-CALORIES-ODOMETER-PULSE. Each value will be held for 6
seconds.
4. SPEED:
Displays the current training speed from 0.0 to 99.9 MPH (Miles per hour).
5. DISTANCE:
Accumulates total distance from 0.00 up to 9999 M (miles). The user may preset target distance
by pressing the SET & MODE buttons. Each increment is 0.1 M (Miles).
Automatically counts down from targeting value during exercise.
6. TIME:
Accumulates total time from 00:00 up to 99:59. The user may preset target time by pressing
SET & MODE buttons. Each increment is 1 minute.
Automatically counts down from targeting value during exercise.
7. CALORIES:
Accumulates calories burned during training from 0.0 to 9999 (Cal). The user may also preset
the target calories before training by pressing the SET & MODE buttons. Each setting increment
is 1 Cal.

14
Automatically counts down from targeting value during exercise.
NOTE: This data is a rough guide which cannot be used in medical treatment.
8. ODOMETER:
Displays the total accumulated distance from 0.0 to 9999 M (miles). User can also press MODE
button to display the odometer value.
9. PULSE:
The meter will display the user's heart rate in beats per minute (BPM) during training.
NOTE: This data is a rough guide which cannot be used in medical treatment.
10. RESET:
Press the button and hold for 3 seconds to reset all values except odometer to zero.
NOTE:
1. If the meter display is abnormal, please re-install the new batteries and try again. Always
change both batteries at the same time. Do not mix battery types and do not mix old and new
batteries.
2. Battery Spec: 1.5V UM-4 or AAA (2PCS).
3. Dispose the batteries safely, according to your state and regional guidelines.
APP CONNECTION:
1. Scan the QR code below to download the SunnyFit app onto your mobile device.
2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your
free SunnyFit account and log in.
3. Ensure that the Bluetooth function is turned on from your mobile device.
4. To connect the equipment to the SunnyFit app:
a. From the “Workout” tab, press on the “Search” button to search for your equipment.
b. Once your equipment appears on the list, tap the “Select” button to confirm.
c. NOTE: If your equipment does not appear on the "Searching for Equipment" list, check the
EXERCISE METER on your equipment to ensure that it is not in sleep mode and your
phone's Bluetooth function is on, then tap "Retry" to search again.
d. Once your equipment shows up on the “Workout” tab as “Currently Selected”, your
equipment is now ready to display, track, and record your equipment’s workout stats on the
app!
5. If you are unable to replicate these steps, or have any other issues with the SunnyFit app,
please contact SunnyFit support at [email protected], or use the in-app “Contact Us” form
to request support (“Me” tab -> “Contact Us”).

15
EXPLODED DIAGRAM

16
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
58
Round Plug
Φ25×1.5
2
2
Front Stabilizer
1
59
Square Plug
38×38×1.5
2
3
Rear Stabilizer
1
60
Sleeve
2
4
Handlebar Post
1
61
Transportation Wheel
2
5L/R
Swing Bar
1PR.
62
Seat
1
6L/R
Connecting Arm
1PR.
63
Backrest
1
7L/R
Handlebar
1PR.
64
Nut Cap
S13
2
8
Seat Support
1
65
Meter
1
9
Rear Handlebar
1
65a
Meter Sensor
Connecting Wire
1
10
Adjustable Handle
1
65b
Meter Pulse Connecting
Wire
1
11
Seat Rail
1
66
Pulse Sensor
2
12
Axle
1
67
Screw
1
13
Fixed Plate
1
68
Arc Washer
1
14
Screw
ST3.5×8
4
69
Screw
ST4.2×18
2
15
Set Bolt
M8×10
1
70
Screw
M5×10
4
16
Screw
M6×10
2
71a
Tension Controller
1
17
Screw
M6×16
2
71b
Tension Cable
1
18
Bolt
M8×50
2
72
Tension Hook
1
19
Bolt
M8×45
2
73
Sensor Extension Wire 1
1
20
Bolt
M8×40
6
74
Sensor Extension Wire 2
1
21
Nylon Nut
M6
1
75
Pulse Wire
1
22
Screw
M8×20
9
76
Pulse Extension Wire 1
1
23L/R
Nylon Nut
B0.5×20
1PR.
77
Pulse Extension Wire 2
1
24
Alloy Bushing
Φ32×Φ21×8.5
2
78
Spring Washer
D13
2
25
Bearing
Φ28.6×11×Φ13
2
79
Idler Wheel Linkage
1
26
Arc Washer
D8×Φ20×2×R25
12
80L/R
Belt Cover
1PR.
27
Carriage Bolt
M8×65
4
81
Crank Cover
2
28
Carriage Bolt
M8×60
1
82
Sealing
1
29
Carriage Bolt
M8×35
4
83
Belt Pulley
1
30
Hex Screw
M8×20
2
84
Plug
2
31
Hex Nut
M10
1
85
Belt
350 PJ6
1
32
Hex Nut
M8
2
86
Bearing Housing
2
33
Cap Nut
M8
8
87
Idler Wheel
1
34
Nylon Nut
M8
6
88
Screw
ST4.2×19
5
35
Crank
1
89
Screw
ST4.2×18
8
36
Wave Washer
Φ20×Φ28×0.3
2
90
Screw
M6×10
4
37
Round Plug
25×3
2
91
Screw
M6×8
2
38
Flat Washer
D8×Φ32×2
2
92
Spring Washer
D12
3
39
Flat Washer
D8×D16×1.5
16
93
Flywheel
1
40
Eccentric Wheel
1
94
Screw
Φ14×Φ10×M8×2
0.5
1
41
Spring Washer
D8
7
95
Hex Bolt
M5×60
1
42
Alloy Bushing
Φ18×Φ8.1×10
4
96
Hex Screw
M6×15
5
43
Spacer
D28.6×Φ34×4.5
2
97
Hex Nut
M5
2
44
Long Axle
1
98
Nut
2
45L/R
Pedal
1PR.
99
Washer
1
46
Foam Grip
Φ24×T3×290
2
100
Locking Nut-L
1
47
Foam Grip
Φ24×T3×480
2
101
Open Face Bearing
2
48
Grip
1
102
Bearing Housing
2
49
Rear End Cap
2
103
Locking Nut-R
1
50
Wire Plug
2
104
Big Flat Washer
1
51
Adjustable Pad
2
105
Sensor Bracket
1
52
Support Pad
1
106
Adjustable Belt Bolt
M6x36
1
53
Square Plug
2
107
Magnetic Board Axle
1
54
Plastic Bushing
6
108
Wave Washer
D12×Φ15.5×0.3
2
55
Upper Block
1
109
Flat Washer
D6×Φ16×1.5
3
56
Front End Cap
Φ50×1.5
2
110
Flat Washer
D6×D12×1.2
2
57
Round Plug
Φ28×1.5
2
111
Flat Washer
D10×Φ14×1
1

17
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
112
Flywheel Axle
1
119
Spanner
S13,S14,S15
1
113
Bearing Bracket
2
120
Allen Wrench
S6
1
114
Magnet
4
121
Allen Wrench
S5
1
115
Spring Washer
D6
5
122
Spanner
S13,S14
1
116
Spring
Φ1.6×Φ15×L47.2
1
123
Spanner
S17,S19
1
117
Spring
Φ3×Φ18×L58.5
1
124
Magnetic Board
1
118
Bearing
6001RS
4
Version 1.0
