Sunny Health & Fitness SF-B0960 User manual

ELECTRIC UNDER DESK CYCLE
SF-B0960
USER MANUAL
DO NOT STAND ON THE UNIT
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US:
[e-mail] or 1- 877 - 90SUNNY (877-907-8669).


1

IMPORTANT SAFETY INSTRUCTIONS
Thank you for purchasing the Electric Under Desk Cycle. Please read the operating instructions
carefully before use, especially the safety precautions.
When using an electrical appliance, basic precautions should always be followed, including the
following:
Read all instructions before using this appliance.
DANGER – To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to person(s):
1. This product’s rated voltage is 120V, rated power is 220W.
2. An appliance should never be left unattended when plugged in. Unplug from outlet when not in use,
and before putting on or taking off parts.
3. Do not stand on the cycle, only use the cycle while sitting.
4. Use this appliance only for its intended use as described in this manual. Do not use attachments
not recommended by the manufacturer.
5. This appliance is not intended for use by person with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Keep children
and pet away from this machine. The equipment is designed for adult use only.
6. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the appliance to a service center for
examination and repair.
7. Do not carry this appliance by supply cord or use cord as a handle.
8. Keep the cord away from heated surfaces.
9. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair,
and other objects.
10. Never drop or insert any object into any opening.
11. Do not use outdoors.
12. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
13. To disconnect, turn all controls off, then unplug from outlet.
14. To reduce the risk of injury, place the appliance on a flat, horizontal, and stable surface. Do not
place or use the appliance on a slippery surface.
15. To reduce the risk of injury, do not use the appliance with wet shoes, wet feet, or socks.
16. To reduce the risk of injury, do not use the appliance if the surface is wet. If the appliance surface
becomes wet, dry the surface before using.
17. Turn off the power after each use. After using or before cleaning the appliance, unplug the power
supply from the outlet.
18. Do not cover while using the machine, to avoid motor overheating and cause malfunction or damage.
19. Be aware how you are feeling. If you feel uncomfortable or experience any adverse symptoms, stop
using the appliance immediately.
20. Do not use the appliance if it is damaged or defective.

2

21. This appliance is not suitable for therapeutic use. Do not use with other medical electronic
equipment, such as pacemakers or EKG machines.
22. Do not use the appliance in wet or dusty environment. Do not use in humid environment, such as
bathroom.
23. Keep the appliance away from direct sunlight.
24. Do not operate the appliance with wet hands.
25. Do not allow water and other liquids to touch control switch.
26. Do not place the power cord under the appliance or any heavy object.
27. Do not wind the power cord around the appliance. That could damage the power cord, and cause
electric shock or electrical fire.
28. If the power plug is loose, do not use the appliance.
29. If there is a power surge during use, stop using the appliance. Sudden restoration of power could
cause injury to you.
30. Consult your physician before use, especially if you have any medical conditions such as diabetes.
31. Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
32. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
SAVE THESE INSTRUCTIONS

3



EXPLODED DIAGRAM
HARDWARE PACKAGE
31 31
37
38
12
1
8R
8L
16
16
24
24
24
24
10
9
11
5
13
4
6
6
28
29
30
32
33
33
34
34
35
35
36 27
23
22
3R
26
25
7R
2
15
17
19
18
14
15
#39 S13-S14-S15 1PC
20
20
21R
3L
26
25
7L
21L
14
O

4

PARTS LIST
No. Description Spec. Qty No. Description Spec. Qty
1 Main Frame 1 21L/R Nylon Nut M12 2
2 Front Stabilizer 1 22 Screw ST3.5*15 1
3L/R Crank 2 23 Non-Slip Pad 1
4 Power Cord 1 24 Screw ST4.2*15 10
5 Power Switch 1 25 Flange Nut M10 2
6 Rubber Pad 2 26 End Cap 2
7L/R Pedal 2 27 Spring Washer Φ2.2*Φ3.4*0.8 1
8L/R Belt Cover 2 28 3P Data Line 1
9 Motor 1 29 Sensor 1
10 Console 1 30 Screw M3x8 2
11 Remote Control 1 31 Fixing Bolt 4
12 Controller 1 32 6P Data Line 1
13 Outlet 1 33 Screw M5x16 6
14 Carriage Bolt M8*42 2 34 Spring Washer Φ2.7*Φ4.2*1.1 6
15 Washer ID8.2*OD16*1.5 2 35 Flat Washer Φ5.5*Φ10*1 6
16 End Cap 2 36 Screw M4x10 1
17 High Cap Nut M8 2 37 Screw M3*5 4
18 Bolt M6*16 3 38 Washer Φ70*1.0 1
19 Rear Fixed Bottom Plate 1 39 Spanner S13-S14-S15 1
20 EVA Non-Slip Pad 2 40 Spanner S17-S19 1
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
 The model number (found on cover of manual)
 The product name (found on cover of manual)
 The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of
the manual)
Please contact us at [email protected] or 1- 877 - 90SUNNY (877-907-8669).

5





1
18
19
18
20
20
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-907-
8669).





STEP 1:

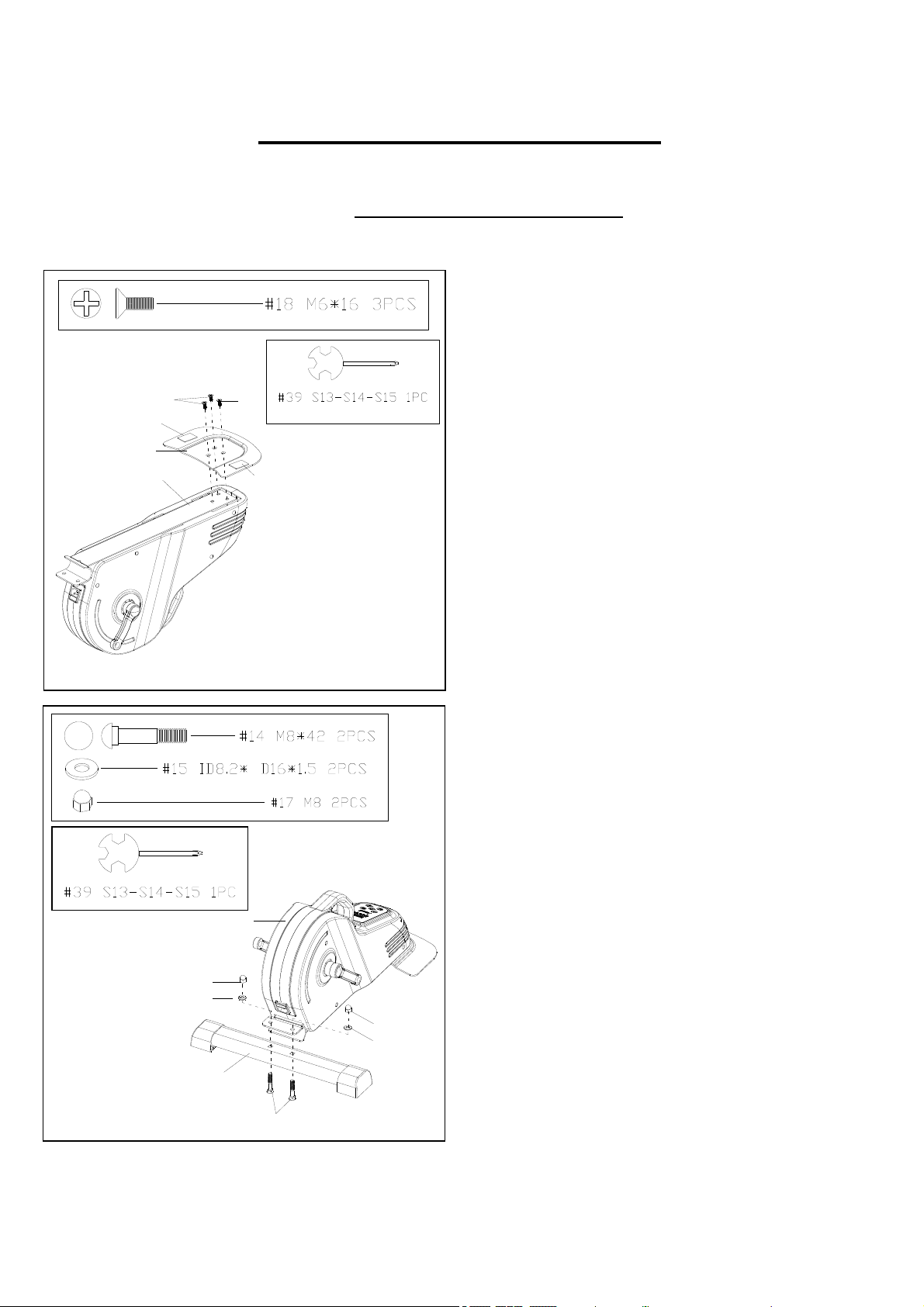

Attach Rear Fixed Bottom Plate (No. 19)
to the Main Frame (No. 1) with 3 Bolts (No.
18). Tighten and secure with Spanner (No.
39).


STEP 2:
Attach Front Stabilizer (No. 2) to the Main
Frame (No. 1) with 2 Carriage Bolts (No.
14), 2 Washers (No. 15), and 2 High Cap
Nuts (No. 17). Tighten and secure with
Spanner (No. 39).


O

2
14
15
17
15
17
1

6

We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-907-
8669).


STEP 3:
NOTE: The Pedals (No. 7L & No. 7R) are
marked “L” and “R” for Left and Right.
WARNING! Read instructions carefully as
improper assembly may cause permanent
damage to your bike.
Remove the 2 Left & Right Nylon Nuts
(No. 21L & No. 21R) located on the Left &
Right Pedals (No. 7L & No. 7R).
Align the Left Pedal (No. 7L) with the Left
Crank (No. 3L) at 90°. Gently insert the
Left Pedal (No. 7L) into the Left Crank
(No. 3L) and turn the Left Pedal (No. 7L)
counter-clockwise as tightly as you can
with your hand. Use Spanner (No. 39) to
tighten and secure.
Turn the Left Nylon Nut (No. 21L)
clockwise as tightly as you can with your
hand. Use Spanner (No. 39) to hold the
pedal bolt on the Left Pedal (No. 7L) and
use Spanner (No. 40) to turn the Left Nylon
Nut (No. 21L) clockwise at the same time,
until it is tightened on to the Left Crank (No.
3L).
Align the Right Pedal (No. 7R) with the
Right Crank (No. 3R) at 90°. Gently insert
the Right Pedal (No. 7R) into the Right
Crank (No. 3R) and turn the Right Pedal
(No. 7R) clockwise as tightly as you can with
your hand. Use Spanner (No. 39) to tighten
and secure.
Turn the Right Nylon Nut (No. 21R)
counter-clockwise as tightly as you can with
your hand. Use Spanner (No. 39) to hold
the pedal bolt on the Right Pedal (No. 7R)
and use Spanner (No. 40) to turn the Right
Nylon Nut (No. 21R) counter-clockwise at
the same time, until it is tightened on to the
Right Crank (No. 3R).
3L 7L
3R
7R
21R 21L
1
3R
7R
21R
39
3R
7R
39 40
3L 7L
39
3L
7L
21L
39
40

7

We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-907-
8669).
1
5
4
STEP 4:

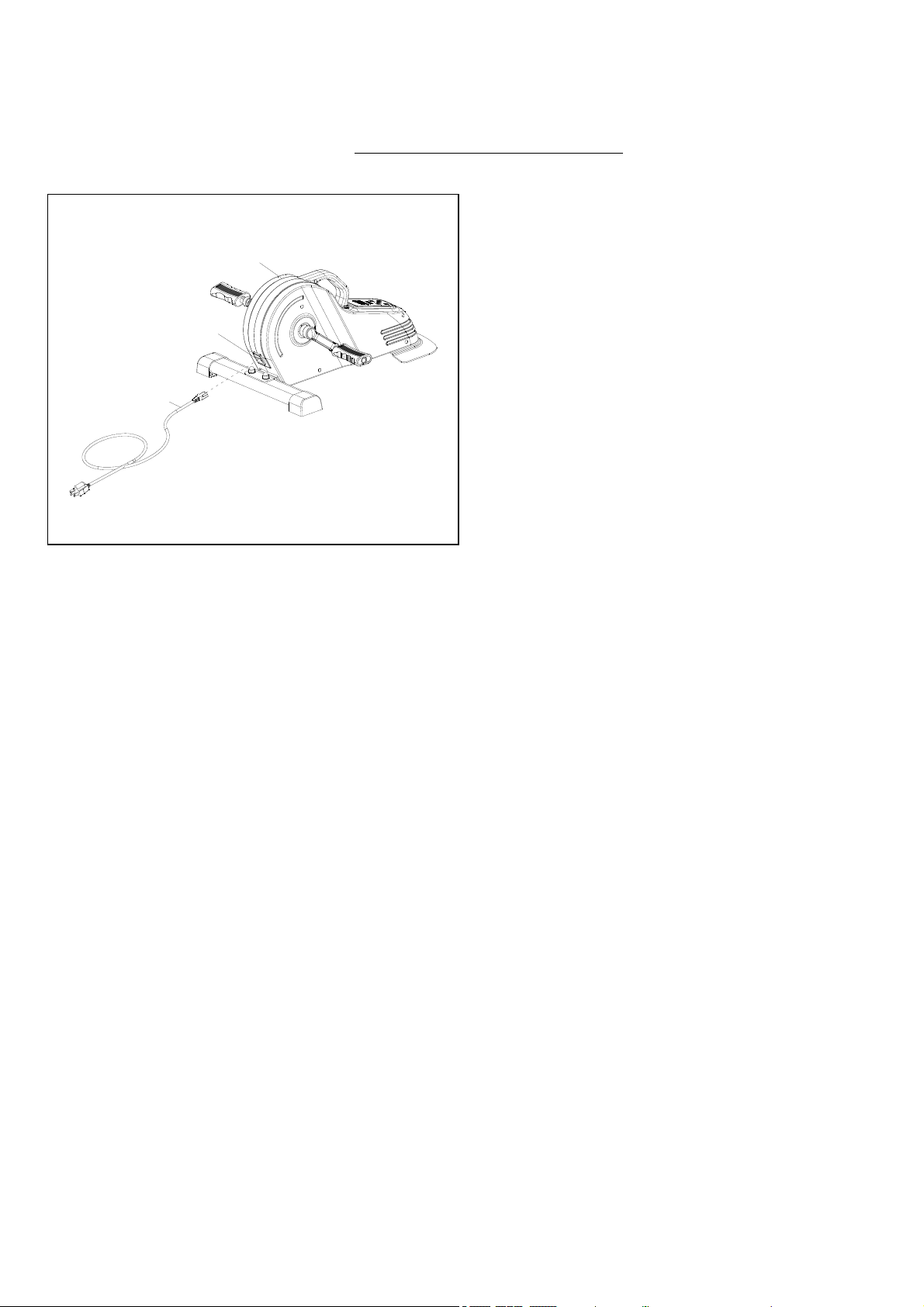

Plug the Power Cord (No. 4) into the
Power Switch (No. 5) on the Main Frame
(No. 1).
The assembly is complete!


8

IMPORTANT ELECTRICAL INFORMATION
WARNING:
This cycle requires a power source of 120V in order to properly operate. For your safety as well as the
safety of others, please verify that the power source is correct before powering in the equipment. Any
power supply source above or below this level could cause significant damage to the equipment and/or
user.
GROUNDING METHODS:
This cycle must be grounded. Should the cycle malfunction or breakdown, grounding provides a path
of least resistance for electric current to reduce the risk of electric shock. This product is equipped with
a plug that has an equipment-grounding conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
This cycle is for use on a nominal 120V circuit and has a grounding plug that looks like the plug
illustrated in sketch A. Ensure that the cycle is connected to an outlet with the same configuration as
the plug. Do not use an adaptor for this product.
DANGER:
Improper connection of the equipment can result in risk of electric shock. Check with a qualified
electrician or serviceman if you are unsure whether the product has been properly grounded. Do not
modify the plug provided with the product. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this cycle.
2. NEVER operate the cycle using a generator or UPS power supply.
3. NEVER remove any cover on this cycle without first disconnecting the Power Cord (No. 4).
4. NEVER expose the cycle to rain or moisture. This cycle is not designed for outdoor use or use in
any high humidity environment.

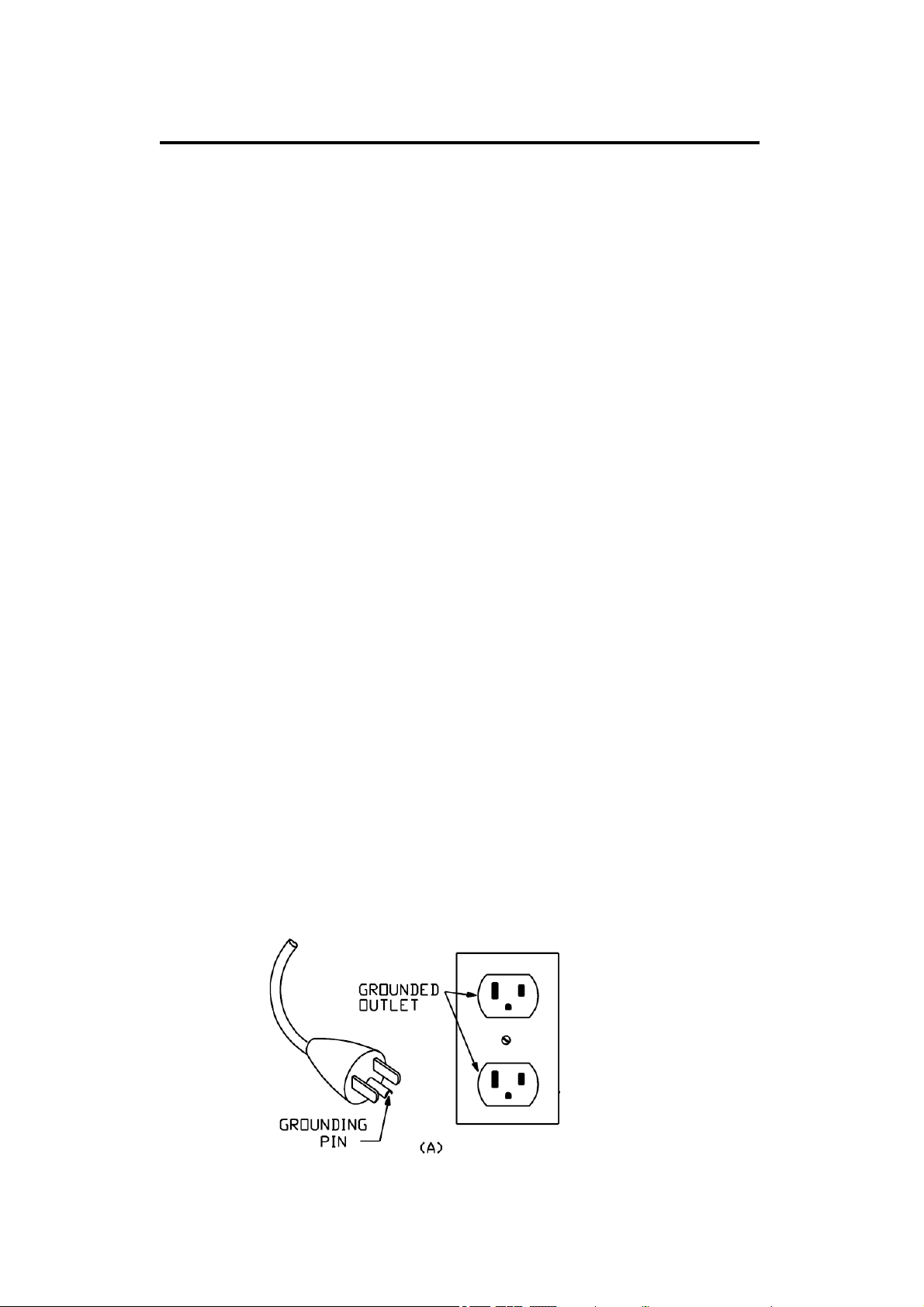

GROUNDING METHOD

9



BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION:

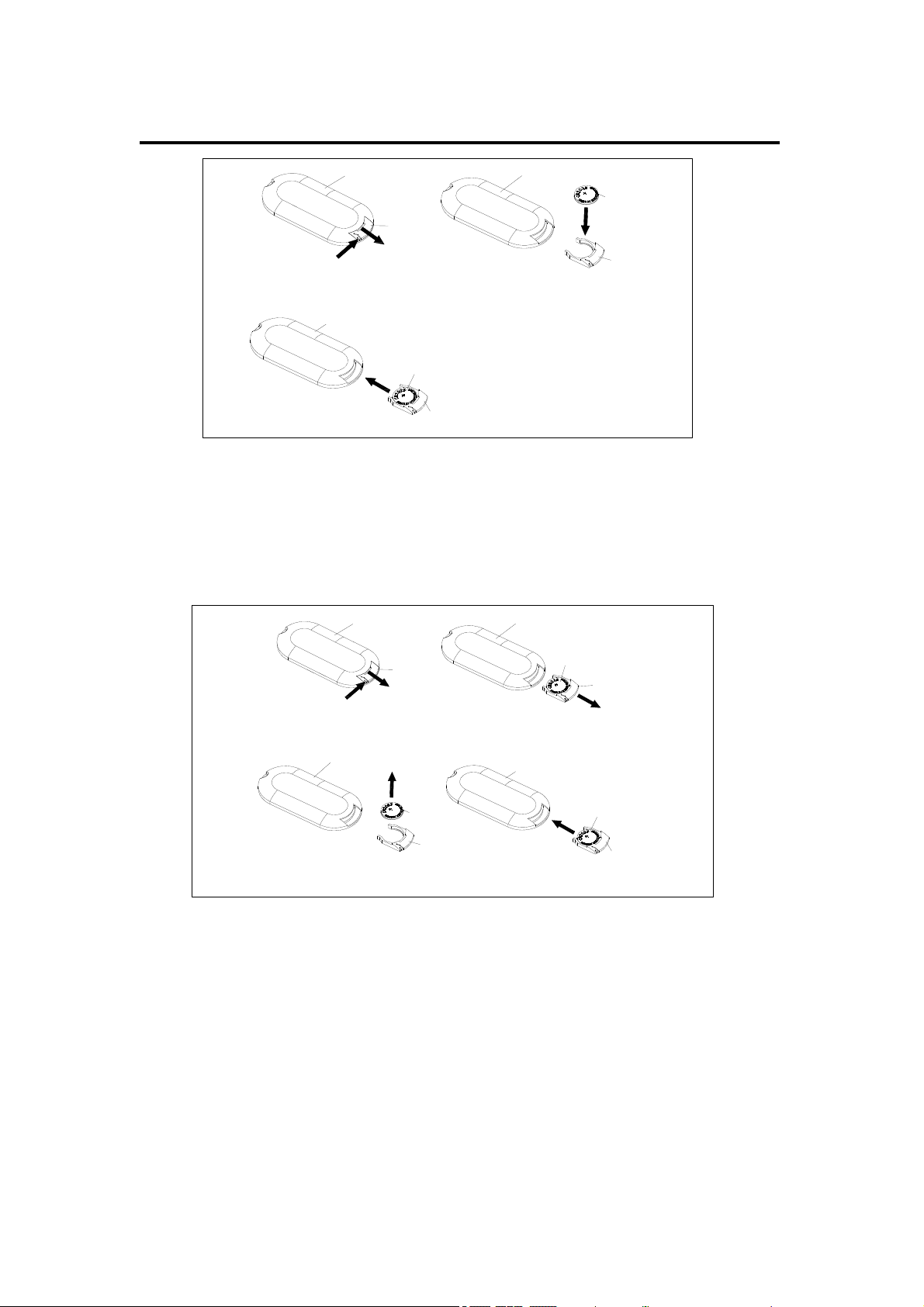

1. Press the arrow at squeeze point a of battery seat and buckle point b of battery seat, then pull out
battery seat. Take out the 1pc CR2032 3V battery that is included inside the manual bag.
2. Install the 1pc battery into the battery seat with the positive end facing up.
3. Put the battery seat back.

The installation is complete!

BATTERY REPLACEMENT:
1. Press the arrow at squeeze point a of battery seat and buckle point b of battery seat, then pull out
battery seat.
2. Take out the old battery from the battery seat.
3. Install the new battery, CR2032 3V into the battery seat with the positive pole facing up.
4. Put the battery seat back.
.
The replacement is complete!
Dispose the old battery according to your regional guidelines.
Battery
Battery Seat
12
3
11 11
11
a
b
Battery Seat
Battery Seat
Battery
12
34
11 11
11 11
a
b
Old Battery
Old Battery
Battery Seat
Battery Seat
Battery Seat
New Battery
Battery Seat

10

DISPLAY CONSOLE
ELECTRICAL INFORMATION
Rated Voltage: 120V

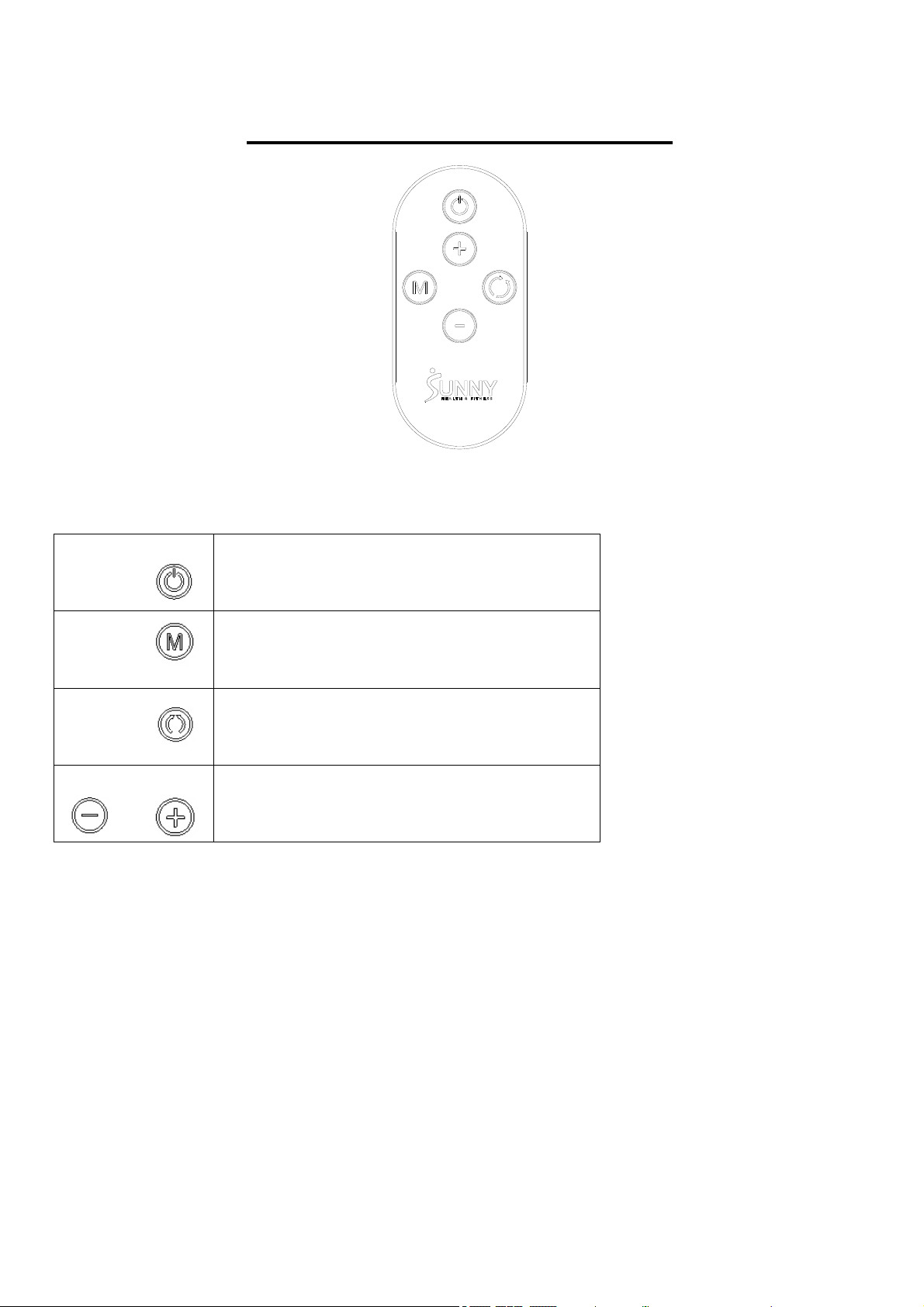

FUNCTION KEYS
Start/Pause Start and pause machine
Mode
Changes between automatic and manual
Direction
Changes the direction forward or backward
Speed+/- Select key for increasing or decreasing
speed (18 speed levels)

WARNINGS AND INSTRUCTIONS
 Do not stand on the cycle. Only use while seated in a chair.
 If cycle is tilted over 45 degrees, it will auto stop.
 If cycle detects problems during exercise, it will auto stop within 10 seconds.

Failure to follow above all warnings and instructions could result in serious injury or death, and cause
the machine to stop and make an alarm sound. When the display console shows “ERR”, press the
Start/Pause button to reset automatically. If the “ERR” no longer appears, continue to use normally. If
the code continues to appear, please contact customer service.

11

OPERATING INSTRUCTIONS
1. Plug in the power cord. Turn on the power switch. The machine will beep and LED display will
show “OFF“. This is standby mode.
2. Press the Start/Pause button on the console or the remote control to start the cycle, it will begin in
manual mode. Display will show L1. Press the Start/Pause button longer than 5 seconds, the cycle
will clear all the LED display information.
3. Under the manual mode, press the Speed “+” button to increase the speed from L1 to L18. Or
press the Speed “–” button to decrease the speed from L18 to L1.
Level Speed
(MPH)
Rotate Speed
(RPM) Level Speed
(MPH)
Rotate Speed
(RPM)
L1 0.674 32 L10 1.412 67
L2 0.737 35 L11 1.496 71
L3 0.843 40 L12 1.559 74
L4 0.948 45 L13 1.622 77
L5 1.032 49 L14 1.685 80
L6 1.074 51 L15 1.749 83
L7 1.180 56 L16 1.791 85
L8 1.285 61 L17 1.854 88
L9 1.369 65 L18 1.896 90
4. Under the manual mode, press the Direction button to change the direction forward or backward.
5. Under the manual mode, the LED display will alternate display between speed level, speed and
time.
6. Press the Mode button on the console or the remote control to change the mode from manual
mode to auto mode P1, press again from P1 to P2 mode, press again from P2 to P3, then press
again from P3 back to the manual mode.


Power Switch

12

7. Under the automatic mode, there are P1/P2/P3 modes included. Different modes have different
speeds and working directions, see below details.
P1 MODE：Based on speed Level 1, the pedals move 13 times forward, 13 times backwards, 13
times forward based, 13 times backwards and so on.
P2 MODE The pedals move forward first then the speed will be increasing from Level 1 to Level 9
gradually. When the speed reaches Level 9, the speed will be decreasing from Level 9 to Level 1.
When the speed reaches Level 1, the pedals change to move backwards and the speed will be
increasing from Level 1 to Level 9 gradually. When the speed reaches Level 9, the speed will be
decreasing from Level 9 to Level 1. When the speed reaches Level 1, the pedals change to move
forward and repeats the operation.
P3 MODE：The pedals move forward first then the speed will be increasing from Level 1 to Level
18 gradually. When the speed reaches Level 18, the speed will be decreasing from Level 18 to
Level 1. When the speed reaches Level 1, the pedals change to move backwards and the speed
will increasing from Level 1 to Level 18 gradually, when the speed reaches Level 18, the speed will
be decreasing from Level 18 to Level 1. When the speed reaches Level 1, the pedals change to
move forward and repeats the operation.
8. The machine will stop automatically after working continuously for 30 minutes. At the stop moment,
the LED display will show “OFF” then show the exercise mode and datas.
NOTE: After finish using, please turn off the switch and disconnect the power.

13

DISPLAY REMOTE CONTROL
FUNCTION KEYS

Start/Pause Start and pause machine
Mode Changes between automatic and manual
Direction Changes the direction forward or backward
Speed+- Select key for increasing or decreasing speed
(18 speed levels)
REMOTE CONTROL NOTICE:
If the Remote Control (No. 11) does not activate the Electric Under Desk Cycle, or if you have a
replacement remote, the Remote Control (No. 11) and Electric Under Desk Cycle will need to be
paired.
REMOTE CONTROL PAIRING METHOD:
1. Restart the Electric Under Desk Cycle, press and hold down the Mode button and Direction button
at the same time, you will hear three “beep” sounds.
2. Press and hold down the Mode button on the Remote Control (No. 11) immediately for about 3
seconds. Hearing a "Beep" indicates that the pairing is successful. During the pairing, the Remote
Control (No. 11) should be as close to the Electric Under Desk Cycle as possible.

14

Caution: The user is cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20cm between the
radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

15

USER-MAINTENANCE INSTRUCTION
Caution：There are no serviceable parts in the appliance, any servicing should be performed by an
authorized service person.
When the appliance is not in use, disconnect the power supply, storage of the power cord and the total
appliance in a dry location where children cannot touch or in play area(s).



USE ONLY WHILE SITTING.
DO NOT STAND ON THE CYCLE!
WARNING
The machine is intended to use in a sitting
position only. When using the machine,
keep the feet flat to avoid rubbing against
the floor. Do not stand on the machine.
Failure to follow all warnings and
instructions could result in serious injury or
death.









Version:1.1

16







