Sunnydaze Decor LOE-381 User manual

SOPHISTICATED HEARTH
ELECTRIC FIREPLACE
IF-FSB Page 1 / 13
WARNING
Read and understand this entire manual, including all safety information,

electric shock, or serious personal injury.
WARNING!
Manufacturer and seller expressly disclaim any and all liability from personal injury, property damage
or loss, whether direct or indirect, or incidental, resulting from the incorrect attachment, improper use,
inadequate maintenance, or neglect of this product.
Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell.
Replacement parts or products will be sent at our discretion within the 1-year warranty period. Proof of purchase, with
the date of purchase as well as photos of the merchandise defect, must be provided. Photos are used to determine
the cause of defects and for future quality control. Register your warranty at https://tiny.cc/SunnydazeWarranty
If you have any questions, comments or concerns, feel free to contact us by phone at 833-982-1977, by email:
[e-mail], or via our contact us page at https://tiny.cc/SunnydazeContact
Purchase Date: / / Order/Customer Reference Number:



05/2021
2-PERSON
ASSEMBLY/
INSTALLATION
RECOMMENDED

Page 2 / 13
IMPORTANT SAFETY INFORMATION
WARNING
Read all instructions before using this heater!
• This heater is hot when in use. To avoid burns, DO NOT touch hot surfaces.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3
feet (0.9m) from all sides of the heater.
• If provided, use handles when moving the heater.
• Extreme caution is necessary when any heater is used. NEVER leave the unit unattended while heater
is in use.
• Ensure adequate safety measures are incorporated to protect infants/toddlers from touching hot
surfaces.
• DO NOT operate any heater if the cord is damaged, the heater malfunctions, has been dropped, or
damaged in any manner. Discard heater or have it serviced by a certified professional.
• DO NOT run the power cord under carpeting, throw rugs, runners, or similar floor coverings. DO NOT
route the power cord under furniture or appliances. Arrange power cord away from traffic area, and
where it will not be tripped over.
• 
• DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening, as this may
damage the heater, cause electric shock or fire.
• DO NOT block air intakes or exhaust in any manner as doing so could cause a fire.
• DO NOT use on soft surfaces, like a bed, where openings may become blocked.
• A heater has arcing or sparking parts inside and becomes HOT. DO NOT use it in areas where
gasoline, paint, or any flammable liquids are used or stored or where flammable vapors are present.
• Only use this heater as described in this manual. Any other use may cause fire, electric shock,
personal injury or death.
•  use this unit with an extension
cord or relocatable power tap (power strip).
• DO NOT install the heater near a bed, objects such as pillows or blankets can fall off the bed and be
ignited by the heater.
• NEVER use this heater in bathrooms, laundry rooms, or any other location where the heater could
come in contact with water or be exposed to high moisture.
• AVOID FIRE! It is imperative that the control compartments, circulating blower, and its passageway in
the replace is kept clean. Regularly inspect all air vents to make sure they are free from dust, lint, or
other blockages.  rinse or get wet.
• NEVER hang this unit on a wall directly below an electrical outlet.
• Ensure clearances to combustibles are maintained when building a mantel or shelves near the
fireplace. Elevated temperatures on the wall or in the air around the fireplace can cause melting,
discoloration or damage to decorations, a TV or other electronic components.
•  mount the unit before use. DO NOT set this unit on the floor or any other surfaces to use.
• NEVER use a wall mount bracket from another manufacturer.
• 
WARNING
IF-FSB 05/2021

Page 3 / 13
WARNING
• For residential use only! NOT for commercial use! Any commercial or public use of this heater voids
all warranties and could cause injury.
• This product is not intended to be a primary heat source. It is for supplemental heat only.
• INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock!
• DO NOT OPEN! Risk of electric shock! No user-serviceable parts inside!
• NEVER modify this heater. Doing so could result in personal injury or property damage. Modification of
this fireplace completely voids all warranties.
•  turn this heater off before unplugging it from the outlet.
•  disconnect this unit from the power supply before performing any assembly or cleaning, or
before relocating the electric fireplace.
• NEVER leave this heater unattended.  unplug this heater when it is not in use.
•  store this heater in a dry location. NEVER use the fireplace in a location where it may become
wet.
• NEVER plug this heater into an outlet that is old, cracked, or has any loose wires or connections.
Plugging this heater into a faulty outlet could result in electric arcing within the outlet that could cause
the outlet to overheat or catch fire.
•  check your heater cord and plug connections with each use!
i)  the plug fits tightly in the outlet! Faulty wall outlet connections or loose plugs can cause
the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it has not
occurred with the use of other appliances.
iii) During use, frequently check to see if the plug outlet or faceplate is HOT!
iv) If the outlet or faceplate is HOT, discontinue use immediately and have a qualified electrician
inspect and/or replace the faulty outlets.

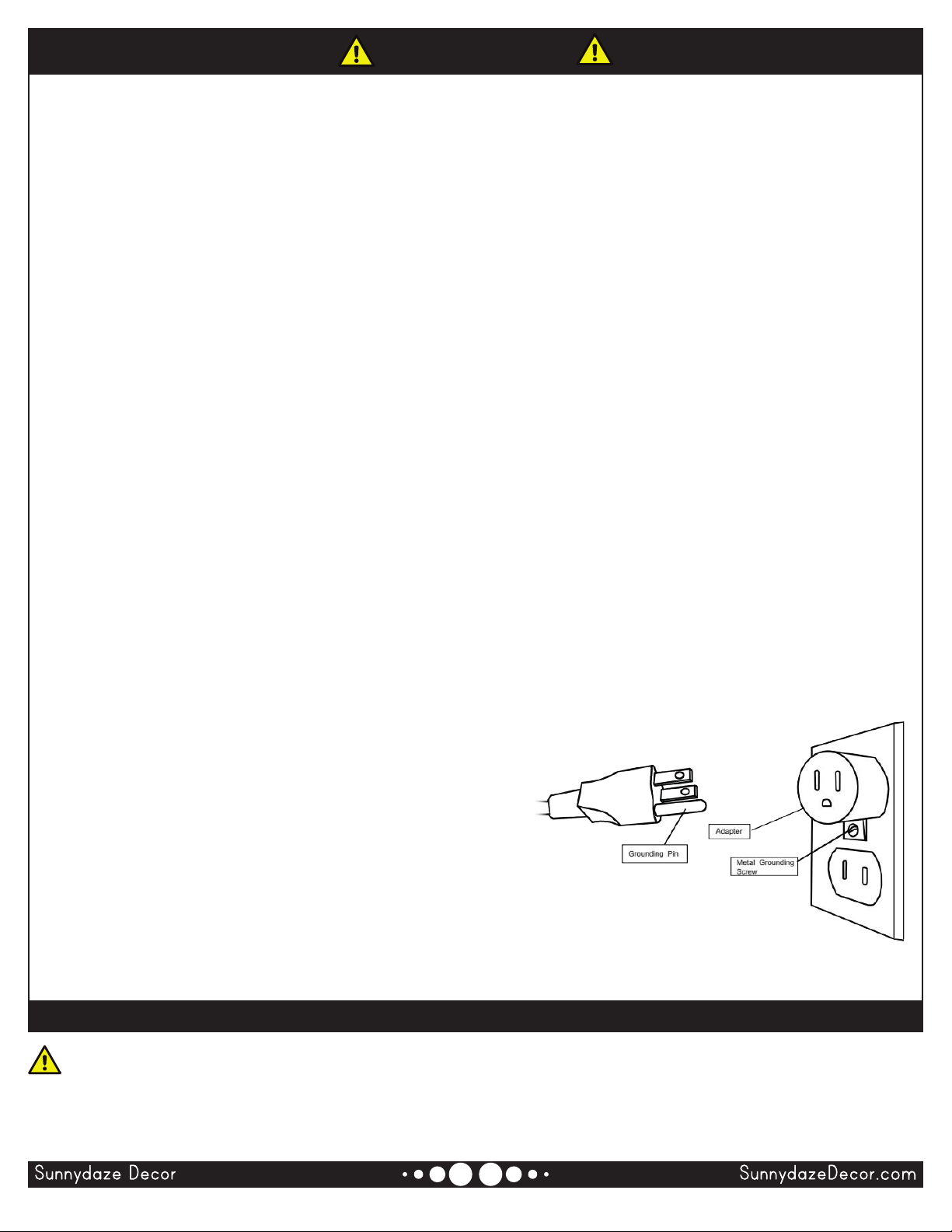

• The power cord supplied with the heater has a plug
with two flat blades (live and neutral) and one round
pin (ground). If a 3-slot receptacle is not available, an
adapter  be used. The adapter  be properly
grounded to the outlet box (see figure at right).
• 
• Under no circumstances should this replace be
modied.

WARNING!
Manufacturer and seller expressly disclaim any and all liability from personal injury, property damage
or loss, whether direct or indirect, or incidental, resulting from the incorrect attachment, improper use,
inadequate maintenance, or neglect of this product.
IF-FSB 05/2021

Page 4 / 13
WARNING


Failure to do so could result in personal injury or property damage.
Preparaon

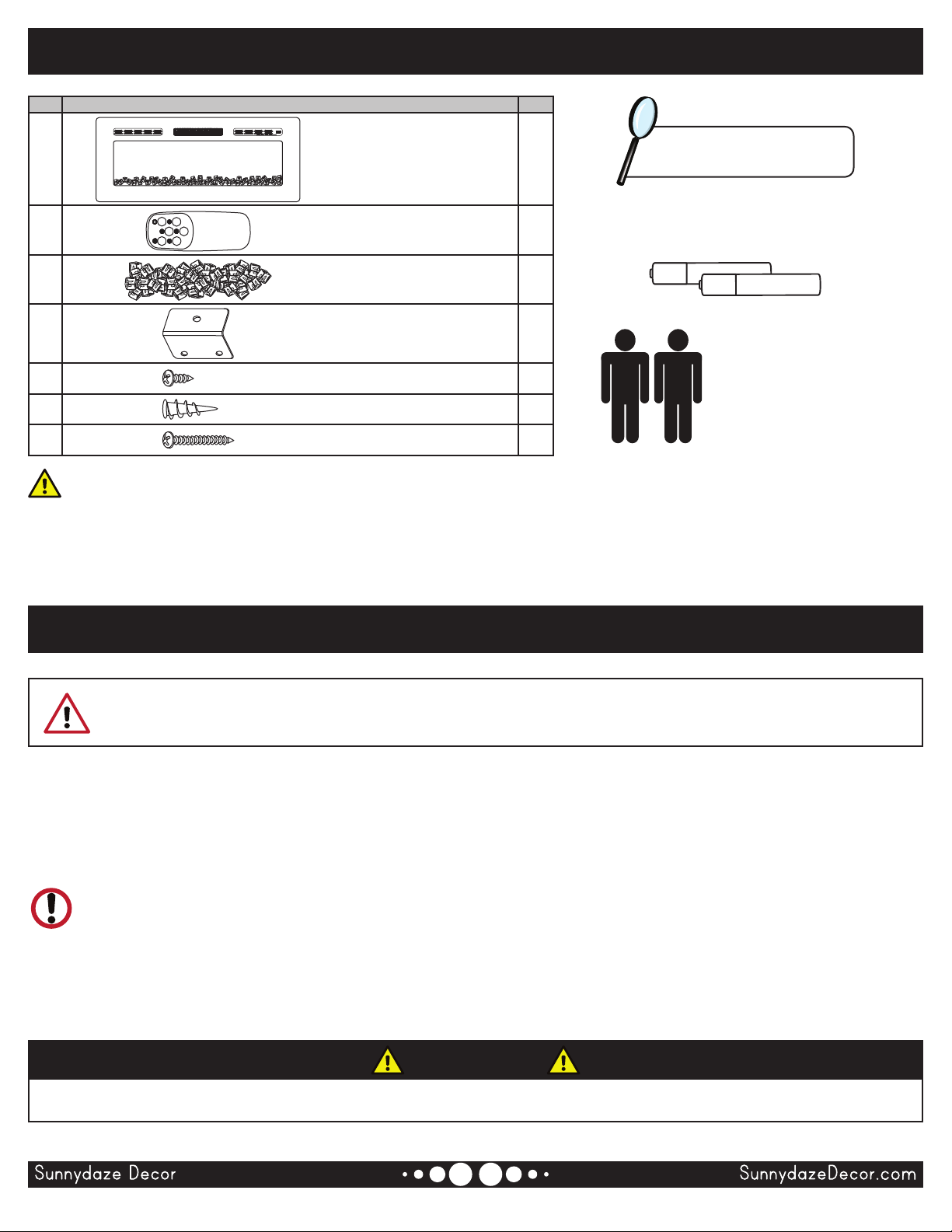

Parts and Hardware
Inspect packaging to ensure all
parts are accounted for before
disposing of packing materials.
  
AFireplace 1
BRemote Control 1
Decorative Crystals 1PK
DMetal Bracket 1
EM4 x 8mm Screw 2
FDrywall Anchor 9
GM4 x 30mm Wood Screw 9
 — This item contains small parts that can be swallowed. Keep children away during assembly.
WARNING
2-PERSON
ASSEMBLY/
INSTALLATION
RECOMMENDED



IF-FSB 05/2021
Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Assembly steps
are grouped for wall-hanging or recessed installation. Check the parts list to make sure nothing is missing.
Dispose of packaging materials properly. Please recycle whenever possible.
Before installation, plug the unit into a properly grounded outlet for a brief test to ensure the unit works
properly. Do not continue to operate until packing material has been removed from inside the unit.
Tools needed for installation (not included):
Phillips screwdriver, stud nder, level, tape measure, pencil, power drill, 1/4" wood drill bit, hammer

Installaon and Assembly
Install in a safe location

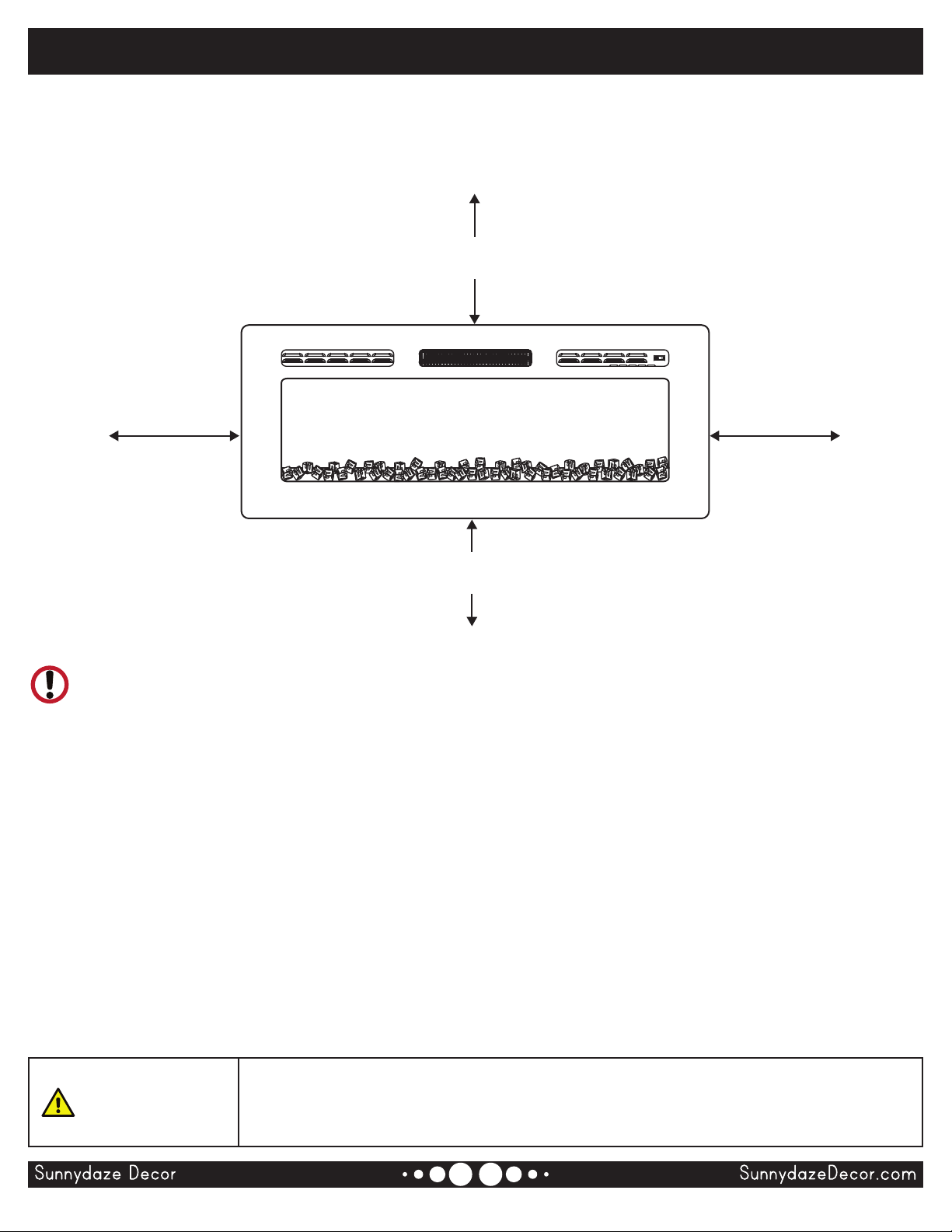

Minimum clearance on each side: 23.6" (60 cm)
Minimum clearance below: 23.6" (60 cm)
Minimum clearance above: 39.4" (100 cm)
Minimum clearance from the front: 48" (122 cm)
Choose a location near a properly grounded outlet. Do not use an extension cord.
DO NOT position the unit directly below a power outlet.

and proper use of this product.
This electric replace is a wall-mounted, recessed or rebox installed appliance. Select a suitable location that
is not susceptible to moisture and is away from drapes, furniture and high tra󰀩c areas.
NOTE: Follow all National and local electrical codes.
Minimum 23.6″
(60 cm)
Minimum 39.4″
(100 cm)
Minimum 23.6″
(60 cm)
Minimum 23.6″
(60 cm)
Page 5 / 13
WARNING
Read and understand this entire manual, including all safety information,

electric shock, or serious personal injury.
IF-FSB 05/2021

          

NOTE: When installing on drywall, it is strongly recommended that the mounting bracket be screwed into the
wall studs where possible. If the wall studs cannot be used, ensure that the supplied anchors are used to a󰀩x
the bracket to the wall and the bracket is adequately secured.
Wall-Mounted Installaon
Due to the many di󰀨erent materials used for walls, it is highly recommended to consult a certied home
contractor before installing this appliance on the wall.
Page 6 / 13IF-FSB 05/2021
Using the bracket as a template,
mark the locations where the anchors
will be installed into the wall.
Mounting Bracket
HookHook
Figure 1 Figure 2
Figure 3 Figure 4
A. Select a location that is not prone to moisture and follows clearances as noted on page 5.

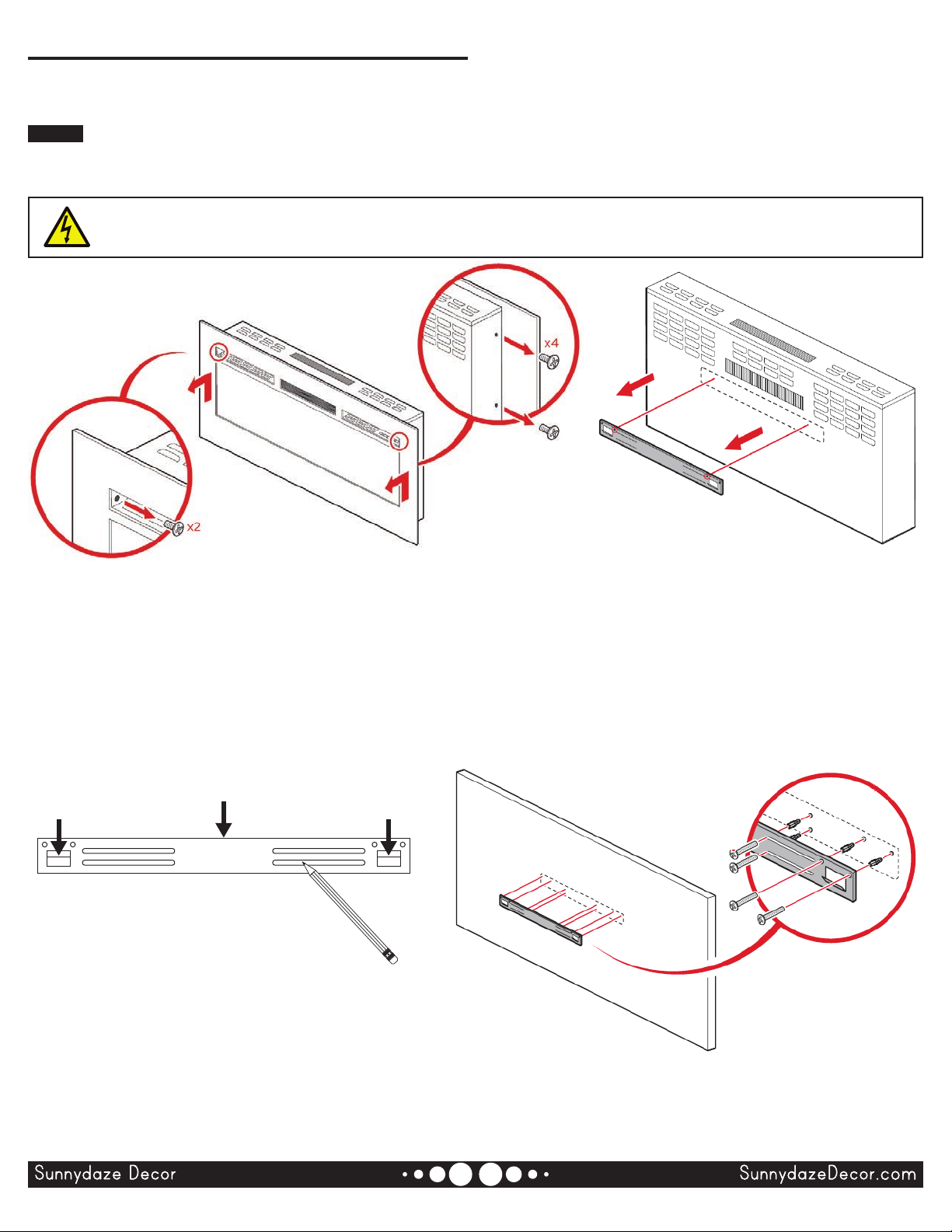

B. Lay the unit flat on a soft, non-abrasive surface. Remove two screws from the front of the heater, then two
screws from the left and right side of the heater. Save the screws for reinstalling the glass panel. [Figure 1]
C. Carefully lift the glass panel off the fireplace and gently place it on a soft, clean surface. Remove the
packing paper and log insert from inside the unit.
D. Place the unit face-down on a soft, non-abrasive surface. Remove the mounting bracket from the back of
the unit by removing two screws. [Figure 2]
E. Ensuring the mounting bracket is level and the hooks are facing upward, use a pencil to mark where the
eight screws will be installed. This bracket MUST have the hooks facing upward, and be level. [Figure 3]
F. Drill the holes and insert eight Drywall Anchors (F) into the holes. Install the bracket to the wall using eight
M4 x 30mm Screws (G). [Figure 4]

Figure 5 Figure 6
Figure 7 Figure 8

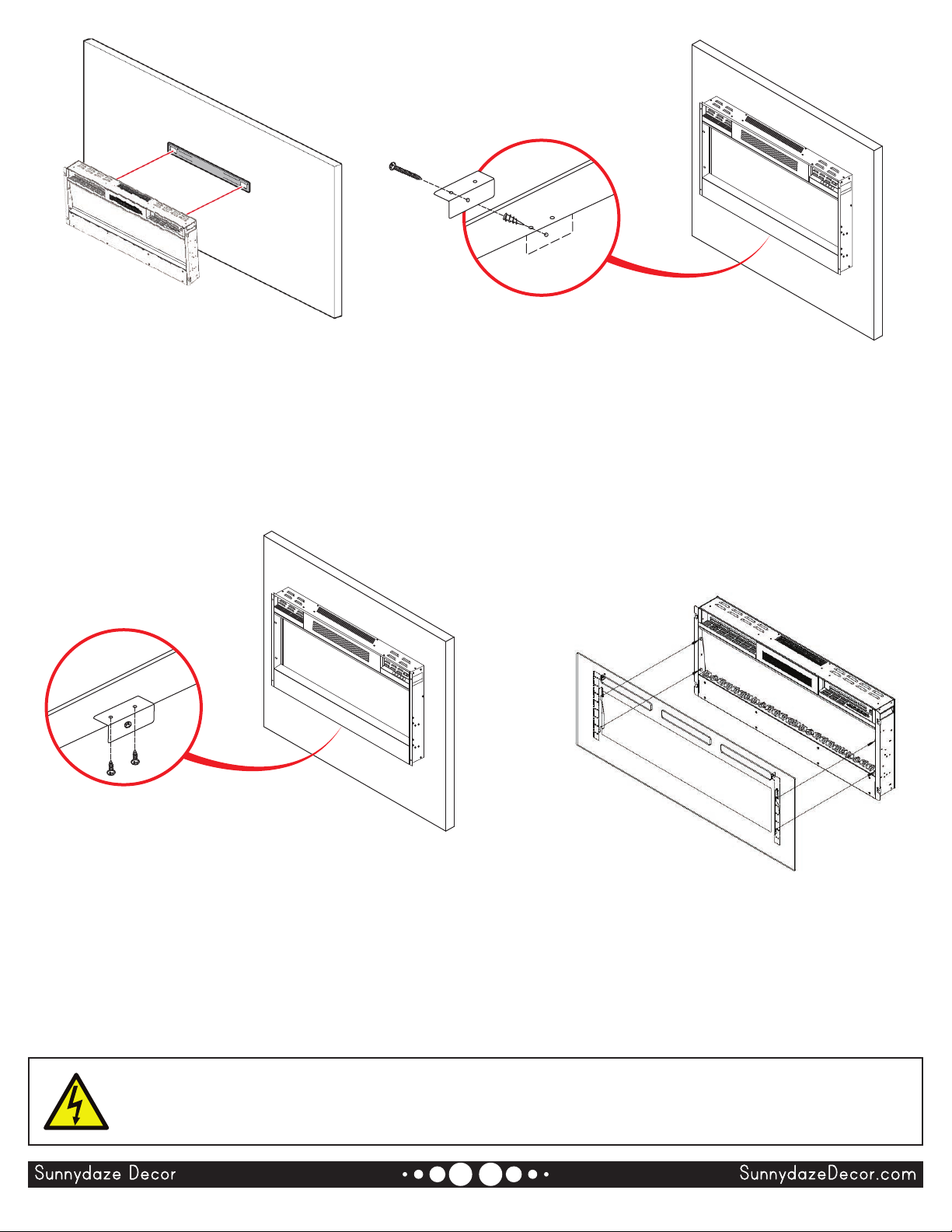

G. Carefully hang the fireplace on the mounting bracket, ensuring the bracket and heater are firmly engaged.
[Figure 5]
H. Align Metal Bracket (D) with the installation holes on the underside of the fireplace. Use a pencil to mark
the location where the bracket will install onto the wall. Drill a hole in the marked location.
I. Insert one Drywall Anchor (F) into the hole and secure Metal Bracket (D) to the wall using one M4 x 30mm
Screw (G). [Figure 6]
J. Use two M4 x 8mm Screws (E) to secure the bracket to the bottom of the fireplace. [Figure 7]
K. Determine the desired media for inside the fireplace (log or decorative crystals). Install the log media or
decorative crystals on the media tray inside the fireplace. If using the decorative crystals, cover and store
the log media in a safe place.
L. With assistance of another person, attach the front glass using the screws that were removed during Step
B. Ensure the glass is fully secured and stable before releasing it. [Figure 8]
Page 7 / 13IF-FSB 05/2021
Read and understand this entire owner’s manual, including all safety information, before

injury, or death.

FIREBOX/FRAMING SIZE
  
 28.43" (78.3 cm) 17.67" (44.9 cm)
 40.82" (103.7 cm) 17.67" (44.9 cm)
 40.82" (103.7 cm) 17.67" (44.9 cm)
Page 8 / 13
Recessed Installaon
1. Select a location that is not prone to moisture and follows
clearances as noted on page 5. Ensure the opening is large
enough for the replace box. [Figure A]
2. Remove the glass from the rebox as explained in Steps
B and C under Wall Mount Installation on page 6.
3. If the unit is being mounted directly into studs, skip to
step 4. Place the rebox into the opening. Mark the
locations where the anchors will be installed into the
wall. [Figure B]
4. Remove the rebox from the opening. Carefully drill the
marked holes and insert four Drywall Anchors (F).
5. While placing the rebox into the opening, plug the
power cord into a properly grounded GFCI outlet.
WARNING:            
               
professional perform recessed installation.
Manufacturer and seller expressly disclaim any and all liability from personal injury, property damage
or loss, whether direct or indirect, or incidental, resulting from the incorrect attachment, improper use,
inadequate maintenance, or neglect of this product.
          

W
H
D
Firebox/Framing Size
Minimum 5"
Figure A
Figure B
IF-FSB 05/2021

Figure C Figure D OR
Figure E
Page 9 / 13
6. Secure the rebox to the wall using four M4 x 30mm Wood Screws (G). [Figure C]
7. Determine the desired media (log or decorative crystals) and place it on the media tray. [Figure D]
IF-FSB 05/2021
8. Reinstall the front glass. Use two of the screws that were removed during removal of the glass to secure the
glass to the firebox. Ensure the glass is fully secured and stable before releasing the glass. [Figure E]

Operaon
MASTER SWITCH
The master power switch must be turned ON (—) for the unit to operate. The unit will make a short alarm
sound to indicate it is ready to use. If no sound is heard, the unit may not be plugged in, the circuit breaker
may have tripped, or there is a malfunction.
Turn the master switch OFF (O) to shut o󰀨 electric supply.
• Remove the battery housing cover from the back of the remote.
• Paying attention to the positive and negative terminals, gently insert two new 'AAA'
batteries (not included).
• Replace the battery housing cover.
• NOTE: Promptly remove expelled batteries. Do not mix old and new batteries; mixing
batteries could cause the acid inside the batteries to leak, damaging the remote.
REMOTE
              
explosion. Dispose of batteries at your local hazardous material processing center.
Methods of Operaon
This electric replace can be operated by the CONTROL PANEL, located on the top right side of the replace,
or by the battery-powered REMOTE CONTROL (batteries not included).
The operation and functions of the two methods are the same, except color function. The remote is used to
change the color function.
Before operating, please review the IMPORTANT SAFETY INFORMATION on Pages 2 and 3, and heed all
warnings.
Ensure the circuit breaker(s) for the power supply are turned on.
Once the appliance has been plugged into a properly grounded electrical outlet, it is ready to operate.
NOTE: In the event of a power failure, the appliance will lose its memory function and will reset to factory mode
when the power returns.
The Master Power Switch is located at the top right side on the front of the appliance.
NOTICE

press the buttons too quickly. Give the unit time to respond to each command.


Page 10 / 13IF-FSB 05/2021

Button Function Action and Indication
MASTER
SWITCH
 Enables all functions.
OFF (O) All functions on the control panel
and remote control are disabled.
1. Press ON (—). Power turns on. All functions
are enabled.
2. Press OFF (O). Power and all functions turn
o󰀨.
POWER
ON: Enables control panel and remote
control function. Turns on the ame e󰀨ect.
OFF: Disables control panel and remote
control function. Turns o󰀨 the ame e󰀨ect.
1. Press once. Indicator light turns on. Power
turns on. All functions are enabled.
2. Press again, power and all functions turn
o󰀨. Unit goes to standby.
FLAME
 Makes ame e󰀨ect brighter
and dimmer.
NOTE: Flame e󰀨ect stays on until power
button is turned o󰀨. Flame e󰀨ect must be on
for the heater to turn on.
5 brightness settings: F1, F2, F3, F4, F5
1. Press once to change ame color brightness.
2. Press again until desired setting is reached;
F1 is dimmest, F5 is brightest.
HEAT
HEAT button: Turns heater on and o󰀨.
NOTE: To prevent overheating, the heater
fan will blow out cool air for 30 seconds after
the heater turn o󰀨.
00, LL, HH will show on the display.
1. Press button, LL (low heat) about 750W.
2. Press button, HH (high heat) about 1500W.
3. Press button, 00, heat function is o󰀨.
TEMPERATURE
TEMPERATURE button: Changes the
temperature setting.
Setting ranges from 62°F to 82°F
62F, 63F, 64F....82F will show on the display.
Press button until desired setting is reached.
LED display shows selected setting.
Once the desired temperature is reached,
the heater will stop heating the room. Heat
will automatically turn back on when room
temperature falls below the set temperature.
COLOR
  Changes the color ame
e󰀨ect.
 C1, C2, C3
NOTE: This button is on the remote only.
1. Press once to change the color from Amber
to Blue.
2. Press again to change to Amber and Blue.
3. Press again to return to Amber.
TIMER
TIMER button: Controls the timer settings
to automatically turn the replace o󰀨.
Settings range from 1 hour to 8 hours.
0H, 1H, 2H....8H will show on the display.
Press button until desired setting is reached.
LED display will show the setting.
When time reaches the selected setting, the
unit will automatically turn o󰀨.
0H disables the timer function.
CONTROL PANEL
NOTICE

should not occur again unless the heater is not used for a long period of time.
Page 11 / 13IF-FSB 05/2021

Temperature Liming Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe temperature,
the heater will automatically turn OFF.
To reset:
1. Turn the Master Switch OFF (O).
2. Unplug the power cord from the outlet.
3. Wait for at least 15 minutes before plugging the unit back in.
4. Turn the Master Switch ON (—) and press the power button to restart the unit.
5. If the unit does not power on, allow the unit to thoroughly cool down and inspect the replace to make sure
no vents are blocked, or clogged with dust or lint. If they are, use a vacuum to clean the vent areas.
6. If the problem continues, have your outlet and wiring inspected by a professional.
Cleaning



NEVER immerse in water or spray with water or cleaning solutions. Doing so could result

Metal:
• Dust using a soft cloth. Clean with a slightly damp cloth or duster. Dry thoroughly with a paper towel or a
soft, lint-free cloth.
• DO NOT use brass polish or household cleaners as these products will damage the metal trim.
Glass:
• Use a good quality glass cleaner sprayed onto a cloth or towel to clean the glass. Dry thoroughly with a
paper towel or a soft, lint-free cloth.
• NEVER use abrasive cleansers, liquid sprays, or any cleaner or cloth that could scratch the surface.
Vents:
• Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
• Clean the exterior of the fireplace with a slightly damp cloth or duster.
Page 12 / 13IF-FSB 05/2021

󰀨

Page 13 / 13
WARNING!
Manufacturer and seller expressly disclaim any and all liability from personal injury, property damage
or loss, whether direct or indirect, or incidental, resulting from the incorrect attachment, improper use,
inadequate maintenance, or neglect of this product.




Electrical and Moving Parts:
• The fan motors are lubricated at the factory and will not require lubrication.
• Electrical components are integrated in the fireplace and are not serviceable by the consumer.
Storage:
• Store heater in a clean, dry place when not in use.
WARNING: No other servicing should be performed by the consumer. Do not service the
unit yourself.
Maintenance
NOTICE
Keep this owner’s manual for future reference. If you sell or give this product away,
make sure this manual accompanies this product.
IF-FSB 05/2021
LED Bulb Replacement
NOTE: The ame e󰀨ect on this electric replace insert is created by LED Bulbs. The life of these LED bulbs
is approximately 100,000 hours if the unit is handled properly. If the LED bulbs require replacement, contact a
Qualied technician. Do not attempt to change the bulbs yourself.

NOTES
