SUNRAY 801040 User manual

9’ Bluetooth Speaker Solar Lighted Umbrella
Sku: 801040, 801041, 801042, 801043
Please keep this instruction manual for future reference
Read the instructions and precautions before use of this product
For warranty information, please refer to the back page of
this instruction manual.
Care Instructions
Recycling
Ambient temperature
maximal 40oC (105oF)
Protect batteries
against heat and fire
risk of explosion
Do not dispose of
batteries in
household waste
Do not throw
batteries into water!
Clean any dirt and debris from the solar panels, the panels cannont recharge if the light is
obstructed. Use a soft cloth to clean the panels. Do not use abrasives or chemicals that
might scrathc or damage the UV coating.
In a region where snow and ice are likely, and the light assembly is covered with snow for
an exteded period of time the batteries will requite recharge for at least 8 hours.
Do not mix old batteries with new batteris.
Do not mix alkaline standard (Carbon-Zinc) or rechargeable (Nickel-Cadmium) batteries
Recycling
Please dispose of batteries properly. Consult your local telephone listing for a battery
recycling ceneter in your area.

Package Contents
General Safety
• Never leave children unsupervised with the packaging material. There is a risk of
suffocation.
• Improper use of this item may result in physical harm.
• Ensure that the article is properly stable before use.
• Examine the item for damage or wear before each use.
• Close and store the umbrella when not in use.
• Always securely fasten the umbrella into an umbrella base.
• DO NOT use the product in windy conditions. Excessive wind can cause damage to the
product or danger to people.
• The light source of this luminaire is not replaceable. When the light source reaches its end of
life the whole luminaire shall be replaced.
• The battery must be removed from the appliance before its scrapped.
• The battery is to be disposed of safely.
ASolar Umbrella Assembly
x1
BUmbrella Pole
x1
CLower & Upper Bracket
x1
DSolar Panel
x1
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance
coud void the users aurthority to operate this equipment.
!
Warning: Do not use near fire or other heat source.
!
Caution: Do not immerse in water.
!
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to
Part 5 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with
Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada
!
Saftey Information
Safety Information
Never use the USB cord to pull the plug from the outlet. Keep cord away from heat, oil, sharp edges or moving
parts.
Product must be recharged only with an USB power adapter. A charger that may be suitable for one type of
battery may create a risk of fire when used with another battery.
Use product with supplied 3.2v - 3.7v/4000mAh LiFe battery pack only.
When servicing a product, use only identical replacement parts. Follow instructions in the Maintenance section of
this manual. Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of
electrical shock or injury.

1
2
3
Adjusting the Umbrella Up & Down
Using the crank handle (2), raise the umbrella to desired
height. Turn the crank handle (2) clockwise to open the
umbrella.
Adjusting The Umbrella Tilt
Hold the umbrella pole (1) above the tilt button, and
press the tilt button (2) inward.
With the tilt button pushed inward, move the
umbrella to the desired position, then release the
button to lock in place.
CAUTION: The Umbrella ribs may compress during
shipping. Before opening the umbrella turn it upside
down and shake it gently to sperate ribs.
!
CAUTION: Securely fasten the umbrella to an
appropriately sized umbrella base (not included). Do
not install into the fround. Not intended for permanant
installation or use.
!

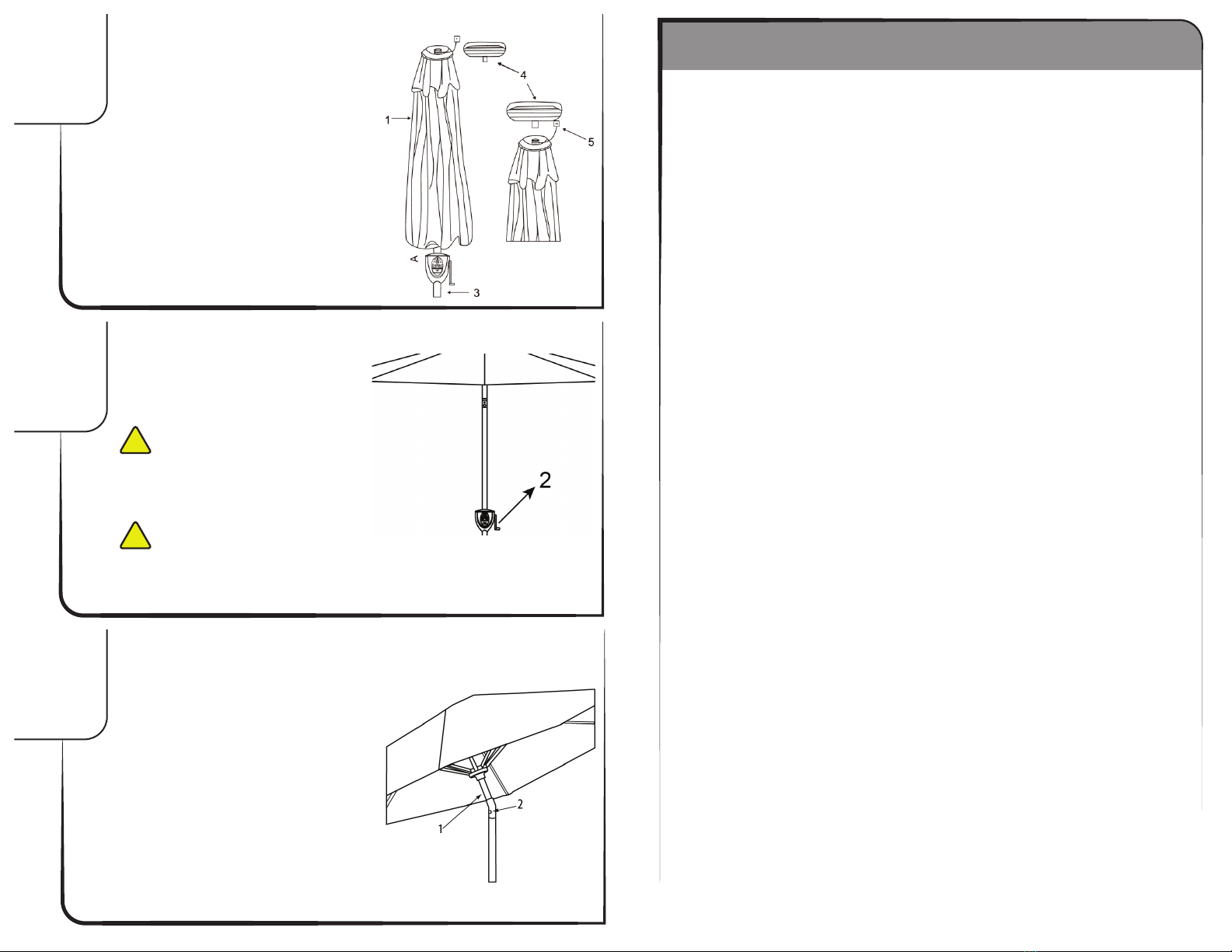

Take out the bottom pole (2) and the umbrella body(1) from
the bag
Twist the lower umbrella pole (2) into umbrella (3)
If your model shipped with the solar panel (4) packed
separately (not attached to the umbrella), match the
electronic connector from the solar panel with the
electronic connector located at the top of the umbrella (5).
Then insert and twist the solar panel into the top cap to
lock.
Place the umbrella upright in a heavy weighted stand (not
included), and table capable of firmly
securing the Umbrella.
Care Instructions
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation
Caution: The user is cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
If power exceeds the limit and the distance（Over 20cm distance in actual use between the device
and user)is compliant with the requirement
This equipment complies with FCC’s RF radiation exposure limits set forth for an uncontrolled
environment. The antenna(s) used for this transmitter must be installed and operated to provide a
separation distance of at least 20 cm from all persons and must not be collocated or operating in
conjunction with any other antenna or transmitter. Installers must ensure that 20cm separation
distance will be maintained between the device (excluding its handset) and users.

Cleaning the Solar Panel and LED’s
Gently clean the solar panels and LED’s with a soft cloth. Do not use abrasives or chemicals to clean the solar
panels.
Remove dust and debris using a soft cloth or duster.
Cleaning the Canopy and Frame
Rines the umbrella with clear, clean water. If necessary, use a gentle fabric cleaner, rated safe for ployester
fabrics. Clean the umbrella canopy with a soft brush and mild detergent.
Do NOT machine wash or Iron.
Air dry the canopy throughly in an open position before storing for extended periods of time.
Make sure the canopy is completely open during the drying process to prevent shrinkage.
12
13 Replacing the Umbrella Battery
Remove screws (1) securing the battery pack (2) to the crank housing.
Carefully lift the battery pack from the crank housing compartment.
Replace with genuine battery pack ONLY.
Re-assemble in reverse order.
Refer to “Battery Charging” section.
Warning: Use product with supplied 3.2v - 3.7v /
4000maH LiFePo battery pack only. Use of any other
batteries may create a risk of fire.
!
4
5

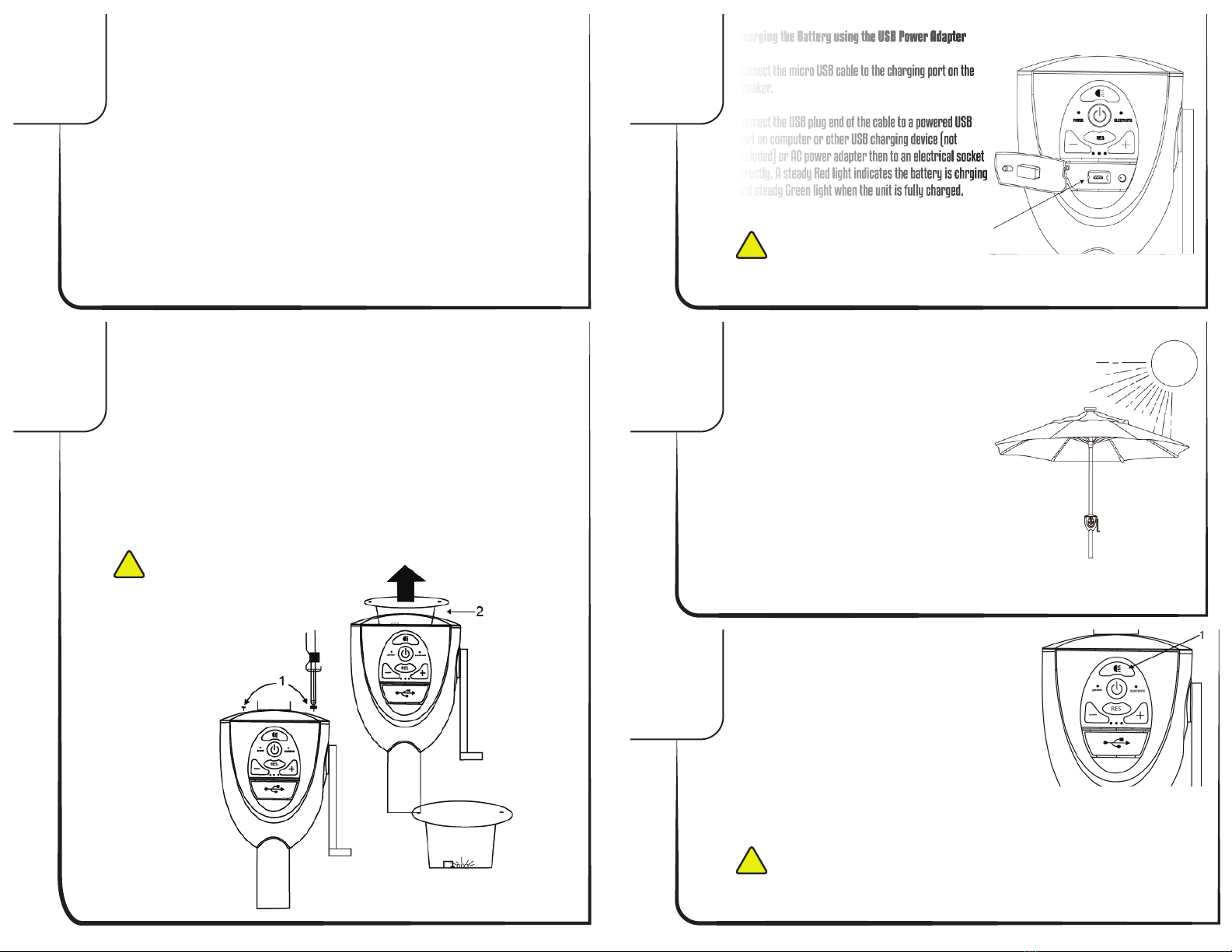

Charging the Battery using the USB Power Adapter
Connect the micro USB cable to the charging port on the
speaker.
Connect the USB plug end of the cable to a powered USB
port on computer or other USB charging device (not
Included) or AC power adapter then to an electrical socket
directly. A steady Red light indicates the battery is chrging
and steady Green light when the unit is fully charged.
Charging the Battery using the Solar Panel
Place the fully assembled solar umbrella in full sun where
it will receive direct sunlight for at least 8 hours per day.
CAUTION: The LED lights do not turn off automatically.
Always turn the lights off when not in use.
!
6Turning the LED Lights On/Off
Press the LED lights “On/Off” button (1) to activate the LED’s.
Lights will toggle On/Off each time the button is pressed.
CAUTION: The LED lights do not turn off automatically.
Always turn the lights off when not in use.
!

8Using the Bluetooth® Audio Speaker
This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod, computer, PDA or
other Bluetooth® audio device.
Pairing a Bluetooth® Device with Your Speaker
Press the Bluetooth® On/Off button (3) to turn on the speaker. The Power indicator light (2) will illuminate.
Bluetooth® indicator light (6) will start blinking slowly. You are ready to pair your device. Battery indicator
(9) will change colors when charging:
Go to the Bluetooth® Manager of your Bluetooth® device. Search Bluetooth® devices and select “Music
Umbrella” to start connecting.
Enter “1234” if your device asks for the Password code.
Once paired, the unit will beep and the Blue LED light will turn on steadily.
To turn Off the Bluetooth® speaker, press and hold the On/Off button (3) for approximately 5 seconds
Indicator Color Battery Charge Status
Red < 20% charge immediately
Yellow 20% - 60% battery life
Green Above 60% battery life

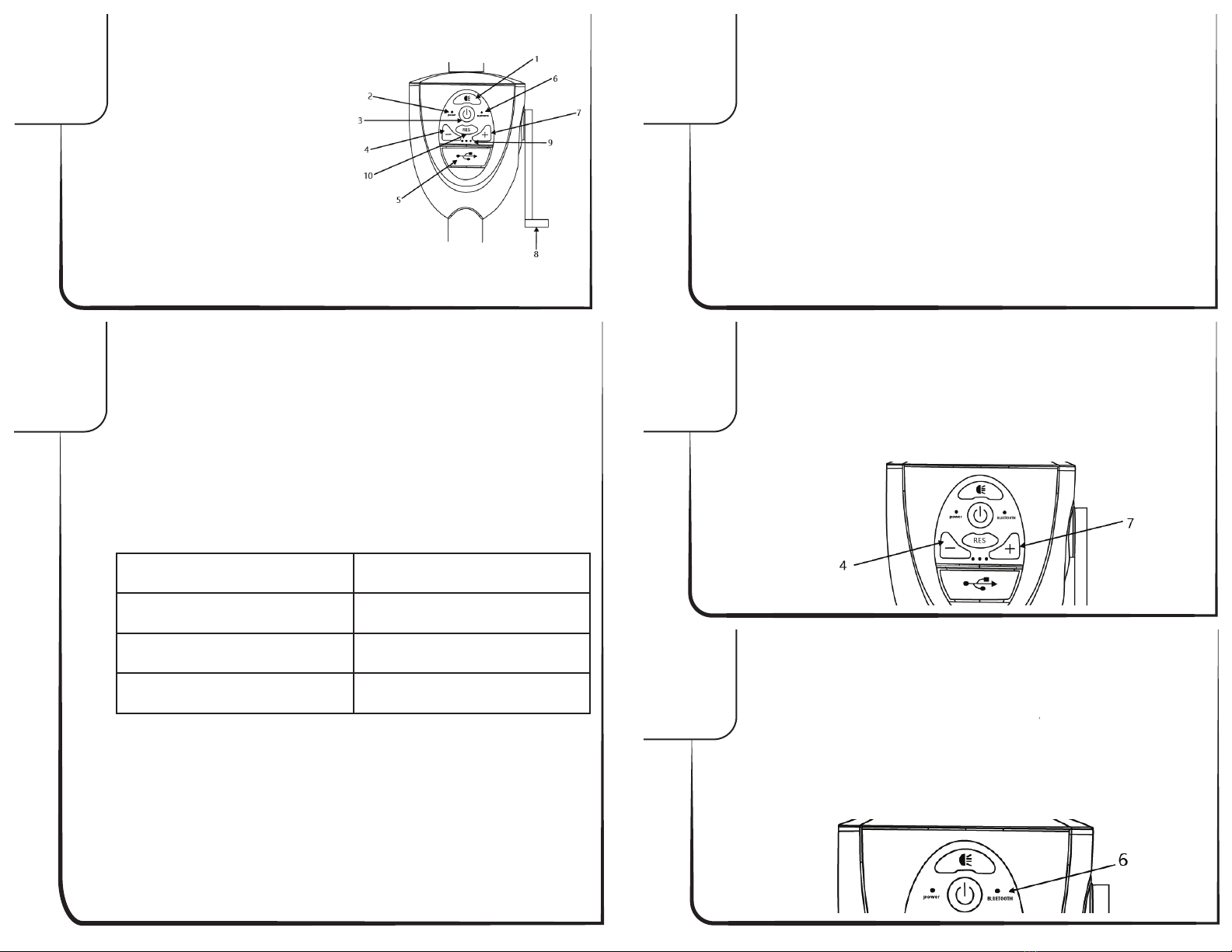

7Using the Controls
1. LED Lights “On/Off”
2. Power Indicator Light
3. Bluetooth® “On/Off”
4. Volume Down (-) Button
5. USB 5v DC Power Port (for charging portable device
- electrical power only - no data transfer)
6. Bluethtooth® indicator light
7. Volume Up (+) Button
8. Canopy Crank Handle
9. Battery Indicator
10. Reset Button
Reconnecting Your Device
If you move out of range or turn off the Bluetooth® feature on your device, the speaker will disconnect from
your device. To reconnect, simply access the Bluetooth® Manager on your device and select “Music Umbrella”
Out of Range or Lost Signal
If your device is out of range (beyond 30 ft.) of the speaker or if the Bluetooth® signal is lost, the indicator
light (6) will flash slowly to indicate that the Bluetooth® connection has been lost.
9
10
11
Using the Bluetooth® Audio Speaker
Once your media device is paired with the speaker, simply start playing music, a movie or game and all the
audio will automatically be played through the speaker.
Press Volume Up + (7) or Down – (4) on to adjust the volume level of the speaker.
Using the Bluetooth® Audio Speaker
You should only need to pair your Bluetooth® device with your speaker one time.
The next time your Bluetooth® device and the speaker are in range of each other, and the Bluetooth® feature
is turned on, they should automatically connect.
The unit will only automatically connect to the last Bluetooth® device it was connected to.
If your paired device does not automatically connect, navigate to the Bluetooth® menu on your device and
select “Music Umbrella” from the list.
Press the RST button (10) for 3 seconds to cut off current Bluetooth® connect.
