Switch-It Remote Stop Switch
Owner ’s Manual
247777 Rev. C
®
®

Switch-It Remote Stop Switch Owner’s Manual
247777 Rev. C 2
DISPOSAL AND RECYCLING INFORMATION
When this product reaches the end of its life, please take it to an
approved collection or recycling point designated by your local or
state government. This product is manufactured using a variety
of materials. Your product should not be disposed of as ordinary
household waste.
You should dispose of your product properly, according to local laws
and regulations. Most materials that are used in the construction of
this product are fully recyclable.
The separate collection and recycling of your product at the time
of disposal will help conserve natural resources and ensure that it is
disposed in a manner that protects the environment.
Ensure you are the legal owner of the product prior to arranging for
the product disposal in accordance with the above recommendations.
SUNRISE MEDICAL LISTENS
Thank you for choosing a Switch-It product. We want to hear your questions
or comments about this manual, the safety and reliability of your system, and
the service you receive from your Sunrise Medical authorized dealer. Please
feel free to write or call us at the address and telephone number below:
Be sure to register your product, and let us know if you change your address.
This will allow us to keep you up to date with information about safety, new
products, and options to increase your use and enjoyment of this product.
You can also register your product at:
www.SunriseMedical.com/register
FOR ANSWERS TO YOUR QUESTIONS
Your Sunrise Medical authorized dealer knows your wheelchair best and can
answer most of your questions about system safety, use, and maintenance.
For future reference, please fi ll in the following:
Dealer: ______________________________________________________
Address: _____________________________________________________
Telephone: __________________________________________________
Serial #: ____________________ Date/Purchased: _______________
ADDITIONAL INFORMATION YOU SHOULD KNOW
No component of this product was made with Natural Rubber Latex.
www.SunriseMedical.com/register
Dealer signature and stamp
If you are visually impaired,
this document can be
viewed in PDF format at
www.SunriseMedical.com
in United Kingdom:
SUNRISE MEDICAL LTD.
Sunrise Medical Ltd.
Thorns Road
Brierley Hill
West Midlands
DY5 2LD
England
Phone: [phone]
Fax: [phone]
www.SunriseMedical.co.uk
in North America:
SUNRISE MEDICAL (US) LLC
Customer Service Department
2842 N. Business Park Avenue
Fresno, CA 93727 USA
[phone]
[phone]
www.SunriseMedical.com

Switch-It Remote Stop Switch Owner’s Manual
247777 Rev. C3
NOTE: Check all parts for shipping damage. In case of damage DO NOT use. Contact Carrier/Sunrise Medical for further instructions.
WARNING
DO NOT install this equipment without fi rst reading and understanding this manual. If you are unable to understand the Warnings,
Cautions, and Instructions, contact a qualifi ed clinician or Sunrise Medical authorized dealer - otherwise injury or damage may occur.
WARNING
This device can be aff ected by Electro-Magnetic Interference (EMI) and Radio Frequency Interference (RFI). If you think the product has
undergone an EMI or RFI event, please contact your Sunrise Medical authorized dealer immediately.
1. Radio wave sources, such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones can
aff ect powered control.
2. If unintended movement or brake release occurs, turn the power wheelchair OFF and do not operate until inspected, repaired, and/or
replaced.
3. If the chair acts in an erratic manner, turn the power wheelchair OFF and do not operate until inspected, repaired, and/or replaced.
4. If the joystick stem is damaged, it can cause the chair to operate erratically; turn the power wheelchair OFF and do not operate until
inspected, repaired, and/or replaced.
5. If any of the device cabling becomes frayed, cut, or disconnected in any way, turn the power OFF and do not operate until inspected,
repaired, and/or replaced.
WARNING
1. This device is not a life saving device. Proper supervision is required for power wheelchair users.
2. The remote stop may not work properly in all environments.
User information
Congratulations on choosing a Switch-It product. Sunrise
Medical’s high-quality mobility products are designed to enhance
independence and make your everyday life easier.
As a part of our ongoing product improvement initiative, Sunrise
Medical reserves the right to change specifi cations and design
without notice.
This user manual
This user manual will help you to use and maintain your product
safely.
Dealer: This owner’s manual must be given to the user of this
device.
Rider: Before using this device read this entire manual and save it
for future reference.
S M A R T T E C H N O L O G I E S

Switch-It Remote Stop Switch Owner’s Manual
247777 Rev. C 4
A. Product Description
The Switch-It Remote Stop Switch (RSS) is a useful safety device which may be
used in many environments. It allows an attendant to stop a power wheelchair
being driven by the user via a radio frequency (RF) remote from approximately
30 feet away in an open environment. The attendant presses the remote button
to inhibit the movement while the chair is active or driving. Pressing the remote
button a second time will reactivate the chair controls (RSS-MR version only).
This device is not a life saving device. Proper supervision is required for power
wheelchair users.
The intended lifetime of this product is 5 years.
B. Technical Information
• Control Type: Switched/Digital Power Wheelchair Peripheral Function
Control
• Activation Type: Mechanical switch
• Activation Range: Up to 30 feet in an open environment
• Feedback: Power wheelchair movement stops

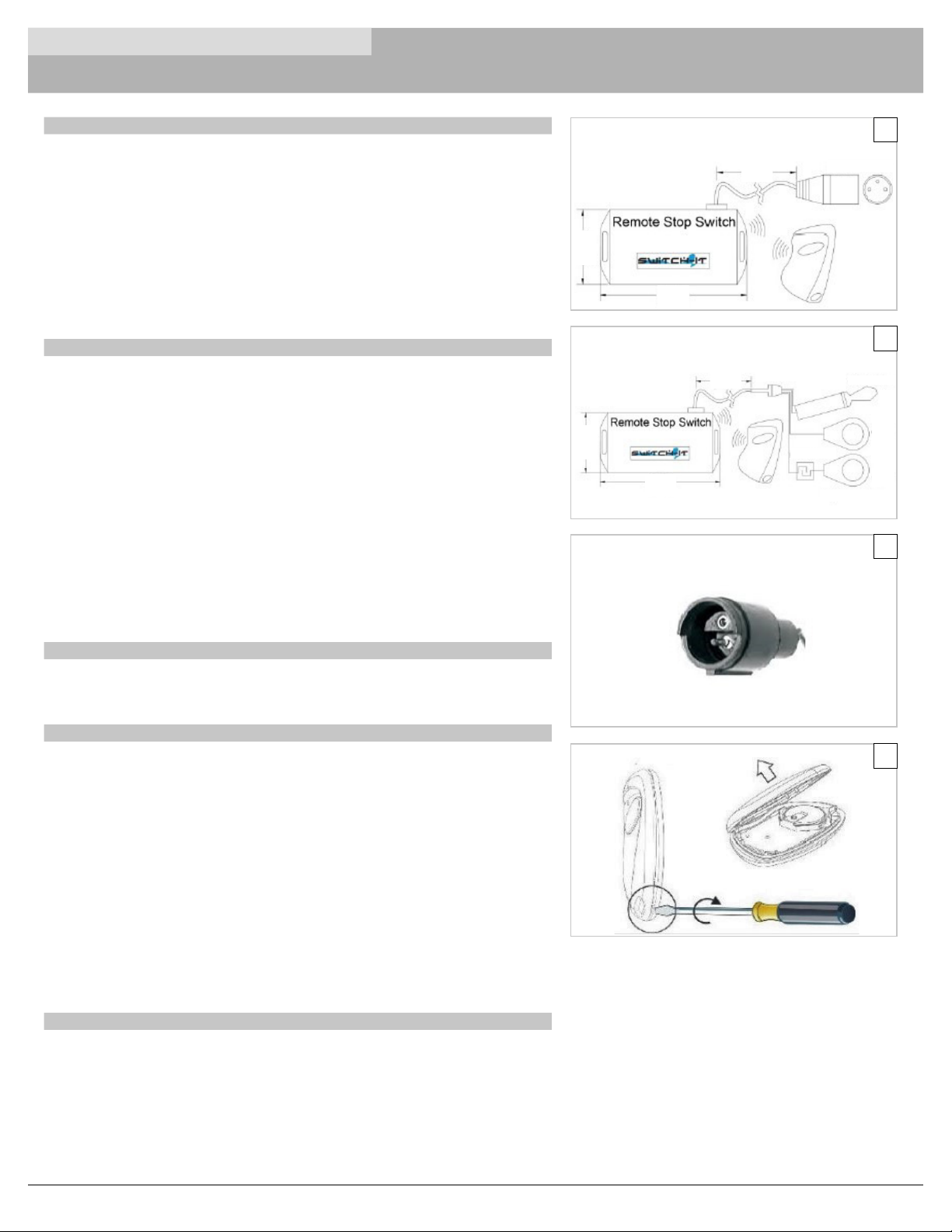

• Connector Type:
o XLR – 3-pin electrical connector (Fig. 1)
o MR – ring connectors to power wheelchair battery terminals (Fig. 2)
o SureSeal - specifi c to Quantum powerchair (Fig. 3)
• Voltage Requirement: 24 volts
• Electronics Enclosure Dimensions: 3.75-in x 1.625-in
C. Compatibility
The Switch-It Remote Stop Switch is compatible with all power wheelchairs
which can provide 24 volts.
D. Key Features
The Switch-It Remote Stop Switch contains encrypted Keeloq code hopping
technology.
The Remote Stop Switch with the XLR port connection (RSS-XLR) requires the
power wheelchair to be restarted from the main power button on the joystick or
from the power button on the Omni or Enhanced Display.
If using the Remote Stop Switch with the XLR port connection (RSS-XLR), it is
imperative that the remote stop be plugged into the charger port after charging
the power wheelchair and removing the battery charger from the charger port.
The Remote Stop Switch will NOT operate properly if it is not plugged into the
XLR/charger port.
The battery of the key fob transmitter may be replaced (Fig. 4), or a replacement
key fob may be purchased separately.
E. Engagement and Disengagement
To Engage the Remote Stop Switch: Press the button on the key fob. The system
will now be in (STOPPED) mode (indicated by a blue light on the RSS box).
To Disengage the Remote Stop Switch: Power off the wheelchair and press the
button on the key fob once more (the blue light on the RSS box will now be off ).
Next, power on the chair.
3
4
2
GND
Ring Connector
Mono Jack
Fuse Holder
4-in
(1.2m)
+12V
3.75-in
(96mm)
1 5/8-in
(42mm)
1
XLR Connector
4-in
(1.2m)
3.75-in
(96mm)
1 5/8-in
(42mm)

Switch-It Remote Stop Switch Owner’s Manual
247777 Rev. C5
F. Troubleshooting:
Issue: Power wheelchair hourglass shows on display and does
not go away.
Common Reason: Transmitter (remote) and receiver are not
paired.
Solution: Pair the transmitter (remote) and receiver.
1. Open receiver enclosure.
2. Press red button of the receiver (Fig. 5) until you hear a beep.
3. Press the transmitter key.
4. After you hear the receiver beep a second time, the units are
now paired.
For further assistance, call Sunrise Technical Support at
1.800.333.4000.
5
G. Maintenance Tips
The wheelchair’s lifespan is dependant on it being well maintained.
For information concerning specifi c settings, maintenance, or
repair work, please contact your Sunrise Medical authorized
dealer.
Hygiene measures when being re-used:
Prior to the wheelchair being re-used, it must be carefully
prepared. All surfaces which come into contact with the user must
be treated with a disinfection spray.
To do this, you must use a disinfectant as authorised/recommended
in your country, for rapid alcohol-based disinfection for medical
products and medical devices, which must be disinfected quickly.
Please be aware of the manufacturer’s instructions for the
disinfectant you are using.
In general, a complete disinfection cannot be guaranteed on seams.
We therefore recommend that you dispose of seat and back slings
to avoid micro-bacterial contamination with active agents according
to your local infection protection law.
Conditions For Safe Storage:
• Products should be stored in a dry place: at 20 – 75% Relative
Humidity.
• Protect from direct sunlight and dust for long periods.
• Away from direct heat and at a temperature between 5°C (40°F)
to 40°C (104°F)
• Position and stack the packaged products according to the “this
side up” arrows on the packaging.
• If a package is high and narrow and therefore potentially
unstable, ensure it is well secured on the pallet or in the racking,
to prevent it from falling down.
• Do not stack anything on top of the packaged products when
the “do not stack” mark on the packaging is shown.
• Product should never be stored outside and subject to the
elements.

Switch-It Remote Stop Switch Owner’s Manual
247777 Rev. C 6
H. Warranty
Each Switch-It device is carefully inspected and tested to provide peak performance. Every Switch-It device is covered under a limited,
express warranty.
1. All electronic components are covered under warranty for twelve (12) months from the date of shipment, provided normal use,
unless modifi ed or damaged.
2. All mounting hardware is covered under warranty for twelve (12) months from the date of shipment, provided normal use, unless
modifi ed or damaged
3. All wearable items (covers, pads, etc.) are covered under warranty for three (3) months from the date of shipment, provided
normal use, unless modifi ed or damaged.
Warranty claims should be processed through the nearest Sunrise Medical authorized dealer. A Return Authorization number must be
obtained prior to returning the item for evaluation, along with details of the issue.
Items returned for warranty claim must be evaluated by Switch-It before warranty determination is made. Should a defect in materials or
workmanship occur during the warranty period, and the item has not been modifi ed or damaged, Switch-It will, at its option, rework or
replace it without charge.
Except for express warranties made herein, all other warranties, including implied warranties of merchantability and warranties of fi tness
for a particular purpose are excluded. There is no implied warranty beyond what is contained herein. Remedies for breach of express
warranties herein are limited to rework or replacement of the goods. In no event shall damages for breach of any warranty include any
consequential damages or exceed the cost of non-conforming goods sold.
Sunrise Medical Limited
Thorns Road, Brierley Hill
West Midlands, DY5 2LD
UNITED KINGDOM
Type: Product Name/
SKU Number
This symbol means
Medical Device
Serial Number Manufacturer’s
address
XXXX-XX-XX
Date of
Manufacture
European
Authorised
Representative
CE Mark UK Responsible
Person
UKCA Mark
Swiss
Representative’s
address
Consult
instructions for
use
Importer’s address
SAMPLE
Sunrise Medical (US) LLC
2842 Business Park Ave,
Fresno, CA 93727
YYYY-MM-DD
MP-#####
SN
MD
Sunrise Medical GmbH
Kahlbachring 2-4
69254 Malsch-HD / Germany
Type: MicroPilot
Alternate
Control
EC REP
The management system of SUNRISE MEDICAL is certified to EN ISO 13485
and ISO 14001.
We at SUNRISE MEDICAL have been awarded the ISO-13485 certificate, which
affirms the quality of our products at every stage, from R & D to production. This
product meets the requirements in accordance with EU and UK regulations.
Options or accessories shown are available at extra cost.
The varieties of fitting variants, as well as the modular design, mean that it can
be used by those who cannot walk or have limited mobility because of:
- Paralysis - Loss of extremity (leg amputation)
- Extremity defect deformity - Joint contractures/joint injuries
- Illnesses such as heart and circulation deficiencies, disturbance of equilibrium
or cachexia as well as for elderly people who still have strength in the upper
body.
The wheelchair shall not be used in case of:
- Perception disorder - Imbalance - Seating disability
NOTE: General user advice. Not following these instructions may result in
physical injury, damage to the product or damage to the environment!
Notice to the user and/or patient: any serious incident that has occurred in
relation to the device should be reported to the manufacturer and the competent
authority of the Member State in which the user and/or patient is established.
As the manufacturer, SUNRISE MEDICAL, declares that this
product conforms to the Medical Device Regulation (2017/745).
As the manufacturer, SUNRISE MEDICAL, declares that the
product conforms to the UK Medical Devices Regulation 2002 No.
618.
B4Me special adaptations
Sunrise Medical strongly recommends that in order to ensure that your B4Me
product operates, and performs as intended by the manufacturer; all the user
information supplied with your B4Me product is read and understood, before the
product is first used. Sunrise Medical also recommends that the user information
is not discarded after reading it, but it is kept safely stored for future reference.
Medical Device Combinations
It may be possible to combine this Medical device with one or more other Medical
Device or other product. Information on which combinations are possible can be
found at www.Sunrisemedical.co.uk. All combinations listed have been validated
to meet the General Safety and Performance Requirements, section 14.1 of the
Medical Device Regulation 2017/745.
Guidance on the combination, such as mounting, can be found at www.
SunriseMedical.co.uk.
Remote Stop Switch

247777 Rev. C7

EC REP
©2023 Sunrise Medical (US) LLC
247777 RevC
Website Address:
Order[email protected]
EU
CH UK
Sunrise Medical GmbH
Kahlbachring 2-4
69254 Malsch/Heidelberg
Deutschland
Tel.: [phone]
Fax: [phone]
www.SunriseMedical.de
Sunrise Medical Ltd.
Thorns Road
Brierley Hill
West Midlands
DY5 2LD
England
Phone: [phone]
Fax: [phone]
www.SunriseMedical.co.uk
Sunrise Medical S.L.
Polígono Bakiola, 41
48498 Arrankudiaga – Vizcaya
España
Tel.: [phone]
Fax: [phone]
www.SunriseMedical.es
Sunrise Medical Poland
Sp. z o.o.
ul. Elektronowa 6,
94-103 Łódź
Polska
Telefon: + 48 42 275 83 38
Fax: + 48 42 209 35 23
E-mail: [email protected]
www.Sunrise-Medical.pl
Sunrise Medical B.V.
Groningenhaven 18-20
3433 PE NIEUWEGEIN
The Netherlands
T: +31 (0)30 – 60 82 100
F: +31 (0)30 – 60 55 880
E: inf[email protected]
www.SunriseMedical.nl
Sunrise Medical HCM B.V.
Vossenbeemd 104
5705 CL Helmond
The Netherlands
T: [phone]
E: customer[email protected]
www.SunriseMedical.nl
www.SunriseMedical.eu
(International)
Sunrise Medical S.A.S
ZAC de la Vrillonnerie
17 Rue Mickaël Faraday
37170 Chambray-Lès-Tours
Tel : + 33 (0) 2 47 55 44 00
Email: inf[email protected]
www.sunrisemedical.fr
Sunrise Medical S.r.l.
Via Riva, 20 – Montale
29122 Piacenza
Italia
Tel.: [phone]
Fax: [phone]
www.SunriseMedical.it
Sunrise Medical AG
Erlenauweg 17
CH-3110 Münsingen
Schweiz/Suisse/Svizzera
Fon [phone]
Fax [phone]
www.SunriseMedical.ch
Sunrise Medical AS
Delitoppen 3
1540 Vestby
Norge
Telefon: [phone]
Faks: [phone]
[email protected]
www.SunriseMedical.no
Sunrise Medical AB
Neongatan 5
431 53 Mölndal
Sweden
Tel: [phone]
[email protected]
www.SunriseMedical.se
MEDICCO s.r.o.
H – Park, Heršpická 1013/11d,
625 00 Brno
Czech Republic
Tel.: [phone]
Fax: [phone]
www.medicco.cz
inf[email protected]
Bezplatná linka 800 900 809
Sunrise Medical Aps
Mårkærvej 5-9
2630 Taastrup
Denmark
[phone]
inf[email protected]
Sunrisemedical.dk
Sunrise Medical Pty. Ltd.
11 Daniel Street, Wetherill Park,
NSW 2164,
Australia
Phone: [phone],
Orders Fax: [phone],
Admin Fax: [phone].
Australia
www.sunrisemedical.com.au
Sunrise Medical (US) LLC
North American Headquarters
2842 N. Business Park Avenue
Fresno, CA, 93727, USA
[phone]
[phone]
www.SunriseMedical.com
