SUNSET OXIA User manual

Assembly Instructions
OXIA
Pergola System
Four Seasons Comfort

Thank you for purchasing Sunset Pergola Product.
Introduction
İ
These instructions include helpful hints and important information needed to safely assemble and properly
main- tain the Product. Please read these instructions completely before you
begin and follow the steps in the order they are presented.
1. Make sure you have all the necessary parts.
2. Lay the parts out in separate staging areas.
3. Select a Location.
4. Prepare a Foundation.
5. Make sure you have the proper tools:
•Tape Measure
•Work Gloves
•Safety goggles
[email protected].tr
•Screwdriver
•Spirit Level
•2 Small Step Ladders
Projection
Width / Frontside
Width / Backside
Diagonal 1
Diagonal 2

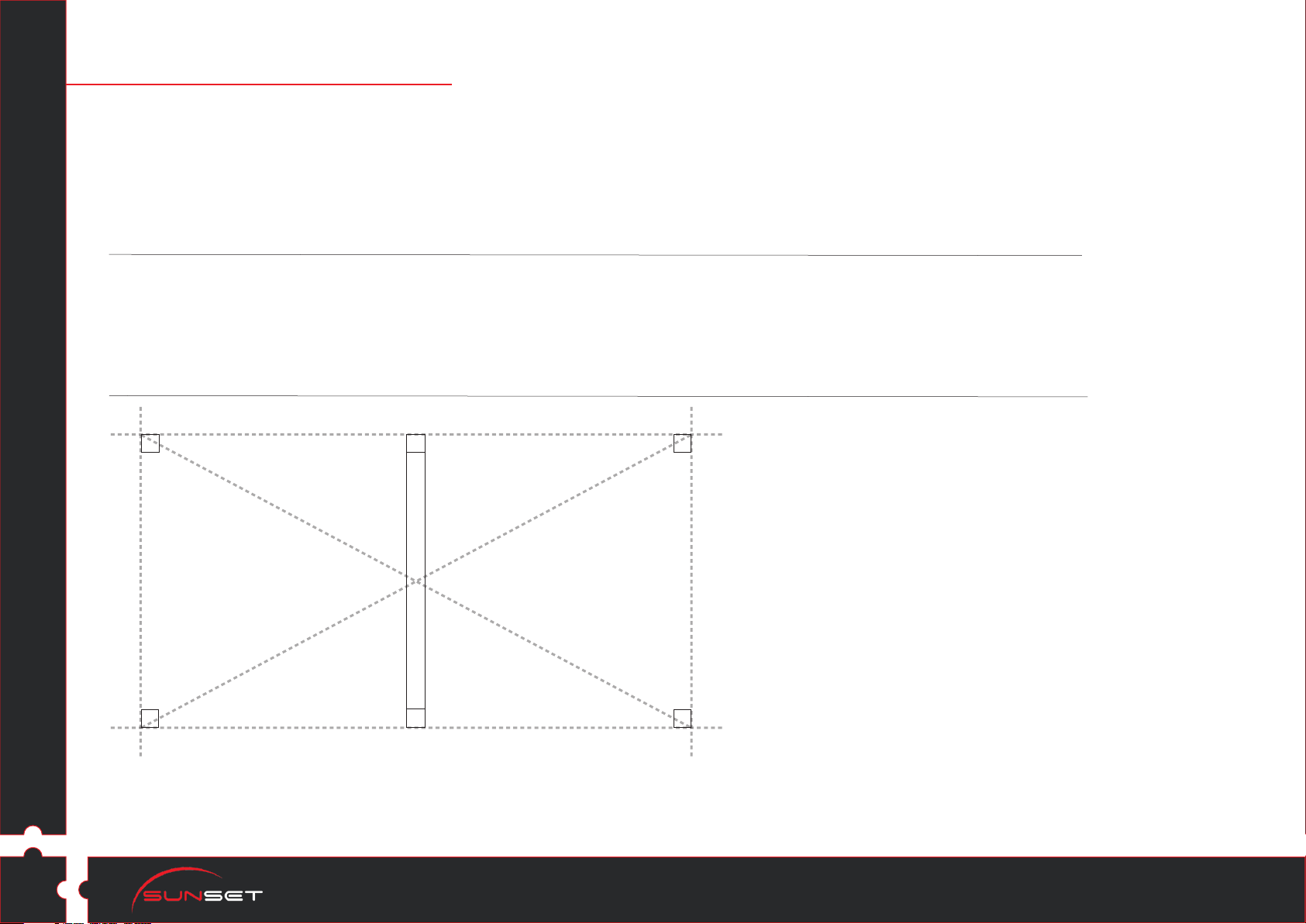

On the left, you can see a plan
view of your field where you're gonna
set up your Pergola. This plan includes
only front pillars and backside parts
(Steel Rectangular Profile, Wall-Connectors).
Carefully install ground level and wall
connection parts. Check projection,
width measure twice and
Diagonal 1 must be equal to Diagonal 2.

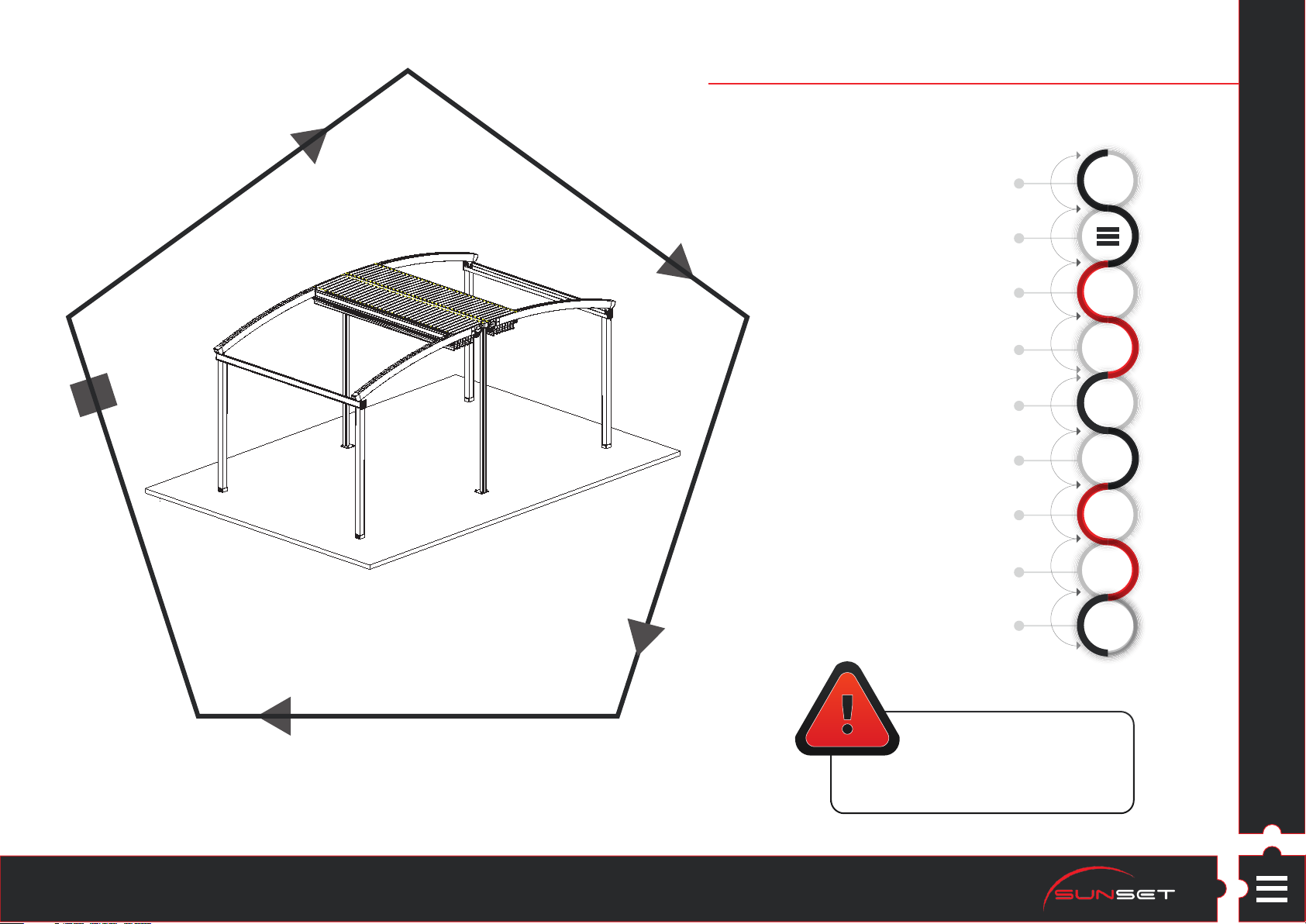

Table of Contents
İ
Introduction
List of Parts
Table of Contents
STEP 1
STEP 2
STEP 5
STEP 4
STEP 3
ATTENTION:
DO NOT ATTEMPT
TO ASSEMBLE ALONE!
7
3
8
12
13
[email protected].tr
FINAL
14
16
Step 5
Step 1
Step 2
Step 3
Step 4

* 21 & 23 is delivering to our customers in the assembled state.
Gutter Parts
Rail Front
Conncector - 32
Rail Profile - 33
Gutter Side
Casting Cover- 31
Rail Set
Rail Set - 41
* Rail system is delivering to our customers in the assembled state.
Steel Back
Pillar Cover - 14

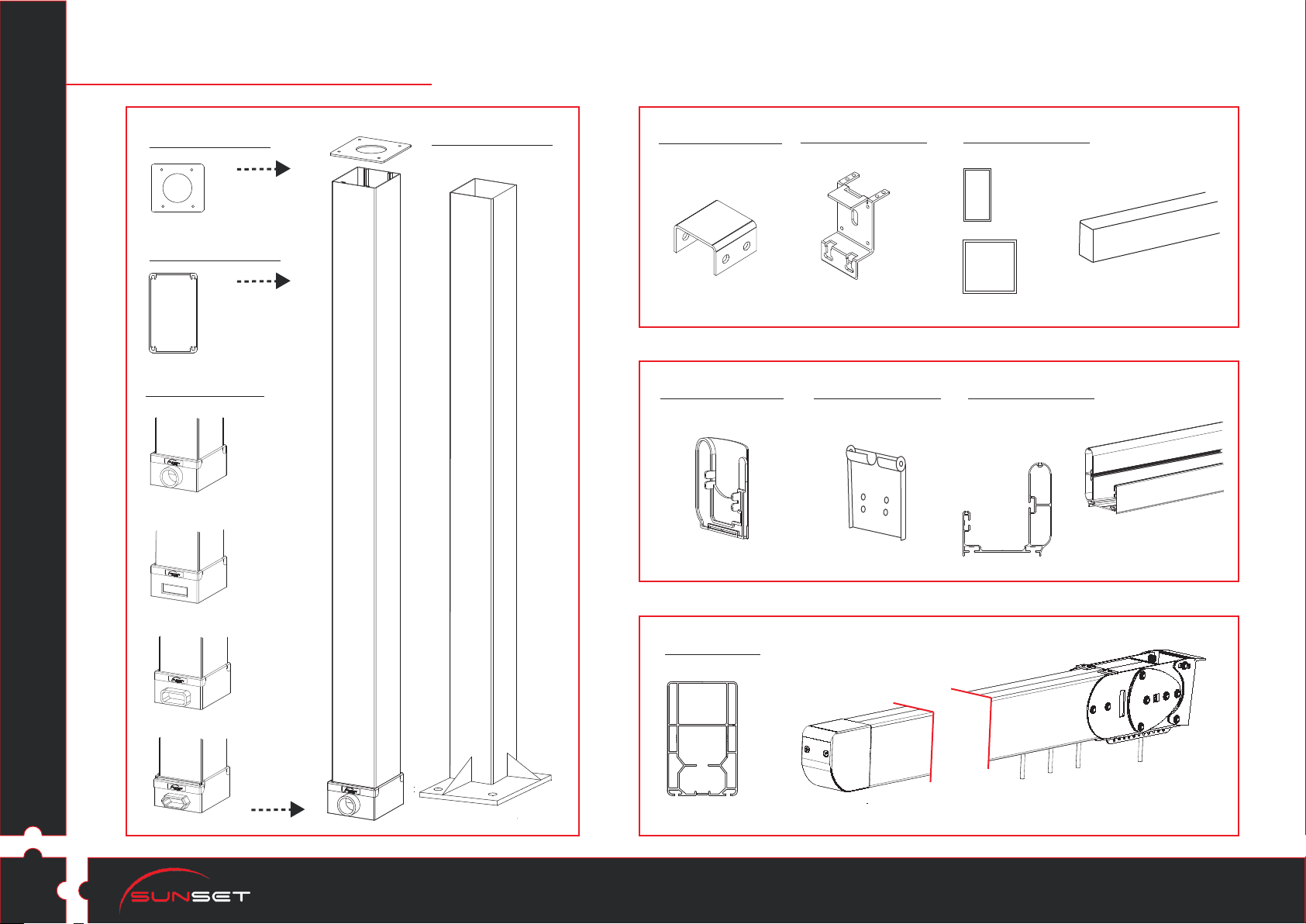

List of Parts
Pillar Parts
Base Plate - 13
Type 1
Type 2
Type 3
Type 4
Pillar Profile - 12
Pillar Cover - 11
Wall-Mount Parts
Wall-Back Beam
Connector - 21
Rail-Construction
Connector - 22
Steel Rectangular Profile - 23
100x100 100x50
[email protected].tr
3
Front Section
Back Section

4
[email protected].tr
Gold

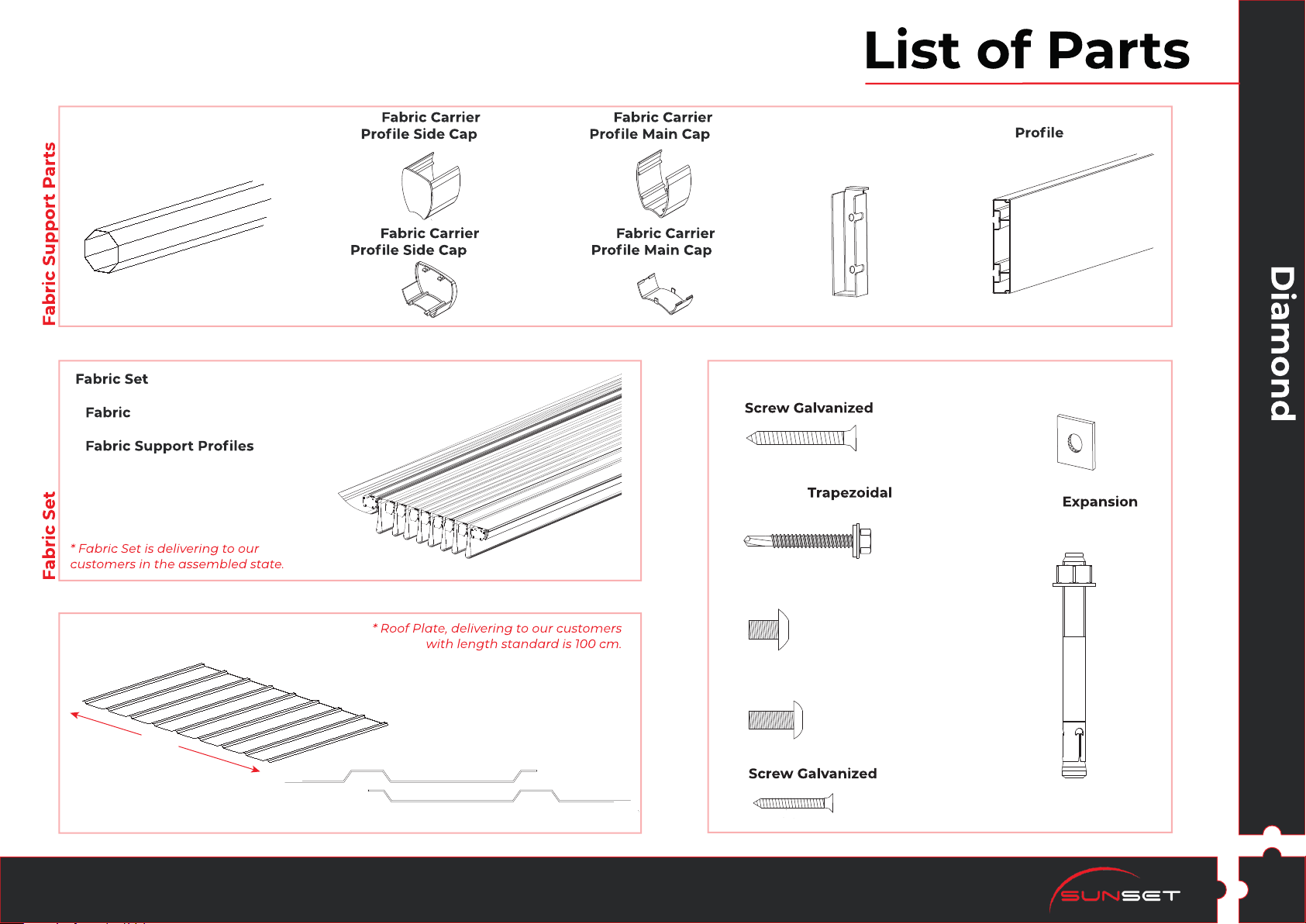

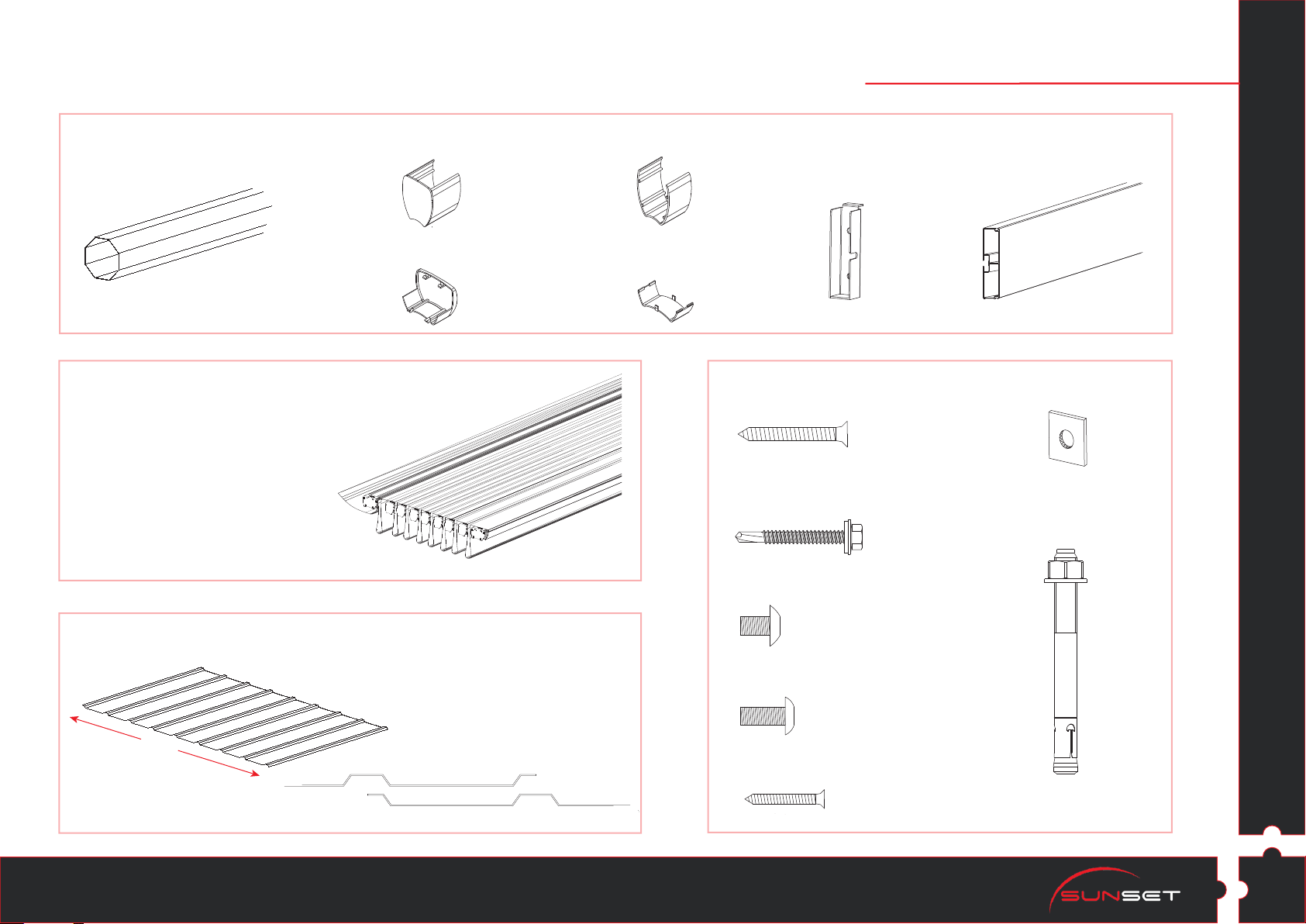

List of Parts
Cover
Connectors
Roof Plate - 81
Fabric Set
M6x45 Countersunk
Screw Galvanized
Fabric Set - 65
* Fabric
+
* Fabric Support Profiles
Square Nut
M5.5x50 Trapezoidal
Screw M10x90 Expansion
Bolt
M8x13 Poppet Screw
M8x20 Poppet Screw
M3.5x16 Countersunk
Screw Galvanized
* Fabric Set is delivering to our
customers in the assembled state.
* Roof Plate, delivering to our customers
with length standard is 100 cm.
Fabric Support Parts
Fabric Carrier
Profile Side Cap - 61
Fabric Carrier
Profile Side Cap - 63
Traverse Support
Profile - 72
Motor Tube - 51 Bar Support - 71 Fabric Carrier
Profile Main Cap - 62
Fabric Carrier
Profile Main Cap - 64
100 cm
Plate 1
Plate 2

[email protected].tr
5
List of Parts
Pillar Parts
Base Plate - 13
Type 1
Type 2
Type 3
Type 4
Pillar Profile - 12
Pillar Cover - 11 Steel Back
Pillar Cover - 14
Wall-Mount PartsGutter PartsRail Set
Wall-Back Beam
Connector - 21
Rail-Construction
Connector - 22
Rail Front
Conncector - 32
Steel Rectangular Profile - 23
100x100 100x50
Rail Profile - 33
Gutter Side
Casting Cover- 31
Rail Set - 41
* Rail system is delivering to our customers in the assembled state.
* 21 & 23 is delivering to our customers in the assembled state.
Front Section
Back Section

6
[email protected].tr
M6x45 Countersunk Square Nut
M5.5x50
Screw M10x90
Bolt
M8x13 Poppet Screw
M8x20 Poppet Screw
M3.5x16 Countersunk
Cover
- 61
- 63
Connectors
Traverse Support
- 72
Roof Plate - 81
Motor Tube - 51 Bar Support - 71
100 cm
- 62
- 64
- 65
*
+
*
Plate 1
Plate 2

[email protected].tr

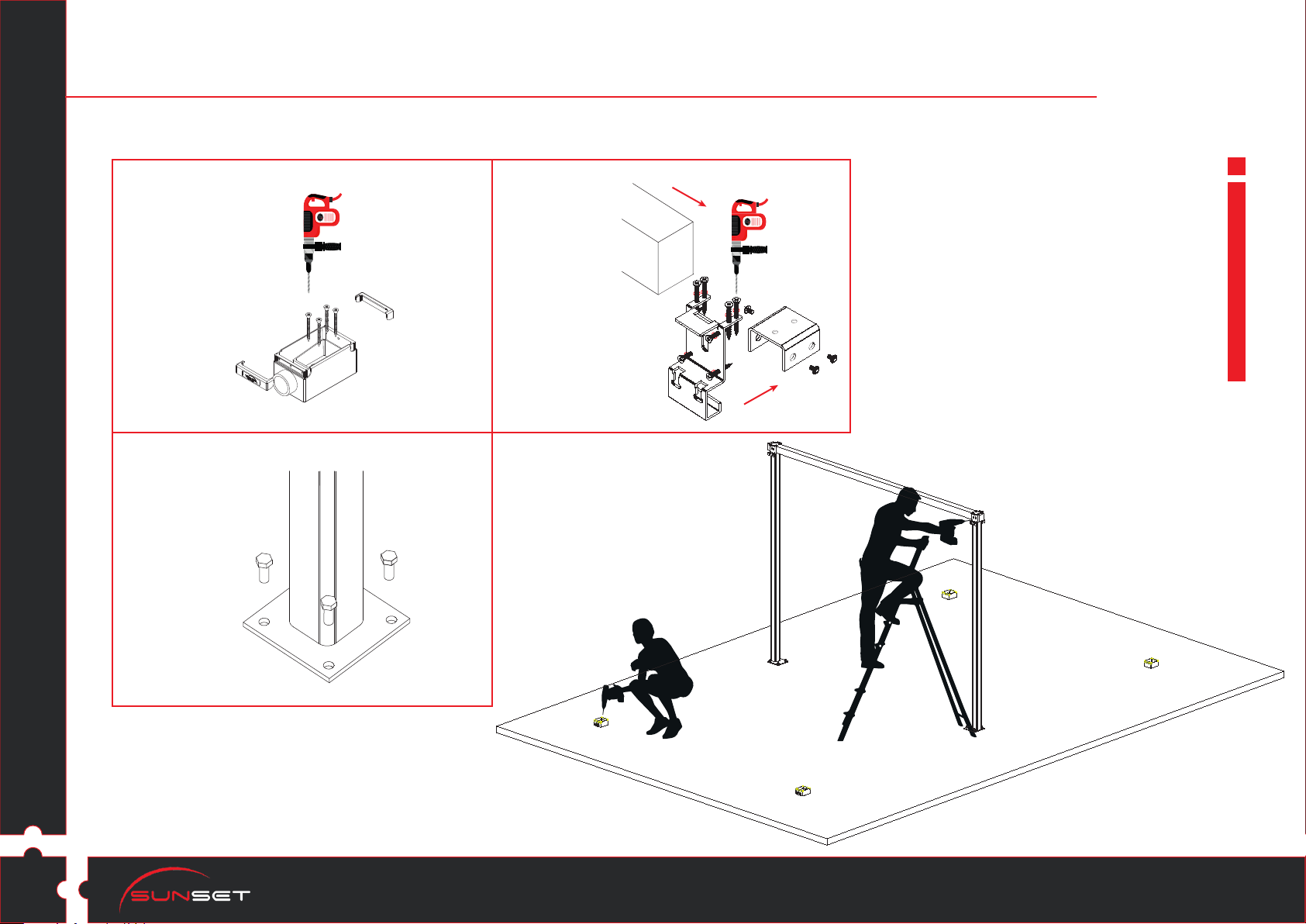

STEP 1 Assembling Retaining Parts
7
13 + Reinforce Screw & Chemical Dowel
14 + Reinforce Screw & Chemical Dowel
21 + 22 + 23 Reinforce Screw M5.5X50
Use plan explanation shown
on the Introduction page
for this steps. Tag placement
for the Pillar base plate and
connect this with ground
surface. Use Chemical
Dowel or Rainforce
screws for ground
connection.
STEP 1.1 STEP 1.2
STEP 1.3

8
[email protected].tr

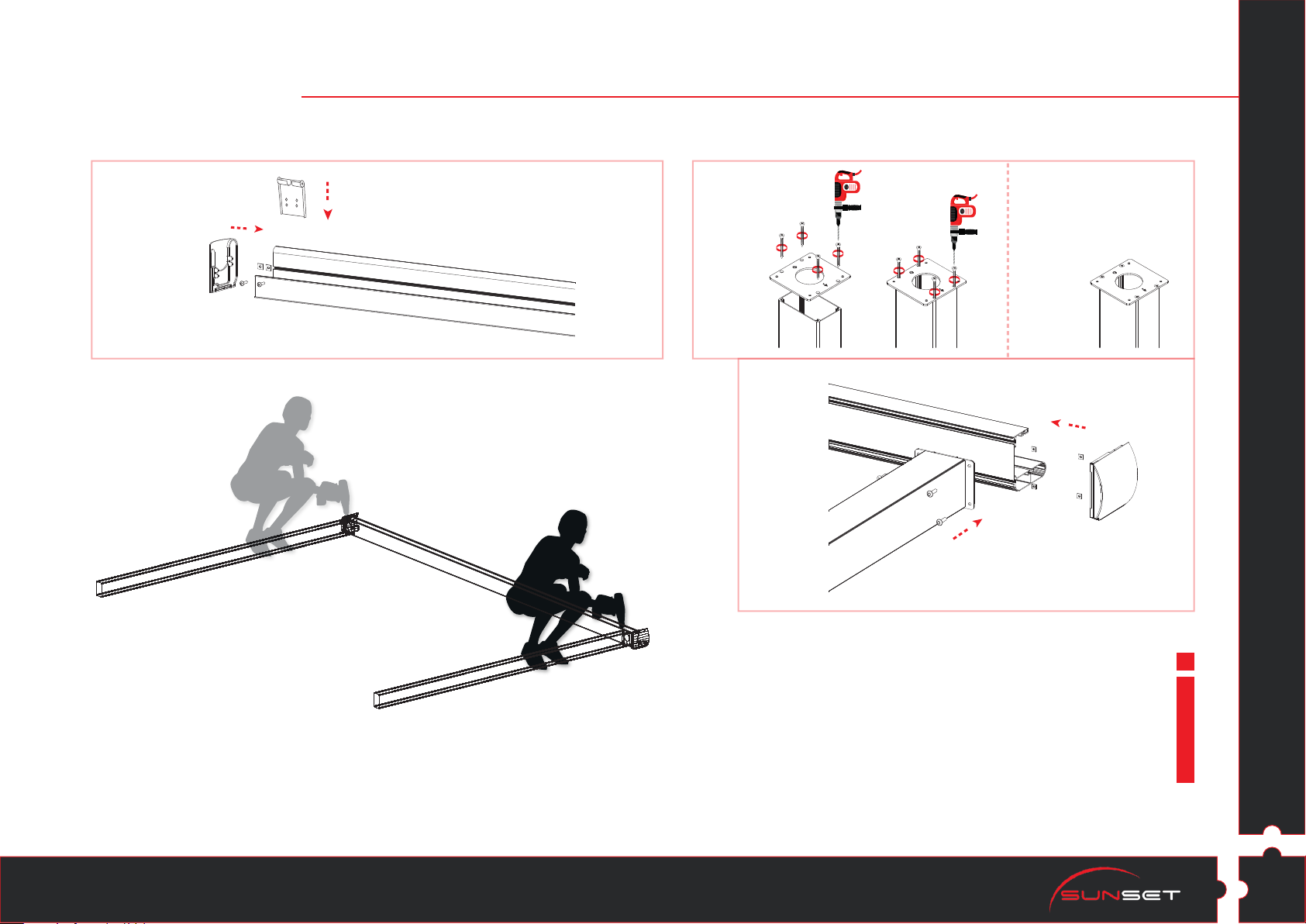

STEP 2 Assembling Frame Parts
STEP 2.1 STEP 2.2
Place Pillars (assembled on step 2.2
profiles parallel to each other the ground.
Place one long Gutter (assembled on step 2.1)
into cut-out on Pillar posts as shown
and connect them with connector (step 2.3)
C 31 + C32 + C33 M8X13 & Square Nut
C 11 + C 12 M6x45 screw
Front Pillar
Front Pillar
Gutter
Pillar and Gutter M8x13 Poppet Screw
Assembled View
STEP 2.3

[email protected].tr

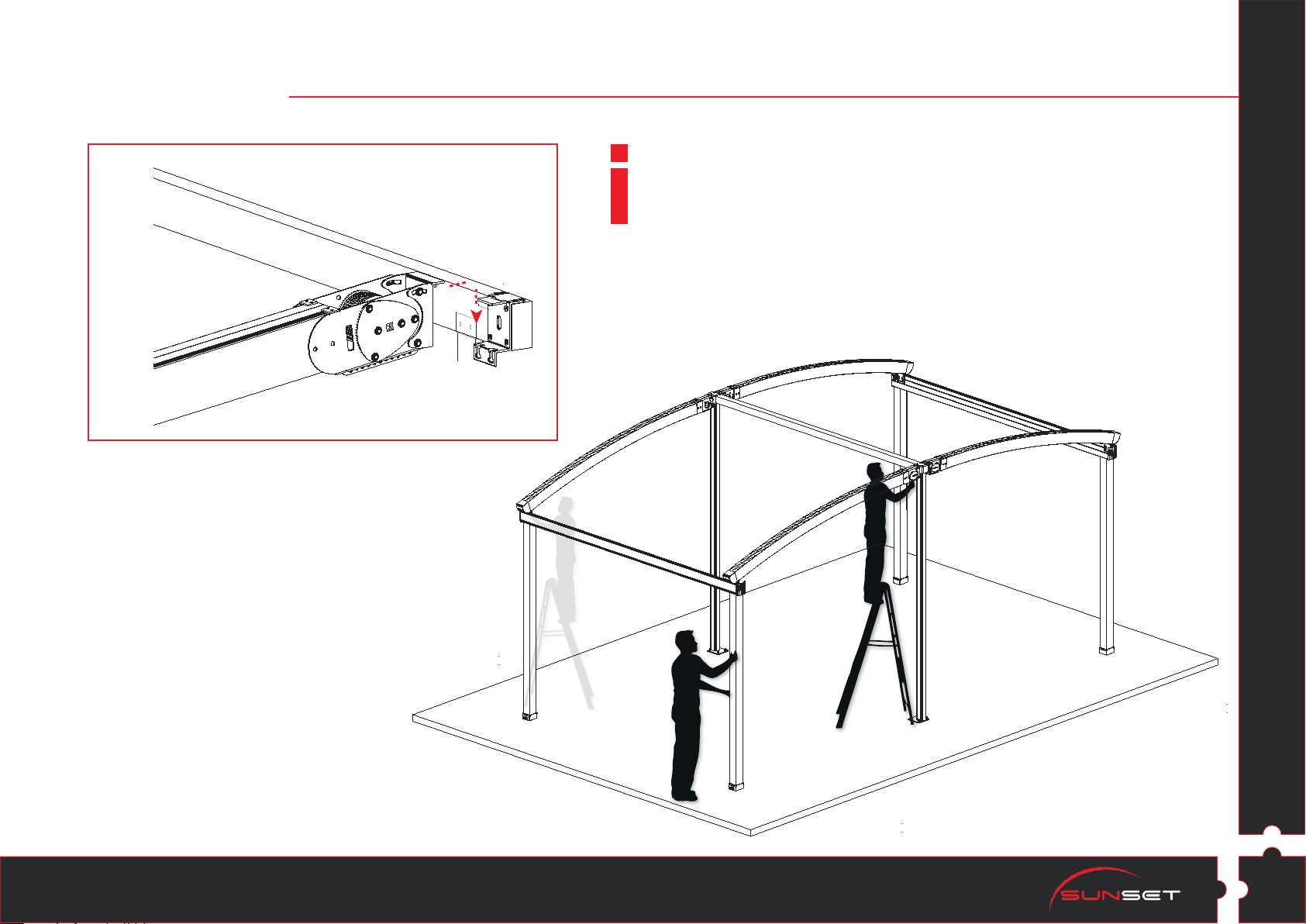

STEP 2 Assembling Frame Parts
9

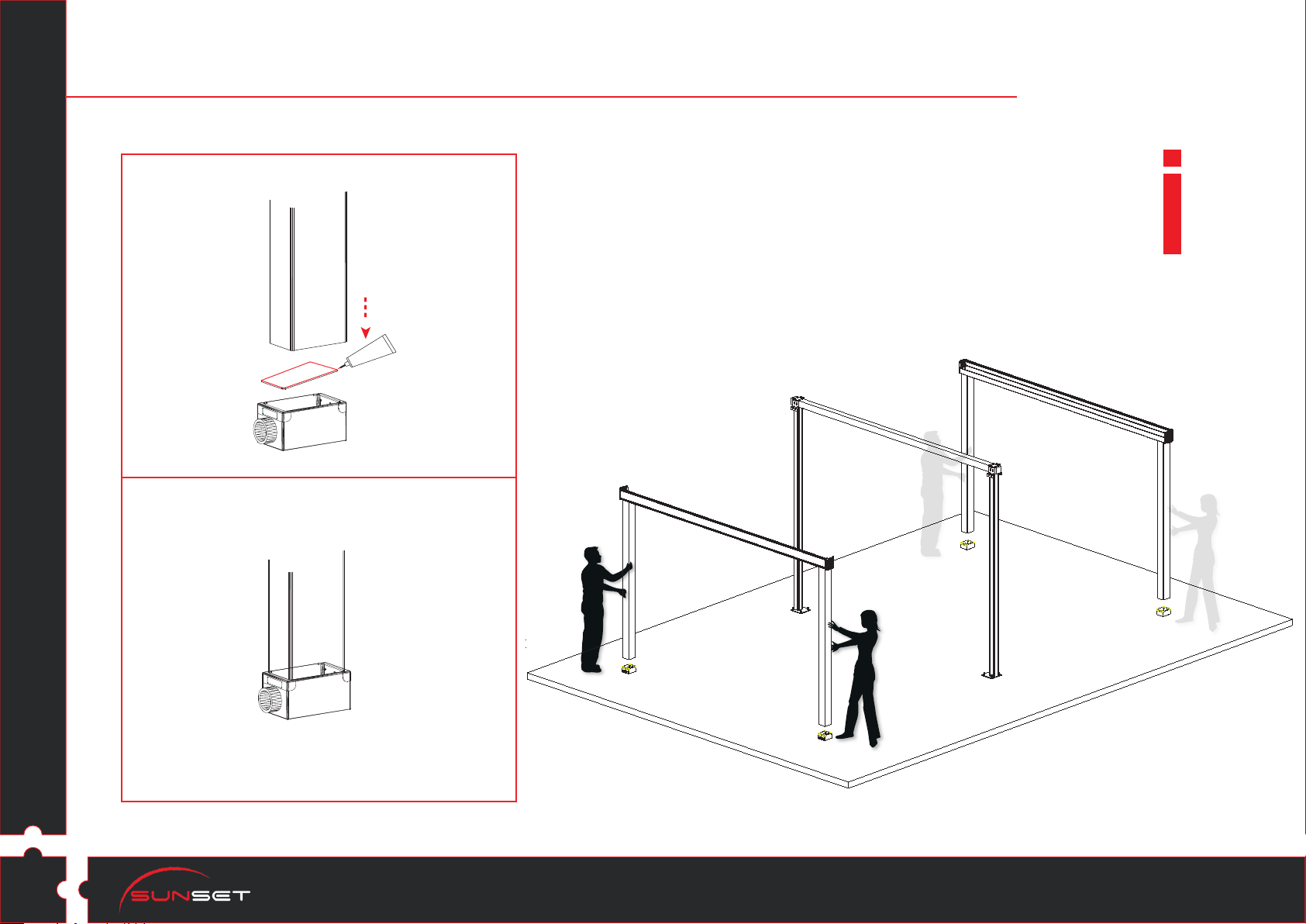

Take the collected frame and clamp
together with the base plate,
which one already installed
to the ground level.
12 + 13Combined View
STEP 2.4

41 (Rail Set) + 22
Clamp together 41 (Rail Set)
backside with 22 part which
one assembled to the wall at stage 1.2
STEP 2.5
10
[email protected].tr

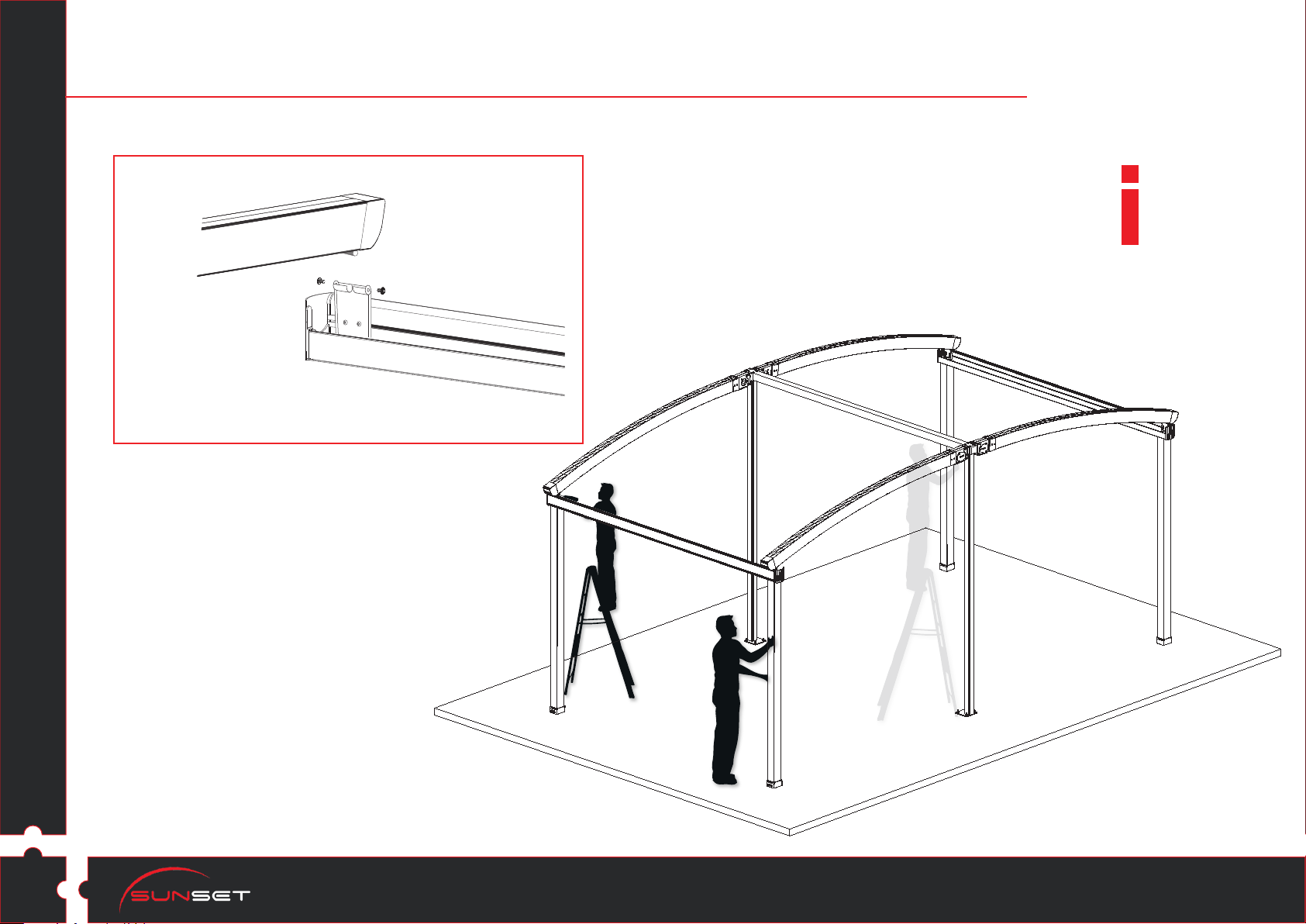

STEP 2 Assembling Frame Parts

[email protected].tr
STEP 2 Assembling Frame Parts
11
21 + 22 + 23 M8x20
STEP 2.6 Install 41 (Rail Set) front side
with 32 part which one assembled
to the wall at stage 2.1

12
[email protected].tr

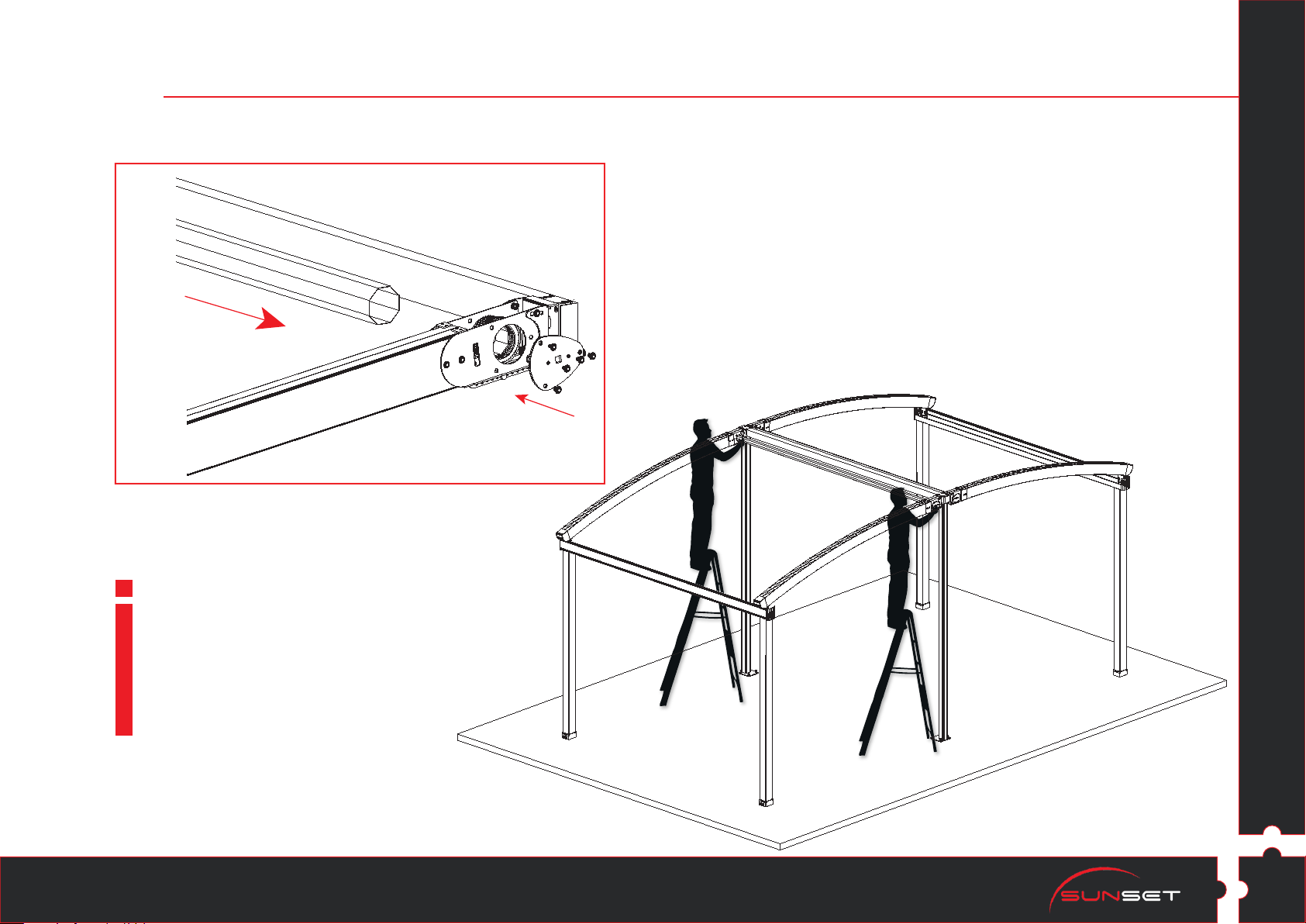

STEP 3 Assembling Motor Tube
Open Motor cover on the backside
of the rail as shown in the photo
above. Install Motor Tube 51
beetwen 2 rail (or 3-4 rail for
big systems) and close
back to its place
with connectors.
51 Motor Tube
STEP 3.1

[email protected].tr
13

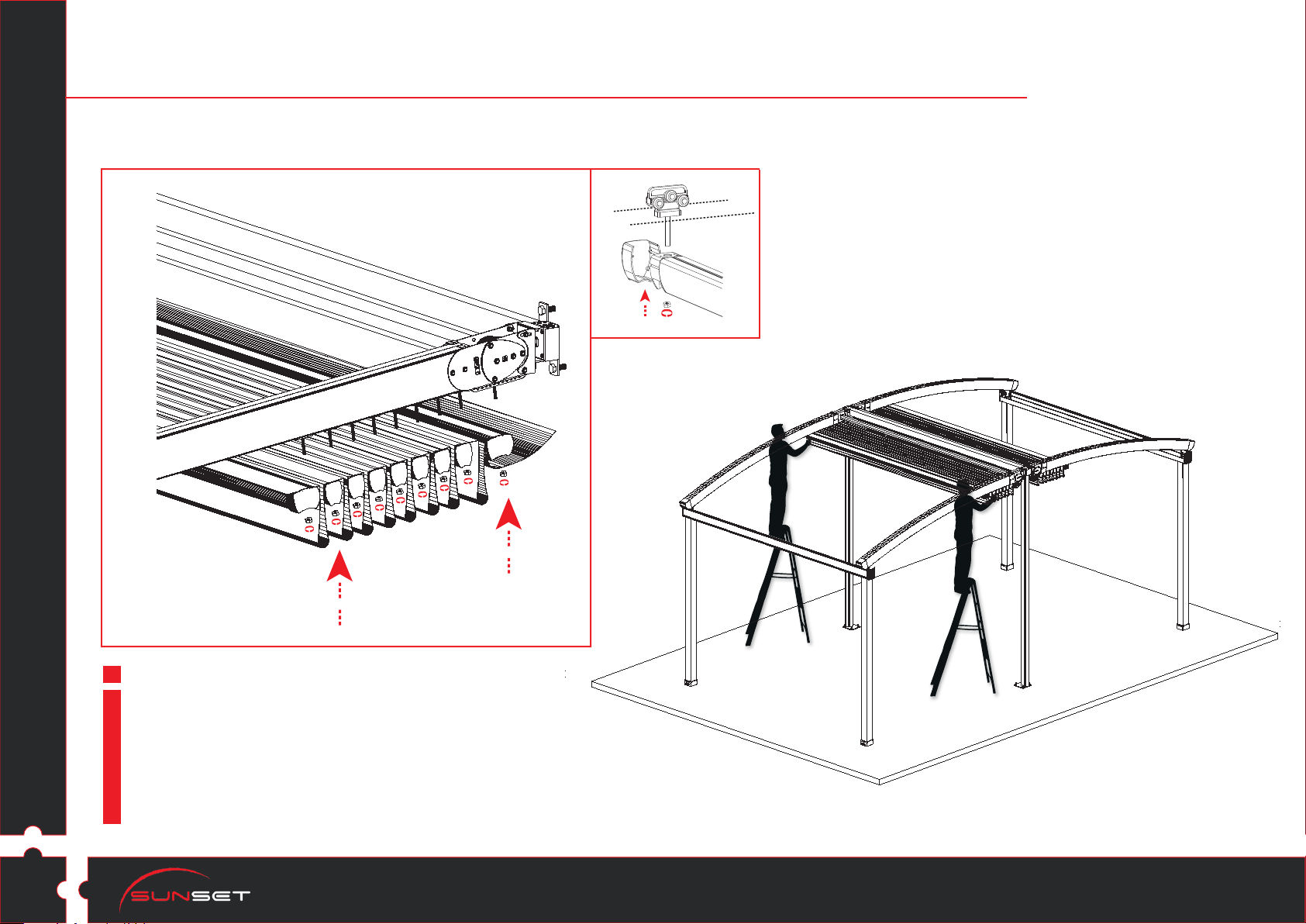

STEP 4 Assembling Fabric Parts
55 (Fabric Set)
At this stage take 65 (Fabric Set),
which one delivering to our customers
assembled. Remove Fabric Support Profiles
covers 61 and 63 (For big pergolas with 3-4 rails
remove middle covers 62 and 64). Connect this Set with rail
as shown in the photo above.
STEP 4.1

14
[email protected].tr

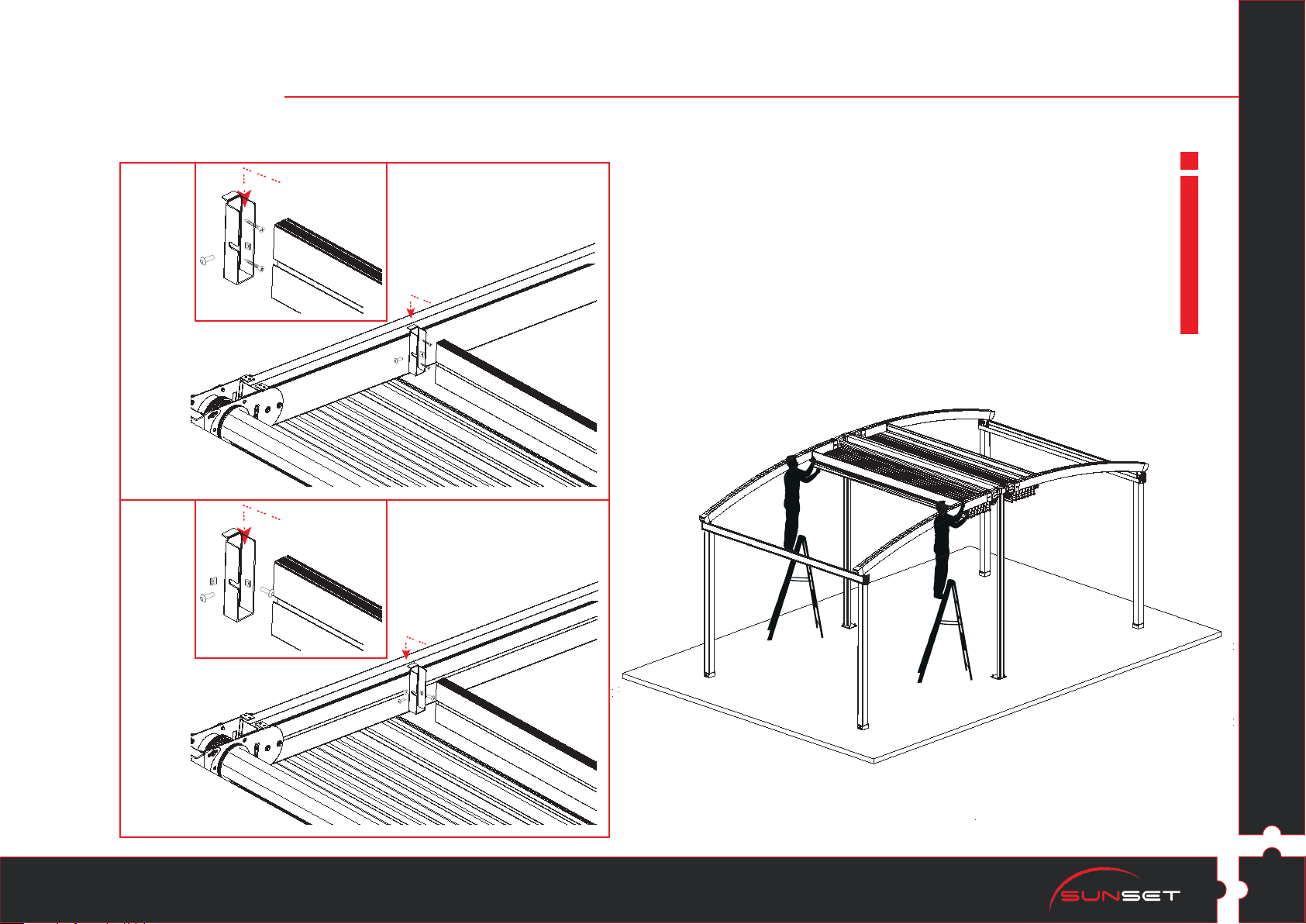

STEP 5 Assembling Cover Parts
71 + 72 & M3.5X16 M8X13 & Square Nut
Bar Support (71) is for holding traverse
profile. Install this part front end of the
fabric set or roof plate. Be careful when
you consider dimension from the backside
of pergola till the Bar Support part. After
that connect Traverse Profile (72) and this
holder with the connector shown in the photo.
STEP 5.1
For Striped-Rail Pergolas

[email protected].tr
15

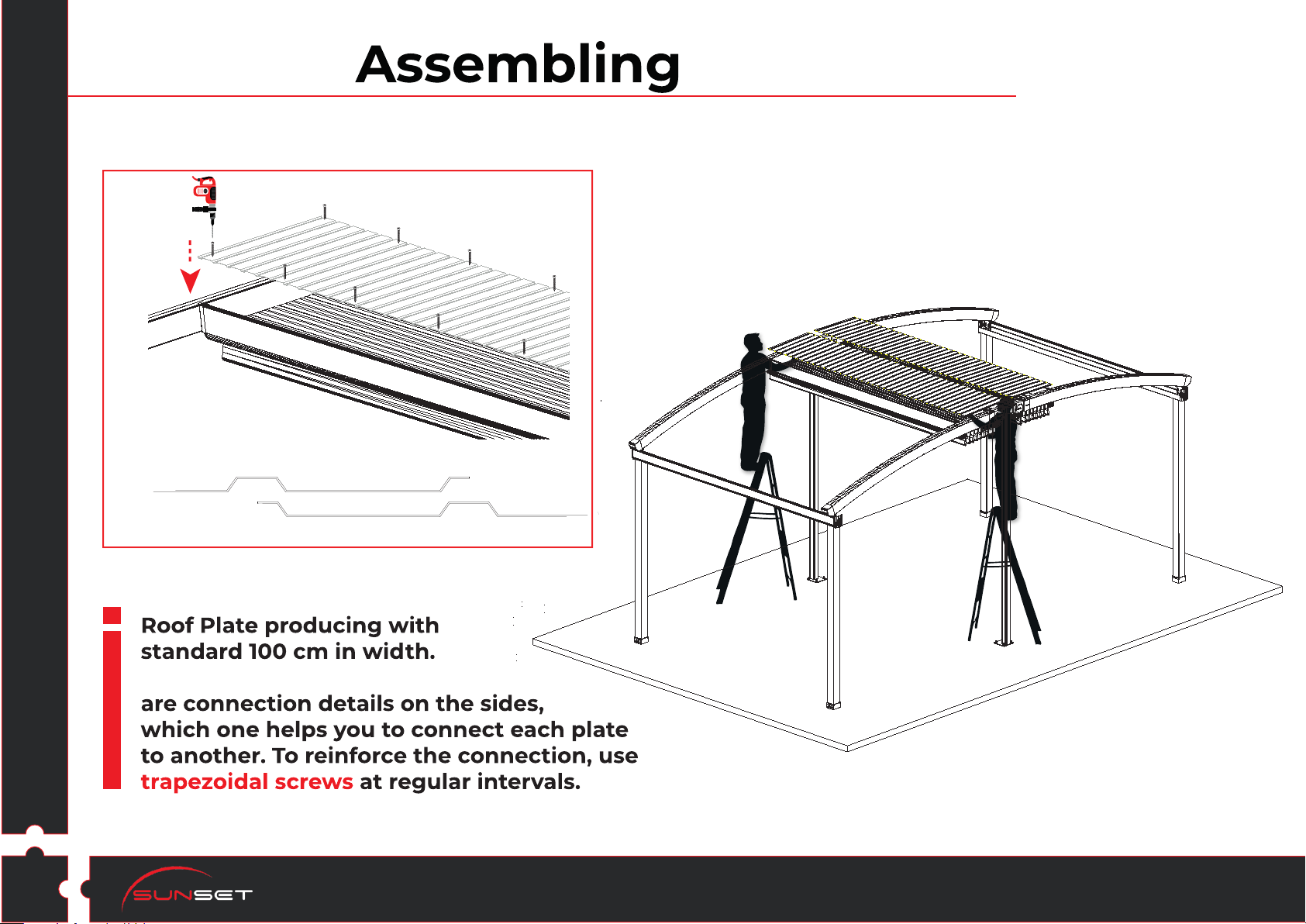

STEP 5 Cover Parts
81 + Connectors
For every part of the plate, there
STEP 5.2
Plate 1
Plate 2

IMPORTANT NOTES
For engine (motor) and lighting
connection you need local
220W electricity.
For instalation electricity parts and
you can check Electricity Diagram.
Assembling Instructor Based on
Gold Pergola System. Main instalation
method is the same for Silver and
Diamond Systems.
Check dimensions and directions
twice when you finish every steps.
For the big systems (3-4 rail) need to do
some steps repeatedly.
16
[email protected].tr
Final - Your Pergola is ready !

Date / /
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

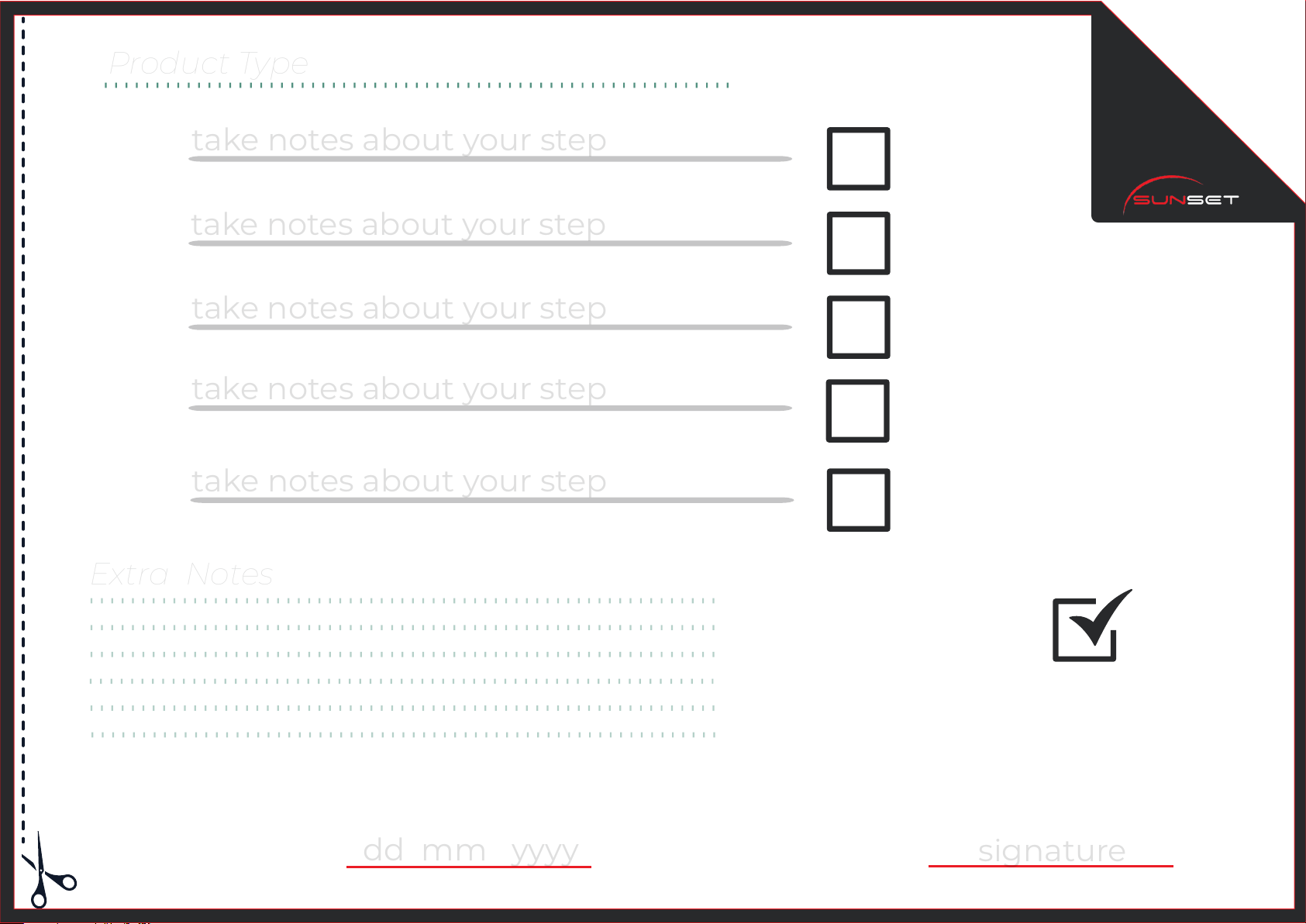

Checklist Page
is for following
your assembling
steps carefully.
And when the current
step will be done you
can note on this page.
Product Type
take notes about your step
take notes about your step
take notes about your step
take notes about your step
take notes about your step
Confirmation
signature
dd mm yyyy
Extra Notes
