SUNSET BOSSO User manual
Assembly Instructions
BOSSO
Pergola System
Four Seasons Comfort
Thank you for purchasing Sunset Pergola Product.
Introduction
İ
These instructions include helpful hints and important information needed to safely assemble and properly
main- tain the Product. Please read these instructions completely before you
begin and follow the steps in the order they are presented.
1. Make sure you have all the necessary parts.
2. Lay the parts out in separate staging areas.
3. Select a Location.
4. Prepare a Foundation.
5. Make sure you have the proper tools:
•Tape Measure
•Work Gloves
•Safety goggles
Projection
Width / Frontside
Wall / Backside
Diagonal 1
Diagonal 2
•Screwdriver
•Spirit Level
•2 Small Step Ladders

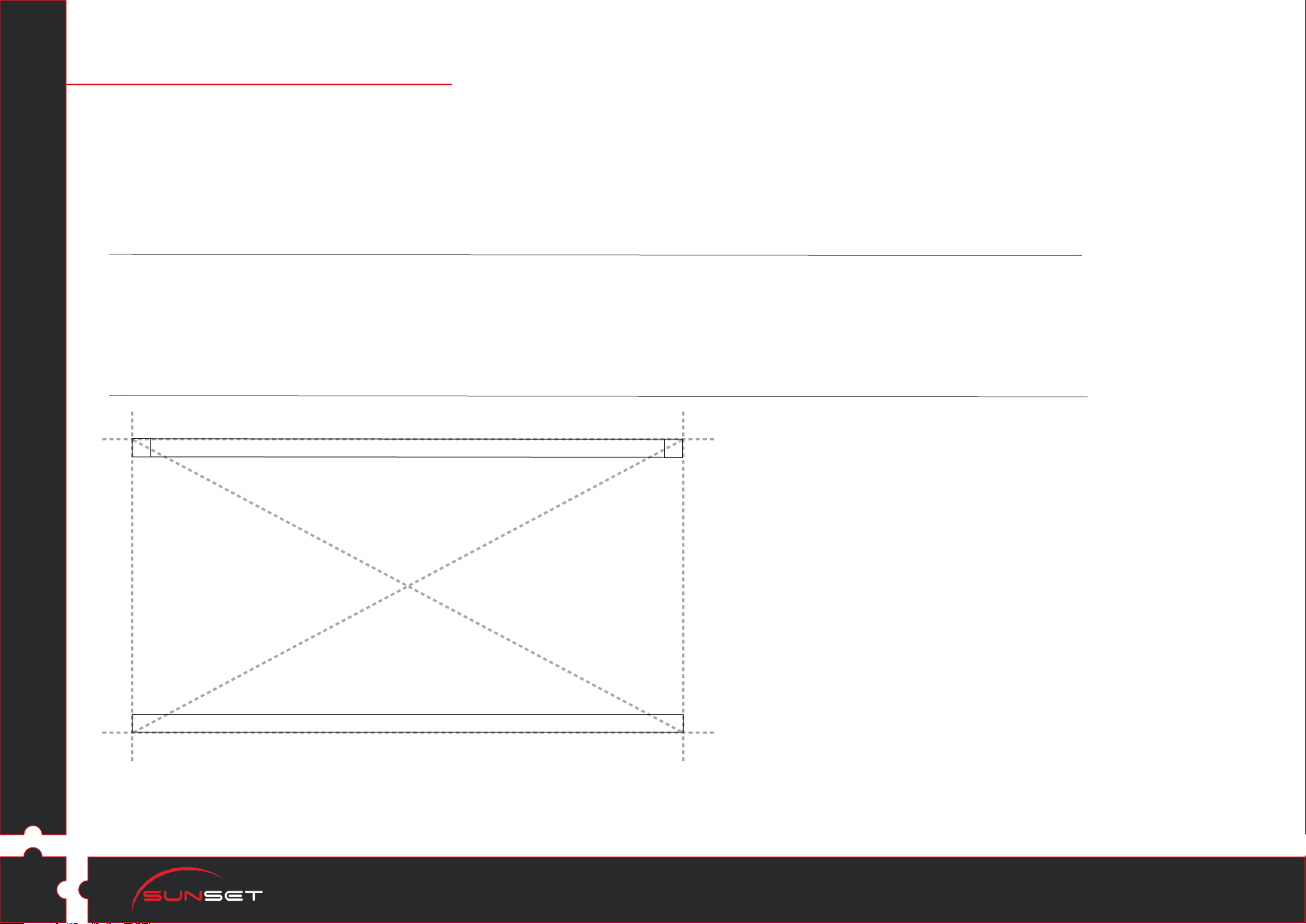

On the left, you can see a plan
view of your field where you're gonna
set up your Pergola. This plan includes
only front pillars and backside parts
(Steel Rectangular Profile, Wall-Connectors).
Carefully install ground level and wall
connection parts. Check projection,
width measure twice and
Diagonal 1 must be equal to Diagonal 2.
* Based on Gold Product type for detail models, Diamond
product type for general views.
Gutter
Table of Contents
İ
Introduction
List of Parts
Table of Contents
STEP 1
STEP 2
STEP 5
STEP 4
STEP 3
ATTENTION:
DO NOT ATTEMPT
TO ASSEMBLE ALONE!
7
3
8
12
13
FINAL
14
16
Step 5
Step 1
Step 2
Step 3
Step 4

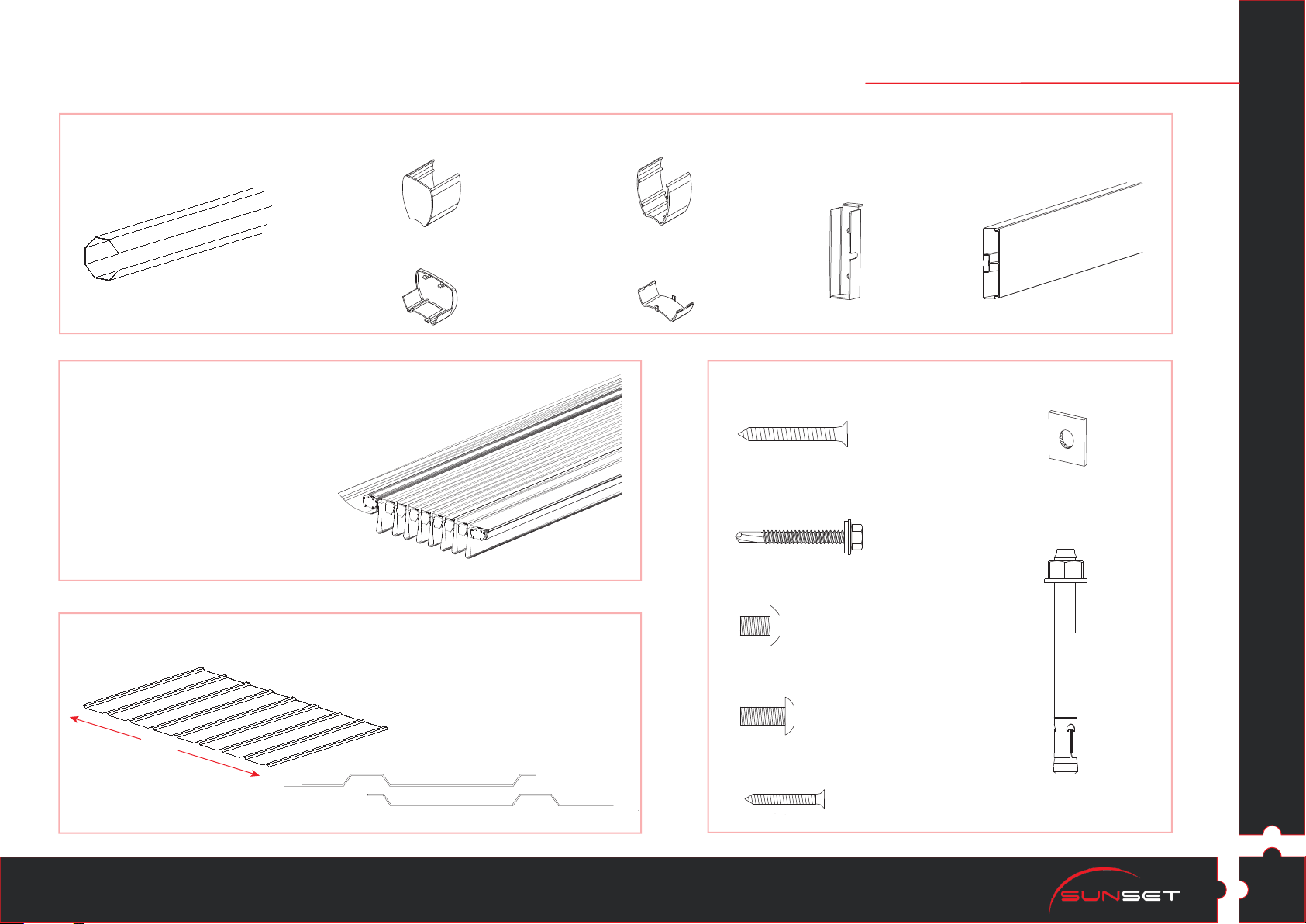

List of Parts
Hanging Parts
Wall-Mount PartsGutter PartsRail Set
Wall-Back Beam
Connector - 21
Rail-Construction
Connector - 22
Rail Front
Conncector - 32
Steel Rectangular
Profile - 23
100x100 100x50
Rail Profile - 33
Gutter Side
Casting Cover - 31
Rail Set - 41
* Rail system is delivering to our customers in the assembled state.
Front Section
Back Section
3
Hanging System Rail
U Connector - 13
Hanging System
Back Holder - 12
Hanging System
Bar - 11
Up Side
Down Side
4
Gold
List of Parts
Cover
Connectors
Roof Plate - 81
Fabric Set
M6x45 Countersunk
Screw Galvanized
Fabric Set - 65
* Fabric
+
* Fabric Support Profiles
Square Nut
M5.5x50 Trapezoidal
Screw M10x90 Expansion
Bolt
M8x13 Poppet Screw
M8x20 Poppet Screw
M3.5x16 Countersunk
Screw Galvanized
* Fabric Set is delivering to our
customers in the assembled state.
* Roof Plate, delivering to our customers
with length standard is 100 cm.
Fabric Support Parts
Fabric Carrier
Profile Side Cap - 61
Fabric Carrier
Profile Side Cap - 63
Traverse Support
Profile - 72
Motor Tube - 51 Bar Support - 71
Fabric Carrier
Profile Main Cap - 62
Fabric Carrier
Profile Main Cap - 64
100 cm
Plate 1
Plate 2
List of Parts
Hanging Parts
Hanging System Rail
U Connector - 13
Hanging System
Back Holder - 12
Hanging System
Bar - 11
Wall-Mount PartsGutter PartsRail Set
Wall-Back Beam
Connector - 21
Rail-Construction
Connector - 22
Rail Front
Conncector - 32
Steel Rectangular
Profile - 23
100x100 100x50
Rail Profile - 33
Gutter Side
Casting Cover - 31
Rail Set - 41
* Rail system is delivering to our customers in the assembled state.
Front Section
Back Section
5
Up Side
Down Side
6
Diamond
M6x45 Countersunk
Screw Galvanized Square Nut
M5.5x50 Trapezoidal
Screw M10x90 Expansion
Bolt
M8x13 Poppet Screw
M8x20 Poppet Screw
M3.5x16 Countersunk
Screw Galvanized
Cover Fabric Support Parts
Fabric Carrier
Profile Side Cap - 61
Fabric Carrier
Profile Side Cap - 63
Connectors
Traverse Support
Profile - 72
Roof Plate - 81
Motor Tube - 51 Bar Support - 71
Fabric Set
100 cm
List of Parts
Fabric Carrier
Profile Main Cap - 62
Fabric Carrier
Profile Main Cap - 64
Fabric Set - 65
* Fabric
+
* Fabric Support Profiles
* Fabric Set is delivering to our
customers in the assembled state.
* Roof Plate, delivering to our customers
with length standard is 100 cm.
Plate 1
Plate 2
STEP 1 Assembling Retaining Parts
7

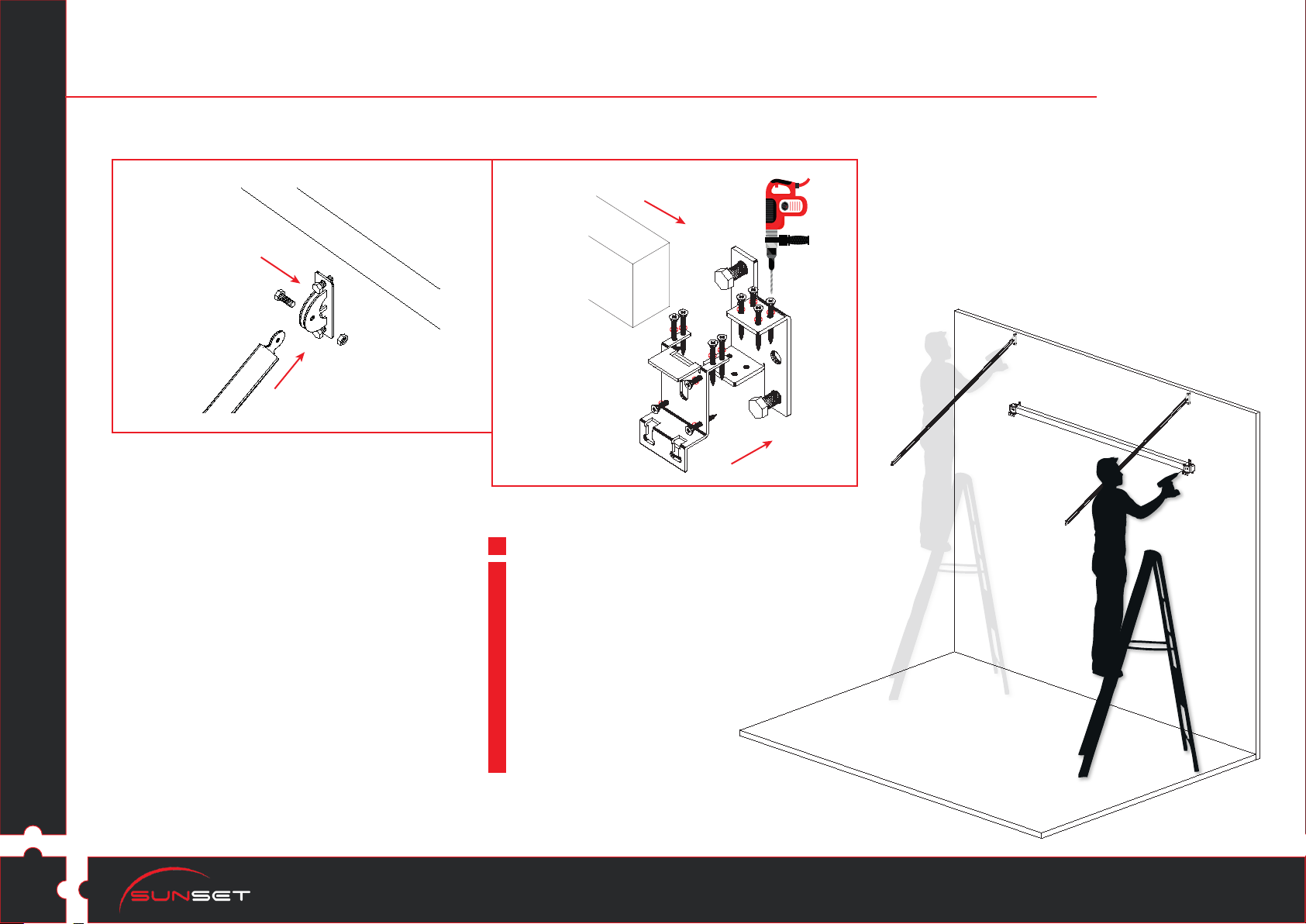

11 + 12+ Reinforce Screw
& Chemical Dowel
21 + 22 + 23
Reinforce Screw
M5.5X50
Use plan explanation shown
on the Introduction page
for this steps. Tag placement
for the Hanging System and
connect this with wall
surface. Use Chemical
Dowel or Rainforce
screws for wall
connection.
STEP 1.1 STEP 1.2
8
STEP 2 Assembling Frame Parts
Place gutter profiles (33) to the ground.
Insert rail connectors (32) and gutter cups (31),
into each side end as shown and fasten
with screws .
STEP 2.1
C 31 + C32 + C33
M8X13 & Square
Nut
Gutter
STEP 2 Assembling Frame Parts
9
Place rail sets (41) parallel
to each other the ground. Insert one
hanging connector (31) into each
to designated points as shown and
fasten with screws. For extra
powerfull connection you can
use extra screws from
the top as shown.
41 + 13 + M8X13 & Square Nut
STEP 2.4
10
STEP 2 Assembling Frame Parts
21 + 22 + 23
M8x20
STEP 2.6
Clamp together 41 (Rail Set)
backside with 22 part which
one assembled to the wall at stage 1.2
STEP 2 Assembling Frame Parts
11
Connect 41 (Rail Set) with Hanging Bar
System (11) part which one assembled
to the wall at stage 2.1 with helping
hanging connectors (13).
41 (Rail Set) + 22
STEP 2.5
12
STEP 2 Assembling Frame Parts
21 + 22 + 23
M8x20
STEP 2.6
Connect GUTTER SET
(already assembled on step 2.1)
with the Rail Front Side.
STEP 3 Assembling Motor Tube
13
41 (Rail Set) + 22
STEP 2.5
Open Motor cover on the backside of the
rail as shown in the photo above. Install
Motor Tube 51 beetwen 2 rail
(or 3-4 rail for big systems) and
close back to its place
with connectors.
14
STEP 4 Assembling Fabric Parts
55 (Fabric Set)

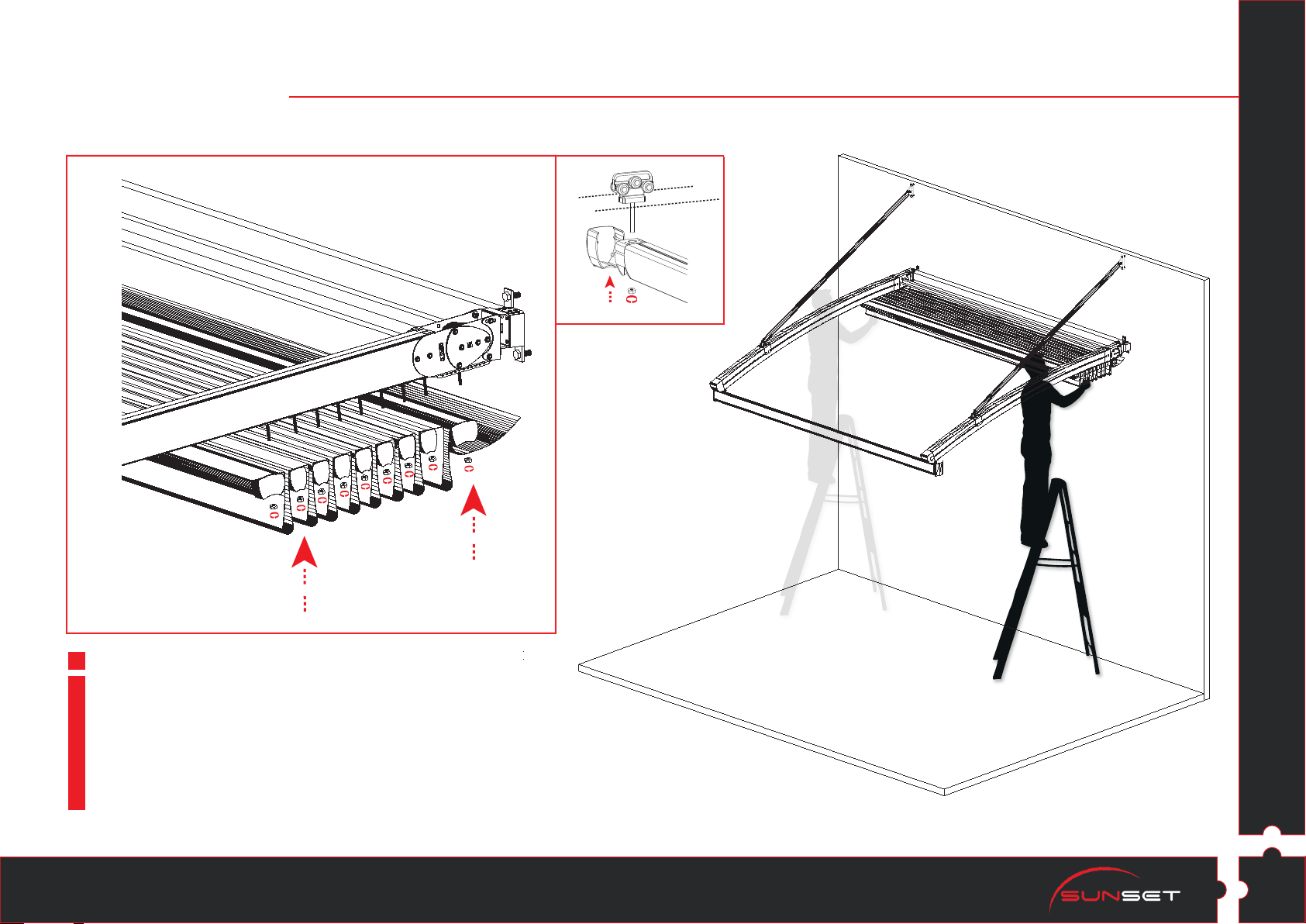

At this stage take 65 (Fabric Set),
which one delivering to our customers
assembled. Remove Fabric Support Profiles
covers 61 and 63 (For big pergolas with 3-4 rails
remove middle covers 62 and 64). Connect this Set with rail
as shown in the photo above.
STEP 4.1
STEP 5 Assembling Cover Parts
15
71 + 72 & M3.5X16
M8X13 & Square Nut
Bar Support (71) is for holding traverse
profile. Install this part front end of the
fabric set or roof plate. Be careful when
you consider dimension from the backside
of pergola till the Bar Support part. After
that connect Traverse Profile (72) and this
holder with the connector shown in the photo.
STEP 5.1
For Striped-Rail
Pergolas
C 81 + Connectors
Roof Plate producing with
standard 100 cm in width. For every
part of the plate, there are connection
details on the sides, which one helps
you to connect each plate to another.
To reinforce the connection, use
trapezoidal screws at regular intervals.
STEP 5.2

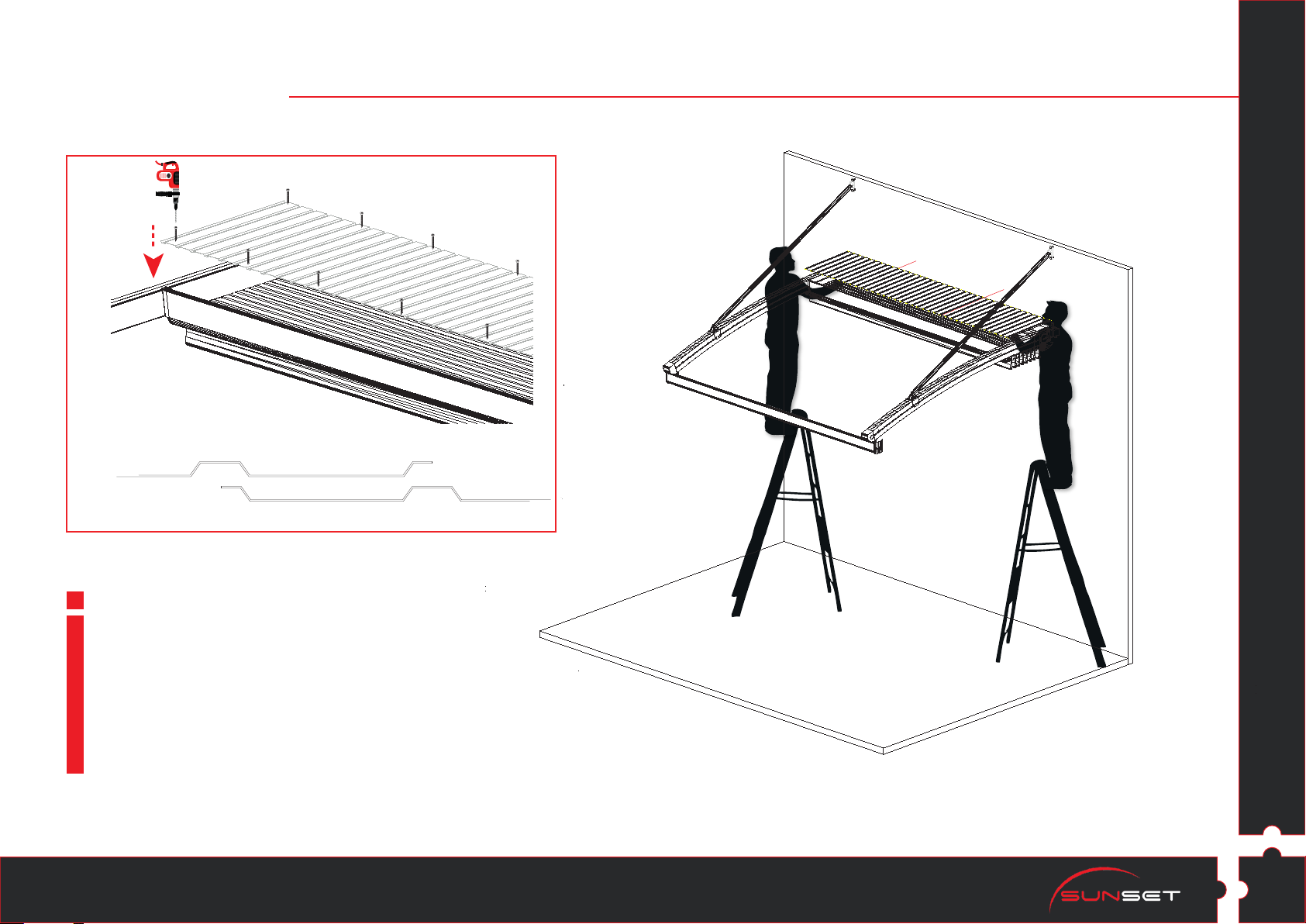

Plate 1
Plate 2
Plate 1
Plate 2
Plate 3
16
STEP 5 Assembling Cover Parts
17
IMPORTANT NOTES
For engine (motor) and lighting
connection you need local
220W electricity.
For instalation electricity parts and
you can check Electricity Diagram.
Assembling Instructor Based on
Gold Pergola System. Main instalation
method is the same for Silver and
Diamond Systems.
Check dimensions and directions
twice when you finish every steps.
For the big systems (3-4 rail) need to do
some steps repeatedly.
Final - Your Pergola is ready !
Date / /
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
Checklist Page
is for following
your assembling
steps carefully.
And when the current
step will be done you
can note on this page.
Product Type
take notes about your step
take notes about your step
take notes about your step
take notes about your step
take notes about your step
Confirmation
signature
dd mm yyyy
Extra Notes
