SunStar SSP-WE/3.5 User manual

SSP-WE/3.5 IInstruction MManual
SSP-WE / 3.5
MEE-070418

Best Quality
Best Price
Best Service
SSUUNNSSTTAARR MMAACCHHIINNEERRYY CCOO..,, LLTTDD..
R
1. Thank you for purchasing our product. Based on the rich expertise and
experience accumulated in industrial sewing machine production, SUNSTAR
will manufacture industrial sewing machines, which deliver more diverse
functions, high performance, powerful operation, enhanced durability, and
more sophisticated design to meet a number of user’s needs.
2. Please read this user’s manual thoroughly before using the machine. Make
sure to properly use the machine to enjoy its full performance.
3. The specifications of the machine are subject to change, aimed to enhance
product performance, without prior notice.
4.
This product is designed, manufactured, and sold as an industrial sewing
machine. It should not be used for other than industrial purpose.

1. Before Using 6
1) Principle Parts 7
2) Accessories 8
3) Setting Up 9
4) System Requirements 9
5) Installing the Software 10
■Installing the Program 10
■Installing the Key-Lock Driver 13
2. Getting Started 14
1) Start and Finish of Program 15
2) How to Use 16
3. Configuration of Program Function 18
1) Program Operation 19
2) Screen Configuration 20
3) Edit Screen 21
4) Menu Bar 22
5) Tool Bar 23
6) Sub Tool Bar 26
4. Data Configuration 31
1) Data Construction 32
2) Configuration Data 33
3) Sewing Data 34
4) Jump Data 35
5) Order of Configuration and Sewing Data 35
6) Selection of Elements with the Mouse 36
5. Create Data 37
1) New Pattern Creation 38
2) Creating Configuration and Sewing Data 39
■Creating Configuration Data 39
■Creating Sewing Data 42
■Creating Mechanical Control Commands 47
6. Edit Function 65
1) Editing Configuration Data 66
■Editing with the Mouse Point 66
■Editing with the keyboard direction key (Add, Delete, Move) 68
■Editing with the keyboard input value 69
2) Editing Sewing Data 70
■Editing with the mouse point 70
■Editing with keyboard Direction key 70
■Editing by keyboard input value 70
■Editing by the Stitch Creating Order 71
7. Data Processing 74
1) Other Useful Functions 75
■Edit Tool 75
■Data Tool 79
■Sewing Tool 81
■Sewing Edit Tool 83
■Sewing Change Tool 87
Contents

■Enlargement/Reduction, Rotation, Move, and Mirror 93
■Min-Max. Sewing Range 97
■Measurement(Point to Point) 97
■Making 2-Step Stitch 98
■Drag and Drop 99
■Select User PC 99
2) Sewing setting 100
■Setting the sewing area 100
■Setting selection area of sewing data 101
■Stitch point layout 102
3) Copy and Paste 104
4) Image Punching 105
5) Embroidery Conversion Function 107
6) JUKI Design Conversion 109
7) Opening AUTOCAD DXF,HPGL Files 111
8. Pattern Data I/O 113
1) File Save/ Open 114
■File Save 114
■File Open 115
2) Saving KM-2070P pattern data 119
■File save 119
■Saving 2070P text file 121
9.
KM-2070P Zigzag Design and ROM Data Serial Transmission
122
1) PC and KM-2070P connection configuration 123
2) Zigzag design direct transmission 125
3) ROM data serial transmission 127
■ROM data serial transmission 127
■Sample design (Basic patterns for KM-2070P) 128
10. Design transmission for bar tack series 129
1) Configuration flow between PC and bartack machine 130
2) Setting port and communication speed 131
3) Design direct transmission 132
11. Design transmission of pattern series 136
1) Configuration between PC and pattern 137
2) Port and communication speed setting 139
3) Pattern data direct transmission 140
12. How to use the USB to Serial conversion cable 142
13. SSP Writer 147
1) ROM DATA I/O 148
2) List of Configuration 150
3) SSP Writer Installation 150
4) SSP Writer1 Program Manual 152
5) To Execute the SSPWriter Program 153
6) Other Function 157

6
Before Using
Check the followings prior to setting up the
program and components.

7
Principal Parts
PC
Print Port
Interface cable
Power Adaptor
ROM Writer
SSP.Writer1
or USB Key Lock
Key Lock

8

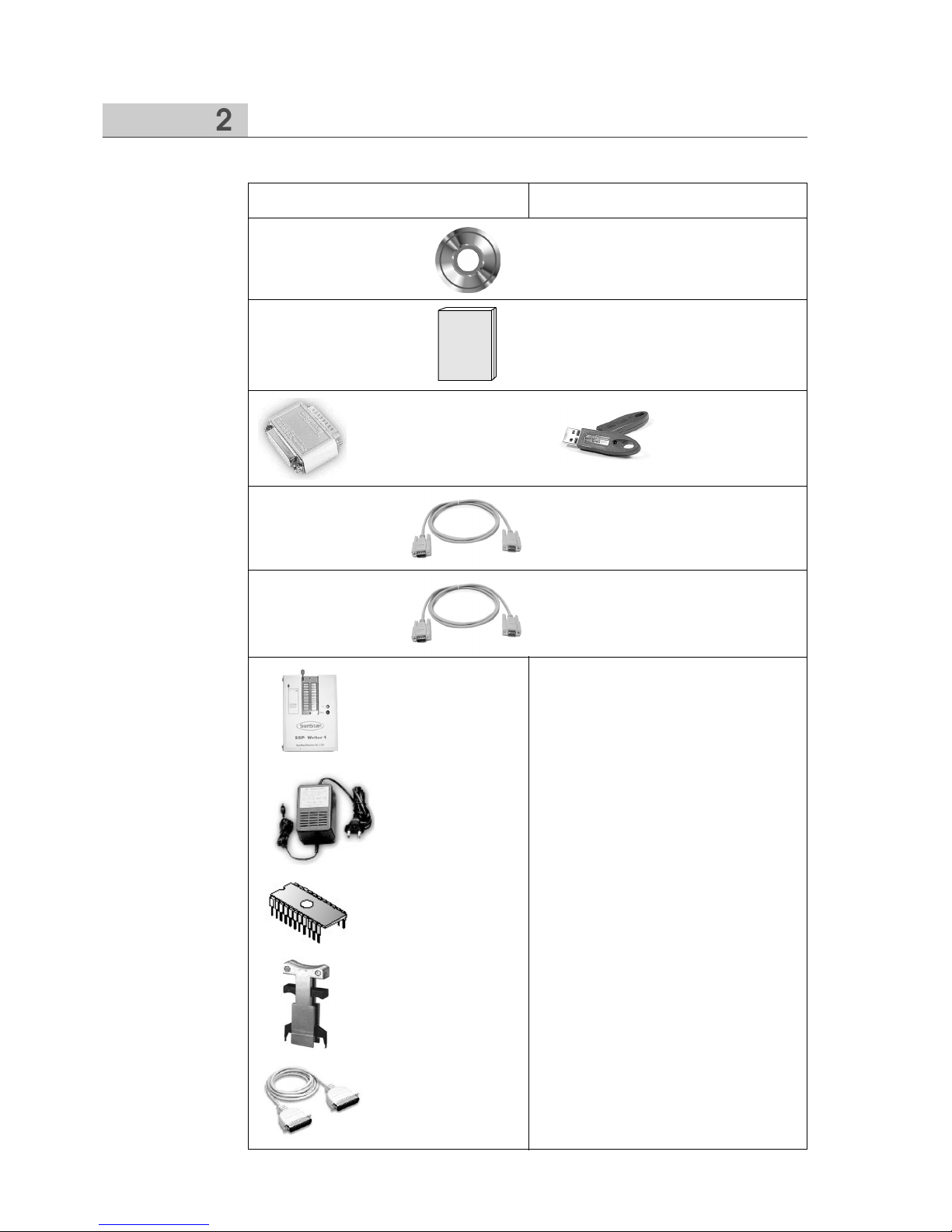

Accessories
1. Install CD
Part No.
01-008B-WE10
3. Key-Lock for
print port
Part No.
01-009A-WE10
6. SSP-Writer1
Part No.
00-0000-WE10
10. Interface Cable
Part No.
01-008A-WE10
7. AC Adaptor
Part No.
01-010A-WE10(110V)
01-011A-WE10(220V)
8. Extension ROM
(10 Units)
Part No.
02-003B-BD01
9. ROM Extractor
Part No.
01-012A-WE10
4. RS-232C
Serial Cable
Part No.
02-012A-2070
5. USB to RS-232C
conversion cable
Part No.
02-012A-2070
2. Instruction
Manual
3. Key-Lock for
USB port
Part No.
EP-000043
or
<Economic-type><Full-type>
Manual

9
Cautions
Prior to installing the program on the user PC, the user system has to equip the
followings:
System Requirements
IBM-PC or compatiblePC
Pentium PC or moreCPU
Windows 98, 2000, or a version higherWindows OS
200M or more
VGA or more
(We recommend aminimum of 3200 colors SVGA)
Mouse for windows
Printer for supporting graphics during design printouts
Hard disk free space
Mouse
Printer
Display
Memory 64 M or higher (128M or higher is recommended)
Print port for connention of Key-Lock and ROM wirter and USB port Parallel Port
Serial port for connecting serial transmission cablesSerial Port
Completely turn off computer power before connecting Key-Lock
and SSP-Writer.
■Connection to the key-lock for print port
①Connect the key-lock with the PC print port.
Connect the SSP-Writer1 on the back of the key-lock connected with the print port.
②The key-lock and the interface connection cable are configured with a separateshap-
ed pin to the both sides. Please connect them with the same-shaped pin.
③Connect the interface cable with th SSP-Writer1 connection port.
④Connect the AC adapter with the SSP-Writer1.
⑤Put a plug of AC adapter in a socket.
⑥After completion of all connections, power on the PC.
■Connection to the key-lock for USB port
①Install the install program and then the key-lock driver.
②Connect to the Key-Lock for USB port. For more information, see the list of program
installation items.
Cautions
Setting Up
Be sure to turn off the power of the computer before connecting appendages.
The SSP Writer (ROM Writer Program) Program is compatible with Windows 2000,
Windows XP, and Windows NT.
In the SSP-WE/2.5 install version, the key-lock for print port is different from the
key-lock for USB port. Therefore, the SSP-WE/2.5 for USB port does not support
the connection to the key-lock for print port.

10
①Computer O/S is executed under Windows 98 or more.
②Insert the CD and go to the Disk1 folder for installation by language. Double-click
the “Setup” file in the folder.
③Upon displaying“InstallShield”, click“Next”.
■■Installing the Program
(Unavailable for Windows 95)
Installing the Software

11
④When the Software License Agreement screen opens, click“Yes”.
⑤The Choose Destination Location screen opens. If you want to change where to
save, click Browse and select another folder. And click“Next”for the following
process.

12
If the program is successfully installed, double click“SunStar Machinery Co., Ltd.”
in the installed folder. There is“SunStar SSP”folder. Double click it once more, you
can find that there are ICONs as follows:

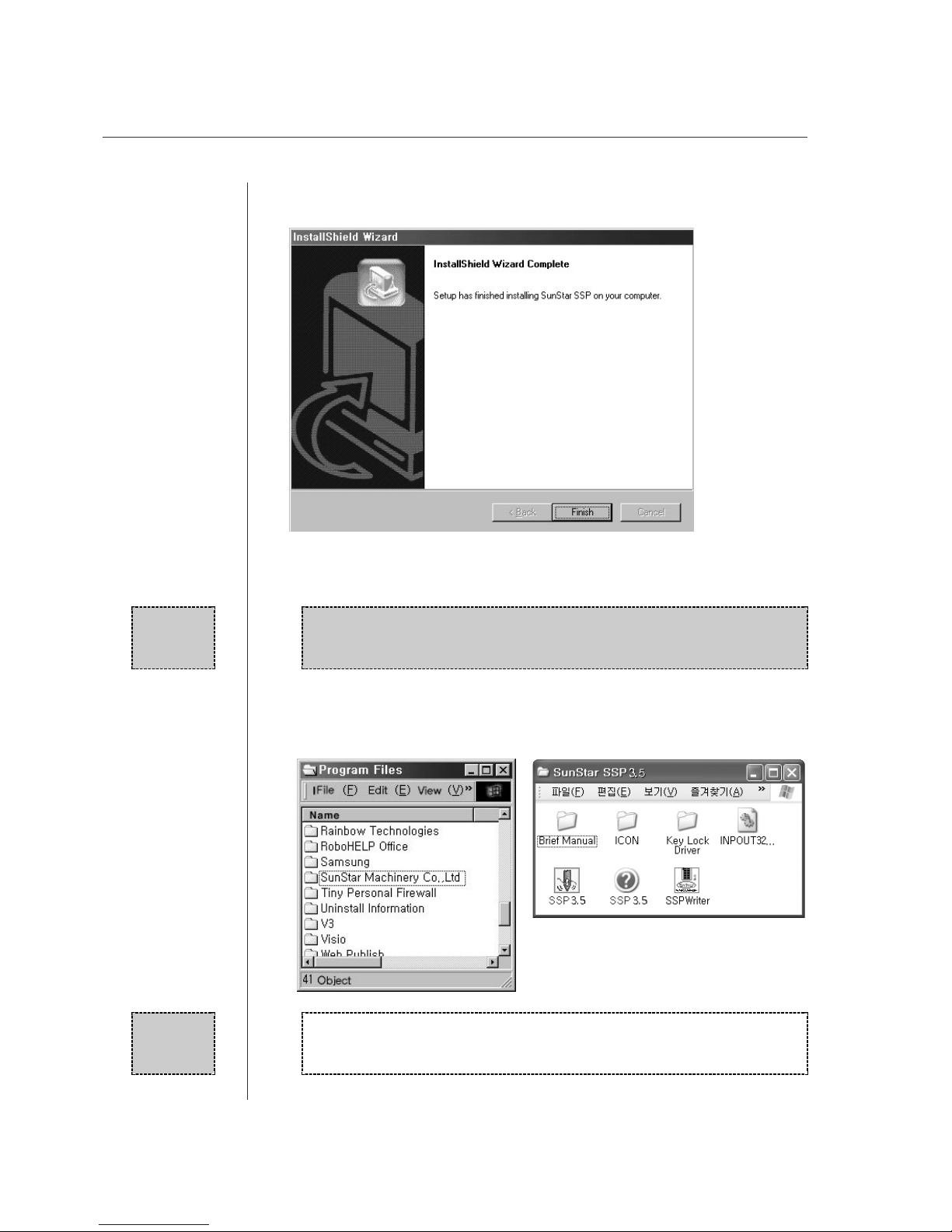

⑥Start installing on the screen.
⑦After Setup finished installing SPP on your computer, click“Finish”to complete Setup.
⑧You can find that the installed program is registered on the Start Menu.
Then Installation is successfully completed.
If you execute the program immediately after its installation, it is not
executed and only the message finding Key-Lock is displayed.
Therefore connect Key-Lock Driver and Key-Lock before execution.
Note
In SunStar SSP folder, you will see that program-related files, SSP-
WE/2.5 execution file and SSP Writer execution file are automatically
installed.
Note

13

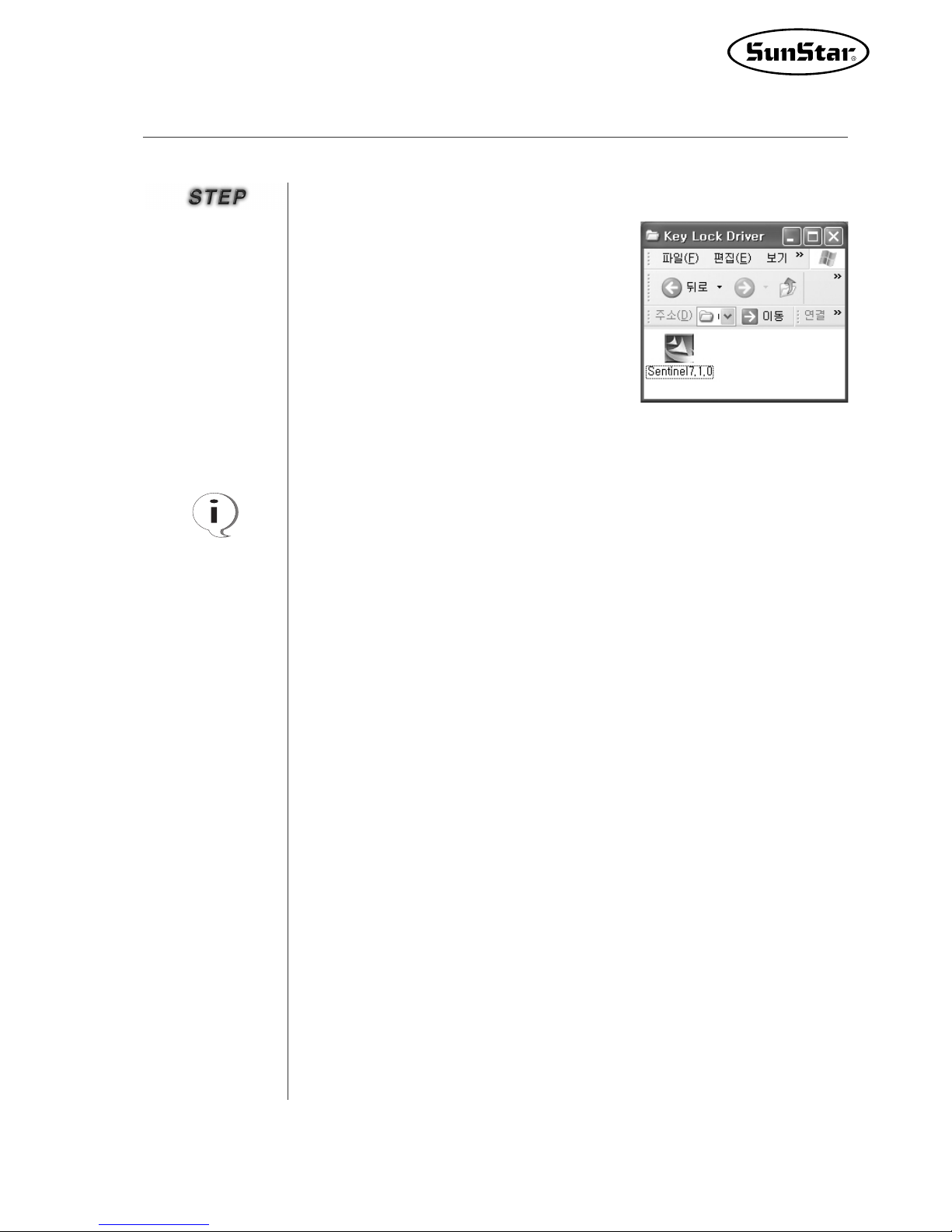

①You can find the Key-Lock Driver in a“SUN-
STAR SSP”directory.
②Double click a Sentinel 7.1.0.exe file in the
folder to install the Key-Lock Driver.
③After installing the Key-Lock Driver, connect
the Key-Lock with the Print Port on the back
of PC.
■■Installing the Key-Lock Driver
■Windows XP might not recognize the key lock for printer port. This
may happen when Miscrosoft's Service Pack 2 is installed and the
firewall is in operation
①Insert the install CD and click the latest key lock driver folder. Double-click “Sentinel
7.1.0.exe” for installation.
①If the key lock drive for print port has already been installed, this should be uninstalled
before installing the above file.
②Reboot the PC.
②If a user has installed Service Pack 2 of Microsoft, and the firewall is in operation, the
firewall should be turned off.
③After following the above procedures, execute SSP and then the program will be
executed without any problems.
③If the key lock is not still recognized, go to “My Computer” and choose “Hardware” in the
“System Information Display”. Then click the “Device Admin” to check if LPT port is
registered.
③If LPT port is not registered, the key lock can not be recognized.
※“Sentinel 7.1.0.exe” driver supports both the key lock for print port and the key lock for
USB.

14
Getting Started
IInnttrroodduuccttiioonn
This manual is an electronic sewing machine input program relating to
Pattern, Bartack and KM-2070P that users can easily create and edit and
manage sewing data, generally covering about how to install and use the
program. Please recommend users that they should read through this
manual without fail prior to using.

15
After installing the program on your computer, connect the Key-Lock
with the printer port. (Execution of the program without connection
occurs an Error message.) The program is installed on your selection
directory. You can find that the program is registered in a Start Menu-
Program directory on the left bottom of the monitor screen as follows:
(Refer to Installing the Program.)
[Ex:Start Menu Program-SunStar SSP3.5-SSP3.5]

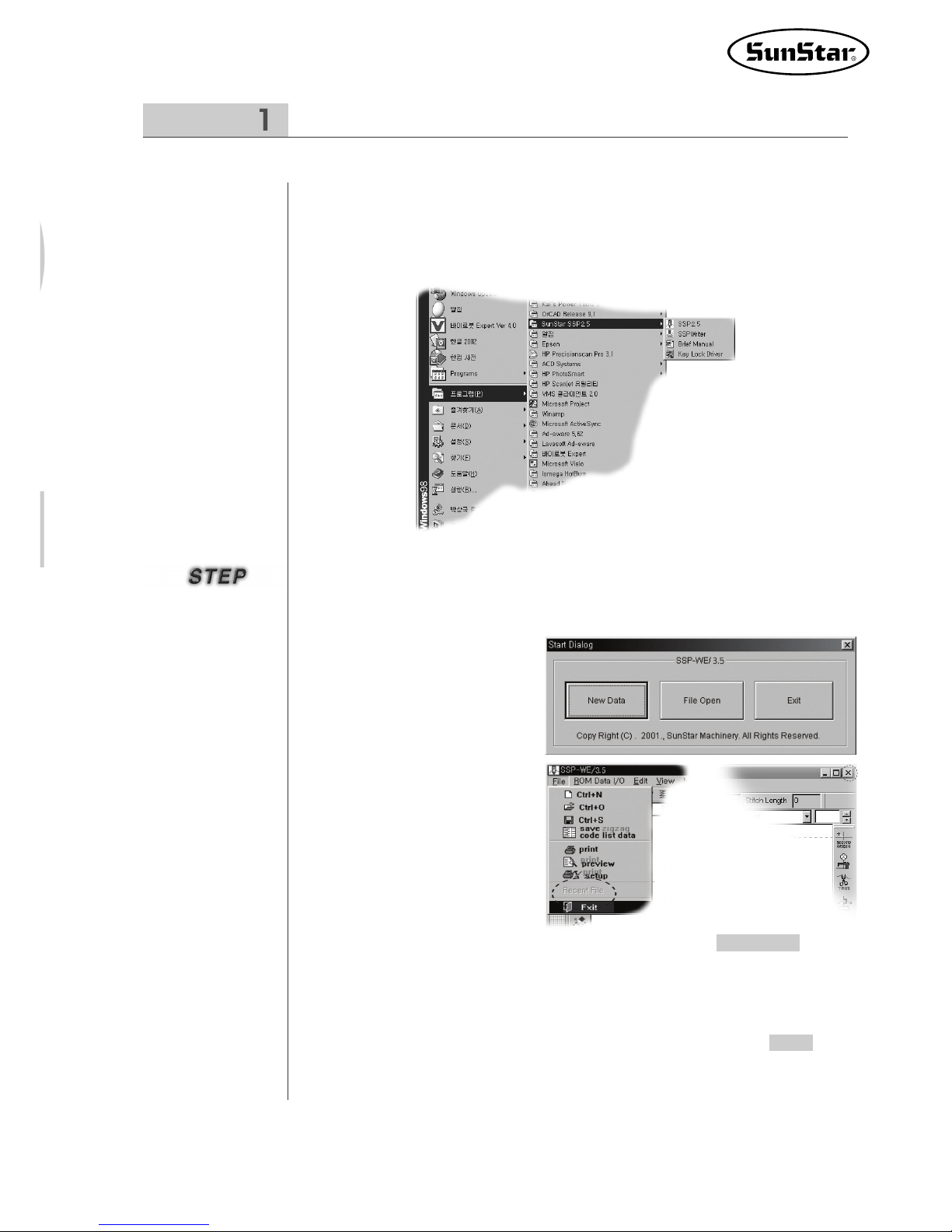

Start and Finish of Program
②START Dialog opens as shown in
the left picture upon execution of
the SSDP program. Click“New
Data”to start the program.
①Click SSP-WE/3.0 registered as shown in the Figure or click the execution file in the
folder, which is actually installed, then you can execute the program.
④To plug out the Key-Lock during execution of the program occurs an Erro message in a few
seconds and the program is not executed. Therefore do not plug out the Key-Lock during
execution of the program. Please without fail to save sewing data prior to terminating the
program.
③To terminate the program, save
the file, select“Finish”in the file
menu, or click“Close”on the right
topupper of the program screen.
⑤If you click and execute Start Menu-Program SunStar-SSP WE1.0, then click“ROM”in the
SSP Program menu, SSPWriter is not executed. In this case, execute SSPWriter directly,
or click“ROM”after execution of SSP in the folder which its program is installed.

16
⑤If you zooms in the screen over the maximum extension upon using Zoom In / Zoom Out
tools, a message box opens and it is not extended more. Continuous execution under this
situation may lose data on the screen. Therefore do not extend the screen forcibly, and
reduce it using Zoom Out.
You must have full knowledge of the followings upon using the program.
How to Use
②Configuration data like a circle cannot be asymmetrica-
lly adjusted. If you input different values in X-axis and Y-
axis to extend data in the Zoom In & Zoom Out functio-
n, two axial values are systematically applied and
created in the same size. If, however, you asymmetric-
ally zoom in / out sewing data including configuration
data, change its attribute into a Point Stitch.
①This program describes how to create and edit configuration data or sewing data using
keyboard direction keys. Before using, you must read though the screen mode. The
program is set up to automatically configure its screen size according to your monitor size. If
you change the default screen size and execute the program to input and edit data using
keyboard direction keys, it is not changed normally because of its mapping unconformity
with the Windows screen. That is to say, it is inputted apart 2~3mm from the input position.
But, it is correctly inputted upon using a mouse point.
④Do not create sewing data of 10,000 stitches or more if possible. The sewing machine
can create up to 300,00 stitches. However, if it creates 10,000 stitches or more in a
screen, the program may get slowed, or stop. To reduce this phenomenon somewhat,
select“Stitch Off”in the toolbar on the bottom of the
menu.
③If you receive and send data to SSP-Writer 1, dozens of seconds may be required.

17
And if you reduce the screen to some extent that
you cannot find data on it upon using Zoom Out, the
program may stop. Please recommend you that you
should restrain from reducing the screen excessiv-
ely.
⑥Select configuration data or sewing data to be applied prior to executing each function.
Upon selecting data, the configuration data indicates in blue and the sewing data indicates
in red. If you want to execute any data, it is good that you select it with a mouse and apply it
although the blue or the red indicates.

18
Configuration of
Program Function

19
Program Operation

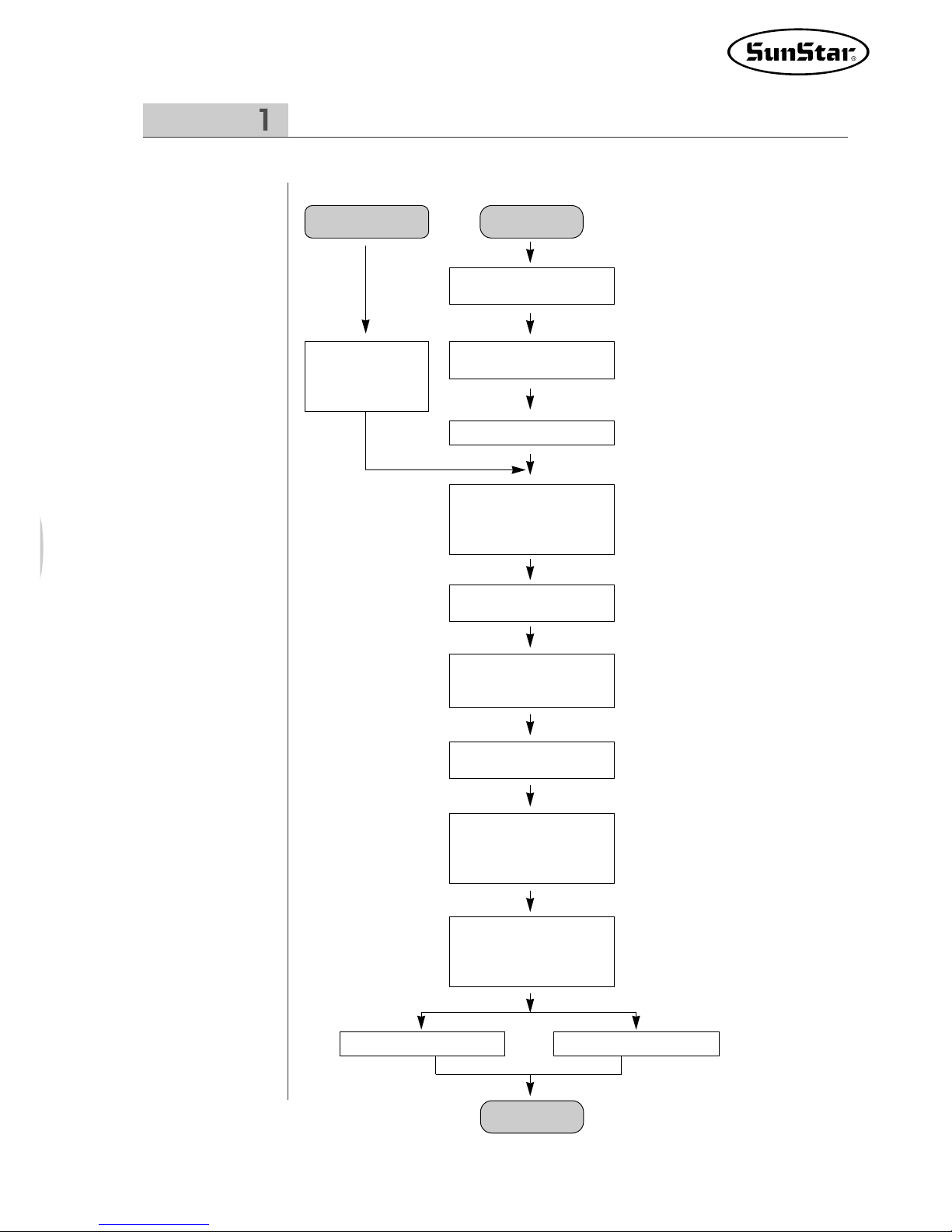

The following chart shows the most general program flow.
EditCreating New Data
Finish
Read sewing data to
edit.
Set up a machine
model to use.
The defined sewing machine
model defines the sewing range
of output data.
Set up the length and width of
stitches to be used.
Use the inputted configuration
data to create the sewing data
according to the sequence.
The length and width defined by
the sewing range determine the
edit range and are symmetrica-
lly displayed on the center of
the screen.
Select a sewing
size by sewing
machine types
and models.
Determine sewing size.
Set up various default
values for sewing and
set up them again
according to usage.
Input configuration data
to create sewing data.
Edit the created
configuration and
sewing data again.
Set up the length and
width of sewing data
Appropriately apply
sewing attribute codes
such as Back Tack and
Overlap Stitch.
Apply mechanical
control command codes
such as Thread
Trimmer or Stop.
Save sewing data Send design serial

20
Screen Configuration

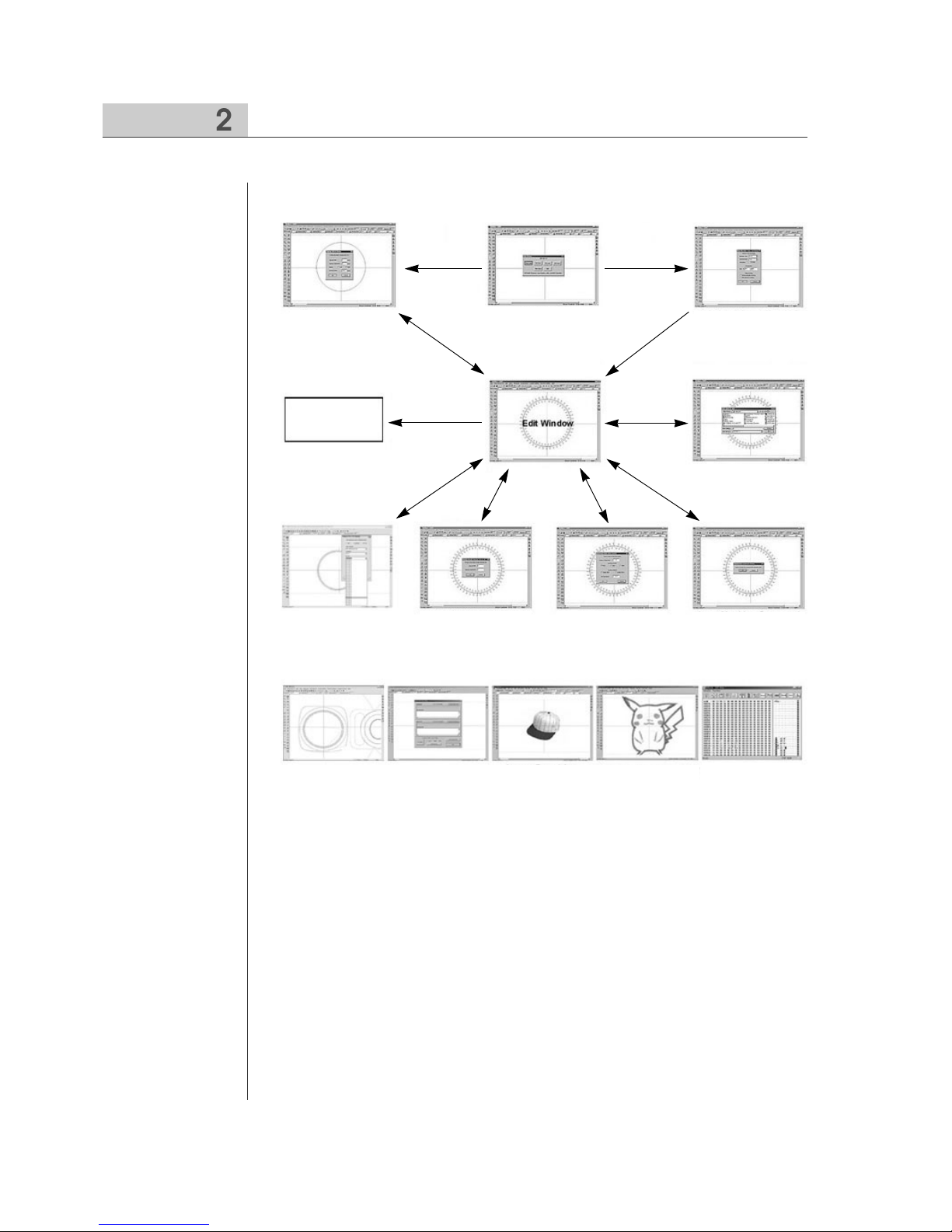

The general window configuration for the program is as follows
※The above functions show only basic configurations and there are various functions
including them.
Initial Sewing
Parameter Input
Screen
Start Screen Machine Model
Setup Screen
Edit Screen
Program Finish
Ron Wrster
Send design data serial Image Punching Embroidery Conversior
CAD* dxf file Conversior
M/C In/Out Port Control Input Pitch & Width Input Back Tack Input Machine Command
Save Data
