Sunstech DTB-P500HD User manual

-0-
DTB-P500HD |HD DVB-T
MANUAL DE USUARIO

1/51


UserManual













DTB‐P500HD
ENGLISH





2/51
ImportantSafetyInstructions
1) Readtheseinstructions.
2) Keeptheseinstructions.
3) Heedallwarnings.
4) Followallinstructions.
5) Donotusethisapparatusnearwater.
6) Cleanonlywithdrycloth.
7) Donotinstallnearanyheatsourcessuchasradiators,heatregisters,stoves,or
otherapparatus(includingamplifiers)thatproduceheat.
8) Operatethisproductonlyfromthetypeofpowersourceindicatedonthelabel.If
youarenotsureofthetypeofpowerconnectedtoyourhome,consultyourlocal
powercompany.Disconnecttheunitfromthemainsbeforeanymaintenanceor
installationprocedure.
9) Protectthemainscordfromdamageandstress.
10) Onlyuseattachments/accessoriesspecifiedbythemanufacturer.
11) Unplugthisapparatusduringlightningstormsorwhenunusedforlongperiodsoftime.
12) Referallservicingtoqualifiedservicepersonnel.Servicingisrequiredwhenthe
apparatushasbeendamagedinanyway,includingdamagetothemainscordorplug,if
theunithasbeenexposedtoliquidormoisture,hasbeendroppedorisnot
operatingcorrectly.
13) Donotimpedetheairflowintotheunitbyblockingtheventilationslots.
14) Attentionshouldbedrawntotheenvironmentalaspectsofbatterydisposal.
15) Usetheapparatusinmoderateclimate.
WARNING:Toreducetheriskoffireorelectricshock,donotexposethisapparatusto
rainormoisture.
WARNING:Thebatteriesshallnotbeexposedtoexcessiveheatsuchasdirectsunlight,
fire,etc.



























3/51

Thissymbolindicatesthatdangerousvoltagesconstitutingariskofelectricshockare
presentwithinthisunit.
Thissymbolindicatesthatthereareimportantoperatingandmaintenance
instructionsintheliteratureaccompan
Thissymbolindicatesthatthisproductincorporatesdoubleinsulationbetween
hazardousmainsvoltageanduseraccessibleparts.
Whenservicinguseonlyidenticalreplacementpar
Thissymbolontheproductorintheinstructionsmeansthatyourelectricaland
electronicequipmentshouldbedisposedattheendoflifeseparatelyfromyour
householdwaste.Thereareseparatecollectionsystemsforrecycling.
Formoreinformation,pleasecontactthelocalauthorityoryourretailerwhereyou
purchasedtheproduct.





























4/51
TableofContents
FrontandSidePanel……………………………………………………………….……..………………………..5
RemoteControl…………………………………………………….………………………………..………….………….6
ConnectingtoaTelevision…………………………………………………………………………………………….8
FirstTimeInstallation…………………………………………………………………………………….…………..9
Troubleshooting………………………………………………………………………………………………………..16
TechnicalSpecifications…………………………………………………………………………………………….17
WarrantyConditions……………………………………..…..……………………………………………………….17
PackageContents
Beforeinstallation,pleasechecktheofthepackage.
Thepackageshouldcontainthefollowingitems:
A.
DTB‐P500HD x1pc
B. RemoteControlx1pc
C. UserManualx1pc
D. Batteriesx2pc
E. AC/DCAdapterx1pc

  
DTB‐P500HD
RemoteUser’smanual


BatteriesAC/DCAdapter 




5/51

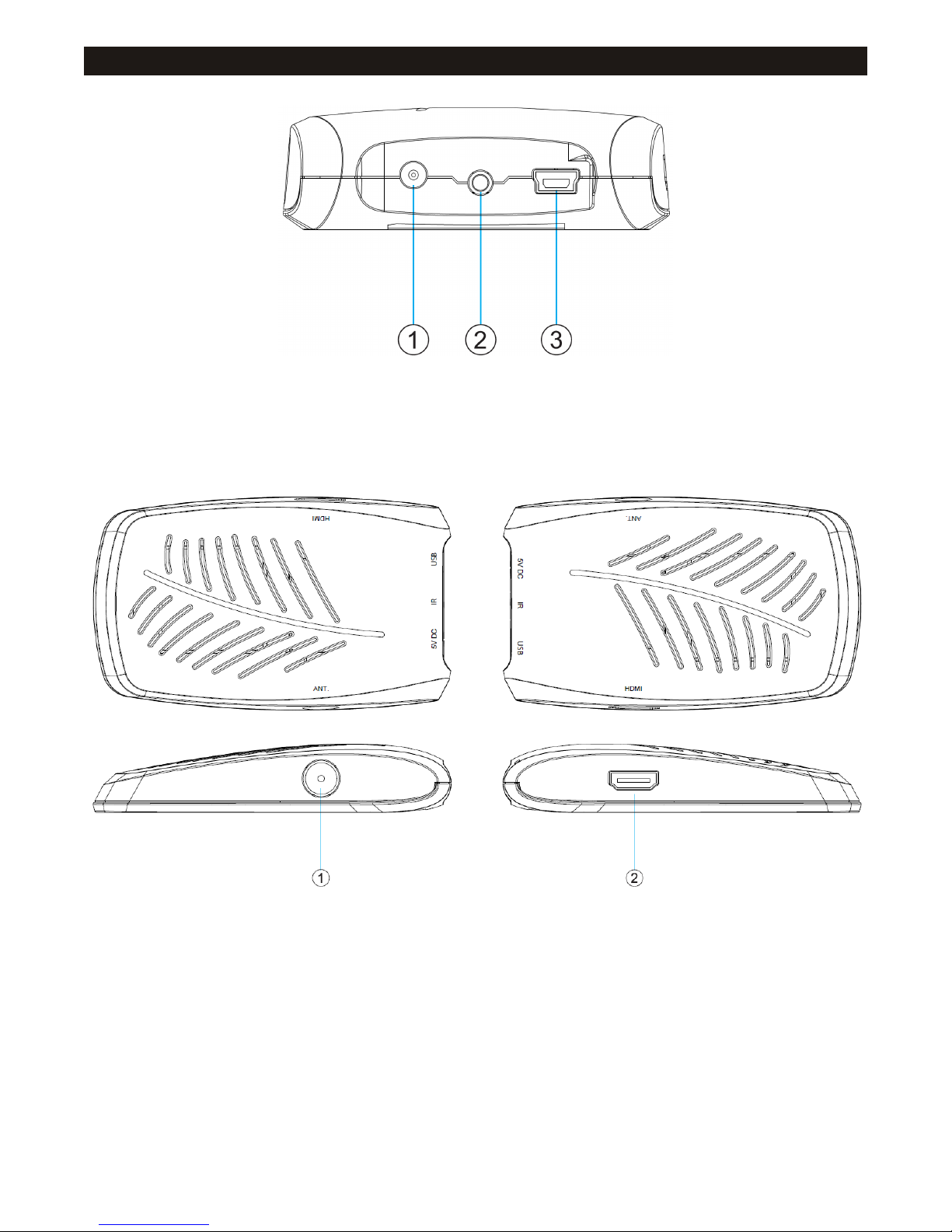

FrontandSidePanel 
1. Frontpanel

1)
DCIN:mainpowersupply. 
2) REMOTECONTROLSENSOR: UsedtoreceivethesignalfromtheRemoteControl.
3) USB:Forsoftwareupgradeandmediaplayback.



2. Side panel

1) ANT.: ThissocketconnectstoyourexternalAerial.
2) HDMI:HighdefinitionaudioandvideooutputusedtoconnecttoaHDMIdevice.







6/51

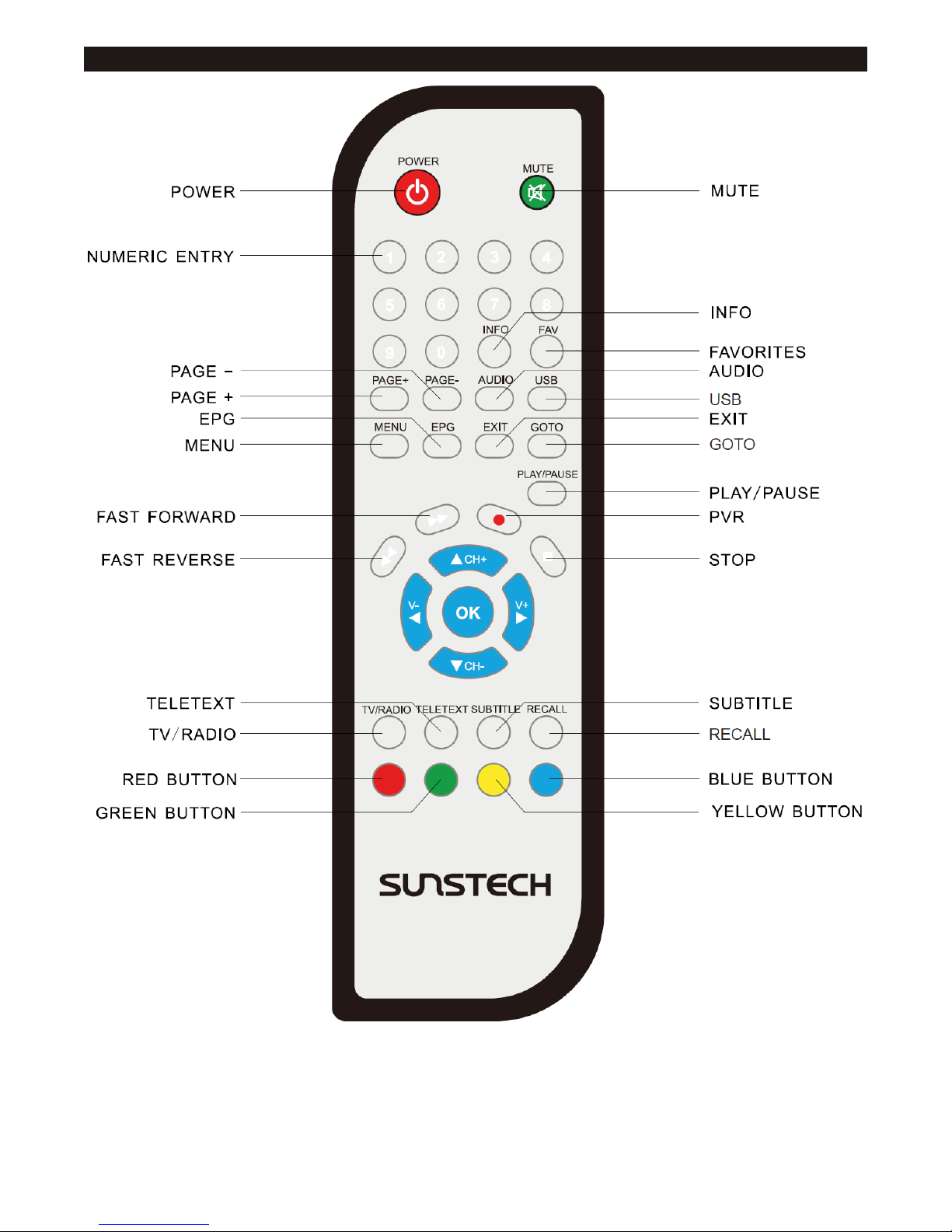

RemoteControl





7/ 51
InstallingtheBatteries
Removethebatterycoverfrom therearoftheRemoteControlandplace 2xAAAsizebatteries
insidethecompartment.
Pleasemakesurethebatterypolaritiesmatchthepolaritymarkingsinsidethe
compartment.
UsingtheRemoteControl
TousetheRemoteControl,pointittowardsthefrontoftheDigitalSetTopBox.
TheRemoteControlhasarangeofupto7metresfromtheSetTopBoxatan
angleofupto60degrees.

Theremotecontrolwillnotoperateifitspathisblocked.

Sunlightorverybrightlightwilldecreasethesensitivityoftheremotecontrol.


8/ 51
Connections
ForabasicconnectionfromyourSetTopBoxtothetelevision,usetheCompositeconnection
outlinedbelow.
Forahigherqualityconnection,usetheComponentVideoconnectionoutlinedbelow
combinedwiththeCompositeAudioConnection.
ForthehighestqualityconnectionuseadirectHDMIconnection,seebelow.

ConnectingtoTV













Note:Whenconnectingthereceivertootherequipment,e.g.,TV,VCRandamplifier,makesureto
refertorelevantusermanualforinstruction.Also,makesureyoudisconnectalltheequipments
fromthemainssupplybeforetheconnection.

COMPONENT
VIDEO
/
AUDIO
OUT

9/ 51

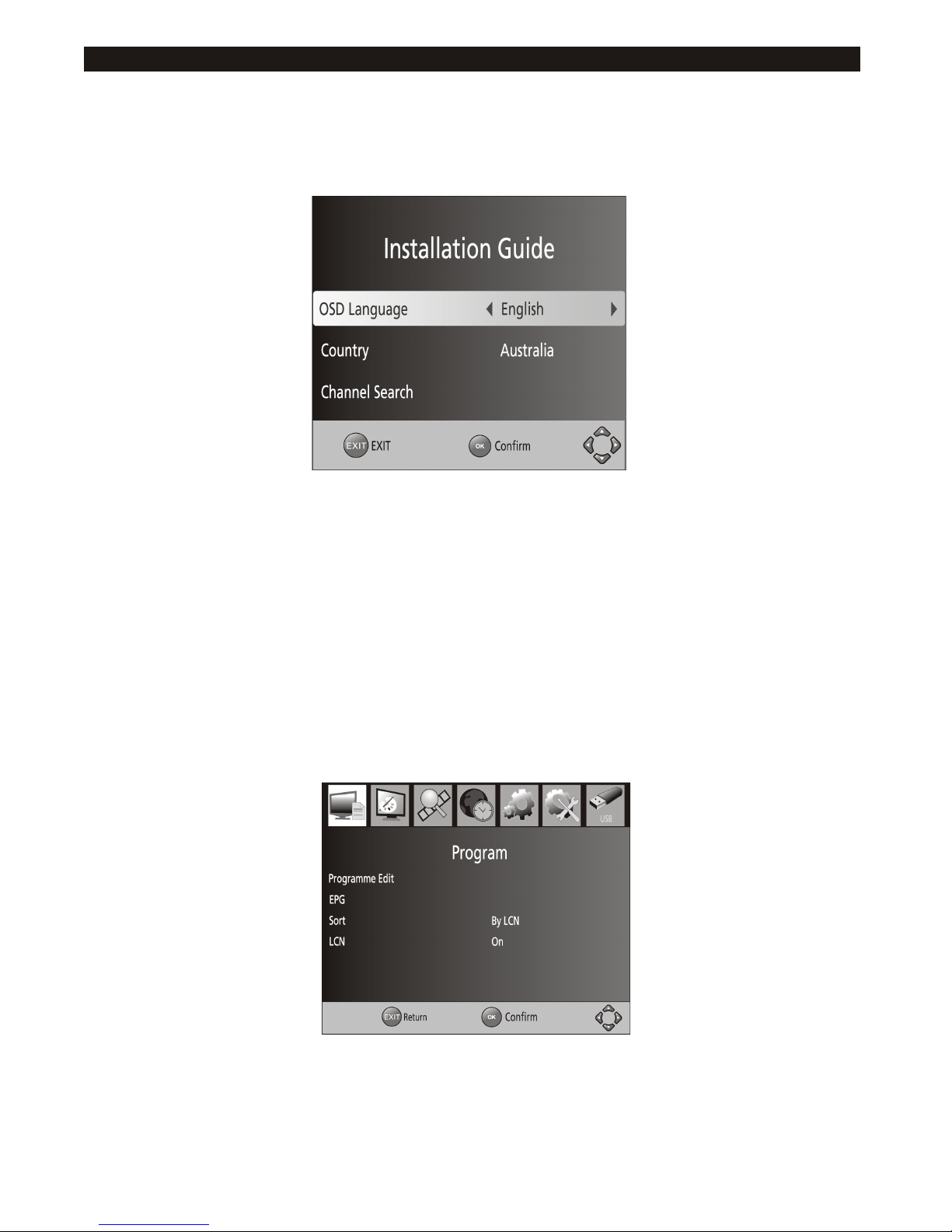

FirstTimeInstallation
Afterallconnectionshavebeenmadeproperly,switchonTVandmakesuretheunitis
connectedtotheMainPower.PressPowerbuttontoswitchtheuniton.Ifyouareusingthe
unitforthefirsttimeorhaverestoredtheunittoFactoryDefault,InstallationGuideMenuwill
appearonyourTVscreen.






(1)
[OSDLanguage]pressRIGHT/LEFTkeytoselectalanguage.
(2)
[Country]pressRIGHT/LEFTkeytoselectyourcountryofresidence.
(3)
[ChannelSearch]pressRIGHTorOKkeytobeginAutomaticchannelsearch.
(4)
Oncechanneltuningiscomplete,youcanstartwatchingTVprograms.

Basic Operation 
(1).ProgramManageSettings
ToaccesstheMenu,presstheMENUbuttonandselect[Program].usingtheRIGHT/LEFTkeys
tonavigatethroughthemenu.TheMenuprovidesoptionstoadjusttheProgramManage
Settings.SelectanoptionandpressOKorRIGHTtoadjustthatsetting.PresstheEXITbuttonto
exittheMenu.


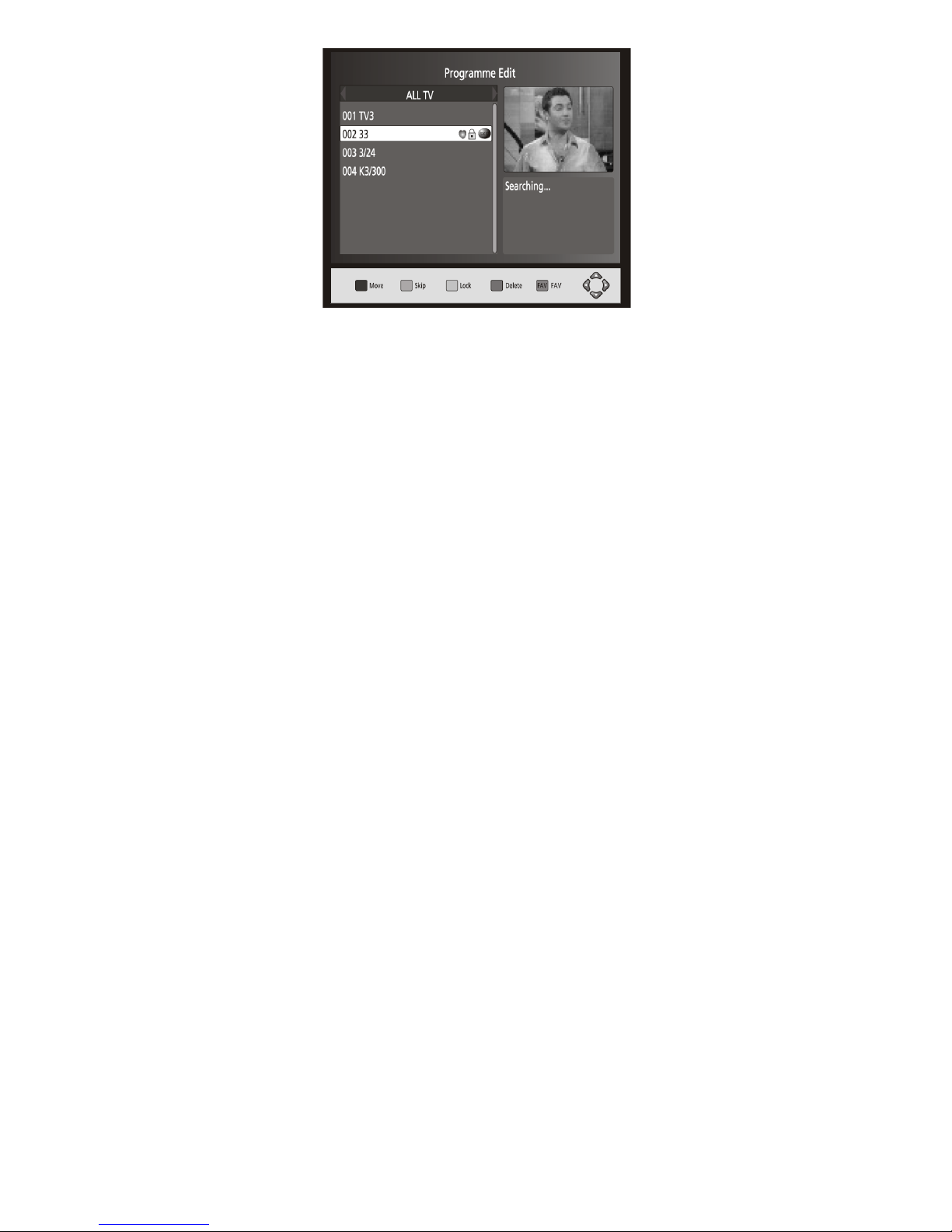

(a)ProgramEdit
Toedityourprogrampreferences(lock,skip,favourite,moveordelete),youwillneedtoenterthe
ProgramEditMenu.ThisMenurequiresapasswordtoaccess.Enterthedefaultpassword'000000'.
Themasterunlockpasswordis'888888'.

10 / 51

SetFavourite Channels
Youcancreateashortlistoffavouriteprogramsthatyoucaneasilyaccess.SetFavouriteTVor
Radioprogram:
1. SelectyourdesiredchannelthenpresstheFAVOURITEbutton.
Aheart‐shapedsymbolwillappearandthechannelismarkedasafavourite.
2.
RepeattheprevioussteptoselectmoreFavouritechannels.
3.
ToconfirmandexittheMenu,presstheEXITkey.

DisableFavouriteTVorRadioChannel:
SelecttheFavoritechannelandpressFavoritebuttonontheremotecontrolocancel.

ViewFavouriteChannel
1. Whileinnormalviewingmode,pressFavouritebuttonandtheFavouriteMenuwillappear.
2. PressUP/DOWNtobrowsethroughyourFavouriteChannels.
3. PressOKtoselectyourfavouritechannel.

DeleteaTVorRadioProgram
1. SelecttheProgramandthenpresstheBLUEbutton.
Awarningmessagewillappear.PressOKtodeletethechannel.
2. Repeattheprevioussteptoselectmorechannelstodelete.

SkipTVorRadioChannel
1. SelectthechannelyouwouldliketoskipandpresstheGREENbutton.
Askipsymbolisdisplayed.Thechannelismarkedasaskip.
2. Repeattheprevioussteptoskipmorechannels.
3. Tosaveyoursettingsandexitthemenu,pressEXITkey.

DisabletheSkipChannelfunction:
SelecttheSkipchannelandpresstheGREENbuttonontheremotecontroltocancel.

MoveaTVorRadioProgram
1.SelectthepreferredthenpresstheREDbutton.Amovesymbolwillappear.
2.PressUP/DOWNtomovethe
3.PressOKtoconfirm.
4.Repeattheabovestepstomovemorechannels.
LockProgram
Youcanlockselectedprogramsforrestrictedviewing.
LockaTVorRadiochannel:
1. SelectthepreferredchannelthenpresstheYELLOWbutton.Alock‐shapedsymbolis
displayed.Thechannelisnowmarkedaslocked.
2. Repeattheprevioussteptoselectmorechannel.
3. Toconfirmyoursettingandexitthemenu,presstheEXITbutton.

11 / 51
4. PresstheYELLOWbuttontodisablethelockedchannelsfunction.
5. Toviewthelocked,youwillberequiredtoentereitherthedefaultpassword'000000'or
yourlastsetpassword.Themasterunlockpasswordis'888888'.

(b)EPG(Electronicprogramguide)
TheEPGisanon‐screenTVguidethatshowsscheduledprogramssevendaysinadvanceforevery
tunedchannel.PresstheEPGbuttonontheRemoteControltoaccesstheguide.

YoucanusetheUP/DOWNkeytoselectthepreferredprogram.Ifthereis
morethanonepageofinformation,usetheBLUEbuttonforpageupand
theYELLOWbuttonforpagedown.

(c)Sort
Sortyourchannelsfromthefollowingoptions:
[ByLCN]‐Sortthechannelsinascendingorder.
[ByServiceName]‐Sortthechannelsinalphabeticalorder.
[ByServiceID]‐Sortthechannelsaccordingtothestation.
[ByONID]‐SortthechannelsaccordingtoONID.

(d)LCN(Logicalchannelnumber)
SetLCNonoroff.

(2).PictureSetting
ToaccesstheMenu,pressMENUthenselect[Picture]usingtheRIGHT/LEFT
key.TheMenuprovidesoptionstoadjustthevideosettings.PressUP/DOWN
toselectanoptionandpressRIGHT/LEFTtoadjustthatsetting.PressEXITto
exitthemenu.

(a)Resolution
Youcanchangethissettingifthepictureresolutiondoesnotappeartobecorrect.

12 / 51
ThissettingistomatchthemostcommonsettingforHDMI.
[480P]:forNTSCTVsystem.
[576P]:forPALTVsystem.
[720P]:forNTSCorPALTVsystem.
[1080I]:forNTSCorPALTVsystem.

(b)TVFormat
Ifthepicturedoesnotappeartobecorrectyoucanchangethissetting.
ThisshouldmatchthemostcommonsettingforTVsinyourcountry.
[NTSC]:forNTSCsystemTV.
[PAL]:forPALsystemTV.

(3).ChannelSearch
Toaccessthemenu,pressMENUandselect[SearchChannel]usingtheRIGHT/LEFTkeys. 
ThisMenuprovidesoptionstoadjusttheSearchChannelsettings. 
PressUP/DOWNtoselectanoptionandpressRIGHT/LEFTtoadjustthesettings.
PressEXITtoexittheMenu


(a) AutoSearch
Thisoptionwillautomaticallysearchforchannelsandsavethemoncethescanningis
complete.Allpreviouslysavedchannelsandsettingswillbedeleted.
1. Select[AutoSearch]andpressOKorRIGHTtostartchannelsearch.
2. Tocancelchannelsearch,pressEXIT.Anychannelsthathavebeenfoundwillbesaved.


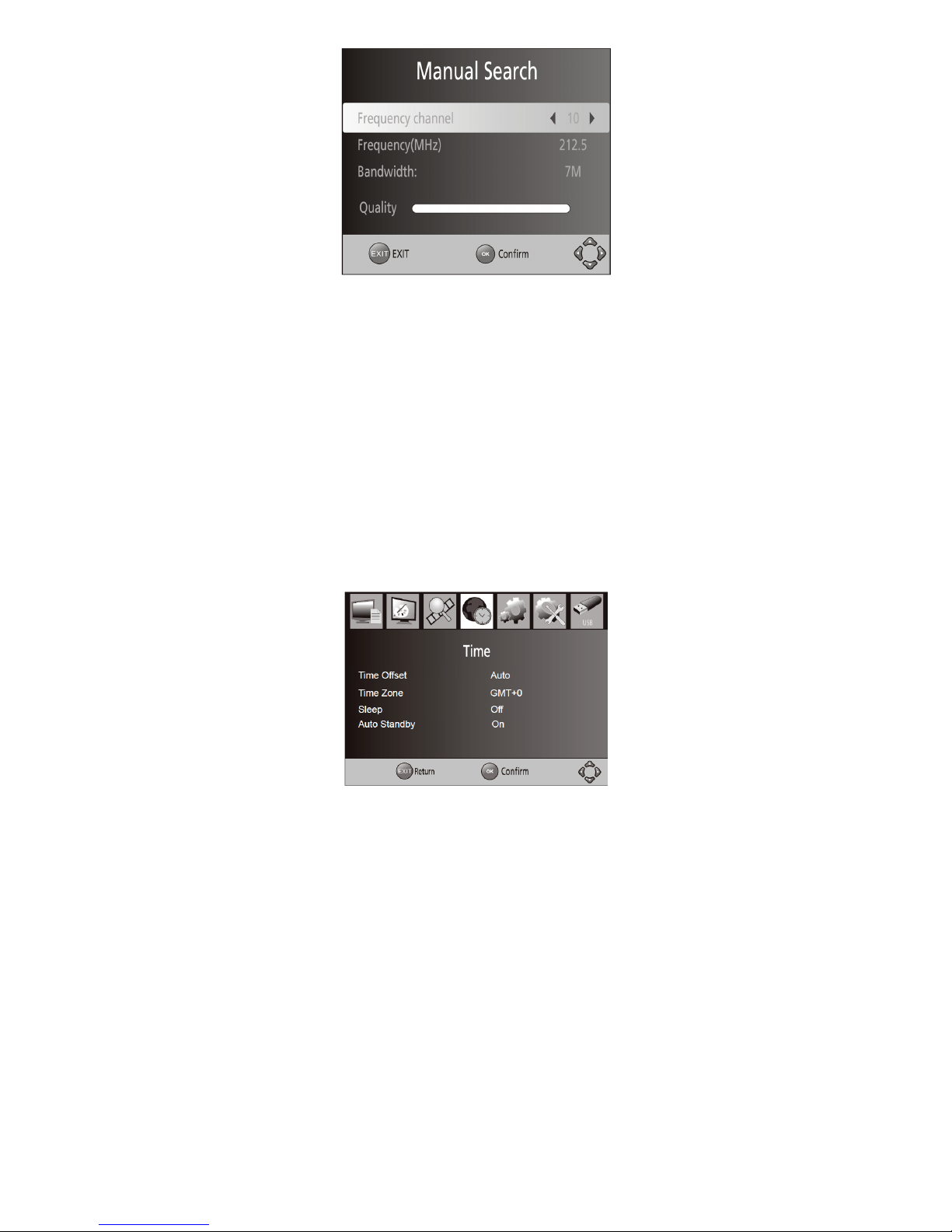

(b)ManualSearch
Thisoptionallowsyoutoscanfornewchannelswithoutdeletingpreviouslysavedchannelsand
settings.
1. Select[ManualSearch]thenpressOKorRIGHT.Thechannelsearchscreenwillappear.

13 / 51

2. PresstheRIGHT/LEFTkeytoselectthechannelfrequency.
3. PressOKtostartsearchingchannels.
Ifachannelisfound,itissavedandaddedtothechannelslist.Ifchannelscannotbefoundduring
searching,theunitwillexitautomatically.
(c)Country
Selectyourcountryofresidence.
(d)AntennaPower
EnableAntennaPowerifanexternalactiveantennaisconnected.
(4).TimeSetting
Toaccesstheselect[Time]usingtheRIGHT/LEFTkeys.TheMenuprovidesoptionstoadjustthe
timesettings.
PressUP/DOWNtoselectanoptionandpressRIGHT/LEFTtoadjustthesettings.PressEXITtoexit
themenu.
(a)Timeoffset
SelectautoormanualforGMToffsetadjustments.
(b) CountryRegion
SelecttheCountryRegionwhen[TimeOffset]issettoAuto.
(c) TimeZone
SelecttheTimeZoneOffsetwhen[TimeOffset]issettoManual.
(5).Option
ToaccesstheMenu,pressMENUandselect[Option]usingtheRIGHT/LEFTkeys.Themenuprovides
optionstoadjusttheOSDLanguage,
SubtitleLanguageandAudioLanguage.
SelectanoptionandpressRIGHT/LEFTtoadjustthesetting.
PressEXITtoexittheMenu

14 / 51

(a)OSD(OnScreenDisplay)Language
SelectanOSDlanguage.
(b)SubtitleLanguage
Selectthepreferredsubtitlelanguage.
(c)AudioLanguage
SelectthepreferredaudiolanguageforwatchingTVchannels.Ifthelanguageisnotavailable,the
defaultprogramlanguagewillbeused.
(d)DigitalAudio
Selectdigitalaudiooutputmode.
(6).SystemSetting
ToaccesstheMenu,pressMENUandselect[System]usingtheRIGHT/LEFTkeys.Themenuprovides
optionstoadjustthesystemsettings.PresstheUP/DOWNkeytoselectanoptionandpress
RIGHT/LEFTtoadjustthesetting.PressEXITtoexittheMenu.
(a)SetPassword
Setorchangethepasswordforlockedprograms.Enteryouroldpasswordorthedefaultpassword
'000000'.Youwillthenbeaskedtoenteryournewpassword.PressOKbuttontoconfirmyournew
password.Onceitisconfirmed,pressEXITtoexittheMenu.Themasterunlockpasswordis'888888'.
(b)RestoreFactoryDefault
ResetyourSetTopBoxtotheDefaultFactorySettings.InMainMenuselect[RestoreFactoryDefault]
usingtheRIGHT/LEFTkeysandpressOKorRIGHTtoselect.Enteryourpasswordorthedefault
password'000000'andpressOKtoconfirm.Thisoptionwilldeleteallpresetchannelsandsettings.
Themasterunlockpasswordis'888888'.
(c)Information
Viewmodel,hardwareandsoftwareinformation.
(d)Softwareupdate
Ifthestatusisset'ON',itwillscannewsoftwarefrombroadcastaccordingtoyourpreferredtimein
"Starttime".
(e)StartTime

15 / 51
Thisisthetimethattheunitwillscanforsoftwareupdates.
(7).USB
ToaccesstheMenu,presstheMENUbuttonandselect[USB]usingtheRIGHT/LEFTkeys.Themenu
providesoptionstoplaybackMusic,PhotoandMultimediafiles.ItcansupportAVI,MP3,WMA,JPEG
andBMPformats.TheunitwillonlysupportUSBdevicewithFAT32filesystem.Itwillnotsupport
NTFSfilesystem.

(a) Multimedia:WhenaUSBdeviceisattachedyoucanselectfromtheMusic,PhotoorMovie
optionsinthismenuusingtheRIGHT/LEFTkeysandOKtoselect.IfaUSBdeviceisnotconnected,the
warningmessage"NoUSBdeviceisFound"willappear.
(b) Photoconfigure:
‐SlideTime:adjustslideshowintervalto1~8seconds.
‐SlideMode:adjustslideshoweffectasmode0~59orrandom.
‐AspectRatio:
[Keep]:Playpictureinitsoriginalaspect.
[Discard]:Playpictureinfullscreenmode.
(c) MovieConfigure:
‐AspectRatio:
[Keep]:Playmovieinitsoriginalaspect.[Discard]:Play
movieinfullscreenmode.
‐SubtitleSpecific:
[Small]:Displaysthesubtitleassmallmode.[Normal]:Displaysthe
subtitleasnormalmode.[Big]:Displaysthesubtitleasbigmode.
‐SubtitleBG:
[White]:Displaysthesubtitleinwhitebackground.[Transparent]:Displaysthesubtitleintransparent
background.[Grey]:Displaysthesubtitleingreybackground.[Yellowgreen]:Displaysthesubtitlein
yellowgreenbackground.
‐SubtitleFontColor:
[Red]:DisplaysSubtitleinredfont.[Blue]:Displays
Subtitleinbluefont.
[Green]:DisplaysSubtitleingreenfont.
Note:
‐Wecannotguaranteecompatibility(operationand/orbuspower)withallUSBmassstoragedevices
andassumenoresponsibilityforanylossofdatathatmayoccurwhenconnectedtothisunit.
‐Withlargeamountsofdata,itmaytakelongerforthesystemtoreadthecontentsofaUSBdevice.
‐SomeUSBdevicesmaynotbeproperlyrecognised.
‐Evenwhentheyareinasupportedformat,somefilesmaynotplayordisplaydependingonthe
content.

16 / 51
Troubleshooting














ProblemPotentialReasonsWhattodo
NOpicture
Powerisn’tconnectedConnectthepower
ThepowerswitchisnotonSwitchonthepower
Screenshows
NoSigna
DVB‐TcablenotconnectedPlugintheDVB‐Tcable
AerialcableisfaultyCheckaerialcableandconnections
Nosoundfrom
speaker
Noorincorrectconnectionwith
audiocableConnecttheaudiocablecorrectly
SoundonmuteTurnoffmutefunction
Onlysound,no
imageonthe
screen
NoorincorrectconnectionwithAV
cableMakesurecablesareconnected
correctly
TheprogramisaradioprogramPress<TV/RADIO>keytoshiftinto
TVmode
RemoteControl
isnotresponding
ThebatteryisexhaustedChangebattery
RemoteControlisnotfacingorlose
enoughtotheSetTopBox
AdjustthepositionoftheRemote
Controlandmoveclosertotheunit
Pictureisbreaking
upThesignalistooweakCheckaerialcableandconnections

17 / 51
TechnicalSpecifications

ItemSubItemParameter
Tuner
InputFrequency174~230MHz
474~858MHz
RFInputlevel‐80~‐20dBm 
IFBandwidth7MHzand8MHz
ModulationQPSK,16QAM,64QAM
Video
DecoderFormatMPEG2:MP@HLvideodecoding
MPEG4:SupportuptoASP@L5HDresolution
OutputFormat576P,576i,720P,1080i,4:3and16:9
OutputPortHDMI(V1.3C),
AudioDecoderFormatMPEG‐1,MPEG‐2(Layer1/2),MP3,AC3(option),
E‐AC3(option),AAC
USB2.0SupportedCapacitySupportsoftwareupgradeandplaybackMPEG‐2
/MP3/JPG/BMPfilesandPVRready
Power
SupplyVoltage5VDC‐IN
MaximumPower
Consumption12W
StandbyPower
Consumption<1W
Weight153g
Size110×66×21mm

*Specificationsaresubjecttochangewithoutfurthernotice.

WarrantyConditions

- Thewarrantyofthisproductisfor2yearssincethepurchasedate.
- Thewarrantywillexcludebreakdownscausedbybaduseoftheproduct,wronginstallationor
installationinnotdesirableplacesforapropermaintenanceoftheproduct,rips,updatesofthe
productsthatarenotthesuppliedbythebrand,piecesworeawayforitsuseorfornotdomestic
orinappropriateuse.Alsoareexcludedbreakdownscausedformanipulationsoftheproductsby
peopleorcompaniesalientoourcompany.
- Foranyrequestregardingthewarrantyterms,thepurchasereceiptmustbeattached.

18 / 51



Manualdelusuario














DTB‐P500HD
ESPAÑOL






19 / 51
ImportantSafetyInstructions
1)Leaestasinstrucciones.
2)Conserveestasinstrucciones.
3)Presteatenciónatodaslasadvertencias.
4)Sigatodaslasinstrucciones.
5)Noutiliceesteaparatocercadelagua.
6)Limpiesolamenteconunpañoseco.
7)Noinstalarcercadeningunafuentedelcalorcomoradiadores,rejillasdecalefacción,estufasu
otrosaparatos(incluidosamplificadores)queproduzcancalor.
8)Utiliceesteproductosolamenteconeltipodefuentedealimentaciónindicadoenlaetiqueta.Sino
estásegurodeltipodealimentaciónconectadoasuhogar,consulteasucompañíaeléctricalocal.
Desconectelaunidaddelaredantesderealizarcualquierprocedimientodemantenimientoo
instalación.
9)Protejaelcabledereddedañosytensión.
10)Useúnicamentelossuplementos/accesoriosespecificadosporelfabricante.
11)Desenchufeelaparatodurantetormentaseléctricasocuandonoloutiliceporlargosperíodosde
tiempo.
12)Elserviciotécnicosiempredebeserrealizadoporpersonalcualificado.Serequeriráservicio
técnicocuandoelaparatohayasufridocualquiertipodedaño,inclusodañosenelcablede
alimentaciónoelenchufe,silaunidadhaquedadoexpuestaalíquidosohumedad,sisehacaídoono
estafuncionandocorrectamente.
13)Nobloqueelasrejillasdeventilación,paranoimpedirelflujodeaireenelinteriordelaunidad.
14)Aldesecharlaspilas,debeprestarseatenciónalosaspectosambientales.
15)Utiliceelaparatoencondicionesclimáticastempladas.
ADVERTENCIA:parareducirelriesgodeincendioodescargaeléctrica,noexpongaesteaparatoa
lluviaohumedad.
ADVERTENCIA:laspilasnodebenquedarexpuestasacalorexcesivocomolaesluzsolardirecta,fuego,
etc.
