SunStone Power SLPO12-100N User manual

LITHIUM BATTERY PACK
USER MANUAL
※Please read this manual before using the battery pack
※Please keep this manual properly after reading
MODEL: SLPO12-100N

Sunstone Power Industrial GmbH PT. Solid Power Energi Indonesia Sunstone Power Industry Co., Ltd.
Nobelring 13, 60598 Frankfurt (M) Germany
Komplek Duta Indah Iconic, Blok. C No. 2 Jl. 1803A, Tiley Central Plaza. Shenzhen, China
www.sunstonepower.de MH Thamrin KM.2 Kebon Nanas, Tangerang 15143 Indonesia www.sunstonepower.com
[e-mail] [e-mail] [e-mail]
1. Product key parameters
NO. Specification
Item
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
1.10
1.11
1.12
1.13
1.15
1.16
1.17
1.18
1.19
Charging voltage
Nominal voltage
Cut-off voltage
Nominal capacity
Min. capacity
Standard charging
current and voltage
Charging time
Max charging current
Max. discharge current
Working Temp.
Storage Temp. and
humidity range
Cycle life
Battery weight
Ex-work voltage
Dimension
Function
Color
14.4V±0.2V
12.8V
10V
100Ah (After standard charging, discharging at 0.5C.)
100Ah (After standard charging, discharging at 0.5C.)
Step 1: 50A constant current charge to 14.4V;
Step 2: 14.4V constant voltage charge until the charging current reaches
5A.
Temp.：0~45°C
2.5hours (for reference)
100A
100A
Charging: 0~45°C; Discharging: -20~55°C
1month: -20~45°C
3 months: -10~45°C
6 months: 0~25°C
humidity: 45~90% RH
The battery should be cycled every three months.
After 6000 cycles, at 25°C, 50A charge and discharge 80% DOD,
recoverable capacity ≥ 80%
≤ 100mΩ(50% capacity，AC impedance 1kHz measuring)
About 11.5kg
13~13.8V
320(L)*172(W)*230(H)mm
Bluetooth
Grey
Initial battery
internal resistance
1.1
1.14
Appearance The battery pack surface is clean, free from scratches and mechanical
damage.

Sunstone Power Industrial GmbH PT. Solid Power Energi Indonesia Sunstone Power Industry Co., Ltd.
Nobelring 13, 60598 Frankfurt (M) Germany
Komplek Duta Indah Iconic, Blok. C No. 2 Jl. 1803A, Tiley Central Plaza. Shenzhen, China
www.sunstonepower.de MH Thamrin KM.2 Kebon Nanas, Tangerang 15143 Indonesia www.sunstonepower.com
[e-mail] [e-mail] [e-mail]
2. Structural characteristics and interface function
2.1 Basic structure
Fireproof plastic ABS+PC.
2.2 Installation method
Professional sealant seal.
2.3 Over structure
The battery pack is mainly composed of the following parts: a plastic case, which contains a 4S
module inside, accessories including BMS, plug column. The overall structure is simple, high reliabili-
ty, lightweight, and high energy density.
2.4 External interface function

Sunstone Power Industrial GmbH PT. Solid Power Energi Indonesia Sunstone Power Industry Co., Ltd.
Nobelring 13, 60598 Frankfurt (M) Germany
Komplek Duta Indah Iconic, Blok. C No. 2 Jl. 1803A, Tiley Central Plaza. Shenzhen, China
www.sunstonepower.de MH Thamrin KM.2 Kebon Nanas, Tangerang 15143 Indonesia www.sunstonepower.com
[e-mail] [e-mail] [e-mail]
3. BMS protection threshold and Bluetooth usage
3.1 BMS protection threshold
2.4.1 Battery pack interface definition
2.4.2 Battery pack interface definition
The red terminal is the positive electrode of the battery, and the black terminal is the negative elec-
trode of the battery. Use M8 screws to lock it tightly. When installing, use SC25-8 copper nose to
connect external equipment for energy supply or charging.
Features
Charge and discharge positive terminal
Charge and discharge negative terminal
Interface
Positive electrode
Negative electrode
Remarks
Support continuous 100A single pin overcharge
Support continuous 100A single pin overcharge
Voltage range
Charging current (continuous)
Discharge current (continuous)
Overcharge protection voltage
Overcharge protection delay time
Overcharge protection recovery voltage
Over discharge protection voltage
Over discharge protection delay time
Over discharge protection recovery voltage
Charge overcurrent protection value
Charge overcurrent delay
Charge overcurrent release recovery conditions
Discharge overcurrent 1 protection current
value
Discharge overcurrent 1 protection delay
Discharge overcurrent 2 protection current
value
Discharge overcurrent 2 protection delay
Discharge overcurrent protection recovery
conditions
Operating Voltage
Operating current
Charge protection
Discharge
protection
Overcurrent
protection
1~3S
1~3S
Delay 32S release
Delay 32S release
-
-
-
3.650
3.500
2.500
3.000
110
-
110
-
380
-
10
-
-
3.600
3.450
2.450
2.900
105
7
105
7
360
100
14.6
100
100
3.700
3.550
2.550
3.100
115
13
115
13
400
500
V
A
A
V

V
V

V
A
S
A
S
A
mS
Minimum
value
Item Unit
Specification
Function Typical
value
Typical
value

Sunstone Power Industrial GmbH PT. Solid Power Energi Indonesia Sunstone Power Industry Co., Ltd.
Nobelring 13, 60598 Frankfurt (M) Germany
Komplek Duta Indah Iconic, Blok. C No. 2 Jl. 1803A, Tiley Central Plaza. Shenzhen, China
www.sunstonepower.de MH Thamrin KM.2 Kebon Nanas, Tangerang 15143 Indonesia www.sunstonepower.com
[e-mail] [e-mail] [e-mail]
Short circuit protection current
Short circuit protection recovery
Balanced opening voltage
Balanced opening pressure difference
Balanced mode
Balance current
Charging over temperature protection value
Charge high temperature protection release
value
Charging low temperature protection value
Charging low temperature protection release
value
Discharge high temperature protection value
Discharge high temperature protection release
value
Discharge low temperature protection value
Discharge low temperature protection release
value
Internal resistance of discharge circuit
Short circuit
protection
Balance
Temperature
protection
Internal resistance
Disconnect load, automatic recovery
3.35~3.45V
Charge balance
-
30
-
65
55
-5
5
70
60
-20
0
5
200
-
40
63
53
-7
3
68
58
-18
-2
-
600
-
60
67
57
-3
7
72
62
-22
2
10
A
mV
mA
°C
°C
°C
°C
°C
°C
°C
°C
mΩ
Minimum
value
Item Unit
Specification
Function Typical
value
Typical
value
3.2 Use of Bluetooth
(1) User can download the battery Bluetooth APP by searching for Sunstone Batteriemonitor on
the Google Play, or from the link below(Please open in a browser other than Google Chrome):
https://www.sunstonepower.com/download.html
Install the APP. After the installation is successful, the APP icon will be generated, as shown below:

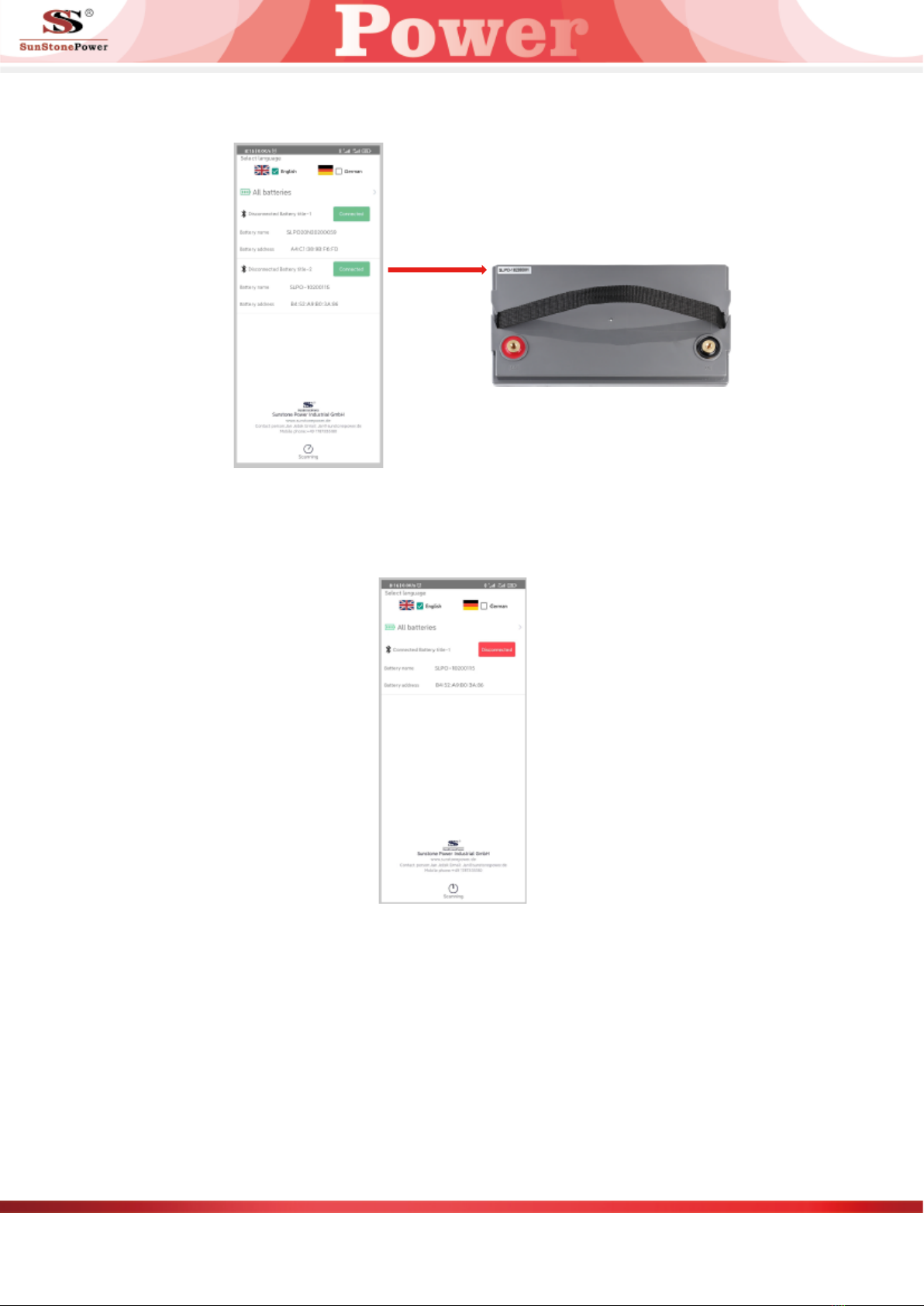

(2) Turn on the Bluetooth of the mobile phone, and open the APP, and find the corresponding
battery pack according to the battery name in the upper left corner of the battery pack, as shown
below:

Sunstone Power Industrial GmbH PT. Solid Power Energi Indonesia Sunstone Power Industry Co., Ltd.
Nobelring 13, 60598 Frankfurt (M) Germany
Komplek Duta Indah Iconic, Blok. C No. 2 Jl. 1803A, Tiley Central Plaza. Shenzhen, China
www.sunstonepower.de MH Thamrin KM.2 Kebon Nanas, Tangerang 15143 Indonesia www.sunstonepower.com
[e-mail] [e-mail] [e-mail]

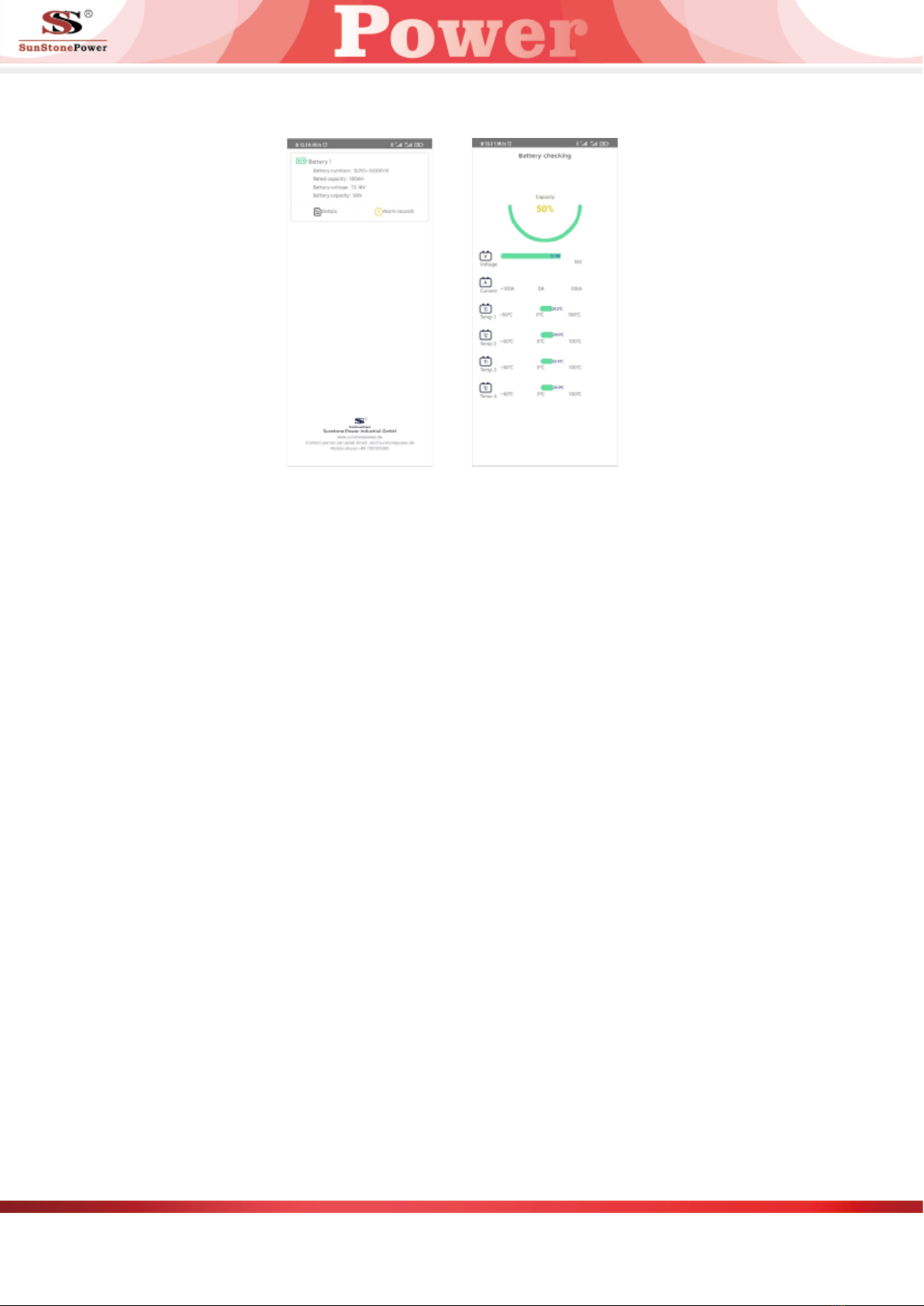

(4) After the connection is successful, the user can see the parameter interface of the battery pack,
which mainly consists of the following parameters, as shown below:
(3) Select the battery pack the user need to connect, as shown below:

Sunstone Power Industrial GmbH PT. Solid Power Energi Indonesia Sunstone Power Industry Co., Ltd.
Nobelring 13, 60598 Frankfurt (M) Germany
Komplek Duta Indah Iconic, Blok. C No. 2 Jl. 1803A, Tiley Central Plaza. Shenzhen, China
www.sunstonepower.de MH Thamrin KM.2 Kebon Nanas, Tangerang 15143 Indonesia www.sunstonepower.com
[e-mail] [e-mail] [e-mail]
4. Daily use and maintenance of battery pack
4.1 Daily maintenance of battery pack
(1) Check the voltage data on the Bluetooth and the actual battery voltage value to ensure the
accuracy of the voltage collection of the BMS. If they are inconsistent, proofreading is required. The
error between the collected voltage and the actual battery voltage does not exceed 10mV.
(2) Check the temperature collection data and actual temperature value of the BMS, and the data
error between the collected data and the actual temperature value is not allowed to exceed 3℃, to
ensure that the battery will not be charged or discharged when the temperature is too high or too
low.
(3) Check the BMS current collected data and actual current value, the error is not allowed to exceed
1%, to ensure that the battery will not be charged or discharged by overcurrent.
(4) Check the reliability of the charging equipment to ensure that the charging equipment performs
charging according to the voltage and current regulationsent by the BMS, to ensure that the battery
will not be overcharged.
(5) Check the connection of the battery pack is good, the contact points are in normal contact, and
there is no accumulation of dust, powder, metal chips.
4.2 Caution
(1) Children are not allowed to use the batteries.
(2) It is forbidden to disassemble the battery.
(3) Keep batteries or battery packs away from dangerous items or materials, such as corrosive chemi-
cals, dangerous machinery and equipment, and high-temperature environments.

Sunstone Power Industrial GmbH PT. Solid Power Energi Indonesia Sunstone Power Industry Co., Ltd.
Nobelring 13, 60598 Frankfurt (M) Germany
Komplek Duta Indah Iconic, Blok. C No. 2 Jl. 1803A, Tiley Central Plaza. Shenzhen, China
www.sunstonepower.de MH Thamrin KM.2 Kebon Nanas, Tangerang 15143 Indonesia www.sunstonepower.com
[e-mail] [e-mail] [e-mail]
(4) Unreasonable use of this of products may cause smoke, such as external short circuit, overcharg-
ing, and high ambient temperature. If smoke occurs, please cut off the power in time, use carbon
dioxide or dry powder fire extinguisher for treatment, and bury it with sand or mud. The crowd
must be evacuated in time during the entire process.
(5) Unreasonable use of this series of products may cause the single battery to swell. In severe cases,
it may cause the casing to rupture or crack. In these conditions, the battery should be stopped
immediately. Please contact our technical department or after-sales service department for further
solution.
(6) It is forbidden to short circuit the positive and negative terminal of the battery directly, and avoid
any metal or other conductive objects contacting the positive and negative terminal of the battery.
This operation may cause personal injury or property damage.
(7) It is forbidden to immerse the battery in water or other conductive liquids. This operation may
cause personal injury or property damage.
(8) It is forbidden to use this product in series or parallel with other types of batteries. It is also
forbidden to connect the whole system in series or parallel operation with other batteries. These
operations may cause personal injury or property lose. If necessary, please contact the relevant
technical department to obtain the correct technical support.
(9) It is forbidden to get wet under the environment of more than 95%RH, even immerse in water.
Otherwise, it may cause internal short circuit, loss of function or abnormal chemical reaction, and
cause fire, smoke, explosion and other accidents.
(10) It is forbidden to put the battery system into fire or to be exposed to a high temperature envi-
ronment exceeding the temperature conditions specified in this specification for a long time. These
environments above the safe temperature range will cause a significant decrease in the performance
and life of this product, and even cause serious consequences such as combustion and explosion.
(11) It is forbidden to store and use in an environment with high static electricity or high electro-
magnetic radiation. Otherwise, the electronic devices in this product will be damaged, which may
cause potential safety hazards.
(12) Connect the positive and negative terminal of the battery system strictly in accordance with the
instructions, and reverse charging is prohibited.
(13) When the electrolyte leaks, avoid contacting the electrolyte with skin and eyes. In case of
contact, wash the area with plenty of water and seek medical assistance. It is forbidden for any
person or animal to swallow any part of the battery system or the substance contained in the
battery system.
(14) Protect the battery system as much as possible to avoid mechanical vibration, collision and
pressure shock, otherwise the battery system may short circuit, resulting in high temperature and
fire.
