Parkside PAPK 12 A2 User manual

2 Ah BATTERY PAPK 12 A2 + CHARGER PLGK 12 A1
AKKU 2 Ah + LADEGERÄT
Originalbetriebsanleitung
2 Ah BATTERY + CHARGER
Translation of the original instructions
IAN 320149_1901

GB/IE/NI Translation of the original instructions Page 1
DE/AT / CH Originalbetriebsanleitung Seite 15
Before reading, unfold the page containing the illustrations and familiarise
yourself with all functions of the device.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen
Sie sich anschließend mit allen Funktionen des Gerätes vertraut.

A

Charging
times
Charging
currents
2 Ah
Battery pack
PAPK 12 A1
2 Ah
Battery pack
PAPK 12 A2
4 Ah
Battery pack
PAPK 12 B1
max. 2.4 A
Charger
PLGK 12 A1
60 min
2.4 A
60 min
2.4 A
120 min
2.4 A
max. 4.5 A
Charger
PLGK 12 B2
60 min
2.4 A
45 min
3.5 A
60 min
4.5 A

All Parkside tools and the chargers PLGK 12 A1 / PLGK 12 B2 of the
X12V Team series are compatible with the PAPK 12 A1 / PAPK 12 A2 /
PAPK 12 B1 battery pack.
12V max.
10,8V

PAPK 12 A2 + PLGK 12 A1 GB│IE│NI │ 1 ■
Contents
Introduction........................................ 2
Intended use.................................................2
Features ....................................................2
Package contents .............................................2
Technical specifications ........................................3
General safety instructions ........................... 3
Use and handling of the cordless electrical power tool ................4
Extended safety guidelines......................................5
Safety guidelines for battery chargers .............................5
Before use ......................................... 6
Charging the battery pack (see fig. A).............................6
Maintenance and storage ............................ 7
Kompernaß Handels GmbH warranty .................. 8
Service ........................................... 10
Importer .........................................10
Disposal..........................................11
Notes on the EC Declaration of Conformity .............12
Ordering a replacement battery......................12
Telephone ordering ......................................... 13

PAPK 12 A2 + PLGK 12 A1■ 2 │ GB│IE│NI
Introduction
Congratulations on the purchase of your new appliance. You have chosen a
high-quality product. The operating instructions are part of this product. They
contain important information about safety, usage and disposal. Before using
the product, please familiarise yourself with all of the operating and safety
instructions. Use the product only as described and for the range of applica-
tions specified.
Please also pass these operating instructions on to any future owner.
Intended use
This charger is exclusively intended for charging PARKSIDE batteries of the
PAPK 12 A1/A2/B1 series. This rechargeable battery is suitable for:
This rechargeable battery is not intended for commercial use. Any other us-
age of or modification to the appliance is deemed to be improper and carries
a significant risk of accidents. The manufacturer accepts no responsibility for
damage attributable to misuse.

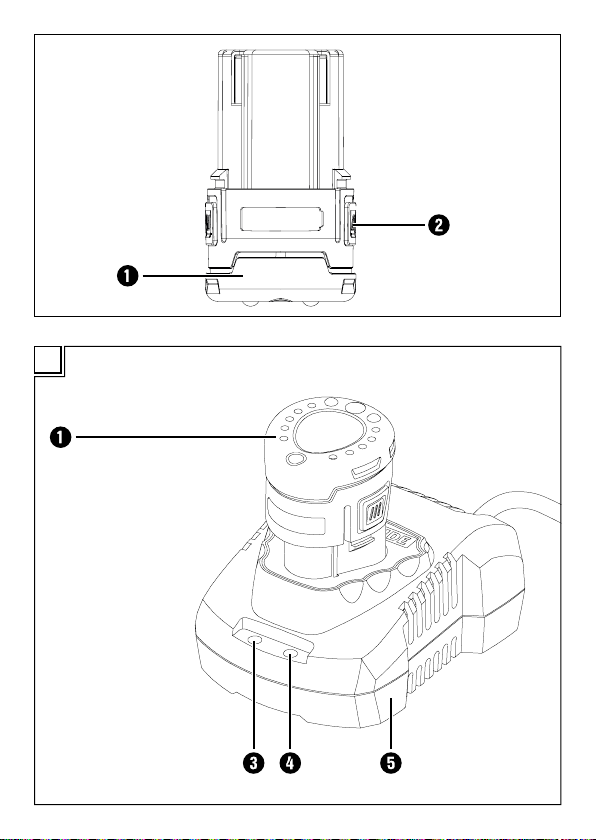

Features
Battery pack
Release buttons
Red charge control LED
Green charge control LED
High-speed charger
Package contents
1 2 Ah battery
1 charger
1 set of operating instructions

PAPK 12 A2 + PLGK 12 A1 GB│IE│NI │ 3 ■
Technical specifications
2 Ah battery: PAPK 12 A2
Type: LITHIUM ION
Rated voltage: 12 V (DC)
Capacity: 2000 mAh/24 Wh
Cells: 3
Charger: PLGK 12 A1
INPUT:
Rated voltage: 220–240 V ~(AC), 50–60 Hz
Rated power consumption: 50 W
Fuse (internal): 2 A
T2A
OUTPUT:
Rated voltage: 12 V (DC)
Rated current: 2.4 A
Charging time: approx. 60 min
Protection class: II/ (double insulation)
General safety instructions
WARNING!
■Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious
injury. Save all warnings and instructions for future reference.

PAPK 12 A2 + PLGK 12 A1■ 4 │ GB│IE│NI
Use and handling of the cordless electrical power tool
a) Charge a rechargeable battery unit using only the charger recom-
mended by the manufacturer. Chargers are often designed for a particular
type of rechargeable battery unit. There is the danger of fire if other types
of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an
electrical power tool. The use of other rechargeable battery units may
lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away
from paperclips, coins, keys, nails, screws or other small metal objects
that could cause the contacts to be bridged. Short-circuiting the contacts
of a rechargeable battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable battery units if they are misused.
If this happens, avoid contact with the fluid. If contact occurs, flush the
affected area with water. Seek additional medical help if any of the
fluid gets into your eyes. Escaping battery fluid may cause skin irritation
or burns.
CAUTION! RISK OF EXPLOSION! Never charge
non-rechargeable batteries.
Protect the rechargeable battery from heat; for example,
from continuous exposure to sunlight, fire, water and
moisture. There is a risk of explosion.

PAPK 12 A2 + PLGK 12 A1 GB│IE│NI │ 5 ■
Extended safety guidelines
■Do not use a damaged or modified battery.
Damaged or modified batteries may behave unexpectedly and cause
fires, explosions or pose a risk of injury.
■Do not expose a battery to fire or excessively high temperatures. Fire
or temperatures in excess of 130°C (265°F) can cause an explosion.
■Follow all instructions regarding charging and never charge the bat-
tery or the cordless tool outside the temperature range given in the
operating instructions.
Incorrect charging or charging outside of the permissible temperature
range can destroy the battery and increase the risk of fire.
WARNING!
■ Do not use any accessories that are not recommended by PARKSIDE.
Unsuitable accessories can lead to a risk of electric shock or fire.
Safety guidelines for battery chargers
■ This appliance may be used by children aged
8 years and above and by persons with limited
physical, sensory or mental capabilities or lack of
experience and knowledge, provided that they are
under supervision or have been told how to use the
appliance safely and are aware of the potential
risks. Do not allow children to use the appliance as
a toy. Cleaning and user maintenance tasks may
not be carried out by children unless they are su-
pervised.

PAPK 12 A2 + PLGK 12 A1■ 6 │ GB│IE│NI
■ To avoid potential risks, damaged mains cables
should be replaced by the manufacturer, their cus-
tomer service department or a similarly qualified
person.
The charger is suitable for indoor use only.
WARNING!
■ To avoid potential risks, damaged mains cables should be replaced
by the manufacturer, their customer service department or a similarly
qualified person.
ATTENTION!
♦ This charger can only charge the following
batteries:
PAPK 12 A1 / PAPK 12 A2 / PAPK 12 B1.
♦ A current list of battery compatibility can be found at
www.lidl.de/Akku.
Before use
Charging the battery pack (see fig. A)
CAUTION!
► Always unplug the appliance before you remove the battery pack
from or connect the battery pack to the charger.

PAPK 12 A2 + PLGK 12 A1 GB│IE│NI │ 7 ■
NOTE
► Never charge the battery pack if the ambient temperature is below
10°C or above 40°C. If a lithium-ion battery is to be stored for
an extended period, the charge level should be checked regularly.
The optimum charge level is between 50% and 80%. The storage
climate should be cool and dry and the ambient temperature should
be between 0°C and 50°C.
♦ Insert the battery pack into the high-speed charger .
♦ Insert the power plug into the socket. The charge control LED lights up
red.
♦ The green charge control LED indicates that charging is complete and
the battery pack is ready for use.
♦ Push the battery pack into the appliance.
♦ Switch the high-speed charger off for at least 15 minutes between
successive charging processes. Also disconnect the power plug from the
mains power socket.
Maintenance and storage
■ If you do not intend to use the appliance for an extended period, remove
the batteries and store it in a clean, dry place away from direct sunlight.
■ If a lithium-ion battery is to be stored for an extended period, the charge
level should be checked regularly. The optimum charge level is between
50% and 80%. The optimum storage environment is cool and dry.
■Never try to repair damaged batteries.
Maintenance of batteries should only be carried out by the manufacturer
or an approved customer service centre.

PAPK 12 A2 + PLGK 12 A1■ 8 │ GB│IE│NI
Kompernaß Handels GmbH warranty
Dear Customer,
This appliance comes with a 3-year* warranty valid from the date of pur-
chase. In the event that this product has any faults, you, the buyer, have
certain statutory rights. Your statutory rights are not limited in any way by the
warranty described below.
*Charger only (rechargeable battery: 6 months)
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in
a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years* of the date of
purchase of the product, we will either repair or replace the product for you or
refund the purchase price (at our discretion). This warranty service requires that
you present the defective appliance and the proof of purchase (receipt) within
the three-year warranty period, along with a brief written description of the
fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired
or replaced by us. The repair or replacement of a product does not signify the
beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This
also applies to replaced and repaired components. Any damage and defects
present at the time of purchase must be reported immediately after unpacking.
Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured according to strict quality guidelines
and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not
extend to product parts subject to normal wear and tear or to fragile parts
which could be considered as consumable parts such as switches, batteries
or parts made of glass.

PAPK 12 A2 + PLGK 12 A1 GB│IE│NI │ 9 ■
The warranty does not apply if the product has been damaged, improperly
used or improperly maintained. The directions in the operating instructions
for the product regarding proper use of the product must be strictly followed.
Uses and actions that are discouraged in the operating instructions or for
which cautions are given must be avoided in all cases.
This product is intended solely for private use and not for commercial purpos-
es. The warranty will be deemed void in cases of misuse or improper hand-
ling, use of force and modifications/repairs that have not been carried out by
one of our authorised service centres.
Warranty claim procedure
To ensure prompt processing of your case, please observe the following
instructions:
■ Please have the receipt and item number (e.g. IAN 123456) available as
proof of purchase.
■ You will find the item number on the type plate on the product, an
engraving on the product, on the front page of the operating instructions
(below left) or as a sticker on the rear or bottom of the product.
■ If functional errors or other defects occur, please contact the service
department listed below, either by telephone or by e-mail.
■ You can return a defective product to us free
of charge to the service address that will be provided to you. Ensure that
you enclose the proof of purchase (receipt) and information about what the
defect is and when it occurred.
You can download these instructions along with many other
manuals, product videos and installation software from www.
lidl-service.com.
This QR code will take you
directly to the Lidl service page
(www.lidl-service.com) where you can open your operating
instructions by entering the article number (IAN) 123456.

PAPK 12 A2 + PLGK 12 A1■ 10 │ GB│IE│NI
Service
WARNING!
►Have your appliances repaired by the Service Centre or a trained
electrician, and use only original spare parts. This will ensure that the
safety of the appliance is maintained.
►Always ensure that the power plug or the mains cable is replaced
only by the manufacturer of the appliance or by an approved custom-
er service provider. This will ensure that the safety of the appliance is
maintained.
Service Great Britain
Tel.: [phone]
E-Mail: kom[email protected]
Service Ireland
Tel.: [phone]
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kom[email protected]
IAN 320149_1901
Importer
Please note that the following address is not the service address. Please use
the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com

PAPK 12 A2 + PLGK 12 A1 GB│IE│NI │ 11 ■
Disposal
The packaging protects the appliance from damage during trans-
port. The packaging materials have been selected for their environ-
mental friendliness and disposal attributes, and are therefore recy-
clable.
Returning the packaging into the material cycle conserves raw materials and
reduces the amount of waste generated. Dispose of packaging materials that
are no longer needed in accordance with applicable local regulations.
Do not dispose of power tools in your normal domestic
waste!
European Directive 2012/19/EU requires that worn-out power tools are
collected separately and recycled in an environmentally compatible manner.
Do not dispose of batteries in your normal household waste!
Defective or worn-out rechargeable batteries must be recycled ac-
cording to Directive 2006/66/EC. Take the battery pack and/or appliance
to a nearby collection facility.
Please consult your local authorities regarding suitable disposal of worn-out
power tools/battery packs.
Dispose of the packaging in an environmentally friendly manner.
Note the labelling on the packaging and separate the packag-
ing material components for disposal if necessary. The packag-
ing material is labelled with abbreviations (a) and numbers (b)
with the following meanings: 1–7: plastics, 20–22: paper and
cardboard, 80–98: composites
Your local community or municipal authorities can provide
information on how to dispose of the worn-out product.

PAPK 12 A2 + PLGK 12 A1■ 12 │ GB│IE│NI
Notes on the EC Declaration of Conformity
This appliance complies with the basic requirements and other relevant pro-
visions of the Electromagnetic Compatibility Directive 2014/30/EU and the
Low-Voltage Directive 2014/35/EU.
The complete original Declaration of Conformity is available from the importer.
RoHS Directive (2011/65/EU)*
*The manufacturer bears full responsibility for compliance with this conformi-
ty declaration. The object of the declaration described above complies with
the requirements of the Directive 2011/65/EU of the European Parliament
and Council of 8 June 2011 on the limitations of use of certain dangerous
substances in electrical and electronic appliances.
Ordering a replacement battery
If you want to order a replacement battery for your appliance, you can do so
easily via the Internet on www.kompernass.com or by telephone.
Due to limited stocks, this item may sell out in a relatively short time.

PAPK 12 A2 + PLGK 12 A1 GB│IE│NI │ 13 ■
NOTE
► Online ordering of replacement parts might not be possible in some
countries. If this is the case, please contact the Service hotline.
■ The promotion is limited to one battery per customer/appliance and also
to a period of two months after the promotion. Thereafter, the replace-
ment battery can still be ordered as a replacement part under other
conditions.
Telephone ordering
Service Great Britain
Tel.: [phone]
E-Mail: kom[email protected]
Service Ireland
Tel.: [phone]
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kom[email protected]
To ensure fast processing of your order, have the article number of your
appliance to hand (e.g. IAN 320149) in case of questions. The article number
can be found on the type plate or the title page of these instructions.

PAPK 12 A2 + PLGK 12 A1■ 14 │ GB│IE│NI

PAPK 12 A2 + PLGK 12 A1 DE│AT│CH │ 15 ■
Inhaltsverzeichnis
Einleitung......................................... 16
Bestimmungsgemäßer Gebrauch ............................... 16
Ausstattung................................................ 16
Lieferumfang............................................... 16
Technische Daten ........................................... 17
Allgemeine Sicherheitshinweise ......................17
Verwendung und Behandlung des Akkuwerkzeugs ................. 18
Erweiterte Sicherheitshinweise ................................. 19
Sicherheitshinweise für Ladegeräte ............................. 19
Vor der Inbetriebnahme ............................20
Akku-Pack laden (siehe Abb. A)................................ 20
Wartung und Lagerung .............................21
Garantie der Kompernaß Handels GmbH ..............22
Service ........................................... 24
Importeur ........................................24
Entsorgung .......................................25
Hinweise zur EG-Konformitätserklärung ...............26
Ersatz-Akku Bestellung ............................. 26
Telefonische Bestellung....................................... 27
