Sunways STT-50KTL User manual


Grid-connected Inverter

User Manual
EN

CONTENTS
1 Preface ……………………………………………………… 5
1.1 Overview ………………………………………………………………………… 5
1.2 Target Groups ……………………………………………………………………5
2 Safety Instructions ……………………………………… 6
2.1 Safety Notes ……………………………………………………………………… 6
2.2 Statement ………………………………………………………………………… 6
2.3 Important Safety Matters ……………………………………………………… 7
2.4 Symbols Explanation …………………………………………………………… 8
3 Product Description ……………………………………… 11
3.1 Basic Features ………………………………………………………………… 11
3.2 Physical Layout ……………………………………………………………… 12
3.3 Display Interface ……………………………………………………………… 15
3.4 Packing List …………………………………………………………………… 16
4 Installation ………………………………………………… 18
4.1 Location ……………………………………………………………………… 18
4.2 Mounting ……………………………………………………………………… 20
4.3 External ground connection ……………………………………………… 22
4.4 Electrical Connection ……………………………………………………… 23
4.5 Monitoring Device Installation …………………………………………… 31
4.6 Meter/RS485/DRED Connection …………………………………………… 32
5 Start and Stop ……………………………………………… 37
5.1 Start the Inverter …………………………………………………………… 37
5.2 Stop the Inverter ……………………………………………………………… 37
6 General Operation ………………………………………… 38
6.1 Display Operation …………………………………………………………… 38
6.2 Country Code (Safety Code) Setting ……………………………………… 39
6.3 Auto-Test ……………………………………………………………………… 40
6.4 Power Quality Response Modes …………………………………………… 41
6.5 Online Monitoring APP ……………………………………………………… 41
7 Troubleshooting …………………………………………… 42
7.1 Error Message ………………………………………………………………… 42
7.2 Maintenance ………………………………………………………………… 46
8 Technical Parameters …………………………………… 47

 


Attention









1 Preface
※ 1.1 Overview





※ 1.2 Target Groups
󽗉



1 PrefaceAttention

 


2 Safety Instructions
2 Safety Instructions2 Safety Instructions
※ 2.1 Safety Notes
 

 
󽗉󽗉
 



 
 

 

 

 

※ 2.2 Statement


 
 
 

 

 

 󽗉
󽗉
 󽗉

 
󽗉
 

 
※ 2.3 Important Safety Matters
󽗉
Danger
Dangerous situation, if not avoided, it could result in death or serious personal injury.
Warning
Potentially dangerous situation, if not avoided, may result in death or serious personal
injury.
Caution
Potentially dangerous situation, if not avoided, may result in moderate or minor person-
al injury.

 



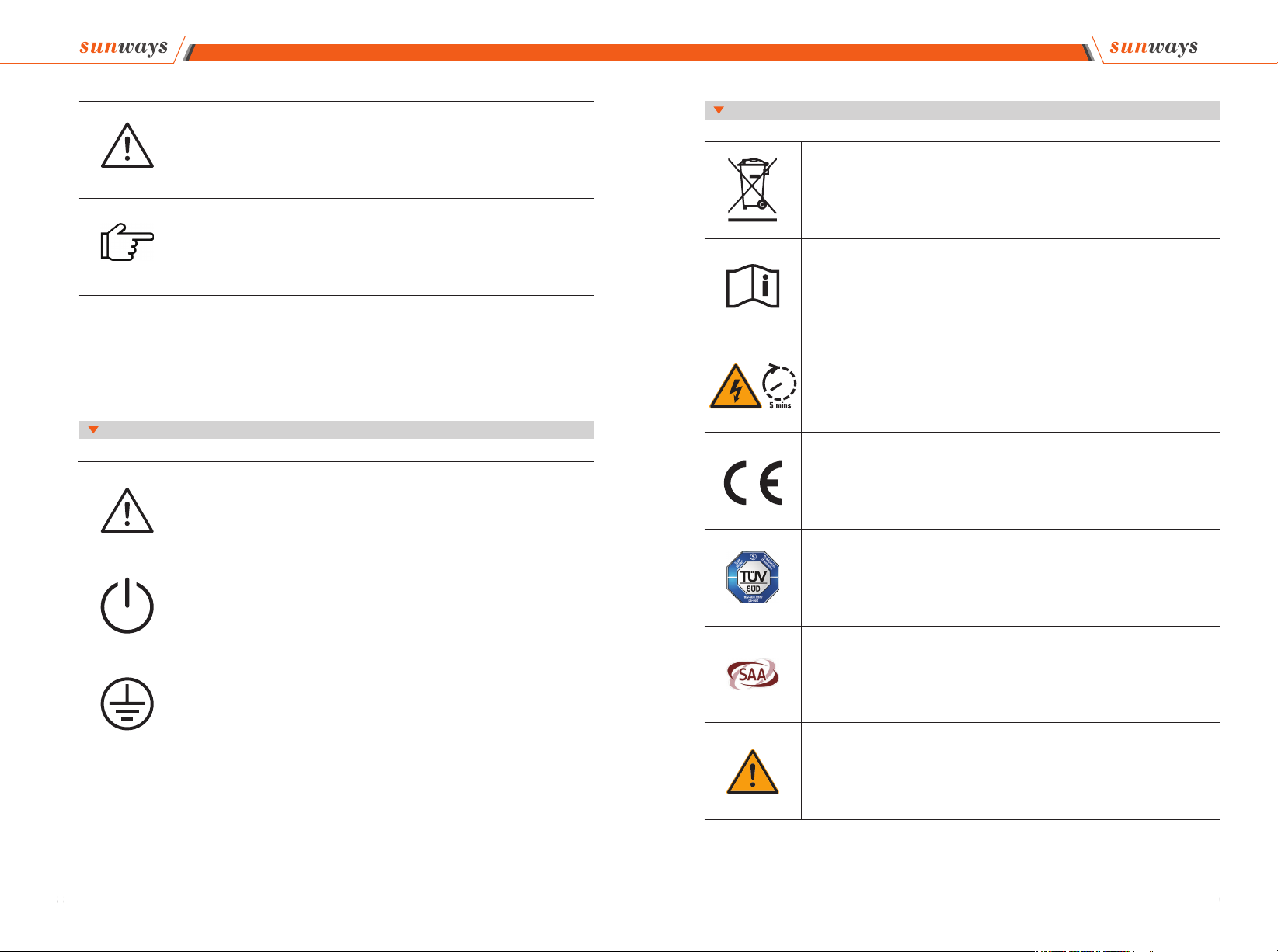

※ 2.4 Symbols Explanation


Attention
The safety warning information about equipment or environment, to prevent equipment
damage, data loss, equipment performance degradation or other unpredictable results.
Note
Symbol highlights important information, best practices and tips, etc.


Inverter status indicator.
Inverter running indicator.
Grounding symbol, the inverter casing needs to be properly grounded.
The inverter cannot be disposed of with household waste.
Please read the instructions carefully before installation.
Do not touch any internal parts of the inverter until 5 min after being disconnected from
the mains and PV input.
CE mark, the inverter complies with the requirements of the applicable CE guidelines.
TUV certifi cation.
SAA certifi cation.
Danger. Risk of electric shock!
2 Safety Instructions2 Safety Instructions

 


The surface is hot during operation and no touch is allowed.
Electric shock hazard, live parts, risk of electric shock, do not touch.





3 Product Description2 Safety Instructions
3 Product Description
※ 3.1 Basic Features


󽗋







Figure 3-1 Applicable grid types





















 


3 Product Description

 
  

 

※ 3.2 Physical Layout
Figure 3-2 Front view


Figure 3-3 Side view
580mm
850mm
LOGO Display
3 Product Description
580mm
297mm
Name
Plate
Figure 3-4 Bottom view


DC Input Terminal Com2 Port
Com1 Port
AC Output Terminal



 



Item Terminal Note
1 DC Input terminal PV connector
2 COM 1 Port WiFi/LAN/GPRS/4G device connector
3 COM 2 Port RS485/DRED connector
4 AC Output Terminal Used for AC output cable connection
Figure 3-5 Inverter back view

※ 3.3 Display Interface
Item Indicator Status Description
1Power
Indicator
O ff No input voltage detected or input voltage is too low.
Slow fl ashing Inverter powered on, waiting for the grid connection.
Quick fl ashing Inverter detected grid power and entered self-test status.
On Normal, grid-connected and power generated.
2Alarm
Indicator
On An alarm or faults detected, specific fault information can be
viewed from the display.
O ff The inverter is running normally.
Slow fl ashing The monitoring device is not connected to the router or is not
connected to internet.
Quick fl ashing The monitoring device is connected to the router or connected to
internet but not connected to the server.
sunways
Figure 3-6 Display interface




3 Product Description 3 Product Description

 


※ 3.4 Packing List



Item Indicator Status Description
3OLED
Display
On Display the inverter operating information.
O ff If the button pressed without any response, the screen is faulty or
not well connected.
4 Button Physical button Switch OLED display information and set parameters by short
press and long press.
   
   
Note
① This connector already re-installed inside the inverter.
   
 
Figure 3-7 Packing list







3 Product Description 3 Product Description

 


Figure 4-1 Recommended installation location
4 Installation
※ 4.1 Location



 

 
 


 

 
 
  




Warning
Do not put fl ammable and explosive articles around the inverter.
Figure 4-3 Recommended installation angle

Figure 4-2 Recommended installation spacing



4 Installation 4 Installation
1200mm 800mm
800mm
500mm 500mm
500mm 500mm
󾗒 

 


※ 4.2 Mounting
① Use the inverter back bracket as the template to mark the position of 6 holes on installa-
tion bracket.
② Use an electrical driller with 12mm diameter bit to drill 6 holes on the installation brack-
et. See Figure 4-5 for details:
Figure 4-5 Mark the hole position
Figure 4-4 Dimensions of wall bracket
4.2.1 Wall bracket installation
Dimensions of wall bracket, see Figure 4-4:
Figure 4-6 Fixing the bracket
 
󽗊

󽗉
Figure 4-7 Mounting the inverter
4.2.2 Mounting the inverter
4 Installation 4 Installation


 


12mm
Handle
Handle

 


※ 4.3 External ground connection
Ground terminal connection steps:
 
 

Danger
Do not connect the N-wire as a protective ground wire to the inverter casing. Otherwise,
it may cause electric shock.
Attention
Good grounding is good for resisting surge voltage shock and improving EMI perfor-
mance. Inverters must be well-grounded.
For a system with only one inverter, the PE cable needs to be grounded.
For a multi-inverter system, all inverters PE wires need to be connected to the same
grounding copper bar to ensure equipotential bonding.
Figure 4-8 Grounding terminal connection
※ 4.4 Electrical Connection
Danger
A high voltage in the conductive part of the inverter may cause an electric shock. When
installing the inverter, make sure that the AC and DC sides of the inverter are completely
de-energized.
Warning
Do not ground the positive or negative pole of the PV string, otherwise it will cause seri-
ous damage to the inverter.
Warning
Static may cause damage to the electronic components of the inverter. Anti- static mea-
sures should be taken during installation and maintenance.
Attention
Do not use other brands or other types of terminals other than the terminals in the ac-
cessory package. Sunways has the right to refuse all damages caused by the mixed-use
of terminals.
Attention
Moisture and dust can damage the inverter, ensure the cable gland is securely tightened
during installation. The warranty claim will be invalidated if the inverter is damaged as a
result of a poorly connected cable connector.
1. The following must be considered when making electrical connections to the inverter:
 
 
 󽗉

 
4.4.1 Inverter PV string connection
4 Installation 4 Installation

 



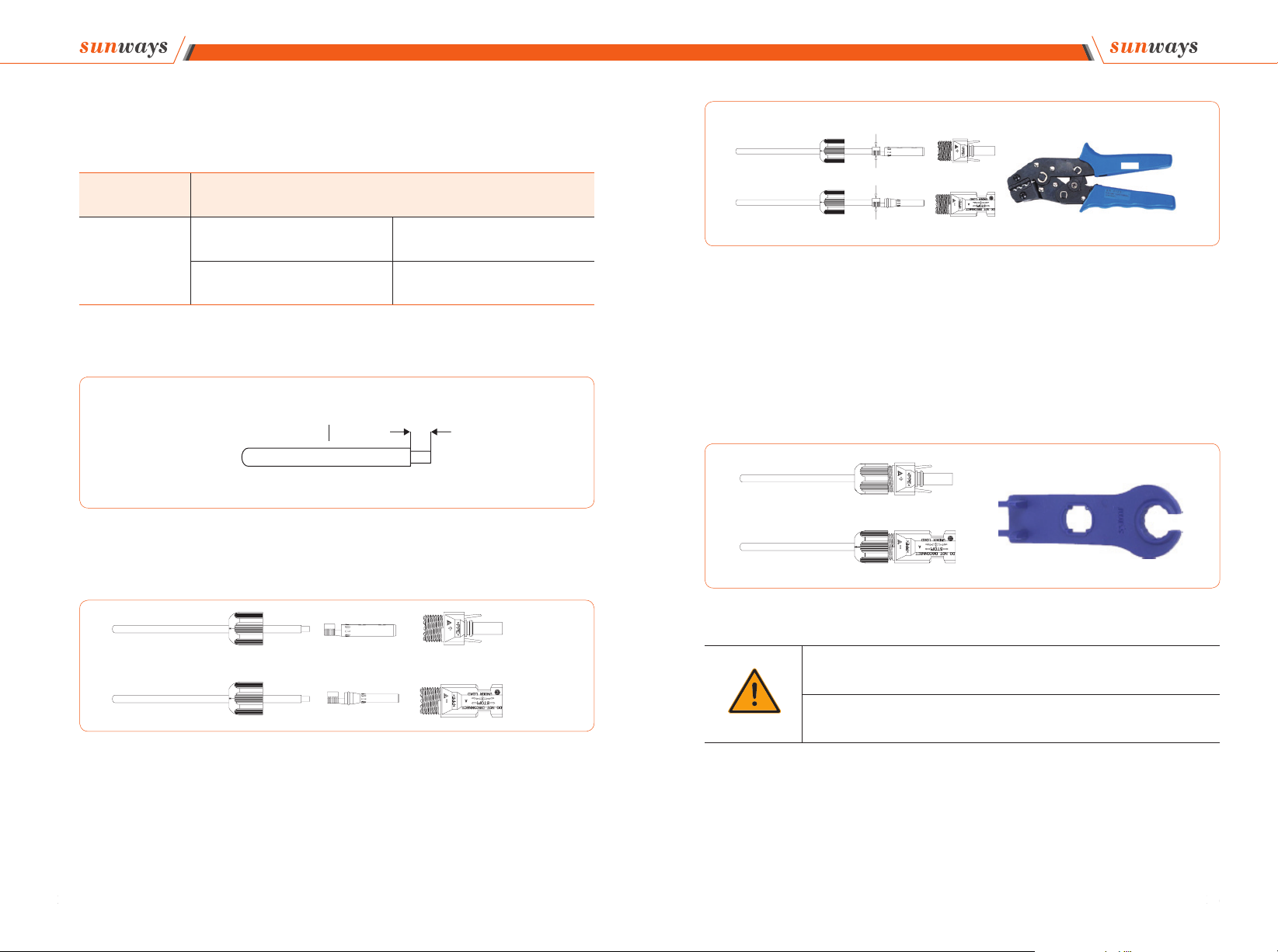

2. DC connector assembly procedure
 
Cable type Traverse area (mm²)
General photovoltaic
cable
Range (mm2) Recommended value (mm2)
2.5-4.0 4.0
Figure 4-9
 󽗈
Wire Traverse area 2.5-4mm27mm
 



Figure 4-10
+
-
 

 

3.Insert the positive and negative connectors into the inverter DC input terminals re-
spectively, a click sound should be heard if the terminals are well connected, as shown
in Figure 4-13:
Figure 4-11
Crimping Plier
Figure 4-12
Open-end Wrench
Warning
① Before assembling the DC connector, make sure that the cable polarity is correct.
② Use a multimeter to measure the voltage of the DC input string, verify the polarity of
the DC input cable, and ensure that each string voltage is within 1000V.
4 Installation 4 Installation

 


Figure 4-13
DC Switch
Inverter
PE
PE
L
N
To grounding electrode




Grid
AC Breaker
DC INPUT AC OUTPUT
Figure 4-14
4.4.2 Connection of AC output
1. AC side requirements


 
󽗉

Model Inverter Rated
Output Voltage
AC Breaker
Rated Voltage
AC Breaker
Rated Current
STT 50KTL 400V 400V 100A
STT 60KTL 400V 400V 125A
/OT / DT terminals of phase wire OT / DT terminals of PE wire
Specifi cation M8 M5
Dimensions a ≤ 24mm / 9mm ≤ b ≤ 13mm / c ≤
10mm /
Warning
An AC breaker must be connected on the AC side of the inverter.
Any loads cannot be connected to the inverter without the AC breaker.
 
󽗉

4 Installation 4 Installation
4. Seal the unused PV terminals with the terminal caps.
5. System Layout of Units without Integrated DC Switch
󽗉





 


Figure 4-16
 


 
2. AC connector connection steps
 

Figure 4-17
Figure 4-18
 
󽗈


4 Installation 4 Installation
Figure 4-15 OT / DT terminals of phase wire
a b
c
Caution
Direct contact between the copper bar and aluminium wire may arise electrochemical
corrosion, thus aff ect the reliability of the electrical connection.
If an aluminium wire is used, please use a copper-aluminium wire terminal to avoid di-
rect contact between the copper bar and aluminium wire.
Phase wire
cross section S
PE wire cross
section Note
S ≤ 16 mm² S The specifi cations are valid only when the phase wire and PE wire
use the same material. If otherwise, ensure that the cross section of
the PE wire produces a conductance equivalent to that of the wire
specifi ed in the table.
S ＞ 35 mm² S/2
󾗑 



L1
L2
L3
PE
N

 


 


 󽗊

Figure 4-19
Figure 4-20
Attention
If there’re more than one inverter in a project, do not open all inverters roof cover at the
same time if you cannot fi nish the AC connection immediately.
Any damages caused by the moisture and dust that came into the inverter on account of
exposed to the air for a long time are out of Sunways warranty.
※ 4.5 Monitoring Device Installation





Figure 4-21 Monitoring device installation
Note
The 4G, GPRS and LAN version module does not need to be confi gured.
The WiFi version module needs to be confi gured to the router for the fi rst installation. If
the router name or password are changed, the WiFi dongle will need to be reconfi gured.
For details, please refer to the [QUICK INSTALLATION GUIDE] which is attached to the
accessory bag.
4 Installation 4 Installation

 


4 Installation
※ 4.6 Meter/RS485/DRED Connection
Figure 4-22
Note
Port 1 Port 2 Port3 Port4
RS485 Port Meter Port Display Port DRED Port



4.6.1 Terminals defi nition
4 Installation
Attention
Do not touch the waterproof plug in the card slot except for replacing the SIM card. In
that case, please make sure the card slot is completely sealed by the weatherproof plug
after replacing the SIM card. Any damages caused by improper waterproof plug place-
ment, will void warranty.
   
   
  

Port Function NO. Defi nition
Port1 ln case of multiple inverters, all the inverters can be dai-
sy-chained via RS485 cables.
1 RS485 A1
2 RS485 B1
3 PE
4 RS485 A1
5 RS485 B1
6 PE
Port 2 Connect external Meter (with 3CTs) to activate the Export Lim-
itation & control function on Sunways STT series inverter.
1 RS485 A2
2 RS485 B2
3 PE
4 RS485 A2
5 RS485 B2
6 PE
Port 3 Connect inverter display board. / /
Port 4
Only DRED version with this port.
DRED means demand response enable device. The AS/NZS
4777.2:2015 requires inverters to support demand response
mode (DRM). This function is for inverters that comply with AS/
NZS4777.2:2015 standard.
Sunways inverter is fully compliant with all DRM. The 6pin con-
nector is used for DRM connection.
Support DRM command: DRMO, DRM5, DRM6, DRM7, DRMB.
/ /

 





4.6.2 RS485 Communication
4 Installation







 
 
Figure 4-23
Figure 4-24
Attention
It is recommended to use the RS485 communication cable with a cross sectional area of
0.75-1.5mm2 and an outer diameter of 5mm-10mm.
RS485 cable requirements: Shielded twisted-pair cable or shielded twisted Ethernet ca-
ble.
󽗉

4.6.3 Export limitation & control or power limit solution
4.6.4 Wiring Steps:
4 Installation

    



  




 


Figure 4-25
 
 

5 Start and Stop
※ 5.1 Start the Inverter

 󽗉
 

 

󽗊

 

※ 5.2 Stop the Inverter
󽗈
 󽗈󽗉
 


 
   
4 Installation 5 Start and Stop

 


6 General Operation
※ 6.1 Display Operation


󽗊

Main Window
PV Voltage
PV Current
Grid Voltage
Grid Current
Grid Freq
E-Day E-Total H-Total Model
Name
General
Settings
System InfoFault InfoRSSISafety Set
Setting Error
Message
SN/FM
Version
Export
Limit
Feed in
Grid Power Factor
Setting Setting SettingSetting
Modbus
Addr
Setting
Time Set Language
Set
Setting Setting
Setting
Re-Connect
Setting
Wai�ng Checking Normal Fault Info
Firmware
Upda�ng
Short press(1s),switch window
Long press(3s),enter the lower Menu
Not WiFi/LAN
LAN setting
WIFI setting
OR OR
CT Ratio
Grid Connect
Type Set
6.1.1 Main Window and General Setting
6.1.2 LAN/WIFI Setting
LAN Reset
Setting
DHCP Set
Setting
IP Address
Setting
Gateway
Address
Setting
Subnet Mask
Setting
DNS Address
Setting
WIFI
Reset
WIFI
Reload
SettingSetting
DHCP ON
OR OR
※ 6.2 Country Code (Safety Code) Setting

󽗊
Main
Window Safety Set
Setting
General
Settings
Short press(1s),switch window
Long press(3s),enter the lower Menu
Figure 6-1
Figure 6-2
Figure 6-3
6 General Operation6 General Operation
