Clenergy PV-ezRack SolarTerrace Eco User manual

PV-ezRack
SolarTerrace Eco (EU)
Installation Guide
NO.: PZ046-IM04-10
Content
1. Production Introduction .............................................................................. 2
2. Tools & Components ................................................................................. 3
3. System Overview ....................................................................................... 7
4. Installation Instructions .............................................................................. 9

2/ 16
Clenergy China Telephone [phone]
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile [phone]
Xiang'an District 361101, Xiamen, Fujian, China [e-mail]
1. Production Introduction
Clenergy PV-ezRack®SolarTerrace Eco (hereinafter referred to as ST Eco) is a
pre-assembled ground PV-Module mounting system, which is suitable for large-
scale commercial installation and multi-purpose installation.ST Eco has been
developed as a mounting system for various PV-module. Innovative and unique
Rail with M Module is convenient and helps to improve the installation precision.
Using high quality engineered components SolarTerraceEco more suitable for
areas with higher salinity, and saves developers and installers, time and money
when delivering large scale projects.
Before system installation, please read the installation instruction manual carefully.
The manual provides the following content: (1) simple introduction of installation;
(2) product installation specification;
Please use it according to the installation instruction manual, which complies with
GB50009-2012, JIS 8955-2017, ASCE7-10, ISO 14713 and other building codes.
Please pay attention to safety when installing the product, and construct it
according to local laws and regulations. You can confirm the latest installation
instruction manual on www.clenergy.com.cn if necessary.
Installation personnel shall conform to the following specifications
- Conform to all local or national construction specifications that can replace the
manual;
- Guarantee that Clenergy mounting products are applicable to specific
installation and installation environment;
- Please use Clenergy’s accessories and your installation tools. (Clenergy will
be not liable to other accessories that replace Clenergy’s ones);
- Recycle according to local related laws;
- Disassembly is corresponding to installation steps;
- The number of solar plate installation personnel shall be not less than 2;
- Guarantee that installation of electric equipment is finished by professional
electricians.

3/ 16
Clenergy China Telephone [phone]
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile [phone]
Xiang'an District 361101, Xiamen, Fujian, China [e-mail]
2. Tools & Components
2.1 Tools
Tools
Allen Key 6mm
(M8 Hexagon
Socket Screw)
Socket
Wrench
M8/M12
Torque Wrench
Electric Drill
5m Tape
Marker
String
Total Station or
Equivalent device
Pile Driver
Note：The tools in the figure are only used for installation of rack system (not
included in supply scope). Please consult system installation personnel about
installation of electronic parts.

4/ 16
Clenergy China Telephone [phone]
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile [phone]
Xiang'an District 361101, Xiamen, Fujian, China [e-mail]
2.2 Components
Components
EC-W/A
End Clamp
ICII-W/A
Module Inter Clamp II
R-TW
TW Rail
SP-TW
Splice for TW Rail
S-Eco/W
Support
ER-AA
Angle AL
CO-RT
Connector for Rectangular
Tube
GS
Ground Screw
ER-HB-ST
Hexagonal Bolt
MXX*XX (with nut and
washer)

5/ 16
Clenergy China Telephone [phone]
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile [phone]
Xiang'an District 361101, Xiamen, Fujian, China [e-mail]
2.3 Installation Precautions
2.3.1 Stainless Steel Fastener Installation Precautions
Improper operation may lead to deadlock of Bolts and Nuts. Follow the steps
below to reduce this risk
- Reduce the friction coefficient:
（1）Ensure that the thread surface is clean (no dirt or contaminant)
（2）Apply lubricant (grease or 40# engine oil) to fasteners prior tightening to
avoid galling or seizing in the threads;
- General installation instructions:
（1）Apply force to fasteners in the direction of thread;
（2）Apply force uniformly, to maintain required torque;
（3）Professional tools and tool belts are recommended;
（4）Avoid using electric tools for final tightening;
（5）Avoid working at high temperatures,
- Safe Torques
Please refer to safe torques defined in this guide as shown in below figure. In
case power tools are required, Clenergy recommends the use of low speed only.
High speed and impact drivers increase the risk of bolt galling (deadlock) If
deadlock occurs and you need to cut fasteners please make sure that there is no
load on the fastener before you cut it. Avoid damaging the anodized or galvanized
surfaces.

6/ 16
Clenergy China Telephone [phone]
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile [phone]
Xiang'an District 361101, Xiamen, Fujian, China [e-mail]
2.3.2 Ground Screw Installation Precautions
All ground screws for the projects are hot dipped galvanized to offer good look
and reliable corrosive resistance, please pay attention to below tips:
- In order to protect the Zin coating of ground screws from scratches and
peeling. Please be careful while unloading.
- In order to protect the ground screws from coating wear and structural
deformation, DO NOT pile the ground screws forcefully while there are large
roc
i
ks.
- Please apply Zin-rich paint on the surface of ground screws if necessary. And
Clenergy will not be liable to the scratches and peeling on the coating surface
of ground screws that caused by improperly unloading and piling in the
construction site.
M16*L
135-150N·M

7/ 16
Clenergy China Telephone [phone]
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile [phone]
Xiang'an District 361101, Xiamen, Fujian, China [e-mail]

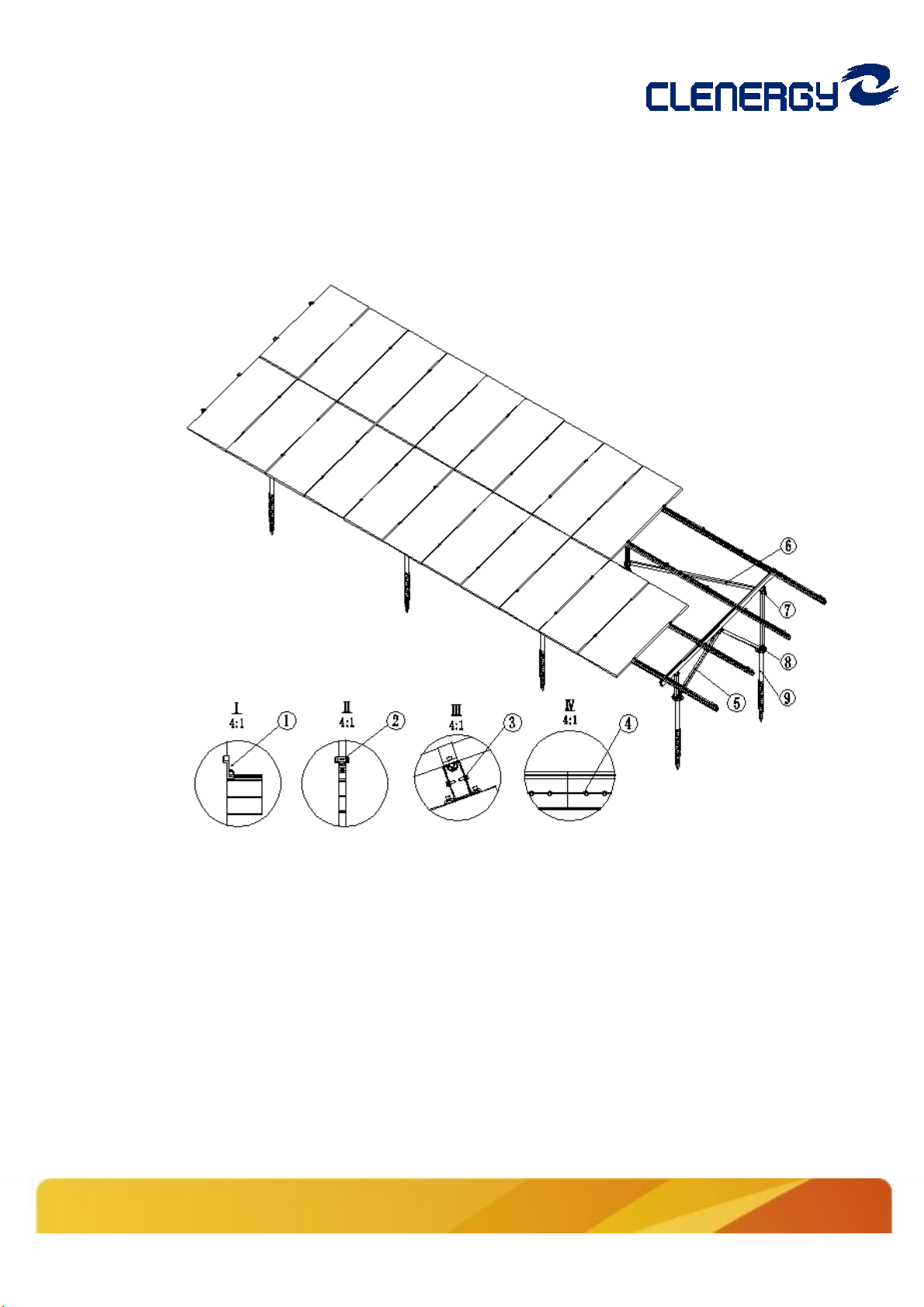

3. System Overview
3.1 Composition
1) End Clamp with W Module
2) Module Inter Clamp II
3) TW Rail
4) Splice for TW Rail
5) Support
6) Angle AL
7) Connector for Rectangular Tube
8) Hexagonal Bolt MXX*XX (with nut and washer)
9) Ground Screw

8/ 16
Clenergy China Telephone [phone]
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile [phone]
Xiang'an District 361101, Xiamen, Fujian, China [e-mail]

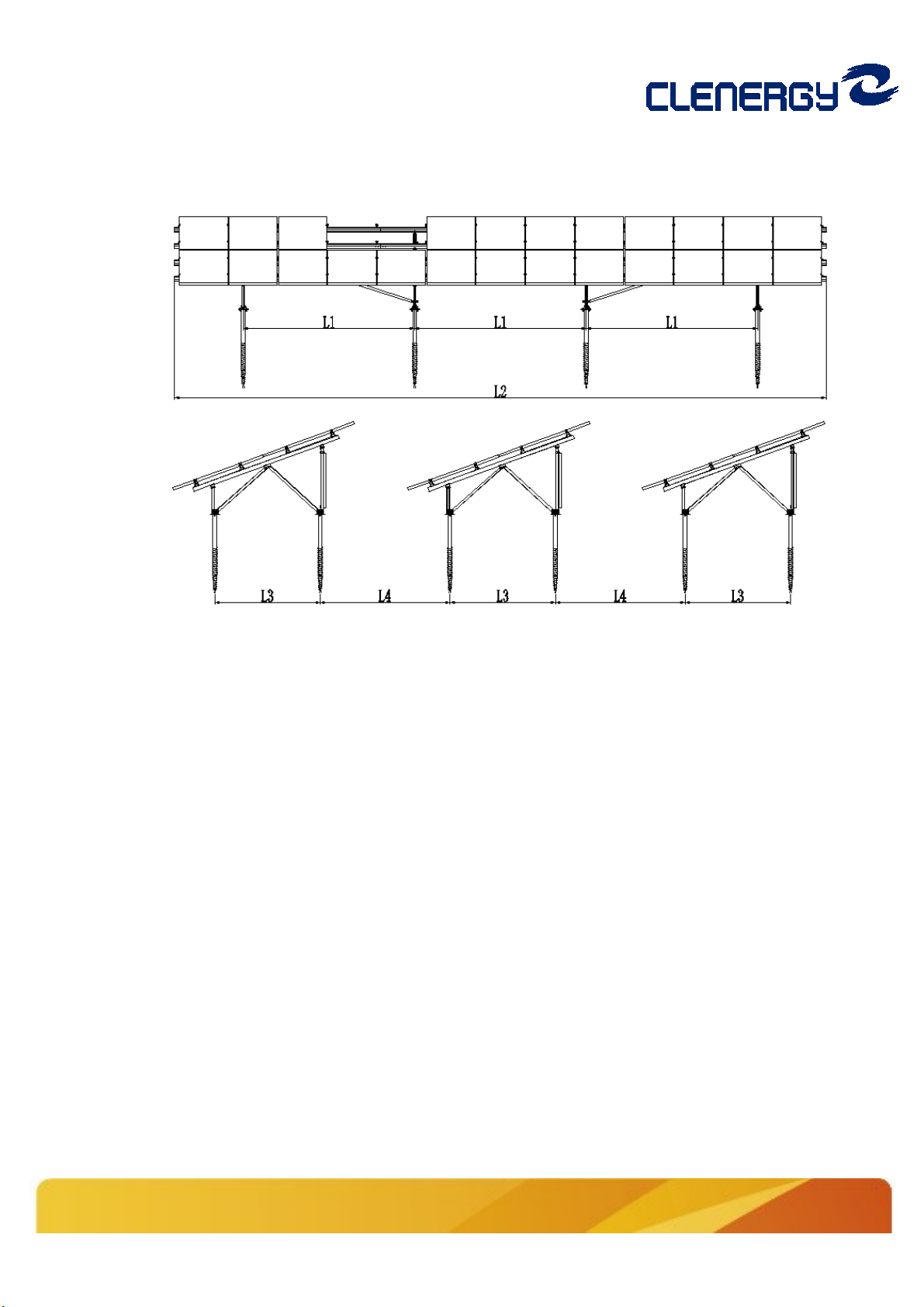

3.2 Installation Planning
1）PV Module Orientation：Portrait
2）Rail Length per table：L2 according to engineering drawings
3）Distance between the two adjacent supports：L1 according to
engineering drawings
4）Distance between two legs：L3 according to engineering drawings
5）Distance between two tables: L4 according to engineering drawings

9/ 16
Clenergy China Telephone [phone]
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile [phone]
Xiang'an District 361101, Xiamen, Fujian, China [e-mail]
4. Installation Instructions
4.1 Ground Screw Installation
4.1.1 Before the
installation, please
prepare necessary
installation tools &
products, and ensure that
hydraulic pile driver can
work normally in
installation site. Read the
relevant engineering
materials; get the project
layout information such as
piling depth, column span,
etc. If you have any
questions, please contact
and consult the customer
service.
4.1.2 According to the
installation planning, use
Total station (or any
instrument of similar
functions) to carry out
positioning mark and mark
out the piling position of
each ground screw. Check
the mark position before
piling, to ensure accuracy.
4.1.3 Make necessary
adjustment to make sure
that all ground screw are
on the same level and are
all aligned.
Figure 1
Figure 2
Piling depth, horizontal and vertical position of Ground screws
are determined by the engineering drawings of specific projects
If cannot eliminate the deviation of
Ground Screw, its maximum
allowable deviation should in the
range of adjustment shown in below
Figure 7.

10 / 16
Clenergy China Telephone [phone]
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile [phone]
Xiang'an District 361101, Xiamen, Fujian, China [e-mail]
4.2 Pre-assembled Support Installation
4.2.1 Before installing Pre-
assembled Support, check
the ground screws are on
the same level and are all
aligned.

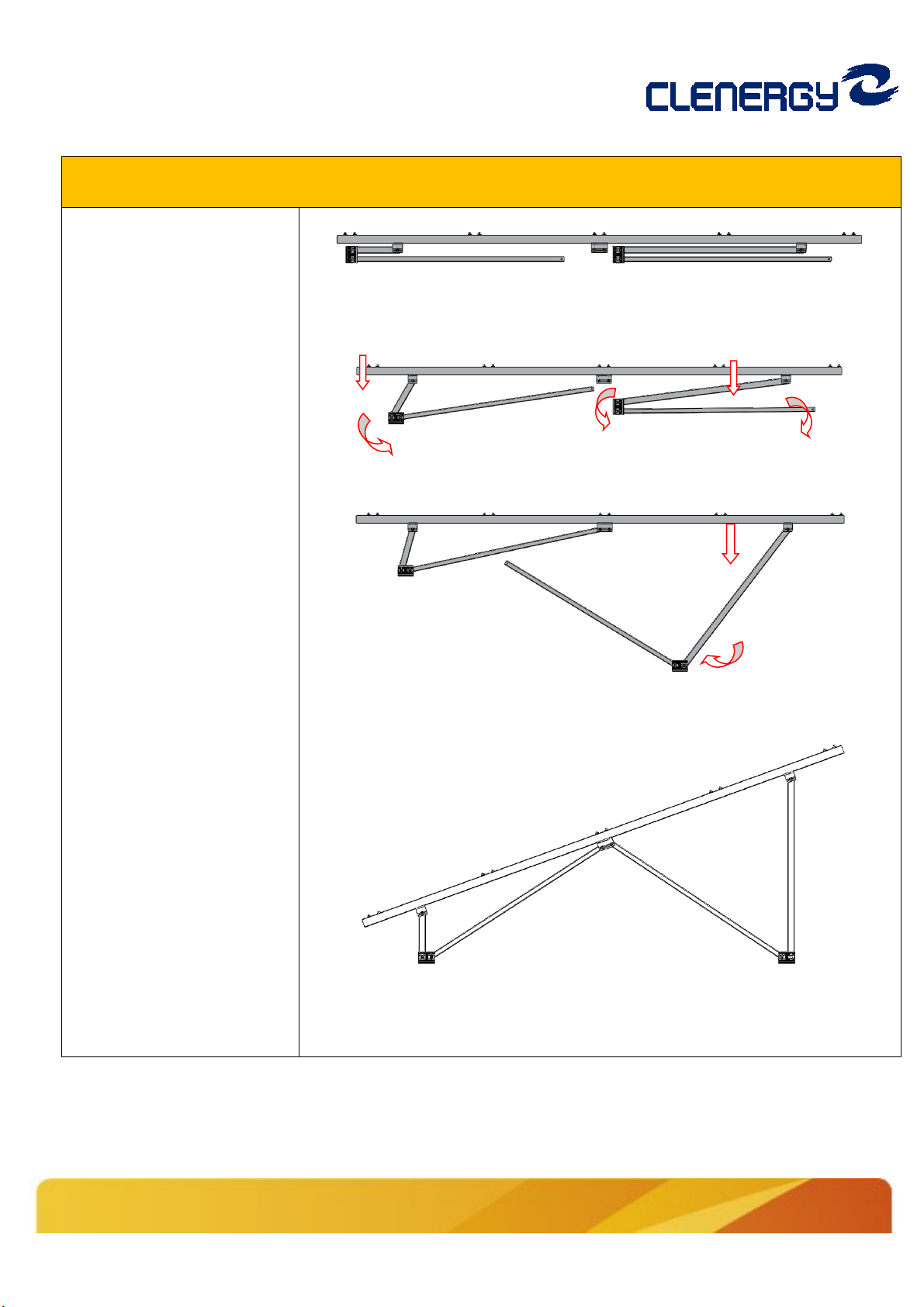

4.2.2 Before installation, it
looks as shown Figure3.
Unfold the Rectangular
Tubes as shown in Figure
4.
Unlock the M12*85 Bolts
from the Slot U-Shape
Joint. Insert the end of 2
free end Rectangular
Tubes into the Slot U-
Shape Joint. Lightly lock
them with M12*85 Bolts.
Here, please note the
orientation of the 2 sets of
bolt; make sure their head
are in the same side with
other bolts. Rotate the
Corrugated L-anchor
Plates to make them in a
same horizontal level, as
shown in Figure 6.
Figure 3
Figure 4
Figure 5
Figure 6
后立柱
后立柱

11 / 16
Clenergy China Telephone [phone]
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile [phone]
Xiang'an District 361101, Xiamen, Fujian, China [e-mail]
4.2.3 Put the unfolded
Pre-assembled Support on
flange plates of Ground
Screws and lock the L-
anchor Plates with flange
plates with M16 bolts. The
up-down adjustable range
of Front/Rear leg is
±20mm. The north-south
adjustable range of
Front/Rear leg is ±30mm.
the East-west adjustable
range of Front/Rear leg is
±20mm as shown in
Figure 7
4.2.4 Fasten all bolts
according to the torque.
Check all bolts and ensure
they are fastened within
recommended torque.
Recommended Torque:
M8: 18~20 N•m
M16: 135~N•m
4.2.5 According to
engineering drawings,
repeat the above
operations to install other
Pre-assembled Supports.
Ensure all the Two-
Groove Square Girders of
Pre-assembled Support
are aligned and all Pre-
assembled Support are
parallel to each other.
Unlock M12 bolts to adjust
the position, if necessary,
as shown in Figure 8.
Figure 7
Figure 8
±30mm
±20mm
±20mm
后立柱
后立柱

12 / 16
Clenergy China Telephone [phone]
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile [phone]
Xiang'an District 361101, Xiamen, Fujian, China [e-mail]

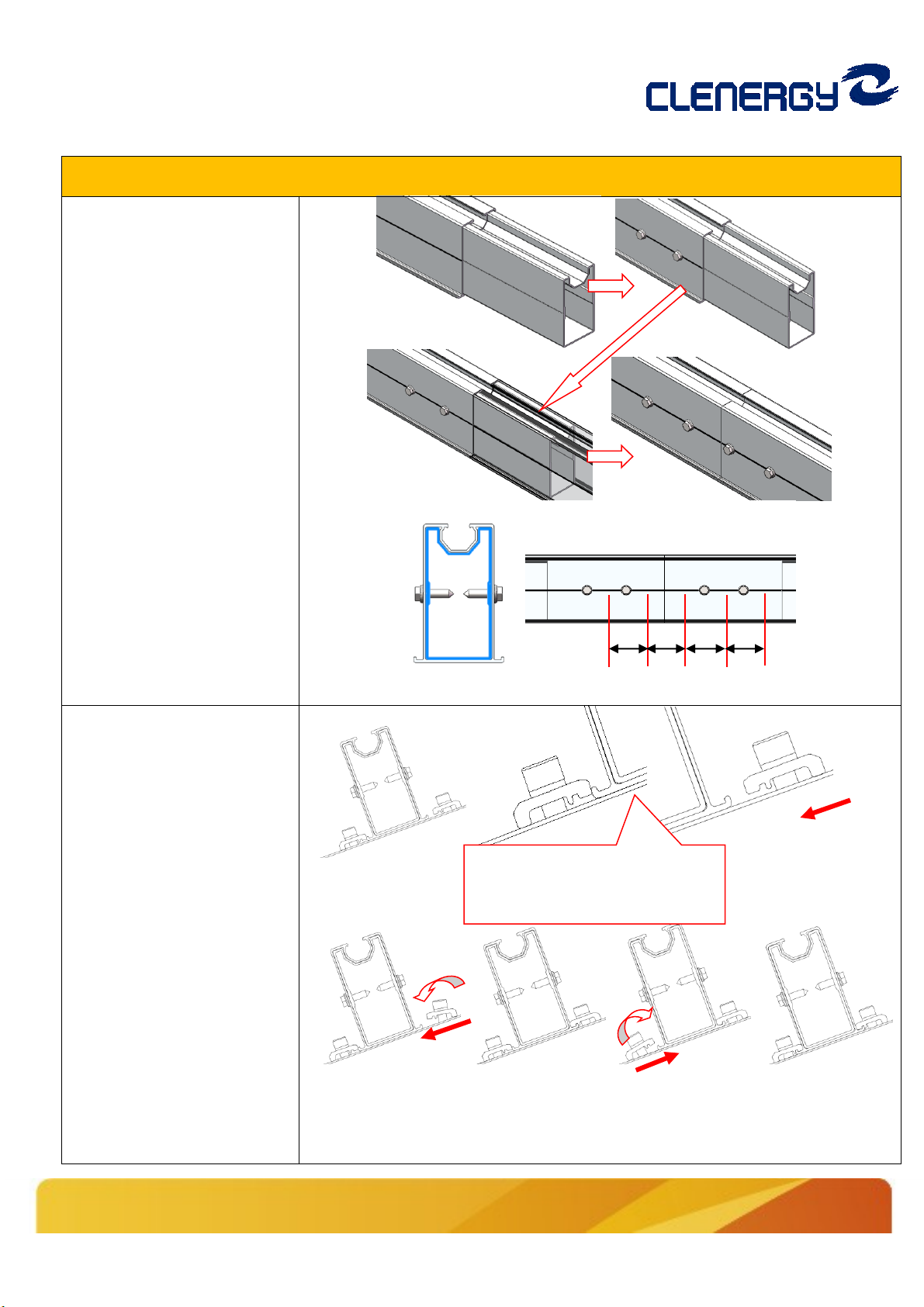

4.3 Rail Installation
4.3.1 Before fix TW Rails
on the Support, splice
them to the required
length with Splice for TW
Rail.
Insert half of Splice into
TW Rail and fasten with
two sets of Self-tapping
screws ST6.3*22 in each
side of TW Rail, and then
insert the other Splice into
TW Rail and fasten with
Self-tapping screws as
shwon in Figure 9.
NOTE: Please fasten the
Self-tapping screws until
its rubber washer attach
the TW Rail tightly.
Figure 9
4.3.2 According to your
plan, place TW Rail on the
girder, make the lower part
of Rail press against pre-
assembled Rail Clamp II
as shown in Figure 10.
Note: if the project doesn’t
have pre-assembled Rail
Clamp II, please fix Rail
Clamp II on each side of
Rail on site.
4.3.3 Place the rails one
by one on the planned
position.
Figur 10
50
50
50
50
The lower part of Rail press
against the Rail Clamp

13 / 16
Clenergy China Telephone [phone]
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile [phone]
Xiang'an District 361101, Xiamen, Fujian, China [e-mail]

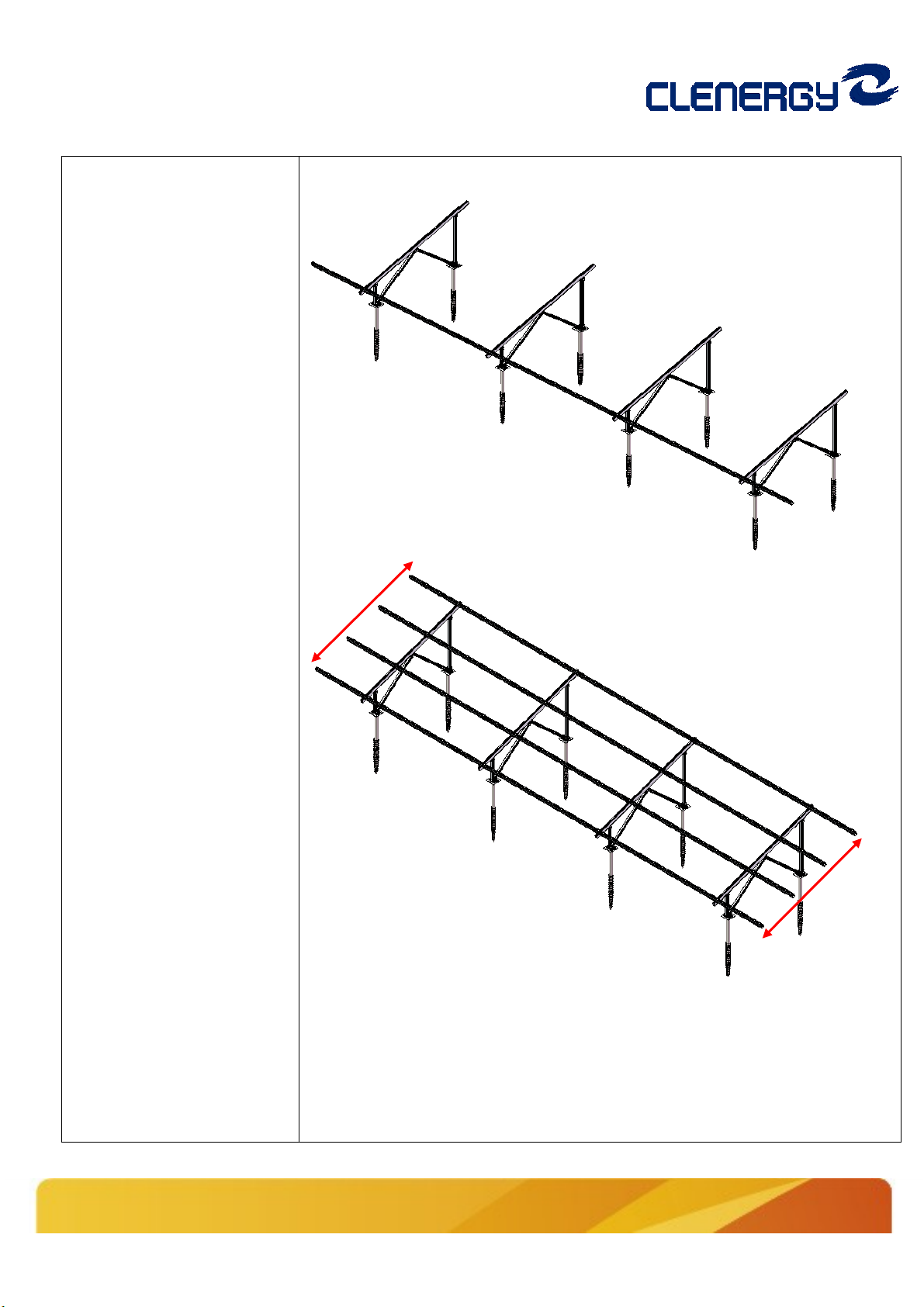

4.3.4 Repeat the above
steps to install other rails.
Make sure the rails in the
same line aligned over
same horizontal level.
Ensure the distances of
rails between two adjacent
rows conforming to the
engineering drawings and
the end faces of all rails
aligned.
Recommended Torque:
M8: 18~20 N•m
Figure 11

14 / 16
Clenergy China Telephone [phone]
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile [phone]
Xiang'an District 361101, Xiamen, Fujian, China [e-mail]
4.4 Angle AL Installation
4.4.1 According engineer
plan, lightly lock
Connector for Rectangular
Tube on the rear leg of
Support as shown in
Figure12. Insert M8*30
through the hole on Angel
AL.
Lightly lock another
Connector for Rectangular
Tube on the next span
rear leg and adjust its
position to lock the Angel
AL and make it be in
tension status. Use Self-
tapping screw ST6.3*22 to
fix Connector for
Rectangular Tube and
fasten all bolts as shown
in Figure 13.
Note:
The quantity, position and
tilt direction need to
comply with the
requirement on engineer
drawings.
Recommend torque:
M 8 bolt 18~20N.m
Figure 12
Figure 13
4.5 PV Modules Installation

15 / 16
Clenergy China Telephone [phone]
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile [phone]
Xiang'an District 361101, Xiamen, Fujian, China [e-mail]

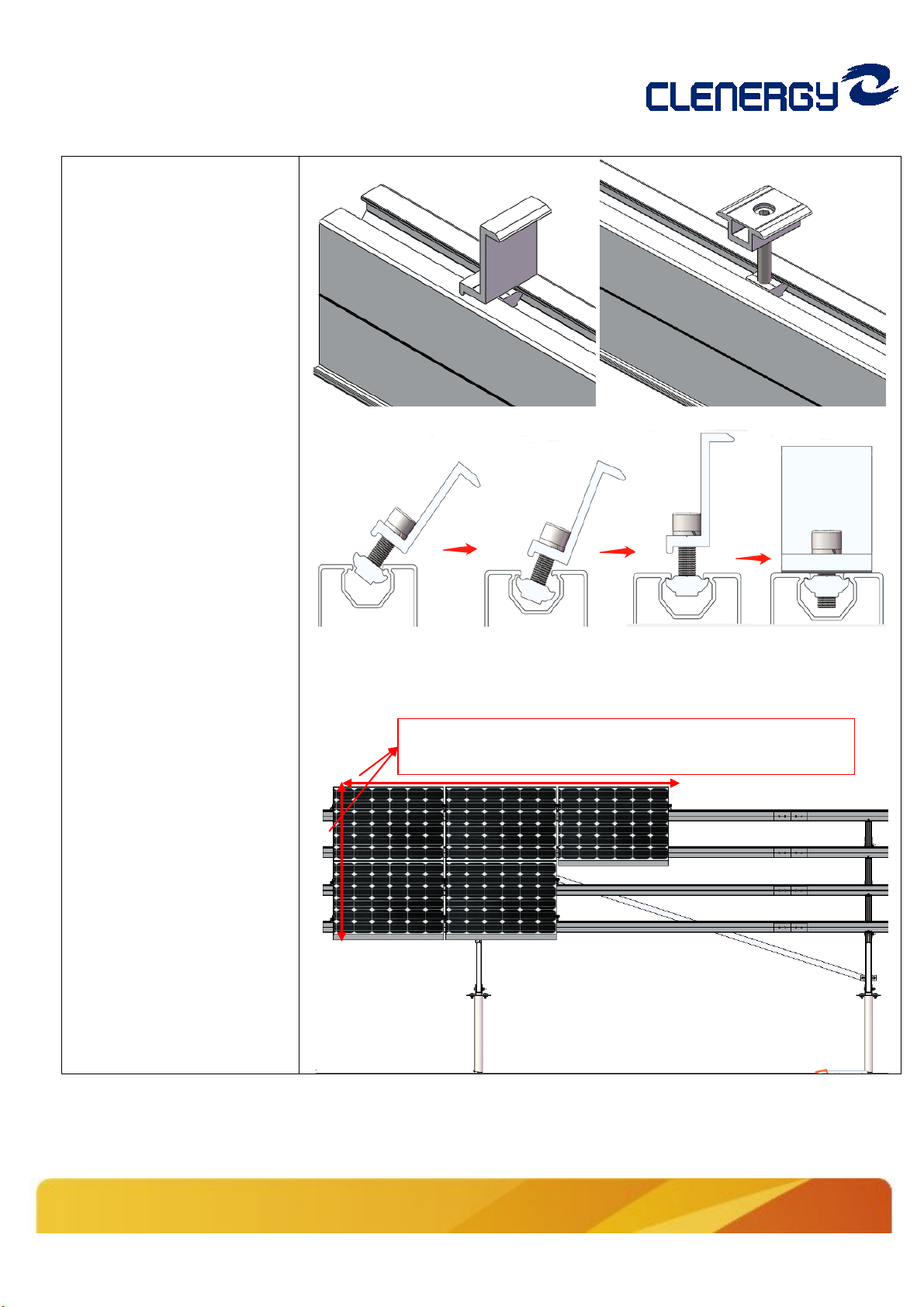

4.5.1 Tilt the Inter Clamps
with W-module into the
channel of the Rail as
shown in Figure 14.
4.5.2 It is suggested to
install PV-Module from the
left side, and use the End
Clamp and Inter Clamp to
fix it. Stretch a String as a
reference to align PV-
Module. Adjust the PV-
Modules to make their
outside faces are in a line
in both portrait and
landscape orientation.
Recommended Torque:
M8: 13~14N•m
Figure 14
Figure 15
Ensure the PV modules aligned in both horizontal
and vertical directions

16 / 16
Clenergy China Telephone [phone]
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile [phone]
Xiang'an District 361101, Xiamen, Fujian, China [e-mail]

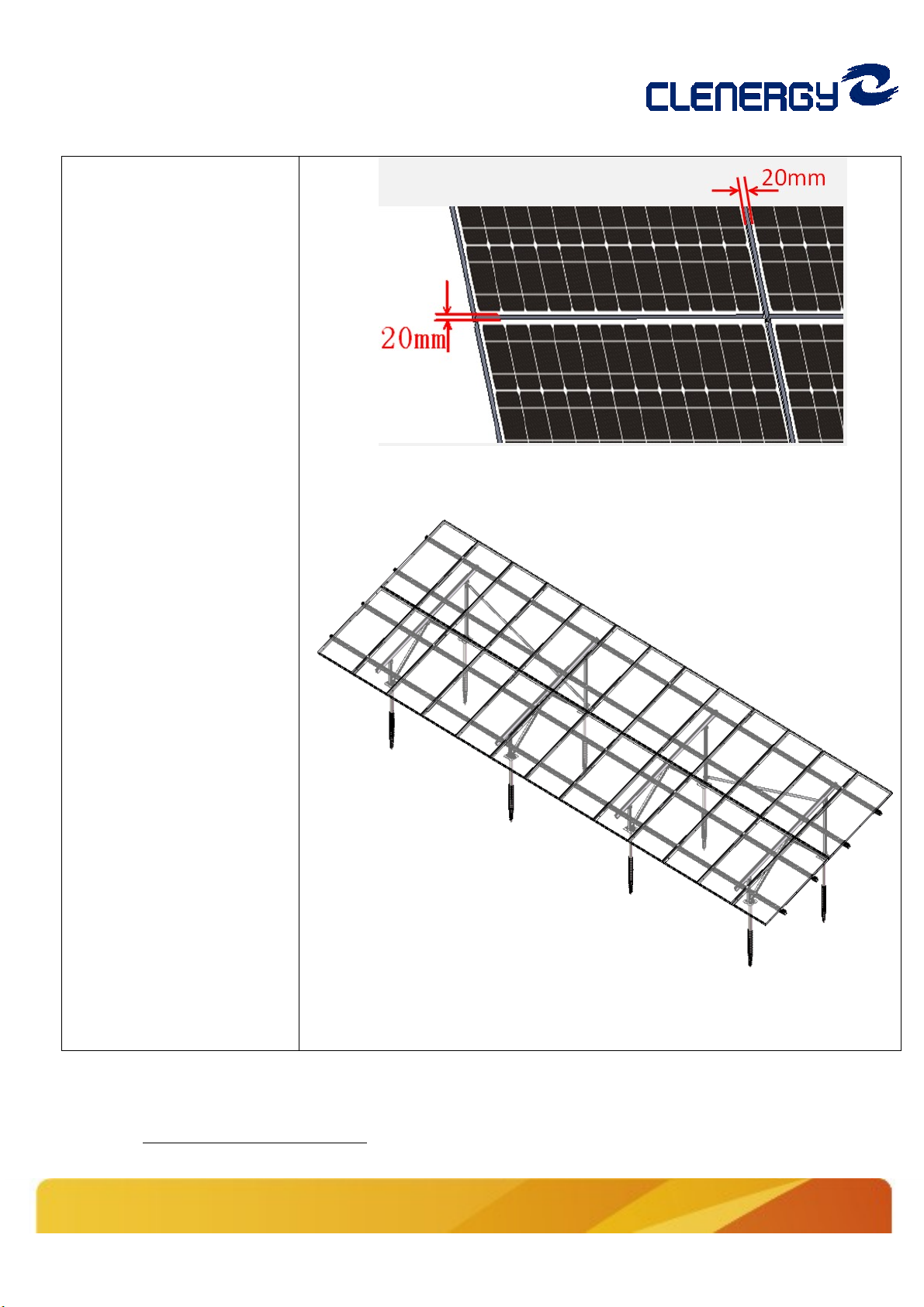

4.5.3 Fix the rest of PV-
Module according to the
sequence: from low to up,
from left to right. Make the
side faces of PV-Module
tightly against Clamps as
shown in Figure 18. Any
adjacent side face of PV-
Module keep the distance
of 20mm, as shown in
Figure 16.
Note:
Put an Inter Clamp at
each side of PV-Module to
keep the distance of
20mm and take them
away after the PV-Module
being fixed.
4.5.4 Now the installation
of a single array is
completed as shown in
Figure 17.
Please recheck all bolts,
and fasten them tightly.
Figure 16
Figure 17
i
