Sunways REVO-II Series User manual

User Manual

















REVO-II
3-5KVA INVERTER



















Version: 1.1

ABOUT THIS MANUAL
Purpose
Thismanualdescribestheassembly,installation,operationandtroubleshootingofthisunit.
Pleaseread
thismanualcarefullybeforeinstallationsandoperations.Keepthismanualforfuturereference.

Scope
Thismanualprovidessafetyandinstallationguidelinesaswellasinformationontoolsand
wiring.

SAFETY INSTRUCTIONS

WARNING: This chapter contains important safety and operating instructions. Read and
keep this manual for future reference.

1.Beforeusingtheunit,readallinstructionsandcautionarymarkingsontheunit,thebatteries
andallappropriatesectionsofthismanual.
2.CAUTION‐‐Toreduceriskofinjury,chargeonlydeep‐cycleleadacidtyperechargeablebatteries.
Othertypesofbatteriesmayburst,causingpersonalinjuryanddamage.
3.Donotdisassembletheunit.Takeittoaqualifiedservicecenterwhenserviceorrepairis
required.
4.Toreduceriskofelectricshock,disconnectallwiringsbeforeattemptinganymaintenanceor
cleaning.
Turningofftheunitwillnotreducethisrisk.
5.Warning!!Onlyqualifiedservicepersonsareabletoservicethisdevice.Iferrorsstillpersist
afterfollowingtroubleshootingtable,pleasesendthisinverter/chargerbacktolocaldealeror
servicecenter
formaintenance.
6.WARNING:Becausethisinverterisnon‐isolated,onlythreetypesofPVmodulesareacceptable:
singlecrystalline,polycrystallinewithclassA‐ratedandCIGSmodules.Toavoidanymalfunction,
donotconnectanyPVmoduleswithpossiblecurrentleakagetotheinverter.Forexample,
groundedPV
moduleswillcausecurrentleakagetotheinverter.WhenusingCIGSmodules,pleasebesureNO
grounding.
7.CAUTION:It’srequestedtousePVjunctionboxwithsurgeprotection.Otherwise,itwillcause
damageoninverterwhenlightningoccursonPVmodules.






INTRODUCTION
Thisisamulti‐functioninverter/charger,combiningfunctionsofinverter,solarchargerand
batterychargertoofferuninterruptiblepowersupportwithportablesize.ItscomprehensiveLCD
displayoffersuser‐configurableandeasy‐accessiblebuttonoperationsuchasbatterycharging
current,AC/solarchargerpriority,andacceptableinputvoltagebasedondifferentapplications.
Features
1. Hybirdsolarinverter(on/offgridinverter)
2. OutputpowerfactorPF=1.0
3. On‐gridwithenegystorage
4. ConfigurableAC/SolarChargerpriorityviaLCDsetting
5. Smartbatterychargerdesignforoptimizedbatteryperformance
6. Compatibletomainsvoltageorgeneratorpower
7. Enegygenerated,load,historyinformationandfaultrecord
8. ExternalWifidevice(optinal)
9. Paralleloperationwithupto6units
Basic System Architecture
Thefollowingillustrationshowsbasicapplicationforthisinverter/charger.Italsoincludes
followingdevicestohaveacompleterunningsystem:

GeneratororUtility. 
PVmodules 

Consultwithyoursystemintegratorforotherpossiblesystemarchitecturesdependingonyour
requirements.
Thisinvertercanpowerallkindsofappliancesinhomeorofficeenvironment,including
motor‐typeappliancessuchastubelight,fan,refrigeratorandairconditioner.
Figure 1 Hybrid Power System

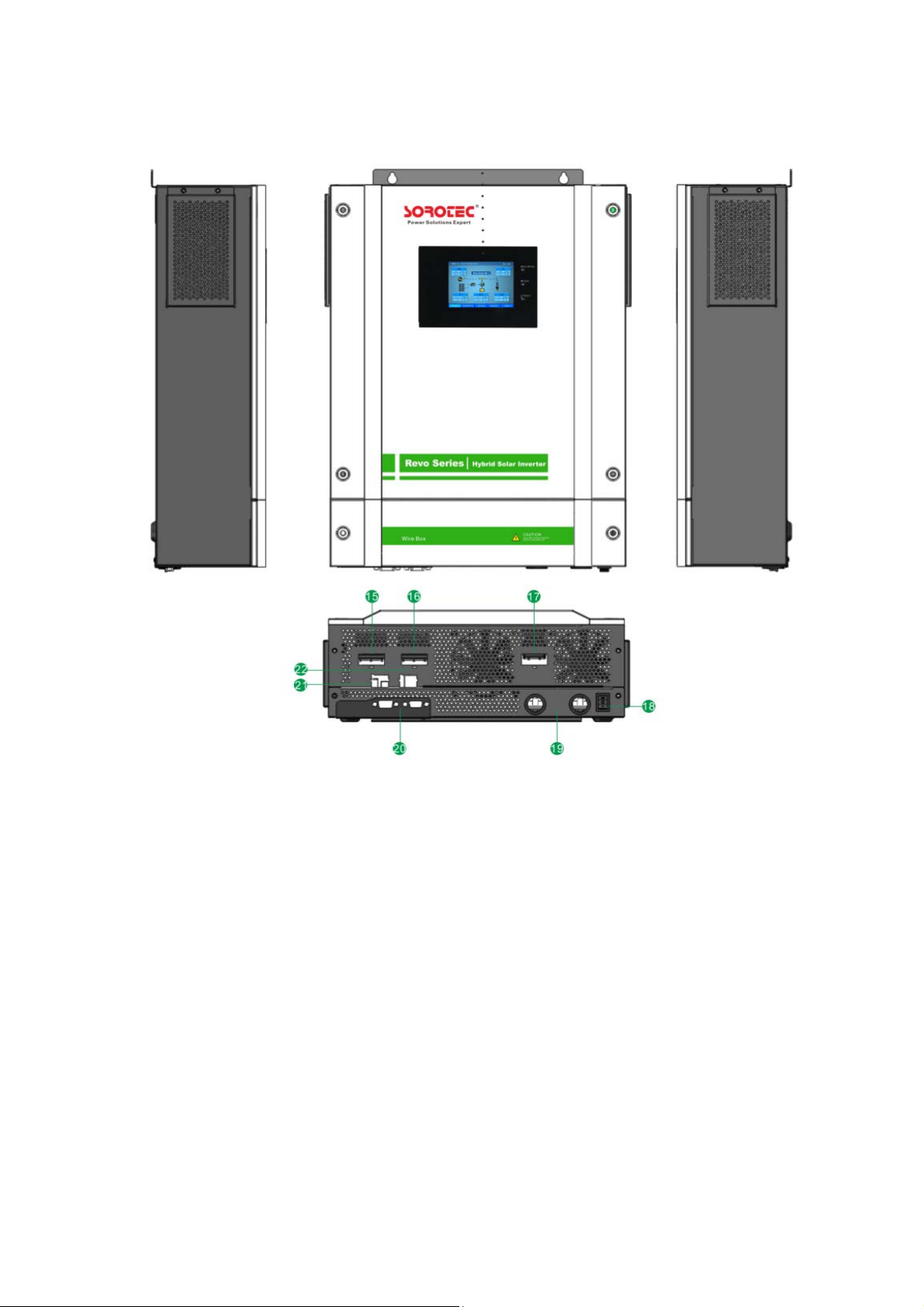

Product Overview




15:ACinput
16:ACOutput
17:PVinput
18:ON/OFFswitch
19:DCinput
20:Parallelconnectionterminal
21:RS232/USBterminal
22:Drycontactor








INSTALLATION

Unpacking and Inspection

Beforeinstallation,pleaseinspecttheunit.Besurethatnothinginsidethepackageisdamaged.
Youshould
havereceivedthefollowingitemsinsideofpackage:

Theunitx1
Usermanualx1
Preparation
Beforeconnectingallwirings,pleasetakeoffbottomcoverbyremovingtwoscrews.
Mounting the Unit
Considerthefollowingpointsbeforeselectingwheretoinstall:
1.Donotmounttheinverteronflammableconstructionmaterials.
2.Mountonasolidsurface
3.InstallthisinverterateyelevelinordertoallowtheLCDdisplaytobereadatalltimes.
4.Forproperaircirculationtodissipateheat,allowaclearanceofapprox.20cmtothesideand
approx.50cmaboveandbelowtheunit.
5.Theambienttemperatureshouldbebetween0°Cand55°Ctoensureoptimaloperation.
6.Therecommendedinstallationpositionistobeadheredtothewallvertically.
7.Besuretokeepotherobjectsandsurfacesasshowninthediagramtoguarantee sufficient heat
dissipation and to have enough space for removing wires.

SUITABLE FOR MOUNTING ON CONCRETE OR OTHER NON-COMBUSTIBLE SURFACE ONLY.



Battery Connection

CAUTION:Forsafetyoperationandregulationcompliance,it’srequestedtoinstallaseparateDC
over‐currentprotectorordisconnectdevicebetweenbatteryandinverter.Itmaynotbe
requestedtohaveadisconnectdeviceinsomeapplications,however,it’sstillrequestedtohave
over‐currentprotectioninstalled.Pleaserefertotypicalamperageinbelowtableasrequiredfuse
orbreakersize.

WARNING!Allwiringmustbeperformedbyaqualifiedpersonnel.

WARNING!It'sveryimportantforsystemsafetyandefficientoperationtouseappropriatecable
forbatteryconnection.Toreduceriskofinjury,pleaseusetheproperrecommendedcableas
below.



CAUTION!!BeforemakingthefinalDCconnectionorclosingDCbreaker/disconnector,besure
positive(+)mustbeconnectedtopositive(+)andnegative(‐)mustbeconnectedtonegative(‐).


AC Input/Output Connection
CAUTION!!BeforeconnectingtoACinputpowersource,pleaseinstallaseparateACbreaker
betweeninverterandACinputpowersource.Thiswillensuretheinvertercanbesecurely
disconnectedduringmaintenanceandfullyprotectedfromovercurrentofACinput.The
recommendedspecofACbreakeris32Afor3KVAand50Afor5KVA.

Therearetwoterminalblockswith“IN”and“OUT”markings.PleasedoNOTmis‐connectinput
andoutputconnectors.
WARNING! Allwiringmustbeperformedbyaqualifiedpersonnel.It'sveryimportantforsystem
safetyandefficientoperationtouseappropriatecableforACinputconnection.Toreduceriskof
injury,pleaseusetheproperrecommendedcablesizeasbelow.
ModelGauge Cable(mm2) TorqueValue
3KVA12AWG 41.2Nm
4/5KVA10AWG 61.2Nm

PV Connection

CAUTION: BeforeconnectingtoPVmodules,pleaseinstallseparatelyaDCcircuitbreaker
betweeninverterandPVmodules.
WARNING! It'sveryimportantforsystemsafetyandefficientoperationtouseappropriatecable
forPVmoduleconnection.Toreduceriskofinjury,pleaseusetheproperrecommendedcable
sizeasbelow.

ModelWireSize Cable(mm2) Torquevalue（max）
3‐5KVA12AWG 41.2Nm


WARNING:Becausethisinverterisnon‐isolated,onlythreetypesofPVmodulesareacceptable:
singlecrystalline,polycrystallinewithclassA‐ratedandCIGSmodules.
Toavoidanymalfunction,donotconnectanyPVmoduleswithpossiblecurrentleakagetothe
inverter.Forexample,groundedPVmoduleswillcausecurrentleakagetotheinverter.When
usingCIGSmodules,pleasebesureNOgrounding.
CAUTION:It’srequestedtousePVjunctionboxwithsurgeprotection.Otherwise,itwillcause
damageoninverterwhenlightningoccursonPVmodules.

CAUTION: It’srequestedtousePVjunctionboxwithsurgeprotection.Otherwise,itwillcause
damageoninverterwhenlightningoccursonPVmodules.

PV Module Selection:
WhenselectingproperPVmodules,pleasebesuretoconsiderbelowparameters:
1.OpencircuitVoltage(Voc)ofPVmodulesnotexceedsmax.PVarrayopencircuitvoltageof
inverter.
2.OpencircuitVoltage(Voc)ofPVmodulesshouldbehigherthanmin.batteryvoltage.

INVERTERMODEL3‐5KVA
Max.PVArrayOpenCircuitVoltage500Vdc
PVArrayMPPTVoltageRange120Vdc~450Vdc

Take250WpPVmoduleasanexample.Afterconsideringabovetwoparameters,the
recommendedmodule
configurationsarelistedasbelowtable

SolarPanelSpec.
250Wp
Vmp:30.1Vdc
Imp:8.3A
Voc:37.7Vdc
Isc:8.4A
SOLARINPUTQ'tyofpanelsTotalinput
power
(Mininserial:6pcs,max.inserial:12pcs)
6pcsinserial6pcs 1500W
9pcsinserial9pcs 2250W
12pcsinserial12pcs 3000W
9piecesinserialand2setsinparallel 18 pcs 4500W
PV Module Wire Connection
PleasefollowbelowstepstoimplementPVmoduleconnection:
1.Removeinsulationsleeve10mmforpositiveandnegativeconductors.
2.Suggesttoputbootlaceferrulesontheendofpositiveandnegativewireswithaproper
crimpingtool.
3.FixPVwirecovertotheinverterwithsuppliedscrewsasshowninbelowchart.

Final Assembly
Afterconnectingallwirings,pleaseputbottomcoverbackbyscrewingscrews
Communication Connection

PleaseusesuppliedcommunicationcabletoconnecttoinverterandPC,followon‐screen
instructiontoinstallthemonitoringsoftware.Forthedetailedsoftwareoperation,pleasecheck
usermanual
OPERATION
Power ON/OFF
Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch
(located on the button of the case) to turn on the unit
Operation and Display Panel

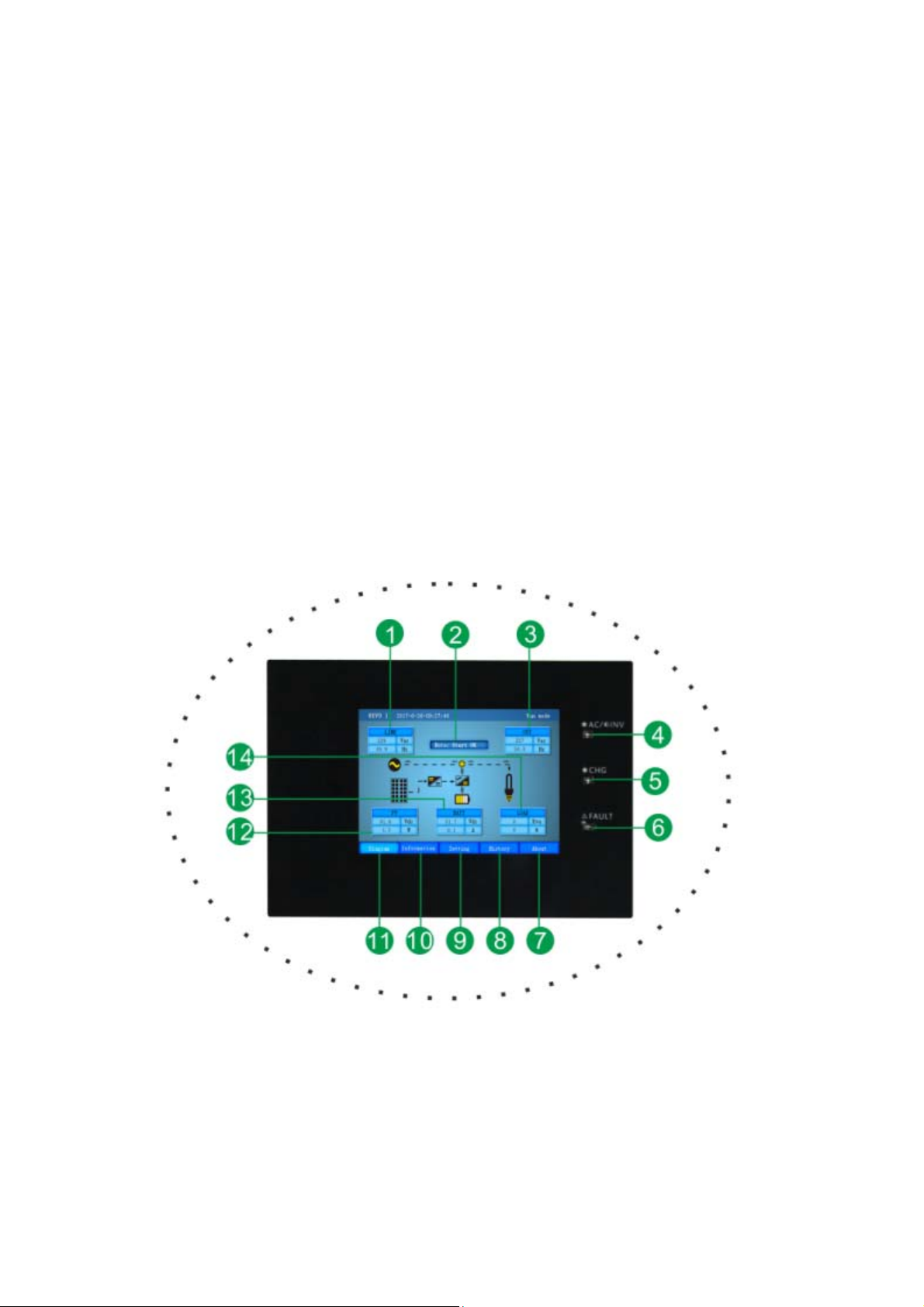

The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes
three indicators, four function keys and a LCD display, indicating the operating status and input/output
power information.
1. ACInputinformation 2.Operationinformation
3. ACOutputinformation 4.AC/INVindicator
5. Chargingindicator 6.Faultindicator
7. Aboutbutton 8.Historybutton
9. Settingbutton 10.Informationbutton
11.Diagrambutton 12.PVinputinformation
13. Battery information 14.Load information

LCD Display Icons
Icon Description

Productmodelandoperationtime

Operationinformationincludefaultandwarningcode
Inputvoltageandfrequencyinformation
Outputvoltageandfrequencyinformation
PVvoltageandpowerinformation
Batteryvoltageandcurrentinformation
Loadpowerandprecentinformation
Indicatesunitconnectstothemains.

IndicatesunitconnectstothePVpanel.

IndicatestheDC/ACinvertercircuitisworking.

Indicatestheutilitychargercircuitisworking.

Indicatesbatterylevel
Indicatestheload

Function Button Description
Thisbuttonforbacktodefaultdisplayscreen
Thesettingbuttonincludelanguage,workingmode,input,output,
battery,ACcharging,MPPT,parallel,date&time,peakvalleg,other
functionsetting
Thisbuttonincludegenerateand event
ThisbuttonincludeLCD,inverter,MPPTversion

LCD Setting
After pressing function button, the unit will enter setting mode.
Button
Function Desricption
Diagram Main display
interface
Back to default display screen
Setting
Language Chinese: Chinese language display
English: Enlish language display
Working mode Line: Utility will provide power to the loads as first
priority,solar charing for the battery.
Solar and battery energy will provide power to the
loads only when utility power is not available
Solar: Solar energy provides power to
the loads as first priority.
If solar energy is not sufficient to power all
connected loads, battery energy will supply power
the loads at the same time. Utility provides power
to the loads only when Solar energy is not available
or low-level warning voltage or the setting point
Battery: Battery energy provides power to
the loads as first priority. utility energy will supply
power the loads only when battery low-level
warning voltage or the setting point
Solar+Line: Solar energy provides power to
the loads as first priority.
If solar energy is not sufficient to power all
connected loads, utility energy will supply power
the loads at the same time.(load must higer than
500W) if load lower than 500W, utility can not
supply power at the same time just use Solar power
supply power.
Input AC wide: Acceptable input voltage range
90-280Vac
AC narrow: Acceptable input voltage range
170-280Vac
Output 220V: 220VAC output voltage 230V: 230VAC output voltage
240V: 240VAC output voltage
50HZ: 50HZ output frequency
60HZ: 60HZ output frequency

Battery Bat type: Lead acid, Lithium,User
Cut off VOL: 1.BAT low:This parameter can
be set, Setting range is from 36V to46V, Increment
of each click is 0.1V.
2.Cut off: 1.BAT low:This
parameter can be set, Setting range is from 36V
to46V, Increment of each click is 0.1V.
AC charge Line: This parameter can be set, Setting range is
from 30A to60A, Increment of each click is 10A.
Discharge:
MPPT MPPT: This parameter can be set, Setting
range is from 0A to18A, Increment of each click is
1A.
Parallel Single phase: Include “Enparallel” and “ID”
setting
Three phase: Include “Enparallel” and “A/B/C”
phase setting
Date&Time Date and time setting:This parameter can
seting data and time display details according to
local requirement
Grid
Engrid: On-gird seting
Peak valley
Enapeak peak valley charge: Charging
time seting
Enapeak peak valley discharge:
Discharging time setting
Other
Reserve units
History
Generation Day Gen.: Daily generating capacity diagram
Month Gen.: Monthly generating capacity
diagram
Year Gen.: Annual generating capacity diagram
Event
Event record:
About Version LCD version
Inverter version
MPPT version

Fault Reference Code
Fault code Fault event
01 Fan is locked when inverter is off
02 Over temperature
03 Battery voltage is too high
04 Battery voltage is too low
05 Output short circuited or over temperature is detected by
internal converter components.
06
Output voltage is too high
07
Overload time out
08
Bus voltage is too high
09
Bus soft start failed
10
Over current or surge
11 Bus voltage is too low
12
Inverter soft start failed
13
Over DC voltage in AC output
14
Current sensor failed
15
Output voltage is too low
16
PV voltage is over limitation

Warning Indicator
Warnning code
Warning Event
20
Fan is locked when inverter is on
21
Over temperature
22
Battery is over-charged
23
Low battery
24
Overload
25
Output power derating
26
PV energy is low.
27
High AC input (>280VAC) during BUS soft start

TROUBLE SHOOTING
Problem
LCD/LED/Buzzer Possible cause What to do
Unit shuts down
automatically
during startup
process
LCD/LEDs and
buzzer will be
active then
complete off
The battery voltage is too
low
1. Re-charge battery.
2. Replace battery
No response after
power on
No indication 1. The battery voltage is
far too low.
2. Internal fuse tripped
1. Contact repair center for
replacing the fuse.
2. Re-charge battery.
3. Replace battery
Mains exist but the
unit works in
battery mode
Input voltage is
displayed as 0 on
the LCD and green
LED is flashing
Input protector is tripped
Check if AC breaker is tripped
and AC wiring is connected
well.
LED is flashing Insufficient quality of AC power 1. Check if AC wires are too thin and/or too long.
2. Check if generator (if
applied) is working well or if
input voltage range setting is
correct. (UPS Appliance)
Change output source priority
to Utility first
When the unit is
turned on, internal
relay is switched on
and off repeatedly
LCD display and
LED sare flashing
Battery is disconnected
Check if battery wires are
connected well
Buzzer beeps
continuously and
red LED is on.
Fault code 01
Fan fault Replace the fan
Fault code 02 Internal temperature of
inverter component is over
100°C.
Check whether the air flow of
the unit is blocked or whether
the ambient temperature is
too high.
Fault code 03
The battery voltage is too
high
Check if spec and quantity of
batteries are meet
requirements
Battery is over-charged. Return to repair center
Fault code 05 Output short circuited.
Check if wiring is connected
well and remove abnormal
load.
Fault code 07
Overload error. The
inverter is overload 110%
and time is up.
Reduce the connected load by
switching off some
equipment.
If PV input voltage is
higher than specification,
the output power will be
derated. At this time, if
connected loads is higher
than derated output
power, it will cause
overload.
Reduce the number of PV
modules in series or the
connected load.

Buzzer beeps
continuously and
red LED is on.
Fault code 06/15
Output abnormal (Inverter
voltage below than 190Vac
or is higher than 260Vac)
1. Reduce the connected
load.
2. Return to repair center
Fault code
08/09/12/14
Internal components failed
Return to repair center
Fault code 10
Over current or surge.
Restart the unit, if the error
happens again, please return
to repair center
Fault code 11
Bus voltage is too low.
Fault code 13
Output voltage is
unbalanced.
Fault code 16
PV input voltage is beyond
the specification. Reduce the number of PV
modules in series.

SPECIFICATIONS
MODEL
REVO II 3K-48 REVO II 4K-48 REVO II 5K-48
Max PV Array Power 4500W
Rated Output Power 3000W 4000W 5000W
Max PV open circuit
voltage 500VDC
MPPT operating
voltage range 120-450VDC
MPPT tracker number 1
Grid-tie operation
Nominal output
voltage
220/230/240VAC
Output voltage range 184-264.5VAC
Nominal output
current 13A 17.4A 21.7A
Power factor
>0.99
Efficiency(DC/AC) 96%
OFF-Grid,
Hybrid operation
Acceptable input
voltage range 90-280Vac or 170-280Vac
Frequency 50/60HZ
Max AC input current 40A
Battery mode
Nominal output
voltage 220/230/240VAC

Output wave form Puresinewave
Efficiency（DC/AC）
93%
Charger
Nominal DC voltage 48VDC
Max solar charge
current
80A
Max AC charge
current
60A
Max charger current 80A
General
Parallel function
Communication USBorRS232
Humidity 0-90% RH( No- condensing)
Operation
temperature
0-50
℃
