TABLE OF CONTENTS
SECTION PAGE
1. OVERVIEW DRAWING.......................................................................................... 4
2. IMPORTANT SAFETY INSTRUCTIONS .............................................................. 5
3. GROUNDING INSTRUCTIONS ............................................................................ 6
4. MOTORIZED TREADMILL PRE-ASSEMBLY..................................................... 7
5. ASSEMBLY STEPS ................................................................................................. 8
6. MAINTENANCE ..................................................................................................... 10
7. COMPUTER INSTRUCTION ................................................................................. 11
8. EXPLODED VIEW .................................................................................................. 25
9. TROUBLESHOOTING............................................................................................ 27
10. WARRANTY............................................................................................................ 29

4

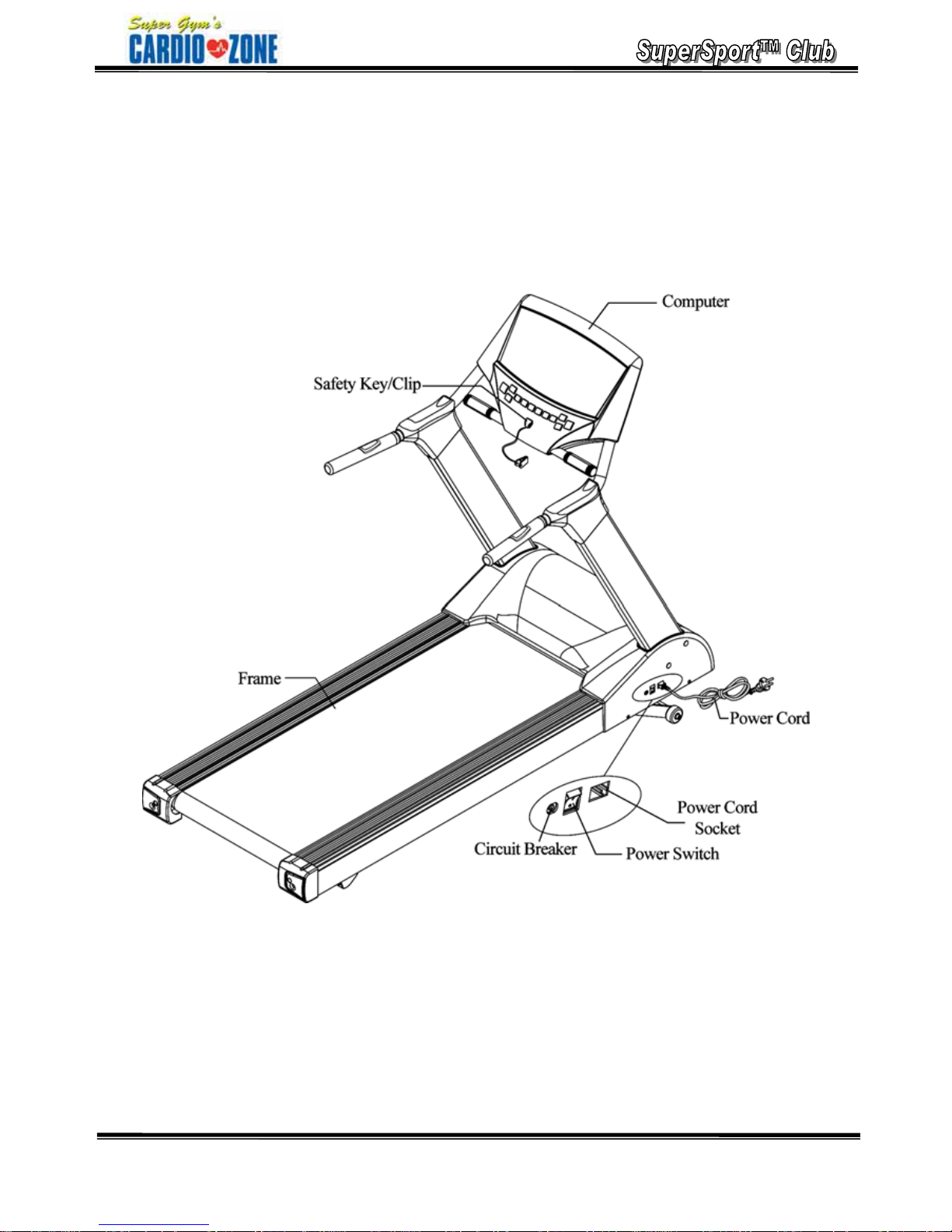

1. OVERVIEW DRAWING

5
2. IMPORTANT SAFETY INSTRUDCTIONS
When using an electrical appliance, basic precautions should always be followed,
including the followings:
Read all instructions before using the treadmill.
DANGER – To reduce the risk of electric shock:
1. Always unplug this appliance from the electrical outlet immediately after using and
before cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in.Unplug from outlet
when not in use, and before putting on or taking off parts.
2. Close supervision is necessary when this appliance is used by, on, or near children,
invalids, or disabled persons.
3. Use this appliance only for its intended use as described in this manual. The
manufacturer does not recommend attachments onto the appliance.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water. Return the
appliance to a service center for examination and repair.
5. Do not carry this appliance by supply cord or use cord as a handle.
6. Keep the cord away from heated surfaces.
7. Never operate the appliance with the air openings blocked. Keep the air openings
free of lint, hair, and the like.
8. Never drop or insert any object into any opening.
9. Do not use outdoors.
10. Do not operate where aerosol (spray) products are being used or where oxygen is
being administered.
11. To disconnect, turn all controls to the off position, than remove plug from outlet.
12. Connect this appliance to a properly grounded outlet only.
Base on content of product. If treadmill has elevation function, it needs to consider the
following issues:
13. If the treadmill is foldable, when user finishes to use the treadmill, the elevation needs
to be back to original position.
14. When user is using the treadmill, it cannot be folded at the same time.
15. The appliance is intended for household use on.
SAVE THESE INSTRUCTION

6
3. GROUNDING INSTRUCTIONS
This product must be grounded. If malfunction or breakdown occurs, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock.This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and grounded in accordance with all local codes
and ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether
the product is product is properly grounded. Do not modify the plug provided with the product - if it
will not fit the outlet; have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 110V~120V circuit and has a grounding plug that looks like
the plug illustrated in the figure. Make sure that the product is connected to an outlet having the
same configuration as the plug. No adapter should be used with this product.

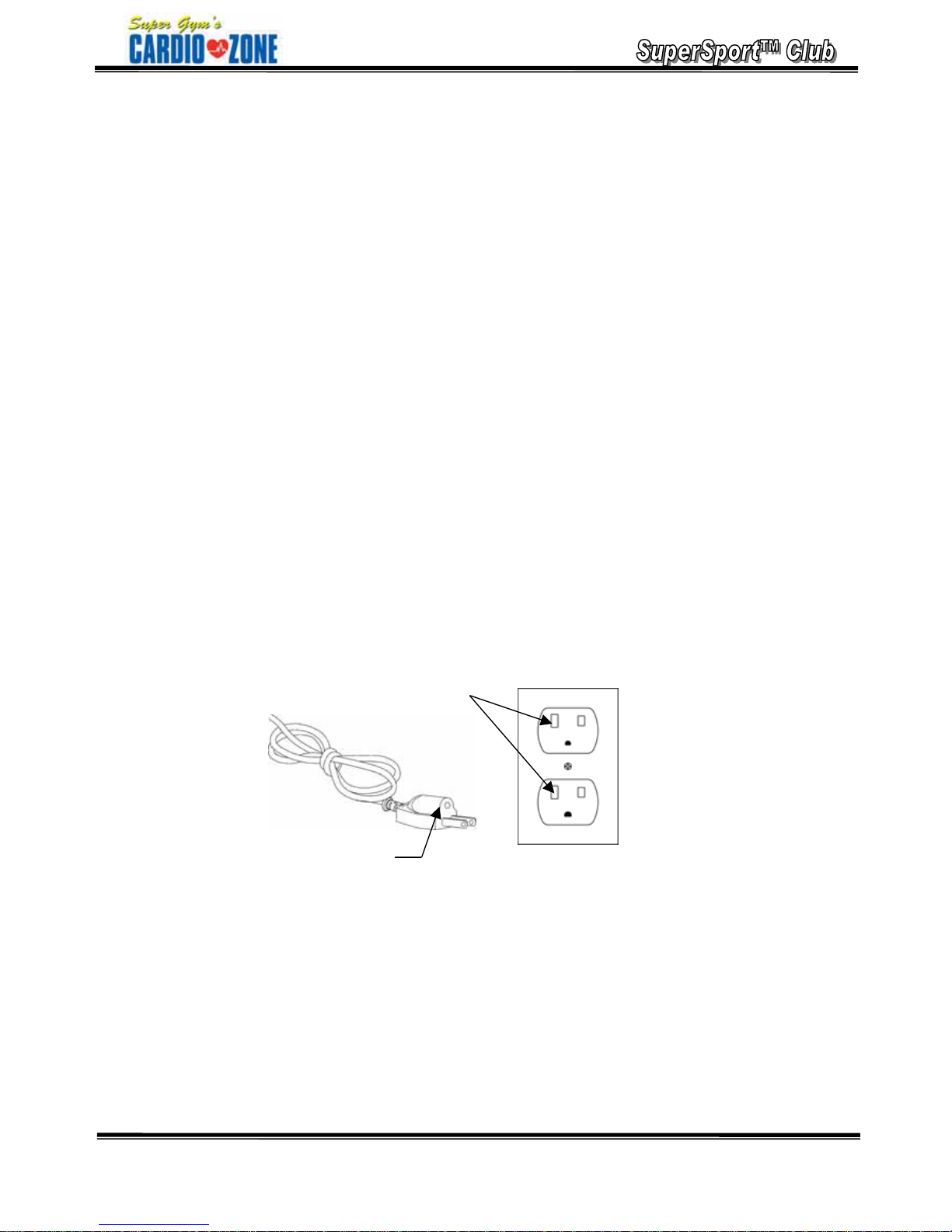

Figure
Groundingmethods
GROUNDED
OUTLET
GROUNDED PIN

7
4. Motorized Treadmill Pre-Assembly
Handrail control button and heart rate strap are optional items in the package
1.Heart rate can be measured in this treadmill. Attach strap to chest during exercise, the heart rate value will
display on the PULSE window.
2. Except using the control button on the console, the control button on the handrail can also be used to
adjust speed and elevation. The control button on the left handrail is for elevation while the right handrail
button is for speed adjustment.
3. Under START/READY condition, if you did not hold grip pulse sensor, then PULSE window will display HP,
when you hole the both sides of grip pulse sensor, you will see the PULSE window display the heart rate values.

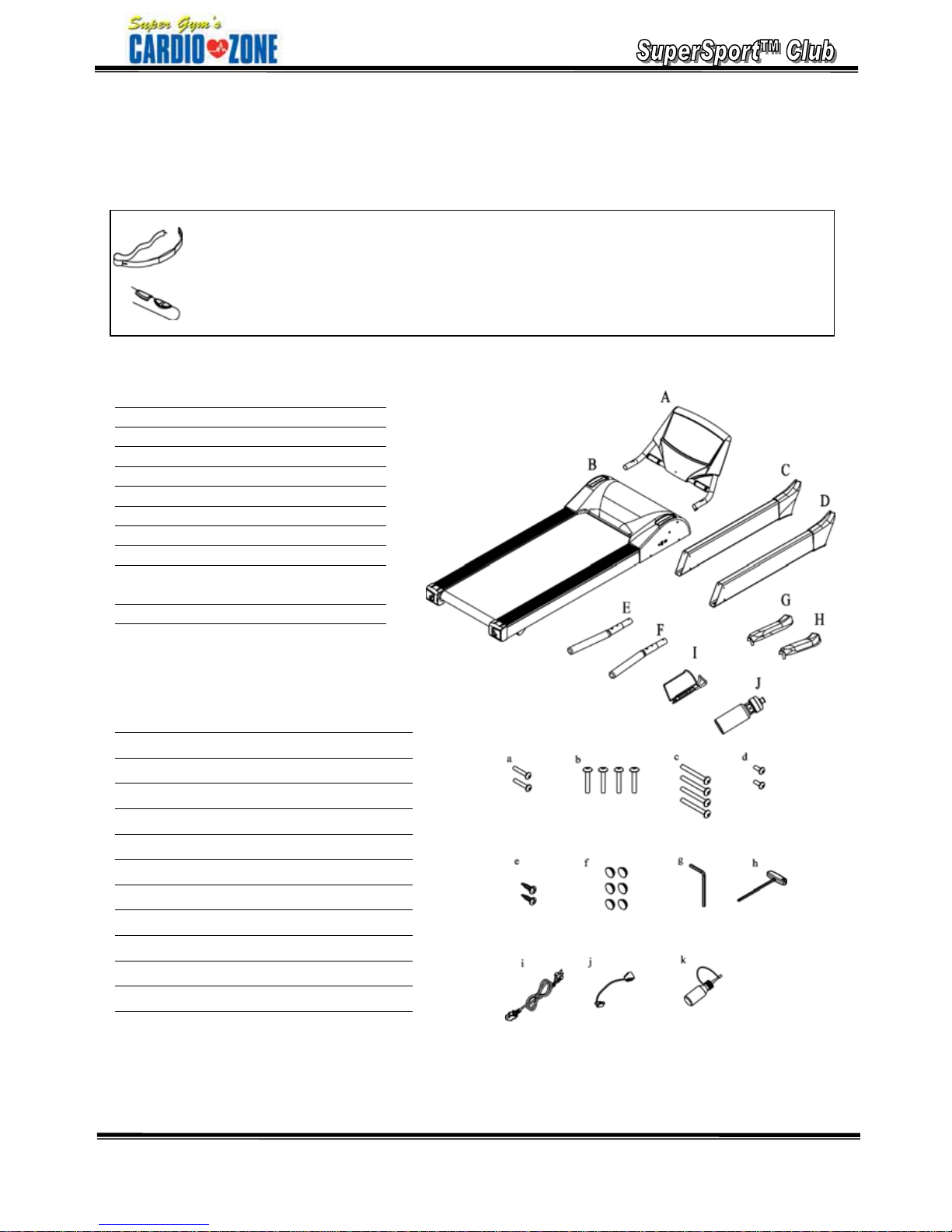

ITEM Description Qty
A Computer Set 1
B Frame 1
C Left Upright 1
D Right Upright 1
E Left Handrail 1
F Right Handrail 1
G Left Handrail Cover 1
H Right Handrail Cover 1
I Cup/Bottle Holder
Cover 1
J Bottle 1
ITEM Description Qty
a Bolt M8xP1.25x40 2
b Bolt M8xP1.25x60 4
c Bolt M8xP1.25x75 4
d Bolt M5xP0.8x15 2
e Bolt ψ5x25 2
f Cap of bolt 6
g Allen Wrench 5mm 1
h T Spanner 1
i Power Cord 1
j Safety Key/Clip 1
k SILICON 1

8
5. Assembly Step

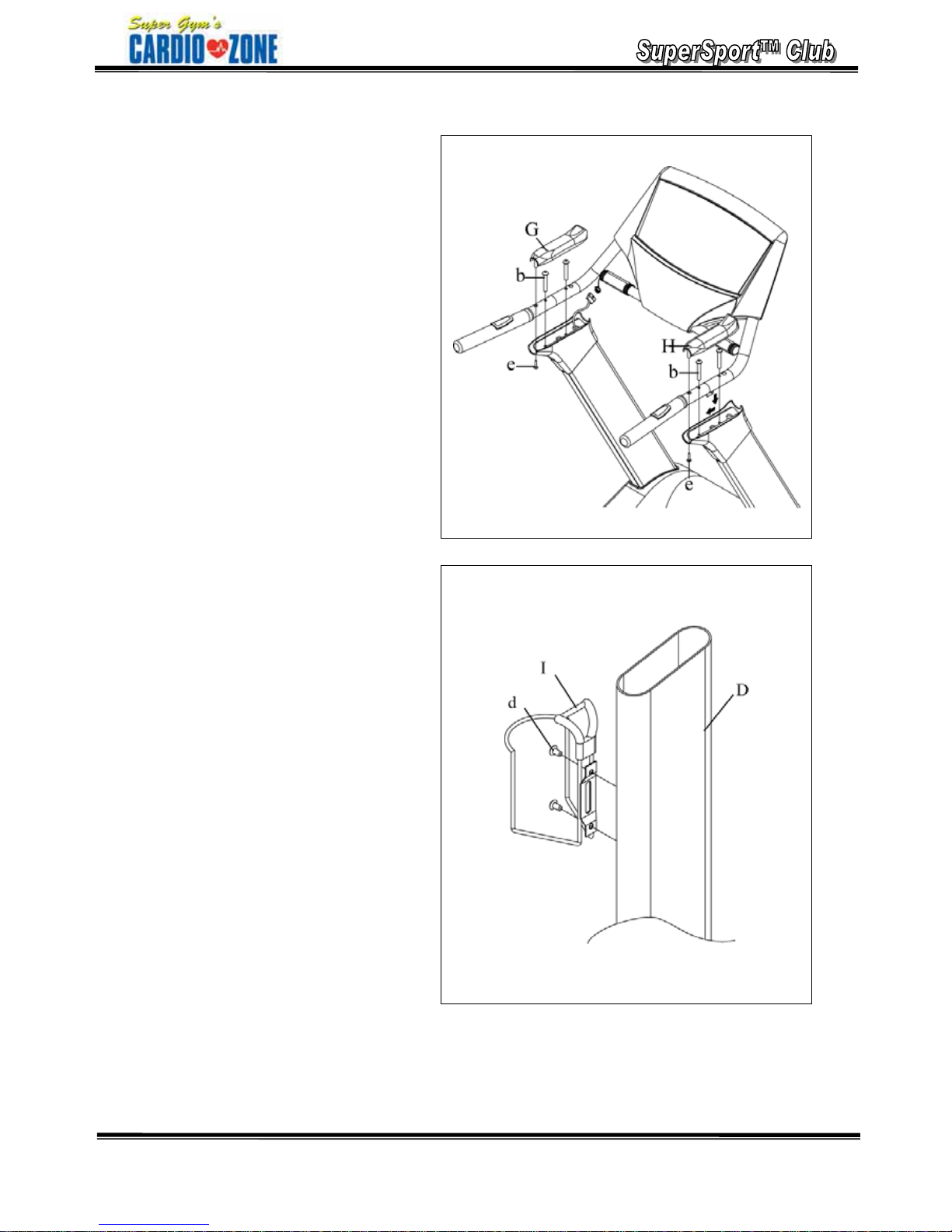

1. First pull out the bottom control wire using
the guide wire inside the Upright Bar (D).
Pull to the position as shown in the
drawing, then insert the Upright Bar
(C,D),into the two locations on the frame
(B), Secure the upright bar with treadmill
frame by bolts (b、d) wrench provided.
After tightening the screws, cover the
screws with screw cover (G) as shown in
the drawing.
Ps.1.In order to keep the assembly safety,
please do it with 2 people instead of one
person.
Ps.2. One keeps the tube stable without any slit
2. Computer Set：
Connect the control wire inside the Handrails
(E 、F) with the control wire inside the
Computer Set (A), then follow the
directions shown on drawing. Assemble
the Handrails (L&R) to computer.
Ps.1. When assemble, assure that the screw
holes on the Handrails (L&R) have
matched the holes on the Computer set's
pipe.
Ps.2. Because, this product has the function
about Handrails switch. So that, when
assemble, it must be watched out that the
switch of Handrail (L) is used to adjust the
incline, and the switch of Handrail (R) is
used to adjust the speed.

9
3. As the above steps have been completed,
alight the Computer Set (assembled in the
above step) on the Upright Bars, and connect
the control wire inside the Upright Bars with
the control wire inside the Computer Set.
After that, insert the excessive wire or cable
into the Upright Bars
Tighten up with bolt(c).
Final, connect the two Handrail Covers
(H、I) on to the Handrails, and tighten up
with screws(e)
Assembly requires two or more persons during
the process
4. Pot Holder assembly：
Put Tea Pot Holder (J) on the Upright Bar
(D), secure the Bolt (a) inserted and fixed
with fastening.
Ps. Personal option, the Tea Pot Holder may
Put on the other side of Upright Bar

10
6. Maintains
1 Walking Belt Centering. If the Walking Belt tracks off
center to the right or left of the deck, first turn the
power off. Then use a 6mm wrench (g) to tighten the
rear roller bolt on the side of the treadmill toward which
the belt is moving.. For example, if the belt moves to
the left and the deck becomes exposed on the right,
tighten the bolt on the left side of the frame. Tighten
about 1/4 of turn(clockwise). If the belt does not move
back to the center of the treadmill, make another
adjustment to the same bolt. Once the Walking Belt
has been adjusted closer to the center, the treadmill can
be started again.
Ps.1: The above mentioned is pretty import, make sure to
follow the procedure.
Ps.2: Make sure the walking belt going on right without
any tracks off the centers it depends on the position
and weight.
2. It is recommended that the deck be lubricated every 6-12
months according to the frequency of usage. First, use
wrench to loosen the bolts in the end caps. Pull up the
Walking Belt, dispense the lubricant on the deck, and
spread evenly. After lubricating the deck, center the
belt, and check the belt tension. Adjust the belt as
mentioned in step 1.
Ps1: If the belt happens to slip, follow the above steps
and lubricate the running deck.
SUGGESTED PREVENTIVE MAINTENANCE SCHEDULE IN
ACCORDANCE WITH THE AVERAGE RUNNING SPEED
Measurement Speed Interval
6KM/hr below 1 year
6~12KM/hr 6 months
Metric
12KM/hr above 3 moths
4mile/hr below 1 year
4~8mile/hr 6 months
English
8mile/hr above 3 moths
N
ote: This preventive maintenance schedule is
only meant for home use. It is suggested to
maintain the unit every month fo
r
commercial use.

11
7. COMPUTER INSTRUCTION
A. General operation:
1. Turn on the On-off switch.
2. Put the safety key into the recess of the console.
The beeper will make an alerting sound, meanwhile the dot matrix LED light will be
blinking, program light will blink circularly; this means the treadmill is ready to start. At
the ready-start stage, hold the heart rate grips to measure your heart rate.
3. Press to begin; the treadmill starts with a velocity of 0.5MPH. While the belt is
running, press 、, to accelerate or decelerate the speed of the belt. (Or press the
Fast Speed Buttons to set the speed you want.). Press 、to adjust
the inclination angle greater or smaller. (or press the Fast Elevation
Buttons to set the incline you want.), press , the treadmill will stop.
(press once, information window will display PAUSE, to pause motions of the
treadmill and values on the computer console and will remain paused for 60 seconds, after
60 seconds all values will return to zero, if press once, after that press again and
hold for 3 seconds, the treadmill will reset to the ready-start stage.)
**Adjustable Speed Range：0.5~12MPH , each level raise 0.1 MPH
Adjustable Incline Range：0~15 %, each level raise 1 %
4. At the ready-start condition, press can set user’s weight.
Pre-set Weight is 150LBS.
Adjustable Weight Range：Starts at 50 LBS. each level increases by 1 LB.
5. The treadmill can also use other methods to measure heart rate, when exercising, tied the
Chest Strap to your chest, and then you can see your heart rate in PULSE window.
6. Press , after that press to set the time. (After setting, time will start to count down,
when time is up, it will come back to ready-start stage)
Pre-set Time is 20 min

12
Adjustable Time Range：20~240 min, each level raise 5 min

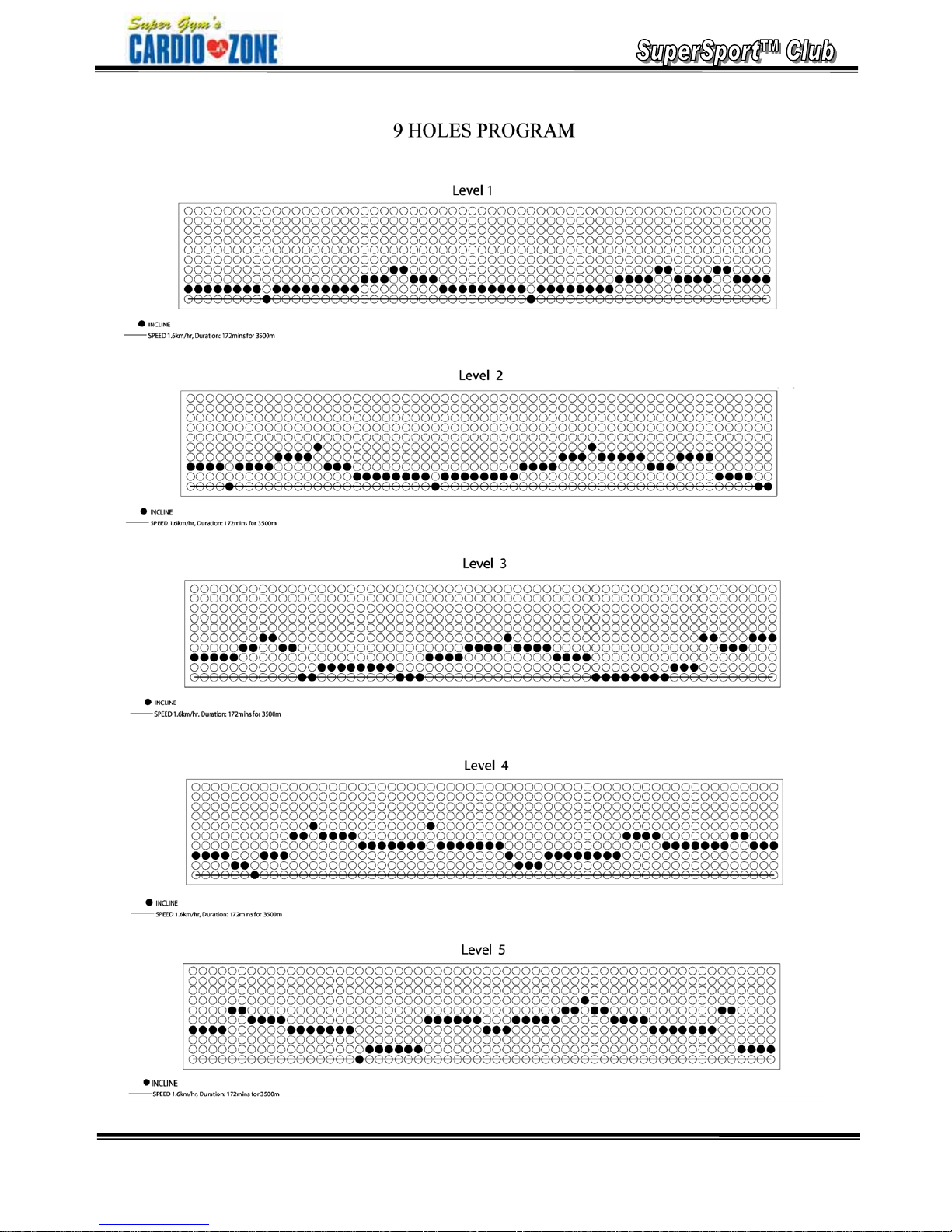

7. Press , and that press , Target window will display the DISTANCE、CAL、
PACE、METS and PULSE(Only having the heart rate signals, that will have the PULSE
information.) status, shows a status per 8 seconds circularly. Or press 、 、 、
、directly to show the single information.
**DISTANCE Range：0.1~999.9 mil
CAL Range：1~9999 cal
* Changes about CAL is direct ratio with user's weight.
PACERange：75~3 min
METSRange：1.4~32.6
PULSE Range：40~240 Beats/min
* Heart rate signal has 3 colors, each color is represent different heart rate.：
Below90：Signal shows GREEN color.
Between 91 and 130：Signal shows BLUE color.
Over130：Signal shows RED color.
** The chart below provides different heart rate due to age and amount of exercise：
170 OVER
150 166 MIDDLE
120 146 162 LOW
117 143 157
114 137 153
111 135 149
108 131 145
105 128 140
102 124 136
99 120 132
96 116
HEART BEATS/MIN
93
20 25 30 35 40 45 50 55 60 65 (Age)
8. Except using the control button on the console, the control button on the handrail can also
be used to adjust speed and elevation. The control button on the left handrail is for
elevation while the right handrail button is for speed adjustment.

13
B. Program Operation Mode (Only in ready-start stage, this mode could be run.)
1. ：This program is used to do the heart rate training. When using, heart rate reached your
setting, then the incline and speed will keep steady, to keep the heart rate in a steady range, to
achieve the training objective. When choosing this mode, program will ask you to enter the
following values.：
Weight ：Pre-set Value is 150LBS, Adjustable Weight Range ：Starts at 50 LBS. each
level increases by 1 LB. After setting up correct value, press to set next value.
Age：Pre-set age is 30, adjustable range：13~113, each level raise 1. After setting up correct value,
press to set next value.
BPM：Between this value and user's age is inverse ratio. Refer to attached table, and choose the
value that fit you. After setting up correct value, press to set next value.
Time：Pre-set time is 20 min., adjustable range：20~240 min., each level raise 5 min. After
setting up correct value, press , the belt will start to move.
** Because thinking of safety problem, mode should be used with wireless heart rate
sensor.
2. ：The pre-set distance in this program is 3500ml（2.17mil）. It will be finished, after you run
3500ml（2.17mil）, and the treadmill will stop. Under this mode, it imitated golf course, and the
difficulty is basing on the changes of upgrade or downgrade. When choosing this mode,
program will ask you to enter the following values.：
Weight ：Pre-set value is 150LBS, Adjustable Weight Range ：Starts at 50 LBS. each
level increases by 1 LB. After setting up correct value, press to set next value.
LVL：Pre-set Value is 1 LVL, adjustable range：1~10 LVL，each level raise 1 LVL. After setting
up the correct value you want, press , and the belt will start to move.
3. ：The pre-set distance in this program is5000ml（3.1mil）. It will be finished, after you run
5000ml（3.1mil）, and the treadmill will stop. Under this mode, jog is the main part. When
choosing this mode, program will ask you to enter the following values.：
Weight ：Pre-set value is 150LBS, Adjustable Weight Range ：Starts at 50 LBS. each
level increases by 1 LB. After setting up the correct value, press to set next value.
LVL：Pre-set value is 1 LVL, adjustable range：1~10 LVL, each level raise 1 LVL. After setting
up the correct value you want, press , and the belt will start to move.
4. ：The goal of this program is to consume user’s calories. User can set up a value, as a goal to
consume unnecessary calories, to keep slim easily. When choosing this mode, program will ask
you to enter the following values.：
Weight ：Pre-set value is150LBS, Adjustable Weight Range ：Starts at 50 LBS. each
level increases by 1 LB. After setting up the correct value, press to set next value.
CAL：Pre-set value is 200 cal, adjustable range：40~560 cal, each level raise 1 cal. After setting
up the correct value, press to set next value.
LVL：Pre-set value is 1 LVL, adjustable range：1~10 LVL, each level raise 1 LVL，After setting
up the correct value, what you want, press , and the belt will start to move.
5. 、、 、 ：
When choosing this mode, program will ask you to enter the following values.：
Weight ：Pre-set value is 150LBS, Adjustable Weight Range ：Starts at 50 LBS. each

14
level increases by 1 LB.
After setting up the correct value, press to set next value. From now on, you can set up the
mode by your favor. Under this mode, there are 50 grades (SE01~SE50).
Of each grade, adjustable time range: 1~10 min., adjustable speed range: 0.5~12MPH, and
adjustable incline range: 0~15 LVL.
After setting up one grade, press to enter the next grade setting, or wait 10 sec., system will
enter the next grade setting automatically.
If you don't need to use all 50 grades, after finished settings, press and the treadmill will
start to work. When the mode, according to your settings, finished, the treadmill will go back to
ready-start stage automatically.
6. 、 ：When choosing this mode, program will ask you to enter the following values.：
Weight ：Pre-set value is 150LBS, Adjustable Weight Range ：Starts at 50 LBS. each
level increases by 1 LB.
After setting up the correct value, press to set up next value. From now on, you can set up
the mode by your favor. Under this mode, there are 50 grades (SE01~SE50).
Of each grade, adjustable time range: 1~10 min., adjustable speed range: 0.5~12MPH, and
adjustable incline range: 0~15 LVL.
After setting up one grade, press to enter the next grade setting, or wait 10 sec., system will
enter the next grade automatically. If you don't need to use all 50 grades, after finished settings,
press and the treadmill will start to work.
When the mode, according to your settings, finished, the treadmill will go back to ready-start
stage automatically.
** This mode has the pre-set value too. But if you don't want to make any change to the pre-set
value; after setting up your weight, press to run the program; and the treadmill will
start to work.
** These two functions not only can set up by user's favor, but have its pre-set values. About its
graph please refer to the attached graph.
** The way that how information shown on the dot matrix LED as below. (The information of
“Time”，“Speed” and “Incline”.) ：
On the dot matrix LED, there are 10*21 LED in total. Among them, the LED line in center will
not bright. There are used to divide INCLINE and SPEED into two sections. Left 10 lines show
the changes of Incline and Time, this section called INCLINE section. Right 10 lines show the
changes of Incline and Time, this section called SPEED section. Each value as below represents
the each LED's value. The value in the INCLINE section represent the changes of incline, The
value in the SPEED section represent the changes of speed. The underside value represent the
changes of time, each one takes as 1 min.
As a reference, here is an operation example as below.：

15
（1） In ready-start stage, press to enter the program.
（2） First, enter the weight. Press 、to change weight value to 134LBS, then
press to set other values.
（3） SE01：Press 、to set incline to 0%, then press 、to set speed to 0.5MPH r,
then press 、to set time to 1 min. Now, the result on the dot matrix LED is
showed as below, then press to enter SE02.
（4） SE02：Press 、to set incline to 1 %, then press 、to set speed to 1.0 MPH,
then press 、to set time to 1 min.. Now, the result on the dot matrix LED is
showed as below, then press to enter SE03.
（5） SE03：Press 、to set incline to 2 %, then press 、to set speed to1.3MPH,
then press 、to set time to 1 min.. Now, the result on the dot matrix LED is
showed as below, then press to enter SE04.
( 6 ) SE04：Press 、to set incline to 3 %, then press 、to set speed to 2.0MPH,
then press 、to set time to 1 min.. Now, the result on the dot matrix LED is
showed as below, then press to enter SE05

16
( 7 ) SE05：press 、to set incline to 4 %, then press 、to set speed to 2.3MPH,
then press 、to set time to 2 min.. Now, the result on the dot matrix LED is
showed as below, then press to enter SE06.
( 8 ) SE06：press 、to set incline to 3 %, then press 、to set speed to 2.0MPH,
then press 、to set time to 1min.. Now, the result on the dot matrix LED is
showed as below, then press to enter SE07
( 9 ) SE07：press 、to set incline to 2 %, then press 、to set speed to 1.3MPH,
then press 、to set time to 1 min.. Now, the result on the dot matrix LED is
showed as below, then press toenterSE08

17
( 10 ) SE08：press 、to set incline to 1 %, then press 、to set speed to 1.0 MPH,
then press 、to set time to 1 min.. Now, the result on the dot matrix LED is
showed as below, then press to enter SE08.
( 11 ) SE09：press 、to set incline to 0 %, then press 、to set speed to 0.5MPH,
then press 、to set time to 1 min.. Now, the result on the dot matrix LED is
showed as below, then press and start to run the program.
( 12 ) Now treadmill start to work, and the dot matrix LED is showed as below

18
C. Body Fat Function (Only in ready-start stage, this function could be run.)
1. At ready-start stage, press to enter the Body Fat Function.
2. When choosing this function, program will ask you to enter the following values.
Weight：Pre-set value is150LBS, Adjustable Weight Range：Starts at 50 LBS. each
level increases by 1 LB. After setting up the correct value, press to set next value.
Height：Pre-set value is 5’7”, adjustable range：4’ 3”~7’11”, each level raise 1”. After setting up
the correct value, press to set next value.
Age：Pre-set value is 30, adjustable range：13~113, each level raise 1 kg. After setting up the
correct value, press to set next value.
Sex：Pre-set value is 1(Male), use 、can change to 1(♂，Male)、0(♀，Female)，
After setting up the correct value, press and stretch out two hands to hold the heart rate
sensor about 30 sec. After 30 sec, it will display your Body Fat value. At the same time, left
LED lines will display the estimation of the body, and right LED lines will show the Body Fat
value which computed by program.
3. Relation between LED and Body Fat value, refer to following table.：
LED Body Fat Value
45.1~50.0
40.1~45.0
35.1~40.0
30.1~35.0
25.1~30.0
20.1~25.0
15.1~20.0
10.1~15.0
5.1~10.0
0~5.0
4. Because body fat degree has differences between the male and the female; so that the LED
which display the estimation of the physique, will display different too. The following table
provides the different body fat degree between the male and the female.：
LED 1(Male) 0(Female)
35.0％以上 45.0％以上
30.0~34.9(％) 40.0~44.9(％)
25.0~29.9(％) 35.0~39.9(％)
20.0~24.9(％) 30.0~34.9(％)
15.0~19.9(％) 25.0~29.9(％)
10.0~14.9(％) 20.0~24.9(％)
5.0~9.9(％) 15.0~19.9(％)
0~4.9(％) 0~14.9(％)

19
