Super Handy GUT072 User manual

Instruction Manual
REV 05/24/21
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
Cordless Chain Saw

SYMBOL EXPLANATION
Read the instruction manual completely and carefully before using the power
tool.
This marking indicates that this product should not be disposed of with other
household wastes. Follow the disposal instructions within this instruction
manual.
With this symbol the manufacturer confirms that this power tool is in
accordance with applicable European directives.
Do not expose to rain
Be careful!
Wear personal protective equipment. Always wear safety glasses or a face
shield, hearing protection and safety helmet.
Sharp blade can cut limbs.
Wear gloves for cutting protection.
Wear safety shoes for preventing slipping.
Very danger because of electronic shock! Keep it away at least 10m from
Transmission lines.
Only use the battery charger indoors.

INTENDED USAGE
The intended use of this product includes:
- Residential, private home usage for cutting wood, logs, tree branches and other such similar
material.
The product must not:
- be used for commercial applications.
- be used with accessories other than those approved by the manufacturer within this manual.
- be changed, modified or operated in a different way than stated by the manufacturer and in
this manual.
The adherence of these user instructions is the foundation for the safe assembly and operation
of this product. This product is exclusively intended for the domestic use acc. to the stated
intended usage. All other applications are forbidden and will void the manufacturer warranty.
SAFETY WARNINGS
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or
Battery-operated power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in the presence of flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control and result in serious injury.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Proper plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators while operating this power tool. There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Store power tool in a secure dry area
when not in use. Moisture may damage or corrode the power contacts or internal wiring of
the power tool and result in electrical short or shock to user. Water entering a power tool will
increase the risk of electric shock. Do not operate or use in poor weather and rain or other
wet conditions.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock. NOTE The term
“residual current device (RCD)” may be replaced by the term “ground fault circuit interrupter
(GFCI)” or “earth leakage circuit breaker (ELCB)”.
3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the power switch of power tools invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Maintain proper footing and balance at all times. This enables better
control of the power tool in any situation.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected properly before use. Use of dust collection can reduce dust-related
hazards.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. Use power tools
only for the purpose that they are intended. The correct power tool will do the job better and
more safely when used properly
b) Do not use the power tool if the power switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack from the power
tool before making any adjustments, changing accessories, and before storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Storepower tools when not in use out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
5. Power tools should be handled with care and properly maintaineds
a) Maintain power tools. Check for misalignment or binding of any moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged, have
the power tool repaired before use. Many accidents are caused by poorly maintained power
tools.
b) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting dges
are less likely to bind and are easier to control and cut cleanly.
c) Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the work environment and the work to be performed. Use of the power
tool for operations different from those intended could result in injury.
6. Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. Improper charging of the
battery pack with a non-approved charger may result in damage to the battery or risk of fire.
b) Use power tools only with specifically designated battery packs. Use of any other battery
packs other than those approved by the manufacturer on this product may create a risk of
injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from one
terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) When used improperly, battery may rupture or leak. Avoid all contact with liquid that may
have leaked from the battery. If contact accidentally occurs, flush with water. If liquid

contacts eyes, immediately seek medical help. Liquid from the battery may cause irritation or
burns.
e) Do not break open battery case.
7. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
Safety Warnings for Sabre Saws
1) Hold power tool by insulated gripping surfaces, when performing an operation where the
cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool “live” and could give the operator an electric
shock.
2) Do not use the tool with the hook without rubber covers or with damaged rubber covers. If
the rubber covers on the hook are damaged, replace the hook a new one.
3) Keep hands away from the cutting blade. Do not reach under the workpiece. Contact with
the saw blade can lead to injuries.
4) Apply the machine to the workpiece only when switched on. Otherwise, there is danger of
kickback when the cutting tool jams in the workpiece.
5) When sawing without the hook, the guide plate must always face against the workpiece. The
saw blade can become wedged and lead to loss of control over the power tool.
6) When the cut is completed, switch off the machine and then pull the saw blade out of the cut
only after it has come to a standstill. In this manner you can avoid kickback and can place
down the machine securely.
7) Use only undamaged saw blades that are in perfect condition. Bent or dull saw blades can
break, negatively influence the cut, or lead to kickback.
8) Do not attempt to “brake” or slow down the saw blade by applying side pressure after
switching off. The saw blade can be damaged, break or cause kickback.
9) Secure material to be cut well. Do not support the workpiece with your hand or foot. Do not
touch objects or the floor while the saw is running. Danger of kickback.
10) Use appropriate detectors to determine if utility lines are hidden in the work area or call the
local utility company for assistance. Contact with electric lines can lead to fire and electric
shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property
damage.
11) Always wait until the machine has come to a complete stop before placing it down. The tool
can become jammed and lead to loss of control over the power tool.
12) Before any work on the machine (e. g. maintenance, changing the tool, etc.) as well as
during its transport and storage, lock the on/Off switch in the off position. There is danger of
injury when the on/Off switch is unintentionally actuated. Protect the power tool against
heat, e. g., against continuous direct sunlight when not in use, fire, water, and moisture.
Danger of explosion.
chain saw safety warnings
1) Observe your surroundings, always remove the fallen branches before cutting, always keep
the working area clean before operation.
2) Always keep the bystanders at least 49FT away from the working area, especially for
children.
3) Always wear a helmet, ear protection, eye protection and safety gloves when working with
the chain saw
4) Wear dust mask to protect against dust.
5) Do not wear loose clothing, jewelry, or short pants while operating.
6) Never use the chain saw while standing on a ladder.
7) Do not overreach. Always keep a firm footing and maintain balance during operation; always
use the provided harness to distribute the load evenly on your body.

8) Wear sturdy boots to protect yourself from slipping.
9) Avoid using the chain saw close to power lines. Keep a safe distance of at least 10 m to over
ground power lines.
10) Do not stand under the branch you are cutting. Branches may fall without warning. Also
beware of the risk of being struck by those that rebound after hitting the ground. Work at an
angle of no more than 60°.
11) Keep in mind that, when using the upper point of the saw, the chain saw may kick back.
12) Keep your eyes not only on the branches you are cutting, also keep an eye on the ground
to prevent tripping over from branches that already have fallen.
13) Keep a period of rest for at least 30 minutes after one hour’s operation, Do not operate the
chain saw while you are tired and not focused on your task
14) Do not use the machine if the switch does not turn it on and off. Any machine that cannot
be controlled with the switch is dangerous and must be repaired.
15) Store idle machine out of the reach of children and do not allow persons unfamiliar with the
machine or these instructions to operate the machine. Machines are dangerous in the
hands of untrained users.
16) Maintain machine. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the machine’s operation. If damaged, have the
machine repaired before use. Many accidents are caused by poorly maintained machine.
17) Have your machine serviced by a qualified repair person using only original replacement
parts. This will ensure that the safety of the machine is maintained.
18) Children should be supervised at all times while using this tool.

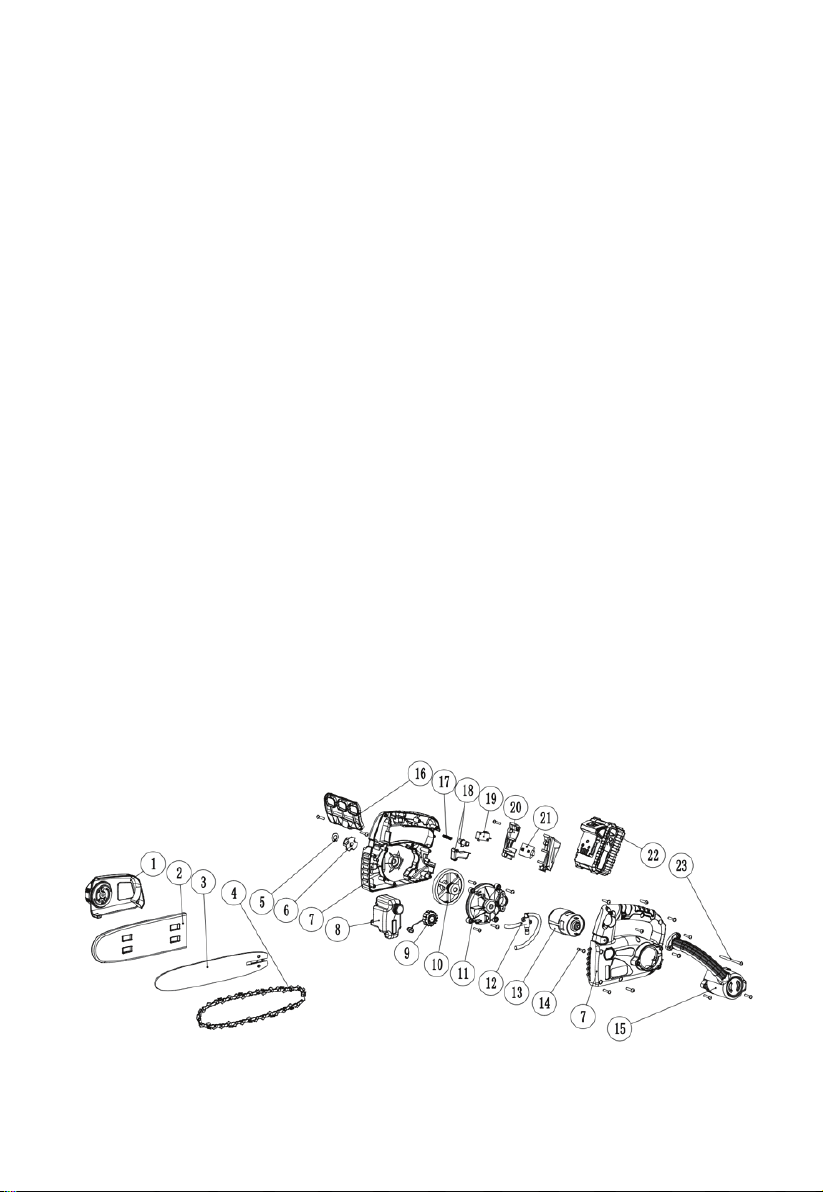

PRODUCT IDENTIFICATION
13.motor assembly
14.ST4*16 screw
15. handle
16. safe cover
17. spring
18. button
19.switch
20.connection
21.insert
22.battery
23.ST4*65 screw
1. guide plate cover assembly
2. sheath
3. board
4. link
5. washer
6. 6 teeth sprocket
7.housing
8. oil tank
9. oil cap
10. gear assembly
11. gear box
12. oil pump assembly

TECNICHAL SPECIFICATIONS
MOUNTING AND OPERATION
UNPACKING
1. Unpack all parts and lay them on a flat, stable surface.
2. Remove all packing materials and shipping devices, if applicable.
3. Make sure the delivery contents are complete and free of any damage. If you find that parts
are missing or show damage, do not use the product but contact your dealer. Using an
incomplete or damaged product represents a hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and operation. This
also includes suitable personal protective equipment.
The product and the packaging are not children’s toys! Children must not play with plastic
bags, sheets and small parts! There is a danger of choking and suffocation!
Voltage
No load speed
Cutting length
Wood
Charger input
Charger output
20V DC
13 FT/s
7 Inch
3.15 Inch
100-240V~50/60Hz
20V 0.5A
Fig. 1 Fig. 2
Fig. 3 Fig. 4

BEFORE USE
Charging battery
Before attempting to charge the battery pack, thoroughly read all Safety Instructions.
The battery needs to be charged before first use and whenever it fails to produce sufficient
power on jobs that were easily done before.
The battery may become warm while charging; this is normal and does not indicate a problem.
NOTE: After several charge and discharge cycles, the battery will attain full capacity.
DO NOT CHARGE THE BATTERY AT AMBIENT TEPERATURES BELOW 10ºC OR ABOVE
40ºC (BELOW 50ºF OR ABOVE 104ºF)
Plug the mains plug of the adaptor 1 into a socket outlet and the adaptor plug 2 into the socket
4 on the charger station 3. At this time, the battery charge-control indicator 6 lights up. And then
insert the battery pack into the charger station. The battery charge-control indicator indicates
the charging progress. The indicator lights up red during the charge procedure. The battery is
completely charged when the indicator lights up green again.
Disconnect the battery charger from the mains supply when not using it for longer periods.
Important charging notes
1. After normal usage, your battery pack should be fully charged in about 4 hours. Allow the
battery to cool down before charging after using the saw. (NOTE: A hot battery placed in the
charger will not charge)
2. DO NOT charge the battery pack in an air temperature below 50°F (10 °C) or above 104°F
(40 °C). This is important and will prevent serious damage to the battery pack. Longest life
and best performance can be obtained if battery pack is charged when air temperature is
about 75°F (24°C).
3. While charging, the charger may hum and become warm to touch. This is a normal condition
and does not indicate a problem.
4. If the battery pack does not charge properly
• Check current at receptacle by plugging in a lamp or other appliance.
• Check to see if receptacle is connected to a light switch which turns power off when you
turn out the lights.
• Move charger and battery pack to a surrounding air temperature of 50°F (10°C) to 104°F
(40°C)
• If the receptacle and temperature are OK, and you do not get proper charging contact
(DESA Power Tools) service center.
5. The battery pack need to be charged before first using and should be recharged when it fails
to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE
using this product with its battery pack in a depleted condition. (NOTE: After several charge
and discharge cycles, the battery will attain full capacity.)
6. To prolong battery life, avoid leaving the battery pack on charger for extended periods of
time (over 30 days without use). Although overcharging is not a safety concern, it can
significantly reduce overall battery life.
7. The battery pack will reach optimum performance after being cycled 5 times during normal
usage. There is no need to run the batteries down completely before recharging. Normal
usage is the best method of discharging and recharging the batteries.
OPERATION
Before any work on the machine (e. g. maintenance, changing the tool, etc.) as well as during
its transport and storage, lock the ON/OFF switch in the off position. There is danger of injury
when the on/Off switch is unintentionally actuated.

MAINTENANCE AND CLEANING
Maintenance, Cleaning and Storage
1. Before any work on the machine (e. g. maintenance, changing the tool, etc.) as well as
during its transport and storage, lock the ON/OFF switch in the off position.
There is danger of injury when the on/Off switch is unintentionally actuated.
2. Always remove the blade before any work on the machine.
3. For safe and proper working, always keep the machine and ventilation slots clean.
Clean the saw blade holder preferably with compressed air or a soft brush. Remove the saw
blade from the power tool for this. Ensure proper operation of the saw blade holder by
applying a suitable lubricant. Heavy contamination of the machine can lead to malfunctions.
Therefore, do not saw materials that produce a lot of dust from below or overhead. Store the
power tool in a secure, dry place, out of the reach of children. Do not place other objects on
the power tool.
Storage
a) use of transport guard during transport and storage
b) cleaning and maintenance before storage
c) securing of the unit during transport to prevent loss of fuel, damage or injury.
