Super Handy SuperHandy GUO058 User manual

SuperHandy Cordless 1.0 Gal. Backpack Fogger
With Blowing Function
WARNING:
Before application, customer must read this instruction manual
carefully.
If any doubt, please contact our company directly (1-866-493-0524).
We are free from any accident due to improper operation.
When using this product. Failure to observe these instructions could
lead to serious injury or death.

WARNING:
1
CHEMICAL AND FIRE HAZARD
CHARGER USE
Always Know Your fogger. Take time to fully read the Installation and Operator's Guide, in
order to understand your fogger and its operations.
Always wear gloves, eye and ear protection.
Never store battery pack in a tool box or pocket with nails, screws, keys, etc. Shorting of
battery terminal may cause fire.
Always avoid contact with battery leakage, which may occur under extreme usage or
temperature conditions.
Always dispose or recycle battery according to local ordinances I regulations.
Always protect terminals with insulating tape, prior to disposal, to prevent shorting.
Never attempt to disassemble the battery. No user serviceable parts are inside.
Never charge damaged battery packs, replace damaged pack immediately. Battery short
or fire may result.
Never incinerate the battery pack even if it is severely damaged or is completely worn out.
Never operate fogger in an environment containing explosive or combustible material.
Always remove the battery when the unit is not in use.
Never charge damaged battery packs, replace damaged battery pack immediately. Battery
short or fire may result.
Always fully charge battery before use.
Always use SuperHandy charger to charge SuperHandy type battery pack, Other types of
batteries may burst causing damage and injury to person.
Never operate charger with damaged cord or plug. Replace them immediately.
Never use SuperHandy charger to charge other batteries.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
1.
2.
3.
4.

2
Never operate charger if it has received a sharp blow, been dropped or otherwise damaged
in any way.
Never charge battery in damp or wet environment.
Always charge battery at temperatures between 0°C-49°C (32°F-120°F).
Always store battery at temperatures between 0°C-30°C (32°F-86°F).
Always disconnect charger when battery is fully charged.
Never probe with conductive object.
Always fully charge battery before use.
Never completely discharge battery.
Always charge battery every six months if not in use.
Never remove electrical cover from battery charger.
The fogger has the advantages of high efficiency, uniform droplet, long fogging range,
supporting with high-performance motor, stable performance, reliable and durable. It is
specially applied for large area fogging operation of greenhouse. It can also be used for
Public sanitation and disinfection, such as airports, docks, hotels, restaurants, hospitals,
public transport, theaters, communities, entertainment. As well as food processing,
pharmaceutical companies, animal husbandry industry’s Disinfection and sterilization,
Health and epidemic prevention.
The fogger becomes a powerful blower by replacing the blowpipe. The powerful brushless
motor provides stable torque and performance, ideal for working on hard surfaces or lawn.
Good operation performance, low maintenance cost, long life, zero emission, zero
pollution.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
1.
2.
Application：
ELECTRICAL HAZARD

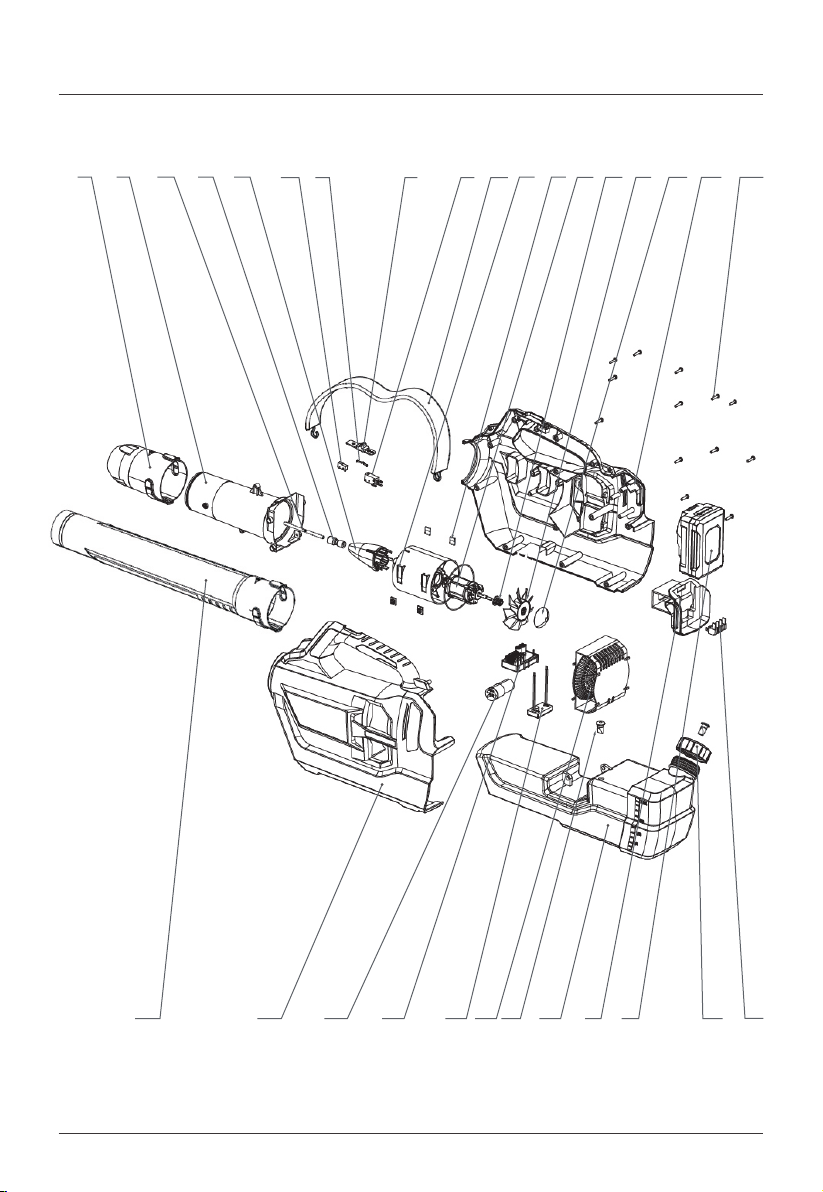

Structure of product:
3
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1716 18
30 29 28 27 26 25 24 23 20 19 22 21

4
Description QuantityPart No. Description QuantityPart No.
Fogger components1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
12
1
1
1
1
1
1
1
1
1
1
1
1
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Air duct
connecting tube
Pipe
Diameter
connector
Duct nozzle
Micro Switch
Switch paddle
Switch
Micro Switch
Strap
Wind tunnel
Rubber mat
Motor
Rotating disc
Wind leaf
Fan blade
connector
Right case
Screw
Battery
Barrel Holder
Plug
Barrel cover
Barrel body
Rubber plug
Fan cover
Voltage
converter
Voltage
converter
Water pump
Left case
Blowpipe

5
NO direct fogging highly toxic pesticides, undiluted pesticides, banned pesticides and
special chemicals. It should comply with the safety instructions provided by the pesticide
manufacturers when treating of pesticides.
On security grounds, the chemical tank cannot be added into inflammable and explosive,
highly volatile special chemicals, such as gasoline, alcohol, phenylacetone etc. Cannot add
highly corrosive liquid, such as caustic soda solution, hydrochloric acid etc. In case of
injury or fire and other major security incidents. (Warning: Keep the machine dry, wet
hands are prohibited to operate the power switch, to avoid electric shock.)
Warning signs to remind the worker should wear safety protection implements such as
protective clothing, gloves, safety glasses and masks.
The machine can only be operated by a person who is familiar with the performance and
operation method of the machine, and has the knowledge of relevant safety operation, the
following personnel operation is PROHIBITED strictly.
1) Children or the elderly.
2) Mental illness or sick deformed and weak people.
3) Drinking people.
1.
2.
3.
4.
Warning:

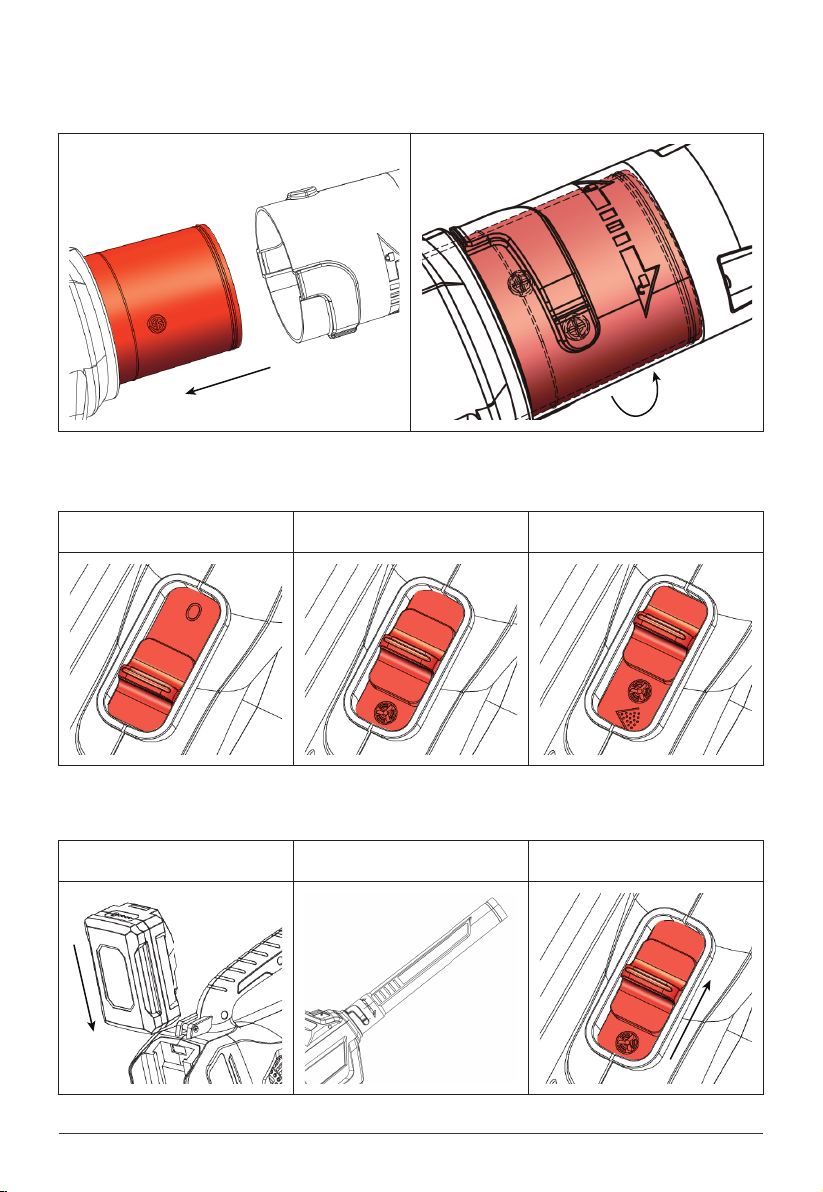

How to switch the blowpipe (NO. 30) or fogger components (NO. 1)
1.
Operation：
Unscrew the blowpipe (NO.30) or fogger components (NO. 1)
STEP1 STEP2

6
Screw the blowpipe (NO.30) or fogger components (NO. 1)
Description of switch gear2.
Instructions for the use of blowing3.
Shut down Blowing Fogging
STEP1 Install the battery STEP2 Screw the blowpipe STEP3 Turn on the blowing switch
STEP1 STEP2

7
Instructions for the use of fogging4.
1.
2.
STEP 1 Install the battery STEP 2 Hose assembly
STEP 3 Screw the fogger components
STEP 4 Turn on the blowing switch
(Running on 2 seconds)
STEP 5 Turn on the fogging switch
Note:
Add the chemical after filtered with the filter funnel, tighten screw the tank lid.
During the fogger working, the high-speed gas flow will cause the gun and pipe heating, it
is a normal phenomenon.

8
The supply voltage should match the machine’s requirements.
Do not make the pipe folded and extruded, avoid the metal or other sharp objects
puncture the pipe.
Do not turn on and off power switch frequently, avoid damage the switch and motor. When
there is abnormal sound or smell during working, shut down immediately, cut off the
power, and contact professional personnel to repair. If cannot resolve the problem locally,
please contact our company directly (1-866-493-0524), non-professionals is strictly
prohibited disassemble.
If not using for long time under the high humidity environment or in hot and rainy season,
it should always turn on for warm-up to eliminate humidity, prevent internal corrosion
damage.
If not using for long time, please keep in dry and cool place, do not let children play with
the machine, to avoid danger.
Keep the machine dry, wet hands are prohibited to operate the power switch, to avoid
electric shock.
When the machine is placed to add liquid chemical, avoid dumping, particular attention
during transportation.
After fogging the chemicals, please clean the machine with water. If fogging the herbicide,
please add detergent to clean completely. When finish fogging, the fogger should be clean
and keep in a cool dry place to prevent direct sunshine and accelerated plastic aging.
Item No：GUO058
Net Weight (No Battery): 7.72 lb（3.5kg）
Motor Power：0.86 HP（600W）
Max Flow Rate：0.172 gal / min. (650 ml /min)
Air Volume : 406CFM（11.5 m³/min）
Tank Capacity：1.0 Gal
Rated Voltage: 48V
Particle Size：0-60 u m
Max Air Speed: 115mph（50m/s）
The Measured Decibel: 96 dB
Technical Specification
1.
2.
3.
4.
5.
6.
7.
8.
Use Direction

9
Problem and Solution
Problem
Fan not running
Machine run, no fogging
Intermittent fogging,
small fogging
Reason
Power supply is not connected.
1. The fogging switch is not
turned on.
2. Chemical tube folded.
3. No liquid in the tank.
4. The air inlet blocked.
1. Chemical tube blocked,
2. Chemical tube folded.
3. Chemical tube damaged.
4. Chemical tube fell off.
1. Check battery whether
there is electricity.
2. Make sure the power
switch is on.
1. Turn on the fogging switch.
2. Check and correct the
chemical tube.
3. Add chemical liquid.
4. Clean up and clear the air inlet.
1. Clean up the chemical tube.
2. Correct the chemical tube.
3. Replace the chemical tube.
4. Reset the chemical tube.
Machine abnormal sounds
Poor atomization,
fogging nozzle dripping
1. The air inlet blocked.
2. Motor bearing damaged or
carbon Brush run out.
1. Clean up and clear
2. Repair or replace the motor.
The air inlet blocked. Clean up and clear.
Fogger temperature too high 1. Continuous working too long.
2. The air inlet or outlet blocked.
3. The motor seriously worn.
1. Stop working for a while.
2. Clean up and clear.
3. Repair or replace the motor
Solution

Size: 145x210mm REV 24/09/20 2.09.05.01.614157克铜版纸
