Graco C Series User manual

3A2987D
EN
Installation
XM PFP
Air Dryer Kit
For drying the pressurized air supplied to both of the XM PFP tanks.
For professional use only.
Kit 262896, Series C
160 psi (1.1 MPa, 11 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual and in XM PFP Operation manual
3A2776. Save all instructions.
ti20099b
Related Manuals
2 3A2987D
Related Manuals
Manuals are available at www.graco.com
Installation
See your Dryaire Desiccant System Instructions - Parts
manual for desiccant air dryer system instructions and
parts. See Related Manuals, page 2.
See Parts illustration on page 3. The illustration shows
two individual tank stands. The connections shown are
the same regardless of whether the tank on the left is
the A side tank or the B side tank.
)

1. Perform the Pressure Relief Procedure to relieve
the system of all air and fluid pressure. See your XM
PFP operation manual, Related Manuals, page 2.
2. Locate the two tee fittings (A1, A2) that are tied to
an air hose near each tank. Remove the two tee
fittings and add to the pieces included in this kit.
3. Modify air dryer system fittings to match the
following illustration (the fitting order as shipped is
different):
a. Remove the elbow (C1), ball valve (A), and
bushing (B).
b. Install the elbow (C1) into the air dryer system
and ensure that it points up.
c. Install the bushing (B) onto the elbow
fitting (C1).
d. Install the ball valve (A) onto the bushing (B)
and ensure that the handle faces forward.
e. Adjust elbow fitting (C2) so it points up.
f. Add the supplied desiccant to the large canister.
See your Dryaire Desiccant System Instructions
- Parts manual, Related Manuals, page 2.
4. Use screws (9) to mount modified air dryer system
to frame.
NOTE: It may be easier to install bracket (F) from air
dryer system before installing to frame. Once bracket
(F) is on frame, re-install air dryer system.
5. Disconnect 3 ft coupled hose that is supplied with
XM PFP from (E1) and (A1). Install coupled hose (4)
supplied in kit as shown in Parts illustration on page
3.
6. Disconnect 3 ft coupled hose that is supplied with
XM PFP from (B1) and B2). Install coupled hose (5)
supplied in kit as shown in Parts illustration on page
3.
7. Connect the remaining items as shown in the Parts
illustration, page .
Manual in
English Description
3A2776 XM PFP Setup - Operation
309921 Dryaire Desiccant System Instructions -
Parts
A
B
C1
C2
As Shipped Modified
C1 A
C2
B
ti20099b
ti20168b
FF
Parts
3A2987D 3
Parts
ti20100b
A1
A2







%
(

%
'
'
'
WLF
$6,'( %6,'(
* See your Dryaire Desiccant System Instructions -
Parts manual for desiccant air dryer system parts.
See Related Manuals, page 2.
NOTE: D1-D3 are 3 ft coupled hose and are supplied
with XM PFP.
Ref Part Description Qty
1* 24M178 SYSTEM, desiccant air dryer 1
2 100206 BUSHING, pipe 2
3 156971 FITTING, nipple, short 1
4 210866 HOSE, coupled 1
5 16F537 HOSE, coupled, 6 ft 2
6 103473 STRAP, tie, wire 12
9 113161 SCREW, flange, hex head 2
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A2987
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2020, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision D, December 2020
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs
will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6921 or Toll Free: 1-800-328-0211 Fax: 612-378-3505

Other manuals for C Series

16

This manual suits for next models

1

Other Graco Paint Sprayer manuals

Graco Pro Xp H60T10 User manual

Graco

Graco Pro Xp H60T10 User manual

Graco 310778N Operating instructions

Graco

Graco 310778N Operating instructions

Graco 310645H Use and care manual

Graco

Graco 310645H Use and care manual

Graco 310802D User manual

Graco

Graco 310802D User manual

Graco 257096 User manual

Graco

Graco 257096 User manual

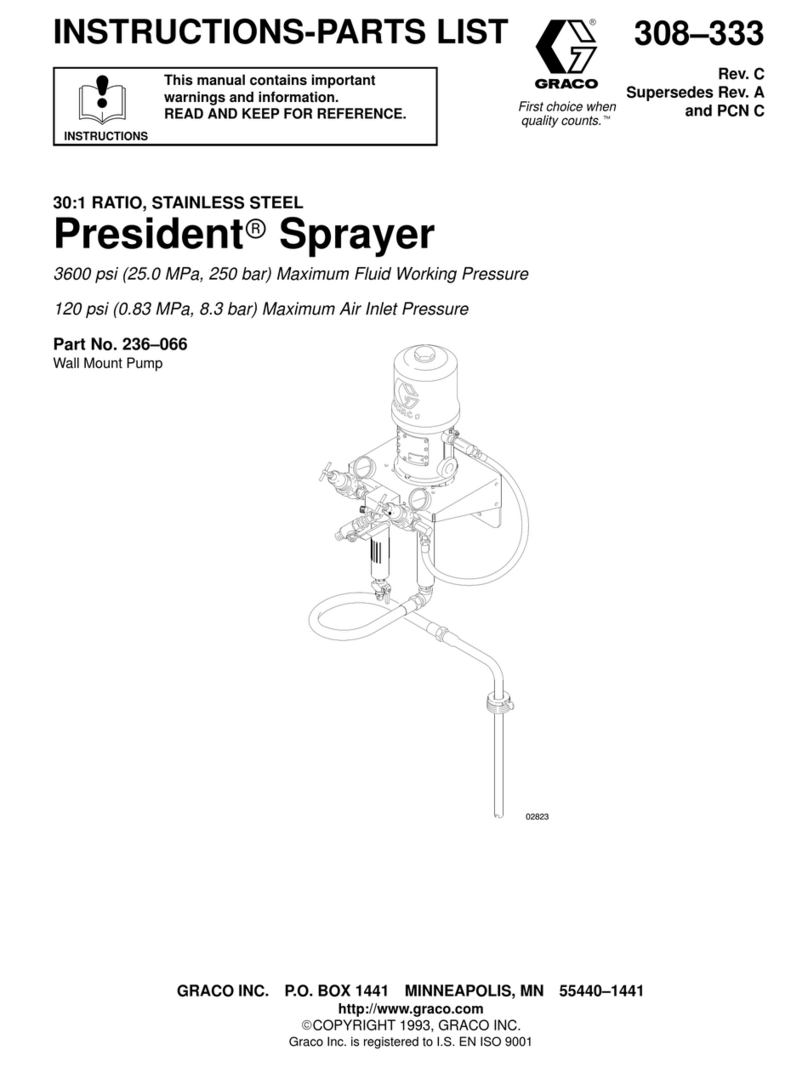

Graco President 236-066 Operation manual

Graco

Graco President 236-066 Operation manual

Graco 278680 User manual

Graco

Graco 278680 User manual

Graco Reactor E-10 Operation manual

Graco

Graco Reactor E-10 Operation manual

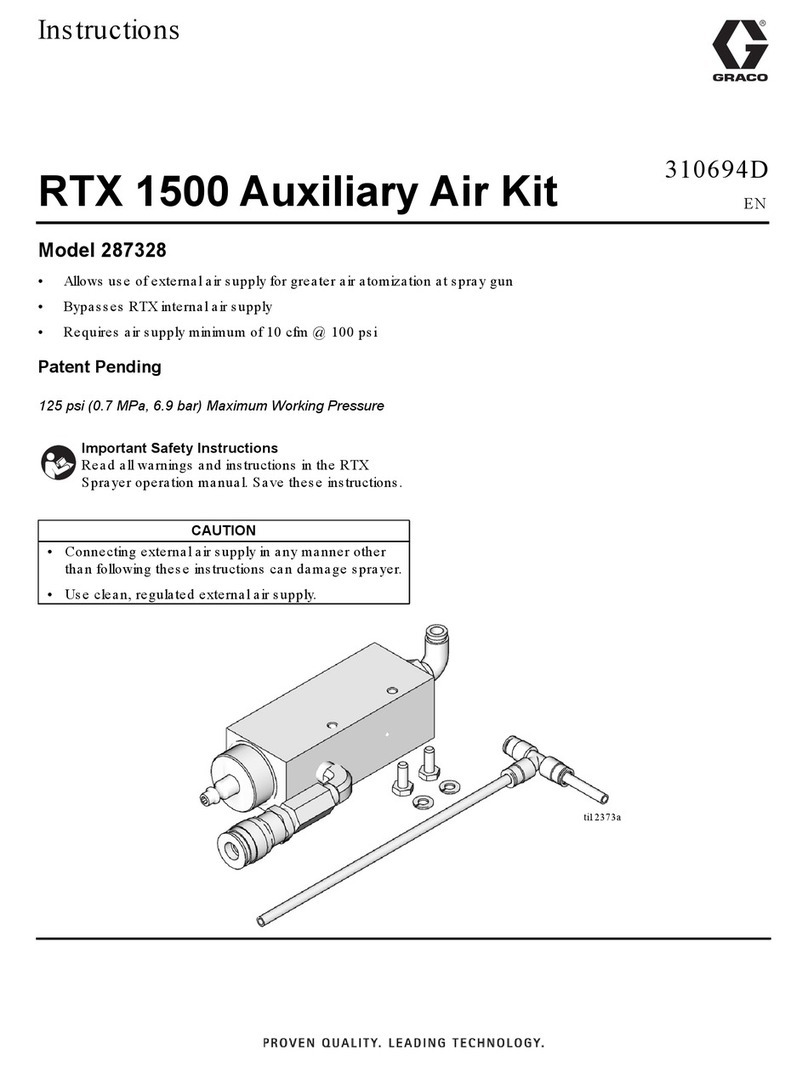

Graco 287328 User manual

Graco

Graco 287328 User manual

Graco Glascraft GC-1387J User manual

Graco

Graco Glascraft GC-1387J User manual

Graco XT Series User manual

Graco

Graco XT Series User manual

Graco GM3000 Operation manual

Graco

Graco GM3000 Operation manual

Graco TexSpray 248091 Guide

Graco

Graco TexSpray 248091 Guide

Graco Series B Operation manual

Graco

Graco Series B Operation manual

Graco MAGNUM TexFinish 249175 Instruction Manual

Graco

Graco MAGNUM TexFinish 249175 Instruction Manual

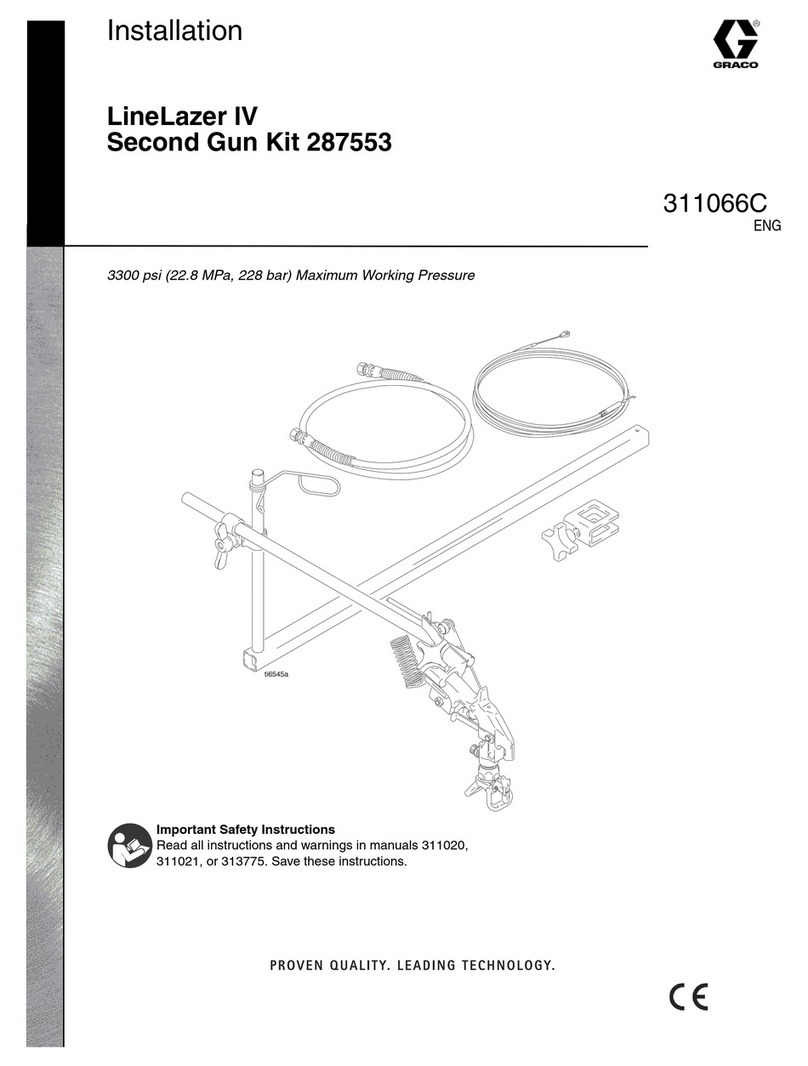

Graco LineLazer IV Series User manual

Graco

Graco LineLazer IV Series User manual

Graco 245924 A Series Guide

Graco

Graco 245924 A Series Guide

Graco MAGNUM 232738 Operating instructions

Graco

Graco MAGNUM 232738 Operating instructions

Graco Reactor A-20 Instruction Manual

Graco

Graco Reactor A-20 Instruction Manual

Graco Magnum True Airless Project Painter Plus User manual

Graco

Graco Magnum True Airless Project Painter Plus User manual

Graco HTX 2030 User manual

Graco

Graco HTX 2030 User manual

Graco RentalPro 210PC Guide

Graco

Graco RentalPro 210PC Guide

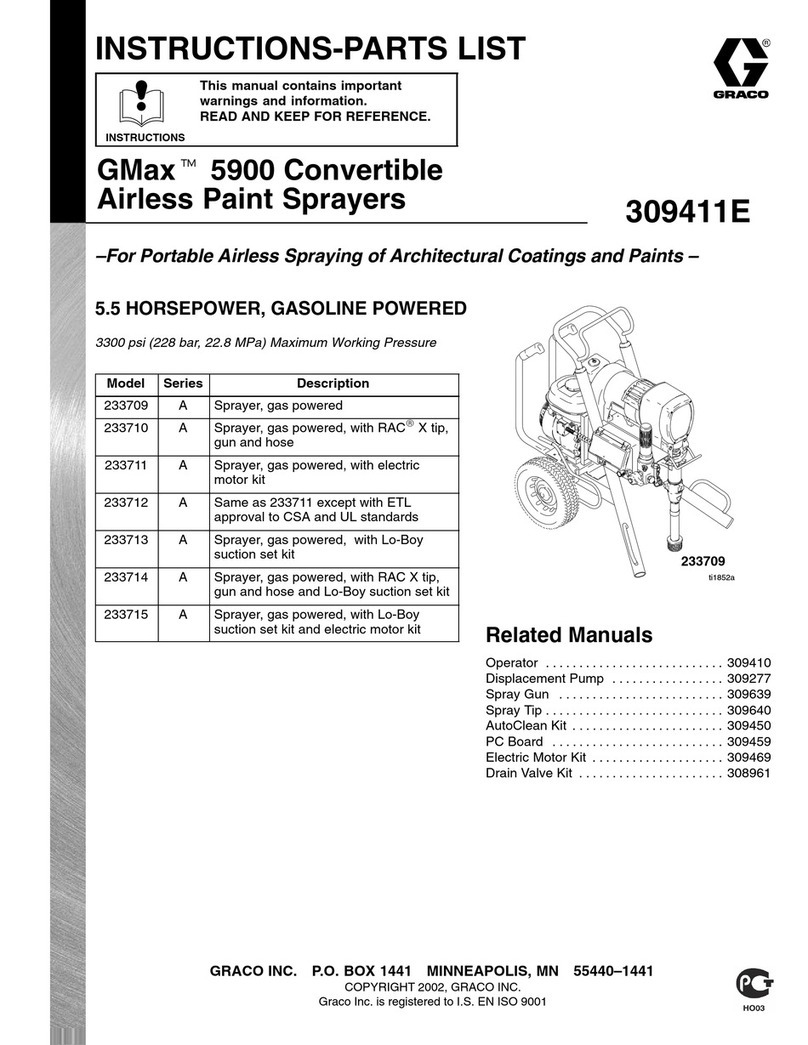

Graco GMax 233709 User manual
