Super Handy GUO040 User manual

Operator's Manual
REV 02/14/20
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
String Trimmer

TABLE OF CONTENTS
Important Safe Operation Practices ----------------------------------------------------------------------- 1-7
Assembly & Set-Up ------------------------------------------------------------------------------------------- 7-10
Controls & Operation --------------------------------------------------------------------------------------- 10-12
Service --------------------------------------------------------------------------------------------------------- 12-14
Troubleshooting -------------------------------------------------------------------------------------------------- 14

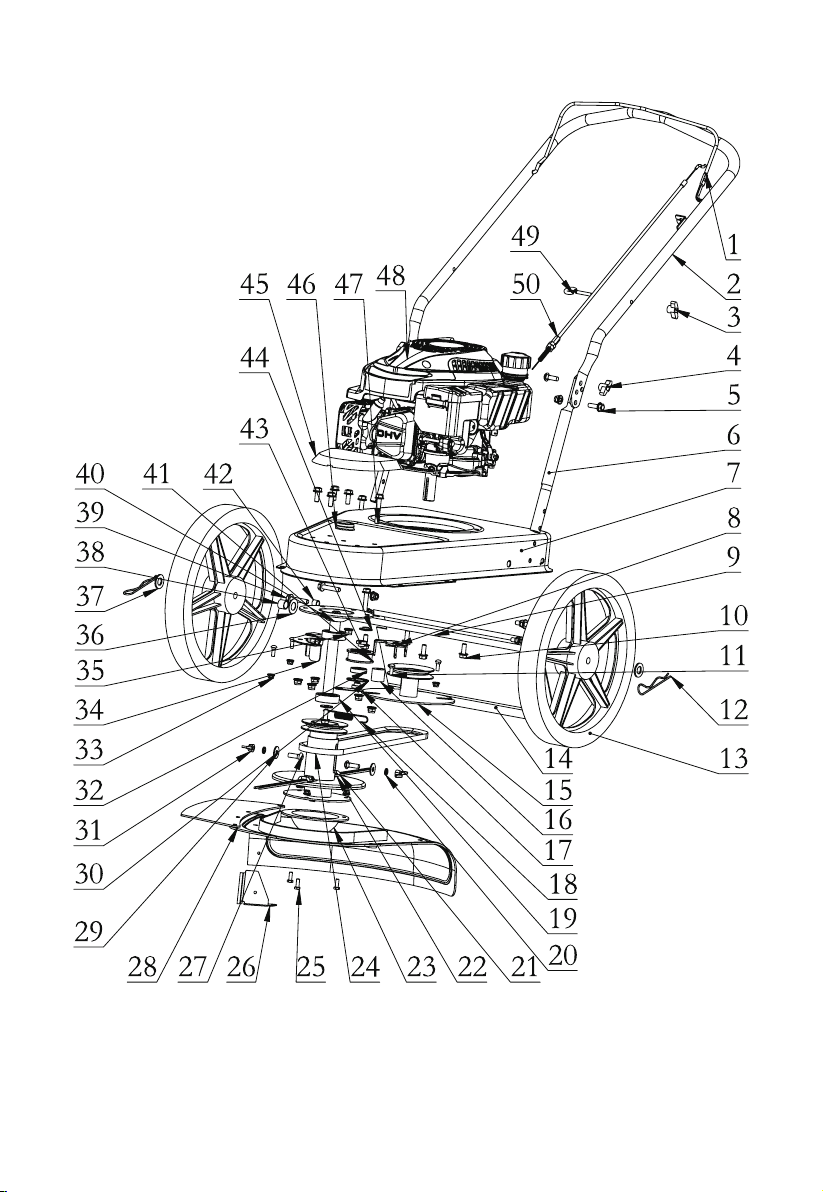

Parts Breakdown -------------------------------------------------------------------------------------------- 15-16
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL
INJURY.
NOTE: This Operator's Manual covers several models. Features may vary by model. Not
all features in this manual are applicable to all models and the model depicted may differ
from yours.
Important Safe Operation Practices
This symbol points out important safety instructions which, if not followed, could
endanger the personal safety and/or property of yourself and others. Read and follow all
instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury. When you see this symbol. HEED
ITS WARNING!
CALIFORNIA PROPOSITION65
Engine Exhaust, some of its constituents, and certain vehicle components contain or
emit chemicals known to State of California to cause cancer and birth defects or other
reproductive harm.
Battery posts, terminals, and related accessories contain lead and lead compounds,
chemicals known to the State of California to cause cancer and reproductive harm.
Wash hands after handling.
This machine was built to be operated according to the safe operation practices in this
manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is capable of amputating fingers,
hands, toes and feet and throwing objects. Failure to observe the following safety
instructions could result in serious injury or death.
General Operation
1. Read this operator's manual carefully in its entirety before attempting to assemble this
machine. Read, understand, and follow all instructions on the machine and in the manual(s)
before operation. Keep this manual in a safe place for future and regular reference and for
ordering replacement parts.
2. Be completely familiar with the controls and the proper use of this machine before operating
it.
1

2
3. This machine is a precision piece of power equipment, not a plaything. Therefore, exercise
extreme caution at all times. This machine has been designed to perform one job: to cut
vegetation and grass. Do not use it for any other purpose.
4. Never allow children under 14 years of age to operate this machine. Children 14 and over
should read and understand the instructions and safe operation practices in this manual and
on the machine and should be trained and supervised by an adult.
5. Only responsible individuals who are familiar with these rules of safe operation should be
allowed to use this machine.
6. Thoroughly inspect the area where the equipment is to be used. Remove all stones, sticks,
wire, bones, toys and other foreign objects, which could be tripped over or picked up and
thrown by the string trimmer. Thrown objects can cause serious personal injury.
7. Plan your trimming pattern to avoid discharge of material toward roads, sidewalks, bystand-
ers and the like. Also, avoid discharging material against a wall or obstruction, which may
cause discharged material to ricochet back toward the operator.
8. To help avoid trimmer line contact or a thrown object injury, stay in operator zone behind
handles and keep children, bystanders, helpers and pets at least 75 feet from string trimmer
while it is in operation. Stop machine if anyone enters area.
9. Always wear safety glasses or safety goggles during operation and while performing an
adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious
injury to the eyes.
10. Wear sturdy, rough-soled work shoes and close-fitting slacks and shirts. Shirts and pants
that cover the arms and legs and steel-toed shoes are recommended. Never operate this
machine in bare feet, sandals, slippery or light-weight (e.g. canvas) shoes.
11. Do not put hands or feet near or under rotating parts. Keep clear of discharge area at all
times as the rotating spindle and trimmer lines can cause injury.
12. Never operate the string trimmer without proper shields, guards, control lever or other
safety protective devices in place and working.
13. Never operate the string trimmer with damaged safety devices. Failure to do so, can result
in personal injury.
14. Many injuries occur as a result of the string trimmer being pulled over the foot during a fall
caused by slipping or tripping. Do not hold on to the string trimmer if you are falling; release
the handle immediately.
15. Never pull the string trimmer back toward you while you are walking. If you must back the
string trimmer away from a wall or obstruction first look down and behind to avoid tripping
and then follow these steps:
a. Step back from string trimmer to fully extend your arms.
b. Be sure you are well balanced with sure footing.
c. Pull the string trimmer back slowly, no more than half way toward you.
d. Repeat these steps as needed.
16. Do not operate the string trimmer while under the influence of alcohol or drugs.
17. Do not engage the self-propelled mechanism on machines so equipped while starting
engine.
18. The control lever is a safety device. Never attempt to bypass its operation. Doing so makes
the safety device inoperative and may result in personal injury through contact with the
rotating trimmer line. The control lever must operate easily in both directions and automati-
cally return to the disengaged position when released.
19. Never operate the string trimmer in wet grass. Always be sure of your footing. A slip and fall
can cause serious personal injury. If you feel you are losing your footing, release the
control lever immediately and the spindle will stop rotating within three seconds.
20. Operate only in daylight or good artificial light. Walk, never run.
21. Stop the spindle when crossing gravel drives, walks or roads.
22. If the equipment should start to vibrate abnormally, stop the engine and check immediately
for the cause. Vibration is generally a warning of trouble.

3
23. Shut the engine off and wait until the spindle comes to a complete stop before cleaning the
discharge area. The spindle continues to rotate for a few seconds after the control lever is
released. Never place any part of the body in the trimmer line area until you are sure the
spindle has stopped rotating.
24. Never operate string trimmer without proper trail shield, discharge cover, control lever or
other safety protective devices in place and working. Never operate string trimmer with
damaged safety devices. Failure to do so can result in personal injury.
25. Muffler and engine become hot and can cause a burn. Do not touch.
26. Only use parts and accessories made for this machine by the manufacturer. Failure to do
so can result in personal injury.
27. When starting engine, pull cord slowly until resistance is felt, then pull rapidly. Rapid
retraction of starter cord (kickback) will pull hand and arm toward engine faster than you
can let go. Broken bones, fractures, bruises or sprains could result.
28. If situations occur which are not covered in this manual, use care and good judgement.
Contact Customer Support for assistance or the name of the nearest service dealer.
Slope Operation
Slopes are a major factor related to slip and fall accidents, which can result in severe injury.
Operation on slopes requires extra caution. If you feel uneasy on a slope, do not trim on it. For
your safety, use the slope gauge included as part of this manual to measure slopes before
operating this machine on a sloped or hilly area. If the slope is greater than 15 degrees, do not
trim on it.
Do:
1. Trim across the face of slopes; never up and down. Exercise extreme caution when
changing direction on slopes.
2. Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip.
Tall grass can hide obstacles.
3. Always be sure of your footing. A slip and fall can cause serious personal injury. If you feel
you are losing your balance, release the control lever immediately and the spindle will stop
rotating within three (3) seconds.
Do Not:
1. Do not trim near drop-offs, ditches or embankments, you could lose your footing or balance.
2. Do not trim slopes greater than 15 degrees as shown on the slope gauge.
3. Do not trim on wet grass. Unstable footing could cause slipping.
Children
Tragic accidents can occur if the operator is not alert to the presence of children. Children are
often attracted to the string trimmer and the trimming activity. They do not understand the
dangers. Never assume that children will remain where you last saw them.
1. Keep children out of the trimming area and under watchful care of a responsible adult other
than the operator.
2. Be alert and turn string trimmer off if a child enters the area.
3. Before and while moving backwards, look behind and down for small children.
4. Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects
that may obscure your vision of a child who may run into the string trimmer.
5. Keep children away from hot or running engines. They can suffer burns from a hot muffler.
6. Never allow children under 14 years of age to operate this machine. Children 14 and over
should read and understand the instructions and safe operation practices in this manual and
on the machine and be trained and supervised by an adult.

4
Service
Safe Handling Of Gasoline:
1. To avoid personal injury or property damage use extreme care in handling gasoline.
Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can
occur when gasoline is spilled on yourself or your clothes, which can ignite. Wash your skin
and change clothes immediately.
2. Use only an approved gasoline container.
3. Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always
place containers on the ground away from your vehicle before filling.
4. Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is
not possible, then refuel such equipment on a trailer with a portable container, rather than
from a gasoline dispenser nozzle.
5. Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until
fueling is complete. Do not use a nozzle lock-open device.
6. Extinguish all cigarettes, cigars, pipes and other sources of ignition.
7. Never fuel machine indoors because flammable vapors will accumulate in the area.
8. Never remove gas cap or add fuel while engine is hot or running. Allow engine to cool at
least two minutes before refueling.
9. Never over fill fuel tank. Fill tank to no more than 1 inch below bottom of filler neck to provide
for fuel expansion.
10. Replace gasoline cap and tighten securely.
11. If gasoline is spilled, wipe it off the engine and equipment. Move machine to another area.
Wait 5 minutes before starting engine.
12. Never store the machine or fuel container near an open flame, spark or pilot light as on a
water heater, space heater, furnace, clothes dryer or other gas appliances.
13. To reduce fire hazard, keep machine free of grass, leaves, or other debris build-up.
Cleanup oil or fuel spillage and remove any fuel soaked debris.
14. Allow machine to cool at least 5 minutes before storing.
General Service:
1. Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon
monoxide, an odorless and deadly gas.
2. Before cleaning, repairing, or inspecting, make certain the spindle and all moving parts have
stopped. Disconnect the spark plug wire and ground against the engine to prevent unintend-
ed starting.
3. Check the spindle and engine mounting bolts at frequent intervals for proper tightness.
Also, visually inspect spindle for damage.
Replace with the original equipment manufacture's (O.E.M.) parts only, listed in this
manual."Use of parts which do not meet the original equipment specifications may lead to
improper performance and compromise safety!"
4. Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.
5. Never tamper with safety devices. Check their proper operation regularly.
6. After striking a foreign object, stop the engine, disconnect the spark plug wire and ground
against the engine. Thoroughly inspect the string trimmer for any damage. Repair the
damage before starting and operating the string trimmer.
7. Trimmer components, guards and shields are subject to wear and damage which could
expose moving parts or allow objects to be thrown. For safety protection, frequently check
components and replace immediately with original equipment manufacturer's (O.E.M.) parts
only, listed in this manual.
"Use of parts which do not meet the original equipment specifications may lead to improper
performance and compromise safety!"
8. Do not change the engine's governor setting or over-speed the engine. The governor
controls the maximum safe operating speed of the engine.

9. Check fuel line, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary.
10. Do not crank engine with spark plug removed.
11. Maintain or replace safety and instruction labels, as necessary.
12. Observe proper disposal laws and regulations.
Improper disposal of fluids and materials can harm the environment.
13. According to the Consumer Products Safety Commission (CPSC) and the U.S.
Environmental Protection Agency (EPA), this product has an Average Useful Life of seven
(7) years, or 140 hours of operation. At the end of the Average Useful Life have the
machine inspected annually by an authorized service dealer to ensure that all mechanical
and safety systems are working properly and not worn excessively. Failure to do so can
result in accidents, injuries or death.
Do not modify engine
To avoid serious injury or death, do not modify engine in any way. Tampering with the governor
setting can lead to a runaway engine and cause it to operate at unsafe speeds. Never tamper
with factory setting of engine governor.
Notice Regarding Emissions
Engines which are certified to comply with California and federal EPA emission regulations for
SORE
(Small Off Road Equipment) are certified to operate on regular unleaded gasoline, and may
include the following emission control systems: Engine Modification(EM), Oxidizing
Catalyst(OC), Secondary Air Injection(SAI) and Three Way Catalyst(TWC) if so equipped.
Spark Arrestor
WARNING: This machine is equipped with an internal combustion engine and should not be
used on or near any unimproved forest-covered, brush covered or grass-covered land unless
the engine's exhaust system is equipped with a spark arrestor meeting applicable local or state
laws (if any). If a spark arrestor is used, it should be maintained in effective working order by
the operator.
Safety Symbols
This page depicts and describes safety symbols that may appear on this product. Read,
understand, and follow all instructions on the machine before attempting to assemble and
operate.
5
DANGER-BYSTANDERS
Do not trim when children or others are around.
DANGER-HAND/ FOOT CUT
Keep hands and feet away from rotating parts.
READ THE OPERATOR'S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before
attempting to assemble and operate.
EYE PROTECTION
Always wear safety glasses or safety goggles when operating this machine.

6
Your Responsibility-Restrict the use of this power machine to persons who read,
understand and follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!
DANGER -THROWN DEBRIS
Remove objects that can be thrown by the machine in any direction.
Wear safety glasses.
DANGER-SLOPES
Use extra caution on slopes. Do not trim on slopes greater than 15°.
WARNING-GASOLINE IS FLAMMABLE
Allow the engine to cool at least two minutes before refueling.
WARNING-CARBON MONOXIDE
Never run an engine indoors or in a poorly ventilated area. Engine
exhaust contains carbon monoxide, an odorless and deadly gas.
WARNING-HOT SURFACE
Engine parts, especially the muffler, become extremely hot during
operation. Allow engine and muffler to cool before touching.

USE THIS SLOPE GAUGE TO DETERMINE IFA SLOPE IS TOO STEEP FOR SAFE
OPERATION!
To check the slope, proceed as follows:
1. Remove this page and fold along the dashed line.
2. Locate a vertical object on or behind the slope (e. g. a pole, building, fence, tree, etc.)
3. Align either side of the slope gauge with the object (See Figure 1 and Figure 2).
4. Adjust gauge up or down until the left corner touches the slope (See Figure 1 and Figure 2).
5. If there is a gap below the gauge, the slope is too steep for safe operation (See Figure 2
above).
Slopes are a major factor related to tip-over and roll-over accidents which can result in severe
injury or death.
Do not operate machine on slopes in excess of 15 degrees. All slopes require extra caution.
Always mow across the face of slopes, never up and down slopes.
Assembly & Set-Up
Thank You
Thank you for purchasing this product. It was carefully engineered to provide excellent
performance when properly operated and maintained.
Please read this entire manual prior to operating the equipment. It instructs you how to safely
and easily set up, operate and maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the recommended safety practices at all
times. Failure to do so could result in personal injury or property damage.
All information in this manual is relative to the most recent product information available at the
time of printing. Review this manual frequently to familiarize yourself with the machine, its
features and operation. Please be aware that this Operator's Manual may cover a range of
product specifications for various models. Characteristics and features discussed and/or
illustrated in this manual may not be applicable to all models. We reserve the right to change
product specifications, designs and equipment without notice and without incurring obligation.
If you have any problems or questions concerning the machine, phone an authorized service
dealer or contact us directly. Customer Support telephone numbers, website address and
mailing address can be found on this page. We want to ensure your complete satisfaction at all
times.
Throughout this manual, all references to right and left side of the machine are observed from
the operating position The engine manufacturer is responsible for all engine-related issues with
regards to performance, power-rating, specifications, warranty and service. Please refer to the
engine manufacturer's Owner's/Operator's Manual, packed separately with your machine, for
more information.
Contents of Carton
1. String Trimmer (1)
2. Pack of Trimmer Line (1)
3. Oil (1)
4. String Trimmer Operator's Manual (1)
5. Engine Operator's Manual (1)
7

Assembly
NOTE: This string trimmer is shipped without gasoline or oil in the engine. Fill up the gasoline
and oil as instructed in the Engine Operator's Manual BEFORE operating your machine.
Fix the handrail fixing rod:
1. Use B (hex flange bolt M8 * 40) to pass through
the fixing hole of A (handrail fixing rod).
2. Use C (Non-metallic insert flange lock nut M8)
to fix A to the string trimmer cover.
3. The other side is fixed in the
same way.
Assemble wheels:
1. Insert B (axle) into A (string trimmer cover).
2. Insert the axle C (φ16 wave elastic washer), D (axle bushing), E (wheel), F (φ14 flat washer)
in order, and then use G (2.5 * 45 B pin) to fix them on the axle.
3. The other side is fixed in the same way.
8

Assemble the lower cover
Use 4pcs A (half round head square neck bolt M6 * 20) and 4pcs D (non-metallic insert flange
nut M6) to fix C (bottom cover) on B (string trimmer cover).
Upper Handle
1. Remove the wing knob (a) and carriage bolt (b) from the left lower handle and the right lower
handle. See Figure 2-1.
2. Pivot the upper handle into the operating position. See Figure 2-1.
3. Move the upper handle into one of three positions by pivoting it forward or rearward.
Secure the upper handle to the lower handle using the wing knobs (a) and carriage bolts (b)
removed in Step 1. See Figure 2-2.
NOTE: Make sure to use the corresponding hole on the left side as on the right side of the
upper handle.
9

Starter Rope
1. Disconnect the spark plug boot from the spark
plug (refer to the Engine Operator's Manual).
2. Pivot the control handle against the upper
handle and pull the rope out of the engine.
3. Loop the rope through the eye bolt.
See Figure 2-3.
4. Tighten the eye bolt to the handle
using the lock nut. DO NOT overtighten.
Set-Up
Gas and Oil Fill-Up
Refer to the Engine Operator's Manual for additional engine information.
1. Add oil provided before starting unit for the first time.
2. Service the engine with gasoline as instructed in the Engine Operator's Manual.
Use extreme care when handling gasoline. Gasoline is extremely flammable and the vapors
are explosive. Never fuel the machine indoors or while the engine is hot or running. Extinguish
cigarettes, cigars, pipes and any other sources of ignition.
Controls and Operation
10

Controls
Recoil Starter
The recoil starter is attached to the right side of the upper handle. Stand behind the unit and
pull the recoil starter rope to start the unit.
Trimmer Deflector
The trimmer deflector is connected to the trimmer base and it is used to prevent debris from
being thrown.
Control Lever
The control lever must be depressed to start the engine and rotation of trimmer spindle
assembly. Releasing the control lever stops the engine and trimmer spindle assembly.
This control lever is a safety device. Never attempt to bypass its operations.
Spindle
The spindle rotates the trimmer line.
Trimmer Line
The trimmer line is attached to the spindle assembly and it is used to trim grass, vegetation,
undergrowth and weeds.
Flywheel Screen
Keep the flywheel screen free of grass clippings and debris at all times.
Engine Controls
See the Engine Operator's Manual for the location and function of the controls on the engine.
Operation
Adjusting the Spindle Height
The spindle height can be adjusted for various
applications. To do so, proceed as follows:
1. Loosen the wing nut found on each side of
the spindle shaft.
NOTE: The wing nuts are designed so that
they cannot be removed from the spindle
shaft.
2. Slide the spindle upward or downward to
the desired position before retightening
the wing nuts. See Figure3-2.
Starting and Stopping Engine
Refer to the Engine Operator's Manual packed with your string trimmer for instructions on
starting and stopping the engine.
Using Your String Trimmer
Be sure trimming area is clear of stones, sticks, wire, or other objects which could damage the
string trimmer or engine. Such objects could be accidently thrown by the trimmer in any
direction and cause serious personal injury to the operator and others.
11

The operation of any string trimmer can result in foreign objects being thrown into the eyes,
which can damage your eyes severely. Always wear safety glasses while operating the string
trimmer, or while performing any adjustments or repairs on it.
The string trimmer is designed with the spindle offset to the left side, allowing the operator to
trim along a fence, landscaping, or a house to his or her's right side without having to make any
adjustments to the machine.
Operate the string trimmer at a slower walking speed when trimming tall, thick weeds or grass.
Clean the underside of the trimmer after each use to remove any debris build up.
Shut the engine off and wait until the trimmer head comes to a complete stop before cleaning
the discharge area. The trimmer head continues to rotate for a few seconds after the trimmer
head control is released.
Do not trim on excessively steep slopes. If a slope is difficult to stand on, do not trim. Do not
trim on slopes when the ground is slippery or wet. Trim across the face of a slope, not up and
down.
While operating the string trimmer, do not allow the spindle to contact a concrete, asphalt, or
gravel surface. Doing so will result in premature wear.
Changing the Trimmer Line
To ease in removing worn trimmer line, change
the trimmer line before it becomes too short
(i. e. approximately half its original length).
1. Remove the worn trimmer line from the
spindle.
2. Fold the replacement trimmer line in half
and insert both ends through the loop
near the edge of the spindle.
3. Pull the ends of the trimmer line through
the loop until the line is securely beneath
the metal tab.
4. Cross the line ends and pull each tightly
to secure the trimmer line in place.
See Figure 3-3.
Service
Maintenance
General Recommendations
Always observe safety rules when performing any maintenance.
The warranty on this string trimmer does not cover items that have been subjected to operator
abuse or negligence. To receive full value from warranty, operator must maintain the string
trimmer as instructed here.
Changing of engine-governed speed will void engine warranty.
All adjustments should be checked at least once each season.
Periodically check all fasteners and make sure these are tight.
Always stop engine, allow engine to cool, disconnect spark plug, and ground against engine
before performing any type of maintenance on your machine.
12

Lubrication
1. Lubricate pivot points on the control lever at
least once a season with light oil. This control
must operate freely in both directions.
See Figure 4-1.
2. Lubricate the wheels at least once a season
with light oil (or motor oil). If wheels are
removed for any reason, lubricate surface
of the axle bolt and inner surface of the
wheel with light oil. See Figure 4-1.
3. Follow the Engine Operator's Manual for
lubrication schedule and instruction for
engine lubrication.
Deck Care
Clean underside of the machine after each use to prevent build-up of grass clippings or other
debris.
1. Allow engine to run until it is out of fuel. Do not attempt to pour fuel from the engine.
Disconnect spark plug wire.
2. Tip trimmer so that it rests on its side. Keep the side with the air cleaner facing up. Hold
trimmer firmly.
Never tip the trimmer more than 900 in any direction and do not leave the trimmer tipped for
any length of time. Oil can drain into the upper part of the engine causing a starting problem.
3. Scrape and clean the underside of the machine with a suitable tool. Do not spray with water.
IMPORTANT: Do not use a pressure washer or garden hose to clean the machine. These
may cause damage to the engine. The use of water will result in shortened life and reduce
serviceability.
4. Put the trimmer back on its wheels on the ground
Engine Care
A list of key engine maintenance jobs required for good performance by the trimmer is given
below.
Follow the accompanying engine manual for a detailed list and instructions.
Maintain oil level as instructed in Engine Operator's Manual.
Service air cleaner every 25 hours under normal conditions. Clean every few hours under
extremely dusty conditions. Poor engine performance and flooding usually indicates that the air
cleaner should be serviced. To service the air cleaner, refer to the Engine Operator's Manual.
Clean spark plug and reset the gap once a season. Spark plug replacement is recommended
at the start of each mowing season. Check Engine Operator's Manual for correct plug type and
gap specifications.
Clean engine regularly with a cloth or brush.
Keep the top of the engine clean to permit proper air circulation. Remove all grass, dirt and
debris from muffler area.
Engines stored between 30 and 90 days need to be treated with a gasoline stabilizer to prevent
deterioration and gum from forming in fuel system or on essential carburetor parts.
13

0ff-Season Storage
Take the following steps to prepare your trimmer for storage. Refer to Engine Operator's
Manual for specific engine storage instructions.
Clean and lubricate trimmer.
Store trimmer in a dry, clean area. Do not store next to corrosive materials, such as fertilizer.
Using a light oil or silicone, coat the equipment, especially cables and all moving parts of your
string trimmer.
Trouble Shooting
14
Problem
Engine fails to start.
Engine runs erratic.
Engine overheats.
Occasional skips
(hesitates) at high
speed.
Idles poorly.
Excessive vibration.
Poor trimming
performance.
Cause
1. Control lever disengaged.
2. Spark plug boot disconnected.
3. Fuel tank empty or stale fuel.
4. Engine not primed (if
equipped with primer).
5. Faulty spark plug.6. Blocked
fuel line.
7. Engine flooded.
8. Fuel valve (if equipped)
closed.
9. Engine not choked (if
equipped with choke).
1. Spark plug boot loose.
2. Blocked fuel line or stale fuel.
3. Vent in gas cap plugged.
4. Water or dirt in fuel system.
5. Dirty air cleaner.
6. Unit running with CHOKE
(if equipped) applied.
1. Engine oil level low.
2. Air flow restricted.
1. Spark plug gap too close.
1. Spark plug fouled, faulty, or
gap too wide.
2. Dirty air cleaner.
1. Spindle wing nuts loose.
2. Spindle damaged.
1. Trimmer line too short or worn.
2. Worn or damaged spindle belt.
Remedy
1. Engage control lever.
2. Connect wire to spark boot.
3. Fill tank with clean, fresh gasoline.
4. Prime engine as instructed in the
Operation section.
5. Clean, adjust gap, or replace.
6. Clean fuel line.
7. Wait a few minutes to restart, but do not prime.
8. Open fuel valve. See Engine Operator's
Manual.
9. Choke engine. See Engine Operator's
Manual.
1. Connect and tighten spark plug boot.
2. Clean fuel line; fill tank with clean, fresh
gasoline.
3. Clear vent.
4. Drain fuel tank. Refill with fresh fuel.
5. Refer to Engine Operator's Manual.
6. Push CHOKE knob in.
1. Fill crankcase with proper oil.
2. Clean area around and on top of engine.
1. Adjust gap to.030".
1. Reset gap to.030"or replace spark plug.
2. Refer to Engine Operator's Manual.
1. Tighten wing nuts.
2. See an authorized service dealer.
1. Replace trimmer line.
2. Replace spindle belt.

Parts Breakdown
15

16
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Description
Throttle Cable（119cm*132cm）
Slotted horn bolts (M6 lead screw length 33)
R145 engine
Hex flange bolt (M8x50)
Top cover fixings
Top cover
Fixed shaft sleeve of tensioner bracket
Inner shaft sleeve of tensioner
Armrest fixing rod bushing
Tensioner
Inner shaft assembly
Hex flange bolt M8 * 40
Axle bushing
Flat washer (14)
Wave elastic washer (16)
Non-metallic insert hex flange lock nut M8
Spring mount
Non-metallic insert hex flange lock nut M6
Deep groove ball bearing
Butterfly nut (M8)
Circlip for hole - type A (40)
Large washer (8)
Bottom cover assembly
Half round head square neck bolt (m8x25)
Trimmer blade
Q’ty
1
1
1
1
1
1
1
2
2
1
1
5
2
2
2
12
1
7
1
2
1
3
1
4
1
Part No.
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Description
Hex head bolt full thread (M6 * 16)
V-belt
Fixed cover
Trimmer line（3*3）
Outer shaft bracket
Standard type elastic washer (8)
Deep groove ball bearing（6204）
Spring
Belt fixing plate
Fixed shaft sleeve of tensioner bracket
Driving wheel assembly
Tailgate
Wheel
B pin 2.5*45
Half round head square neck bolt（M6*20）
Hex flange bolt（M8*20）
Axle
Tensioner bracket
String trimmer cover
Handrail fixing rod
Hex flange bolt（M8*25）
Type I M8 thumbscrew
Type I M6 thumbscrew
Handrail assembly
Throttle handle
Q’ty
3
1
1
2
1
2
2
1
1
1
1
1
2
2
4
10
1
1
1
2
2
2
1
1
1

Size: 145x210mm REV 02/14/20157克铜版纸
Great Circle USA
Support Line: 1-866-493-0524
[email protected]
www.greatcircleus.com
