Super Vac 724WT User manual

1
VentilatorUserGuide-724WT.doc Last printed 9/23/2002 12:48 PM
VENTILATOR USER GUIDE MODEL 724WT

2
VentilatorUserGuide-724WT.doc REV. 09/23/02
This manual covers the description, cautions, operation and maintenance of the Super Vac Hydraulic Positive Pressure Ventilator
Model 724WT
Please take the time to read this manual before operating the ventilator.
Save this guide for future reference.
CONTENTS
1. BREAKAGE OR DAMAGE DURING SHIPMENT.........................................................................................................................................................3
2. GENERAL DESCRIPTION AND SPECIFICATIONS.....................................................................................................................................................4
3. PRODUCT SAFETY PRECAUTIONS...........................................................................................................................................................................5
4. BEFORE OPERATING VENTILATOR ........................................................................................................................................................................5
5. OPERATION ...........................................................................................................................................................................................................6
6. PARTS LIST.............................................................................................................................................................................................................8
7. EXPLODED VIEW DRAWING...................................................................................................................................................................................9
8. WARRANTY ..........................................................................................................................................................................................................10
9. CONTACT INFORMATION ....................................................................................................................................................................................11

3
VentilatorUserGuide-724WT.doc Last printed 9/23/2002 12:48 PM
1. Breakage or Damage During Shipment
The transportation company is fully responsible for all shipping damage and will resolve problems
promptly if you handle it correctly. Please read these instructions carefully.
Examine the contents of all shipping cases. If you find any damage, call your transportation agent at once
and have them make a description on the freight or express bill describing the damage and the number of
pieces. Then write us and we will send you the original bill of lading. Get a claim blank from the express
or truck company. Fill the claim form out. Attach the claim blank to the original bill of lading together
with a copy of our invoice. Attach a memo on which you show the value of the damaged goods. Mail or
hand these papers to your local transportation agent. They will process your claim with reasonable
promptness.
Please note, we cannot and will not enter claims for damages. If we filed claim here, it would be sent to
your local freight agent for verification and investigation. This time can be saved by your filing the claim
directly. Every consignee is on the ground floor and in contact with the local agent who inspects the
damaged goods, and thus, each claim can be given individual attention.
Since our goods are packed to comply with the regulations of all railroad, truck, and express companies,
we cannot allow deduction from any invoice because of any damage, however, be sure to file your claim
promptly. Our goods are sold F.O.B. factory. We take receipt from the transportation company certifying
that the goods were delivered to them in good order, and our responsibility ceases.
It is seldom that any breakage or damage occurs in any of our shipments, and in no case will the customer
be out any expense if they follow the above instructions.
Be sure to keep all damaged goods subject to examination of the truck or express company inspector, who
may call on you some time later. These damaged goods, of course, will belong to them, and they will
inform you what to do with them. If you dispose of these damaged goods, your claim may not be paid.

4
VentilatorUserGuide-724WT.doc REV. 09/23/02
2. General Description and Specifications
Super Vac ventilators are specifically designed to provide a convenient and portable source of air. Super
Vac positive pressure ventilators are tested to AMCA PPV Standard 240-95, for use in extreme conditions.
Specifications1
Model# Engine HP Height x Width x Depth Weight (lbs.)
724WT POK 12 21” X 28” X 27.5” 110
1 Specifications are subject to change without notification. Refer to model decal affixed to
ventilator to determine actual specifications.
This ventilator is designed for high powered air movement. Super Vac’s propeller produces a greater
intake of air and eliminates turbulence at the tips. Each blade is statically balanced for high efficiency and
long life.
This document is designed to function as a quick start guide and not an in-depth comprehensive
instructional manual. Please read all accompanying documents shipped with your ventilator. Due to the
many features of powered equipment thorough familiarity with the operating controls is essential to assure
safe and trouble free operation.

5
VentilatorUserGuide-724WT.doc Last printed 9/23/2002 12:48 PM
3. Product Safety Precautions
ØDo not use the ventilator for purposes other than its’ intended use.
ØWear eye and ear protection when operating the ventilator.
ØNever operate ventilator while fatigued.
ØDo not disassemble or modify the ventilator in any way. Doing so may lead to mechanical failure or
personal injury.
ØDo not wear loose clothing that could become entangled in the operating ventilator.
ØNever permit anyone to operate ventilator without proper instruction.
ØDo not operate ventilator without proper inlet or outlet guards in place. If guards are missing or
damaged, contact factory for replacements.
ØDo not place fingers or other foreign objects through inlet or outlet guards. Should a foreign object
enter the ventilator, immediately stop engine. Be certain all mechanical motion has stopped.
ØDo not place or operate ventilator on unsteady tables, slanted surfaces or other unstable surfaces.
ØDo not use chock blocks to increase the angle of the ventilator, severe injury could occur.
4. Before Operating Ventilator
§A complete inspection of the ventilator should be made prior to operation.
§Check all threaded fasteners for proper tightness.
§Inspect inlet and outlet guards for damage or missing pieces. Replace damaged or missing guards
before operating ventilator.

6
VentilatorUserGuide-724WT.doc REV. 09/23/02
5. Operation
Check ventilator inlet and outlet guards for obstructions.
Check and remove from immediate surrounding area any
objects that could be drawn into the ventilator intake.
Place ventilator in desired location before starting.
The two graphs allow you to establish with precision the best
utilization of the apparatus.
Graph 1 depicts rotational speed and water consumption
depending on input feed pressure.

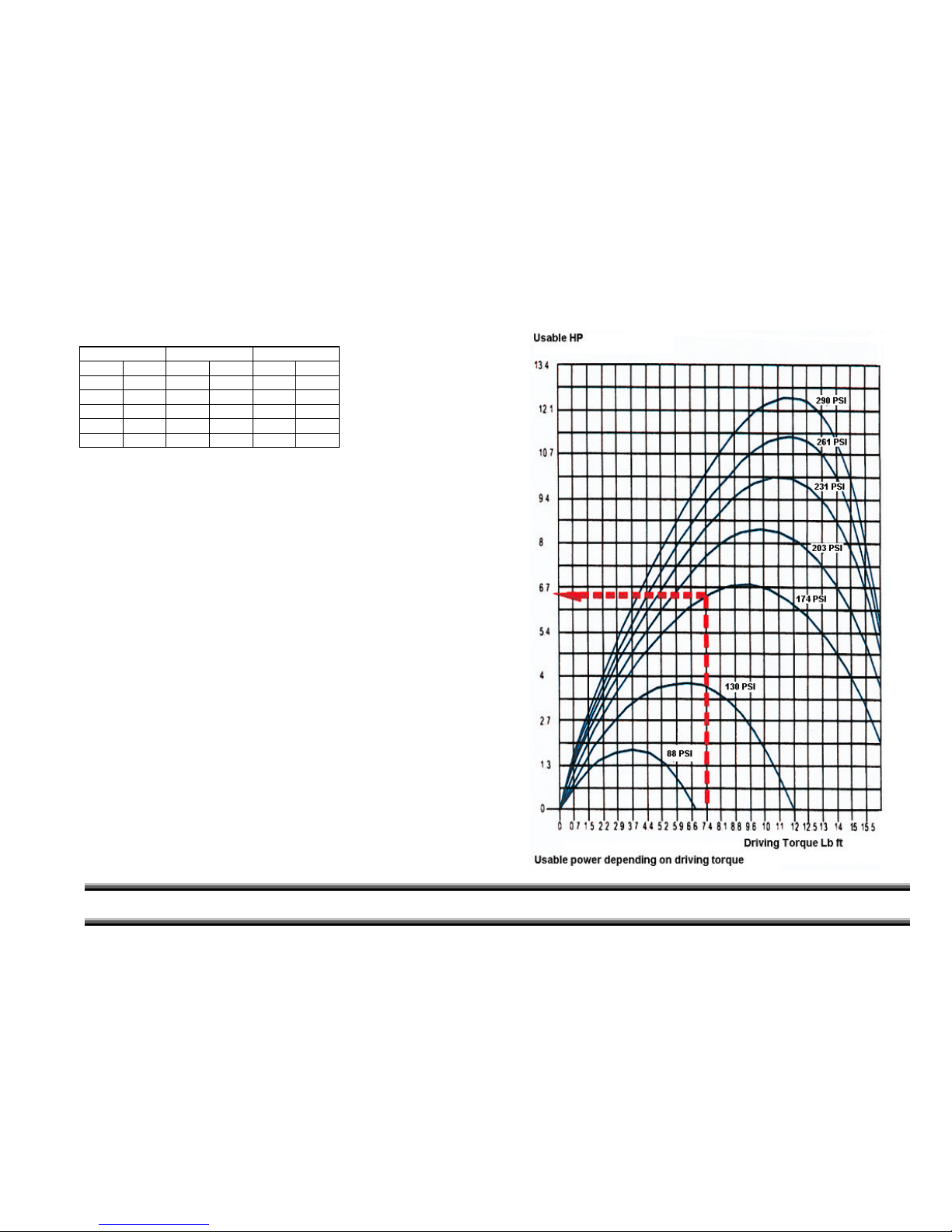

Graph 2 depicts the usable horsepower depending on the
driving torque.
Example: If the inlet pressure of the water supplied to the
motor is 174 psi, and the resisting torque of the driven
machine is 7.4 lb/ft, the rotational speed is 4560 rpm, water
consumption is 117 gpm (graph 1) and the usable power is
6.5 HP (graph 2)

7
VentilatorUserGuide-724WT.doc Last printed 9/23/2002 12:48 PM
Inlet Pressure Water Flow Air Flow
BAR PSI GPM LPM CFM CMH
3.3 50 55 208 5168 8781
6.7 100 78 295 10112 17179
10.0 150 98 371 16178 27487
13.3 200 110 416 19100 32450
16.7 250 130 492 22470 38177
The maximum feed pressure is 300 psi (20 bar).

8
VentilatorUserGuide-724WT.doc REV. 09/23/02
6. Parts List
MODEL
HP BLADE DEPTH X WIDTH X HEIGHT
724WT 12 24” X 7 21” X 28” X 27.5”
ITEM
PART
NUMBER
QTY DESCRIPTION ITEM
PART
NUMBER
QTY DESCRIPTION
1012-10282 1GUARD 724 24" FRONT-PAINTED
2032-15540 810-24 X 1/2 PHIL PH MS W/TEFLON PATCH BL
3003-10050 1BLADE 24" 7 BLADE GAS FINISHED
4018-10402 1SHROUD 24" W/GUARD-PAINTED
5032-10779 45/16 -24 X 1 1/4" HEX CS ZINC
6032-10787 45/16” LOCK WASHER ZINC
7018-15014 1MOUNT, MOTOR, WATER TURBINE
8032-14565 23/8-16 X 4 1/2" SOCKET BUTTON HEAD ZINC
9032-11133 23/8-16 NYLOK HEX NUT ZINC
10 018-10408 1TUBE FRAME 24" PAINTED
11 024-13473 2FEET RUBBER CONE SHAPE VBM-4002
12 032-13052 25/16-24 NYLOK HEX NUT ZINC
13 008-10189 4PLUG FINISHING SQ RIBBED, BLACK 1"
14 008-13373 2WHEEL PNEUMATIC DW414 3" HUB
15 032-14565 23/8-16 X 4 1/2" SOCKET BUTTON HEAD ZINC
16 005-10136 4BUSHING REDUCER 3/4” X 1/2”
17 032-11133 23/8-16 NYLOK HEX NUT ZINC
18 008-14631 1724, BRAKE BAR, FINISHED
19 008-14622 1VENTILATOR BRAKE MOUNT 1
20 008-14623 2VENTILATOR BRAKE MOUNT 2
21 019-16020 2SUPPORT, SHROUD, 724
22 032-14563 23/8-16X1-3/4 SKT BUTTON HEAD SCREW ZN
23 032-11133 23/8-16 NYLOK HEX NUT ZINC
24 032-11129 23/8 FLAT WASHERS SAE
25 019-10456 1724 1/4” X 1” X 12 3/4” TILT LEVER
26 008-10211 1STOCK CAP 3TG .250” X 1.0” X 4" OAL
27 024-13284 2SPRING SADDLE ISC #0198 W.DBL GRIND
28 032-11133 23/8-16 NYLOK HEX NUT ZINC
29 019-10461 1HANDLE PAINTED 724
30 032-14568 23/8-16 X 2 3/4 SKTHEAD BOLT ZINC
31 032-11129 23/8 FLAT WASHERS SAE
32 032-11133 23/8-16 NYLOK HEX NUT ZINC
33 008-14536 2SPRING DUAL SNAP BUTTON ZINC PLATED
34 021-10501 1MOTOR, POK, WATER TURBINE, 12HP, 1.5 NST
35 025-13368 1DECAL 724WT YELLOW SAFETY
36 025-13367 1DECAL 724WT SER# GREY
37 025-15255 2DECAL SUPERVAC RED LETTER W/WHITE BACK
38 025-13404 2DECAL -INFLATE TIRES 10-15 PSI MAX

9
VentilatorUserGuide-724WT.doc REV 09/23/02
7. Exploded View Drawing

10
VentilatorUserGuide-724WT.doc REV. 09/23/02
8. Warranty
Limited Warranty
Five Years
Super Vacuum Manufacturing Company warrants that the equipment is free from defects in materials and workmanship
when used and operated for a period of five years. The responsibility of Super Vacuum Manufacturing Company under this
limited warranty is limited to the repair and replacement of any parts which are found defective and which are returned to
Super Vacuum Manufacturing Company at 3842 Redman Dr, Fort Collins, CO 80524 with transportation charges
prepaid (C.O.D. shipments will not be accepted).
Prior to returning defective parts to SUPER VACUUM MANUFACTURING COMPANY, the original purchaser shall make a
claim in writing to SUPER VACUUM MANUFACTURING COMPANY at the above address indicating the model number and
type of defect. No parts or equipment will be received by SUPER VACUUM MANUFACTURING COMPANY for repair or
replacement under this warranty without specific written authority from it in advance.
Any parts damaged by improper installation, overloading, abuse or accident of any type or cause are not covered by this
warranty.
All equipment manufactured by us is pre-run and tested before leaving our plant, and is shipped in good working order and
condition. We therefore extend to the original purchasers the following Limited Warranty for the period of five years from the
original date of purchase:
1. This warranty does not apply to defects caused by accident, misuse, neglect, or wear and tear, nor can we be held
responsible for incidental and consequential expense and loss, nor does this warranty apply to equipment where
alterations have been executed without our knowledge or consent. These conditions are readily discernable when
the equipment is returned to us for inspection.
2. On all component parts not manufactured by SUPER VACUUM MANUFACTURING COMPANY, their warranty is to
the extent that the manufacturer of such component warrants them to SUPER VACUUM MANUFACTURING
COMPANY, if at all. Look in your local business phone directory for the nearest repair station for the brand of
parts you have or write to us for the address.
3. If equipment received is found to have been damaged in transit, a claim should be made against the carrier
within three days, as we assume no responsibility for such damage.
4. Any service other than our Authorized Service voids this warranty.
5. This warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral or written,
including any warranties of MERCHANTIBILITY or FITNESS for a particular purpose.

11
VentilatorUserGuide-724WT.doc REV 09/23/02
9. Contact Information
For parts or service information, contact:
Super Vacuum Manufacturing Company, Inc.
3842 Redman Dr
Fort Collins, CO 80524
Phone: [phone]
970-297-7100
FAX: [phone]
Internet: www.supervac.com
